INFRARED HEATER MANUAL
WARNING
Read all instructions carefully before setting up and operating this unit.
This manual is designed to provide you with important information needed to set up, operate, and
maintain your radiant heater.
Failure to follow these instructions may damage and/or impair the heater’s operation and void the
warranty.

Outdoor Electric Heater Manual
1. SAFETY PRECAUTIONS
This appliance is not intended for use by persons (including children) with
reduced physical sensory or mental capabilities, or lack of experience and
knowledge unless they have been given supervision or instruction concerning the
use of the appliance by a person responsible for their safety. Children should be
supervised while using this appliance.
WARNING: In order to avoid overheating, do not cover the heater.
1. If the power supply cord is damaged, it must be replaced by the
manufacturer, a licensed electrician, or similarly qualified persons in order to
avoid a hazard.
2. The heater must not be located immediately below a power outlet.
3. Do not share the same power outlet with other appliances, to avoid current
overload. Ensure the plug and socket make good contact.
4. Power off the outlet before removing the power plug. Hold the moulded
section of the plug, don’t pull on the wire.
5. Turn off the power immediately if the heater stops working or if the power
cable is damaged.
6. The heater must be installed higher than 2.2 meters above the ground.
7. The radiant heater surface cannot be covered. Do not hang any objects on the
heater.
8. The distance between the back/top of the radiant heater and the roof should
be greater than 150mm. Do not place objects within 1000mm in front of the
radiant heater, or within 200mm from each side.
9. DO NOT install the heater within 2.5m of a body of water, including but not
limited to, a swimming pool, spa or bath.
10. Turn the power off and wait till the surface cools before cleaning. Do not
wash with water. Use a damp cloth to wipe.
11. End users cannot repair the heater. Please contact an authorised service
agent for maintenance and repairs.
12. Do not install and use radiant heaters in areas close to flammable or
explosive materials.
13. Please do not insert any metal or foreign objects inside the radiant heater.
14. The radiant heater panel surface temperature can reach between 50℃
and 386℃.Do not touch the unit when it is hot.
15. Do not splash water into the radiant heater.
1

Outdoor Electric Heater Manual
2. FOREWORD
Thank you for your trust and support in choosing this Infrared Heater, please read the instructions
carefully before operating the product.
3. INFRARED HEATER THEORY
Far-infrared radiant heaters are produced using unique design and manufacturing techniques.
Using a specially coated aluminium panel, the heat generated by the heating element is transferred
radiantly to people and objects with maximum efficiency.
Infrared heating will not lead to air movement, making the air cleaner, as dust and particles are not
disturbed and circulated. Traditional convection heating relies on air movement to distribute the heat.
4. PRODUCT PERFORMANCE FEATURES
Comfortable:
The use of this product does not generate any wind or odour.
Energy-saving:
High heat generation and excellent heat distribution, resulting in less energy consumption than
traditional heating methods.
Reliable:
Premium quality components and unique production techniques make this heater reliable and long
lasting even in semi-outdoor conditions.
2

Outdoor Electric Heater Manual
5. WORKING CONDITIONS
Ambient temperature: -30℃~ +40℃
Rated Voltage: 220-240V~
Rated frequency: 50Hz/60Hz
Relative humidity: less than 95%
6. INSTALLATION REQUIREMENTS
1. Qualified installer:
The installation must be carried out by a licensed electrician.
2. Installation conditions:
(1) Supply voltage fluctuation range should be within ± 10%. If the supply voltage does not meet these
conditions, please rectify before installation.
(2) If there is a possible safety risk in the electrical environment, the installation should be refused, until
a licensed electrician has inspected and tested the electrical circuit.
(3) Electrical circuits should be equipped with earth leakage protection devices and a master switch.
(4) Ground wire should be connected to grounding circuit on the building by a licensed electrician.
Model No.
Power(W)
Rated Current(A)
Voltage(V)
Cable length(mm)
JH-NR10-13W
1000
4.3
220-240
2000
JH-NR18-13W
1800
7.8
220-240
2000
JH-NR24-13W
2400
10.4
220-240
2000
JH-NR32-13W
3200
13.9
220-240
500
3

Outdoor Electric Heater Manual

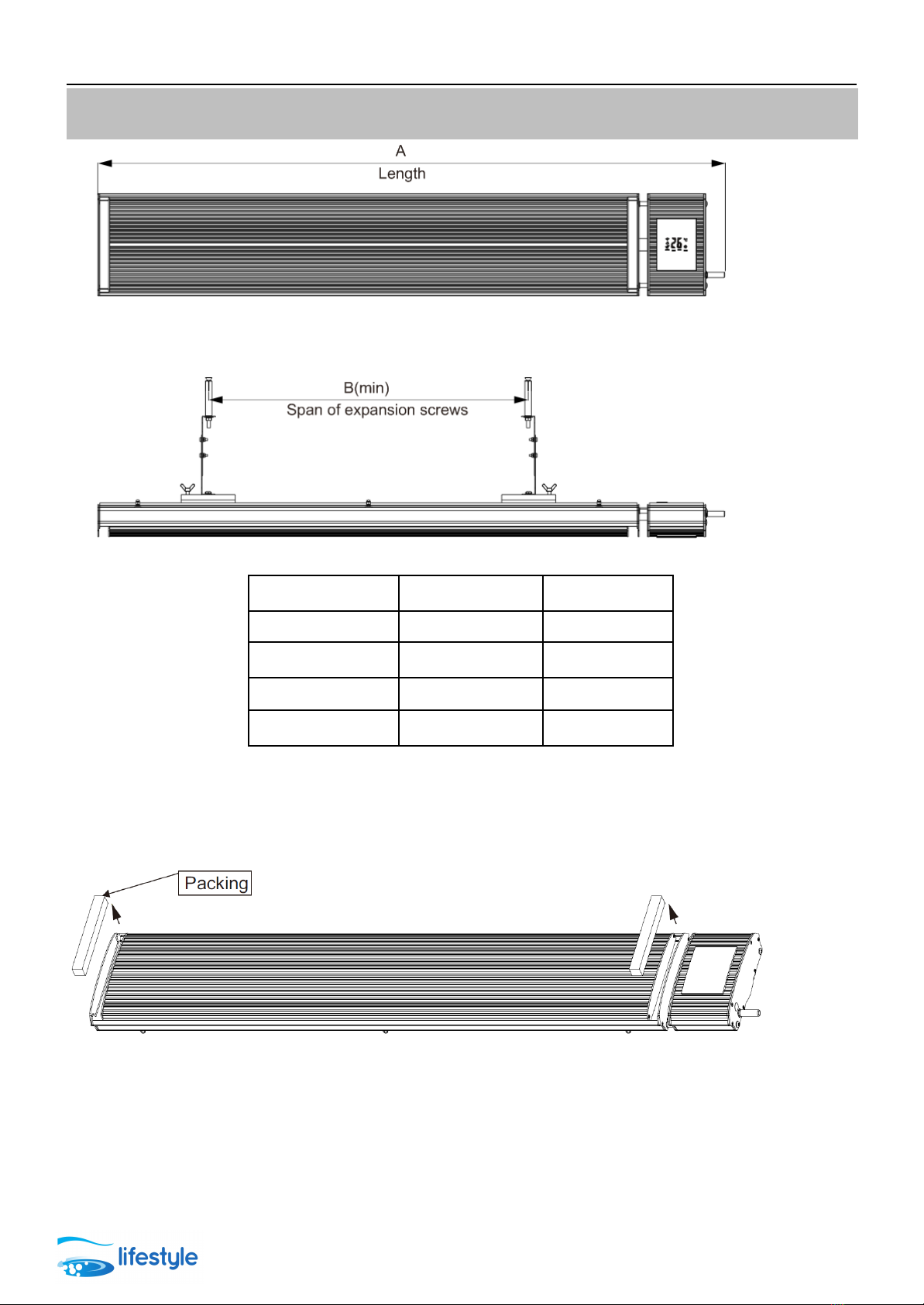

7. INSTALLATION INSTRUCTION
Model No.
Dimension A
Dimension B
JH-NR10-13W
755mm
200mm
JH-NR18-13W
1155mm
700mm
JH-NR24-13W
1655mm
1200mm
JH-NR32-13W
2155mm
1700mm
Step 1：Remove packing strip from both ends of heater.
4

Outdoor Electric Heater Manual
Step 2：Connect adjusting bracket to sliding bracket.
Step 3：Install sliding bracket & heater, as arrow points.
Step 4：Fix adjusting bracket into the wall using expansion screws.
Step 5：Install the two adjusting brackets; make sure to secure the brackets by tightening the wingnut
(butterfly hand screw.)
5

Outdoor Electric Heater Manual
8. INSTALLATION DIAGRAM
6

Outdoor Electric Heater Manual

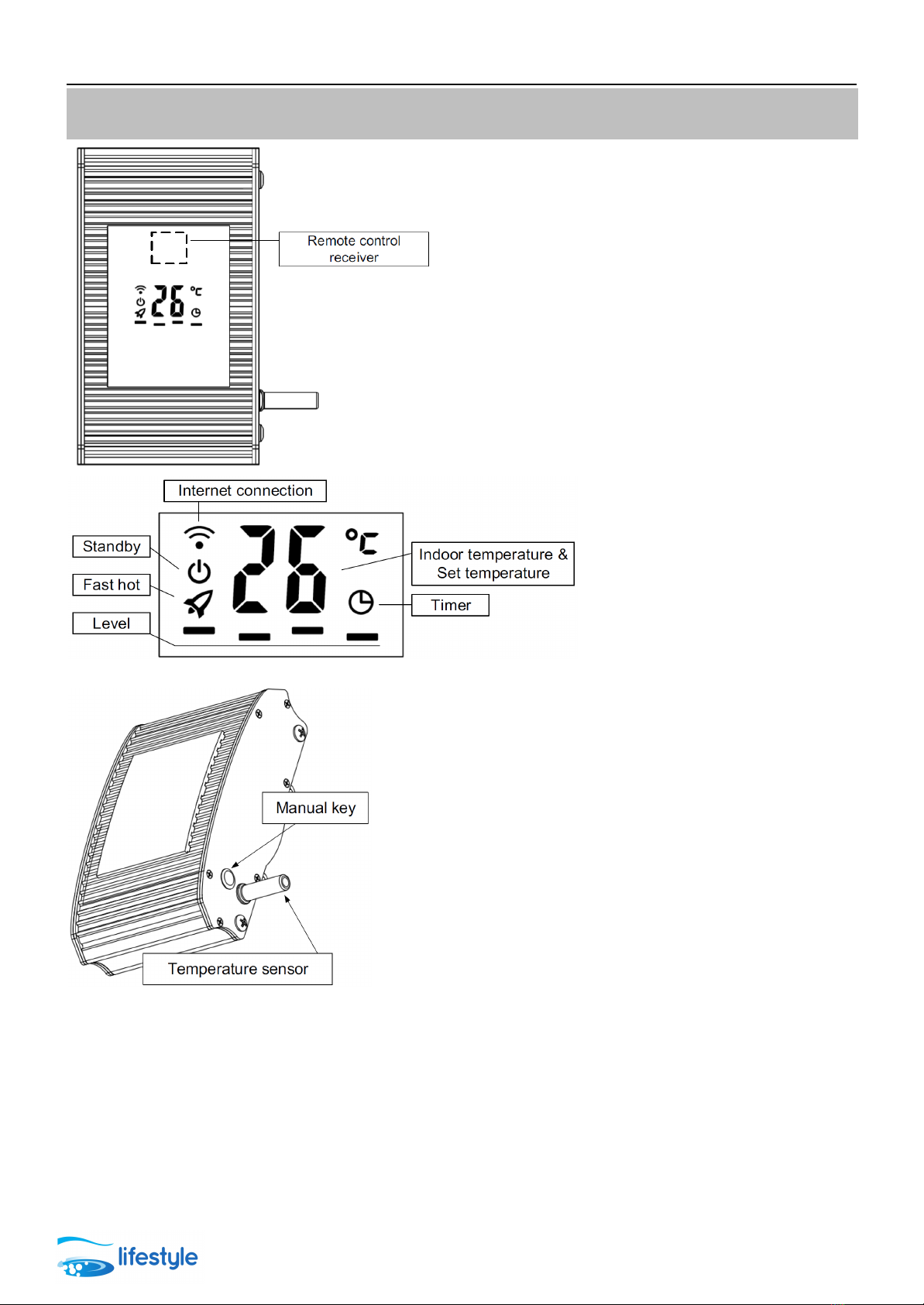

9. DISPLAY INTERFACE
Manual Key
Press Manual Key button to turn the heater on or off, and set the heating level.
Hold the Manual Key for 5+ seconds to pair the Wi-Fi network if applicable (details in chapter 11).
Indoor temperature sensor (Senses the current ambient temperature)
7

Outdoor Electric Heater Manual
10. MANUAL FOR REMOTE CONTROLLER
Remote appearance Remote LED display
1. ON/OFF button
Press ON/OFF button to turn the heater on or off.
8

Outdoor Electric Heater Manual
2. Clock button
Remote is powered on (as shown in picture 2-1 below), present time is 00:00. Follow steps below to set
the time.
1. Press clock button, the hours will flash (as shown in picture 2-2), press up or down button to
change hour setting.
2. Press clock button, the minutes will flash (as shown in pictures 2-3), press up or down button to
adjust.
3. Press clock button, the seconds will flash (as shown in picture 2-4), press up or down button to
adjust.
4. Press clock button again, the seconds will stop flashing and the time setting is complete.
Pic2-1 Pic2-2 Pic2-3 Pic2-4
3. Heat button
Press level button to adjust the power when the heater is on (as shown in picture 3-1).
Pic3-1
4. Fast heat button
Press fast heat button to enable/disable the fast heat function.
Fast heat function allows the heater run at full power for a certain time for rapid heating.
Pic4-1
9

Outdoor Electric Heater Manual

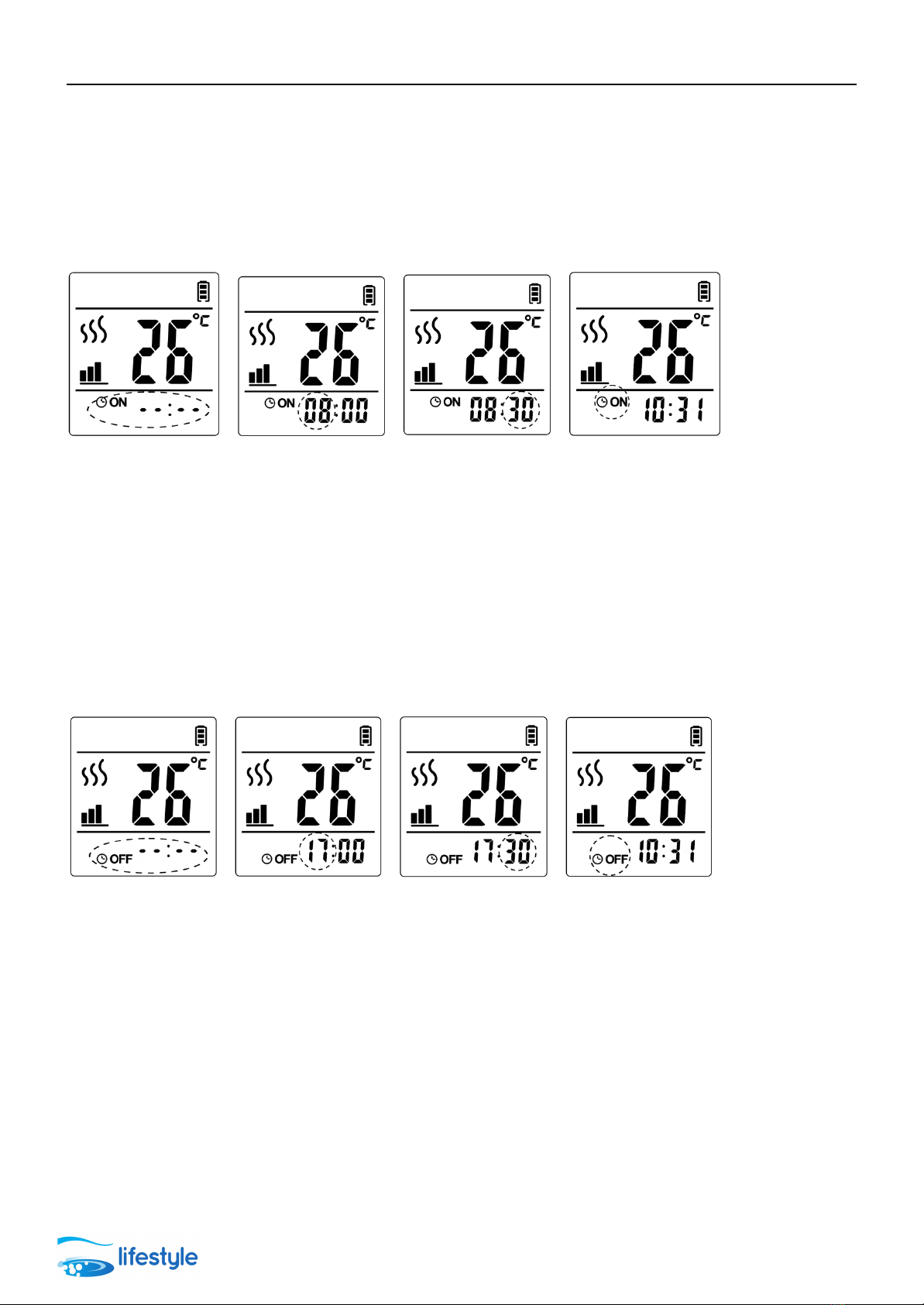

5. Timer on button
1. Press timer on button, it will show ON--:--(as shown in picture 5-1).
2. Press up or down to change hour (as shown in picture 5-2).
3. Press timer on button again, hours will stop flashing and minutes begin to flash.
4. Press up or down to change minutes (as shown in picture 5-3).
5. Press timer on button again. Timer on setting is completed. The display will show the present
time (10:31 as shown in picture 5-4).
Pic5-1 Pic5-2 Pic5-3 Pic5-4
6.Timer off function
1. Press timer off button, it will show off--:--(as shown in picture 6-1).
2. Press up or down to adjust hours (as shown in picture 6-2).
3. Press timer off button again, hours will stop flashing and minutes begin to flash.
4. Press up or down to adjust minutes (as shown in picture 6-3).
5. Press timer off button again. Timer off function setting is complete. The display will show the
present time (10:31 as shown in picture 6-4).
Pic6-1 Pic6-2 Pic6-3 Pic6-4
10

Outdoor Electric Heater Manual
11. CONNECT TO WIFI NETWORK

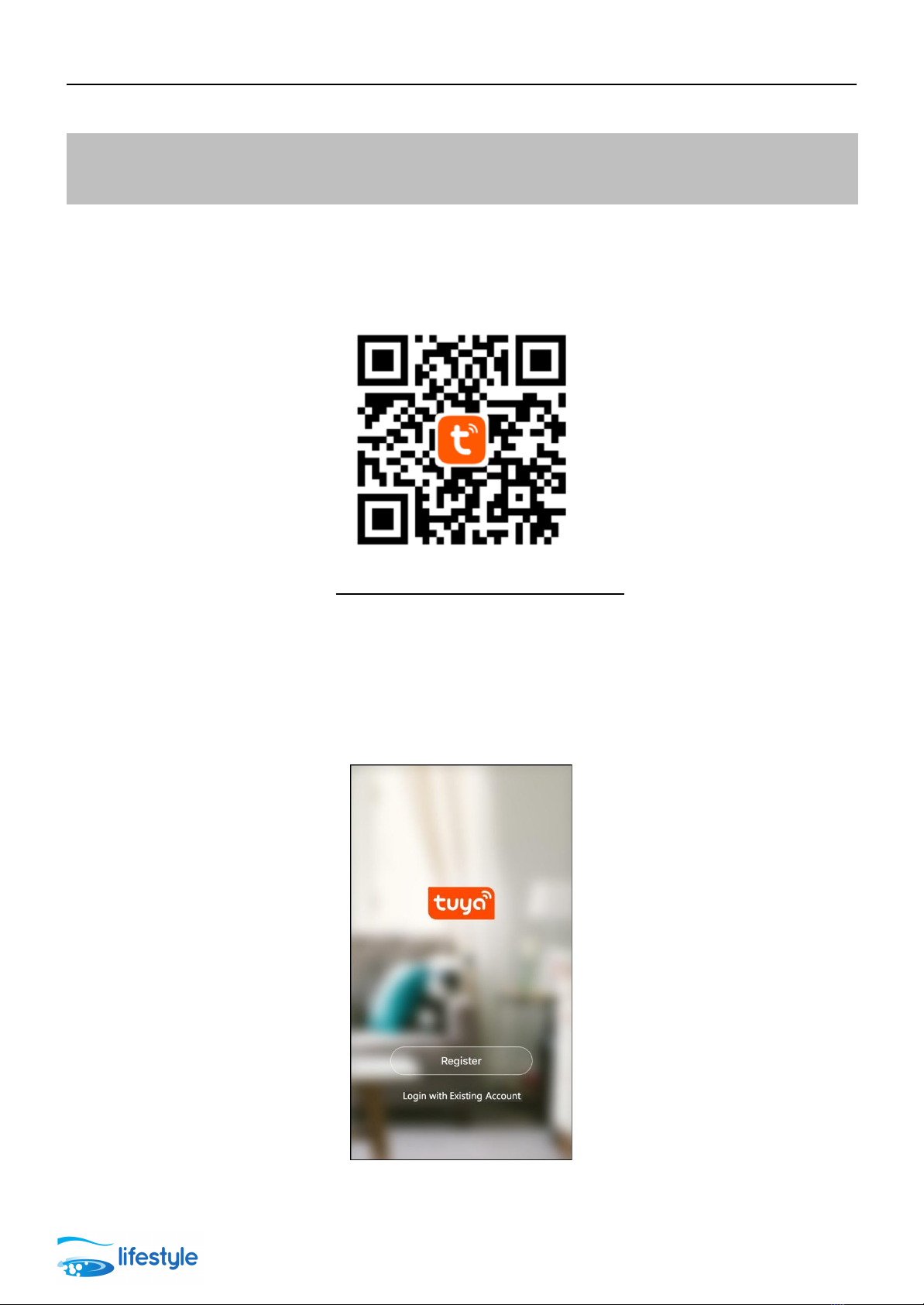

1. Download Tuya Smart App
Download Tuya Smart App from your smartphone (Google Play Store / App Store / AppGallery, etc.) or
by scanning the following code.
Or download Tuya Smart App from https://smartapp.tuya.com/tuyasmart
2. Register / Log in
Register an account via mobile number or email address. Log in with existing account if an account has
already been set.
11

Outdoor Electric Heater Manual
3. Home management
1. Click “Start your smart life” to “Add family”
2. Manually set a family name at “Add family”. Set location at the map interface and change the location
by coordinate point.
3. Click “Add Room” to add another room. By click “Done” to finish the room setting. And click “…” to
proceed room management as needed.
Click “Home Management” to add family. One account can simultaneously control several families by
selecting available devices at the family management page.
12

Outdoor Electric Heater Manual

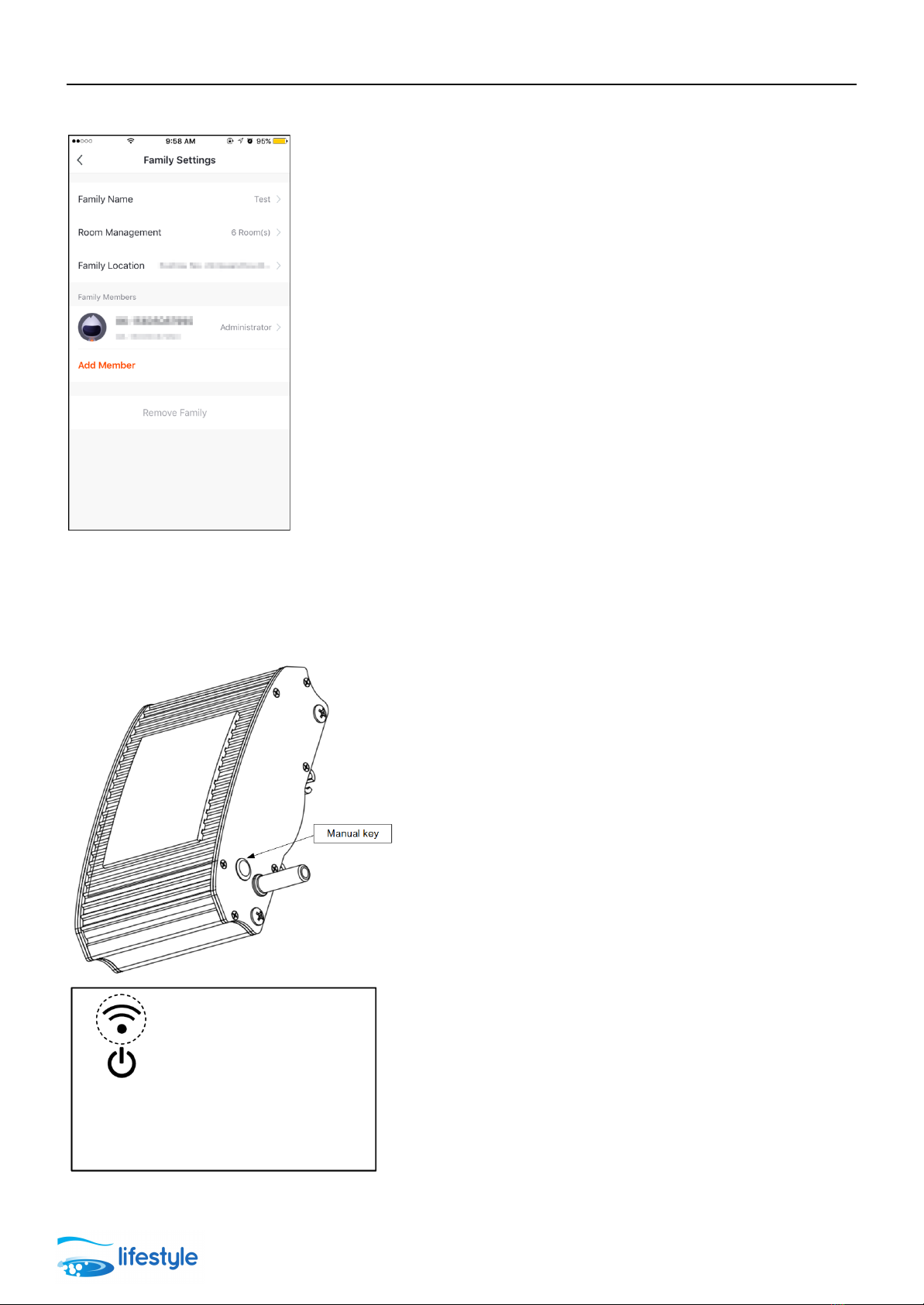

Click a family name to get into the “Family Settings” page and change the name, location and members
as needed.
4. Add Devices
Hold Manual Key for 8 seconds after power on, till heater beeps and the Wi-Fi icon flashes (twice per
second).
13

Outdoor Electric Heater Manual

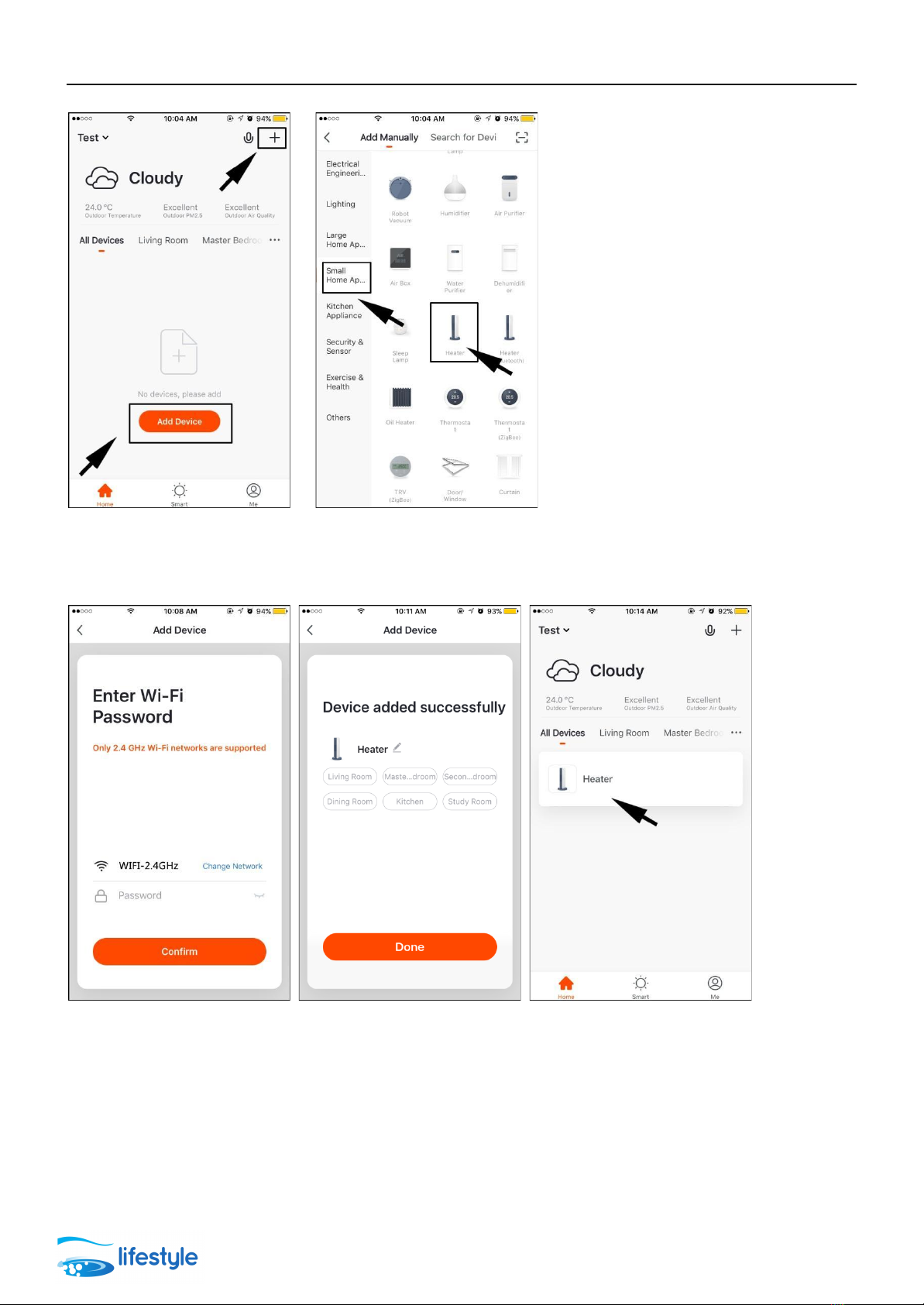

Click “add device” or “+” on the screen, find “Small Home Appliance”—“Heater”
Press “Confirm indicator rapidly blink” and select a Wi-Fi signal nearby and enter Wi-Fi password to
confirm the connection. Once the device added successfully, press “Done” to finish this procedure.
If failed, you need to re-add or search for help.
5. Using App to control heater
Once it’s connected, you can use the App to control the heater.
14

Outdoor Electric Heater Manual
15

Outdoor Electric Heater Manual
Switch : Turn on / off heater.
Mode : Set Auto / Manual mode.
Auto mode: set temperature.
Manual mode: Set temperature at 40℃(Unchangeable).
Level : Change heating levels.
Level_1 : Heating at 25% power.
Level_2 : Heating at 50% power.
Level_3 : Heating at 75% power.
Level_4 : Heating at 100% power.
Fast Heat : Turn on / off fast heat mode.
Timer : Set times for the heater to come on or off.
WIFI signal strength : Shows the Wi-Fi signal strength. (100% is the best)
Note:
(1) All the above illustrations are shown on the Apple iOS system. There may be a slight difference on
the Android system.
(2) All the illustrations are for reference only.
16

Outdoor Electric Heater Manual
12. INSPECTION ITEMS AFTER INSTALLATION
Items to be checked
Possible result of incorrect installation
Is physical mounting / installation secure?
The equipment may fall off mounting or be
loose.
Is the placement of the heater correct (refer
section 1 - safety precautions for required
clearances).
Damage to objects close to equipment or risk
of fire.
Does input power voltage match voltage
shown on product nameplate?
Equipment failure.
Are the input wires connected correctly?
Equipment failure.
Is the ground wire connected correctly?
Electricity leakage risk.
13. ATTENTION
Due to thermal expansion and contraction, the heater will generate some noise when turning on or off
and heating. It’s a part of normal operation.
14. INSPECTION ITEMS FOR COMMISSIONING
1. Do not connect power until installation is complete.
2. Ensure all electrical wire connections are correct and secure.
3. Ensure all scattered objects and packing materials are removed from radiant heater body.
4. Connect power and check heater is operating correctly.
15. PACKING LIST
No.
Name
QTY
1
Heater
1 pc
2
Remote controller
1 pc
3
Adjusting bracket
1 set
4
Fastener
1 set
5
Sliding bracket
1 set
17

Outdoor Electric Heater Manual
16. SPECIFICATIONS
Model No.
Dimension(mm)
Package
size(mm)
Net
weight(kg)
Gross
weight(kg)
JH-NR10-13W
755*189*67
820*250*150
4.4
5.5
JH-NR18-13W
1155*189*67
1220*250*150
6.9
8.1
JH-NR24-13W
1655*189*67
1720*250*150
9.5
11.3
JH-NR32-13W
2155*189*67
2220*250*150
12.3
14.3
