LIFESTYLER DT 900 User manual

®
Model No. 831.288141
F__)< _- F_ (Z: |.S E_
E(_U I PM ENT
o o
HELPLINE!
1-800-736-6879
CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
A UAL
SEARS, ROEBUCK AND CO. HOFFMAN ESTATES, IL 60179

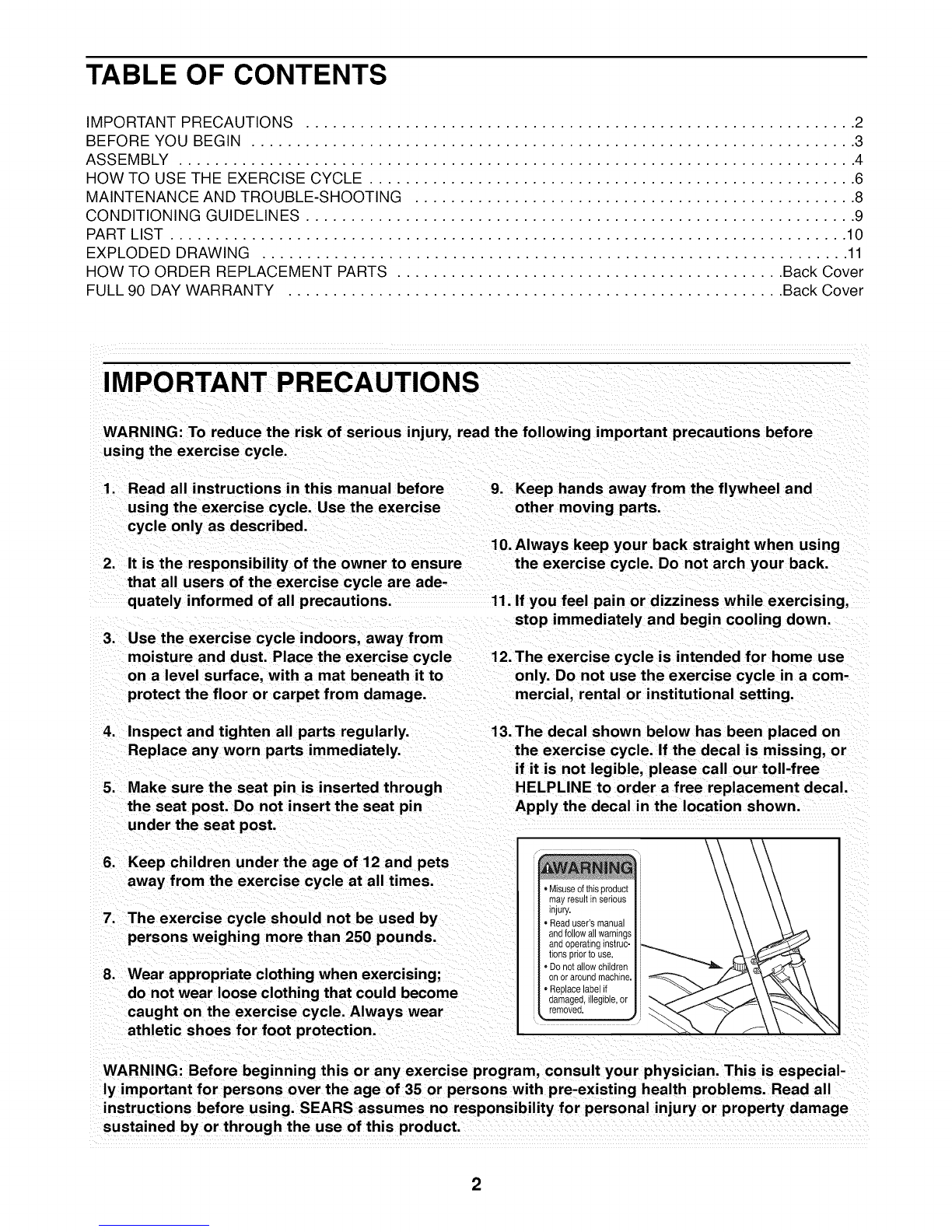

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ............................................................. 2
BEFORE YOU BEGIN ................................................................... 3
ASSEMBLY ........................................................................... 4
HOW TO USE THE EXERCISE CYCLE ...................................................... 6
MAINTENANCE AND TROUBLE-SHOOTING ................................................. 8
CONDITIONING GUIDELINES ............................................................. 9
PART LIST ........................................................................... 10
EXPLODED DRAWING ................................................................. 11

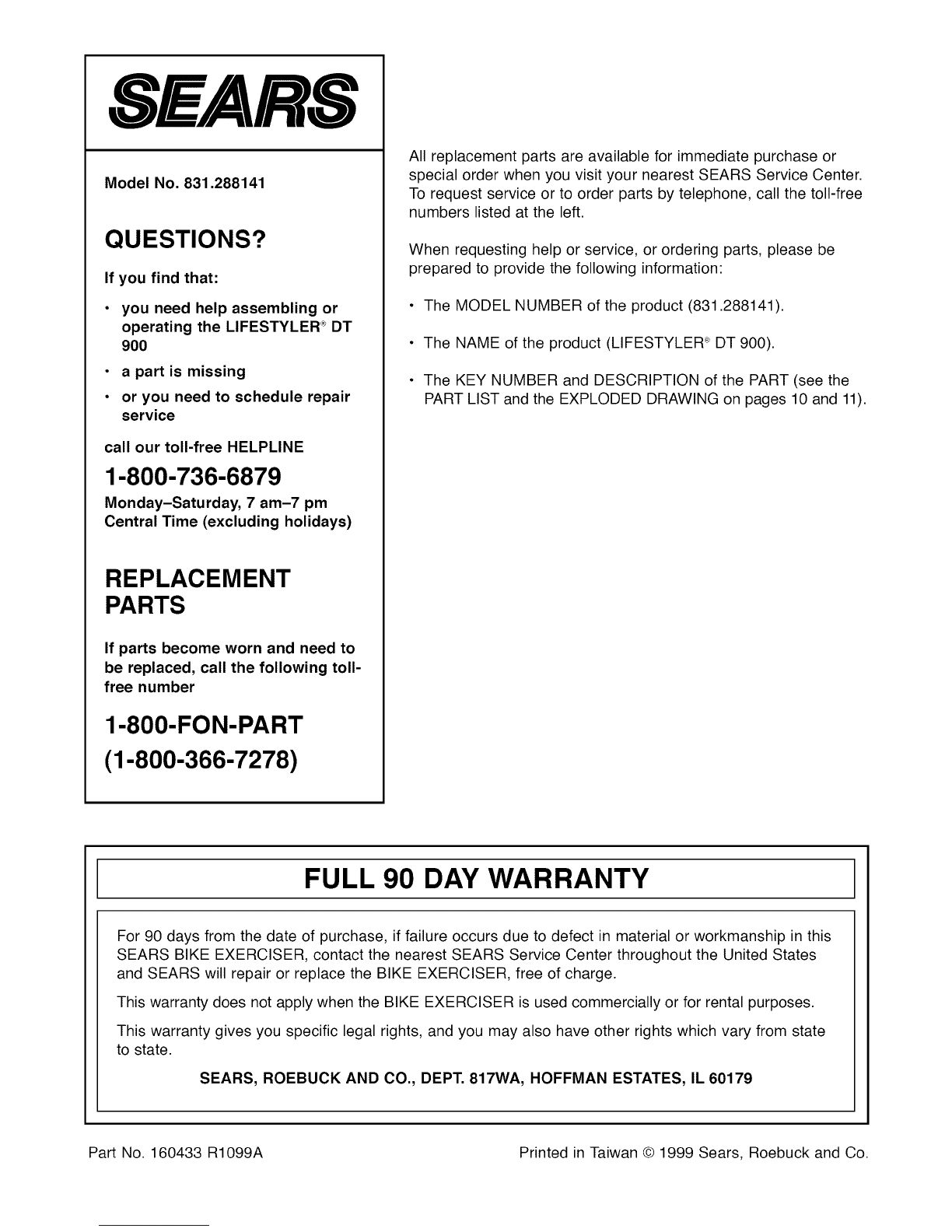

HOW TO ORDER REPLACEMENT PARTS ........................................... Back Cover
FULL 90 DAY WARRANTY ....................................................... Back Cover
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the exercise cycle.
1. Read all instructions in this manual before 9. Keep hands away from the flywheel and
using the exercise cycle. Use the exercise other moving parts.
cycle only as described. 10. Always keep your back straight when using
2. It is the responsibility of the owner to ensure the exercise cycle. Do not arch your back.
that all users of the exercise cycle are ade-
quately informed of all precautions. 11. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
3. Use the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle 12.The exercise cycle is intended for home use
on a level surface, with a mat beneath it to only. Do not use the exercise cycle in a corn-
protect the floor or carpet from damage, mercial, rental or institutional setting.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Make sure the seat pin is inserted through
the seat post. Do not insert the seat pin
under the seat post.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. The exercise cycle should not be used by
persons weighing more than 250 pounds.
8. Wear appropriate clothing when exercising;
do not wear loose clothing that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
13. The decal shown below has been placed on
the exercise cycle. If the decal is missing, or
if it is not legible, please call our toll-free
HELPLINE to order a free replacement decal.
Apply the decal in the location shown.
, Misuse of thisbroduct
may result in serious
InJuB/.
Readuser'smanua
and follow all warnings
anaoperatingInstruc-
lIOnSDrier to use.
Do not allow children
on orarounemacnlne,
Reelace label if
aamagea,illeglele,or
removea,
WARNING: Before beginning this or any exercise program, consult your physician. This is especial-
ly important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. SEARS assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
2

BEFORE YOU BEGIN
Thank you for selecting the new LIFESTYLER _"DT
900. The LIFESTYLER ®DT 900 provides you with a
low-impact workout in the convenience and privacy of
your own home.
For your benefit, read this manual carefully before
you use the LIFESTYLER _DT 900. If you have
questions after reading the manual, please call our
toll-free HELPLINE at 1-800-736-6879, Monday
through Saturday, 7 a.m. until 7 p.m. Central Time
(excluding holidays). To help us assist you, please
mention the product model number when calling. The
model number is 831.288141.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebars
Seat
Seat Pin
Seat Post
Resistance Knob
Console
Pedal
Flywheel
BACK Shield
FRONT
RIGHT SIDE
3

ASSEMBLY
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed. Assembly requires a phillips screwdriver
and an adjustable wrench (not included).
,
,
,
Refer to the inset drawing. Remove the indicated
plastic cap from the Frame (1). Discard the cap.
Next, slide the bracket on the Rear Stabilizer (2)
into the Frame (1). Attach the Rear Stabilizer with
four Stabilizer Screws (32).
Align the Front Stabilizer (5) with the saddle bracket
on the front of the Frame (1). Make sure that the
Front Stabilizer is turned so the square holes
are facing away from the saddle bracket. Attach
the Front Stabilizer with two Stabilizer Carriage
Bolts (18), two Curved Washers (14), and two
Stabilizer Nuts (30).
Refer to the inset drawing. Remove the indicated
plastic caps from the Frame (1). Discard the caps.
Next, slide the Left Handlebar (40) into the left side
of the Frame (1). Slide the Right Handlebar (41) into
the right side of the Frame.
Slide the Foam Grip (42) onto the Top Handlebar (3).
Push the ends of the Foam Grip towards the center
of the Top Handlebar so the ends of the Top
Handlebar are uncovered. Insert the Top Handlebar
into the Left and Right Handlebars (40, 41) and
attach it with two Handlebar Screws (33). Slide the
Foam Grip back so it covers the Handlebar Screws.
Align the holes in the Left and Right Handlebars
(40, 41) with the holes in the Frame (1). Attach the
Handlebars with four Handlebar Bolts (36), four
Handlebar Washers (38), and four Locknuts (37).
Make sure that the Locknuts are in the hexagonal
holes in the Frame.
Cap 32
2 \
14
30-
\
5
Square Holes- 18
I
4

.
,
,
The Console (7) requires two "AA" batteries (not
included). Alkaline batteries are recommended.
Refer to the inset drawing. Remove the battery door
from the back of the Console. Press two batteries
into the battery compartment. Make sure that the
negative ends of the batteries (marked "=") are
touching the springs in the battery compartment.
Re-attach the battery door.
Next, plug the console wire into the socket on the
back of the Console (7).
Slide the Console (7) onto the console plate. Note:
The Console attaches by friction; it does not snap
into place.
Attach the Seat (11) to the Seat Post (10) with three
Seat Nuts (9) and three Seat Washers (8). Note:
The Seat Nuts and Seat Washers may be pre-
attached to the underside of the Seat.
Insert the Seat Post (10) into the Frame (1). Press
the Frame Bushing (4) into the Frame. Note: The
Frame Bushing may be pre-assembled.
Next, align one of the holes in the Seat Post (10)
with the hole in the Frame (1). Insert the Seat Pin
(31) through the Frame and the Seat Post to select
the desired seat height. Make sure to insert the
Seat Pin through one of the holes in the Seat
Post; do not insert the Seat Pin under the Seat
Post. Tighten the Seat Pin into the Frame.
Identify the Right Pedal (22). (The Right Pedal is
marked with an "R.") Using an adjustable wrench,
tighten the Right Pedal clockwise into the right arm
of the Crank (20).
Tighten the Left Pedal (21) counterclockwise into
the left arm on the Crank (20).
\
22
Console
Wire
Plate
tt_er Batteries
Ba y Door
21
7. Make sure that all parts are properly tightened before you use the exercise cycle.
5

HOW TO USE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT
For effective exer-
cise, the seat
must be at the
proper height. As
you pedal, there
should be a slight
bend in your
knees when the
pedals are in the
lowest position. To
adjust the seat,
first hold the seat
and turn the seat
Seat
Post
Seat
Pin
pin counterclockwise to remove it. Next, align one of
the holes in the seat post with the hole in the frame.
Insert the seat pin through the frame and the seat
post to select the desired height. Make sure to insert
the seat pin through the seat post; do not insert
the seat pin under the seat post. Tighten the seat
pin into the frame.
HOW TO ADJUST THE PEDALING RESISTANCE
To vary the inten-
sity of your exer-
cise, the pedaling
resistance can be Knob_
adjusted. The
resistance is con-
trolled with the
resistance knob.
To increase the
resistance, turn
the resistance
knob clockwise; to decrease the resistance, turn the
knob counterclockwise.
LEVELING THE EXERCISE CYCLE
Your exercise
cycle features
adjustable end-
caps on the front
stabilizer. If the
exercise cycle
tends to rock
when in use,
adjust one or both
of the endcaps by
turning them until
the exercise cycle is stable.
Endcap
Stabilizer
BATTERY INSTALLATION
Before the console can be operated, two ""AA'"' bat-
teries must be installed. If you have not installed bat-
teries, see assembly step 4 on page 5.
DESCRIPTION OF THE CONSOLE
The console features five modes that provide instant
exercise feedback during your workouts. The modes
are described below.
TIME
sc . I1 --SPEED
--DISTANCE
---CALORIES
\
Display
Button
• Speed--Displays your pedaling speed, in miles per
hour.
• Time--Displays the elapsed time. Note: If you stop
pedaling for ten seconds or longer, the time mode
will pause until you resume.
• Distance--Displays the total distance you have ped-
aled, in miles.
• Calorie--Displays the approximate number of calo-
ries you have burned.
• Scan--Displays the speed, time, distance, and calo-
rie modes, for 5 seconds each, in a repeating cycle.
6

HOW TO OPERATE THE CONSOLE
Note: If there is a piece of clear plastic on the face of
the console, remove it before operating the console.
1. To turn on the power, press the console button or
simply begin pedaling. When the power is turned
on, the entire display will appear for two seconds.
The console will then be ready for operation.
2. Select one of the five modes:
Scan mode-- Mode Indicators
When the power
is turned on, the
scan mode will _A
automatically be
selected. One
mode indicator
will show that
the scan mode
is selected, and
a flashing mode indicator will show which mode is
currently displayed. Note: If a different mode is
selected, you can select the scan mode again by
repeatedly pressing the console button.
,
,
Speed, time, 1
I
distance or
calorie mode-- A
To select one of !
these modes for t
V
continuous dis-
play, press the
console button
repeatedly. The
mode indicators will show which mode is selected.
Make sure that the scan mode is not selected.
I
To reset the display, hold down the console button
for two seconds. After the display is reset, the scan
mode will be selected.
To turn off the power, simply wait for about four min-
utes. Note: The console has an "auto-off" fea-
ture. If the pedals are not moved and the con-
sole button is not pressed for four minutes, the
power will turn off automatically in order to con-
serve the batteries.
7

MAINTENANCE AND TROUBLE-SHOOTING
Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
The exercise cycle can be cleaned with a soft, damp
cloth. Avoid spilling liquid on the console. Keep the
console out of direct sunlight or the display may be
damaged. Remove the batteries when storing the
exercise cycle.
BATTERY REPLACEMENT
If the console does not function properly, the batteries
should be replaced. See assembly step 4 on page 5.
In addition, make sure that the console wire is
plugged into the console.
HOW TO TIGHTEN THE CRANK
If the arms of
the crank
become
loose, they
should be
tightened in
order to pre-
vent exces-
sive wear.
Loosen the
crank nut on
the left arm of
the crank.
Crank
Nut
Crank Arm
Slotted
Nut
Place the end of a standard screwdriver in one of the
slots in the slotted crank nut. Lightly tap the screw-
driver with a hammer to turn the slotted crank nut
counterclockwise until the arms are no longer loose.
Do not overtighten the slotted crank nut. When the
slotted crank nut is properly tightened, retighten the
crank nut.
HOW TO ADJUST THE RESISTANCE STRAP
If there is not enough pedaling resistance when the
resistance knob is turned to the highest setting, the
resistance strap may need to be adjusted. To adjust
the resistance
strap, first turn
the resistance
knob to the
lowest setting.
Next, locate
the slotted tab
on the front of
the exercise
cycle. Grip the
main part the
resistance
sotted
I//_¢__I_-r_\ _-,x_\ Re_bance
____,_trap
strap underneath the slotted tab and pull it towards
the slot. When a little slack is created, pull the end of
the resistance strap tight and then let go of the strap.
Turn the crank for a moment to make sure that there
is not too much resistance.
HOW TO ADJUST THE CHAIN
The exercise cycle features a chain that must be kept
properly adjusted. If the chain causes excessive noise
or slips as you pedal, the chain should be adjusted.
To tighten the
chain, loosen,
but do not
remove, the
axle nuts on
both sides of
the flywheel.
Pull the fly-
wheel slightly Nut
forwards.
Make sure that
the flywheel is
straight and tighten the axle nuts.
8

CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
cise program, consult your physician, This is
especially important for persons over the age
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
BPM HEART RATE TRAiNiNG ZONES
|
Age 20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
on the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers are your "training
zone." The lowest number is the recommended heart
rate for fat burning; the middle number is the heart
rate for maximum fat burning; the highest number is
the heart rate for aerobic exercise.
Burning Fat
To burn fat effectively, you must exercise at a rela-
tively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle num-
ber in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your J
heart rate, first I
exercise for at
least four minutes.
Then, stop exercis-
ing and place two
fingers on your
wrist as shown.
Take a six-second
heartbeat count,
and multiply the
result by 10 to find your heart rate. For example, if
your six-second heartbeat count is 14, your heart rate
is 140 beats per minute. (A six-second count is used
because your heart rate will drop rapidly when you
stop exercising.)
WORKOUT GUIDELINES
Each workout should include the following three
important parts:
A warm-up, consisting of 5 to 10 minutes of stretch-
ing and light exercise. A proper warm-up increases
your body temperature, heart rate, and circulation in
preparation for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise pro-
gram, do not keep your heart rate in your training
zone for longer than 20 minutes.)
9

A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Caution: Be sure to progress at your own
pace and avoid overdoing it. Incorrect or excessive
training may result in injury to your health.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.
PART LIST--Model No. 831.288141 R1099A
Key No. Qty. Description
1 1
2 1
3 1
4 1
5 1
6 2
7 1
8 3
9 3
10 1
11 1
12 2
13 2
14 2
15 6
16 1
17 1
18 2
19 1
20 1
21 1
22 1
Note: "#" refers to
of this manual for
Key No. Qty. Description
Frame 23 1 Chain
Rear Stabilizer 24 1 Resistance Cable/Knob
Top Handlebar 25 3 7/16" Flat Washer
Frame Bushing 26 1 Flywheel Axle
Front Stabilizer 27 4 3/8" Axle Nut
Stabilizer Endcap 28 1 Odometer
Console 29 2 Axle Nut
Seat Washer 30 2 Stabilizer Nut
Seat Nut 31 1 Seat Pin
Seat Post 32 4 Stabilizer Screw
Seat 33 2 Handlebar Screw
Side Shield 34 1 Resistance Spring
Bronze Bushing 35 1 Sprocket
Curved Washer 36 4 Handlebar Bolt
Side Shield Screw 37 4 Locknuts
Flywheel 38 4 Handlebar Washer
Resistance Strap 39 2 Round Endcap
Stabilizer Carriage Bolt 40 1 Left Handlebar
Crank Hardware Assembly 41 1 Right Handlebar
Crank 42 1 Foam Grip
Left Pedal # 1 User's Manual
Right Pedal # 1 Multipurpose Tool
a non-illustrated part. Specifications are subject to change without notice. See the back cover
information about ordering replacement parts.
10

EXPLODED DRAWING--Model No. 831.288141 R1099A
13
28
2_
27
29 7
39
\\
11
\
20
II
10
39
\
35
\
29\
\
31
19\\
27
32
26\
13 \
25
19
\\\
34
41
20 21
/
15\\
40
12
/
15
22
6\
30
18
6
11

Model No. 831.288141
QUESTIONS?
If you find that:
you need help assembling or
operating the LIFESTYLER °_DT
900
• a part is missing
•or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
Monday-Saturday, 7 am-7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need to
be replaced, call the following toll-
free number
1-800-FON-PART
(1-800-366-7278)
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center,
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be
prepared to provide the following information:
• The MODEL NUMBER of the product (831.288141).
• The NAME of the product (LIFESTYLER ®DT 900).
• The KEY NUMBER and DESCRIPTION of the PART (see the
PART LIST and the EXPLODED DRAWING on pages 10 and 11).
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS BIKE EXERCISER, contact the nearest SEARS Service Center throughout the United States
and SEARS will repair or replace the BIKE EXERCISER, free of charge.
This warranty does not apply when the BIKE EXERCISER is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
Part No. 160433 R1099A Printed in Taiwan © 1999 Sears, Roebuck and Co.
