Light Bright Wash 44 User manual

Wash 44

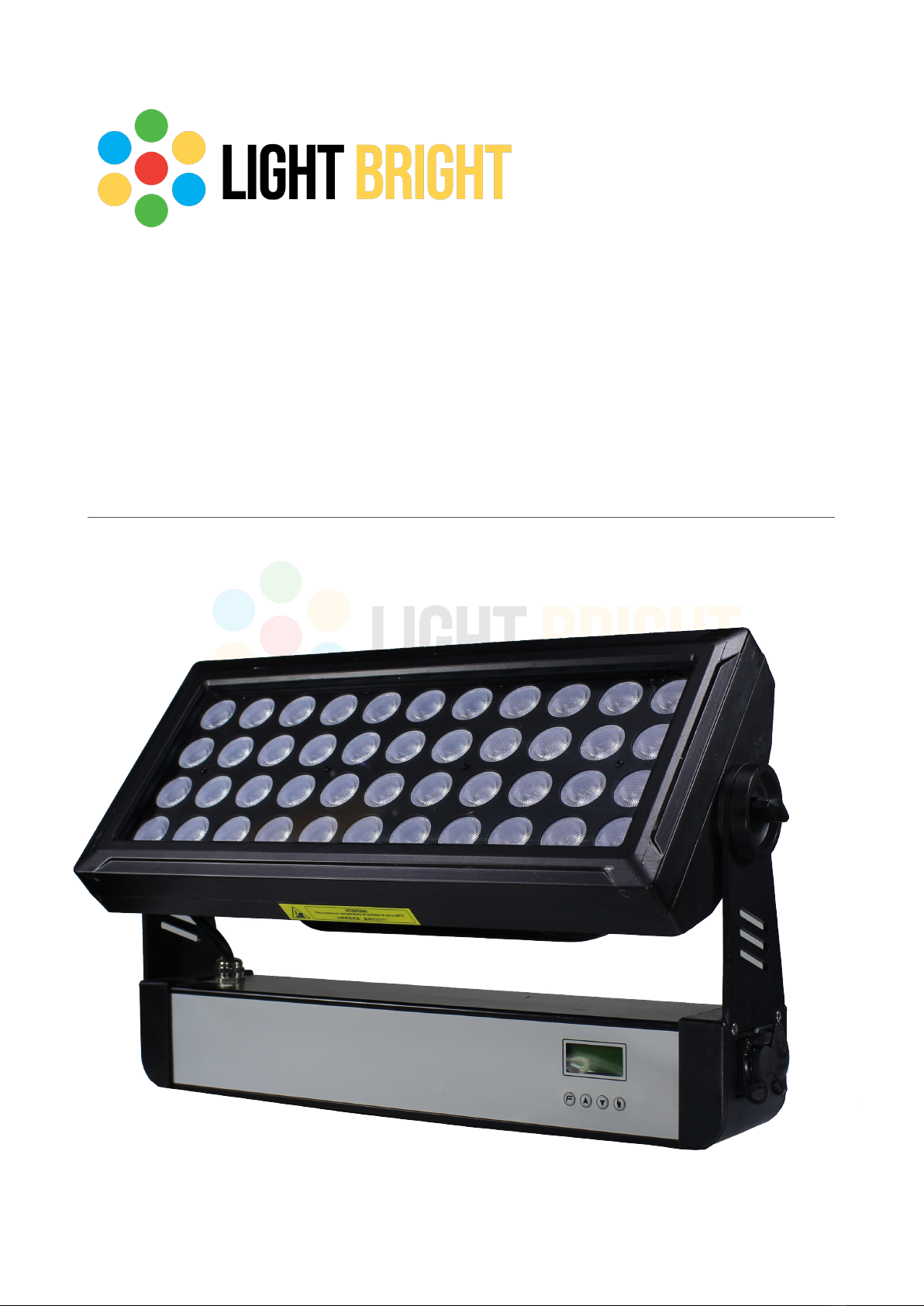

LED Floodlight
User Manual
V 1.0!

Light Bright
Wash 44
Contents
1. Introduction 3
2. Safety instructions 4
3. Unpacking the device 6
4. Installation 6
5. DMX-Connection 7
6. Mounting the device 8
7. Control Panel 9
8. Channel assignment 10
9. Photometric data 11
10. Service und cleaning 12
11. Information 13
2

Light Bright
Wash 44
1. Introduction
ATTENTION: For your own safety, please read these operating
instructions carefully before the first use.
This headlight has left our company in best condition. To maintain this condition and to
ensure safe operation, it is absolutely necessary to observe the following safety instructions
and warnings, which are described in this operating manual.
The manufacturer does not accept any liability for damage caused by not following these
operating instructions or unauthorized changes to the device.
Please note that damages caused by manual changes to this device are not covered by the
warranty.
ATTENTION: This device is for professional use only! Protection class IP
65 -Protected against penetration of dust and water jets.
Light Bright does not authorize the use of your equipment in life support
systems. Life Support Systems are systems whose purpose is to
maintain or stabilize life and whose defect or malfunction could result in
death or injury to persons.
3

Light Bright
Wash 44
2. Safety instructions
CAUTION: Disconnect the device from the power supply before opening
the device. Touching live parts (high voltage) can cause an electric
shock.
Make sure that the mains voltage to be connected is not higher than the voltage indicated on
the type plate. This device should only be operated with the power source specified on the
type plate.
If you are not sure what type of power supply you have, contact your dealer or your power
company.
Always disconnect the device from the power supply before carrying out cleaning work,
changing fuses or replacing parts.
The mains plug must always be accessible after installation of the spotlight. Do not overload
the sockets or extension cords under any circumstances, as this could lead to fire or electric
shock. Do not place any objects on the power cord. Do not install the spotlight in such a way
that people can trip over the power cord or step on it. Make sure that the power cord can
never be crushed or damaged by sharp edges. Check the unit and the power cord from time
to time.
Always leave maintenance work to a qualified technician.
ATTENTION: This light corresponds to protection class I. Therefore this
light must be connected to a mains socket with earthing contact.
Never connect this device to a dimmable power source.
Some smoke and odor may be produced during initial operation. This is a normal procedure
and does not necessarily mean that the unit is defective.
The device becomes hot during operation. Never touch the device with bare hands during
operation!
When replacing fuses, only use fuses of the same type with identical values. Have fuses
replaced only by a qualified technician.
4

Light Bright
Wash 44
ATTENTION: EYE DAMAGE! Do not look into the light source for a long
time during operation. This can be harmful to the eyes. Possibly
dangerous radiation.
If the device was exposed to strong temperature fluctuations (e.g. after transport), the device
must not be switched on immediately. The resulting condensation water can damage your
device. Leave the device switched off until it has reached room temperature.
Do not shake or bump the device. Avoid brute force during installation or operation.
This spotlight is designed for indoor use only. Do not expose this unit to rain or moisture.
When choosing the installation location, make sure that the device is not exposed to extreme
heat, humidity or dust.
Ventilation openings and slots in the head and foot of the spotlight are provided for
ventilation. To ensure reliable operation of the device and protect it from overheating, these
openings must not be covered.
Never cover the front lens when the headlight is in use.
The openings should never be covered with fabrics or other objects so that the airways are
blocked.
This unit must not be operated in an environment without adequate ventilation.
The device may only be operated when the housing is closed and all screws / omega snap
connectors are tightened.
The device must always be secured with an additional safety device.
Make sure that the area underneath the spotlight is clear during installation, conversion and
dismantling.
ATTENTION: The distance between the light emission and the
illuminated surface must be at least 1.0 meter.
The front lens must be replaced if it is visibly damaged so that its
function is impaired, e.g. by cracks or deep scratches!
To avoid damaging the internal parts of the lamp base, never let sunlight
shine directly into the front lens.
The maximum ambient temperature of 45°C must not be exceeded.
5

Light Bright
Wash 44
Do not operate the device until you have familiarized yourself with its functions. Prevent
operation by persons who are not qualified to use the device. Most damage is the result of
improper operation!
Please use the original packaging or specially adapted flight cases when transporting the
device.
3. Unpacking the device
Contents of the package: The headlight, a Powercon TrueoOne connection cable, a base
plate and Omega brackets for mounting.
Open the packaging carefully on the top side and check the headlight and accessories for
possible transport damages. These should be reported immediately to the transport
company.
4. Installation
The device comes with a ready made-up Powercon TrueOne connection cable. Please use
only the supplied cable or a cable of the same type assembled by a specialist. The
connection of the device to the power supply must also be carried out by an authorized
specialist.
Connection in Germany/Europe:
Connected loads: voltage 100-240 V, frequency 50 - 60 Hz, power max. 450 VA
The electrical safety as well as the function of the device is only guaranteed if it is connected
to a properly installed protective conductor system. It is very important that this basic safety
requirement is present. In case of doubt, have the electrical installation checked by a
specialist. The manufacturer cannot be held responsible for damage caused by a missing or
interrupted protective conductor (e.g. electric shock)! Only use the device in a completely
assembled state so that no electrical components can be touched. (danger 100-240 V)
If you have observed the listed points, you can plug in the devices or have them connected to
the mains by a specialist.
Conductor color
Function
Symbol
Brown
Phase
„L“
Blue
Neutral conductor
„N"
Yellow/green
Protective earth
„PE“ ⏚
6

Light Bright
Wash 44
ATTENTION: The spotlight may light up immediately if standalone
operation is activated or a DMX signal is applied!
5. DMX-Connection
The DMX cabling (signal lines) should be done with a 2-wire cable with shielding. We
recommend a DMX cable with 110 Ohm, 2x0,22mm2or 4x0,22mm2. The plugs and sockets
are 3-pin XLR-connectors, which can be purchased in specialized shops.
Pin assignment:
Pin1 = Ground / Shielding
Pin2 = DMX -
Pin3 = DMX +
The spotlight has a DMX-in and DMX-out connection. Now connect the DMX output of your
controller to the first spotlight (Controller DMX-Out -> Spotlight DMX-In). Then connect the
first spotlight with the second spotlight and so on. In some cases it is advisable to plug in a
so called end plug/end resistor (XLR plug with a resistor of 120 Ohm between pin 2 and pin
3). Whether or not an end plug is required depends on various factors, including the cable
lengths used and the number of units. However, as long as there are no problems in the DMX
line, it is not necessary.
7

Light Bright
Wash 44
6. Mounting the device
The spotlight can either be positioned or suspended from a truss system. Horizontal
mounting to the truss is also permitted.
If you place the unit on the floor, you may only operate the unit on a hard surface, as the air
inlets in the foot must remain free!

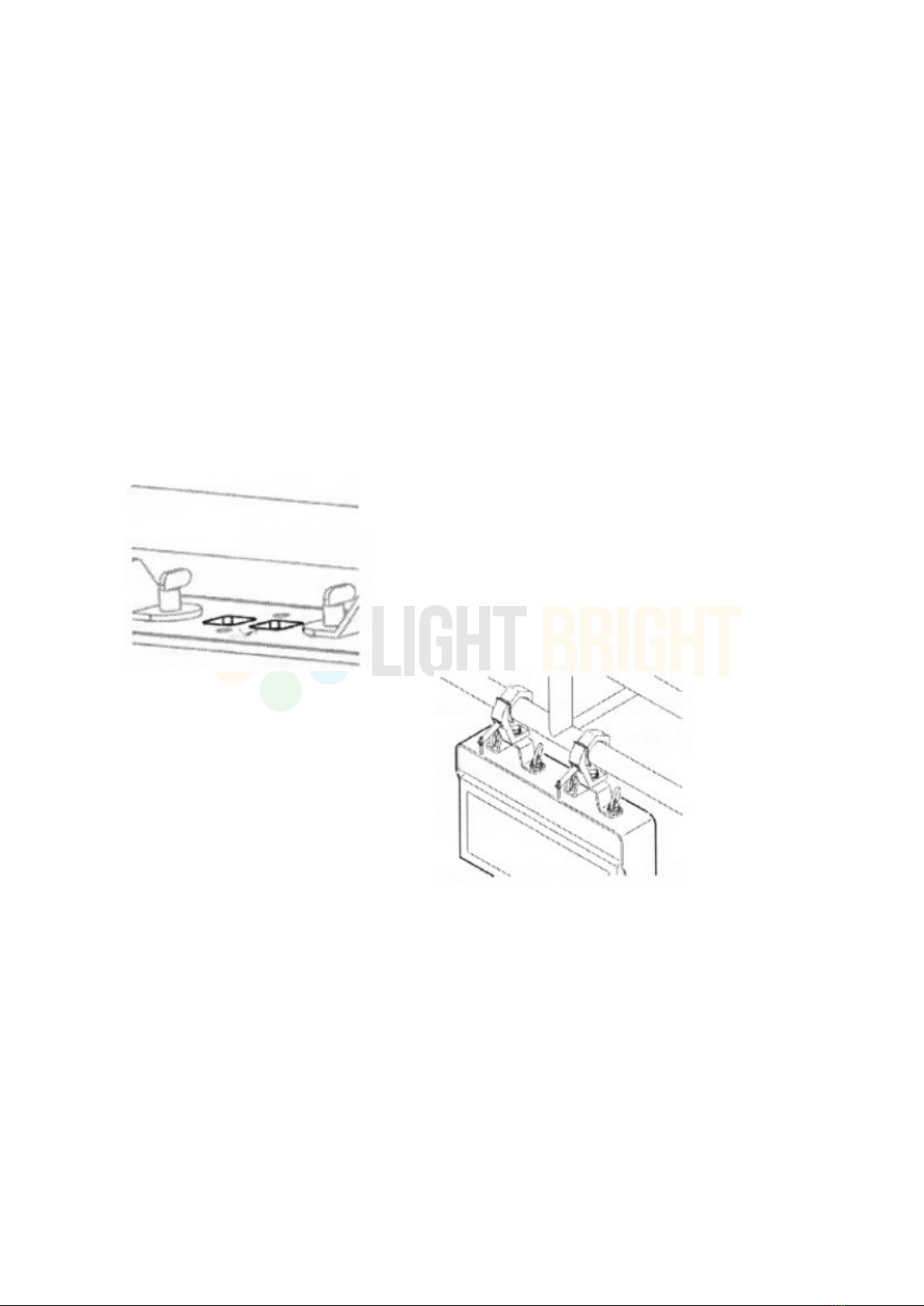

To hang the unit on a truss system, use the Omega-Clamps with snap connectors supplied.
Make sure that the snap connectors engage securely. Make sure that the truss construction
on which you mount the device complies with the safety regulations. When installing a truss,
always secure the spotlight with a safety device that complies with the national regulations.
Use the safety eyelet on the device for this purpose.
8

Light Bright
Wash 44
7. Control Panel

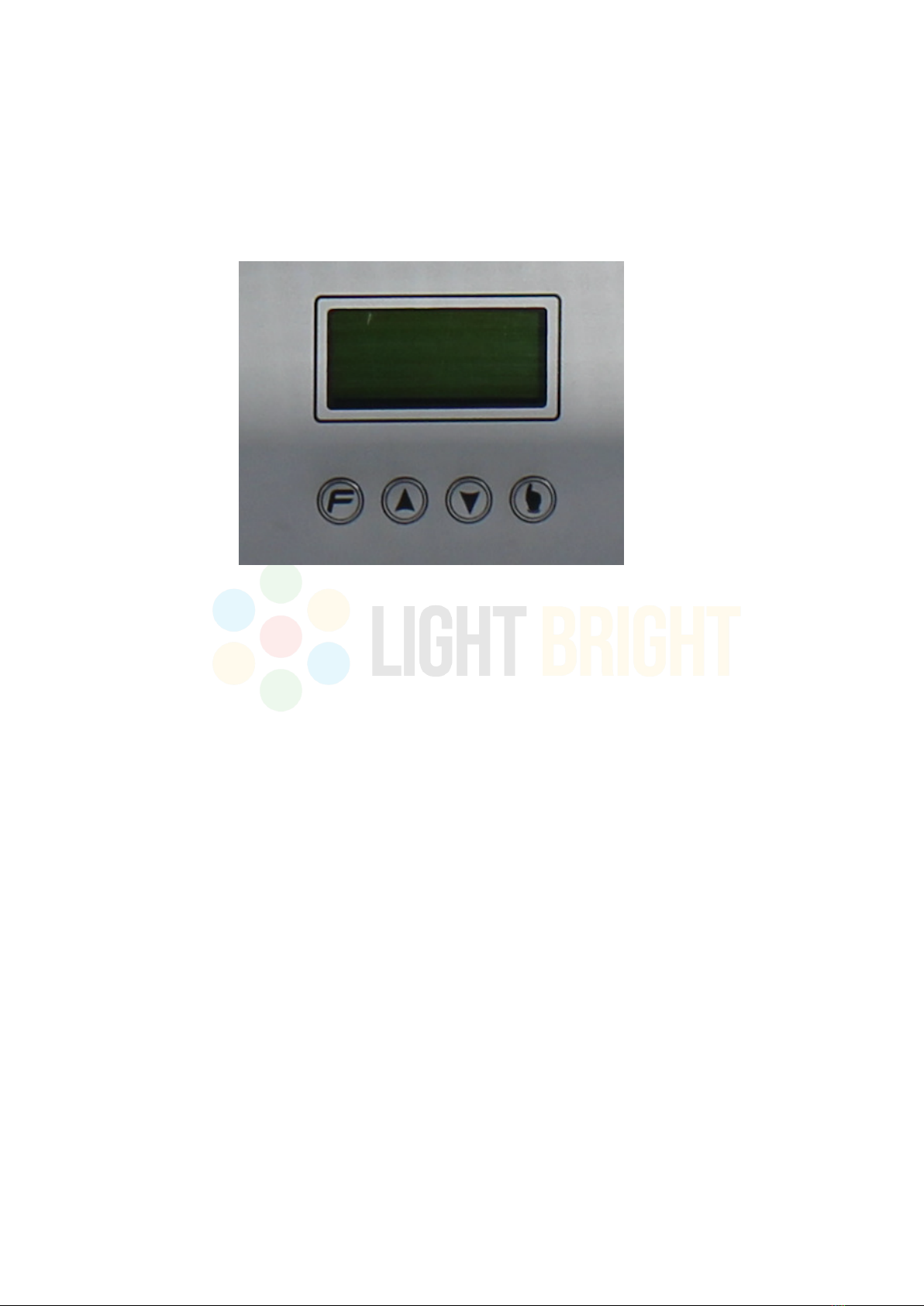

The spotlight has a display to show the set parameters and four buttons to adjust them. This
control panel allows you to adjust all the parameters of the spotlight according to your needs.
Operation of the menu
1. DMX ADDRESS
Here you can set the DMX address of the device. Press "Menu" to enter the DMX settings.
Use the "up" and "down" keys to set the desired DMX address and confirm with "OK".
2. RUN MODE
Here you can change the different working methods of the device.
Press "Menu" to enter the settings and navigate with the arrow keys to the sub-item "Mode".
Confirm with "OK" again and set the desired mode, which can be confirmed with "OK" again.
The following modes are available:
DMX_CH4; DMX_CH10; Auto 1-4 (Color Modes with adjustable speed
3. ADJUST
Here you can operate the spotlight standalone.
Press "Menu" to enter the settings and use the arrow keys to navigate to the sub-item
"Adjust". Here you can now change the individual parameters of the spotlight according to
your wishes.
9

Light Bright
Wash 44
8. Channel assignment
Channel
Value
Function
4
10
1
1
Red
0-255
Red Dimmer
2
2
Green
0-255
Green Dimmer
3
3
Blue
0-255
Blue Dimmer
4
4
White
0-255
White Dimmer
5
Dimmer
0-255
Master Dimmer
6
Strobe
0-9
No function
10-255
Strobe (slow-fast)
7
Auto Macro
0-9
No function
10-50
Farb-
51-100
Color-Fade
101-150
Color-Fade
151-200
Color macro mixed
201-255
No function
8
Auto Macro Speed
0-255
Macro speed (slow-fast)
9
Dimmer Curve
0-9
Dimmer curve set in menu
10-50
Dimmer curve 1
51-101
Dimmer curve 2
102-152
Dimmer curve 3
153-203
Dimmer curve 4
204-249
Dimmer curve 5
250-255
Dimmer curve 6
10
Color Temperature
0-255
Color temperature (warm-cold)
10

Light Bright
Wash 44
9. Photometric data
11
35°
45°
LUX Data bei 35° Beam
2m
4m
6m
R
3730
722
299
G
10410
1870
660
B
1090
135
121
W
9579
1700
602
RGBW
22060
3690
1298
LUX Data bei 45° Beam
2m
4m
6m
R
1096
245
160
G
4682
743
330
B
548
127
113
W
4224
684
316
RGBW
5926
933
394

Light Bright
Wash 44
10. Service und cleaning
ATTENTION: Always disconnect the device from the voltage source
before opening it!
You should check the function of the fans in the head and foot at regular intervals. Above all,
you should make sure that the air intakes are free of lint and dust.
Please use only lint-free, clean cleaning cloths or brushes and cleaning agents without
alcohol to clean your device. We recommend regular cleaning at least every three months.
Pay attention to damage to the device, parts of the device and the connection cables. If you
notice any damage, DO NOT use the device and take it to an authorized dealer to exclude
dangers by using defective devices and to repair your device professionally.
12

Light Bright
Wash 44
11. Information
This device complies with the CE directive:
•in terms of the directive: 2014/35/EU Low Voltage Directive,
(Directive 2014/35/EU of the European Parliament and of the Council of
26.02.2014 on the approximation of the laws of the Member States relating to
electrical equipment designed for use within certain voltage limits)
•in terms of the directive: 2014/30/EU Electromagnetic Compatibility (Directive
2014/30/EU of the European Parliament and of the Council of 26.02.2014 on the
approximation of the laws of the Member States relating to electromagnetic
compatibility)
The device complies with IP65 and is therefore protected against dust and water jets from
any angle according to DIN EN 60529 as of 02.2020.
During operation, it is mandatory to connect the device to a power supply system equipped
with a powerful grounding (Class 1 device according to EN 60598-1). Furthermore, it is
recommended to protect the supply line of the equipment from indirect contact and/or short
circuits with correctly dimensioned residual current circuit breakers.
Only use the device if the room temperature is below 45°C.
Before starting maintenance, the unit must cool down for at least 10 minutes after
disconnection from the power supply to minimize the risk of damage to the electronic
components. For maintenance or repair work on the chips, the device must cool down for at
least another 20 minutes to prevent burning.
13
