NIGHT SCAN SPOT OPERATOR’S MANUAL
TP-5590101-00 i
June 2019
Warranty
Will-Burt warrants its Night Scan Spot to be free from defects in material and
workmanship for a period of five (5) years with such time periods running from the
date of shipment by Will-Burt. Will-Burt shall not be responsible for any damage
resulting to or caused by its products by reason of failure to properly install,
maintain or store the product; use of the product in a manner inconsistent with its
design; unauthorized service, alteration of products, neglect, abuse, accident, or
acts of God. This warranty does not extend to any component parts not
manufactured byWill-Burt; provided, however, Will-Burt’s warranty herein shall not
limit any warranties by manufacturers of component parts which extend to the
buyer.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHERWARRANTIES, AND
NO REPRESENTATIONS, GUARANTEES OR WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO, A WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-
INFRINGEMENT ARE MADE BY WILL-BURT IN CONNECTION WITH THE
MANUFACTURE OR SALE OF ITS PRODUCTS. NO EMPLOYEE,
DISTRIBUTOR, OR REPRESENTATIVE IS AUTHORIZED TO CHANGE THIS
WARRANTY IN ANY WAY OR GRANT ANY OTHER WARRANTY ON BEHALF
OF WILL-BURT.
Claims for defects in material and workmanship shall be made in writing to Will-
Burt within thirty (30) days of the discovery of defect. Failure to provide notice as
required hereby shall be conclusive evidence that the product was in conformity
with the warranty, and Will-Burt shall be released from any and all liability relating
to the product. Will-Burt may either send a service representative or have the
product returned to its factory at Buyer’s expense for inspection. If judged by Will-
Burt to be defective in material or workmanship, the product will be replaced or
repaired at the option of Will-Burt, free from all charges except authorized
transportation.
THE REMEDIES OF BUYER SET FORTH HEREIN ARE EXCLUSIVE AND ARE
IN LIEU OF ALL OTHER REMEDIES. THE LIABILITY OF WILL-BURTWHETHER
IN CONTRACT, TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL
NOT EXTEND BEYOND ITS OBLIGATION TO REPAIR OR REPLACE, AT ITS
OPTION, ANY PRODUCT OR PART FOUND BYWILL-BURTTO BE DEFECTIVE
IN MATERIAL OR WORKMANSHIP. WILL-BURT SHALL NOT BE LIABLE FOR
COST OF INSTALLATION AND/OR REMOVAL, OR BE RESPONSIBLE FOR
DIRECT, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
NATURE.

NIGHT SCAN SPOT OPERATOR’S MANUAL
ii TP-5590101-00
June 2019
Document History
Document Numbers
Dates
Remarks
TP-5590101-00
June 17, 2019
Initial Release

NIGHT SCAN SPOT OPERATOR’S MANUAL
TP-5590101-00 iii
June 2019
Table of Contents
Safety Summary.......................................................................................................................iii
General Safety Instructions.......................................................................................................................iii
Section 1 Introduction............................................................................................................. 1
1.1 Safety Precaution Notification.............................................................................................................1
1.2 Manual Organization...........................................................................................................................1
1.3 Specifications......................................................................................................................................2
1.4 Night Scan Spot Description...............................................................................................................2
Section 2 Installation............................................................................................................... 3
2.1 Installation Safety Precautions............................................................................................................3
2.2 Installation Procedures........................................................................................................................3
Section 3 Operation................................................................................................................. 4
Section 4 Remote Control Pairing .......................................................................................... 5
4.1 Pairing Procedure ...............................................................................................................................5
4.2 Unpairing Procedure ...........................................................................................................................5
Section 5 Maintenance ............................................................................................................ 6
Section 6 Battery Replacement............................................................................................... 6
Table of Figures
Figure 1 Night Scan Spot.............................................................................................................................2
Figure 2 Remote Control..............................................................................................................................4

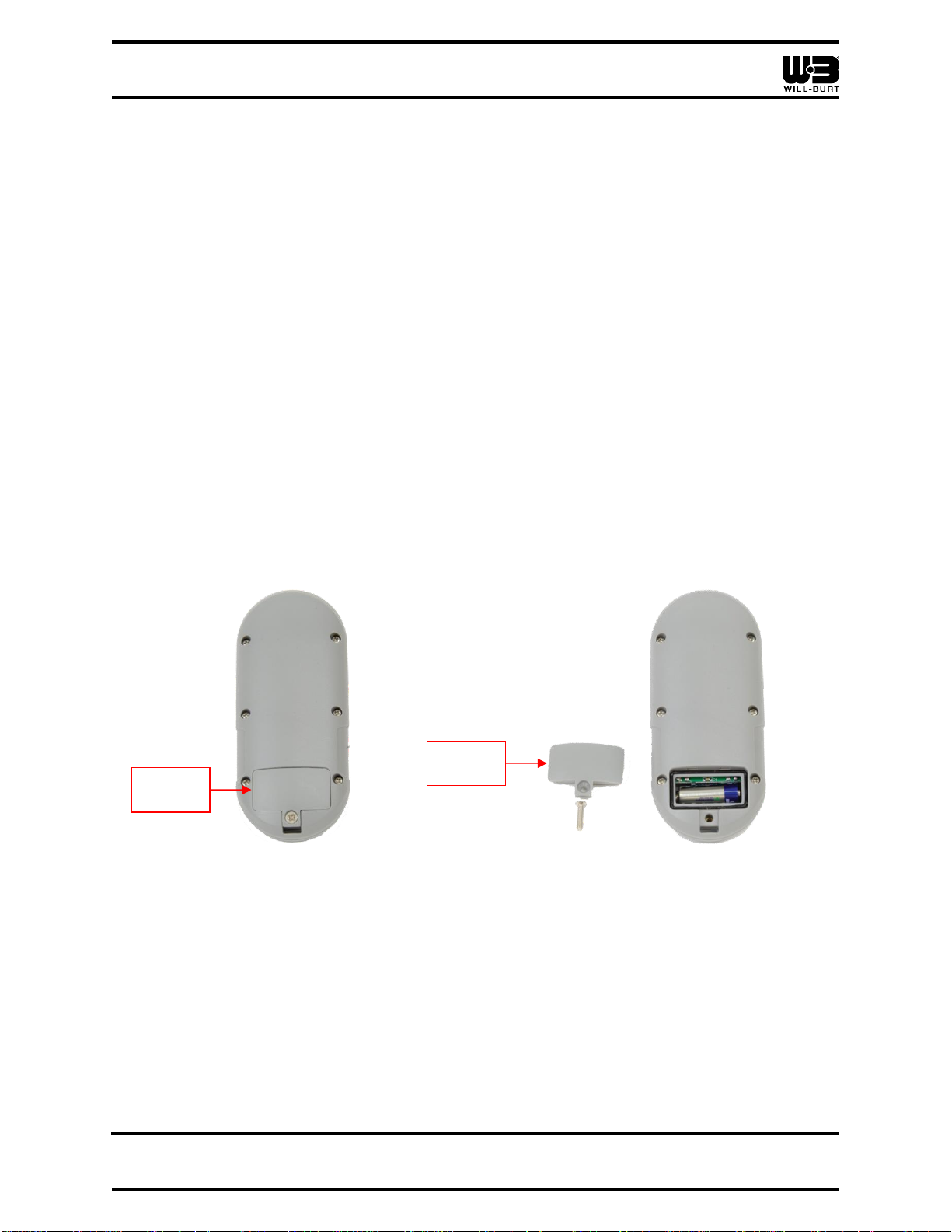

Figure 3 Battery Compartment.....................................................................................................................6
Table of Tables
Table 1 Night Scan Spot Specifications.......................................................................................................2
Table 2 Button Function...............................................................................................................................4
Safety Summary
The Night Scan Spot is engineered and manufactured with safety in mind. It is critical that FRC
lights are installed, maintained, and operated correctly. Read and understand all instructions
before installing, performing maintenance, or operating.
All components, equipment, and installation procedures shall conform to NFPA 1901, Standard
for Automotive Fire Apparatus and NFPA 70 National Electrical Code.
General Safety Instructions
Do not stare directly at LEDs when power is on. Ensure power is off prior to connecting or
disconnecting wires/cables and plugs to a power source or performing maintenance. Disconnect
ground connection from battery marked '-' to avoid accidental short circuits before attempting to
connect electrical wires.

NIGHT SCAN SPOT OPERATOR’S MANUAL
iv TP-5590101-00
June 2019

NIGHT SCAN SPOT OPERATOR’S MANUAL
TP-5590101-00 1
June 2019
Section 1 Introduction
Review this manual in its entirety. Contact The Will-Burt Company with any questions before
performing any procedure outlined in this manual. The views depicted in this manual are
provided for clarification and are subject to change without notice. Views are not to scale.
This manual describes installation, operation, and maintenance procedures for the Night Scan
Spot. These procedures assume the use of the standard catalog systems. Procedures and
characteristics for systems customized to meet customer-specific needs may vary.
This manual is for the Night Scan Spot. This manual is not for pneumatic Night Scan masts or
the electro-mechanical Night Scan Lite. See www.willburt.com for information on these and
other Will-Burt products.
A typical Night Scan Spot consists of:
(1) Rotatable Remote Controlled LED Light
(2) Wireless Remote Controls
1.1 Safety Precaution Notification
Refer to the Safety Summary for precautions to be observed while installing, operating, or
maintaining this equipment.
1.2 Manual Organization
This manual is organized into the following sections:
Section 1 Introduction
Section 2 Installation
Section 3 Operation
Section 4 Remote Control Pairing
Section 5 Maintenance
Section 6 Battery Replacement

NIGHT SCAN SPOT OPERATOR’S MANUAL
2TP-5590101-00
June 2019
1.3 Specifications
Table 1 Night Scan Spot Specifications
Functional Characteristic
Specification
Operating Voltage Range
10 –30 VDC
Power Consumption
80W
Maximum Distance for Operating Remote Control
Up to 130 ft.
Approximate Weight
7 lb. (3.2 kg)
Remote Control Battery
One 23A battery (12V)
1.4 Night Scan Spot Description
The Night Scan Spot (Figure 1):
Is a rotatable LED light
Is remotely operated with a wireless remote
Has a vertical tilt up of 70° and tilt down of 45°
Has an infinite horizontal rotational range (clockwise and counterclockwise)
Has 16 LEDs

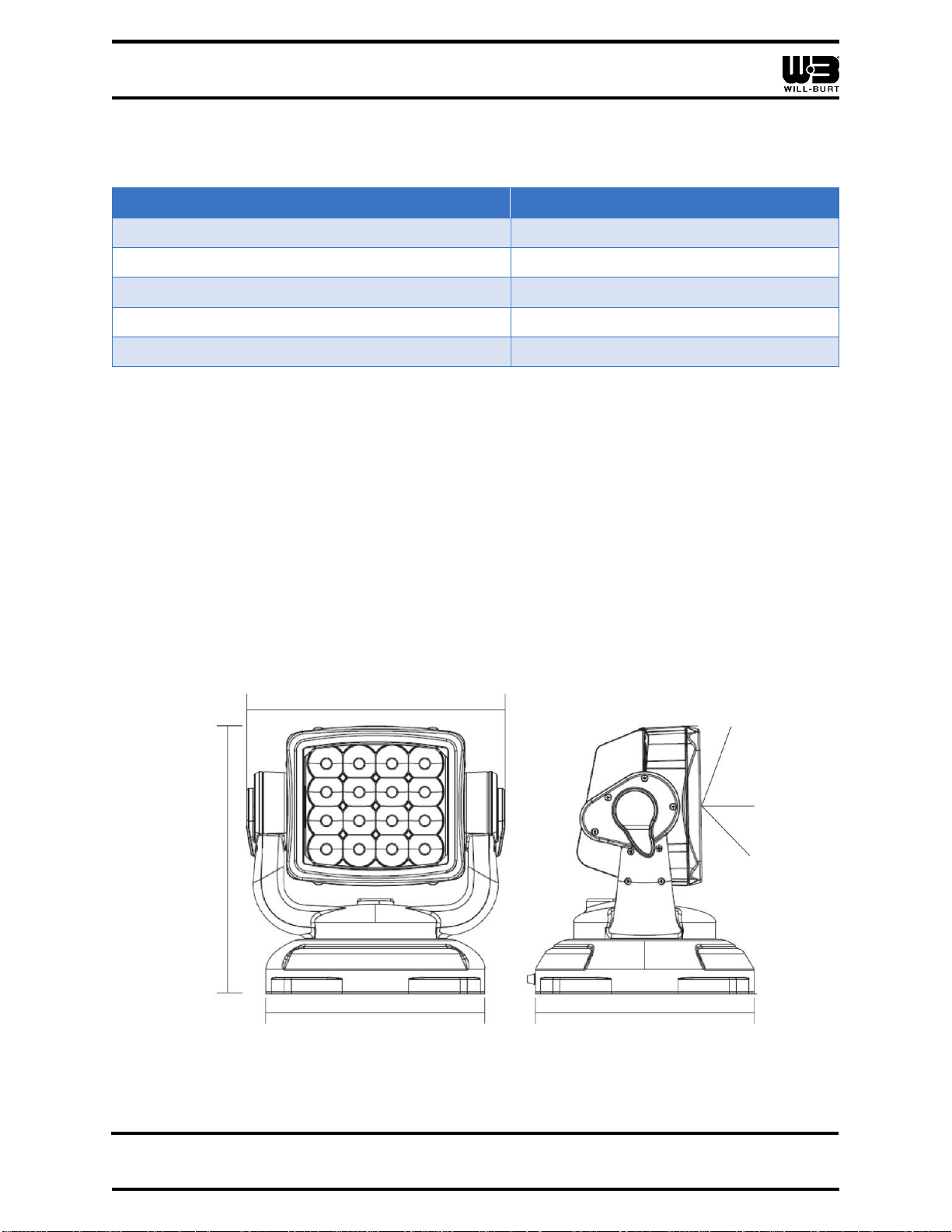

Figure 1 Night Scan Spot
9.3 Inches (236 mm)
7.9 Inches (200 mm)
7.9 Inches (200 mm)
9.6 Inches (244 mm)
70°
45°

NIGHT SCAN SPOT OPERATOR’S MANUAL
TP-5590101-00 3
June 2019
The Night Scan Spot is equipped with a flashing alert feature which can be used:
To warn approaching motorists of pedestrians of potential hazards
To alert that help is needed
With service vehicles to alter on-coming vehicles that there are people at work
The Stow Feature causes the light to automatically turn to face the forward position when turned
off. If power is removed from the Night Scan Spot while it is still on, the light will automatically
turn to face the forward position after it is turned back on with power restored.
Section 2 Installation
This section describes the installation of the Mast System and provides general procedures that
must be followed to ensure a successful installation. Use care to understand and follow all
precautions while installing.
2.1 Installation Safety Precautions
Connect the LED light to a 12 or 24 volt DC power source. Ensure an appropriate sized circuit
protection device is installed (circuit breaker or fuse). See Specifications (Section 1.3).
2.2 Installation Procedures
To install the Night Scan Spot:
1. Select a suitable mounting location.
2. Move the Night Scan Spot into place in the mounting location.
3. Ensure the Night Scan Spot is level in all directions. If necessary, shims may be added
to correct the alignment.
4. Use the Night Scan Spot as a template to drill four holes in the desired mounting
location. Ensure the Night Scan Spot remains level during drilling.
5. Secure the Night Scan Spot in position using all four mounting holes with customer-
provided stainless steel hardware. The mounting hardware must include proper means
to resist vibration loosening such as thread-locking compound or locking hardware.
Torque all hardware as appropriate for its size and grade.
6. Move the Remote Control Holder into place in the mounting location.
7. Use the Remote Control Holder as a template to drill two holes in the desired mounting
location.

NIGHT SCAN SPOT OPERATOR’S MANUAL
4TP-5590101-00
June 2019
8. Secure the Remote Control Holder in position using both mounting holes with customer-
provided stainless steel hardware. The mounting hardware must include proper means
to resist vibration loosening such as thread-locking compound or locking hardware.
Torque all hardware as appropriate for its size and grade.
Section 3 Operation
The Remote Control is used to operate the Night Scan Spot as shown in Table 2 and Figure 2.
Table 2 Button Function
Symbol
Function
Symbol
Function
ON/OFF. Press to toggle power the light
on and off. Turning the light off disables all
other button function.
Warning Signal. Press to toggle the
Warning Signal on and off. When on, the
light alternates between flashing 3 long
flashes and 3 short flashes.
Up Arrow. Press and hold to raise the light
beam. The light will rotate upward to a
maximum of 70°.
Down Arrow. Press and hold to lower the
light beam. The light will rotate downward
to a maximum of 45°.
Left Arrow. Press and hold to pan left.
Right Arrow. Press and hold to pan right.
Figure 2 Remote Control
ON/OFF
Down Arrow
Right Arrow
Left Arrow
UP Arrow
Warning Signal
Indicator

NIGHT SCAN SPOT OPERATOR’S MANUAL
TP-5590101-00 5
June 2019
Section 4 Remote Control Pairing
The default state for the Night Scan Spot is to be unpaired to any Remote Control. To avoid
interference from other Remote Control devices that are within range, it is highly recommended
that the light be paired to a Remote Control.
Any Night Scan Spot Remote Control can be paired to Night Scan Spot, however no more than
two Remote Controls can be paired to the same Night Scan Spot. If a third Remote Control is
paired to the same Night Scan Spot, the first Remote Control will be automatically unpaired.
Note: The pairing or unpairing process will timeout after 1 minute of inactivity.
4.1 Pairing Procedure
To pair a Remote Control:
1. Turn the Night Scan Spot on with the ON/OFF button.
2. Within 1 minute, press and hold the ON/OFF button on the Remote Control for 6
seconds. Once the Remote Control is paired to the light, the light will flash 3 long flashes
and then turn off. Pairing is complete.
3. To pair a second Remote Control, repeat steps 1 and 2.
4.2 Unpairing Procedure
The Remote Control(s) can unpaired unpaired whether the light is on or off. Unpairing will unpair
all Remote Controls, returning the Night Scan Spot to its default state and allowing the Night
Scan Spot to be controlled by any unpaired Remote Control within operating distance.
To unpair the Remote Control(s):
1. Turn the Remote Control on or off.
2. Within 1 minute, press and hold the ON/OFF button on the Remote Control for 6
seconds. Once unpaired, the light will flash 3 short flashes and turn off. The light is now
unpaired and will reset to the default mode.

NIGHT SCAN SPOT OPERATOR’S MANUAL
6TP-5590101-00
June 2019
Section 5 Maintenance
As needed, use a clean, soft cloth, mild soap, and water to clean the lens.
Note: The Night Scan Spot uses Lexan lenses and cleaning with abrasive materials, solvents, or
most chemical cleaners can cause lens surface degradation and reduce performance of the
light. Some chemicals will cause the lens to become brittle and prone to cracking.
Section 6 Battery Replacement
To replace the battery in a Remote Control (Figure 3):
1. Turn the Remote Control over to access the back.
2. Remove the screw securing the battery cover.
3. Remove the battery.
4. Replace the battery with 23A (12V) battery.
5. Replace and secure the battery cover.
Back of Remote Control
Battery Cover Removed
Figure 3 Battery Compartment
Battery
Cover
Battery
Cover
Table of contents
