1. Introduction
ATTENTION: For your own safety, please read these operating
instructions carefully before the first use.
The product has left our company in best condition. To maintain this condition and to ensure
safe operation, it is absolutely necessary to observe the following safety instructions and
warnings, which are described in this operating manual.
The manufacturer accepts no liability for damage caused by failure to comply with these
operating instructions or unauthorized modifications to the device.
Please note that damages caused by manual changes to this device are not covered by the
warranty.
ATTENTION: This device is for professional use only! Protection class IP
20 - only for use in dry environment (indoor)!
Light Bright does not authorize the use of your devices in life support
systems. Life Support Systems are systems whose purpose is to
maintain or stabilize life and whose defect or malfunction could result in
death or injury to persons.
3

Light Bright
Arond 200
2. Safety Instructions
CAUTION: Disconnect the device from the power supply before opening
the device. Touching live parts can cause an electric shock.
Make sure that the mains voltage to be connected is not higher than the voltage indicated on
the type plate. This device should only be operated with the power source specified on the
type plate.
If you are not sure what type of power supply you have, contact your dealer or your power
company.
Always disconnect the device from the power supply before carrying out cleaning work,
changing fuses or replacing parts.
The mains plug must always be accessible after installation of the spotlight. Do not overload
the sockets or extension cords under any circumstances, as this could lead to fire or electric
shock. Do not place any objects on the power cord. Do not install the spotlight in such a way
that people can trip over the power cord or step on it. Make sure that the power cord can
never be crushed or damaged by sharp edges. Check the unit and the power cord from time
to time
Always leave maintenance work to a qualified technician.
ATTENTION: This light corresponds to protection class 1
(Germany)Therefore this light must be connected to a mains socket with
earthing contact.
Never connect this device to a dimmable power source.
Some smoke and odour may be produced during the initial start-up. This is a normal
procedure and does not necessarily mean that the device is defective.
The device becomes hot during operation. Never touch the device with bare hands during
operation!
When replacing fuses, use only fuses of the same type with identical values. Have fuses
replaced only by a qualified technician.
4

Light Bright
Arond 200
ATTENTION: EYE DAMAGE! Do not look into the light source for a long
time during operation. This can be harmful to the eyes. Possibly
dangerous radiation.
If the device was exposed to strong temperature fluctuations (e.g. after transport), the device
must not be switched on immediately. The resulting condensation water can damage your
device. Leave the device switched off until it has reached room temperature.
Do not shake or bump the device. Avoid brute force during installation or operation.
This spotlight was designed for indoor use only. Do not expose this unit to rain or moisture.
When choosing the mounting location, make sure that the device is not exposed to extreme
heat, humidity or dust.
Ventilation openings and slits in the head and foot of the headlamp serve for ventilation. To
ensure reliable operation of the device and to protect it from overheating, these openings
must not be covered.
Never cover the front lens when the headlight is in use.
The openings should never be covered with fabrics or other objects so that the airways are
blocked.
This unit must not be operated in an environment without adequate ventilation.
The unit may only be operated when the housing is closed and all screws / omega head
screws are tightened.
The device must always be secured with an additional safety device.
Make sure that the area underneath the spotlight is clear during installation, conversion and
dismantling.
ATTENTION: The distance between the light emission and the
illuminated surface must be at least 2.0 meters.
The front lens must be replaced if it is visibly damaged so that its
function is impaired, e.g. by cracks or deep scratches!
To avoid damage to the internal parts of the lamp head, never let
sunlight shine directly into the front lens.
5

Light Bright
Arond 200
The maximum ambient temperature of 45°C must not be exceeded.
Do not operate the device until you have familiarized yourself with its functions. Prevent
operation by persons who are not qualified to use the device. Most damage is the result of
improper operation!
Please use the original packaging or specially adapted flight cases when transporting the
device.
3. Unpacking the device
Contents of the package: The headlight, a PowerCon connection cable and Omega brackets
for mounting.
Open the packaging carefully on the top side and check the headlight and accessories for
possible transport damages. These should be reported immediately to the transport
company.
4. Installation
The device comes with a ready made-up Powercon connection cable. Please use only the
supplied cable or a cable of the same type assembled by a specialist. The connection of the
device to the power supply must also be carried out by an authorized specialist.
Connection in Germany/Europe:
Connected loads: voltage 100-240 V, frequency 50 - 60 Hz, power max. 260W, 1.2A
The electrical safety as well as the function of the device is only guaranteed if it is connected
to a properly installed protective conductor system. It is very important that this basic safety
requirement is present. In case of doubt, have the electrical installation checked by a
specialist. The manufacturer cannot be held responsible for damage caused by a missing or
interrupted protective conductor (e.g. electric shock)! Only use the device in a completely
assembled state so that no electrical components can be touched. (danger 100-240 V)
If you have observed the listed points, you can plug in the devices or have them connected to
the mains by a specialist.
Leiterfarbe
Funktion
Symbol
Brown
Phase
„L“
Blue
Neutral conductor
„N"
Yellow/Green
Protective earth
„PE“ ⏚
6

Light Bright
Arond 200
ATTENTION: The spotlight may light up immediately if standalone
operation is activated or a DMX signal is applied!
5. DMX Connection
The DMX cabling (signal lines) should be done with a 2-wire cable with shielding. We
recommend a DMX cable with 110 Ohm, 2x0,22mm2or 4x0,22mm2. The plugs and sockets
are 3-pin XLR-connectors, which can be purchased in specialized shops.

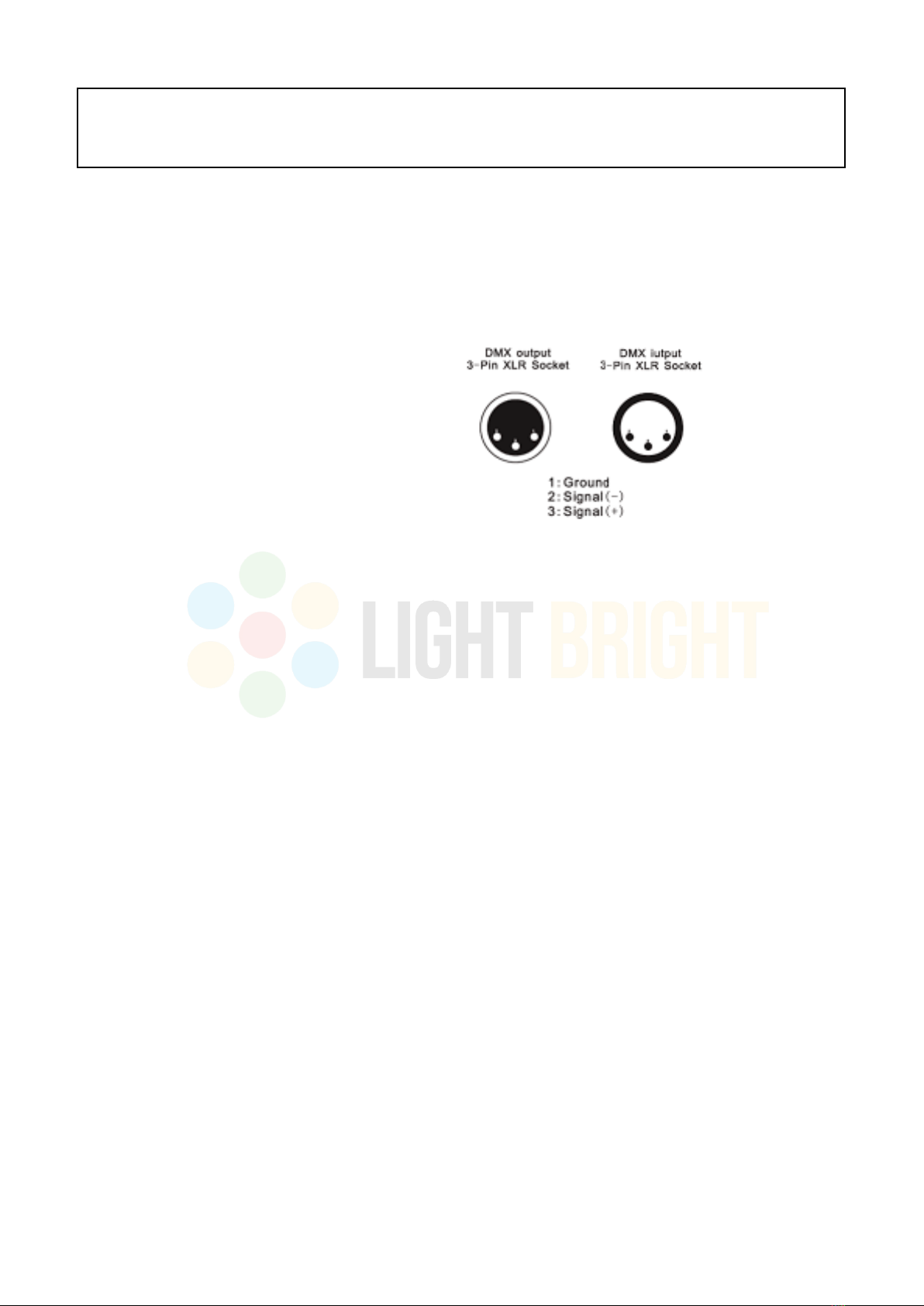

Pin assignment:
Pin1 = Ground / Shielding
Pin2 = DMX -
Pin3 = DMX +
The spotlight has a DMX-in and DMX-out connection. Now connect the DMX output of your
controller to the first spotlight (Controller DMX-Out -> Spotlight DMX-In). Then connect the
first spotlight with the second spotlight and so on. In some cases it is advisable to plug in an
end plug/end resistor (XLR plug with a resistor of 120 Ohm between pin 2 and pin 3).
Whether or not an end plug is required depends on various factors, including the cable
lengths used and the number of units. However, as long as there are no problems in the DMX
line, it is not necessary.
7

Light Bright
Arond 200
6. Montage der Geräte
Warning: There must be a 0.5m safety distance between the light source and flammable
material and a minimum distance of 2.0m between the light source and the surface to be
illuminated.
The spotlight can either be positioned or suspended from a truss system. Horizontal
mounting to the truss is also permitted.
If you place the unit on the floor, you may only operate the unit on a hard surface, as the air
inlets in the foot must remain free!
To hang the unit on a truss system, use the Omega-Clamps with snap connectors supplied.
Make sure that the snap connectors engage securely. Make sure that the truss construction
on which you mount the device complies with the safety regulations. When installing a truss,
always secure the spotlight with a safety device that complies with the national regulations.
Use the safety eyelet on the device for this purpose.
8
Omega bracket!
Clamp!
Safety!
1/4 Lock quick connector

Light Bright
Arond 200
7. Control panel

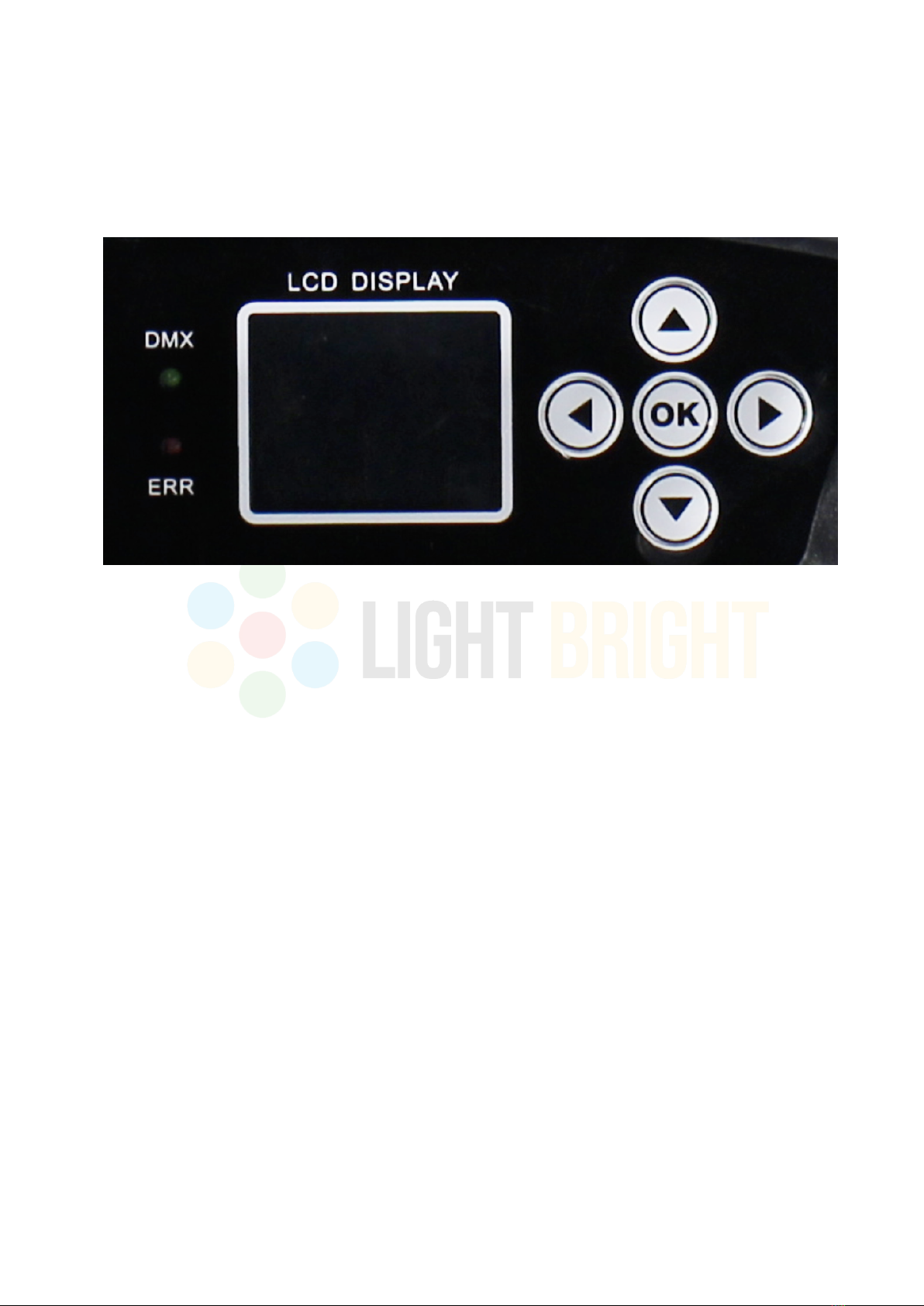

The spotlight has a display to show the set parameters and four buttons to adjust them. In
addition, the Arond200 has an error LED to indicate any errors in the fixture, and a DMX LED
to show the current DMX status.
1. DMX ADDRESS
!Here you can set the DMX address of the device.
2. RUN MODE
!Here you can change the different working methods of the device.
9
Press "OK" to enter the DMX settings. Use the buttons "up" and "down" to set the
desired DMX address and confirm with "OK".
Press "OK" to enter the DMX settings. Use the buttons "up" and "down" to set the
desired DMX address and confirm with „OK".
The following modes are available:
DMX512, Sound, Auto 1, Auto 2, Auto 3
"DMX512" is for controlling the spotlight using an external lighting console,
"Auto 1-3" are built-in standalone sequences, "Sound" lets the spotlight react
automatically to ambient music through a built-in microphone.

Light Bright
Arond 200
3. INVERT PAN
!Here you can invert the pan-movement of the device.
4. INVERT TILT
!Here the tilt-movement of the device can be inverted.
5. SCREEN SAVER
!Here you can switch the screen saver on and off.
6. CHECK
!Here you can control the spotlight directly on the device.
7. LOAD DEFAULT
!Here you can reset all set parameters to factory settings
8. SYSTEM TEST
10
Press "OK" to enter the settings and use the arrow keys to navigate to the sub-item
"Invert Pan". Press "OK" again to confirm and set the inverter to "Yes" or "No" to
switch the inversion on or off. Confirm again with "OK“.
Press "OK" to enter the settings and use the arrow keys to navigate to the submenu
item "Invert Tilt". Press "OK" again to confirm and set the Invert to "Yes" or "No" to
switch the inversion on or off. Confirm again with "OK".
Press "OK" to enter the settings and use the arrow keys to navigate to the sub-item
"Screen Saver". Confirm again with "OK" and switch the screen saver on or off.
Confirm with "OK" to save the settings.
Press "OK" to enter the settings and use the arrow keys to navigate to the "Check"
sub-item. Confirm again with "OK".
Here you can now change all parameters of the spotlight in the values 0-255.
Navigate to the parameter you want to change and press "OK". Now the value of the
parameter can be changed. After you have set the desired value, press "OK" again to
save it.
Press "OK" to enter the settings and use the arrow keys to navigate to the sub-item
"Load Default". Press "OK" again to confirm and reset all settings you have made by
confirming them.
Here the device performs an automatic test and runs all parameters and functions
automatically.
Press "OK" to enter the settings and use the arrow keys to navigate to the sub-item
"System Test". Confirm again with "OK" and the headlight starts directly with the test
program.

Light Bright
Arond 200
!
9. MOTOR CALIBRATION
10. SYSTEM INFO
8. Channel assignment
Channel
Value
Function
18
1
Pan (8bit)
0-255
Pan movement
2
Pan fine (16bit)
0-255
Pan movement fine
3
Tilt (8bit)
0-255
Tilt movement
4
Tilt fine (16bit)
0-255
Tilt movement fine
5
Position Speed
0-255
Position speed (fast-slow)
6
Dimmer
0-255
0-100% intensity
7
Shutter effect
0-3
Shutter open
2-99
Strobe 1 (slow-fast)
100-149
Strobe 2 (Pulse slow-fast)
150-199
Strobe 3 (Thunder slow-fast)
200-249
Strobe 4 (random fast-slow)
250-255
Shutter open
Color Wheel
0
Open
1-179
Color 1-9 (all 20 values)
Channel
18
11
Here the motors of the device can be fine-tuned. We recommend that this be carried
out by a Light Bright service partner to ensure safe operation.
Here the spotlight shows all relevant information such as firmware, temperatures, etc.

Light Bright
Arond 200
8
180-199
Open
200-226
Color wheel rotation (clockwise fast-slow)
227-228
Open
229-255
Color Wheel Rotation (counter-clockwise fast-slow)
9
Static gobo-wheel
0-4
Open
5-54
Gobo 1-10 (all 5 DMX values)
55-154
Gobo 1-10 Shake effect (all 10 DMX values)
155-204
Gobo wheel rotation (clockwise fast-slow)
205
Stop
206-255
Gobo wheel rotation (counter-clockwise fast-slow)
10
Rotating gobo-wheel
0-9
Open
10-79
Gobo 1-7 (all 10 DMX values)
80-159
Gobo 1-7 Shake effect (all 10 DMX values)
160-206
Gobo wheel rotation (clockwise (fast - slow)
207-208
Stop
209-255
Gobo wheel rotation (counter-clockwise fast-slow)
11
Gobo Rotation
0-127
Gobo Position
128-191
Gobo Rotation (Clockwise fast-slow)
192-255
Gobo Rotation (Anti-Clockwise fast-slow)
12
4 fold prism
0-127
Offen
128-255
Prism
13
Prism rotation
0-127
Prism positon
128-190
Prism rotation (clockwise fast-slow)
191-192
Stop
193-255
Prism rotation (counterclockwise fast-slow)
14
Frost
0-127
Open
128-255
Frost
15
Focus
0-255
Focus
Value
Function
Channel
18
12

Light Bright
Arond 200
9. Gobos and color wheel
The Arond200 has two gobo wheels, each with 9 static (plus open) and
7 interchangeable rotatable and indexed gobos (plus open)
The gobos have a size of 22.9mm outside and 19mm inside.
In addition, the Arond200 has gobo scroll with variable speed.
9.1 Overview
16
Zoom
0-255
Zoom
17
Macro effect
0-50
No function
51-100
System detection
101-150
Auto 1
151-200
Auto 2
201-255
Sound
18
Reset
0-250
No function
251-255
Reset the fixture (after 5 sec)
Value
Function
Channel
18
13
Gobo wheel static
Gobo wheel rotatable

Light Bright
Arond 200
10. Photometric data
!
!
!
!
14

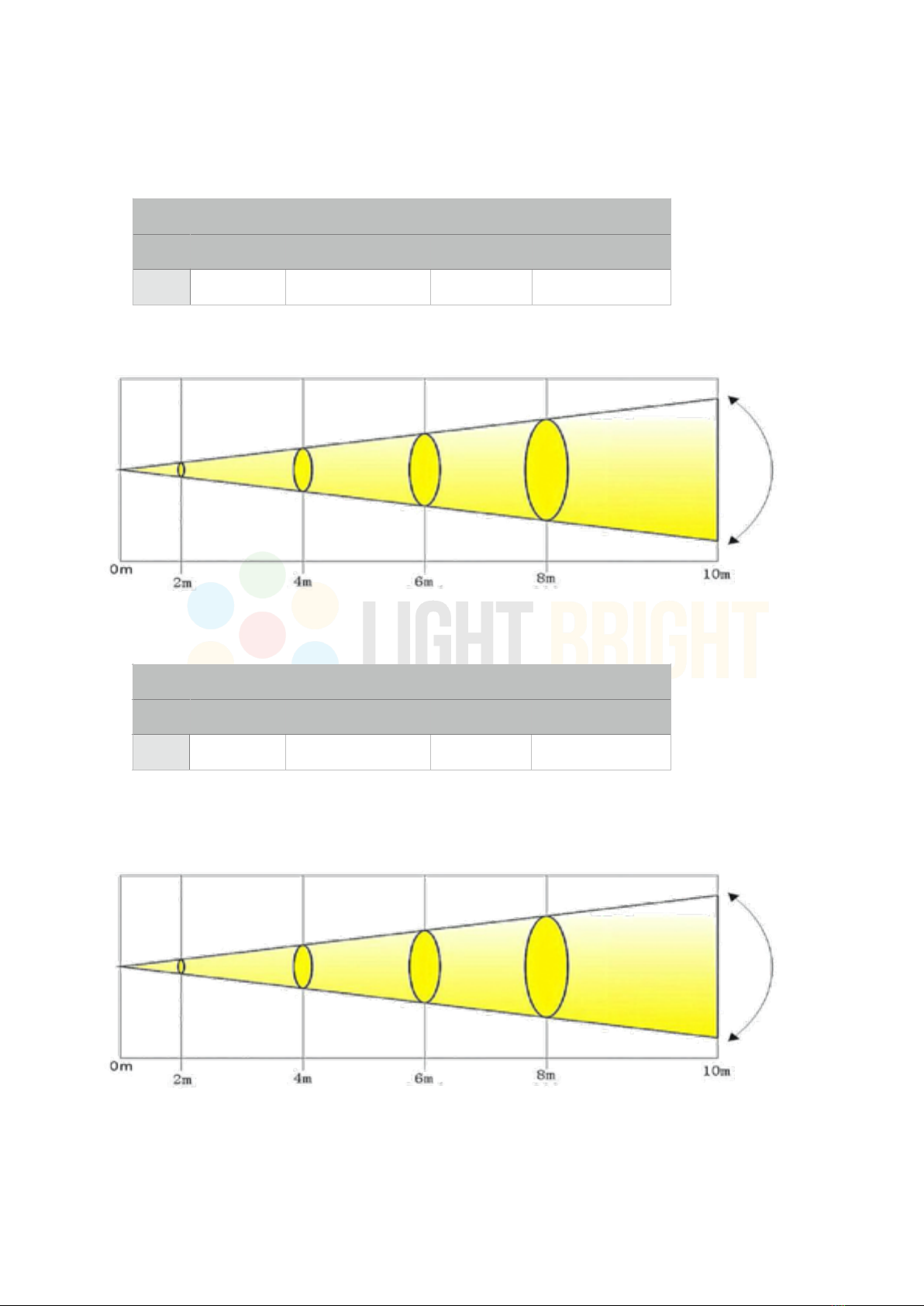

LUX Data at 7° Beam
4m
6m
8m
25200
11600
6500
LUX Data at 21° Beam
4m
6m
8m
3260
1530
860
7°
21°

Light Bright
Arond 200
11. Service and cleaning
ATTENTION: Always disconnect the device from the voltage source
before opening it!
You should check the function of the fans in the head and foot at regular intervals. Above all,
you should make sure that the air intakes as well as the inside of the spotlight are free of lint
and dust.
To do this, open the head cover and the base plate at the foot. You can clean the spotlight
with a brush/cleaning cloth and a vacuum cleaner or compressor (low speed only).
Take care not to bend or damage any parts during cleaning. After cleaning is complete, close
all covers again with the corresponding screws and carry out a function test.
Please use only clean cleaning cloths or brushes and cleaning agents without alcohol to
clean your device. We recommend regular cleaning at least every three months.
Pay attention to damage to the device, parts of the device and the connection cables. If you
notice any damage, DO NOT use the device and take it to an authorized dealer to exclude
dangers by using defective devices and to repair your device professionally.
15

Light Bright
Arond 200
12. Information
This device complies with the CE directive:
•in terms of the directive: 2014/35/EU Low Voltage Directive, (Directive
2014/35/EU of the European Parliament and of the Council of 26.02.2014 on the
approximation of the laws of the Member States relating to electrical equipment designed
for use within certain voltage limits)
•in terms of the directive: 2014/30/EU Electromagnetic Compatibility (Directive 2014/30/EU
of the European Parliament and of the Council of 26.02.2014 on the approximation of the
laws of the Member States relating to electromagnetic compatibility)
The device complies with IP20 and is therefore protected against the penetration of solid
foreign bodies with a diameter of more than 12mm (first code number 2), while it is sensitive
to moisture, splash and jet water.
During operation, it is mandatory to connect the device to a power supply system equipped
with a powerful grounding (Class 1 device according to EN 60598-1). Furthermore, it is
recommended to protect the supply line of the equipment from indirect contact and/or short
circuits with correctly dimensioned residual current circuit breakers.
Only use the device if the room temperature is below 45°C.
Before starting any maintenance on the device, it must cool down for at least 10 minutes
after being disconnected from power to minimize the risk of damage to the chips. For
maintenance or repair work on the chips, the unit must cool down for at least another 20
minutes to prevent burning.
16

Light Bright
Arond 200
13. Technical details
Power supply: AC100-240V,50-60Hz
Inrush current approx. 260W
Light Source: 200W White LED
Color temperature : 7500K
Channel: 18 DMX channel
Control: DMX/Master-slave/Auto/Sound
Pan: 540° + fine!
Tilt: 270°+ fine
Zoom range : 7-21°.
Dimmer: 0-100% linear dimmer
Strobe: 1-25 Hz with pulse-effect
Color wheel: 9 colors + open, with half colors
Static gobo wheel: 9 Gobos + open
Rotatable gobo wheel : 7 gobos+open
Prisma: 4 fold Prism with bi-direction Rotation
Frost: mit Frost Effect
Dimensions:343 x 239 x 537 mm! !
Weight: 14.5 kg!
17
