OPERATOR MANUAL FOR THE ENFORCER LED
HANDHELD PORTABLE LIGHTING SERIES
CORE RANGE
PRODUCT ID
LOCATED ON THE
BASE OF THE HANDLE
DESCRIPTION LIGHT COLOUR BATTERY LIFE
FULL POWER
+ WHITE
BEAM PATTERN
W3W Enforcer 140mm LED
Fresnel Technology,
cordless hand held 3W
white on/o
White 4 hours Pencil beam
WR3W Enforcer 140mm LED
Fresnel Technology,
cordless hand held
3W white to 3W red
dimming
White / Red 4 hours Pencil beam
WEnforcer 140mm LED
Fresnel Technology,
cordless hand held 6W
white dimming
White 2 hours Broad beam
WR Enforcer 140mm LED
Fresnel Technology,
cordless hand held
6W white to 3W red
dimming
White /Red 2 hours Broad beam
WIR Enforcer 140mm LED
Fresnel Technology,
cordless hand held
6W white to 4.5W IR
dimming
White / Infrared 2 hours Broad beam
RIR Enforcer 140mm LED
Fresnel Technology,
cordless hand held 3W
red to 4.5W IR dimming
Red / Infrared 2 hours Broad beam
4C Enforcer 140mm LED
Fresnel Technology,
cordless hand held 4
colour dimming
White / Red /
Amber / Green
2 hours Broad beam

WHAT’S IN THE BOX
1 x 100-240V universal AC to 12V DC mains power charging cable
1 x Enforcer LED 140 handheld light
1 x 12V cigarette plug charge (4 colour model only)

LIGHTFORCE ENFORCER OPERATOR MANUAL
V1.1 / MAY 17
OPERATOR MANUAL FOR THE ENFORCER LED
HANDHELD PORTABLE LIGHTING SERIES
INTRODUCING THE ENFORCER LED 140 SERIES
Congratulations, you have made the right choice. The Lightforce Enforcer LED is the perfect light for the
outdoor, sporting, hunting, fishing and shooting enthusiast.
The flexible cordless LED lighting system comes with a range of standard options as seen above to suite
a wide variety of applications. Extended running time can also be easily achieved via a range of battery
and charging accessories.
THE FIRST TO BRING THE FRESNEL LENS TO THE SPORTING MARKET
A new concept for portable lighting, the Fresnel technology, originally developed for use in the construc-
tion of lighthouses produces a superior beam for maximum light output and performance. The design
allows the assembly of a lens with a large aperture and short focal lengths without the mass volume of
material required by a convention design.
BEAM PATTERN FLEXIBILITY

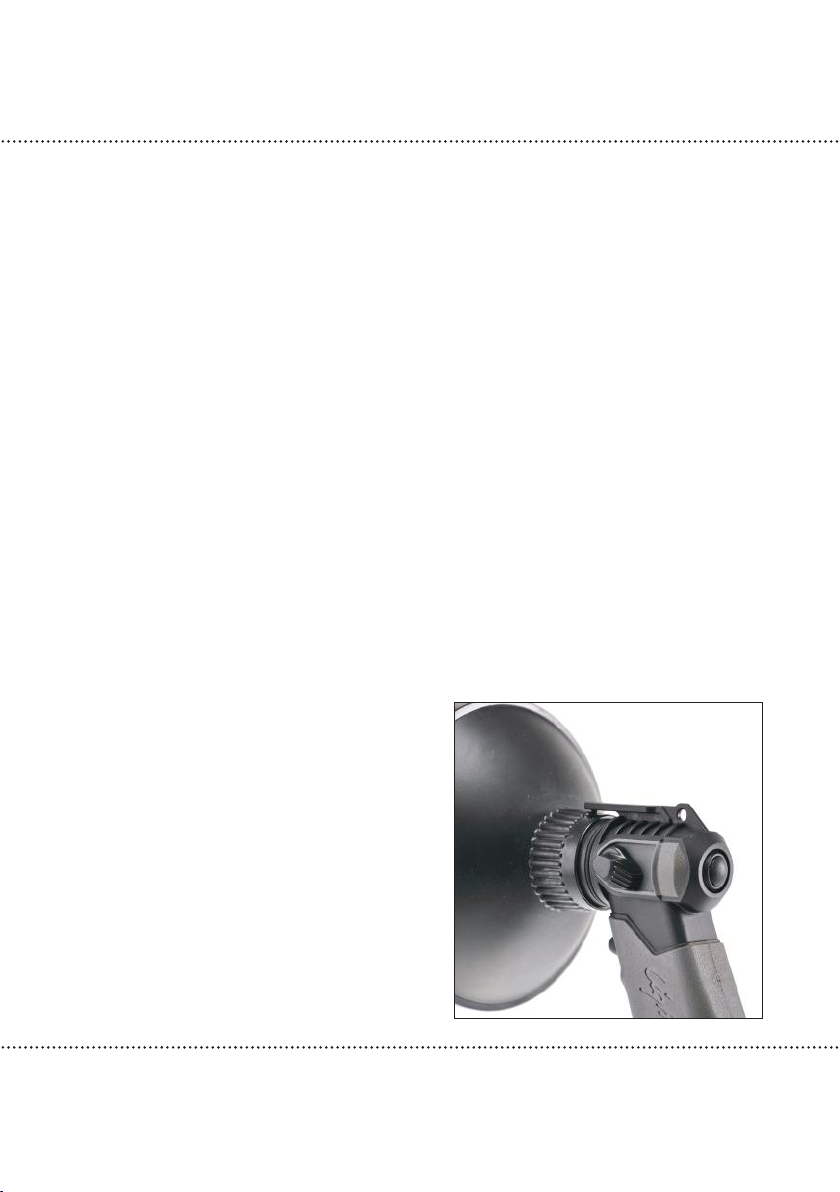

The light beam can be focused from a ‘wide’ pattern to a ‘spot’ pattern simply be rotating the reflector
housing, something that has been available across the entire range of Lightforce spotlights.
SWITCHING BETWEEN COLOURS
On the dual colour range – Colour mode can be
accessed using the dimmer switch.
On the four colour range – switching between
colours can be achieved using a button on the back
of the neck only while in colour mode. The white
light can be accessed at any time using the dimmer
switch.

CORDLESS AND BATTERY OPTIONS
The internal battery is located in the light’s handle and is a sealed unit, thus not exposed to dust and
water. The battery is a lithium ion type 7.4V, 2Ah, 14.8Wh and when fully charged can provide either 2 or
4 hours at full intensity white, depending on whether the model is a 6W or 3W respectively.
• Aer this time, the light will enter a ‘reserve’ mode which allows a further hour of use at a reduced
light output.
• Operation of the variable power light at reduced brightness levels saves power and extends
battery life.
• The internal battery can be charged using the supplied 100-240V universal AC to 12V DC charger.
This is attached to a female port in the rear section of the base. A rubber cap protects this
connection. To fully charge the internal battery from flat, approx. 2.5 hours is required.
• The battery will charge when connected to 12V DC power.
NOTE
Battery charge indicator does not work whilst light is turned on.

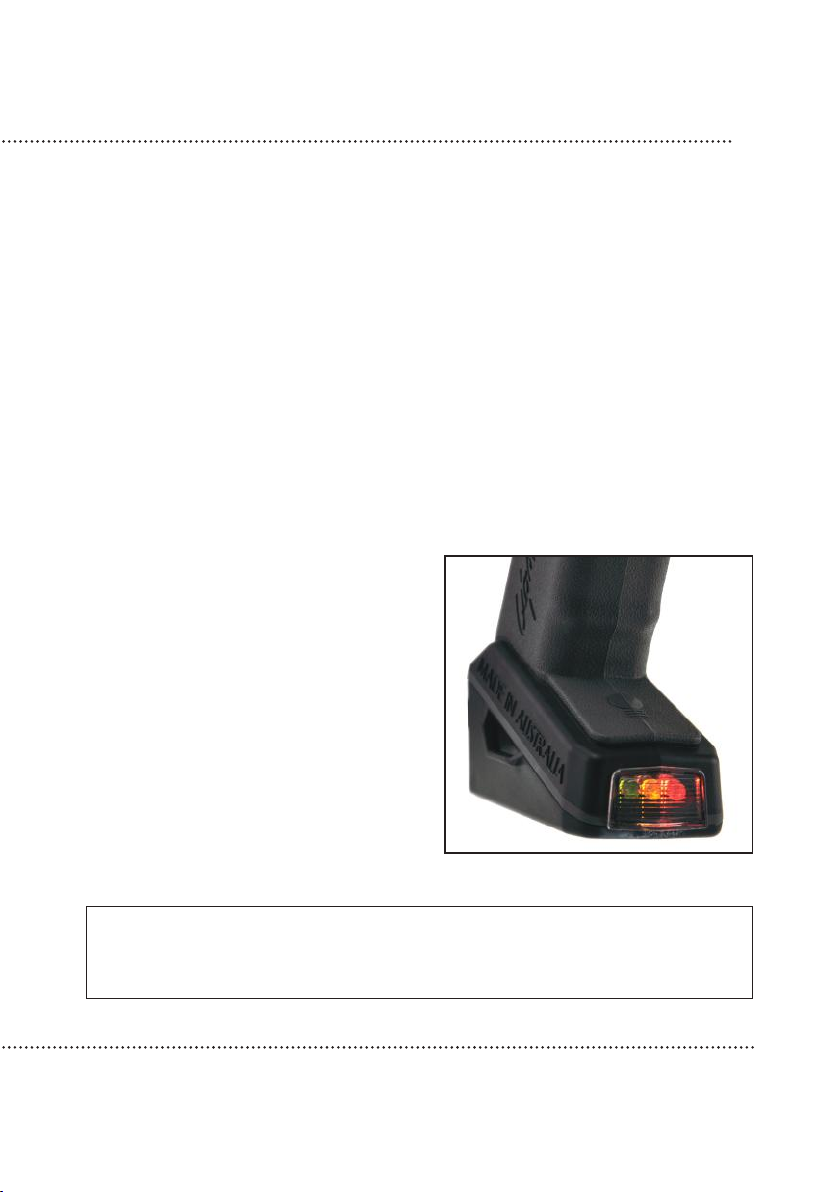

• When charging the internal battery,
the built-in LED voltage and charging
indicators are shown by the three
colour LEDs in the front of the battery
housing. These LEDs can give an instant
assessment of the lithium ion batteries
charge simply by pressing the rubber
pad located at the top of the panel.

LIGHTFORCE ENFORCER OPERATOR MANUAL
V1.1 / MAY 17
OPERATOR MANUAL FOR THE ENFORCER LED
HANDHELD PORTABLE LIGHTING SERIES
VOLTAGE
INDICATOR
RUNTIME (3W)
(FULL INTENSITY)
RUNTIME (6W)
(FULL INTENSITY)
4 hours 2 hours
Flashing Green 3.8 hours 1.9 hours
2.8 hours 1.4 hours
1 hour 0.5 hour
Flashing Red 10 minutes
reserve mode follows
5 minutes
reserve mode follows
CHARGING
INDICATOR
CHARGING STATUS
(3W)
CHARGING STATUS
(6W)
All O Fully charged (100%) Fully charged (100%)
Flashing Green 60% 60%
Flashing Amber 30% 30%
Flashing Red Less than 5% Less than 5%

BATTERY EXTENSION ACCESSORIES & RECHARGING OPTIONS
The enforcer can be recharged, and/or gain an extended mobile runtime by the following options:
• Lightforce battery packs to produce an extended runtime of up to 9.25 hours or 18.5 hours with
6wt or 3wt respectively.
• The light can be powered from an external 12v DC power supply, such as a merit plug
• It will also connect a figure 8 flex cord with alligator clip for direct battery connection.
• The wall charging kit comes supplied with three adapters to suite European, American and British
power supply variants. The plug pin (for Australian users) is simply removed from the adaptor and
the correct plug pin for your power supply is attached.

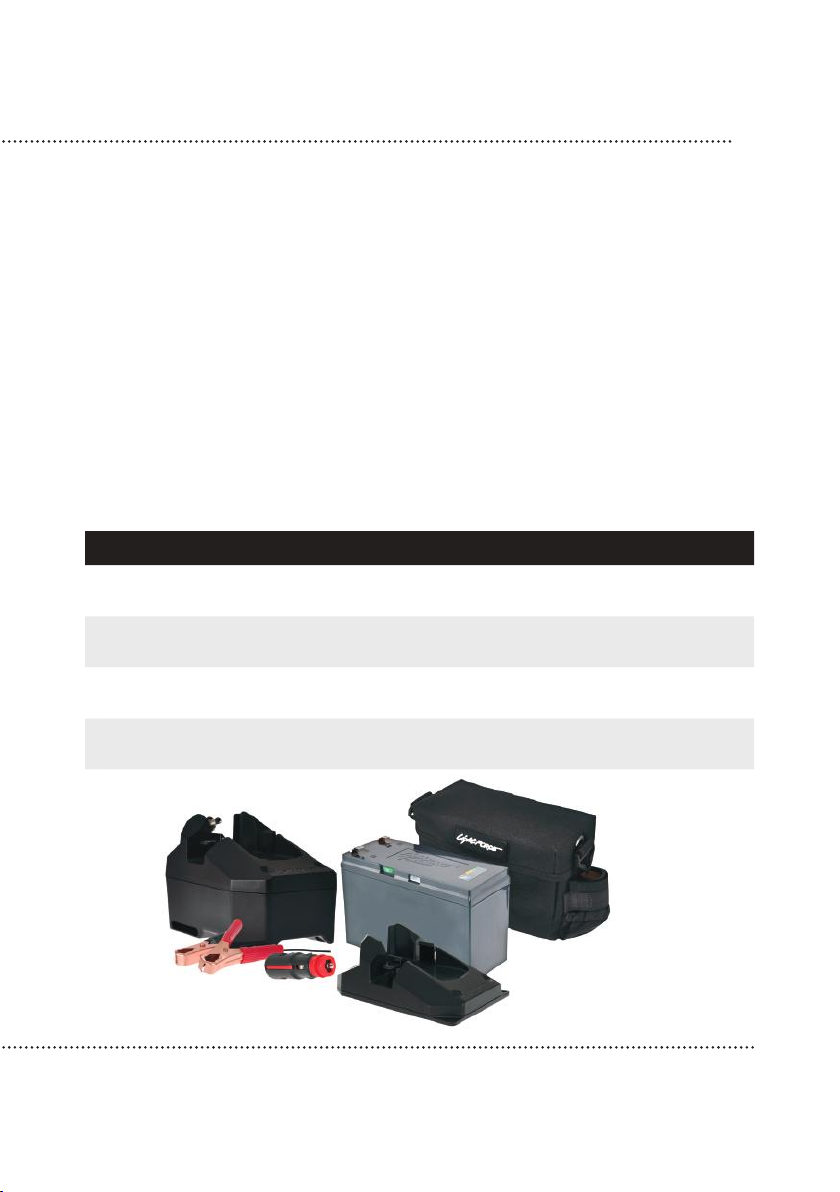

ACCESSORIES
PRODUCT ID DESCRIPTION
BPEF Lightforce Ni-MH Enforcer battery - provides an extended runtime of up
to 18.5 hours
EFMB Enforcer mounting bracket – enables the light to stand freely on most
surfaces when not hand held
EFCC 2m coil cord for use with Lightforce SLA or LiFePO4 battery packs
EFAL Figure 8 flex with alligator clips for direct battery connection

LIGHTFORCE ENFORCER OPERATOR MANUAL
V1.1 / MAY 17
OPERATOR MANUAL FOR THE ENFORCER LED
HANDHELD PORTABLE LIGHTING SERIES
ERGONOMIC DESIGN & COMFORT
The handle has a new and improved ergonomic design and a comfortable grey rubber grip.
With centre of gravity in the hand, the light will shine forwards with a loose grip, unlike other ‘pistol grip’
shaped lights.
Weighing only 490g, the usual muscle fatigue during extended use is greatly minimised.
This product is also RoHS compliant. RoHS stands for Restriction of Hazardous Substances, and is rele-
vant for many electrical products as well. RoHS compliant means the components have been tested for
the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated
biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE).
EQUIPMENT RECOMMENDATIONS
• Replace rear protective seal on base of handle aer charging to maintain IP rating.
• Ensure all electrical connectors are secure - loose connections will generate excessive heat, dam-
age wiring and cause electrical failure.
• The outer lens should be washed clean with copious amounts of water and a clean sponge. Wiping
it with a dry rag will scratch the lens, especially if the surface is dusty. NEVER clean the light with
cleaning fluid or solvent.
• DO NOT attempt to clean the inside of the light or touch the inside lens.
• Avoid removing the reflector housing from the handle. The LED and lens inside are delicate and
should never be exposed to dust or handled.
• Reflector housing should never be unwound so that two O-rings are visible, otherwise light will not
maintain IP rating.

BATTERY & CHARGING
1. Charge the battery fully before first use.
2. Select required adaptor and fit onto mains charger.
3. Remove protective cover on base of handle and connect included universal AC mains charger’s DC
plug onto DC input on handle.
4. Connect AC charger to wall outlet.
• The Enforcer LED 140 has a run time of 4 hours with 3W, and 2 hours with 6W at 25°c. Aer this
time, the light will enter ‘reserve’ mode, allowing up to a further 1 hour at a reduced light output.
• The Enforcer LED 140 can be charged via the supplied 100-240V universal AC to 12V DC charger or
optional Lightforce SLA and LiFePO4 battery packs.
• The light can be operated and charged while simultaneously being charged while connected to an
external 12V DC supply.
• Do not operate the light while charging from the AC wall charger.
• The Enforcer LED 140 has an inbuilt charging circuit designed for 12V ONLY.. Never connect the
light to a power source other than 12V unless using a 12V converter*.
• The charge indicator in the base of the light will illuminate for 2 seconds once pressed.
• Never store the light for long periods of time when the battery is in the discharge state.
• The unit must be returned to a service agent for battery replacement.

LIGHTFORCE ENFORCER OPERATOR MANUAL
V1.1 / MAY 17
OPERATOR MANUAL FOR THE ENFORCER LED
HANDHELD PORTABLE LIGHTING SERIES
SPECIFICATIONS
• 490 grams / 17.28 ounces
• IP65 ingress protected
• Colour temperature: 4000K
• 80 CRI (Colour Rendering Index)
• 3W has 4hr runtime plus up to 1 hour of reserve mode @ 25 degrees (at maximum intensity)
• 6W has 2hr runtime plus up to 1 hour of reserve mode @ 25 degrees (at maximum intensity)
• Maximum charge time being 2.5 hours
• RoHS Compliant (Restriction of Hazardous Substances)
• 3-year warranty (excluding internal battery)
• INTERNAL BATTERY: Li-Ion Polymer, 2Ah battery 14.8Wh - Built in LED charge level indicators - Built
in LED charging status indicators - UN38.3 certified
National Association of Testing Authorities Accredited, Australia 2015. • Photometric testing performed by
Photometric Solutions International Pty Ltd (PSI) Huntingdale VIC • 2015

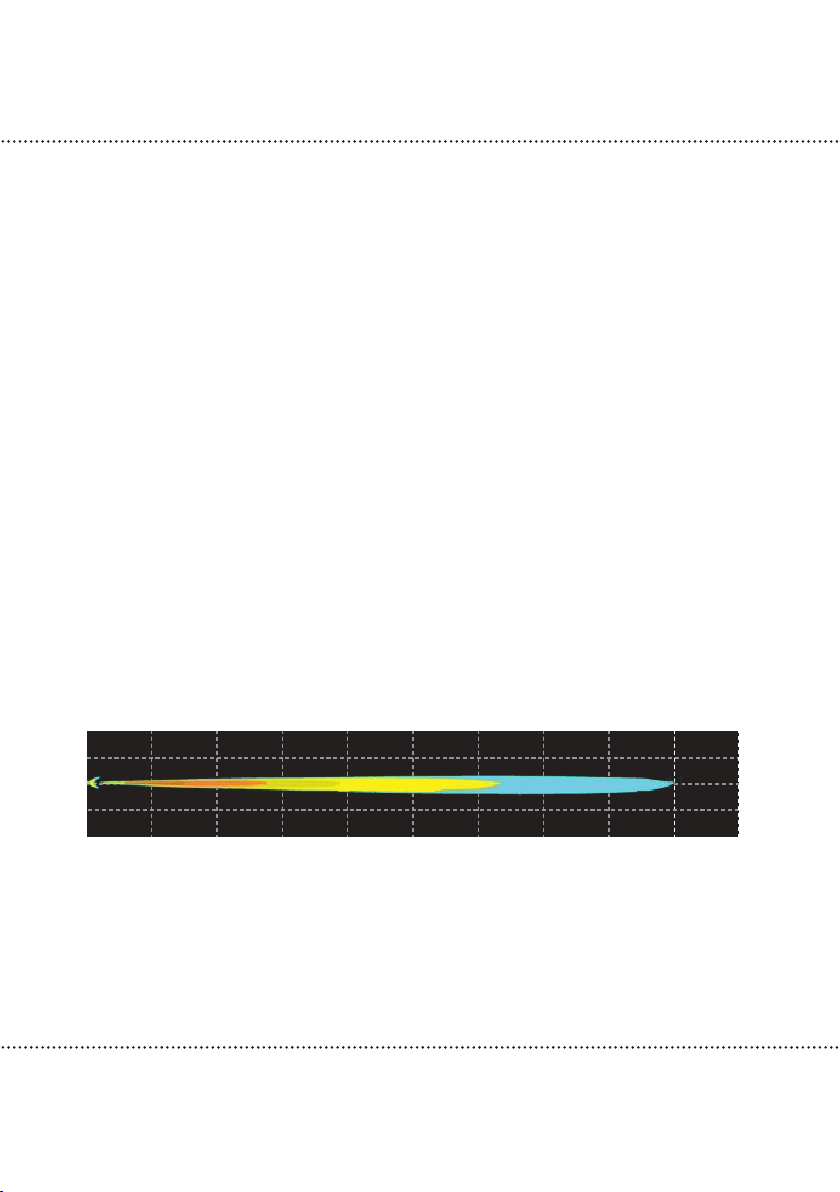

075m 150m
1 lux
(82yd) (164yd)
334m225m 300m
(246yd) (328yd) (365yd)
140 Enforcer White LED (6W) • 334m @ 1 LUX
0
10m
11yd

NOTE
The dimmer lever has dual functionality. Maximum brightness is achieved when the lever
is in the UP position. Moving the lever down reduces the intensity of the white light and
when the lever is in the DOWN position, the RED light is activated.
MAIN LAMP
SWITCH
BATTERY LEVEL
INDICATOR SWITCH
DIMMER
UP - High Intensity - White
CLOCKWISE - Low Intensity
DOWN - Red
SWITCH
(4 colour LED model only)
Colour changing switch

Lightforce Australia Pty Ltd
11 Manton Street, Hindmarsh SA 5007 AUSTRALIA
P: [phone]
F: [phone]
lightforce.com cdf
