Lightmaxx VEGA Lase 3.0 User manual

ENGLISH
Important safety instructions! Please read before connection!
Laser safety requirements - basic principles:
It is based on the BGV-B2 of the UVV of the Berufsgenossenschaften in Germany and the DIN EN
60825-1:2015.
This effect includes a laser of class 4. The system is equipped with a connection for an external
safety switch and a safety key. The safety key should always be removed from the device if no
trained personnel are using the product.
The operator of the system is responsible for the health of the persons present! It is therefore
essential that you familiarise yourself with the applicable regulations for the operation of systems
with lasers. It is essential that you observe the following instructions for safe use.
Before commissioning, an expert must be appointed in writing by the operator of the system as
laser safety officer. In addition, the operation must be reported to the authority responsible for
occupational health and safety and to the employers' liability insurance association. If the laser
system is to be operated publicly, it must first be submitted to an expert for acceptance.
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged, it
must be replaced immediately with an original spare part from the manufacturer. Failure to
do so may result in fire or death due to electric shock!
DANGER! (Laser radiation - do not expose to the beam)
This effect includes a class 4 laser according to EN 60825-1:2015. Do not look into the
laser beam! Do not expose to the laser beam! Looking into the laser beam can cause eye
injuries. Burns can be caused by the laser beam. In addition, care must be taken when
using optically collecting instruments.
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by swallowing
parts!

ENGLISH
WARNING! (Epilepsy)
Stroboscopic effects (flashes of light) can trigger seizures of epilepsy in some people.
Accordingly sensitive people should be warned and should not be in the vicinity of such
devices.
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.
Do not tape or cover the ventilation slots of the unit.
Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation (IP20).
Never expose the device to rain, moisture or liquids as this may cause damage.
Vibrations, dust or sunlight can also cause damage, avoid them!
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains voltage. It
is highly recommended that you fuse your mains socket with a residual current circuit
breaker (FI).
If you do not use your device for a longer period of time or carry out maintenance work,
disconnect the device from the mains in order to minimize danger. The same applies to
storm conditions such as thunderstorms, floods, etc.
Hint! (Error during data transmission)
Never connect the DMX input or output to audio devices such as power amplifiers or
mixing consoles!
DMX cables enable trouble-free operation and the highest possible transmission reliability
of signal data. Do not use microphone cables!
Hint! (Condensation)
To avoid condensation in the unit, the unit should adapt to the ambient temperature
before commissioning.
Hint! (Unwanted odours)
A new product can sometimes lead to unwanted odours. This reaction is normal and
disappears after a few minutes.

ENGLISH
Symbols on device and packaging:
The lightning flash symbol warns the user of uninsulated voltages and the risk
of electric shock.
The exclamation mark symbol draws the user’s attention to important maintains
and operating instructions in the manual.
Only suitable for indoor use.
Read the manual
Please read and follow the warnings and recommendations carefully to ensure safe
and trouble-free use.

ENGLISH
Installation:
Be sure to check the unit for damage before use. Use the original packaging or a suitable
transport or storage packaging to protect the product from dust, moisture, etc. when not in use.
The unit can be installed either upright or suspended. The device must always be attached to a
solid, approved carrier or a suitable surface. Note the load limit of the selected installation
position (e.g. for tripods).
The opening of the bracket must be used to fasten the device. Always provide a second,
independent safety backup for the device, e.g. with a safety cable.
Work on the device (e.g. assembly) should always be carried out from a stable and permissible
platform. Make sure that the area below you is closed off.
WARNING! (Risk of injury due to falling down)
Improper installation can cause considerable injury and damage!
The installation of the device should always be carried out by experienced personnel and
must be carried out in compliance with the mechanical and electrical safety regulations in
your country.
International laser safety regulations stipulate that laser products must be operated in the
manner shown below with a vertical distance of at least 3 meters between the ground and the
vertical laser light. In addition, a horizontal distance of 2.5 meters between the laser light and the
public or other public spaces is required.
Please note that it is not possible to use this device with a dimmer!

ENGLISH
Congratulations on your new lightmaXX VEGA Lase 3.0!
Thank you for choosing a lightmaXX product. Through efficient development and economical
production, lightmaXX enables high quality products at a fantastic price.
Please read the instruction manual carefully to learn about all the features of this
product and keep it for future use.
Have fun with your new product!
Your lightmaXX Team
Guarantee:
The current general terms and guarantee conditions
of the Music Store professional GmbH apply.
You can view it at: www.musicstore.de
If you have any questions or suggestions, please
contact us:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Cologne
Managing Director: Michael Sauer
WEEE-Reg.-No. DE 41617453
Tel: [phone]
Fax: [phone]
[e-mail]
Intended use:
The lightmaXX VEGA Lase 3.0 was designed for use as an electronic LED lighting effect. The
device may only be used for this purpose and in accordance with the operating instructions. Other
purposes as well as operation under other operating conditions are expressly not intended and can
lead to damage to property or personal injury! No liability is assumed for damage resulting from
improper use.
It must be ensured that the device is operated exclusively by trained and competent users who are
in full possession of their mental, physical and sensory abilities. The use of other persons is
expressly only permitted at the request of a person responsible for their safety, who instructs or
supervises the use.

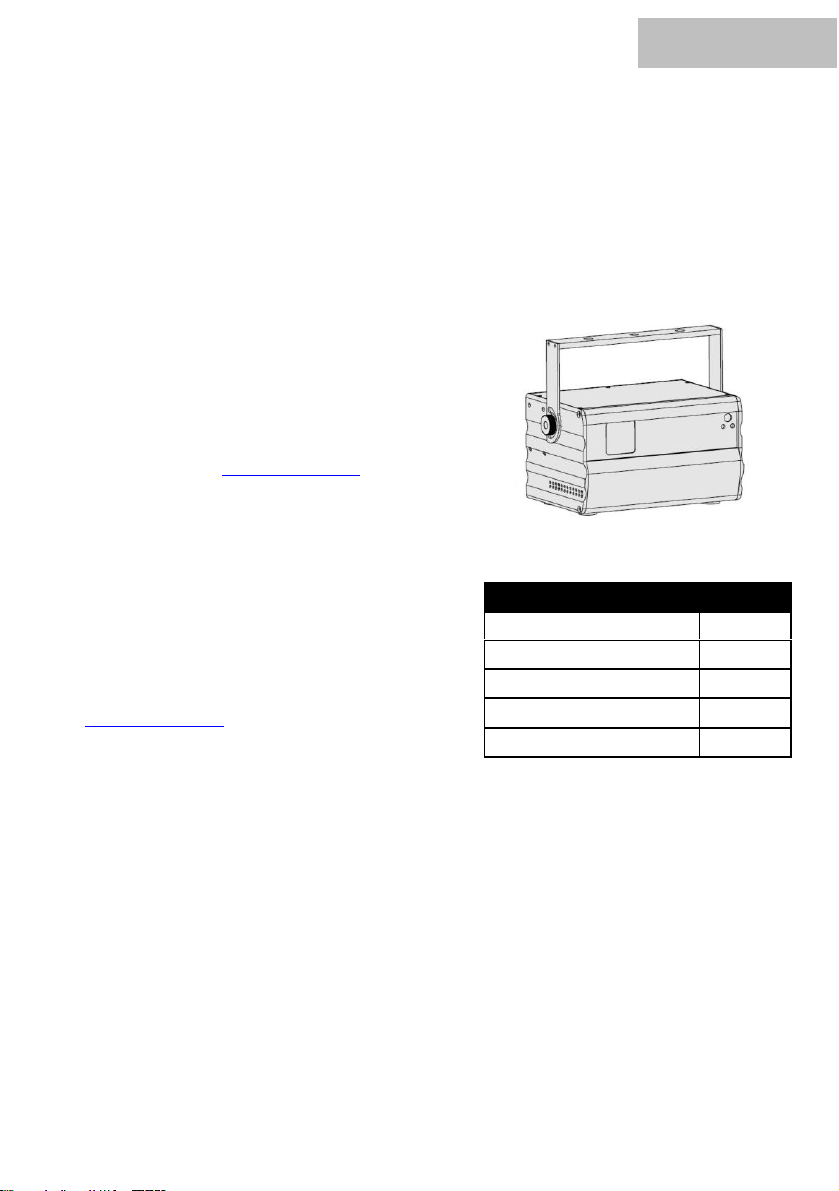

Content
Quantity
VEGA Lase 3.0 Laser
1
Power Cord
1
Interlock Connector
1
Keys for key switch
1
Manual
1
Scope of delivery:

ENGLISH
Set up:
All connections of the device should be made before switching on. Only use high-quality cables
that are as short as possible for the connections.

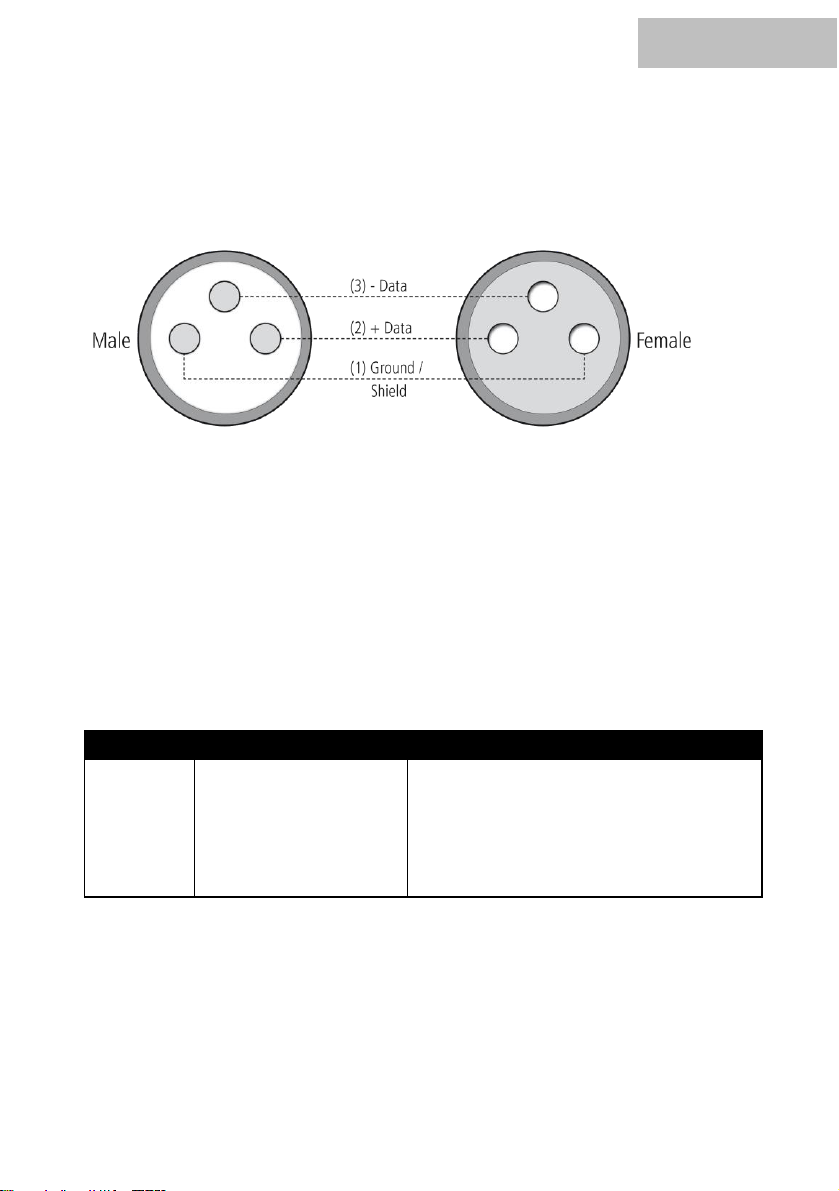

Configuration of the DMX connector:
Resistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) oft he last fixture.
Operating mode DMX:
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX line. Always use a DMX cable with a
110 Ohm resistor for this connection. Address the device according to your DMX configuration.
The following table shows the respective DMX modes of the individual devices with the
corresponding values and functions:
1-channel-Mode
Channel
Value
Function
1
000-073
074-110
111-147
148-165
166-184
185-202
203-255
Laser Blackout
PRG show in SD card
ILD show in SD card
Auto Show 1
Auto Show 2
Music Show 1
Music Show 2

ENGLISH
13-channel-Mode
Channel
Value
Function
1
000-073
074-110
111-147
148-165
166-184
185-202
203-221
222-255
LASER Blackout
PRG show in SD card
ILD show in SD card
AUTO SHOW 1
AUTO SHOW 2
MUSIC SHOW 1
MUSIC SHOW 2
DMX mode (other channels activated)
2
000-255
86 Patterns as shown in pattern list
3
000-005
006-010
011-199
200-255
Laser Blackout
No Stroking
Stroking
(Speed: slow to fast)
Stroking to sound
4
000-125
126-185
186-225
226-245
246-255
X position
Moving from slow to fast
Moving with random speed
Random position
Sound to random position
5
000-125
126-185
186-225
226-245
246-255
Y position
Moving from slow to fast
Moving with random speed
Random position
Sound to random position
6
000-010
011-087
088-150
151-200
201-255
Original size
Fixed sizing
Zooming out
Zooming in
Zooming out and in
7
000-010
011-128
129-255
No rolling, Y Axis
Fixed rolled position, Y Axis
Rolling from slow to fast, Y Axis
8
000-010
011-128
129-255
No rolling, X Axis
Fixed rolled position, X Axis
Rolling from slow to fast, X Axis
9
000-010
011-128
129-192
193-255
No rolling, Z Axis
Fixed rolled position, Z Axis
Rolling to clockwise, Z Axis
Rolling to anticlockwise, Z Axis

ENGLISH
In PRG or ILD show mode (CH1 between 074 and 147)
10
000-010
011-074
075-104
105-144
145-184
185-224
225-255
Original pattern
Fixed clipping
Clipping out
Clipping in
Clipping out and in
Clipping on
Clipping off
11
000-010
011-189
190-255
Original pattern
Wave effect in pattern with speed control
Wave effect in pattern with amplitude control
12
000-016
017-033
034-050
051-067
068-084
085-101
102-118
119-135
136-152
153-169
170-186
187-203
204-220
221-237
238-255
White
Red
Green
Blue
Yellow
Purple
Cyan
White, red, green ,blue 4 fixed colors
Blue, yellow, purple, cyan 4 fixed colors
Seven colors
White, red, green ,blue 4 colors looping
Blue, yellow, purple, cyan 4 colors looping
Seven colors looping
Random color
Color changing to sound
13
000-063
064-127
128-191
192-255
Original pattern
Pattern with bright points
Pattern with blanking
Points to make pattern
Channel
Value
Function
2
000-255
Folders
3
000-255
Shows（PRG or ILD）

ENGLISH

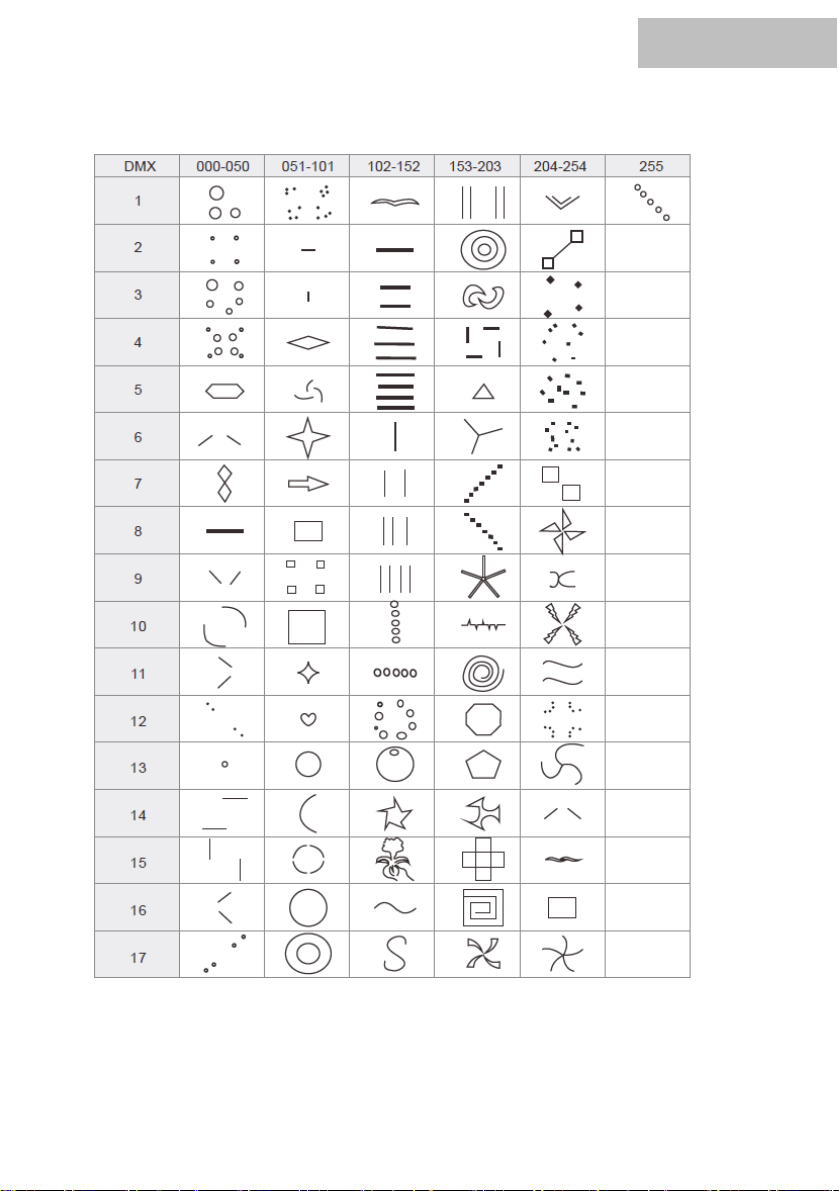

Overview of 86 integrated patterns

ENGLISH
Static, Auto or Sound mode:
The device contains automatic programs that run according to fixed schemes (Auto) or are
recalled via the built-in microphone to match the music (Sound). The selection of the respective
mode takes place via the menu directly on the device.
If you connect several devices of the same type via DMX, they can be controlled simultaneously
via the master device. To do this, set the desired function "Master" on the first device of the line,
the other devices of the series must now be set as "Slave". Now the first device of the line gives
the function to all other devices and all devices run simultaneously.
Operation:
Start:
Connect the device to the mains and wait a few seconds until it is ready for operation.
SD Play setting:
The system only supports FAT32 file system, if using new card, it must be firstly ormatted into
FAT32 format.
The system only supports short file name. File name( folder name included) consists of no more
than 8 characters name and 3 extensions made up of letters, numbers and underlines, with utf-8
characters.
SD card must be dedicated, don’t mix storage with others file, it can support no more than 100
files, very file storage is no more than 255 files.
Show list: User can edit show list by text editor(notepad), extension name is .Prg. Show list
consists of play file name, play speed, play time, each divided by “,”. One show item on one line.
Such as, a show consisted of file1.ild,file2.ild,file3.ild, the play speed of file1.ild is 12K, repeat 3
times, file2.ild play speed is 20K, play 1 time, file3.ild, play speed is 18k, play 4times, so prg1.prg
content as below:
File1.ild,12,3 File2.ild,20,1 File3.ild,18,4
When a new folder is created, it needs to create a PRG file sharing the same name with the folder
in the new folder. All shows which are ready to be played in the folder must be edited into the
PRG file. The play speed the speed in “key seek” model. Such as, in “aurora” folder, aurora.prg
file is created with new ILDA, this file must be added into PRG file, so that it will be easy to be
found when choosing the play file, and it will be played as your required speed.
This system only supports standard ILDA files with extensions of “ild”.

ENGLISH
Connections and controls:

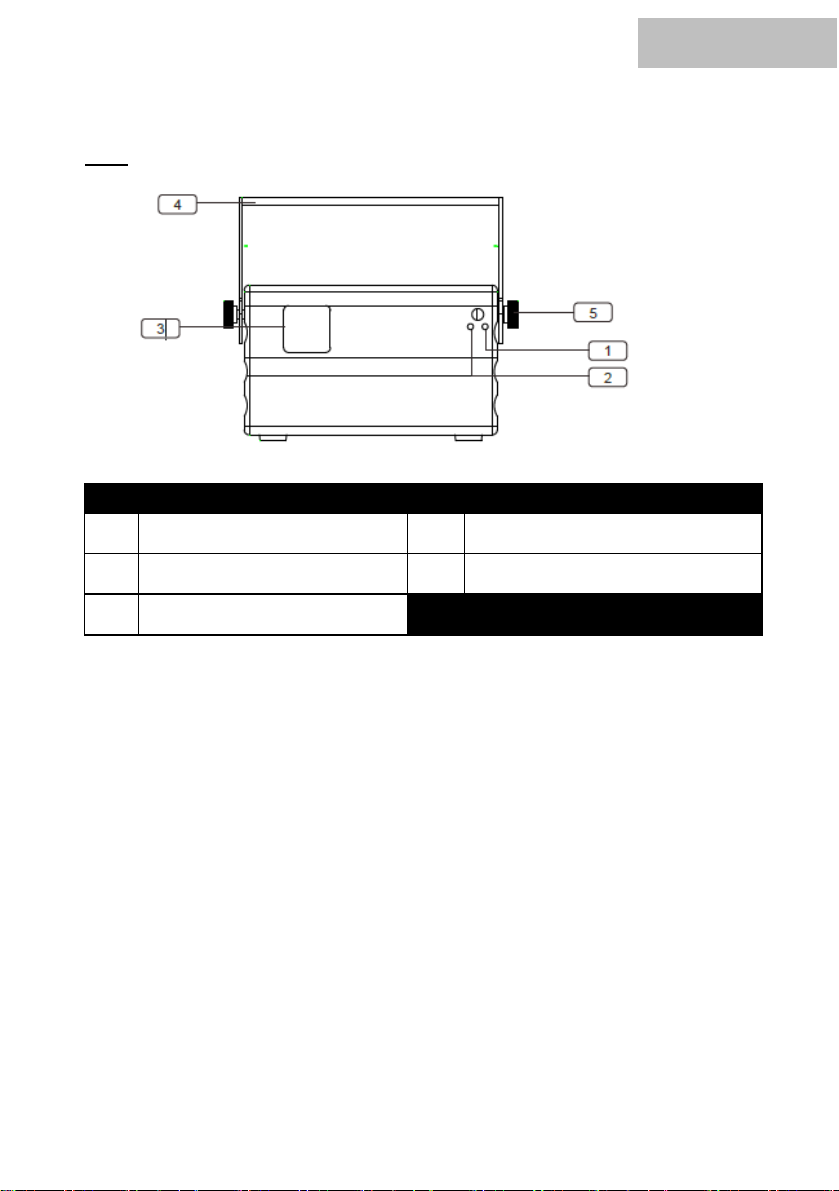

Front
Nr.
Function
Nr.
Function
1
Music signal detected to
synchronize
4
Handle
2
Main power indicator. Red light is
Power ON.
5
Position Lock
3
Laser aperture, do not look
directly into the window!

ENGLISH

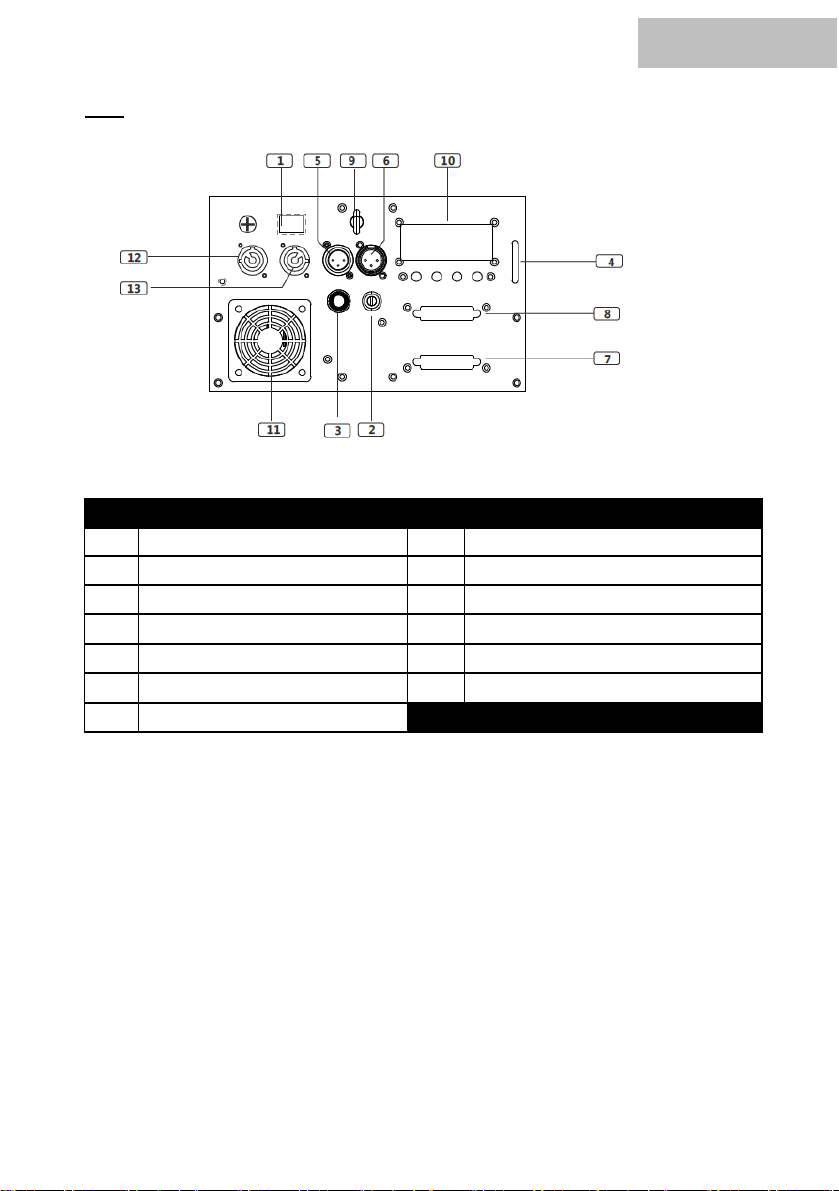

Back
Nr.
Function
Nr.
Function
1
Switch on/off the power
8
ILDA Out (25-pin)
2
Key switch
9
Eye bolt
3
Interlock
10
Control panel
4
SD-Card Slot
11
Cooling Fan
5
DMX-Input (3-polig)
12
Power input
6
DMX-Output (3-polig)
13
Power output
7
ILDA In (25-pin)

ENGLISH
Menu:
Navigation in the menu is via the four menu buttons below the display. Use the "Mode"
button to activate the menu, navigate via the "Up" and "Down" buttons. A corresponding
selection is confirmed with the "Enter" key.
The menu structure in detail:
Menu
Value
Function
Internal
Show
Auto Show2
Music Show2
Press UP/DOWN to choice program ,
ENTER to confirm.
SD Show
ILD SHOW
PRG SHOW
ILD SHOW: shows the single ILDA program in
the folder ,PRG SHOW: shows the program
that constitute by many ILDA programs in the
folder.
DMX Mode
001-512
Setting DMX-Address
Slave-
Mode
Master-/Slave-Mode
COLOR: SINGLE COLOR
DOUBLE COLOR
MULTICOLOR
Setting Color Selection
SHOW SPEED
Setting scanner speed: 10K -30K
Setting
VOIC SENS
Setting sound sensitivity : 000-100
DMX CH
Setting DMX channels 1 CH or 13CH
SIZE
Setting pattern size from small to big 10-100
Setting pattern direction
MIRROR
1.SY：N SX：N
2.SY：N SX：Y
3.SY：Y SX：N
4.SY：Y SX：Y

ENGLISH
Specifications:
Model
VEGA Lase 3.0
Power supply
100-240V 50/60Hz
Power consumption
60 Watts
Lightsource
Red
Green
Blue
638nm 700mw
525nm 900mw
450nm 1400mw
Fuse
T1.6A , 250V
Laser divergence angle
1.8mard (Full angle)
Laser class
4
Scanner
30Kpps, 1-36° (Angle)
DMX-Connections
Input/Output 3-pol
ILDA-Connections
Input/Output 25-pin
DMX-channels
1 or 13
Operating modes
Automatic, Master-/Slave, Sound, DMX, ILDA
Cooling
Fan
Maximum External Temperature
40°
Dimensions
(Length × Width × Height)
260 × 185 × 153.5mm
Weight
4,9 kg

ENGLISH
Troubleshooting:
The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the
manufacturer, the dealer or the corresponding specialist personnel. Never open the device on
your own!
If the specified corrections have not led to success, please contact our service staff. The contact
details can be found at www.musicstore.de
Cleaning:
Regular cleaning of the device from dirt and dust increases the shelf life of the product. Always
disconnect the device from the power supply before cleaning it! Never clean the appliance wet!
Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation
grilles and openings should always be cleaned of dust and dirt. Suitable compressed air sprays
are recommended for this application.
Environmental protection:
The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging
to a minimum. The use of environmentally friendly and recyclable materials is of fundamental
importance to us. Please dispose of and recycle the packaging components after use properly.
Disposal of packaging:
Ensure that paper packaging, plastic materials, etc. are separately recycled. Observe the
corresponding disposal instructions on the packaging.
Disposal of batteries:
Batteries do not belong in the garbage! Please keep batteries in accordance with the
official collection points or disposal stations in accordance with the specifications.
Symptom
Troubleshooting
No function
Check the mains connection and the fuse
No reaction in DMX mode
Check the cable connections
Check your DMX address setting
If available, try an alternative DMX controller
No reaction in remote mode
Change the battery in your remote control
Ensure that the IR transmitter and receiver are at
close and clear distances from each other

ENGLISH
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the WEEE
Directive (Waste Electrical and Electronic Equipment) in its currently valid version.
The device will be disposed of by an approved waste disposal company or your local waste
disposal office. The regulations valid in your country must be observed!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstraße 22-26,
51103 Cologne, Germany
MS ID: LIG0017278-000
12/2020
Notes
