Lightmaxx Vega MATRIX Wash User manual

Important safety instructions! Please read before connection!
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged, it
must be replaced immediately with an original spare part from the manufacturer. Failure
to do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by swallowing
parts!
WARNING! (High light intensity - eye injuries)
A direct view into the light source is absolutely to be omitted!
WARNING! (Epilepsy)
Stroboscopic effects (flashes of light) can trigger seizures of epilepsy in some people.
Accordingly sensitive people should be warned and should not be in the vicinity of such
devices.
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.
Do not tape or cover the ventilation slots of the unit.

ENGLISH
Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation (IP20).
Never expose the device to rain, moisture or liquids as this may cause damage.
Vibrations, dust or sunlight can also cause damage, avoid them!
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains voltage. It
is highly recommended that you fuse your mains socket with a residual current circuit
breaker (FI).
If you do not use your device for a longer period of time or carry out maintenance work,
disconnect the device from the mains in order to minimize danger. The same applies to
storm conditions such as thunderstorms, floods, etc.
Hint! (Error during data transmission)
Never connect the DMX input or output to audio devices such as power amplifiers or
mixing consoles!
DMX cables enable trouble-free operation and the highest possible transmission reliability
of signal data. Do not use microphone cables!
Hint! (Condensation)
To avoid condensation in the unit, the unit should adapt to the ambient temperature
before commissioning.
Hint! (Unwanted odours)
A new product can sometimes lead to unwanted odours. This reaction is normal and
disappears after a few minutes.

ENGLISH
Symbols on device and packaging:
The lightning flash symbol warns the user of uninsulated voltages and the risk
of electric shock.
The exclamation mark symbol draws the user’s attention to important maintains
and operating instructions in the manual.
Only suitable for indoor use.
This symbol defines the minimum distance of the object to be illuminated.
Read the manual
Please read and follow the warnings and recommendations carefully to ensure safe
and trouble-free use.
Installation:
Be sure to check the unit for damage before use. Use the original packaging or a suitable
transport or storage packaging to protect the product from dust, moisture, etc. when not in use.
The unit can be installed either upright or suspended. The device must always be attached to a
solid, approved carrier or a suitable surface. Note the load limit of the selected installation
position (e.g. for tripods).
The opening of the bracket must be used to fasten the device. Always provide a second,
independent safety backup for the device, e.g. with a safety cable.
Work on the device (e.g. assembly) should always be carried out from a stable and permissible
platform. Make sure that the area below you is closed off.
WARNING! (Risk of injury due to falling down)
Improper installation can cause considerable injury and damage!
The installation of the device should always be carried out by experienced personnel and
must be carried out in compliance with the mechanical and electrical safety regulations in
your country.
Please note that it is not possible to use this device with a dimmer!

ENGLISH
Congratulations on your new lightmaXX Product Vega Wash!
Thank you for choosing a lightmaXX product. Through efficient development and economical
production, lightmaXX enables high quality products at a fantastic price.
Please read the instruction manual carefully to learn about all the features of this
product and keep it for future use.
Have fun with your new product!
Your lightmaXX Team
Guarantee:
The current general terms and guarantee conditions
of the Music Store professional GmbH apply.
You can view it at: www.musicstore.de
If you have any questions or suggestions, please
contact us:
Bei Fragen und Anregungen wenden Sie sich bitte an:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Köln
Geschäftsführer: Michael Sauer
WEEE-Reg.-Nr. DE 41617453
Tel: [phone]
Fax: [phone]
[e-mail]
Intended use:
The lightmaXX Product Vega Wash was designed for use as an electronic LED lighting effect.
The device may only be used for this purpose and in accordance with the operating instructions.
Other purposes as well as operation under other operating conditions are expressly not intended
and can lead to damage to property or personal injury! No liability is assumed for damage resulting
from improper use.
It must be ensured that the device is operated exclusively by trained and competent users who are
in full possession of their mental, physical and sensory abilities. The use of other persons is
expressly only permitted at the request of a person responsible for their safety, who instructs or
supervises the use.

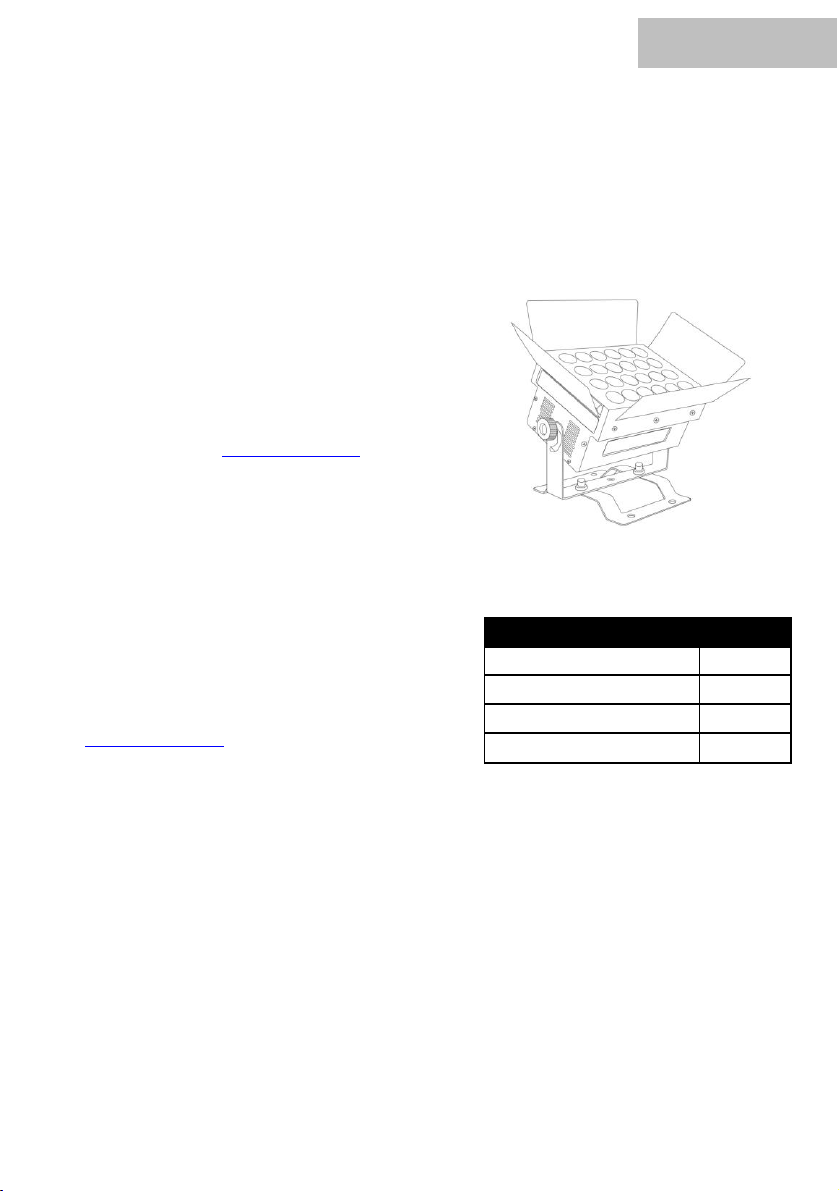

Content
Quantity
LED Flood light
1
Mounting Bracket
1
Manual
1
Power Cord
1
Scope of delivery:

ENGLISH
Set up:
All connections of the device should be made before switching on. Only use high-quality cables
that are as short as possible for the connections.
Configuration of the DMX connector:
Resistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) oft he last fixture.
Operating mode DMX:
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX line. Always use a DMX cable with a
110 Ohm resistor for this connection. Address the device according to your DMX configuration.
The following table shows the respective DMX modes of the individual devices with the
corresponding values and functions:

ENGLISH
4 Channel Mode:
8 Channel Mode:
Channel
Value
Function
1
000-255
Master Dimmer
2
000
001-255
Red off
Dimmer Red
3
000
001-255
Green off
Green Dimmer
4
000
001-255
White off
White Dimmer
Channel
Value
Function
1
000-255
Master Dimmer
2
000
001-255
Red off
Dimmer Red
3
000
001-255
Green off
Green Dimmer
4
000
001-255
Blue off
Blue Dimmer
5
000
001-255
White off
White Dimmer
6
000-255
Strobe (slow to fast)
7
000-255
Speed (slow to fast
8
000-050
CH1 –CH5 on
051-100
Macrofunction
101-150
Color Gradual Change
151-200
Strobe Change
201-250
Color Jump Change
215-255
Sound Mode

ENGLISH
Static, Auto or Sound mode:
The device contains automatic programs that run according to fixed schemes (Auto) or are
recalled via the built-in microphone to match the music (Sound). The selection of the respective
mode takes place via the menu directly on the device.
If you connect several devices of the same type via DMX, they can be controlled simultaneously
via the master device. To do this, set the desired function "Master" on the first device of the line,
the other devices of the series must now be set as "Slave". Now the first device of the line gives
the function to all other devices and all devices run simultaneously.
Operation:
Start:
Connect the device to the mains and wait a few seconds until it is ready for operation.
Connections and controls:
No.
Designation
No.
Designation
1
LED Lenses
6
Power Connection (IEC)
2
Winge verge
7
Display
3
Adjustment Screw
8
Menu buttons
4
Mounting Bracket
9
DMX Output (3-pol)
5
Ventilation shaft
10
DMX Input (3-pol)

ENGLISH
Menu:
Navigation in the menu is via the four menu buttons below the display. Use the "Mode" button to
activate the menu, navigate via the "Up" and "Down" buttons. A corresponding selection is
confirmed with the "Enter" key.
The menu structure in detail:
Menu
Value
Function
D001
001-255
4 Channel Mode
A001
001-255
8 Channel Mode
FF01
01-99
Color Gradual Change
CC01
01-99
Color Jump Change
EE01
01-99
Macrofunction
DE00
Automatic Mode
SOUD
Sound Mode

ENGLISH
Specifications:
Model
Vega Wash
Power supply
AC 220-240V, 50/60Hz
Power consumption
220 Watts
LEDs
22 x 8 Watt QCL LEDs
Color Mixing
RGBW
(Red –Green –Blue –White)
Beam Angle
45°
Dimmer
0 to 100%
Strobe
variable
Fan
Yes
Operating modes
DMX, Automatic, Sound Mode, Master/Slave
DMX channels
4 or 8
Protection Class
IP20
Control board
Display, 4 Menu buttons
Connections
IEC In
DMX-In-/Output (3-pol)
Dimensions without Bracket
(L x B x H)
400 x 230 x 175 mm
Weight
5,7 kg

ENGLISH
Troubleshooting:
The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the
manufacturer, the dealer or the corresponding specialist personnel. Never open the device on
your own!
If the specified corrections have not led to success, please contact our service staff. The contact
details can be found at www.musicstore.de
Cleaning:
Regular cleaning of the device from dirt and dust increases the shelf life of the product. Always
disconnect the device from the power supply before cleaning it! Never clean the appliance wet!
Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation
grilles and openings should always be cleaned of dust and dirt. Suitable compressed air sprays
are recommended for this application.
Symptom
Troubleshooting
No function
Check the mains connection and the fuse
No reaction in DMX mode
Check the cable connections
Check your DMX address setting
If available, try an alternative DMX controller
No reaction in remote mode
Change the battery in your remote control
Ensure that the IR transmitter and receiver are at
close and clear distances from each other

ENGLISH
Environmental protection:
The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging
to a minimum. The use of environmentally friendly and recyclable materials is of fundamental
importance to us. Please dispose of and recycle the packaging components after use properly.
Disposal of packaging:
Ensure that paper packaging, plastic materials, etc. are separately recycled. Observe the
corresponding disposal instructions on the packaging.
Disposal of batteries:
Batteries do not belong in the garbage! Please keep batteries in accordance with the
official collection points or disposal stations in accordance with the specifications.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the WEEE
Directive (Waste Electrical and Electronic Equipment) in its currently valid version.
The device will be disposed of by an approved waste disposal company or your local
waste disposal office. The regulations valid in your country must be observed
Hersteller: MUSIC STORE professional GmbH,
Istanbulstraße 22-26,
51103 Köln, Deutschland

ENGLISH
MS ID: LIG0015784-000
07/2020
