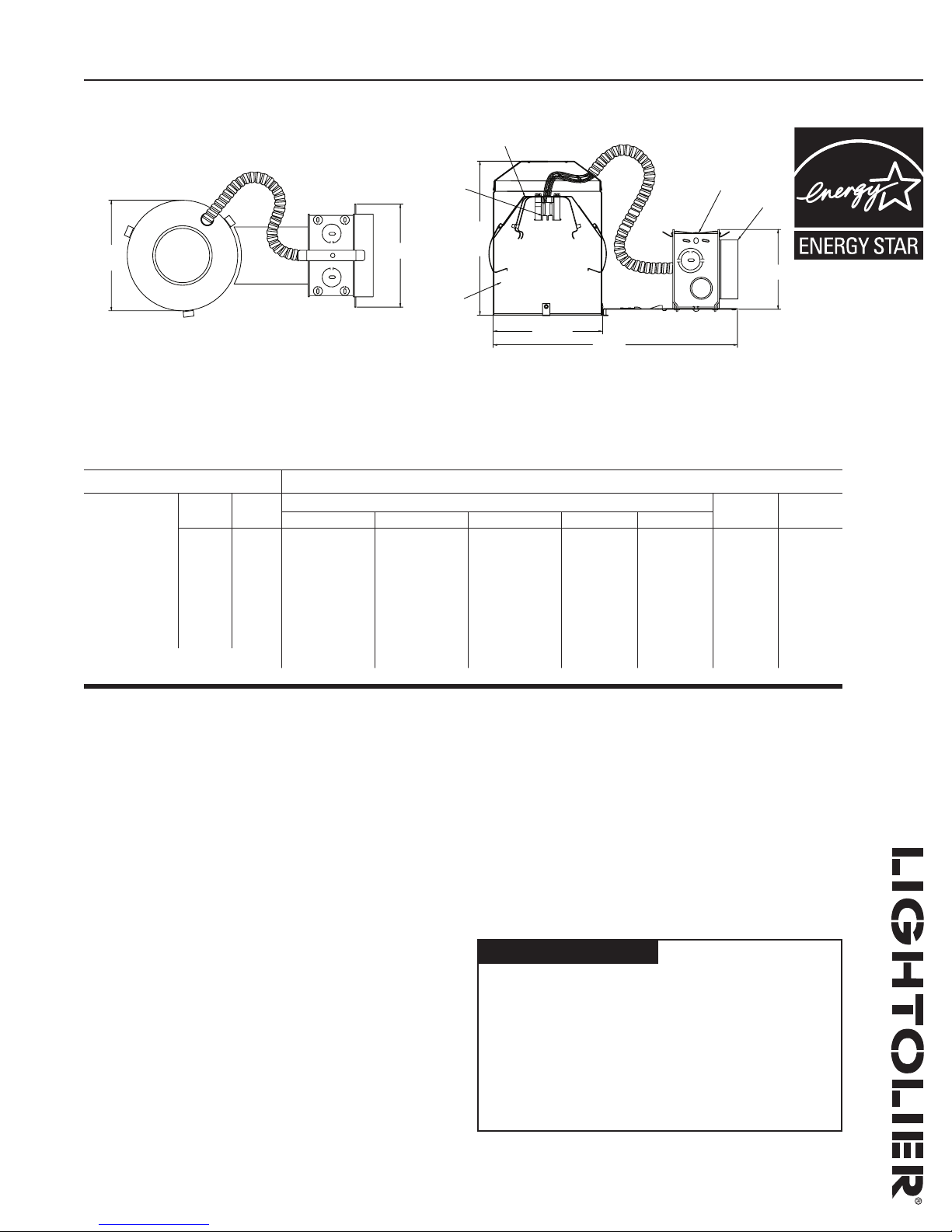

Lytecaster®Recessed Downlighting 1004F18ESR
Page 1 of 1 5" Aperture 0® 1 Lt 18W Quad/Triple Tube Compact Fluorescent IC Remodeler
5"
5 1/4"
DIAMETER
3
3 7/8"
11 3/8"
OVERALL
LENGTH
2
5
7 1/2"
OVERALL
HEIGHT
5 1/2"
APERATURE
1
4
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Voltage Lamp Open Downlight Enclosed
Diffusers
Wall
Washer
Anodized Reflector Anodized Cone Satin Cone Baffles Basic White
1004F18ESR 120V 18W
Quad or
Triple
Tube
1045
1046
1046CD
1012
1012NM
1013
1013BK
1013BKNM
1013CD
1013CDNM
1013NM
1013WH
1008
1008NM
1010
1010NM
1005
1005BNM
1005NM
1005WH
1076
1076WH
1071 1021
1024
1078
1177LX**
1035
1035WH
1085
1095
1096
1096CD
Ceiling Opening 5 3/8" diameter
Features
1. Housing: .032” (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal®housing minimizes
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for branch circuit wiring supplying connected luminaires. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex®
cable without tools or additional connectors.
3. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
4. Socket: (4 Pin,GX24q-2) base, molded thermo-plastic. Pre-wired with #18
AWG leads to junction box.
5. Ballast: Electronic 120V, end of life protected, FCC class “B” consumer
limits, class “A” sound rating. Energy Star® qualified.
Electrical
Input Watts: 19
Amps: .16
Ballast Factor: 1.0
Power Factor: .97
Max THD %: 10
Min Start Temp: 0˚F/ -18˚C
Options & Accessories
AirSeal®Kit: LAS56R
(Required for Airseal installation)
Labels
UL (Type IC Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
Romex® is a registered trademark of General Cable Industries Inc.
** Use Triple Tube Lamp Only.
