MasterCraft 054-4267-4 User manual

IMPORTANT:
Read and understand this instruction manual
thoroughly before using the product.
INSTRUCTION
MANUAL
CORDLESS LED AREA LIGHT
054-4267-4

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
3
TABLE OF CONTENTS
Technical Specifications 4
Safety Guidelines 5
Key Parts Diagram 8
Operating Instructions 9
Maintenance 10
Troubleshooting 11
Parts List 12
Warranty 14
NOTE:
If any parts are missing or damaged, or if you have any questions,
please call our toll-free helpline at 1-800-689-9928.
SAVE THESE INSTRUCTIONS
• This manual contains important safety and operating instructions. Read all
instructions and follow them when using this product.
TABLE OF CONTENTS

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 054-4267-4 | contact us 1-800-689-9928
4
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Rated Input 20V d.c. max*
Number of LEDs 20
Light Output (at 360° HIGH setting) 850 Lumens
3 Brightness Modes
360° HIGH setting
360° LOW setting
180° setting
Batteries
1.5 Ah Li-ion (054-3124-0; sold separately)
2.0 Ah Li-ion (054-7553-4; sold separately)
4.0 Ah Li-ion (054-7557-6; sold separately)
5.0 Ah Li-ion (054-2434-8; sold separately)
Area Light Weight (without battery) 15 oz (0.43 kg)
*Maximum battery voltage without workload; with workload nominal voltage is 18V.
Recommend using tool with Mastercraft®20V max* Lithium-Ion 4.0 Ah battery (054-7557-6; sold
separately) for optimal performance.

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
5
SAFETY GUIDELINES
WARNING!
Safety symbols in this instruction manual are used to flag possible dangers. The safety
symbols and their explanations require your full understanding. The safety warnings do not,
by themselves, eliminate any danger, nor are they substitutes for proper accident prevention
measures.
WARNING!
This Safety Alert Symbol indicates caution, warning, or danger. Failure to obey a safety
warning can result in serious injury to yourself or others. To reduce the risk of injury, fire, or
electric shock, always follow the safety precautions.
KNOW YOUR TOOL
To operate this tool, carefully read this instruction manual and all labels affixed to the cordless LED area
light before using. Keep this manual available for future reference.
IMPORTANT
This tool should only be serviced by a qualified service technician. For more information, call the toll-
free helpline at 1-800-689-9928.
READ ALL INSTRUCTIONS THOROUGHLY
SAVE THESE INSTRUCTIONS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided
with this power tool. Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using electric appliances, basic precautions should always be followed, including the
following:
• Read all the instructions before using the appliance.
• To reduce the risk of injury, close supervision is necessary when an appliance is used near children.
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
6
model no. 054-4267-4 | contact us 1-800-689-9928
• Do not contact moving parts.
• Only use attachments recommended or sold by the manufacturer.
• To reduce the risk of electric shock or damage to the charger and battery, use only the batteries
and charger listed.
BATTERY PACK CHARGER
054-3124-0
054-7553-4
054-7557-6
054-2434-8
054-3126-6
054-7559-2
• The lens gets very hot during use. To reduce the risk of burns, do not touch the hot lens.
• To reduce the risk of fire, keep away from combustible materials while in operation.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs
may create a risk of injury and fire.
• When the battery pack is not in use, keep it away from other metal objects like paper clips, coins,
keys, nails, screws or other small metal objects that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, also seek medical help. Liquid
ejected from the battery may cause irritation or burns.
• Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
• Do not use outdoors. This worklight is intended for household use only. Using it outdoors may
increase the risk of electric shock or fire.
• Do not wash the worklight with water or keep it in a damp location. If the worklight gets wet, dry
it off as soon as possible.
• To reduce the risk of electrical shock, do not put the unit in water or other liquid.
• Do not place or store the unit where it can fall or be pulled into a tub or sink.
• Do not work with the cordless worklight in hazardous areas.
• Do not use the cordless worklight in road traffic. The cordless worklight is not approved for
illumination in road traffic.
• Remove the battery from the cordless worklight before doing any work on the cordless worklight
itself (e.g. assembling, maintenance, cleaning, etc.), as well as when transporting and storing the
worklight.
• Do not allow children to use the cordless worklight. It is intended for professional use. Children
can unintentionally blind themselves or other persons.
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
7
• The label on your tool may include the following symbols. The symbols and their definitions are as
follows:
V ..................... Volts
A ..................... Amperes
Hz ................... Hertz
W .................... Watts
min ................. Minutes
................. Alternating current
or d.c..... Direct current
n0................... No-load speed
............... Class II Construction
…/min ........... Revolutions or reciprocation per minute
............... Grounding terminal
BPM ............... Beats per minute
.............. WARNING – To reduce the risk of injury, the user must read the instruction
manual.
.............. WARNING – To reduce the risk of injury, always wear eye protection.
.............. WARNING – To reduce the risk of injury, always wear ear protection.
SAVE THESE INSTRUCTIONS
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 054-4267-4 | contact us 1-800-689-9928
8
PACKAGE CONTENTS:
Cordless LED area light, instruction manual.

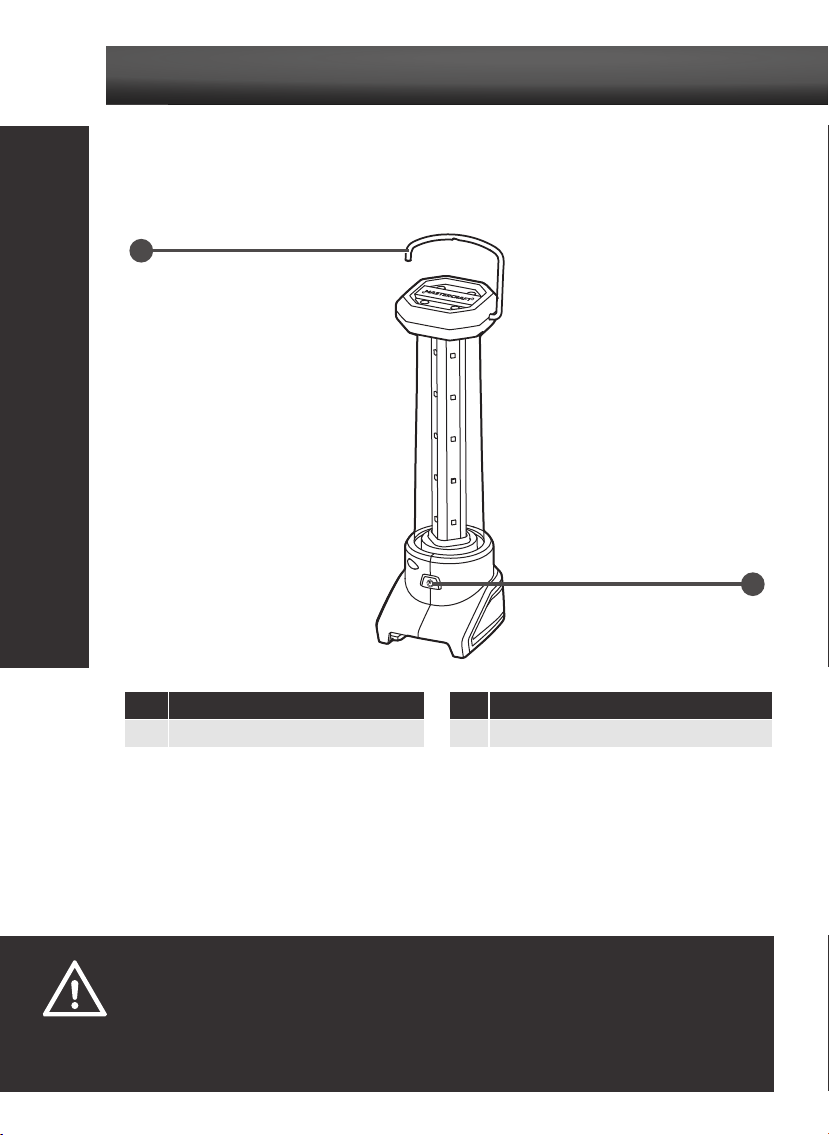

KEY PARTS DIAGRAM
1
2
No. Description No. Description
1 Hook 2 Switch Button
Before attempting to use this tool, become familiar with all of its operating features and safety
requirements. For optimum performance and safety, read the following operating instructions carefully
before using.
KEY PARTS DIAGRAM
WARNING!
• Remove the cordless LED area light from the package and examine it carefully. Do not discard the carton or any packaging
material until all parts have been examined.
• If any part of the area light is missing or damaged, do not attach the battery pack to the tool or use the tool until the part has
been repaired or replaced. Failure to heed this warning could result in serious injury.
• Carefully read the instruction manuals for your Mastercraft 20V max Lithium-ion Battery and Mastercraft 20V max Lithium-ion
Charger for safety and operation instructions.
FPO

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
9
OPERATION INSTRUCTIONS
TO ATTACH BATTERY PACK (fig 1)
1. Align the raised platform on the battery pack with
the grooves on the bottom of the tool, then slide the
battery pack into the body of the tool.
2. Make sure it latches securely into place.
TO DETACH BATTERY PACK (fig 1)
1. Depress the battery-release button located on the
front of the battery pack to release the battery
pack.
2. Pull the battery pack toward the front of the tool to remove it from the tool.
TURN THE AREA LIGHT ON AND SELECT
THE BRIGHTNESS MODE (fig 2)
1. Press the switch button: the light is on the 360°
HIGH setting.
2. Press the switch a second time: the light is on the
360° LOW setting.
3. Press the switch a third time: the light is on the
180° setting.
4. Press the switch a fourth time: the light is off.
UTILITY HOOK
Your light is equipped with a convenient utility hook for hanging your light. To use, simply lift the hook
until it snaps into the open position. When not in use, always lower the hook until it snaps into the
closed position.
OPERATING INSTRUCTIONS

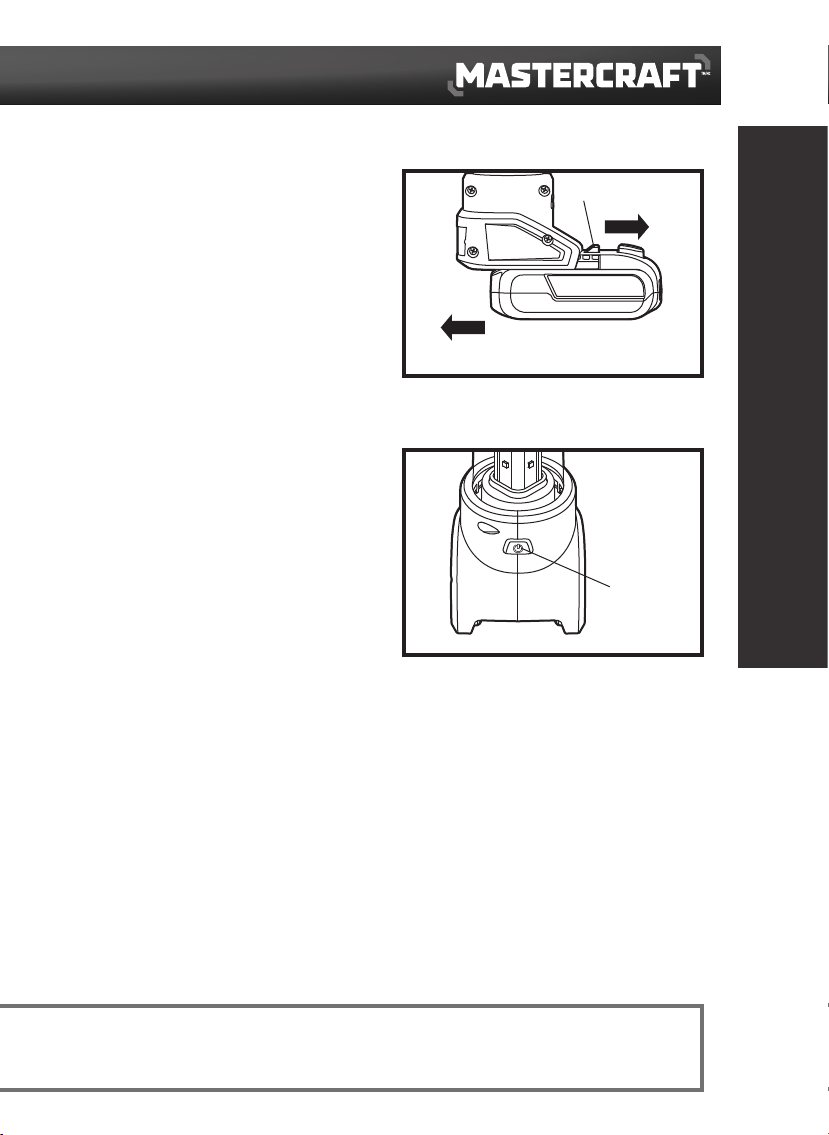

fig 1 LatchDetach
Attach
fig 2
Switch
Button
NOTICE: When attaching the battery pack into the tool, make sure that the raised platform on the battery pack aligns with the
grooves on the bottom of the tool and that the latches snap properly into place. Improper assembly of the battery pack can cause
damage to internal components.

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 054-4267-4 | contact us 1-800-689-9928
10
MAINTENANCE
1. To avoid personal injury, always remove the battery pack from the tool when cleaning or performing any
maintenance.
2. Do not let brake fluids, gasoline, petroleum-based products, penetrating oil, etc. come into contact with
plastic parts. These substances contain chemicals that can damage, weaken, or destroy plastic.
3. When servicing, use only identical replacement parts. The use of any other parts may create a hazard or
cause damage to the product.
4. Always use only a soft, dry cloth to clean your tool; never use any detergent or alcohol.
MAINTENANCE

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
11
TROUBLESHOOTING
Problem Possible causes Solutions
The area light does not
work. The battery is depleted. Change or charge the battery.
If the problem remains unsolved after performing the checks described above, call the toll-free helpline
at 1-800-689-9928.
TROUBLESHOOTING

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 054-4267-4 | contact us 1-800-689-9928
12

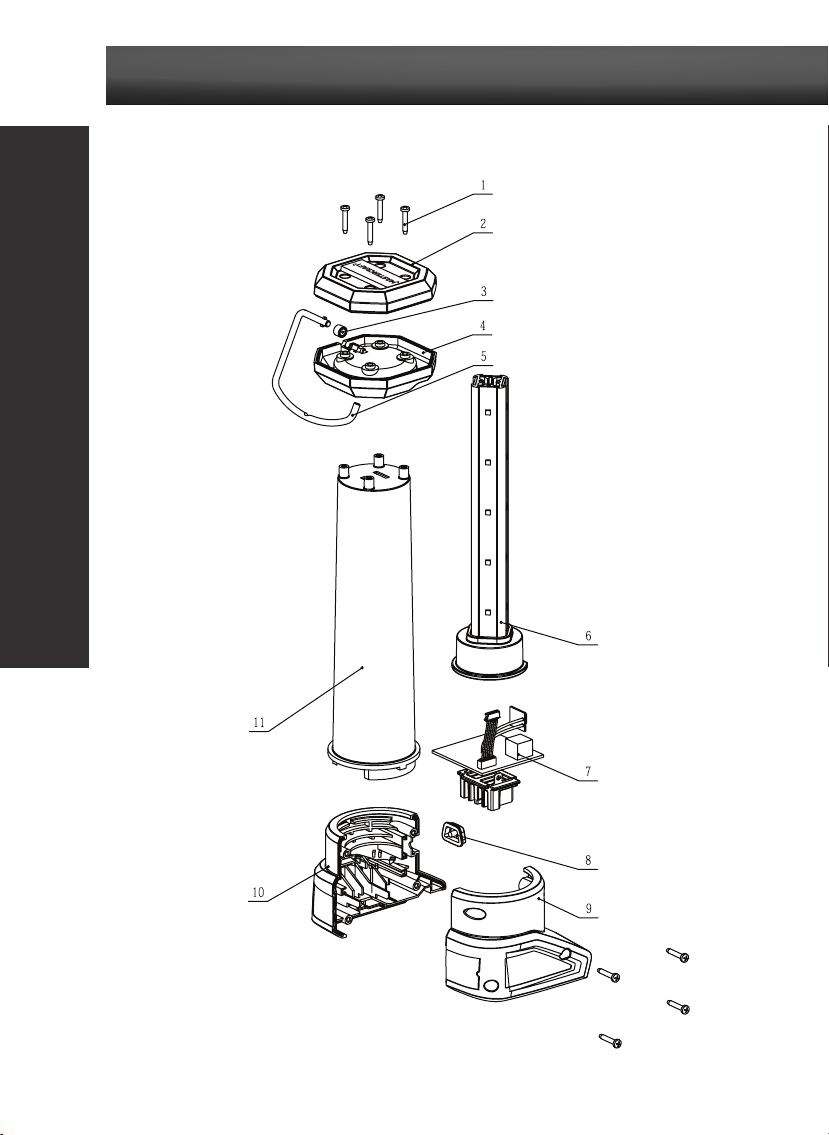

EXPLODED VIEW
PARTS LIST

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
13
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
No. Part No. Description No. Part No. Description
1 5610013000 Tapping Screw 7 2830221000 Electric Assembly
2 3128778000 Upper Housing 8 3128780000 Button
3 3120975000 Rubber Gasket 9 3128779000 Right Housing
4 3128775000 Lower Housing 10 3128777000 Left Housing
5 3650191000 Pothook 11 3128776000 Transparent Guard
6 2830257000 Electric Assembly
If any parts are missing or damaged, or if you have any questions, please call the toll-free helpline,
at 1-800-689-9928.
PARTS LIST

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 054-4267-4 | contact us 1-800-689-9928
14
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail
purchase against defects in workmanship and materials, except for the following components:
a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years
from the date of original retail purchase against defects in workmanship and materials;
b) Component B: Accessories, which are guaranteed for a period of 1 year from the date of original
retail purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof
of purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear the
cost of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s manual or operating instructions) or
which is being used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that
may be supplied with the product that are expected to become inoperative or unusable after a
reasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited
to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e.
persons not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a
reconditioned or refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer
is installed therein or any repairs or alterations have been made or attempted by unauthorized
persons;
WARRANTY

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
15
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited
to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical
cleaners; and
i) this warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation,
any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or
inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify, take
away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal
legislation.
Made in China
Imported by
Mastercraft Canada Toronto, Canada M4S 2B8
WARRANTY
