LightSpeed Technologies FOX1-KIT User manual
User Manual
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Important Safety Instructions
1. Do not expose this apparatus to rain, moisture, dripping, or splashing,
and no objects filled with liquids, such as vases, shall be placed on the
apparatus.
2. Do not install or place this unit in a bookcase, built-in cabinet, or
confined space. Ensure the unit is well-ventilated.
3. To prevent the risk of electric shock or fire hazards due to
overheating, do not obstruct the unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
4. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
5. Do not place sources of naked flames, such as lighted candles, on
the unit.
6. Clean this apparatus only with
a dry cloth.
7. Unplug this apparatus during lightning storms or when unused for
long periods of time.
8. Protect the power cord from being walked on or
pinched particularly at plugs.
9. Only use attachments/accessories
specified by the manufacturer.
10. Refer all servicing to qualified
service personnel.
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the decoder.
•
Connect the equipment to an outlet on a circuit different from that to
which the decoder is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
•
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Contents
Introduction........................................................................................................ 2
Images.................................................................................................................3
Features ..............................................................................................................3
Package Contents.................................................................................................4
Specifications.......................................................................................................5
Panel Description.................................................................................................7
Encoder...............................................................................................................7
Decoder...............................................................................................................8
Installation ..........................................................................................................9
Typical Applications..............................................................................................9
1.
HDMI 2.0 Extender......................................................................................9
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Introduction
LightSpeed Technologies™FOX1-KIT (encoder and decoder) comes in a compact size and is an
economical, flexible HDMI extender solution. It allows uncompressed true 4K@60Hz video to be
extended with zero frame latency at 300 meters over multi-mode fiber, and 20km over single-
mode fiber with 10Gb SFP+ modules.
HDMI 2.0 and HDCP 2.2 Distribution with Zero Frame Latency
With HDMI 2.0 and HDCP 2.2 compliance, they support all HDMI 2.0 with a timing envelope of 594
MHz, e.g., 4K/60 8-bit 4:4:4, 4K/60 10- bit 4:2:2 and 4K/60 12-bit 4:2:0 (HDR). Light compression
technology allows them to deliver video at lower compression ratios for keeping picture quality
identical to the original source when the raw data exceeds the Ethernet bandwidth. Furthermore,
the video is delivered with zero frame latency.
Compact design and Cost-Effective Solution
The compact size design is suitable for installation in a tight space and provides a cost-effective,
flexible solution for HDMI extension.
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Images
Models
FOX1-ENC
FOX1-DEC
Features
•
Compact size and economical design
•
HDMI 2.0 and HDCP 2.2 compliant
•
Lossless distribution of most timing formats
•
Light compression with the raw data rate exceeding 10Gb Ethernet bandwidth
•
Supports input and output resolutions up to 4096x2160@60Hz 8-bit 4:4:4,
4096x2160@60Hz 10-bit 4:4:4 and 4096x2160@60Hz 12-bit 4:2:0 HDR
•
Supports point-to-point transmission of 4K signal up to 300m over multi-mode fiber, and
20km over single-mode fiber with 10Gb SFP+ modules.
•
Zero-frame latency
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Package Contents
FOX1-ENC Encoder:
•
1 x FOX1-ENC Encoder
•
1 x 5VDC 2A Power Adapter (with US Pins)
•
1 x SFP+ multi-mode optical transceiver
•
2 x Mounting Brackets (with Screws)
FOX1-DEC Decoder:
•
1 x FOX1-DEC Decoder
•
1 x 5VDC 2A Power Adapter (with US Pins)
•
1 x SFP+ multi-mode optical transceiver
•
2 x Mounting Brackets (with Screws)
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Specifications
Model
FOX1-ENC
FOX1-DEC
Video
Input Video Port
1 x HDMI
1 x SFP+ (10GBase-SR)
End-to-EndTime Latency
Zero-frame latency
Output Video Port
1 x SFP+ (10GBase-SR)
1 x HDMI
640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688,
1440x9008, 1440x10508, 1600x12008, 720x4807(480i59),
720x4807(480p59), 720x5766(576i50), 720x5766(576p50),
1280x7205(720p50), 1280x7207(720p59),
1280x7208(720p60), 1920x10806(1080i50),
1920x10807(1080i59), 1920x10808(1080i60),
1920x10801(1080p23), 1920x10802(1080p24),
Input/Output Video
1920x10803(1080p25), 1920x10804(1080p29),
Resolutions
1920x10805(1080p30), 1920x10806(1080p50),
1920x10807(1080p59), 1920x10808(1080p60),
3840x21601(2160p23), 3840x21602(2160p24),
3840x21603(2160p25), 3840x21604(2160p29),
3840x21605(2160p30), 3840x21608(2160p60), 4096x21605,
4096x21608
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz,
5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
Model
FOX1-ENC
FOX1-DEC
Audio
Input Audio Port
1 x HDMI
1 x SFP+ (10GBase-SR)
Output Audio Port
1 x SFP+ (10GBase-SR)
1 x HDMI
Input/OutputAudio Format
LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz Dolby True HD, up to 7.1,192kHz
DTS-HD Master, up to 7.1,192kHz
Dolby DigitalAC-3 (DVD format) DTS version 1 (DVD format)
Panel Description
General
Operating Temperature
32°F ~ 104°F (0°C ~ 40°C)
10% ~ 90%, non-condensing
Storage Temperature
-4°F ~ 158°F (-20°C ~ 70°C)
10% ~ 90%, non-condensing
Power Supply
5V 2 A DC
Power Consumption (Max)
FOX1-ENC: 4.26W | FOX1-DEC: 4.78W
Transmission Distance
300m with OM-3 multimode optical fiber cable
ESD Protection
Human body model:
•
±8kV (air-gap discharge)
•
±4kV (contact discharge)
Product Dimensions (W x H x D)
64mm x 22mm x 87mm (2.52" x 0.87" x 3.43") each
Net Weight
0.35lb (0.16kg) each
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Encoder
No.
Name
Description
1
SYSTEM LED
▪On: The device is connected to a source but doesn’t transmit any
streams.
▪Blinking quickly: The device is connected to a source and transmitting
streams.
▪Blinking slowly: The device is not connected to a source.
▪Off: Not connected to a source.
2
VIDEO LED
▪On: Stable video signal is detected.
▪Off: No video signal is detected.
3
HDMI
Connect to an HDMI source
4
10G FIBER
Connect to an optical fiber cable using the optical transceiver provided.
5
Reset Button
(Recessed)
Use a pointed stylus to press this button to restart or reset the device.
▪Short press: To restart the device.
▪Long press for more than 5 seconds: To reset the device to factory
defaults.
Note: When you reset the device, your custom
data is lost. Therefore, exercise caution in using this button.
6
5V
Connect to the power adapter provided for DC 5V power input.
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
Panel Description
Decoder
No.
Name
Description
1
SYSTEM LED
▪On: The device is connected to a display but doesn’t receive any streams.
▪Blinking quickly: The device is connected to a display and is receiving
streams.
▪Blinking slowly: The device is not connected to a display.
▪Off: The device is connected to neither a display.
2
VIDEO LED
▪On: Video signal is being transmitted to the connected display.
▪Off: No video signal is transmitted
3
HDMI
Connect to an HDMI display
4
10G FIBER
Connect to an optical fiber cable using the optical transceiver provided.
5
Reset Button
(Recessed)
Use a pointed stylus to press this button to restart or reset the device.
▪Short press: To restart the device.
▪Long press for more than 5 seconds: To reset the device to factory defaults.
Note: When you reset the device, your custom
data is lost. Therefore, exercise caution in using this button.
6
5V
Connect to the power adapter provided for DC 5V power input.
LightSpeed Technologies™FOX1-KIT
4K UHD Uncompressed Video over Fiber Optic Cable
Version: V1.0
Available exclusively from Future Ready Solutions
INSTALLATION
Typical Application
HDMI 2.0 Extender
Features:
•
4K Video transmission
•
Zero latency from end to end
•
Maximum extension distance is 300 meters over
multi-mode fiber, and 20km over single mode fiber
TX
RX
4K Media Player
Display
Other manuals for FOX1-KIT
1
Table of contents
Popular Extender manuals by other brands
LIBERTY AV SOLUTIONS
LIBERTY AV SOLUTIONS DigitaLinx DL-HD50C-WPKT-W install guide
Avue
Avue SDE-12 user manual
Elk

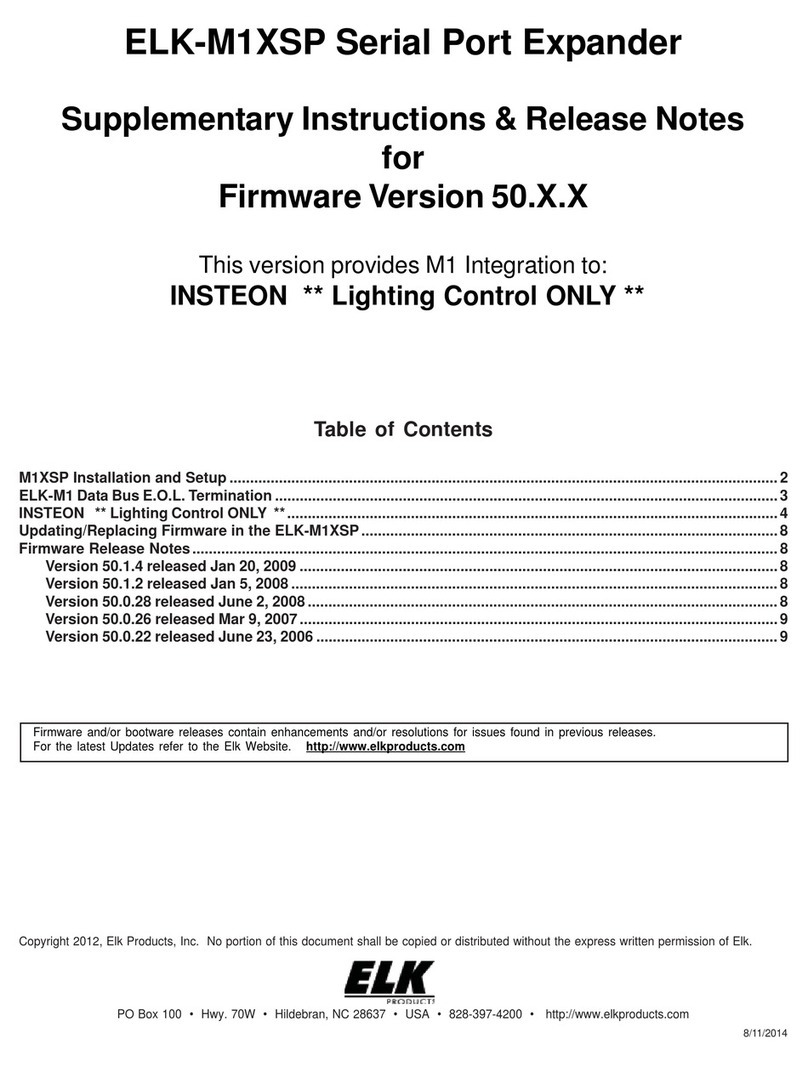

Elk M1XSP Supplementary Instructions & Release Notes
