Lightspeed 955 Access User manual

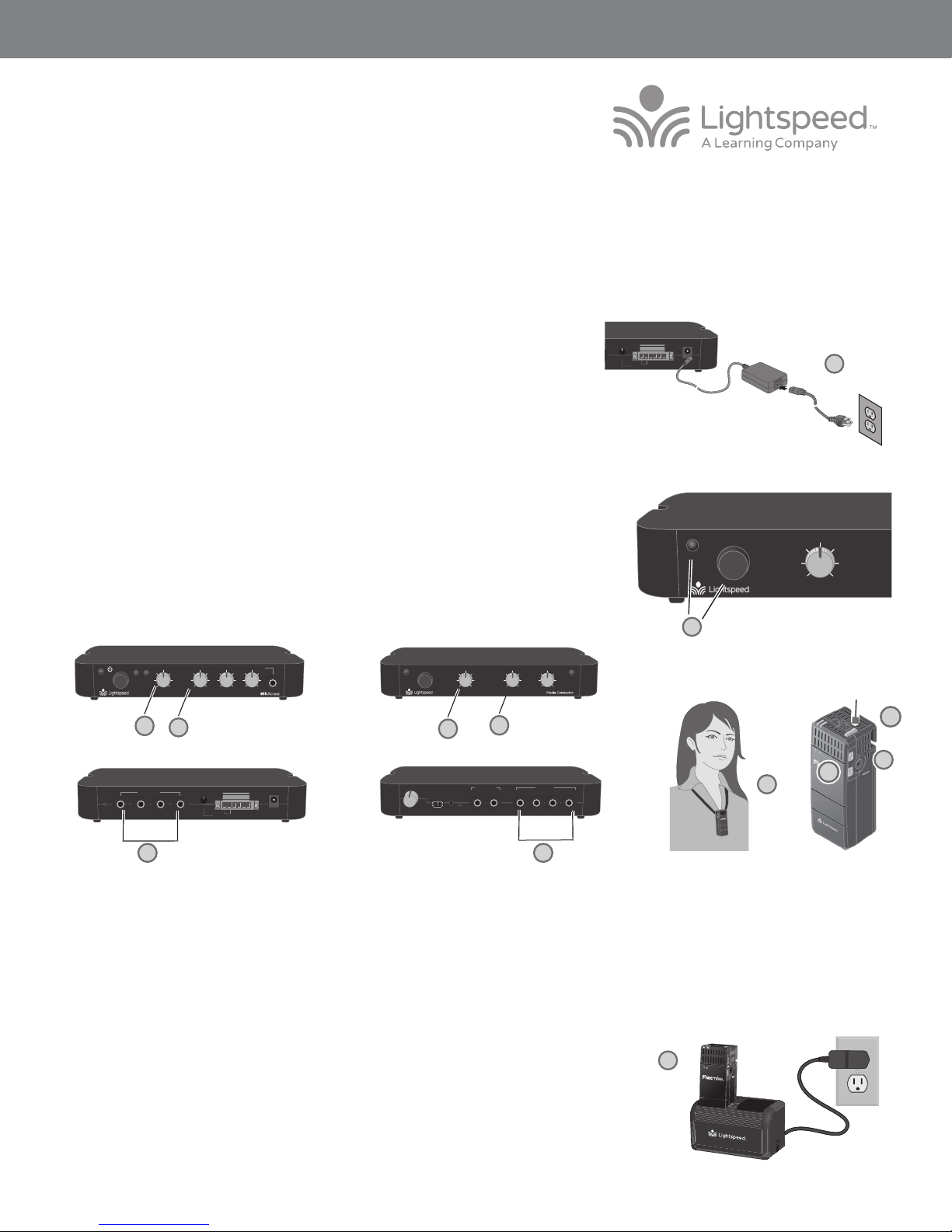

955 ACCESS WITH ACTIVATE
DAILY OPERATION INSTRUCTIONS
ENSURE THE SYSTEM IS POWERED ON
Power / Mute
2
1. Locate the 24V power supply and power cable and connect the AC power cord into the DC power
supply. Insert the DC connector into the DC Power jack on the back and plug the AC power cord
into an electrical outlet.
2. Press the Activate Station power button to power on the 955. When powered on, the blue LED on
the front of the 955 will glow.
Lightspeed Technologies
www.lightspeed-tek.com / 800.732.8999 / 503.684.5538
3. Remove the microphone from the charger and place the microphone around your neck.
Ensure the top of the microphone is at the collarbone.
4. Press the power/mute button. The teacher status will turn blue, indicating the
microphone is active.
5. Microphone volume may be adjusted at the microphone by using the Up/Down buttons on the side
of the Flexmike. It may also be adjusted by using the Microphone volume buttons on the front of the
Activate.
7. Plug your external audio equipment (for example, laptop), into one of the input jacks on
the back of the Activate labeled “Aux Input” using a 3.5mm patch cable.
8. Adjust volume at the audio source. If necessary, further volume adjustment may be
made using the Audio In volume buttons on the front of the Activate.
9. You may also connect an audio source using a 3.5mm patch cable to the Input jack on the side of a
second Flexmike.
CHARGE FLEXMIKE NIGHTLY
10. Place the Flexmike into the charger. The power button light will glow red and the Mic
status light will glow blue. When a Flexmike is fully charged, the power button light on
the mic will change to green.
USE ACTIVATE STATION AS A WIRELESS AUDIO LINK
2
7
5
3
4
5
For instructions on capturing audio and video using the Activate App, and for complete operating
instructions, go to www.lightspeed-tek.com/955-usermanual (or scan the 2D barcode below).
10
QS0542US01-3
USING THE FLEXMIKE
1
9
8

955 ACCESS SET UP AND
DAILY OPERATION INSTRUCTIONS
3. Remove microphone from charger and place the microphone around your neck. Ensure the top of
the microphone is at the collarbone.
4. Press the power/mute button. The teacher status will turn blue, indicating the microphone is active.
5. Microphone volume may be adjusted at the microphone by using the Up/Down buttons on the side of
the Flexmike. It may also be adjusted by using the MIcrophone volume knob on the front of the 955
Access or optional Media Connector.
ENSURE THE SYSTEM IS POWERED ON
AUDIO IN
MICROPHONE
AUDIO OUT
POWER
MIN
LINK
MAX
MIN MAX MIN MAX
2
1. Ensure the 24V/2.5A power supply is plugged into the 955 Access and the power cable is
plugged into an outlet.
2. Press the 955 Access, or optional Media Connector, power button to power on the 955.
When powered on, the blue LED will glow.
1 4
322
1
AUDIO INAUDIO OUT
REGISTER
USB POWER
5V/1.5A
TONE
TREBLE BASS
CHARGE FLEXMIKE NIGHTLY
10. Place the Flexmike into the cradle charger. The power button light will glow red and the Mic status light
will glow blue. When Flexmike is fully charged, the power button light on the mic will change to green.
2
7
8
Power / Mute
3
4
5
10
AUDIO INMICROPHONE TONE
POWER
MIN
1
MAX MIN MAX TREBLE BASS
2
AUDIO OUT
MIN MAX
7. Plug your external audio equipment (for example, laptop), into the input jack on the back of the 955 Access or into one of the input jacks on
the back of the Media Connector labeled “Audio In” using a 3.5mm patch cable.
8. Adjust volume at the audio source. If necessary, further volume adjustment may be made using the Audio In volume knob on the front
of the 955 Access or the Media Connector.
9. You may also connect an audio source using a 3.5mm patch cable to the Input jack on the side of a second Flexmike.
USING A WIRELESS AUDIO LINK
REGISTER
AUDIO INPUTS
DC INPUT
24V/2.5A
PAGEFIRSTINPUT SPEAKEROUTPUTS
+ +
- -
ADJ
1 2
AUDIO INMICROPHONE AUDIO OUT
POWER
MIN
LINK
MAX MIN MAX MIN MAX
2
7
8
955 Access Front
955 Access Back
Media Connector Front
Media Connector Back 9
For complete operating instructions, go to www.lightspeed-tek.com/955-usermanual
(or scan the 2D barcode on the previous page).
