Lightspeed TOPCAT User manual

Installation Guide
Instructional Audio System

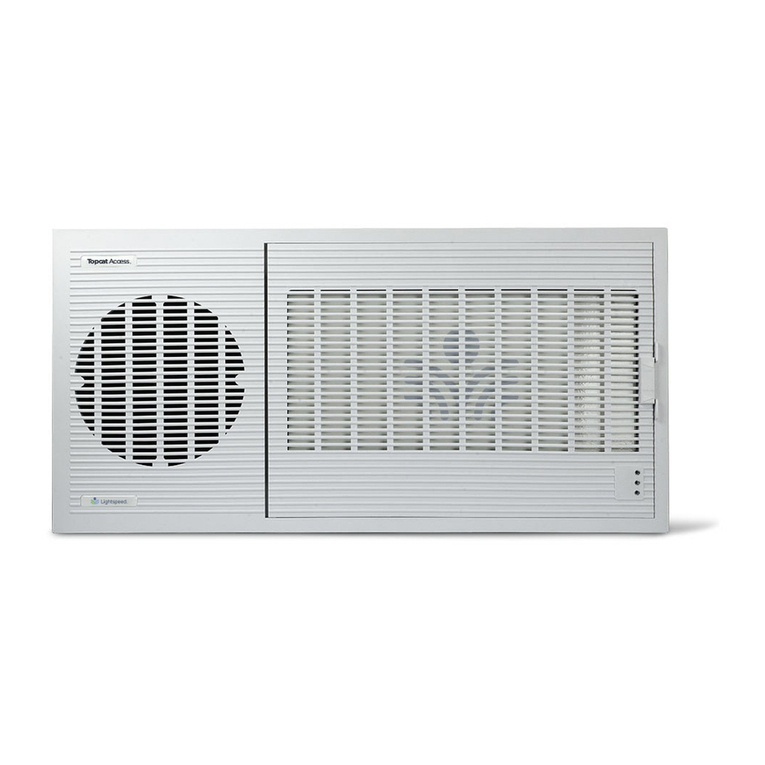

Topcat

2
1. Do not use the apparatus near water.
2. Clean only with dry cloth.
3. Do not block any ventilation openings.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
5. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding- type
plug has two blades and a third grounding prong. The wide blade or the third prong
is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the outlet.
6. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
7. Unplug this apparatus during lightning storms or when unused for long periods of
time.
8. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
9. When the mains plug or appliance coupler is used as the disconnect device, it shall
remain readily operable.
10. Please keep the unit in a good ventilation environment.
11. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture.
12. Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
13. WARNING: Battery pack shall not be exposed to excessive heat such as sunshine,
fire or the like.
Important Safety Instructions
OVERVIEW

Table of Contents
OVERVIEW
2Important Safety Instructions
4System Components and Unpacking
5Optional Components
INSTALLATION
6Installation Planning
6Selecting Mounting Location
7Topcat Ceiling Installation (U.S. & Canada)
9Topcat Ceiling Installation (Outside U.S. & Canada)
12 Installing and Wiring Electrical Power
14 Alternate Power Connections
15 Setup and Using the Flexmike
16 Charging the Flexmike
INSTALLING OPTIONAL EQUIPMENT
17 PageFirst Installation
20 Media Connector Set-Up
24 Audio Input Cable Installation
CERTIFICATIONS & TROUBLESHOOTING
25 Safety Warnings and Certifications
28 Troubleshooting
OVERVIEWINSTALLATIONOPTIONAL INSTALLATIONTROUBLESHOOTING

4
System Components and Unpacking
The standard configuration includes:
Microphone Cradle Charger
& Power Supply
Flexmike
Volume Control Microphone
Topcat
OVERVIEW
NOTE ON PAIRING: Topcat, microphone(s), and Media Connector or Activate Station are paired together at the Lightspeed factory as required for proper operation.

5
OVERVIEWINSTALLATIONOPTIONAL INSTALLATIONTROUBLESHOOTING
Sharemike
Handheld Microphone
Optional Components
Media Connector
& Power Supply
Audio
Input Audio Output Tone
Level
Push
StatusPower
Media
Media
Connector
Connector
Activate Station
with Bluetooth
PowerLink
InputOutputMic
Optional equipment which may be part of your Topcat system:

6
INSTALLATION
SELECTING MOUNTING LOCATION
The Topcat is shipped ready to mount in a standard suspended ceiling grid. All hardware
needed to secure the Topcat into the ceiling grid is provided. Additional hardware may be
required if building structure tie-points are metal. A licensed electrician will need to provide
necessary materials if Topcat is permanently connected to the building AC mains.
Topcat will distribute sound throughout a classroom of up to 1200 sq  (112 sq m) with ceiling
heights of 9 to 12 . The location of the Topcat is critical to ensure even sound distribution.
1. Identify the center of the listening area of the classroom for optimum location (Figure 1).
2. Select a ceiling tile that is free of fixtures (lighting, HVAC, etc.) nearest to the center point.
3. Remove the selected ceiling tile for Topcat installation.
FIGURE 1:
IDENTIFY THE CENTER
OF THE LISTENING AREA
TOOLS AND MATERIALS
In addition to the contents of the Topcat system, you may need the following tools & materials:
• Flat blade screwdriver (small)
• Pliers
• Wire cutters
• Drill
Before beginning installation, make sure you have the necessary tools and materials on hand and that the area underneath the proposed Topcat location is cleared.
Installation Planning
NOTE: Topcat is designed for installation in a 2’ x 2’ or 2’ x 4’ suspended ceiling grid (or 600mm x 600mm international ceiling grids). If you do not have this type of ceiling,
please contact your local Lightspeed Territory Manager.
• Utility knife
• Safety wire anchors
• Wire ties

7
OVERVIEWINSTALLATIONOPTIONAL INSTALLATIONTROUBLESHOOTING
FIGURE 3:
SNAP THE T-BAR INTO PLACE TO CREATE A
1’ X 2’ OPENING AND A 3’ X 2’ OPENING
NEW T-BAR
EXISTING TILE GRID
3/4 TILE
TCQ
END SIDE
TOPCAT CEILING INSTALLATION (U.S. & CANADA)
The dimensions of Topcat are 1’ x 2’ and it is designed to fit into any
standard 2’ x 2’ or 2’ x 4’ suspended ceiling tile grid.
1. The ceiling tile will need to be cut to accommodate Topcat.
2. Set the ceiling tile on a flat work surface with the patterned side
facing down.
3. Using a straight edge, cut a 1’ x 2’ section from the ceiling tile,
leaving a 1’ x 2’ section and a 2’ x 3’ section (Figure 2), or two 1’ x 2’
sections (Figure 4).
5. Topcat dimensions
FIGURE 2:
CUT THE 2’ X 4’ TILE TO CREATE A 1’ X 2’
SECTION AND A 2’ X 3’ SECTION
WASTE REMAINING
3/4 CEILING TILE
CUT WITH
STRAIGHT EDGE
1’ 3’
2’
4’
2’ X 4’ CEILING TILE
FIGURE 4:
CUT THE 2’ X 2’ TILE TO CREATE
TWO 1’ X 2’ SECTIONS
WASTE
CUT WITH
STRAIGHT EDGE
1' 1'
2’
2'
2’ X 2’ CEILING TILE
NEW T-BAR
EXISTING TILE GRID
1/2 TILE
FIGURE 5:
SNAP THE T-BAR INTO PLACE TO
CREATE TWO 1’ X 2’ OPENINGS
TCQ
4. Locate the 2’ ceiling grid T-bar provided. Locate the attachment
slots in the existing ceiling grid and snap the new T-bar into
place to create two openings to create a 1’ x 2’ and a 2’ x 3’
opening (Figure 3) or two 1’ x 2’ openings (Figure 5).
+DC INPUT
24V/2.5A
PAGING
INPUT AUDIO IN REGISTERPROGRAM
-
DO NOT DRILL IN THIS AREA
L
3.75”
11.5” 23 3/8”

8
FIGURE 1:
LOOP THE SAFETY WIRE THROUGH TAB
FIGURE 2:
PLACE TOPCAT INTO THE CEILING
GRID AND LOOP THE SAFETY WIRE
THROUGH BOTH TABS
CEILING
SECURING TOPCAT (U.S. & CANADA)
To comply with Building Codes, the Topcat MUST be secured with two
safety wires.
1. Locate the 20  length of safety wire. The safety wire needs to be permanently
attached to the solid building structure above.
2. Cut the safety wire in half, leaving two 10  pieces.
3. Install anchors (or eye screws if necessary) into the building structure.
4. Loop one end of the safety wire through the anchor (or eye screw), then twist it
around itself at least five times (Figure 1). Repeat for second anchor.
5. Li the Topcat up and lay it into the desired ceiling grid location.
CAUTION:Ensure that Topcat is stable on the grid rails with the side brackets
hooked over the rails. If not stable, there could be a danger of it falling until
safety wires are attached.
6. Loop the other end of the safety wire through one of the tabs on Topcat (located
in opposite corners). Pull the wire through until it is taut and twist it around itself
at least five times to secure Topcat. Cut o excess wire if needed.
7. When hard wiring AC power to Topcat, electrical codes require for Topcat to
be attached to the ceiling rail. Utilizing existing holes on the vertical section of
the ceiling rail (center of the hole to the base of the rail must be a minimum of
15mm) drill two screws on each 2’ side of the Topcat. Drilling these screws into
the designated areas of the Topcat chassis will not cause harm to the product
(Figure 3).
NOTE: Do not drill in the area designated with yellow tape.
8. Continue to page 12, Installing and Wiring Electrical Power.
FIGURE 4:
DRILL SCREWS THROUGH CEILING RAIL INTO DESIGNATED AREAS OF TOPCAT
ANCHOR OR
EYE SCREW

9
OVERVIEWINSTALLATIONOPTIONAL INSTALLATIONTROUBLESHOOTING
TOPCAT CEILING INSTALLATION (OUTSIDE U.S. & CANADA)
For 600mm x 600mm Ceiling Grid
Topcat has spacer brackets mounted on each of the four sides. With
these brackets installed and the ceiling tile is cut in half, the Topcat will
fit into a standard 2’ x 2’ suspended ceiling grid with an additional tile
support. With the brackets removed, it will fit a 300mm x 600mm ceiling
grid with an additional tile support (Figures 4 & 5).
Remove the spacer brackets from each of the four sides of the Topcat
(Figure 1, next page).
NOTE: If your ceiling grid is any other dimension than mentioned above,
contact your local Lightspeed Representative.
FIGURE 2
SNAP THE T-BAR INTO PLACE TO CREATE
A 1’ X 2’ OPENING AND A 3’ X 2’ OPENING
NEW T-BAR
EXISTING TILE GRID
3/4 TILE
TCQ
FIGURE 1
CUT THE 2’ X 4’ TILE TO CREATE A 1’ X 2’
SECTION AND A 2’ X 3’ SECTION
WASTE REMAINING
3/4 CEILING TILE
CUT WITH
STRAIGHT EDGE
1’ 3’
2’
4’
FIGURE 3:
CUT THE 2’ X 2’ TILE TO CREATE
TWO 1’ X 2’ SECTIONS
WASTE
CUT WITH
STRAIGHT EDGE
1' 1'
2’
2'
NEW T-BAR
EXISTING TILE GRID
1/2 TILE
FIGURE 4:
SNAP THE T-BAR INTO PLACE TO
CREATE TWO 1’ X 2’ OPENINGS
TCQ
2’ X 4’ CEILING TILE 2’ X 2’ CEILING TILE

10
To comply with Building Codes, the Topcat MUST be secured with two
safety wires and to the ceiling grid with four screws.
1. Remove the spacer brackets from each of the four sides of Topcat (Figure 1).
2. Locate the 6m length of safety wire. The safety wire needs to be permanently
attached to the solid building structure above.
3. Cut the 6m safety wire in half, leaving two 3m pieces.
4. Install anchors (or eye screws if necessary) into the building structure.
5. Loop one end of the safety wire through the anchor (or eye screw), then twist it
around itself at least five times (Figure 2). Repeat for second anchor.
6. Li the Topcat up and lay it into the desired ceiling grid location.
CAUTION: Ensure that Topcat is stable on the grid rails. If not stable there
could be a danger of it falling until safety wires are attached.
7. Loop the other end of the safety wire through one of the tabs on Topcat
(located in opposite corners). Pull the wire through until it is taut and twist it
around itself at least five times to secure Topcat. Cut o any excess wire if needed
(Figure 3).
SECURING TOPCAT (OUTSIDE U.S. & CANADA)
FIGURE 1:
REMOVE SPACER BRACKETS
FIGURE 2:
LOOP THE SAFETY WIRE THROUGH TAB
FIGURE 3:
PLACE TOPCAT INTO THE CEILING
GRID AND LOOP THE SAFETY WIRE
THROUGH BOTH TABS
CEILING
ANCHOR OR
EYE SCREW
