Lilee Systems TransAir PTC-3000 Series User manual

Lilee Systems™
TransAir™ PTC-3000
Family
User Manual
December 20, 2012

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page ii
Copyright and Trademark Notice
This manual and all software described herein are protected by copyright: © 2011 Lilee Systems,
Ltd. Lilee and TransAir are trademarks of Lilee Systems. All rights reserved. The information in
this document is subject to change without prior notice in order to improve reliability, design and
function and does not represent a commitment on the part of the manufacturer.
Please visit our website for the most up-to-date product information: www.lileesystems.com.

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page iii
1BEFORE YOU BEGIN................................................................................................................................ 1
1.1 RF EXPOSURE COMPLIANCE REQUIREMENTS/ EXIGENCES DE CONFORMITÉ DE L'EXPOSITION RF..............1
1.2 SAFETY CONSIDERATIONS ...................................................................................................................................4
1.3 ESD NOTICE ....................................................................................................................................................4
1.4 FCC/IC APPROVAL NOTICE/AVIS D'APPROBATION FCC/IC ......................................................................................4
1.5 FCC PART 15 NOTICE/IC RSS-210_GEN AVIS .....................................................................................................4
1.6 EQUIPMENT MODIFICATIONS/MODIFICATIONS APPORTÉES À L'ÉQUIPEMENT ................................................................5
1.7 RADIATED POWER LIMITS/LIMITES DE PUISSANCE RAYONNÉES ...................................................................................5
1.8 ANTENNA GUIDELINES/LES LIGNES DIRECTRICES D'ANTENNE......................................................................................6
1.9 PACKAGE CHECKLIST ..........................................................................................................................................8
1.10 OPTIONAL STARTER KIT......................................................................................................................................9
2INTRODUCTION....................................................................................................................................... 10
2.1 FEATURES ......................................................................................................................................................10
3INTERFACE PANEL CONNECTORS .................................................................................................... 11
3.1 1PPS IN/OUT .................................................................................................................................................13
3.2 12 VDC POWER ............................................................................................................................................13
3.3 220 MHZ ANTENNA .......................................................................................................................................14
3.4 3G ANTENNA.................................................................................................................................................14
3.5 GPS ANTENNA ...............................................................................................................................................14
3.6 LAN.............................................................................................................................................................15
3.7 RS-232 CONSOLE...........................................................................................................................................15
3.8 RS-232/422/485 SERIAL ...............................................................................................................................16
3.9 WI-FI ANTENNA .............................................................................................................................................16
3.10 LED INDICATORS.............................................................................................................................................17
3.11 PTC-3000 RF (220MHZ RF BOARD) ................................................................................................................18
4INSTALLATION........................................................................................................................................ 19
4.1 CONNECTING CABLES.......................................................................................................................................19
4.1.1 RJ45 to DB9 Console Cable (PTC-3000-1U) ............................................................................................19
4.1.2 M12 to DB9 Console Cable (PTC-3201~4, PTC-3004, and PTC-3006 (M12)) ..........................................19
4.1.3 RJ45 LAN Cable (PTC-30001)..................................................................................................................20
4.1.4 M12 to RJ45 LAN Cable (PTC-30001) .....................................................................................................20
4.1.5 RJ45 to DB9 Serial Device Cable (PTC-30001) ........................................................................................20
4.1.6 M12 to DB9 Serial Device Cable (PTC-3201~4, PTC-3004, and PTC-3006).............................................21
4.1.7 TNC to SMA Male Connector for Wi-Fi Antennas with SMA Connectors ...............................................21
4.1.8 TNC to SMA Female Connector for GPS or 3G........................................................................................21
4.1.9 TNC to TNC Cable for Syncing PTC-3000 Units.......................................................................................22
4.1.10 Power Cable and Power Adapter.......................................................................................................22
4.2 USB FLASH DISK REMOVAL AND INSTALLATION ....................................................................................................22
4.2.1 Remove SIM/USB/Reset Panel Cover .....................................................................................................22
4.2.2 USB Flash Drive Removal .......................................................................................................................23
4.2.3 USB Flash Drive Installation ...................................................................................................................24
4.2.4 Replace SIM/USB/Reset Panel Cover .....................................................................................................25
4.3 SIM CARD INSTALLATION .................................................................................................................................25

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page iv
5CONFIGURING THE PTC-3000.............................................................................................................. 27
5.1 CONFIGURATION COMMANDS ...........................................................................................................................27

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page v
FIGURE 3-1 –PTC-3000-1U INTERFACE PANEL CONNECTOR LOCATIONS (FRONT AND REAR)WITH
SIM/USB/RESET PANEL COVER REMOVED .......................................................................................................11

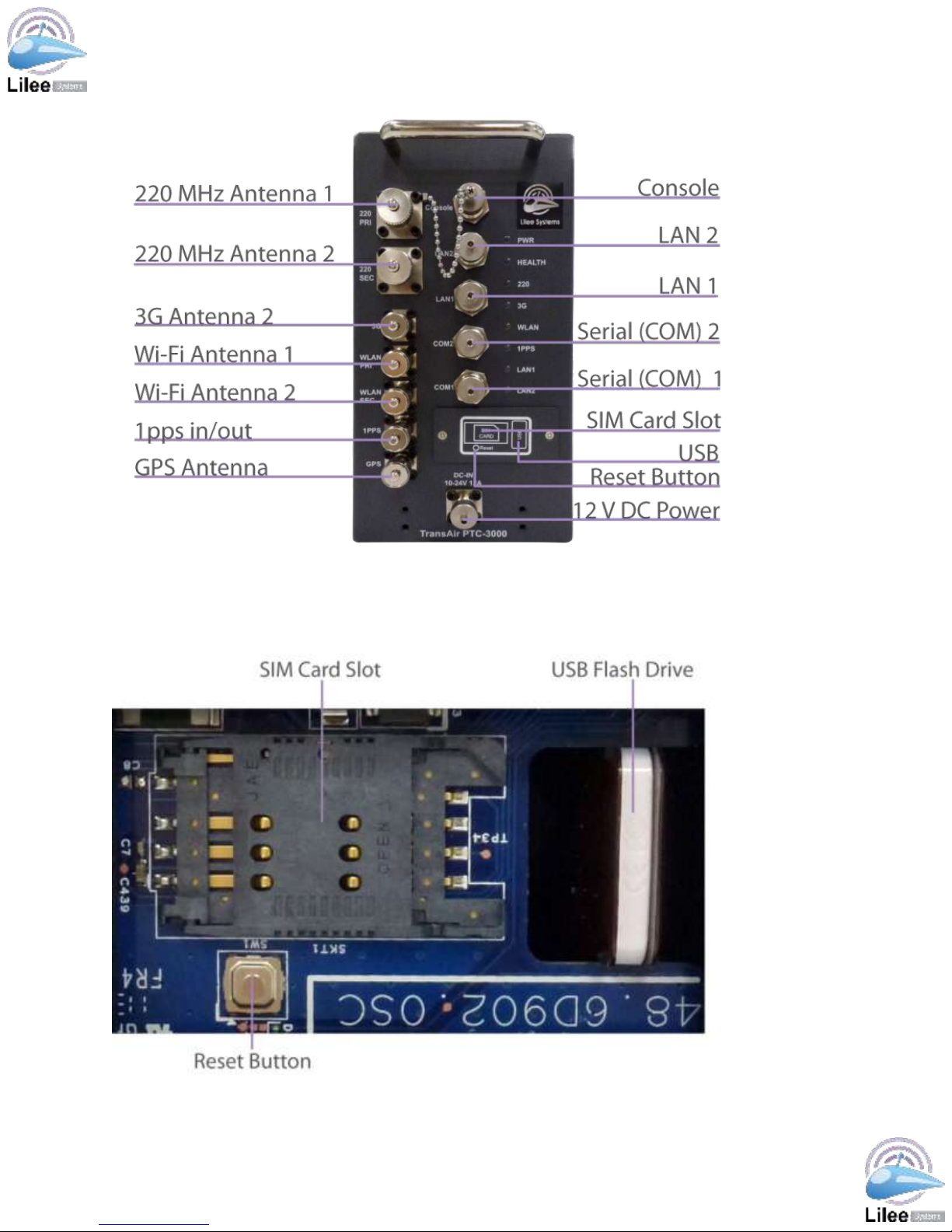

FIGURE 3-2 –PTC-3004 INTERFACE PANEL CONNECTOR LOCATIONS (PTC-3006 AND PTC-3201~4 WILL HAVE
SAME OR LESS PORTS AND WITH SIMILAR FUNCTIONALITIES)............................................................................12
FIGURE 3-3 –SIM CARD SLOT,USB FLASH DISK,AND RESET BUTTON LOCATIONS .............................................12
FIGURE 3-4 –LED INDICATORS .................................................................................................................................17
FIGURE 3-5 –PTC-3000 RF LABEL...........................................................................................................................18
FIGURE 3-5 –220MHZ RF BOARD.............................................................................................................................18
FIGURE 4-1 –SIM/USB/RESET PANEL COVER .....................................................................................................................23
FIGURE 4-2 –USB FLASH DRIVE REMOVAL (1U UNIT SHOWN)................................................................................23
FIGURE 4-3 –USB PORT LOCATION (1U UNIT SHOWN) .........................................................................................................24
FIGURE 4-4 –USB FLASH DRIVE INSTALLATION (1U UNIT SHOWN).........................................................................24
FIGURE 4-5 –REPLACE SIM/USB/RESET PANEL COVER ........................................................................................................25
FIGURE 4-6 –SLIDE SIM CARD SLOT PROTECTIVE COVER DOWN ..........................................................................25
FIGURE 5-1 –SERIAL PORT SETTINGS.......................................................................................................................27

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page vi

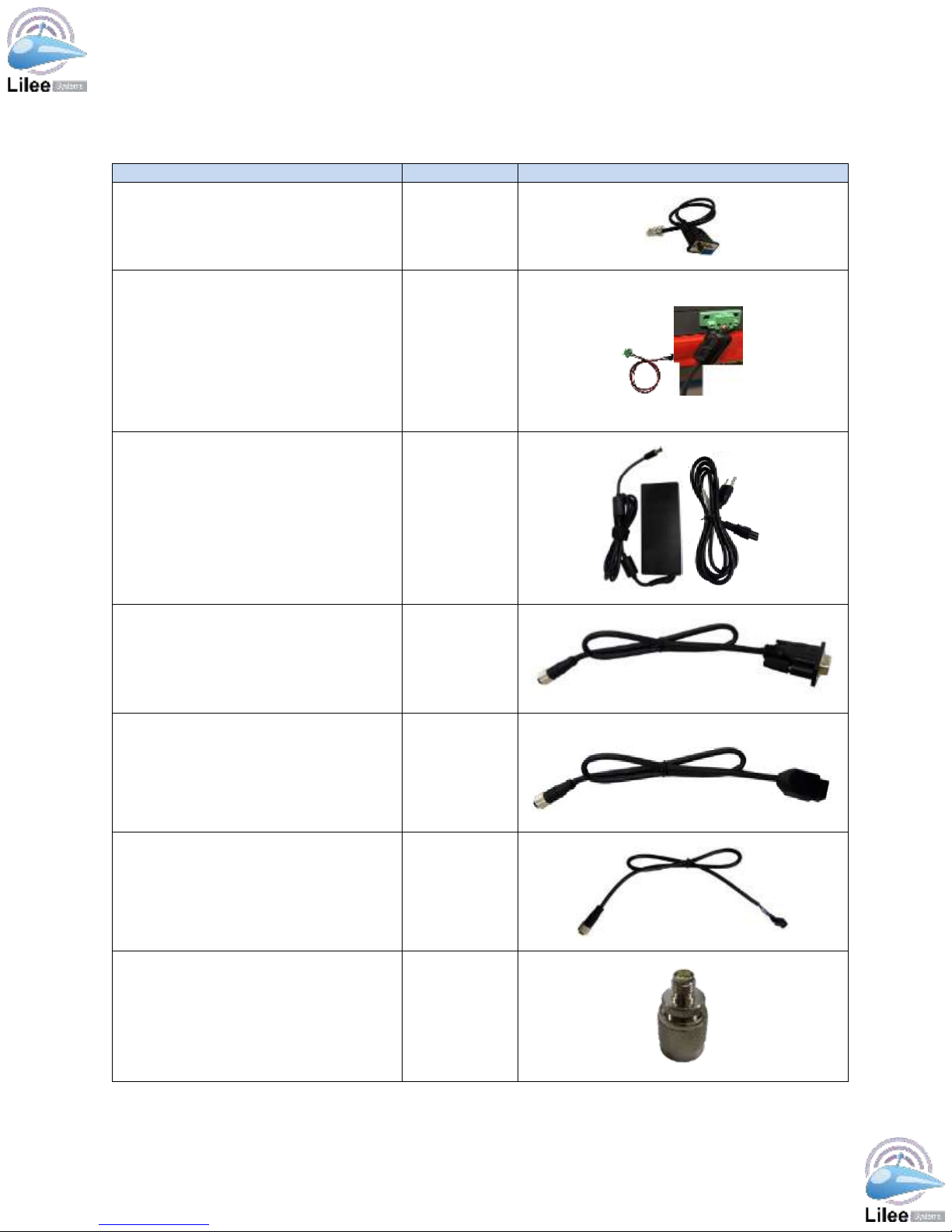

TABLE 1-1 –PACKAGE CHECKLIST..........................................................................................................................................8
TABLE 1-2 –OPTIONAL STARTER KIT......................................................................................................................................9
TABLE 3-1 –INTERFACE PANEL CONNECTORS ........................................................................................................................13
TABLE 3-2 –1PPS IN/OUT CONNECTOR PINOUTS...................................................................................................................13
TABLE 3-3 –12 VDC POWER CONNECTOR PINOUTS.............................................................................................................13
TABLE 3-4 –220 MHZ ANTENNA CONNECTOR PINOUTS........................................................................................................14
TABLE 3-5 –COAXIAL CABLE SIGNAL LOSS AT 220 MHZ.........................................................................................................14
TABLE 3-6 –3G ANTENNA CONNECTOR PINOUTS .................................................................................................................14
TABLE 3-7 –GPS ANTENNA CONNECTOR PINOUTS................................................................................................................14
TABLE 3-8 –LAN PINOUTS ...............................................................................................................................................15
TABLE 3-9 –RJ45 CONSOLE PORT PINOUTS AND DB9 TERMINATION PINOUTS (PTC-3001)........................................................15
TABLE 3-10 –M12 CONSOLE PORT PINOUTS AND DB9 TERMINATION PINOUTS (PTC-3201~4, PTC-3004, AND PTC-3006 ) ........15
TABLE 3-11 –RJ45 SERIAL PORT PINOUTS AND DB9 TERMINATION PINOUTS (PTC-3000-1U)....................................................16
TABLE 3-12 –M12 SERIAL PORT PINOUTS AND DB9 TERMINATION PINOUTS (PTC-3201~4, PTC-3004, AND PTC-3006 ).............16
TABLE 3-13 –WI-FI ANTENNA CONNECTOR PINOUTS............................................................................................................16
TABLE 3-14 –LED INDICATORS..........................................................................................................................................17
TABLE 5-1 –LED INDICATORS............................................................................................................................................27

Page 1
1 Before You Begin
Carefully remove and inspect the package contents. Refer to the Package Checklist below.
Please adhere to the following Safety Considerations.
1.1 RF EXPOSURE COMPLIANCE REQUIREMENTS/ EXIGENCES
DE CONFORMITÉ DE L'EXPOSITION RF
The PTC-3000 family must be professionally installed and must ensure a minimum
separation distance listed below between the radiating structure and any person.
Note that with PTC-3000 RF Board Fixed installation with highest gain antenna of 14.1dBi,
the antenna of the product, under normal use condition, should be at 2.08 m away from the
body of any user for fixed installation.
Note that with PTC-3000 RF Board Mobile installation with highest gain antenna of 5.2dBi,
the antenna of the product, under normal use condition, should be at 1.41 m away from the
body of any user for mobile installation.
Note that PTC-3004, PTC-3200 family, PTC-3001 and PTC-3006 Fixed installation with
highest gain antenna of 14.1dBi, the antenna of the product, under normal use condition,
should be at 2.5 m away from the body of any user for fixed installation. Note that PTC-
3004 RF exposure limits apply to all PTC-3000 family.
Note that with PTC-3004, PTC-3200 family, PTC-3001 and PTC-3006 Mobile installation
with highest gain antenna of 5.2dBi, the antenna of the product, under normal use condition,
should be at 1.74 m away from the body of any user for mobile installation. Note that PTC-
3004, PTC-3200 family, PTC-3001 and PTC-3006 RF exposure limits apply to all PTC-3000
family.
The output power for fixed stations is factory set max limit at 45.5dBm on 220MHz antenna
ports. The maximum EIRP is 50.4dBm based on max gain antenna of 14.1dBi and cable
loss of 9.2dB. If user/installer exceeds this max EIRP, the installer must increase cable loss
and/or lower power accordingly. Note that output power is variable, and the actual power is
chosen at the time installation depending on cable losses, Antenna height and gain and
terrain as per FCC/ IC licensing procedures.
The output power for mobile stations is factory set max limit at 44.5dBm on 220MHz
antenna ports. The EIRP is is 46.9dBm based on max gain antenna of 5.2dBi and cable loss
of 2.8dB. If user/installer exceeds this max EIRP, the installer must increase cable loss
and/or lower power accordingly. Note that output power is variable, and the actual power is
chosen at the time installation depending on cable losses, Antenna height and gain and
terrain as per FCC/ IC licensing procedures.

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page 2
The concentrated energy from an antenna may pose a health hazard. People should not be
in front of the antenna when the transmitter is operating. The installer of this equipment must
ensure the antenna is located or pointed such that it does not emit an RF field in excess of
Health Canada limits for the general population. Recommended safety guidelines for the
human exposure to radio frequency electromagnetic energy are contained in the Canadian
Safety Code 6 (available from Health Canada) and the Federal Communications
Commission (FCC) Bulletin 65.
Any changes or modifications not expressly approved by the party responsible for
compliance (in the country where used) could void the user's authority to operate the
equipment.
La famille PTC-3000 doit être installé par un professionnel et doit garantir une distance
minimale de séparation entre énumérés ci-dessous la structure rayonnante et toute
personne.
Notez qu'avec PTC-3000 RF Board Installation fixe avec antenne haut gain de 14.1dBi,
l'antenne du produit, dans des conditions normales d'utilisation, doit être à 2,08 m du corps
d'un utilisateur pour une installation fixe.
Notez qu'avec PTC-3000 RF Board Installation mobile avec antenne haut gain de 5.2dBi,
l'antenne du produit, dans des conditions normales d'utilisation, doit être de 1,41 m à partir
du corps d'un utilisateur pour une installation mobile.
Notez qu'avec PTC-3004, PTC-3200 family, PTC-3001 and PTC-3006 Installation fixe avec
antenne haut gain de 14.1dBi, l'antenne du produit, dans des conditions normales
d'utilisation, devrait être de 2,5 m à partir du corps d'un utilisateur pour une installation fixe.
Notez que PTC-3004, PTC-3200 family, PTC-3001 and PTC-3006 les limites d'exposition
RF s'appliquent à tous les PTC-3000 famille.
Notez qu'avec PTC-3004, PTC-3200 family, PTC-3001 and PTC-3006 Installation mobile
avec antenne haut gain de 5.2dBi, l'antenne du produit, dans des conditions normales
d'utilisation, doit être à 1,74 m à partir du corps d'un utilisateur pour une installation mobile.
Notez que PTC-3004 les limites d'exposition RF s'appliquent à tous les PTC-3000 famille.
La puissance de sortie pour les stations fixes est réglé en usine limite max à 45.5dBm sur
les ports d'antenne 220MHz. La pire maximale est basée sur 50.4dBm antenne à gain max
de 14.1dBi et la perte de câble de 9.2dB. Si l'utilisateur / installateur dépasse ce maximum
pire, l'installateur doit augmenter la perte de câble et / ou de puissance inférieure
conséquence. Notez que la puissance de sortie est variable, et la puissance réelle est choisi
au moment de l'installation en fonction de pertes dans les câbles, hauteur d'antenne et le
gain de terrain et par la FCC / IC procédures d'octroi de licences.
La puissance de sortie pour les stations mobiles est réglé en usine limite max à 44.5dBm
sur les ports d'antenne 220MHz. Le pire est 46.9dBm est basée sur l'antenne à gain max de
5.2dBi et la perte de câble de 2.8dB. Si l'utilisateur / installateur dépasse ce maximum pire,

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page 3
l'installateur doit augmenter la perte de câble et / ou de puissance inférieure conséquence.
Notez que la puissance de sortie est variable, et la puissance réelle est choisi au moment
de l'installation en fonction de pertes dans les câbles, hauteur d'antenne et le gain de terrain
et par la FCC / IC procédures d'octroi de licences.
Le concentré d'énergie à partir d'une antenne peut poser un risque pour la santé.
Personnes ne doivent pas être en face de l'antenne lorsque l'émetteur est en marche.
L'installateur de cet équipement doit s'assurer que l'antenne est située ou orientée de façon
à ne pas émettre un champ RF dépassant les limite de Canada Santé pour la population
générale. Consignes de sécurité recommandées pour l'exposition humaine à l'énergie
électromagnétique de fréquence radio sont contenues dans le Code canadien de sécurité 6
(disponible auprès de Santé Canada) et la Federal Communications Commission (FCC)
Bulletin 65.
Les changements ou modifications non expressément approuvés par la partie responsable
de la conformité (dans le pays d'utilisation) peut annuler le droit de l'utilisateur à utiliser cet
équipement..

Lilee Systems™ TransAir™ PTC-3000 Family User Manual
Page 4
1.2 Safety Considerations
Please ensure the following safety precautions are adhered to at all times.
Follow electrostatic precautions whenever the PTC-3000 is installed. To prevent
malfunction or damage which may be caused by Electrostatic Discharge, the PTC-
3000 should be grounded. Before touching components or connecting/disconnecting
cables, the installer should touch a metal object to dissipate body charge.
Make sure the power is turned off and the power cord is disconnected
whenever the PTC-3000 is being installed or moved.
Do not apply voltage levels that exceed the specified voltage range. Doing so
may cause fire and/or an electrical shock.
Do not open the chassis when the PTC-3000 is running: Electric shocks can
occur.
If considerable amounts of dust, water, or fluids enter the PTC-3000, turn off the
power supply immediately, unplug the power cord, and contact the distributor or
sales representative.
DO NOT do the following:
oDO NOT drop the PTC-3000 onto a hard surface.
oDO NOT use the PTC-3000 in a site where the ambient temperature exceeds
the rated temperature.
1.3 ESD Notice
To prevent malfunction or damage to this product, which may be caused by Electrostatic
Discharge (ESD), the radio should be properly grounded at the time of installation. In
addition, the installer or maintainer should follow proper ESD precautions, such as touching
a bare metal object to dissipate body charge, prior to touching components or
connecting/disconnecting cables.
1.4 FCC/IC Approval Notice/ Avis d'approbation FCC/IC
This device is offered as a licensed transmitter per FCC Parts 80, 90, & 95 and IC RSS-119.
It is approved for use under the following conditions: Changes or modifications not expressly
approved by the party responsible for compliance will void the user’s authority to operate the
equipment.
Cet appareil est un émetteur conforme à la FCC partie 80, 90, & 95 et IC RSS-119. Son
utilisation est uniquement approuvée dans les conditions suivantes: Tout changement ou
modification non expressément approuvé par la partie responsable de la conformité
entraînera le retrait du droit d’exploiter l’équipement.
1.5 FCC Part 15 Notice/IC RSS-210_GEN Avis
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Any
unauthorized modification or changes to this device without the express approval of the
