Lilin PIH-4022 N User manual

MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
INSTRUCTION MANUAL
PIH-402X/404X Series
66-402CSE
INTEGRATED VARI-FOCAL CAMERA

IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.

CONGRATULATIONS
Thank you for purchasing this high quality color camera. You now
own one of the many fine CCTV products we manufactured. This
product has been carefully inspected under rigid quality control
and should reach you in perfect condition. With reasonable care,
it will provide years of reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT

WARRANTY INFORMATION
Please complete the following product purchase information. The
factory will requests this information when contacted for technical
support, or warranty repair. It is also valuable in case of loss or
theft.
Purchase Date
Serial Number
Model Number
TABLE OF CONTENTS
FEATURES
PART DESCRIPTION
INSTALLATION
SPECIFICATIONS
1
2
4
7

1
FEATURES
The 1/3" vari-focal color camera has a CCD image sensor and all solid state
circuitry, which will provide extremely long life with high reliability.
The PIH-402 & 404 series camera offers excellent picture reproducibility with low
lag and high burn resistance. It is resistant to distortion from magnetic fields, shock
and vibration and will operate reliably in a wide range of temperatures.
BUILT-IN VARI-FOCAL LENS
DIGITAL SIGNAL PROCESSOR
SENSITIVITY
AUTOMATIC GAIN CONTROL
BACK LIGHT COMPENSATION
Built-in high performance 3~9mm vari-focal lens makes installation and
adjustments a simple task. This saves the time for proper lens selection.
Hi-speed F1.3 iris offers superior imagery quality and is suitable for low light
condition.
DSP cameras can produce high color contrast images, enhance picture
sharpness and enable the camera to work in wide range of lighting conditions.
This is a highly sensitive camera with a minimum scene illumination 0.1lux
(PIH-402) and 0.18lux(PIH-404) at F1.4, ensuring good quality images in low
light environments.
Low light image are enhanced by in creasing the AGC from 10dB, under normal
light conditions, to 26dB under low light conditions.
Subjects lit from behind can be automatically enhanced through DSP control of
the iris and shutter speeds, compensating for poorly illuminated scenes.

OPEN LOCK
AUTO WHITE BALANCE
APERTURE CORRECTION
AUDIO OUTPUT
Automatic adjustment of the light source color temperature in order to maintain
perfect picture color.
Refining capture image outlines for a sharper video image.
Built-in highly sensitive capacitive microphone allows setting up of audio
monitoring system.
2
PART DESCRIPTION
TOP/BOTTOM VIEW

IRIS
LED
FLC
SIDE VIEW
VARI-FOCAL CAMERA
AUDIO VIDEO
POWER
IRIS
LEVEL
AC24V/DC 12V
PIH-4026/4046
AUDIO VIDEO
POWER
IRIS
LEVEL
PIH-4028/4048
AUDIO VIDEO
POWER
IRIS
LEVEL
DC 12V
+12V
GND
PIH-4022/4042
REAR PANEL
3
Microphone
Fixing for mounting base
Lens cover
Lens hood
Focus adjustment lever
Zoom (View angle)
adjustment lever
Power LED
DC Iris level adjustment VR
Connector for audio output
Connector for video output
Power input
1
2
3
4
5
6
7
8
9
10
11

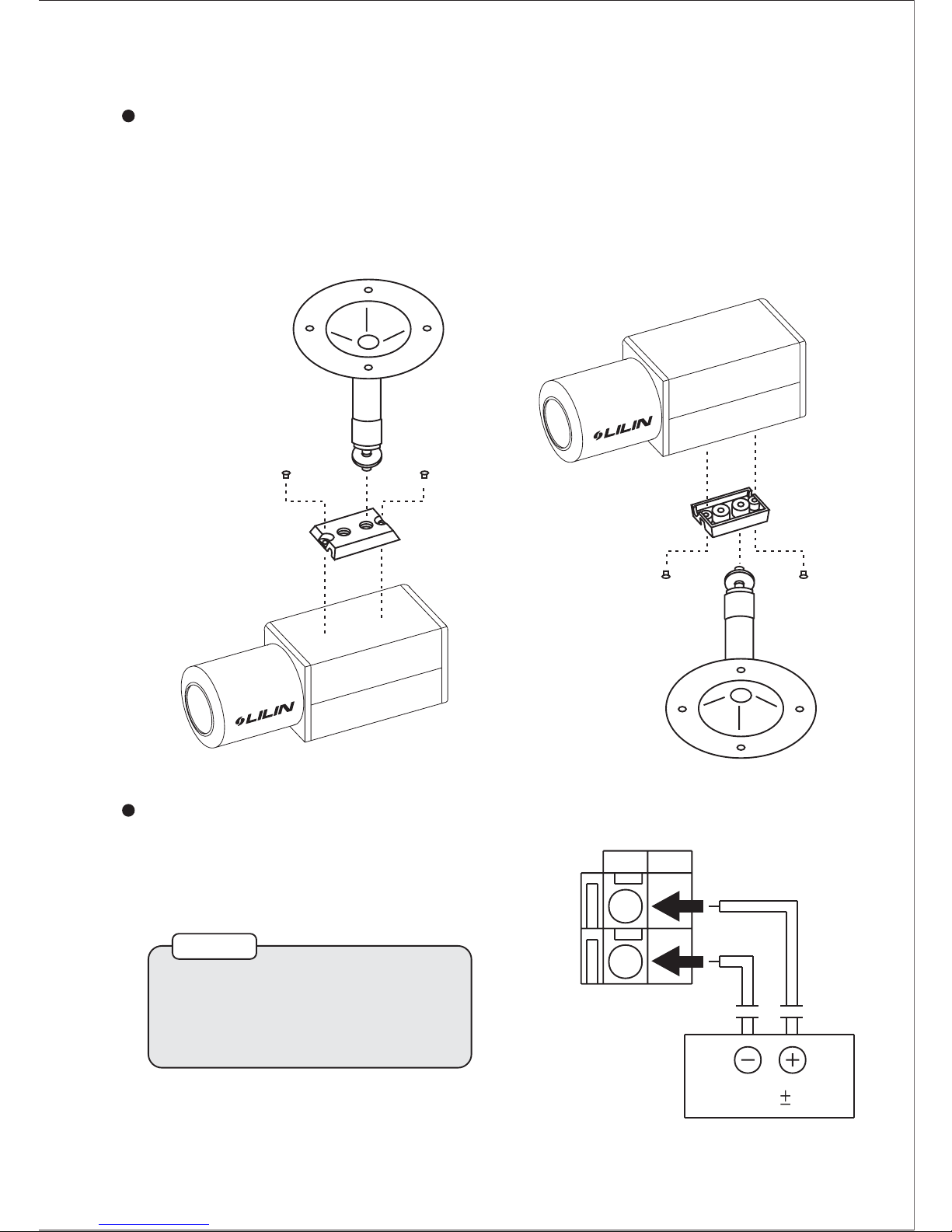

INSTALLATION
1. The mounting base can be attached to either the top or bottom of the
camera.
2. Tighten the screw to attach the mounting base. Please refer to the
following drawing.
FITTING THE CAMERA
VARI-FOCAL
CAMERA
VARI-FOCAL
CAMERA
4
Connect to the power supply.
Please refer to the right drawing.
CONNECTION OF POWER SUPPLY CABLE (DC12V)
DC12V ( 10%)
DC12V
NOTE
When using DC power, check for
proper polarity before connecting
to power supply.
+12V
GND

Connect to the power supply.
Please refer to the right drawing.
CONNECTION OF POWER SUPPLY CABLE (AC24V or DC12V)
AC24V ( 10%)
or
DC12V ( 10%)
AC24V / DC12V
NOTE
Make sure to use AC24V or DC12V
(Non-Polarity input) power supply.
5
Take the lens hood off by turning it counter-clockwise.
Adjust view angel and focus by turning the levers.
Then tighten the lock screws. Align the arrow on the lens hood and mounting
hole of camera body (Please refer to the above drawing). Then turn the hood
clockwise to lock.
ADJUSTMENT OF ZOOM (VIEW ANGLE) AND FOCUS
OPEN LOCK OPEN LOCK

Adjust DC iris level manually.
Please refer to the above drawing.
DC IRIS LEVEL ADJUSTMENT
ATTENTION
Adjust this VR with care so as not to cause damage to the unit.
6
LEVEL
IRIS
POWER AUDIO

SPECIFICATIONS
7
VARI-FOCAL COLOR CAMERA
Model No.
Power Input Voltage
System
Sync. Mode
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Resolution
Minimum Illumination
S/N Ratio
Auto Gain Control
White Balance
Aperture Correction
Back Light Compensation
Video Output
Gamma Characteristic
Operating Temperature
Weight
Dimension
PIH-4026 N/P
DC12V ( 10%)
NTSC or PAL
Internal
1/3" Super HAD CCD Sensor
5.59mm (H) x 4.68mm (V)
2 1 Interlace
380TV Lines
0.1Lux (F1.4)
More than 50dB (AGC OFF)
36dB Variable Gain
ATW
Horizontal , Vertical
Yes
CVBS 1.0Vp-p , 75ohm
=0.45
-10 ~ +50 (14 ~ 122 )
400g
52mm(W) x 55mm(H) x 124mm(D)
510(H) x 492(V) [NTSC]
500(H) x 582(V) [PAL]
15.734KHz / 59.94Hz [NTSC]
15.625KHz / 50Hz [PAL]
Horizontal & Vertical
Sync. Frequency
PIH-4022 N/P
AC24V
or
DC12V
( 10%)
( 10%)
Audio Output
Auto
Power Consumption 2.2W 4.3W
Lens
3~9mm
F1.4
90.2 ~31.8
Focal Length
Iris
AngleofView
Design and specifications are subject to change without notice.
PIH-4028 N/P
H
V
D
66.3 ~23.9
115.3 ~39.7
AC90 ~ 260V
3.0W(DC12V)
2.5W(AC24V)

8
HIGH RESOLUTION VARI-FOCAL COLOR CAMERA
Model No.
System
Sync. Mode
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Resolution
Minimum Illumination
S/N Ratio
Auto Gain Control
White Balance
Aperture Correction
Back Light Compensation
Video Output
Gamma Characteristic
Operating Temperature
Weight
Dimension
PIH-4046 N/P
NTSC or PAL
Internal
5.59mm (H) x 4.68mm (V)
2 1 Interlace
480TV Lines
0.18Lux (F1.4)
More than 50dB (AGC OFF)
36dB Variable Gain
ATW
Horizontal , Vertical
Yes
CVBS 1.0Vp-p , 75ohm
=0.45
-10 ~ +50 (14 ~ 122 )
400g
52mm(W) x 55mm(H) x 124mm(D)
768(H) x 494(V) [NTSC]
752(H) x 582(V) [PAL]
15.734KHz / 59.94Hz [NTSC]
15.625KHz / 50Hz [PAL]
Horizontal & Vertical
Sync. Frequency
PIH-4042 N/P
Audio Output
Auto
Power Consumption 2.2W 4.3W
Lens
Focal Length
Iris
AngleofView
Design and specifications are subject to change without notice.
PIH-4048 N/P
H
V
D
3.0W(DC12V)
2.5W(AC24V)
1/3" Super HAD CCD Sensor
3~9mm
F1.4
90.2 ~31.8
66.3 ~23.9
115.3 ~39.7
66-402CSE-5
Power Input Voltage DC12V ( 10%) AC24V
or
DC12V
( 10%)
( 10%) AC90 ~ 260V
