Lincoln Electric X-Tractor 1GC User manual

Operator’ Manual
X-Tractor 1GC
Regi ter your machine:
www.lincolnelectric.com/re ister
Authorized Service and Di tributor Locator:
www.lincolnelectric.com/locator
IM576-B | Issue D ate Mar-19
© Lincoln Global, Inc. All Ri hts Reserved.
Save for future reference
Date Purchased
Code: (ex: 10859)
Serial: (ex: U1060512345)

THANK YOU FOR SELECTING
A QUALITY PRODUCT BY
LINCOLN ELECTRIC.
PLEASE EXAMINE CARTON AND EQUIPMENT FOR
DAMAGE IMMEDIATELY
When this equipment is shipped, title passes to the purchaser
upon receipt by the carrier. Consequently, claims for material
damaged in shipment must be made by the purchaser against the
transportation company at the time the shipment is received.
SAFETY DEPENDS ON YOU
Lincoln arc welding and cutting equipment is designed and built
with safety in mind. However, your overall safety can be increased
by proper installation ... and thoughtful operation on your part.
DO NOT INSTALL, OPERATE OR REPAIR THIS EQUIPMENT
WITHOUT READING THIS MANUAL AND THE SAFETY
PRECAUTIONS CONTAINED THROUGHOUT. And, most importantly,
think before you act and be careful.
This statement appears where the information must be followed
exactly to avoid serious personal injury or loss of life.
This statement appears where the information must be followed
to avoid minor personal injury or damage to this equipment.
KEEP YOUR HEAD OUT OF THE FUMES.
DON’T get too close to the arc.
Use corrective lenses if necessary
to stay a reasonable distance
away from the arc.
READ and obey the Safety Data
Sheet (SDS) and the warning label
that appears on all containers of
welding materials.
USE ENOUGH VENTILATION or
exhaust at the arc, or both, to
keep the fumes and gases from
your breathing zone and the general area.
IN A LARGE ROOM OR OUTDOORS, natural ventilation may be
adequate if you keep your head out of the fumes (See below).
USE NATURAL DRAFTS or fans to keep the fumes away
from your face.
If you develop unusual symptoms, see your supervisor.
Perhaps the welding atmosphere and ventilation system
should be checked.
WEAR CORRECT EYE, EAR &
BODY PROTECTION
PROTECT your eyes and face with welding helmet
properly fitted and with proper grade of filter plate
(See ANSI Z49.1).
PROTECT your body from welding spatter and arc
flash with protective clothing including woolen
clothing, flame-proof apron and gloves, leather
leggings, and high boots.
PROTECT others from splatter, flash, and glare
with protective screens or barriers.
IN SOME AREAS, protection from noise may be appropriate.
BE SURE protective equipment is in good condition.
Also, wear safety glasses in work area
AT ALL TIMES.
SPECIAL SITUATIONS
DO NOT WELD OR CUT containers or materials which previously
had been in contact with hazardous substances unless they are
properly cleaned. This is extremely dangerous.
DO NOT WELD OR CUT painted or plated parts unless special
precautions with ventilation have been taken. They can release
highly toxic fumes or gases.
Additional precautionary measures
PROTECT compressed gas cylinders from excessive heat,
mechanical shocks, and arcs; fasten cylinders so they cannot fall.
BE SURE cylinders are never grounded or part of an
electrical circuit.
REMOVE all potential fire hazards from welding area.
ALWAYS HAVE FIRE FIGHTING EQUIPMENT READY FOR
IMMEDIATE USE AND KNOW HOW TO USE IT.

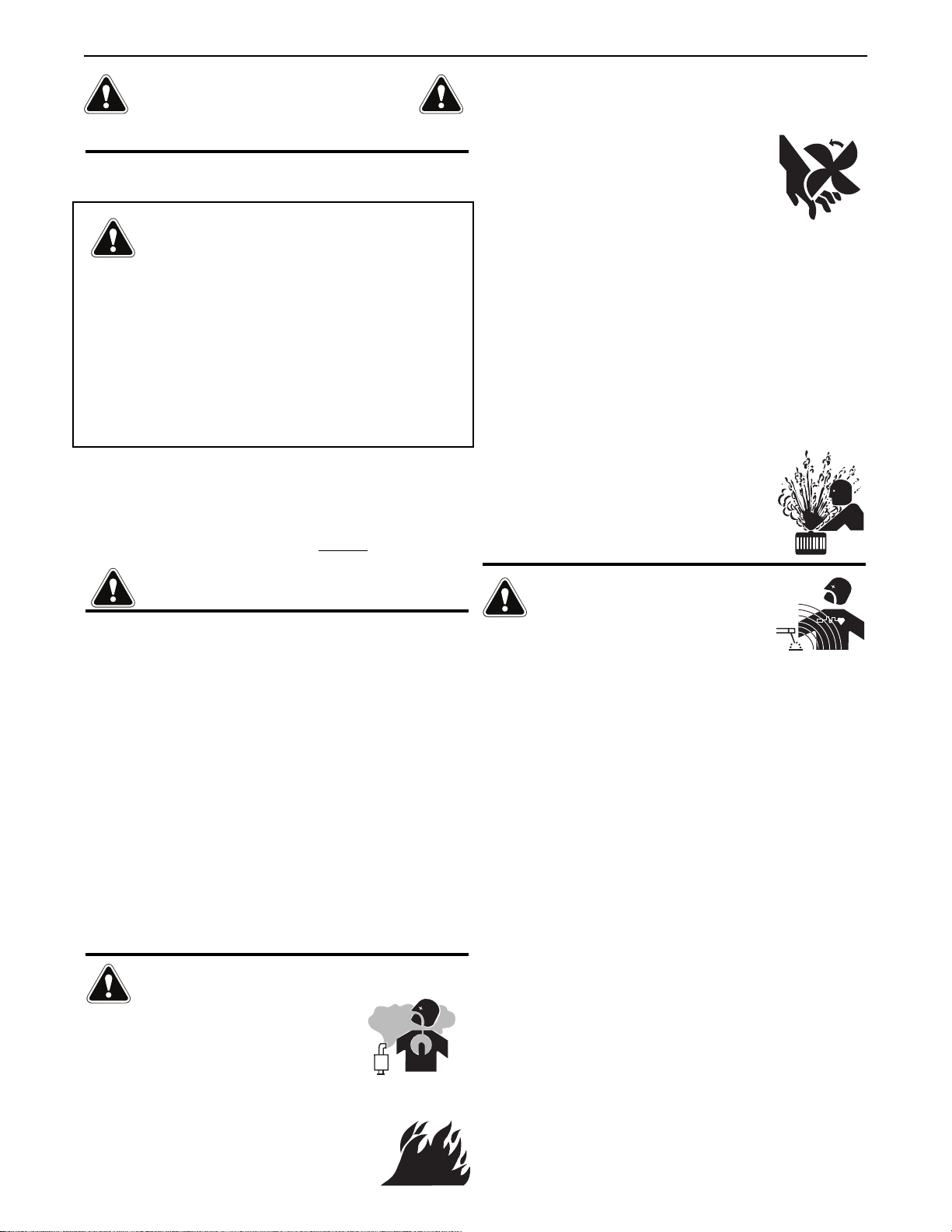

WARNING
CAUTION
Safety 01 of 04 - 5/16/2018

SECTION A:
WARNINGS
CALIFORNIA PROPOSITION 65 WARNINGS
WARNING: Breathing diesel engine exhaust
exposes you to chemicals known to the State
of California to cause cancer and birth defects,
or other reproductive harm.
• Always start and operate the engine in a
well-ventilated area.
• If in an exposed area, vent the exhaust to the outside.
• Do not modify or tamper with the exhaust system.
• Do not idle the engine except as necessary.
For more information go to
www.P65 warnings.ca.gov/diesel
WARNING: This product, when used for welding or
cutting, produces fumes or gases which contain
chemicals known to the State of California to cause
birth defects and, in some cases, cancer. (California
Health & Safety Code § 25249.5 et seq.)
WARNING: Cancer and Reproductive Harm
www.P65warnings.ca.gov
ARC WELDING CAN BE HAZARDOUS. PROTECT
YOURSELF AND OTHERS FROM POSSIBLE SERIOUS
INJURY OR DEATH. KEEP CHILDREN AWAY.
PACEMAKER WEARERS SHOULD CONSULT WITH
THEIR DOCTOR BEFORE OPERATING.
Read and understand the following safety highlights. For
additional safety information, it is strongly recommended
that you purchase a copy of “Safety in Welding & Cutting -
ANSI Standard Z49.1” from the American Welding Society,
P.O. Box 351040, Miami, Florida 33135 or CSA Standard
W117.2-1974. A Free copy of “Arc Welding Safety” booklet
E205 is available from the Lincoln Electric Company,
22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
BE SURE THAT ALL INSTALLATION, OPERATION,
MAINTENANCE AND REPAIR PROCEDURES ARE
PERFORMED ONLY BY QUALIFIED INDIVIDUALS.
FOR ENGINE POWERED
EQUIPMENT.
1.a. Turn the engine off before troubleshooting
and maintenance work unless the
maintenance work requires it to be running.
1.b. Operate engines in open, well-ventilated areas or vent the engine
exhaust fumes outdoors.
1.c. Do not add the fuel near an open flame welding
arc or when the engine is running. Stop the
engine and allow it to cool before refueling to
prevent spilled fuel from vaporizing on contact
with hot engine parts and igniting. Do not spill fuel when filling
tank. If fuel is spilled, wipe it up and do not start engine until
fumes have been eliminated.
1.d. Keep all equipment safety guards, covers
and devices in position and in good repair.
Keep hands, hair, clothing and tools away
from V-belts, gears, fans and all other
moving parts when starting, operating or
repairing equipment.
1.e. In some cases it may be necessary to remove safety guards to
perform required maintenance. Remove guards only when
necessary and replace them when the maintenance requiring
their removal is complete. Always use the greatest care when
working near moving parts.
1.f. Do not put your hands near the engine fan. Do not attempt to
override the governor or idler by pushing on the throttle control
rods while the engine is running.
1.g. To prevent accidentally starting gasoline engines while turning
the engine or welding generator during maintenance work,
disconnect the spark plug wires, distributor cap or magneto wire
as appropriate.
1.h. To avoid scalding, do not remove the radiator
pressure cap when the engine is hot.
ELECTRIC AND
MAGNETIC FIELDS MAY
BE DANGEROUS
2.a. Electric current flowing through any conductor
causes localized Electric and Magnetic Fields (EMF).
Welding current creates EMF fields around welding cables
and welding machines
2.b. EMF fields may interfere with some pacemakers, and
welders having a pacemaker should consult their physician
before welding.
2.c. Exposure to EMF fields in welding may have other health effects
which are now not known.
2.d. All welders should use the following procedures in order to
minimize exposure to EMF fields from the welding circuit:
2.d.1. Route the electrode and work cables together - Secure
them with tape when possible.
2.d.2. Never coil the electrode lead around your body.
2.d.3. Do not place your body between the electrode and work
cables. If the electrode cable is on your right side, the
work cable should also be on your right side.
2.d.4. Connect the work cable to the workpiece as close as pos-
sible to the area being welded.
2.d.5. Do not work next to welding power source.
SAFETY
Safety 02 of 04 - 5/16/2018

ELECTRIC SHOCK
CAN KILL.
3.a. The electrode and work (or ground) circuits are
electrically “hot” when the welder is on. Do
not touch these “hot” parts with your bare skin or wet clothing.
Wear dry, hole-free gloves to insulate hands.
3.b. Insulate yourself from work and ground using dry insulation.
Make certain the insulation is large enough to cover your full area
of physical contact with work and ground.
In addition to the normal safety precautions, if
welding must be performed under electrically
hazardous conditions (in damp locations or while
wearing wet clothing; on metal structures such as
floors, gratings or scaffolds; when in cramped
positions such as sitting, kneeling or lying, if there
is a high risk of unavoidable or accidental contact
with the workpiece or ground) use the following
equipment:
• Semiautomatic DC Constant Voltage (Wire) Welder.
• DC Manual (Stick) Welder.
• AC Welder with Reduced Voltage Control.
3.c. In semiautomatic or automatic wire welding, the electrode,
electrode reel, welding head, nozzle or semiautomatic welding
gun are also electrically “hot”.
3.d. Always be sure the work cable makes a good electrical
connection with the metal being welded. The connection should
be as close as possible to the area being welded.
3.e. Ground the work or metal to be welded to a good electrical (earth)
ground.
3.f. Maintain the electrode holder, work clamp, welding cable and
welding machine in good, safe operating condition. Replace
damaged insulation.
3.g. Never dip the electrode in water for cooling.
3.h. Never simultaneously touch electrically “hot” parts of electrode
holders connected to two welders because voltage
between the
two can be the total of the open circuit voltage of both
welders.
3.i. When working above floor level, use a safety belt to protect
yourself from a fall should you get a shock.
3.j. Also see Items 6.c. and 8.
ARC RAYS CAN BURN.
4.a. Use a shield with the proper filter and cover plates to protect your
eyes from sparks and the rays of the arc when welding or
observing open arc welding. Headshield and filter lens should
conform to ANSI Z87. I standards.
4.b. Use suitable clothing made from durable flame-resistant material
to protect your skin and that of your helpers from the arc rays.
4.c. Protect other nearby personnel with suitable, non-flammable
screening and/or warn them not to watch the arc nor expose
themselves to the arc rays or to hot spatter or metal.
FUMES AND GASES
CAN BE DANGEROUS.
5.a. Welding may produce fumes and gases
hazardous to health. Avoid breathing these
fumes and gases. When welding, keep your head out of the fume.
Use enough ventilation and/or exhaust at the arc to keep fumes
and gases away from the breathing zone. When welding
hardfacing (see instructions on container or SDS)
or on lead or cadmium plated steel and other
metals or coatings which produce highly toxic
fumes, keep exposure as low as possible and
within applicable OSHA PEL and ACGIH TLV limits
using local exhaust or mechanical ventilation
unless exposure assessments indicate otherwise.
In confined spaces or in some circumstances,
outdoors, a respirator may also be required.
Additional precautions are also required when
welding
on galvanized steel.
5. b. The operation of welding fume control equipment is affected by
various factors including proper use and positioning of the
equipment, maintenance of the equipment and the specific
welding procedure and application involved. Worker exposure
level should be checked upon installation and periodically
thereafter to be certain it is within applicable OSHA PEL and
ACGIH TLV limits.
5.c. Do not weld in locations near chlorinated hydrocarbon vapors
coming from degreasing, cleaning or spraying operations. The
heat and rays of the arc can react with solvent vapors to form
phosgene, a highly toxic gas, and other irritating products.
5.d. Shielding gases used for arc welding can displace air and
cause
injury or death. Always use enough ventilation, especially in
confined areas, to insure breathing air is safe.
5.e. Read and understand the manufacturer’s instructions for this
equipment and the consumables to be used, including the
Safety Data Sheet (SDS) and follow your employer’s safety
practices. SDS forms are available from your welding
distributor or from the manufacturer.
5.f. Also see item 1.b.
SAFETY
Safety 03 of 04 - 5/16/2018

WELDING AND CUTTING
SPARKS CAN CAUSE
FIRE OR EXPLOSION.
6.a. Remove fire hazards from the welding area. If
this is not possible, cover them to prevent the welding sparks
from starting a fire. Remember that welding sparks and hot
materials from welding can easily go through small cracks and
openings to adjacent areas. Avoid welding near hydraulic lines.
Have a fire extinguisher readily available.
6.b. Where compressed gases are to be used at the job site, special
precautions should be used to prevent hazardous situations.
Refer to “Safety in Welding and Cutting” (ANSI Standard Z49.1)
and the operating information for the equipment being used.
6.c. When not welding, make certain no part of the electrode circuit is
touching the work or ground. Accidental contact can cause
overheating and create a fire hazard.
6.d. Do not heat, cut or weld tanks, drums or containers until the
proper steps have been taken to insure that such procedures
will not cause flammable or toxic vapors from substances inside.
They can cause an explosion even though they have been
“cleaned”. For information, purchase “Recommended Safe
Practices for the Preparation for Welding and Cutting of
Containers and Piping That Have Held Hazardous Substances”,
AWS F4.1 from the American Welding Society
(see address above).
6.e. Vent hollow castings or containers before heating, cutting or
welding. They may explode.
6.f. Sparks and spatter are thrown from the welding arc. Wear oil free
protective garments such as leather gloves, heavy shirt, cuffless
trousers, high shoes and a cap over your hair. Wear ear plugs
when welding out of position or in confined places. Always wear
safety glasses with side shields when in a welding area.
6.g. Connect the work cable to the work as close to the welding area
as practical. Work cables connected to the building framework or
other locations away from the welding area increase the
possibility of the welding current passing through lifting chains,
crane cables or other alternate circuits. This can create fire
hazards or overheat lifting chains or cables until they fail.
6.h. Also see item 1.c.
6.I. Read and follow NFPA 51B “Standard for Fire Prevention During
Welding, Cutting and Other Hot Work”, available from NFPA, 1
Batterymarch Park, PO box 9101, Quincy, MA 022690-9101.
6.j. Do not use a welding power source for pipe thawing.
CYLINDER MAY EXPLODE IF
DAMAGED.
7.a. Use only compressed gas cylinders containing
the correct shielding gas for the process used
and properly operating regulators designed for
the gas and pressure used. All hoses, fittings,
etc. should be suitable for the application and
maintained in good condition.
7.b. Always keep cylinders in an upright position securely chained to
an undercarriage or fixed support.
7.c. Cylinders should be located:
• Away from areas where they may be struck or subjected
to physical damage.
• A safe distance from arc welding or cutting operations
and any other source of heat, sparks, or flame.
7.d. Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.
7.e. Keep your head and face away from the cylinder valve outlet
when opening the cylinder valve.
7.f. Valve protection caps should always be in place and hand tight
except when the cylinder is in use or connected for use.
7.g. Read and follow the instructions on compressed gas cylinders,
associated equipment, and CGA publication P-l, “Precautions for
Safe Handling of Compressed Gases in Cylinders,” available from
the Compressed Gas Association, 14501 George Carter Way
Chantilly, VA 20151.
FOR ELECTRICALLY
POWERED EQUIPMENT.
8.a. Turn off input power using the disconnect
switch at the fuse box before working on
the equipment.
8.b. Install equipment in accordance with the U.S. National Electrical
Code, all local codes and the manufacturer’s recommendations.
8.c. Ground the equipment in accordance with the U.S. National
Electrical Code and the manufacturer’s recommendations.
Refer to
http://www.lincolnelectric.com/safety
for additional safety information.
SAFETY
Safety 04 of 04 - 5/16/2018

6
TABLE OF CONTENTS
TABLE F C NTENTS
Safety .............................................................................................................................................................2-5
General Description ................................................................................................................................................7
Installation ................................................................................................................................................Section A
Technical Specifications................................................................................................................................A-1
Safety Precautions ........................................................................................................................................A-2
Electrical Installation .....................................................................................................................................A-2
Use with hose and suction devices................................................................................................................A-2
peration ..................................................................................................................................................Section B
Safety Instructions ........................................................................................................................................B-1
Operating Instructions...................................................................................................................................B-1
Maintenance..............................................................................................................................................Section C
Routine Maintenance ....................................................................................................................................C-1
Cleaning the Filter ................................................................................................................................C-1
Emptying the Canister and Heavy Particle Trap .....................................................................................C-1
Replacing the filter ...............................................................................................................................C-2

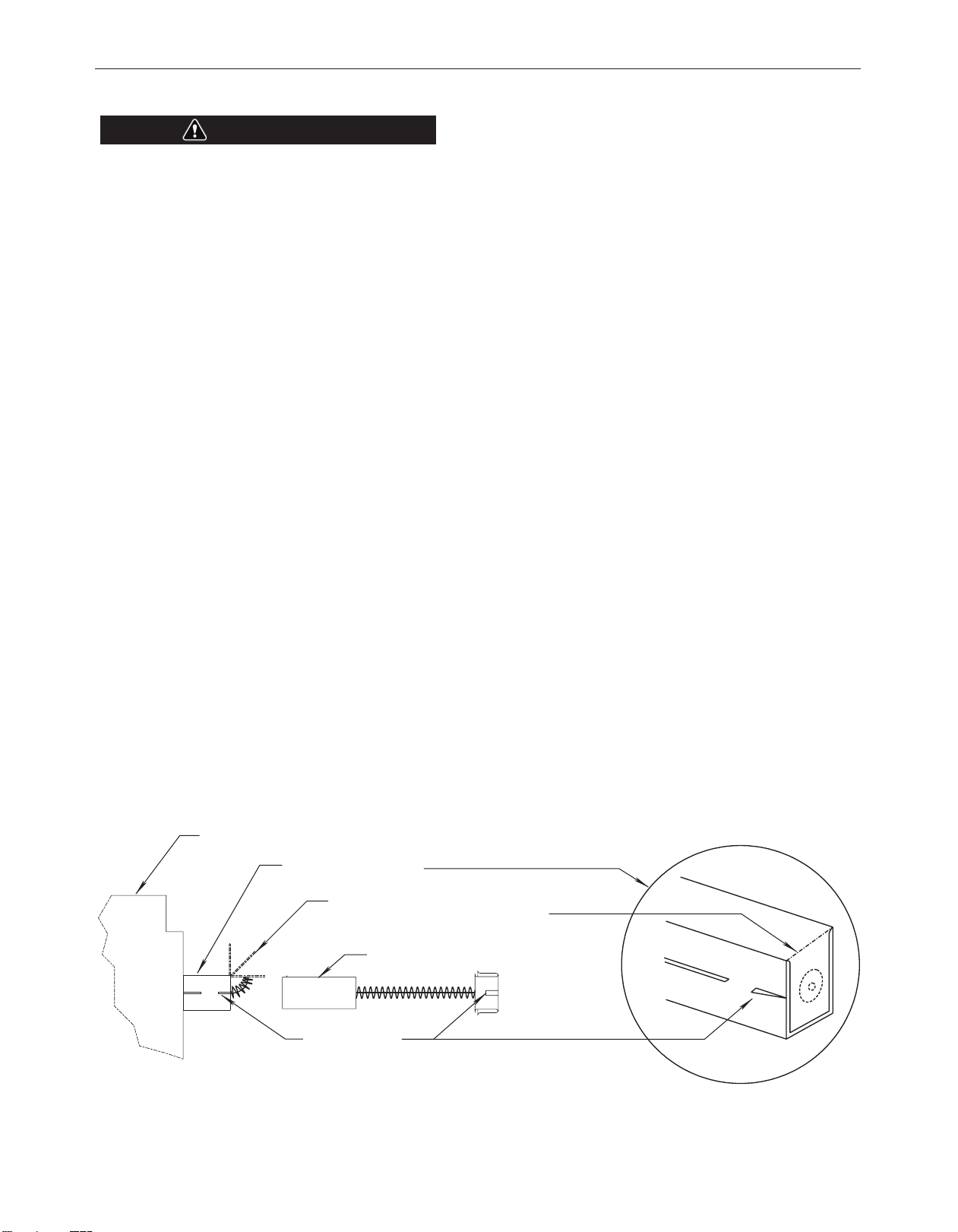

Electrical Maintenance..................................................................................................................................C-3
Trouble Shooting.......................................................................................................................................Section D
Trouble Shooting Chart .................................................................................................................................D-1

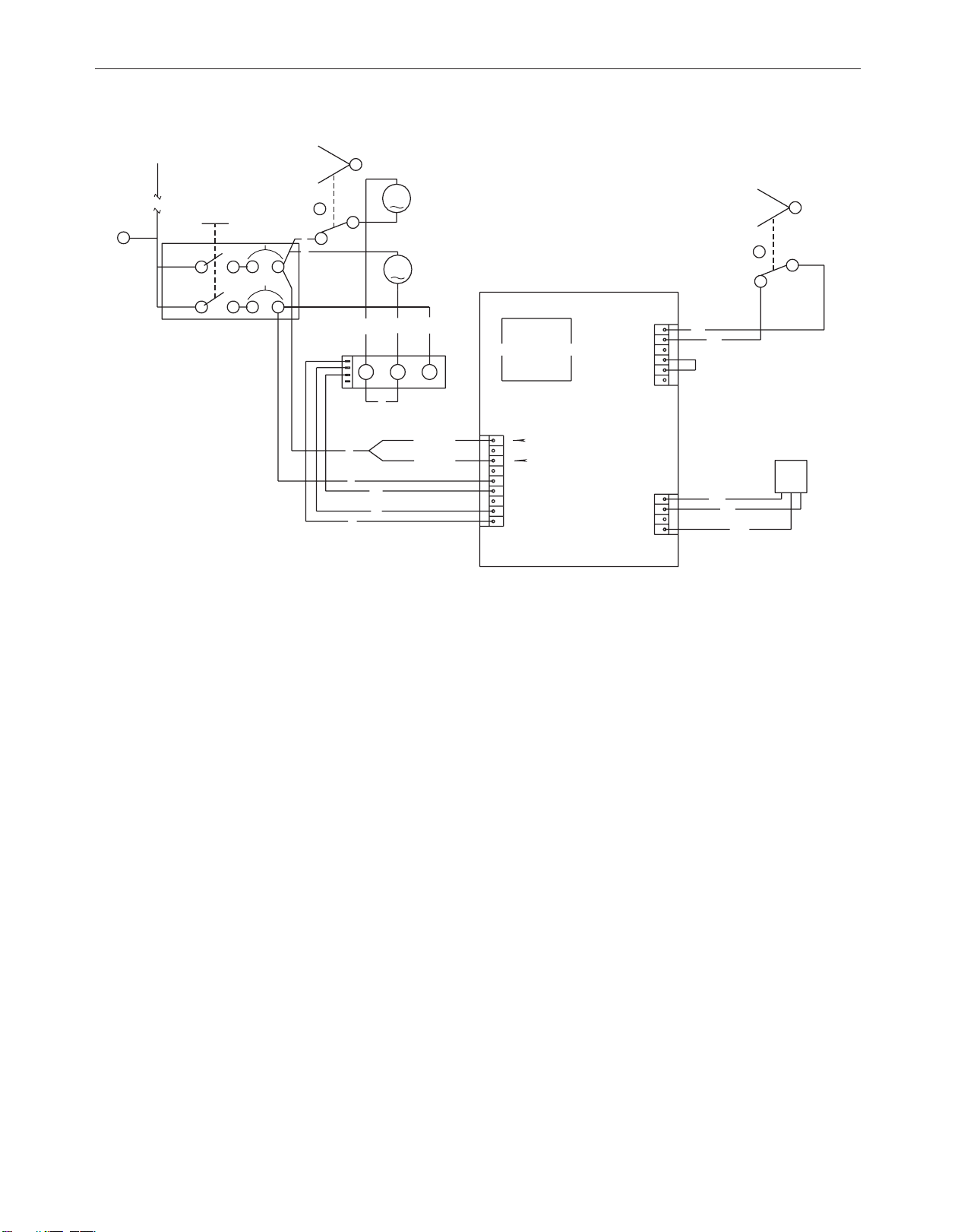

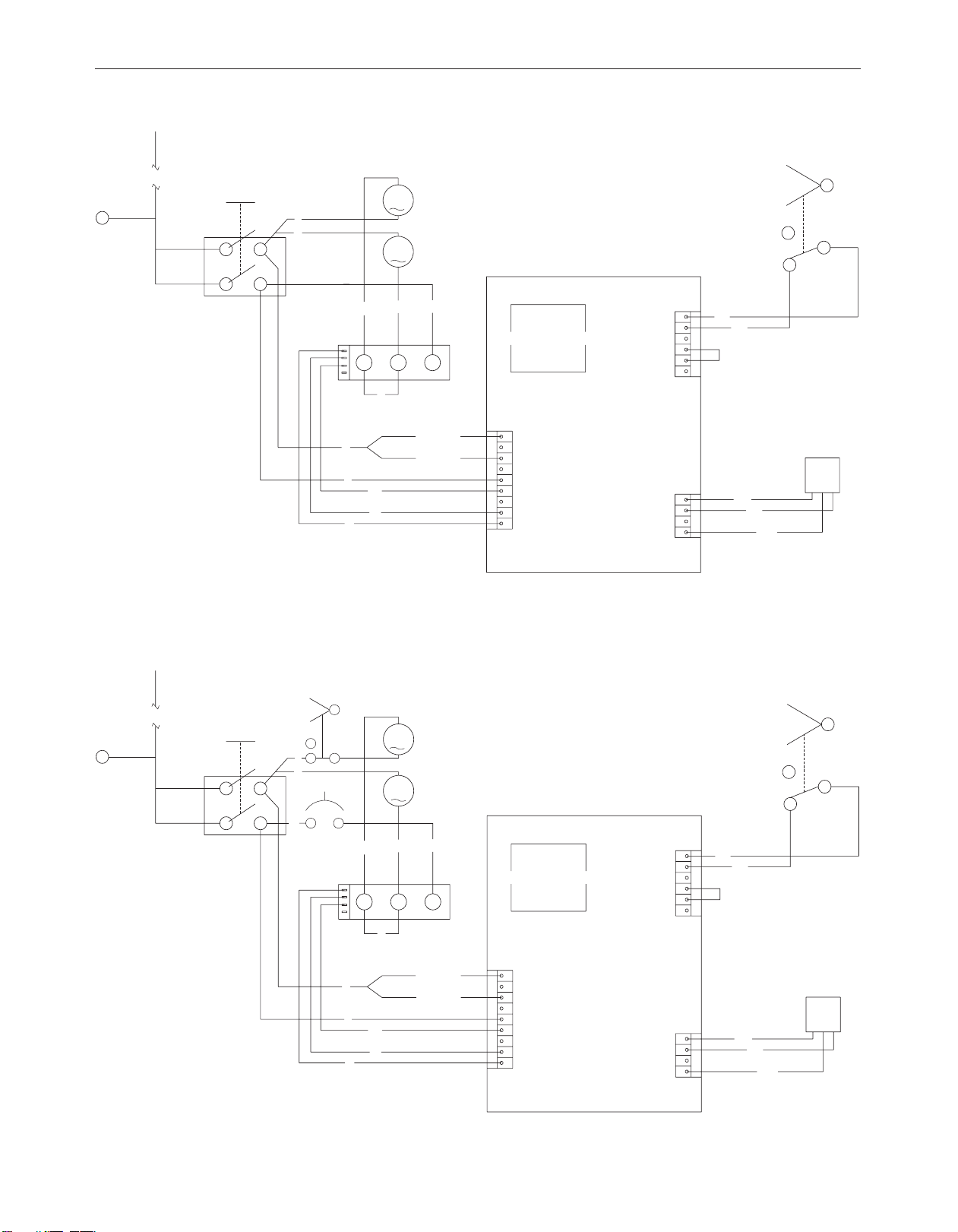

Wiring Diagram..........................................................................................................................................Section E
Diagram........................................................................................................................................................E-1
Parts Manual .......................................................................................................................................P-285 Series
Page

7
PRODUCT DESCRIPTION X-TRACTOR 1GC
GENERAL DESCRIPTION
The X-Tractor 1 C is a self contained system for the removal and
filtration of welding fume particles and other point source particu-
late. It is a high vacuum, low volume system with the capability to
easily and comfortably clean the filter cartridge with compressed
air. It is suitable for medium duty welding applications. When in
“Auto” mode, a current sensor turns the system on only when
needed, thereby extending the brush life of the motors. The sys-
tem is powered by two 120V or 230V blowers.
Machines manufactured after April, 1997 have a circuit breaker
and a Mode switch that allows selection of Low/High Mode. When
in “Low” mode, only one of the two blowers operates; when in
“High” mode, both blowers operate. Machines built after April,
1999 have a Low/High mode switch, but use circuit protection
built-in to the main power switch rather than a circuit breaker.
The X-Tractor 1 C is designed to supply suction for one fume gun
or small suction head designed for High Vacuum fume extraction.
Air enters the system through a 2" (50mm) OD connection. It then
passes through a heavy particle trap, then through the filter, leav-
ing fume particles on the outside of the cartridge. This particulate
free air then passes through the blower and exits through the side
of the machine.
When the filter becomes loaded with fume particles, the filter is
cleaned with compressed air while still inside the machine. By
connecting compressed air to the fitting on the rear of the
machine and rotating the fitting, particles are blown from the out-
side surface of the filter by air jets released from the cleaning
device. The internal canister is then removed and particulate can
be poured out.

A-1
INSTALLATIONX-TRACTOR 1GC
Technical Specifications- X-tractor 1GC
NOTE: Technical Specifications are subject to change without prior notice. Specifications and guarantees are valid only when specified spare parts and filters are used.
INPUT
Sales Spec
K652-1
K652-2
Input Voltage
120V 1 Ph 50/60 Hz
230V 1Ph 50/60 Hz
Input Current
15A
9A
Input Power
1.9 kW
1.9 kW
PHYSICAL DIMENSIONS
HEIGHT
15.8”
(400 mm)
WIDTH
13.4”
(340 mm)
DEPTH
26.8”
(680 mm)
WEIGHT
38 lbs.
(16.5 kg)
VACUUM SPECIFICATIONS
Air Flow / Pressure Rating
50 CFM @ 60” WG (85 m3/h @ 1470 mm WG)
FILTER TYPE
Polyester Cartridge >99% Efficiency -2.8m2Filter Area - Cleanable using Compressed Air
OPERATING SOUND LEVEL
74 dB(A) @ 3 ft.
COMPRESSED AIR QUALITY
Dry and Oil Free (ISO 8573-3 class 6)
REQUIRED PRESSURE
4-6 Bar (58 - 87 PSI)

A-2
INSTALLATIONX-TRACTOR 1GC
Read this entire installation section before you start installation.
SAFETY PRECAUTI NS
Do not attempt to use this equipment until you have thoroughly
read all installation, operating and maintenance information sup-
plied with your equipment. They include important safety precau-
tions and detailed operating and maintenance instructions.
ELECTRIC SH CK can kill.
• Do not touch electrically live parts such as
internal wiring.
• Turn the input power off at the fuse box
before working on this equipment.
• Have a qualified person install and service
this equipment.
-----------------------------------------------------------------
M VING PARTS can injure.
• Do not operate with covers open or filter
removed.
• Keep away from moving parts.
-----------------------------------------------------------------
nly qualified personnel should install, use or service this
equipment.
GENERAL DESCRIPTI N
The X-Tractor 1 C is a self contained system for the removal
and filtration of welding fume particles and other point source
particulate. It is a high vacuum, low volume system with the
capability to easily and comfortably clean the filter cartridge with
compressed air. It is suitable for medium duty welding applica-
tions. When in “Auto” mode, a current sensor turns the system
on only when needed, thereby extending the brush life of the
motors. The system is powered by two 120V or 230V blowers.
Machines manufactured after April, 1997 have a circuit
breaker and a Mode switch that allows selection of Low/High
Mode. When in “Low” mode, only one of the two blowers
operates; when in “High” mode, both blowers operate.
Machines built after April, 1999 have a Low/High mode
switch, but use circuit protection built-in to the main power
switch rather than a circuit breaker.
The X-Tractor 1 C is designed to supply suction for one fume
gun or small suction head designed for High Vacuum fume
extraction.
Air enters the system through a 2" (50mm) OD connection. It
then passes through a heavy particle trap, then through the filter,
WARNING
leaving fume particles on the outside of the cartridge. This par-
ticulate free air then passes through the blower and exits
through the side of the machine.
When the filter becomes loaded with fume particles, the filter is
cleaned with compressed air while still inside the machine. By
connecting compressed air to the fitting on the rear of the
machine and rotating the fitting, particles are blown from the
outside surface of the filter by air jets released from the cleaning
device. The internal canister is then removed and particulate can
be poured out.
ELECTRICAL INSTALLATI N
nly qualified personnel should install, use or service this
equipment.
-----------------------------------------------------------------
Connect the X-Tractor 1 C to 120V single phase, grounded input
suitable for 15 amp service for the K652-1, or 230V single
phase, grounded input suitable for 9 amp service for the K652-2.
USE WITH H SE AND SUCTI N DEVICES
A complete package consists of the X-Tractor 1 C, one suction
device and a 1 3/4" (45mm) hose to connect the two. All Lincoln
suction devices come with adapters that mate with either 1 3/4"
(45mm) ID Lincoln flexhose or 1 3/4" (45mm) OD Lincoln rubber
hose. These adapters connect to the flexhose by screwing onto
the wire helix that reinforces the hose. The adapters then
squeeze over the OD of the tube connections on both the suction
device and the X-Tractor. The X-Tractor 1 C uses a 2" (50mm)
OD connection and an SR-4550 adapter. (S20591-8)
Recommended hose for the X-Tractor 1 C are:
S19947-9 : 10 ft., 1 3/4" (45mm) flexhose
S19947-5 : 16 ft. 1 3/4" (45mm) flexhose
S19947-10 : 25 ft., 1 3/4" (45mm) flexhose
S14927-8 : 15 ft. 1 3/4" (45mm) OD rubber hose
Consult Lincoln’s Environmental Systems Division before using
any other size or length of hose.
WARNING

B-1
OPERATION
X-TRACTOR 1GC
Read and understand this entire section before operating your X-
Tractor 1 C.
SAFETY INSTRUCTI NS
Do not attempt to use this equipment until you have thoroughly
read all operating and maintenance manuals supplied with your
equipment and any related welding machine it will be used with.
They include important safety precautions, operating and main-
tenance instructions and parts lists.
ELECTRIC SH CK can kill.
• Do not touch electrically live parts such as
output terminals or internal wiring.
• Insulate yourself from the work and
ground.
• Always wear dry insulating gloves.
--------------------------------------------------------------------
WELDING SPARKS can cause fire or explo-
sion.
• Keep flammable material away.
• Do not weld upon containers which have
held combustibles.
--------------------------------------------------------------------
ARC RAYS can burn.
• Wear eye, ear and body protection.
--------------------------------------------------------------------
FUMES AND GASES
can be dangerous.
• Although the removal of the particulate
matter from welding smoke may reduce
the ventilation requirement, concentra-
tions of the clear exhausted fumes and
gases may still be hazardous to health.
Avoid breathing concentrations of these
fumes and gases. Use adequate ventila-
tion when welding. See ANSI Z49.1,
"Safety in Welding and Cutting", pub-
lished by the American Welding Society.
--------------------------------------------------------------------
nly qualified personnel should operate this equipment.
ADDITI NAL SAFETY PRECAUTI NS
Always operate this equipment with the filters installed and cov-
ers in place as these provide maximum protection from moving
parts and insure proper vacuum operation and cooling air flow.
WARNING
PERATING INSTRUCTI NS
The X-Tractor 1 C provides enough suction for one fume gun or
small suction head. When in “Low” mode, only one blower oper-
ates, when in “High” mode, both blowers operate. When in the
“Man” mode, the X-Tractor 1 C will run continuously. When in
the “Auto” mode, it will turn on only when current is sensed by
the current sensor.
USIN THE “AUTO” MODE
Loop a section of the work cable or electrode cable through the
hook at the rear of the machine. When using welding current of
less than 80 Amps, loop the cable through twice. When using
welding current of less than 40 Amps loop the cable through
three times. When the arc starts, the current flowing through
the cable will create a magnetic field. The current sensor
mounted in the machine behind the loop will sense this field and
start the machine. When the arc stops, there is a ten second
delay before the machine shuts down.

C-1
MAINTENANCE
X-TRACTOR 1GC
R UTINE MAINTENANCE
The Filter should be cleaned and the canister emptied on a regular
basis. Frequency of cleaning and emptying depends upon a num-
ber of factors such as the type of welding fume and the frequency
of use. In many cases, a good procedure would be to clean the fil-
ter once per week and empty the canister once per month.
CLEANING THE FILTER
When the performance of the system decreases, this indicates
that the filter should be cleaned.
1. Disconnect the machine from input power.
2. Close the inlet with the rubber plug.
3. Connect compressed air to the fitting on the rear of the
machine and open the ball valve on the fitting.
4. Rotate the fitting 200°, back and forth 6 - 7 times. This will
rotate the cleaning device inside the machine, distributing the
jets of compressed air over the circumference of the filter.
5. Close the ball valve and disconnect the compressed air.
6. Remove the plug from the inlet and reconnect to input power.
EMPTYING THE CANISTER AND HEAVY
PARTICLE TRAP
The particulate matter collected in the canister may be dan-
gerous to your health. Take necessary precautions so that
you and your fellow workers do not breathe the dust and
particulate. Wear a suitable respirator when disposing of the
particulate.
Check with local authorities for regulations governing the
disposal of this material.
--------------------------------------------------------------------
WARNING
1. Clean the filter.
2. Open the quick-release fasteners on the four corners of the
case front by rotating the fasteners 1/4 turn. (See Fig. 1)
3. Remove the canister by pulling on the handle and stand the
canister with the case front on top.
4. Open the two other quick-release fasteners (at the top and
bottom of the case front) by rotating 1/4 turn. Remove the
case front from the canister.
5. Empty the canister.
6. Empty the heavy particle trap built into the case front.
7. Replace the case front by rotating the quick-release fasteners
to the “closed” position: the fastener will line up with the
lines in the case. In this position they are parallel with the
case side (See Fig. 1). With the fasteners in this position,
place the case front onto the canister and press the quick-
release fasteners into the two holes. When they “click”, they
are fastened. If they do not “click” or fasten, then check to
see that they are in the closed position described above.
8. Replace the canister into the machine with the inlet on the
bottom. Fasten the case front to the machine using the pro-
cedure outlined in step 7.
DIRTY AIR
WELDING
FUME
MOTOR 
COOLING 
AIR IN
EXHAUST 
AIR
MOTOR 
COOLING 
AIR OUT
CLEAN AIR
FILTER
FILTER 
CONTAINER
DUST BLOWN 
OFF FILTER
PLUG
COMPRESSED 
AIR

(ROTATE THE 
CLEANING 
DEVICE 
BY HAND)
CLEANING 
DEVICE
N RMAL PERATI N CLEANING THE FILTER

C-2
MAINTENANCE
X-TRACTOR 1GC
REPLACING THE FILTER
The filter is a long life, polyester filter designed to be repeatedly
cleaned by compressed air. Therefore, it should need replace-
ment only after an extended period of time. Certain applications
can reduce this period, especially very oily smoke or excessive
moisture. Replacement is necessary when, after several clean-
ing cycles, the suction performance of the system is still lower
than normal or due to mechanical damage to the filter. Overall
filter life depends on a great number of variables such as type of
fume, duty cycle, operating factor, capture efficiency, etc.
The particulate matter collected in the canister may be dan-
gerous to your health. Take necessary precautions so that
you and your fellow workers do not breathe the dust and
particulate. Wear a suitable respirator when disposing of
the particulate.
Check with local authorities for regulations governing the
disposal of used filters.
--------------------------------------------------------------------
WARNING
1. Clean the filter and empty the canister and heavy particle trap.
2. Before replacing the canister, loosen the bolts from the bottom
of the canister using an adjustable wrench. Rotate the filter
until it is unhooked from the bolts.
3. Remove the filter and replace with a new one.
4. Tighten the bolts and replace the canister into the machine.

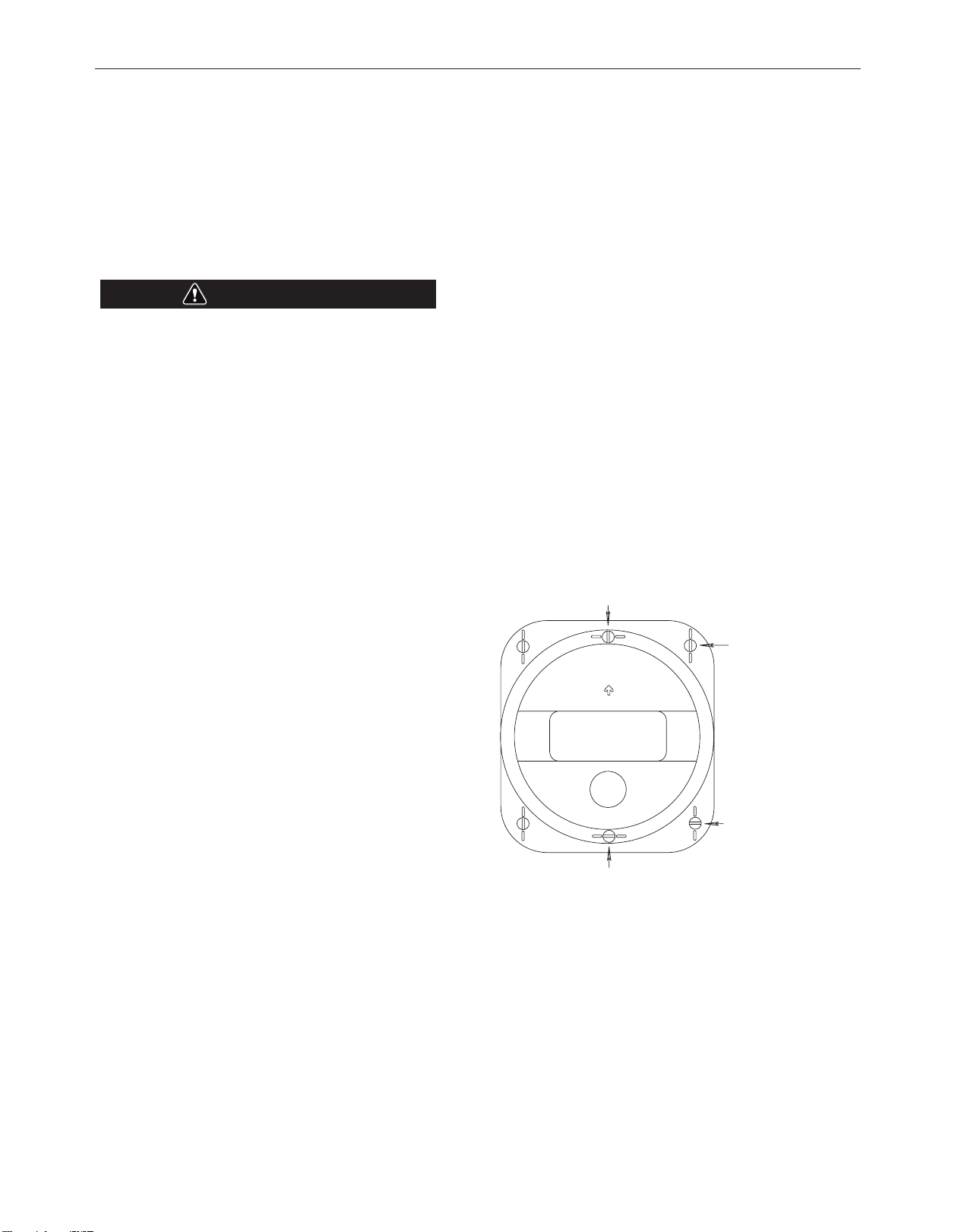

FIGURE 1
CLOSED POSITION
CLOSED POSITION
OPEN POSITION
OPEN POSITION
(TWO INSIDE HOLD
COVER TO CASE)
(FOUR CORNERS HOLD
FILTER CONTAINER TO CASE)
Releasing and Fastening the Case Front:
The quick fasteners release with a 1/4 turn, and snap in place
when properly aligned.
pening: 1) Turn 1/4-turn from closed position until a “click” is
heard.
Closing: 1) Place the cover in the correct position.
2) Turn the fasteners to closed position and push
until a “click” is heard.

C-3
X-TRACTOR 1GC MAINTENANCE
ELECTRICAL MAINTENANCE
Have a qualified electrician do maintenance and trou-
bleshooting work. Be sure to disconnect the unit from the
input power supply before any work is done.
--------------------------------------------------------------------
Circuit protection is available on machines with a Low/High
mode switch. Machines built after April, 1999 are reset by
switching the main power switch. Machines with a Low/High
mode switch built before April, 1999 use a separate circuit
breaker.
First switch the main power switch off, then on again. If opera-
tion is not restored, check input power. If input power is avail-
able, disconnect from input power and reset circuit breaker by
first removing rear cover and then resetting breaker.
Check brushes after 1000 hours of run time. Brushes worn to
3/8" long should be replaced. There are two brushes required
per motor; two motors per X-Tractor 1 C.
A. Removal of Rear Cover:
1. Remove the canister and case front assembly.
2. Using an adjustable wrench, hold the compressed air fitting at
the rear of the machine. Rotate the cleaning device inside the
machine to loosen the fitting. Leaving the cleaning device in
the machine, unscrew the fitting from the cleaning device and
set aside.
3. Using a Phillips head screwdriver, remove the screws that
hold the rear cover to the case sides along the perimeter. It is
not necessary to remove the screws from the face of the rear
cover.
WARNING
B. Procedure for Removal of riginal Brushes:
1. Using needle nose pliers, grip the back “flap” or tab of the brush
holder and bend it open.
2. Open this tab and grip with the pliers at its base. Bend the tab
back and forth until it snaps off of the brush housing.
3. Pull brush from housing.
C. Procedure for Removal of Worn Replacement Brushes:
1. Using needle nose pliers, unhook brass backing from brush
housing.
2. Pull brush from housing.
D. Installation of Replacement Brushes:
1. Slide replacement brush into brush housing and snap the
brass backing onto the housing.
E. Replacement of Rear Cover:
When all four brushes have been replaced, replace the rear
cover and replace the compressed air fitting by reversing the
removal procedure described in A above.
BRUSH HOUSING
REPLACEMENT BRUSH
BRASS CAP
LOCKS HERE
FAN MOTOR
SNAP OFF TAB HERE AND
REMOVE ORIGINAL BRUSH

D-1
TROUBLE SHOOTING
Observe all Safety uidelines detailed throughout this manual
If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your Local Lincoln
Authorized Field Service Facility for technical troubleshooting assistance before you proceed.
PR BLEMS
(SYMPT MS)
P SSIBLE
CAUSE
REC MMENDED
C URSE F ACTI N
Contact your local Lincoln Authorized
Field Service Facility.
X-TRACTOR 1GC
CAUTI N
Poor Suction
Motor not Running in Auto or Manual
Will not sense current
Cover will not fasten to case
1. Leakage
2. Filter too dirty
3. Improper application
4. Filter blocked
5. Brushes worn in one of the motors
1. Brushes worn
2. Circuit breaker tripped
1. Operating current too low
2. Current sensor or P.C. board damaged
1. Fasteners not lined up
1. Check: Hose connections, Hose integrity
2. Clean the filter, check for oily conditions
3. Check: Hose dia. & length; Check filter for
oily conditions
4. Replace filter
5. Replace brushes in both motors
1. Check brushes, replace if worn
2. Reset circuit breaker (See Electrical
Maintenance)
1. Loop cable in hook two or three times
2. Replace sensor or P.C. board
1. Check procedure in “Emptying the
2. Canister and Heavy Particle Trap” (Step 7)

E-1
DIAGRAMS
X-TRACTOR 1GC
WIRING DIAGRAM F R X-TRACT R 1GC MANUFACTURED BEF RE MAY, 1997
(Machines without a Low/High Switch)
WIRING DIAGRAM F R X-TRACT R 1GC MANUFACTURED MAY, 1997 THRU APRIL 1999
(Machines with Low/High Switch and Circuit Breaker located under rear cover)
1
2
3
4
5
6
7
8
9
1
2
3
4
1
2
3
4
5
6
PC BOARD
-+
0
15
16
17
SENSOR
AUTO
MAN
S1
12
13
14
1
2
3
M2
M1
4
5
6
7
Q1
(220V)
(120V)
8
9
10
11
7
1
2
3
4
56
H1
THYRISTOR
TRANSFORMER
PIN #1 FOR 220V MODEL
N.A. WIRE # 7 C O N NECTE D TO
N.B. WIRE # 7 C O N NECTE D TO
PIN #3 FOR 120V MODEL
1
2
34
BLACK
WHITE
GRND.
ON/OFF
SWITCH
POWER
CABLE
5
6
S22634
C
1
2
3
4
5
6
7
8
9
1
2
3
4
1
2
3
4
5
6
PC BOARD
-+
0
15
16
17
SENSOR
AUTO
MAN
S1
12
13
14
1
2
3
M2
M1
4
5
6
7
Q1
(220V)
(120V)
8
9
10
11
7
1
2
3
4
56
H1
THYRISTOR
TRANSFORMER
P I N # 1 F OR 220 V M O D EL
N.A. WIRE # 7 C O N NECT E D TO
N.B. WIRE # 7 C O N NECT E D TO
P I N # 3 F OR 120 V M O D EL
1
2
34
BLACK
WHITE
GRND.
ON/OFF
SWITCH
POWER
CABLE
5
6
F1
2
1
18
HIGH
LOW
4
5
S1
A
S23228

E-2
DIAGRAMS
X-TRACTOR 1GC
X-TRACT R 1GC
WIRING DIAGRAM F R X-TRACT R 1GC MANUFACTURED AFTER APRIL 1999
(Machines with Low/High Switch and no Circuit Breaker under rear cover)
3-26-99E
1
2
3
4
5
6
7
8
9
1
2
3
4
1
2
3
4
5
6
PC BOARD
-+
0
15
16
17
SENSOR
AUTO
MAN
S1
12
13
14
1
2
3
M2
M1
4
5
6
7
Q1
(220V)
(120V)
8
9
10
11
7
1
2
3
4
56
H1
THYRISTOR
TRANSFORMER
1
2
34
BLACK
WHITE
GRND.
ON/OFF
SWITCH
POWER
CABLE
5
6
S23355
LOW
HIGH
S1
4
5
N.A . W IRE #7 CONNE CTE D TO PIN #1
AT PC BOARD FOR 220V MODEL.
N.A . W IRE #7 CONNE CTE D TO PIN #3
AT PC BOARD FOR 120V MODEL.
N.A.
N.B.
3
1

NOTES

WARNIN
AVISO DE
PRECAUCION
ATTENTION
WARNUN
ATENÇÃO
Spanish
French
erman
Portuguese
Japanese
Chinese
Korean
Arabic
READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE
USED AND FOLLOW OUR EMPLO ER’S SAFET PRACTICES.
SE RECOMIENDA LEER ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO LOS
CONSUMIBLES QUE VA A UTILIZAR, SIGA LAS MEDIDAS DE SEGURIDAD DE SU SUPERVISOR.
LISEZ ET COMPRENEZ LES INSTRUCTIONS DU FABRICANT EN CE QUI REGARDE CET EQUIPMENT ET LES PRODUITS A
ETRE EMPLO ES ET SUIVEZ LES PROCEDURES DE SECURITE DE VOTRE EMPLO EUR.
LESEN SIE UND BEFOLGEN SIE DIE BETRIEBSANLEITUNG DER ANLAGE UND DEN ELEKTRODENEINSATZ DES HER-
STELLERS. DIE UNFALLVERHÜTUNGSVORSCHRIFTEN DES ARBEITGEBERS SIND EBENFALLS ZU BEACHTEN.
l Do not touch electrically live parts or
electrode with skin or wet clothing.
l Insulate yourself from work and
ground.
l No toque las partes o los electrodos
bajo carga con la piel o ropa moja-
da.
l Aislese del trabajo y de la tierra.
l Ne laissez ni la peau ni des vête-
ments mouillés entrer en contact
avec des pièces sous tension.
l Isolez-vous du travail et de la terre.
l Berühren Sie keine stromführenden
Teile oder Elektroden mit Ihrem
Körper oder feuchter Kleidung!
l Isolieren Sie sich von den
Elektroden und dem Erdboden!
l Não toque partes elétricas e elec-
trodos com a pele ou roupa molha-
da.
l Isole-se da peça e terra.
l Keep flammable materials away.
l Mantenga el material combustible
fuera del área de trabajo.
l Gardez à l’écart de tout matériel
inflammable.
l Entfernen Sie brennbarres Material!
l Mantenha inflamáveis bem guarda-
dos.
l Wear eye, ear and body protection.
l Protéjase los ojos, los oídos y el
cuerpo.
l Protégez vos yeux, vos oreilles et
votre corps.
l Tragen Sie Augen-, Ohren- und Kör-
perschutz!
l Use proteção para a vista, ouvido e
corpo.

WARNIN
AVISO DE
PRECAUCION
ATTENTION
WARNUN
ATENÇÃO
Spanish
French
erman
Portuguese
Japanese
Chinese
Korean
Arabic
LEIA E COMPREENDA AS INSTRUÇÕES DO FABRICANTE PARA ESTE EQUIPAMENTO E AS PARTES DE USO, E SIGA AS
PRÁTICAS DE SEGURANÇA DO EMPREGADOR.
l Keep your head out of fumes.
l Use ventilation or exhaust to
remove fumes from breathing zone.
l Los humos fuera de la zona de res-
piración.
l Mantenga la cabeza fuera de los
humos. Utilice ventilación o
aspiración para gases.
l Gardez la tête à l’écart des fumées.
l Utilisez un ventilateur ou un aspira-
teur pour ôter les fumées des zones
de travail.
l Vermeiden Sie das Einatmen von
Schweibrauch!
l Sorgen Sie für gute Be- und
Entlüftung des Arbeitsplatzes!
l Mantenha seu rosto da fumaça.
l Use ventilação e exhaustão para
remover fumo da zona respiratória.
l Turn power off before servicing.
l Desconectar el cable de ali-
mentación de poder de la máquina
antes de iniciar cualquier servicio.
l Débranchez le courant avant l’entre-
tien.
l Strom vor Wartungsarbeiten
abschalten! (Netzstrom völlig öff-
nen; Maschine anhalten!)
l Não opere com as tampas removidas.
l Desligue a corrente antes de fazer
serviço.
l Não toque as partes elétricas nuas.
l Do not operate with panel open or
guards off.
l No operar con panel abierto o
guardas quitadas.
l N’opérez pas avec les panneaux
ouverts ou avec les dispositifs de
protection enlevés.
l Anlage nie ohne Schutzgehäuse
oder Innenschutzverkleidung in
Betrieb setzen!
l Mantenha-se afastado das partes
moventes.
l Não opere com os paineis abertos
ou guardas removidas.

X-TRACTOR 1GC
