Precision Arc Performance:
• Patented Micro-Start II™ Technology delivers extremely stable low
amperage starting, welding and cratering for both AC and DC
welding.
• Selectable welding modes such as high frequency, scratch start, and
Touch Start TIG™.
• Higher duty cycles – 275A @ 40% duty cycle.
• Widest welding range in its class 2-340 amps for both AC and DC.
• Excellent stick welder – even with Fleetweld®5P (E6010) with new
Automatic Hot Start™ and Auto Adaptive Arc Force™ controls(1).
Simple Controls – Easy to Use:
• Redesigned controls are simple and well spaced for effortless setting
changes.
• Hidden menu button features up to 7 programmable parameters
without cluttering the control panel(1).
• NEW and Improved Auto Balance®has been readjusted to have more
penetration and improved bead appearance.
Professional Features:
• The K2618-1 Ready-Pak®model Precision TIG®275
(208/230/460/1/60). Under-Cooler Cart Water Cooler, Foot Amptrol®,
Gas Regulator/Flowmeter & Hose Kit, PTW-20 Pro-Torch™ TIG Torch
(250 amp, 25 ft.), Zippered Torch Cover, Parts Kit, Water Hose (2
included) 15 ft., and 15 ft. 2/0 Work Cable and Clamp.
• 115 volt auxiliary power receptacles. Great for powering an optional
water cooler or power tools.
• Add an optional Under-Cooler Cart for extra storage and water-cooled
applications.
• Built-in storage compartment for torch consumables.
• Water-cooled torch connections with no adapters required – side
mounted, out of the way, and well protected.
• Neat/organized cable management with integrated torch holster.
Superb Quality:
• Fan-As-Needed™ (F.A.N.) prevents overheating. F.A.N. reduces power
consumption, noise, motor wear, and dust in the machine.
• CSA C/US certified.
• Three-Year incoln Warranty on parts and labor. Two-year extended
warranty available in the U.S.
Advantage Lincoln
TIG WELDERS
Publication E3.42 11/07
www.lincolnelectric.com
The Power To Perform!SM
Precision TIG®275
Output
1
PHASE
AC
DC
Input
60
Hz
50
Hz
ith NE patented Micro-Start II™ Technology and our New and Improved
AC Auto Balance®on board, the Precision TIG®275 delivers unrivaled starting
and welding at low amperages and improved AC aluminum welding perform-
ance. New features, simple controls, innovative accessory storage, and
attractive and consistent welds–it all adds up. Whatever the TIG welding
application–fabrication, aerospace, production, motorsports, or vocational
education–choose the Precision TIG®275 for outstanding features and precise
arc performance.
Processes
Stick, TIG
TECHNICAL SPECIFICATIONS
Rated Output Dimensions
Product Product Current/Voltage/Duty Cycle Input Current @ H x x D Net eight
Name Number Input Power (104°F, 40°C) Rated Output Output Range inches (mm) lbs (kg)
Precision TIG®275 K2619-1 208/230/460/1/60 275A/31V/40% 80/72/36A with PFC DC: 2-340A 31 x 22 x 26 397
104/94/47A w/o PFC AC: 2-340A (787 x 559 x 660) (180)
Max. OCV: 75V
K2619-2 460/575/1/60 275A/31V/40% 35/28A with PFC
47/38A w/o PFC
K2620-1 220-230/380-400/ 275A/31V/40% 80/46/43A with PFC
415/1/50/60 95/55/50A w/o PFC
Precision TIG®275 K2618-1 208/230/460/1/60 275A/31V/40% 80/72/36A with PFC 49.7 x 28 x 41 641
Ready-Pak®Package 104/94/47A w/o PFC (1262 x 711 x 1041) (291)
(1)Requires optional Advanced Process Panel for full control availability.

A CLOSER LOOK
Precision TIG®275
www.lincolnelectric.com
[2]
What Is It?
Pulse welding systems vary weld current between peak (high heat)
and background current (low heat) levels. Adjusting the pulse fre-
quency controls the level of heat input applied to the weld relative
to the weld travel speed.
Results
Better control of heat input in the weld, resulting in:
• Reduced warping and burnthrough on thin materials.
• Smaller heat-affected zone – good for thin material.
• Smaller bead profile without compromising proper penetration.
Great For
•Thin materials – Faster pulse settings help to narrow the bead
profile and minimize the heat-affected zone and resulting warping
or burnthrough.
•Consistent appearance – Slower pulse settings aid in timing the
application of filler metal to produce the consistent stacked bead
appearance associated with high quality TI
welding.
•Maintaining a steady welding rhythm.
Easy “Set It/See It” Operation:
• Flashing indicator light lets you see the
pulse rate before you strike an arc.
Welding Current
Peak
Background
PULSE FREQUENCY:
Number of Pulses Per Second
Time
Hig Heat
(Peak) Low Heat (Background)
Pulsed TIG Weld
(at 60 amps)
Standard TIG Weld
(at 60 amps)
Smaller Heat
Affected Zone
Smaller Heat
Affected Zone
Smaller Bead Profile
Smaller Bead Profile
Micro-Start II™ Techno ogy aids arc stabi ity
THROUGHOUT THE WELD CYCLE –
even at the owest amperage!
Micro-Start II™ Techno ogy
contro ed ramp down he ps precise y fi
the we d crater for qua ity resu ts.
Micro-Start II™ Techno ogy minimizes high
frequency and ‘hot starts’ to de iver soft arc starts
without arc wandering for AC and DC we ding.
ARC PERFORMANCE
Micro-Start II™ Technology — More than just a starting aid.
Better control for starting, arc stability and crater fill.
Great Starting Stable, Focused Arc Precise Crater Fill
“Set It/See It” Pulse Control — Make attractive and consistent welds!
NOW
INCLUDES
AC
for ALUMINUM
WELDING
AC

AC Auto Balance®Controls —
Auto atically sets the opti al cleaning vs. penetration
level for alu inu welding!
What Is It?
When aluminum welding, the positive (+) portion of the AC welding
amperage cleans the oxides from the aluminum surface. The neg-
ative (-) portion delivers more heat input, increasing penetration
level.
Patented AC Auto Balance®automatically sets the ratio of
cleaning action (+) versus penetration (-) based on amperage.
Manual balance control provides the flexibility to customize
the arc to your preference.
Easy Operation:
• Set it and forget it or override when you choose to customize
the settings.
Precision TIG®275
www.lincolnelectric.com
[3]
A CLOSER LOOK
More Cleaning (+)
Less Cleaning (+)
Less Penetration(-)
More Penetration (-)
WELDING
AMPERAGE
WELDING
AMPERAGE
TIME
TIME
Maximum Cleaning Setting Maximum Penetration
Setting
Auto Balance Setting
AC Auto Balance®is especially useful on
critical aluminum applications.
PERFORMANCE
• Excellent stick welding performance.
— Weld steel, stainless and low allow metals with ease.
— Weld sheet metal, pipe and heavy plate.
— Weld with Lincoln®Blue Max®Stainless, Excalibur®Low
Hydrogen and Fleetweld®5P welding electrodes.
• Wider output range — for maximum flexibility:
— 2-340A DC, 2-340 AC.
• More amperage than nearest competitor at 40% duty cycle — 25
amps more!
• Lower input current draw compared to nearest competitor — up to
10% less current with 40% more duty cycle.

Precision TIG®275
www.lincolnelectric.com
[4]
A CLOSER LOOK

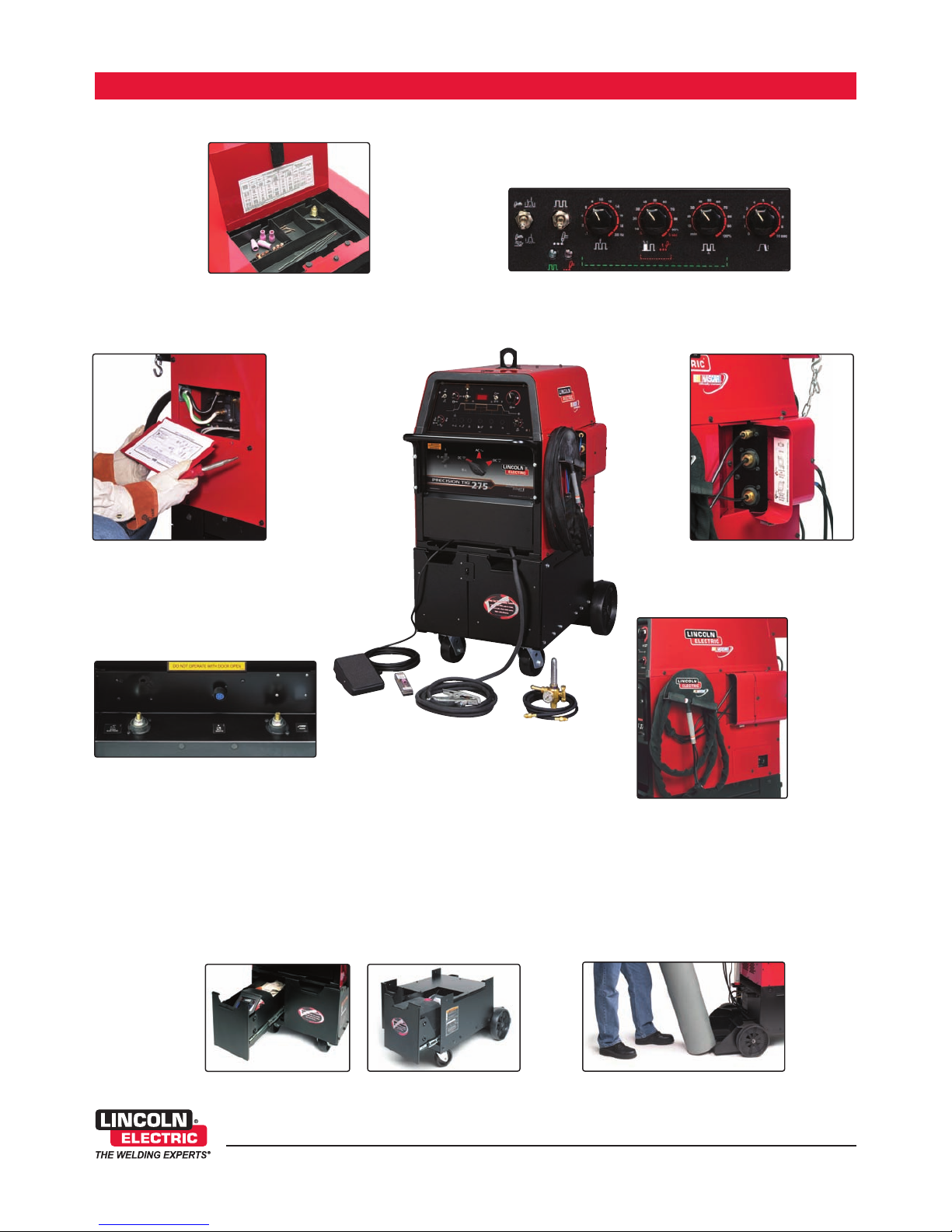

S own: K2618-1
Water-Cooled Ready-Pak®Package
Torc Parts Storage
Compartment. Optional TIG pulsing elps you make great welds.
Water-cooled torc
connections wit no adapters
— side mounted to keep out
of t e way and protected.
Neat/organized cable
management wit
integrated torc olster.
Separate output studs for stick and TIG
keep bot stick electrode older and
TIG torc connected at t e same time
— eliminates set-up c angeover w en
switc ing processes.
Easily accessible input voltage
reconnect panel.
Low-Lift S ielding Gas Bottle
Platform.
Lockable Undercarriage Storage and Water-Cooler Drawers.
Reliable Pro-Con pump.
Optional Features:
(standard wit K2618-1 Water-Cooled Ready-Pak®Package)
FEATURES

Precision TIG®275
www.lincolnelectric.com
[5]
A CLOSER LOOK
FEATURES, CONʼT.
• Large, well-spaced controls make it easy to view and set up
with gloved hands.
SET-UP MENU
Press and hold the menu button to display up to seven programmable
parameters. The setting of the desired level is displayed, and increas-
ing or decreasing the level setting is easy.
The Set-Up Menu includes:
Standard
• DC TI Start Modes: High Frequency, Scratch Start, and
Touch Start TI ™.
• Adjustable Preflow Time.
• Adjustable Start Pulse for Soft or Forceful Starts.
With Optional Advanced Control Panel
• Adjustable TI Hot Start.
• Adjustable Upslope Time.
• Adjustable Stick Hot Start.
• Adjustable Stick Arc Force.
Key Controls
A) Minimum Output Preset Control & Display
Switch (Also displays output voltage)
B) Set-Up Menu (see below)
C) Digital Amperage Meter
D) Local/Remote Current Control Switch
E) Maximum Output Preset Control
F) Post Flow Time
) Thermal Shutdown Light
H) Optional Advanced Control Panel
1) Trigger Switch (2-step/4-step)
2) Pulse/Spot Time Mode Switch
3) Pulse Frequency Control
4) Pulse % On Time Control
5) Pulse Background Current
Control
6) Downslope Time, In Seconds
7) Spot Time
I) Polarity Switch
J) Power Switch
K) AC Balance Control
L) Mode Switch
BCD E
F
G
H
H
123 4&7 56
I
J
K
L
A

Precision TIG®275
www.lincolnelectric.com
[6]
A CLOSER LOOK
SYSTEM SELECTION
Ready-Pak®Package
Take the hassle out of ordering. Order a Ready-Pak®pre-assembled
welding package.
Precision TIG®275 Ready-Pak®Package
One product number (K2618-1) gets you all t is:
• Precision TI ®275 (208/230/460/1/60) – K2619-1
• Under-Cooler Cart Water Cooler – K1 2 -1
• Foot Amptrol®– K 70
• as Regulator/Flowmeter & 10 ft. (3.0 m) Hose Kit – 3100211
• PTW-20 Pro-Torch™ TI Torch (250 amp, 25 ft.) – K17 4-4
• Zippered Torch Cover – K91 -2
• Parts Kit – KP510
• Water Hose (2 included) – S1955 -4
• 15 ft. (4.5m), 2/0 Work Cable and Clamp – K2150-1
• Adapter for optional PTA-9 or 17 Torch (3/8”) – S20403-4
Order K261 -1
S own: K2618-1
Precision TIG®275 Ready-Pak®Package

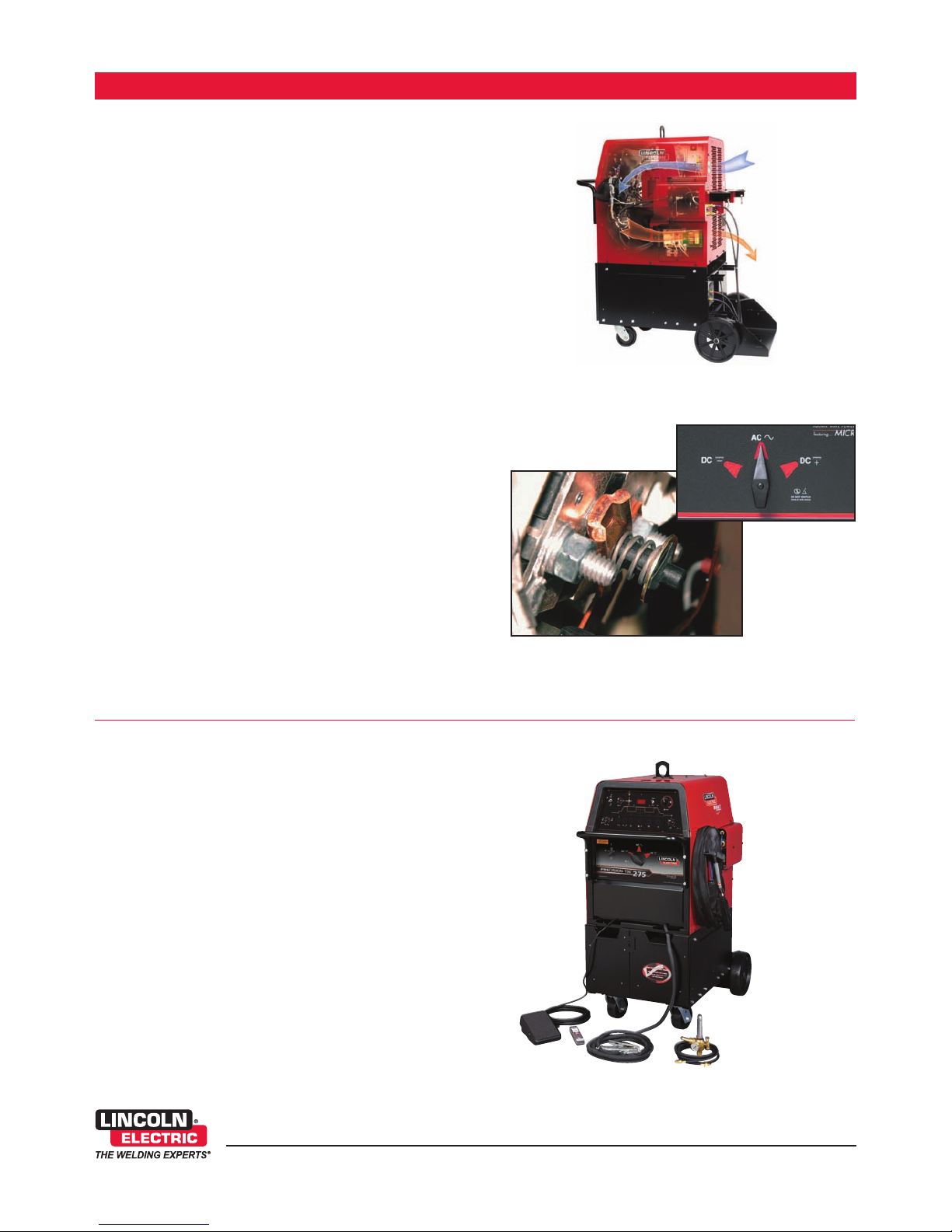

QUALITY AND RELIABILITY
• Fan-As-Needed™ (F.A.N.) minimizes repeated heating and cooling
of internal components, keeps dust and dirt build-up to a minimum
and saves on electricity costs.
• Engineered cooling air routing brings clean air in from the top and
exhausts at the bottom to draw and collect less dirt in the machine
(see p oto at rig t), unlike competitive systems with a vacuum
cleaner-like floor intake.
• Compare these reliability enhancing design features:
— Crimped and soldered power connections.
— Wound and varnished electrical coils do not require coil spacers
to remain secure. Competitive models use wooden coil spacers
that can loosen over time.
— Locking tabs on PC board connectors eliminates loose
connections.
• Tough testing cycles ensure long service — dropping, jerking,
rolling, shipping, vibration, resistance to real world extreme
conditions, and extended in-service life testing.
• Line Voltage Compensation holds output setting constant to
maintain weld quality even when the input voltage fluctuates ±10%.
• CSA C/US certified.
• Lincoln three-year warranty on parts and labor. Two-year extended
warranty available in the U.S.
Clean, cool air route s own.
Snap-action durable switc es make positive
mec anical contact to reduce c ances of
intermittent contact failure.

Precision TIG®275
www.lincolnelectric.com
[7]
RECOMMENDED OPTIONS
STICK OPTIONS, CONT.
Remote Output Control
Consists of a control box with choice
of two cable lengths. Permits remote
adjustment of output. 6 pin
connection.
Order K 57 for 25 ft. (7.6 m)
Order K 57-1 for 100 ft. (30.5 m)
TIG OPTIONS
Magnum®Pro-Torch™
TIG Torches
A full line of air-cooled and water-
cooled torches available.
Request publication E12.150
PTA-26 One-Cable Adapter
Adapts the 7/8” PTA-26 fitting to the
5/8” gas and power connection on
machine.
Order K2166-1
PTA-9, -17 One-Cable Adapter
Adapts the 3/8" PTA-9 or -17 fitting
to the 5/8" gas and power
connection on machine.
Order K2166-3
PTA-9, PTA-17, PTA-26 Two-Cable
Adapter
Converts the 7/8" water and power
connection on the machine to a 1/2"
output stud for use with a two-cable
air-cooled TI torch.
Order K2166-2
Foot Amptrol®
Varies current for making critical TI
welds. Depress pedal to increase
current. Depressing pedal fully
achieves maximum set current. Fully
raising the pedal finishes the weld
and starts the afterflow cycle.
Includes 25 ft. (7.6 m) control cable.
6-pin plug connection.
Order K 70
Hand Amptrol®
Provides 25 ft. (7.6m) of remote
current control for TI welding (6 pin
plug connection). Velcro straps
secure torch.
Order K963-3 (One size fits all Pro-
Torch TI Torches.)
Arc Start Switch
Needed if an Amptrol is not used
when TI welding. Comes with a 25
ft. (7.6 m) cable. Attaches to the TI
torch for convenient finger control.
6-pin plug connection.
Order K 14
GENERAL OPTIONS
Advanced Control Panel
Provides 2/4-step trigger with
adjustable Pulser controls and
Downslope timer for TI welding.
Also includes adjustable Hot Start
and Arc Force internal panel controls
for stick welding, and other user
selectable features.
Order K2621-1
Under-Cooler Cart Water Cooler
Includes “cooler-in-a-drawer” with
hoses and a lockable storage drawer
on a dual bottle undercarriage. Two
gallon (7.5 ltrs.) capacity.
Order K1 2 -1
Undercarriage
Includes a dual bottle rack with chain
and front casters, rear wheels and a
handle.
Order K1 69-1
Harris®Argon Flowmeter Regulator
Deluxe flowmeter/regulator. Includes
10 ft. (3.0 m) hose.
Order 3100211
Work Clamp & Cable Assembly
15 ft. 2/0 cable with 1/2” stud lug
and work clamp.
Order K2150-1
Power Factor Correction Kit
Used to reduce current draw and
keep electricity costs to a minimum
when machine is routinely operated
at high outputs.
Order K1 31-1
STICK OPTIONS
Accessory Kit
For stick welding. Includes 35 ft.
(10.7 m) 2/0 electrode cable with lug,
30 ft. (9.1 m) 2/0 work cable with
lugs, headshield, filter plate, work
clamp and electrode holder. 400 amp
capacity.
Order K704
Accessory Kit
For stick welding. Includes 20 ft.
(6.1 m) #6 electrode cable with lug,
15 ft. (4.6 m) #6 work cable with lugs,
headshield, filter plate, work clamp,
electrode holder and sample pack of
mild steel electrode. 150 amp
capacity.
Order K 75

THE LINCOLN ELECTRIC COMPANY
22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com
RECOMMENDED OPTIONS
CUSTOMER ASSISTANCE POLICY
The business of The Lincoln Electric Company®is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of
our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for information or advice about their use of our products. Our employees respond to
inquiries to the best of their ability based on information provided to them by the customers and the knowledge they may have concerning the application. Our employees, however, are not
in a position to verify the information provided or to evaluate the engineering requirements for the particular weldment. Accordingly, Lincoln Electric does not warrant or guarantee or assume
any liability with respect to such information or advice. Moreover, the provision of such information or advice does not create, expand, or alter any warranty on our products. Any express or
implied warranty that might arise from the information or advice, including any implied warranty of merchantability or any warranty of fitness for any customers’ particular purpose is
specifically disclaimed.
Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility of the
customer. Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.
Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.
Precision TIG®275 (20 /230/460/1/60) K2619-1
Precision TIG®275 (230/460/575/1/60) K2619-2
Precision TIG®275 (220-230/3 0-400/415/1/50/60) K2620-1
Ready-Pak®Package
Precision TI ®275 (208/230/460/1/60) K2618-1
Recommended General Options
Advanced Control Panel K2621-1
Under-Cooler Cart Water Cooler K1828-1
Undercarriage K1869-1
Work Clamp and Cable Assembly K2150-1
Power Factor Correction Kit K1831-1
Recommended Stick Options
Stick Accessory Kit, 400 amps K704
150 amps K875
Remote Output Control, 25 ft. (7.6 m) K857
100 ft. (30.5 m) K857-1
Recommended TIG Options
Pro-Torch™ Water-Cooled TI Torches (No adapter required.) See publication E12.150
Pro-Torch™ Air-Cooled TI Torches (Specific adapter required.) See publication E12.150
PTA-26 One-Cable Adapter K2166-1
PTA-9, -17 One-Cable Adapter (Included with machine.) K2166-3
PTA-9, -17, -26 Two-Cable Adapter K2166-2
Harris®Argon Flowmeter Regulator 3100211
Foot Amptrol®K870
Hand Amptrol®K963-3
Arc Start Switch K814
Cut Length Consumables See publication C9.10
TOTAL:
PRECISION TIG®275 ORDER FORM
PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE
TIG OPTIONS, CONT.
Cut Length Consumables
TI welding filler metals are available
for welding stainless steel, mild steel,
aluminum and copper alloys.
See publication C9.10
