HDMI 4x1 PiP Video Processor
User Manual English
No. 38130
lindy.com
Tested to comply with
FCC Standards
For Home and Office Use!

User Manual English
Safety Instructions
! WARNING !
Please read the following safety information carefully and always keep this document with
the product.
Failure to follow these precautions can result in serious injuries or death from electric
shock, fire or damage to the product.
Touching the internal components or a damaged cable may cause electric shock, which
may result in death.
To reduce risk of fire, electric shocks or damage:
▪Do not open the product. There are no user serviceable parts inside.
▪Qualified servicing personnel must only carry out any repairs or maintenance.
▪Never use damaged cables.
▪Do not expose the product to water or places of moisture.
▪This product is intended for indoor use only.
▪Do not place the product near direct heat sources. Always place it in a well-ventilated place.
▪Do not place heavy items on the product or the cables.
▪Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket

User Manual English
Introduction
Thank you for purchasing the Lindy HDMI 4x1 PiP Video Processor. This product has been designed to
provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime
technical support. To ensure correct use, please read this manual carefully and retain it for future
reference.
The PiP Video Processor allows the signals from four different source devices to be integrated for viewing
on a single HDMI display or projector in multi-view, picture in picture and overlay layouts. This flexible
feature rich product has been designed to be used in several applications such as public advertisement,
digital presentations, broadcasting & control rooms, CCTV surveillance centres, conference and meeting
rooms.
Package Contents
▪HDMI 4x1 PiP Video Processor
▪IR Remote Control (CR-124)
▪Multi-country 12VDC 3A Power supply (UK/EU/US/AUS), barrel size 5.5/2.1mm
▪Rack Mount Ears (x2)
▪Lindy Manual
Features
▪Allows up to 4 HDMI Inputs to be shown on a single display in 4 modes:
▪Single view: view & cycle through individual inputs.
▪PiP mode (picture in picture).
▪Multi-window mode: view 2-4 inputs simultaneously.
▪Overlay mode: picture on picture with chromakey.
▪Seamless switching between HDMI Sources.
▪Definable channel size and position adjustment adds flexibility to the display configuration.
▪Multiple control methods including an IR remote, RS-232, Telnet and Integrated front panel controls.
▪Contrast, brightness, saturation & hue adjustment.
▪Memory function allows the user to store up to 4 determined configurations.
▪Compatible with Lindy HDMI extenders to reach remote displays.
Specification
▪Input ports: 4 x HDMI Female
▪Input resolution: 480i –1080p
▪HDCP 1.4 Complaint
▪Output ports: 1 x HDMI Female
▪Output resolution: 1080p
▪Audio support: LPCM 2CH, 6CH, 8CH, AC3, DTS, Dolby Digital Plus, Dolby TrueHD & DTS-HD
▪Control ports: RJ45 (Telnet) & Serial 9-way male (RS-232)
▪Video bandwidth: 225Mhz/6.75Gbps
▪Power consumption: 15W
▪Housing material: Metal
▪Colour: Black
▪Weight: 2.95kg (6.5lb)
▪Dimensions: 436x247x44mm (17.17x9.72x1.73in)

User Manual English
Overview & Operation
Front Panel
1. IR Window: Receives IR commands from the included IR remote.
2. Power button: Switch on and off the device.
3. Menu: Press to launch the OSD menu & make selections in the OSD.
4. + / - Buttons: Use these buttons to move up and down in the OSD.
5. Channel Input (1 –4) Selection: Use the channel input buttons to cycle through available inputs for
each channel; use input channel button 1 tocontrol channel 1, input channel button 2 to control channel
2 and so on. For example, if you have selected channel 1, bydefault this will displayinput 1, by pressing
channel input button 1 the input will switch to input 2, further presses will move the input to 3 and 4
then back to 1.
6. Window Mode (A –H):
▪Window A –When selecting this option only the input selected under channel 1 will be displayed.
▪Window B –When selecting this option only the input selected under channel 2 will be displayed.
▪Window C –When selecting this option only the input selected under channel 3 will be displayed.
▪Window D –When selecting this option only the input selected under channel 4 will be displayed.
▪Window E –The inputs selected under channels 1 –4 will be displayed in a 2 x 2 grid.
•Window F –The inputs selected under channel 4 will be displayed on the right half of the display, the
inputs selected for channels 1-3 will be displayed on the left half of the display.
•Window G –The input selected under channel 1 will be displayed on the full display. With the inputs
selected between channels 2-4 will show across the bottom of the screen in a picture in picture layout.
•Window H –The inputs selected under channels 1-4 will be displayed in a 4x1 grid.
Rear Panel
1. HDMI Inputs 1-4: Connect HDMI source devices.
2. HDMI Output: Connect an HDMI display or projector.
3. Control: Connect to an Ethernet network for Telnet control.
4. USB Service: Micro-B service port for manufacturer use only.
5. RS-232: Connect a PC / Notebook or remote-control processing unit.
6. DC-12V: Connect the supplied 12V power supply.

User Manual English
Remote Control
1. Power: Press to power the unit on or place
it in stand-by mode.
2. Info: Press to show the unit’s firmware
version.
3. Ch 1 –4: Press to sequentially switch through
the available inputs for each associated
window channel (1 –4).
4. WA-WH: Press these buttons to select the
desired window arrangement for output. WA –
WD are for full screen, single window, video
output. WE –WH are for multi-window
predetermined channel layouts.
5. Mute: Press to mute the audio from the HDMI
output.
6. ◄▲►▼ & OK: Press the arrows to
navigate the OSD menu, and press OK to
confirm selections.
7. Menu: Press to enter the OSD menu.
8. Exit: Press to back out from menu items, or to
exit the OSD menus.
9. Audio 1 –4: Press to select the active audio
source from HDMI Input 1 –4.
10.FAV. 1 –4: Press to activate one of the 4
additional pre-determined channel layouts
11.Fade-in-out*: Press to toggle the fade-in-out
function on / off.
Chroma key*: Press to toggle the Chroma key
function on / off.
Note: Channel 1 is always the background and channel 2 is always the keyed foreground image.
Mirror*: Press to display the current mirrored channel (left / right).
Rotation*: Press to rotate the image 90° left, 90° right or 180°.
Note: Functions with asterisks (*) only work on windows A –D. The unit will automatically switch to
window A if they are activated while displaying windows E –H.

User Manual English

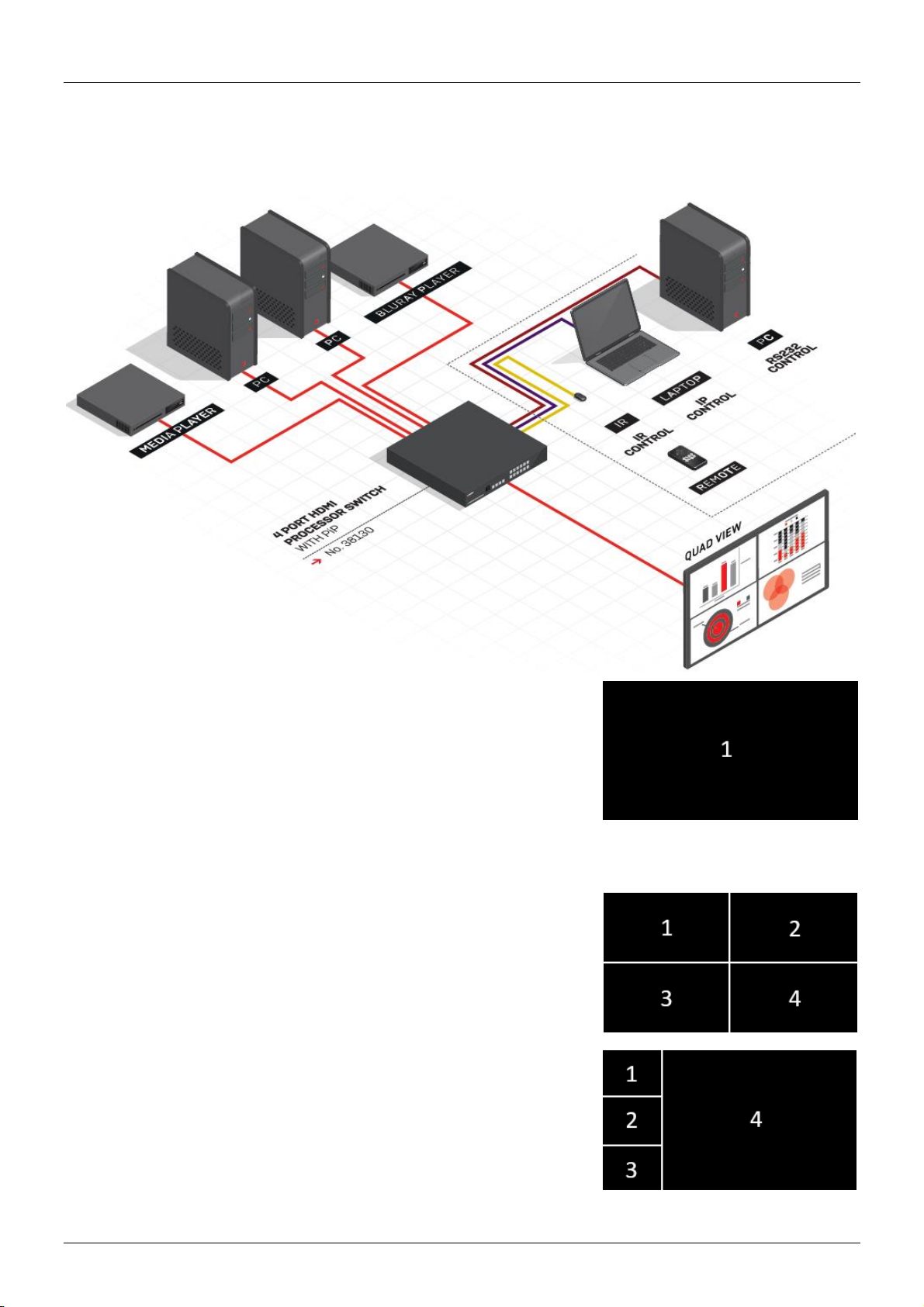

Connection Diagram
Video Output Modes
Window A –The input selected for channel 1 will be displayed.
Window B –The input selected for channel 2 will be displayed.
Window C –The input selected for channel 3 will be displayed.
Window D –The input selected for channel 4 will be displayed.
The example shows Window A selected, so the input selected for channel 1 is displayed.
Window E –The input selected under channels 1 –4 will be
displayed in a 2x2 grid.
Window F –The input selected under channel 4 will be
displayed on the right half of the screen, the inputs slected for
channels 1 –3 will be displayed on the left half of the screen as
shown.

User Manual English
Window G –The input selected under channel 1 will be
displayed full screen, with the inputs selected under channels 2
–4 will show (Picture in Picture) across the bottom of the screen.
Window H –The inputs selected under channel 1 –4 will be
displayed in a 4x1 grid.
Multi-window adjustment
In each of the multi-window options (E-H) above it is possible to adjust the size and position of
each window, and even to switch the windows off. To begin, select the window option which is
closest to your dsired layout and then enter the menu using the remote control. Now select

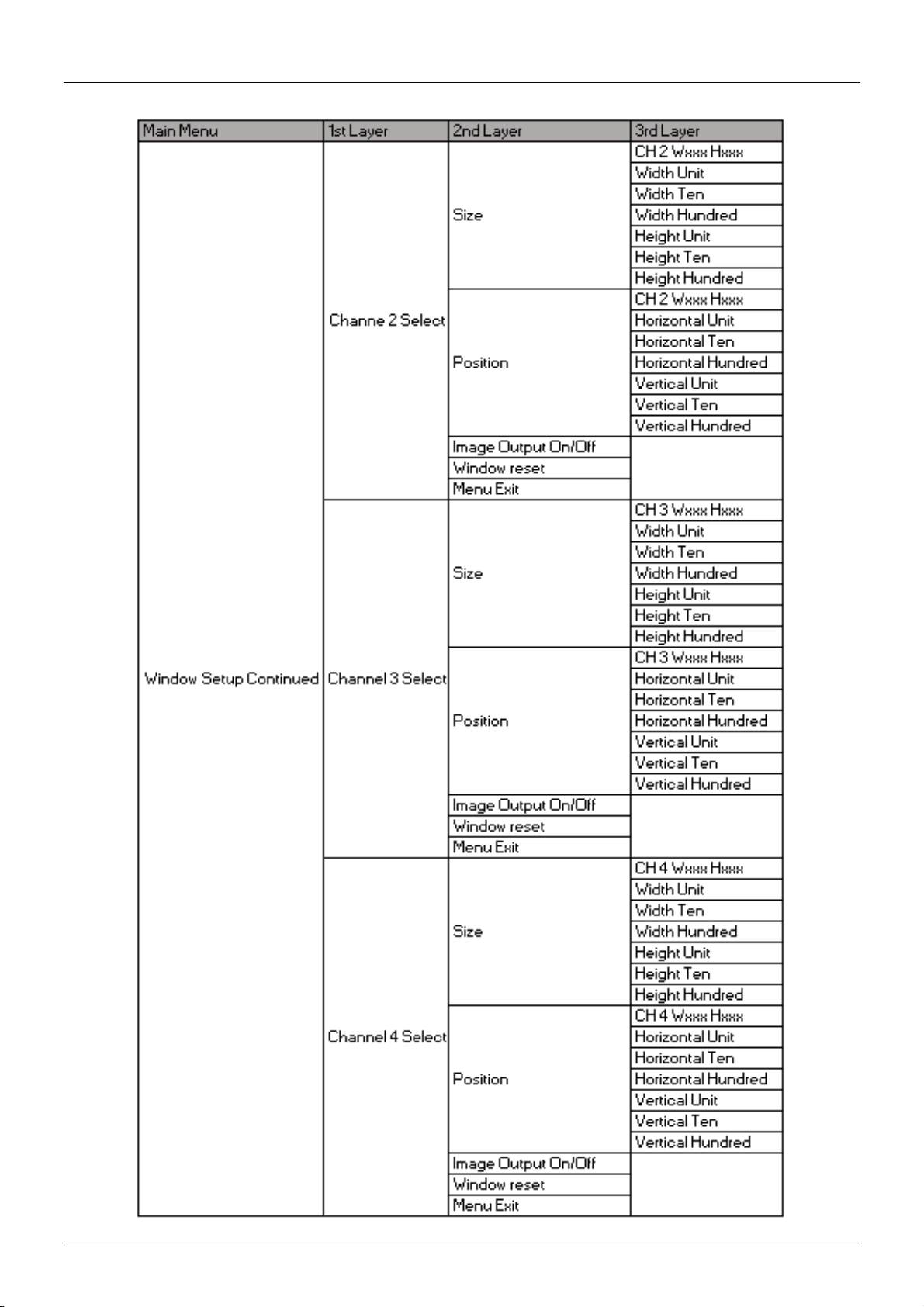

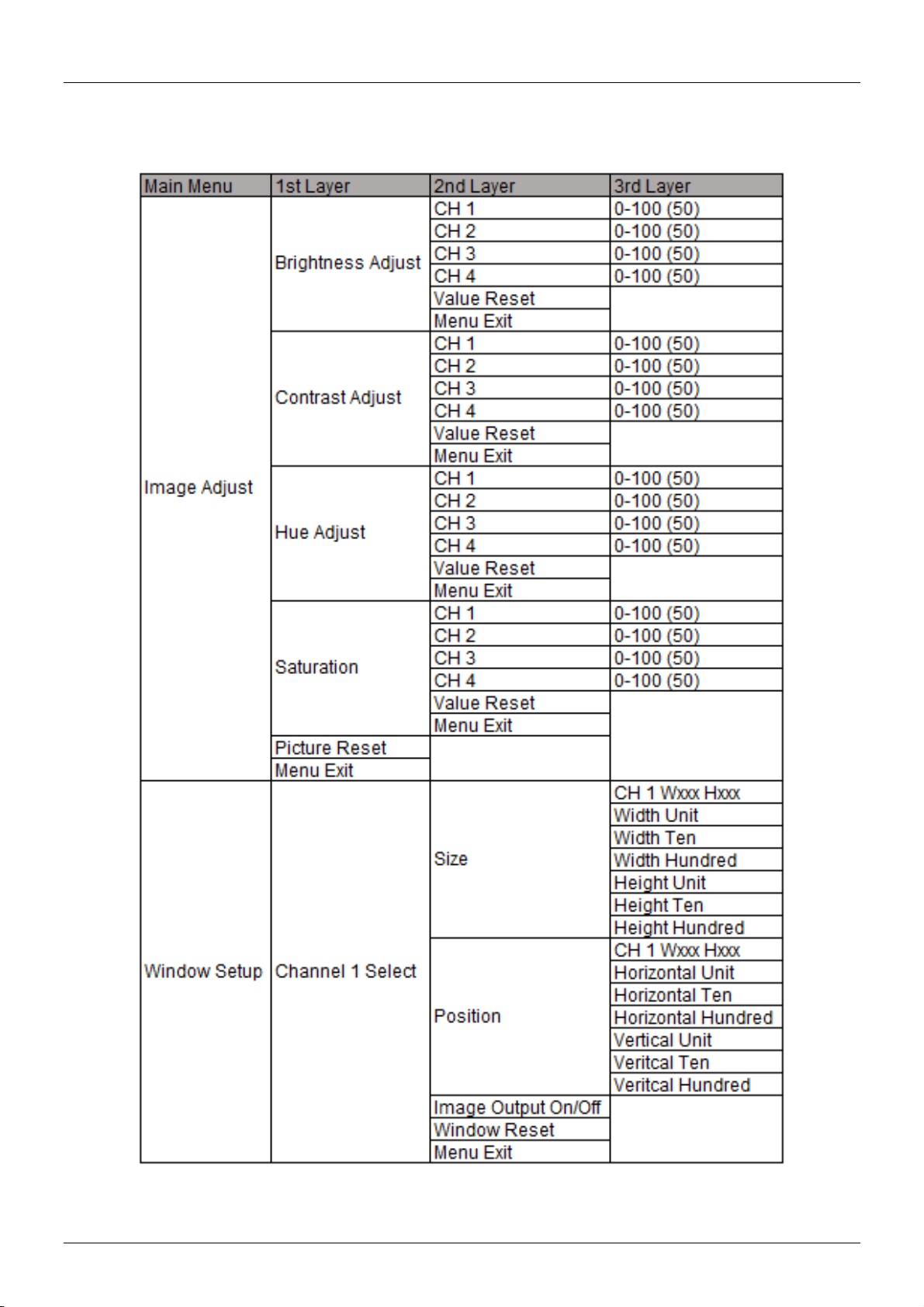

‘Window Setup’ and you will be presented with the choice to adjust each channel 1-4 and the

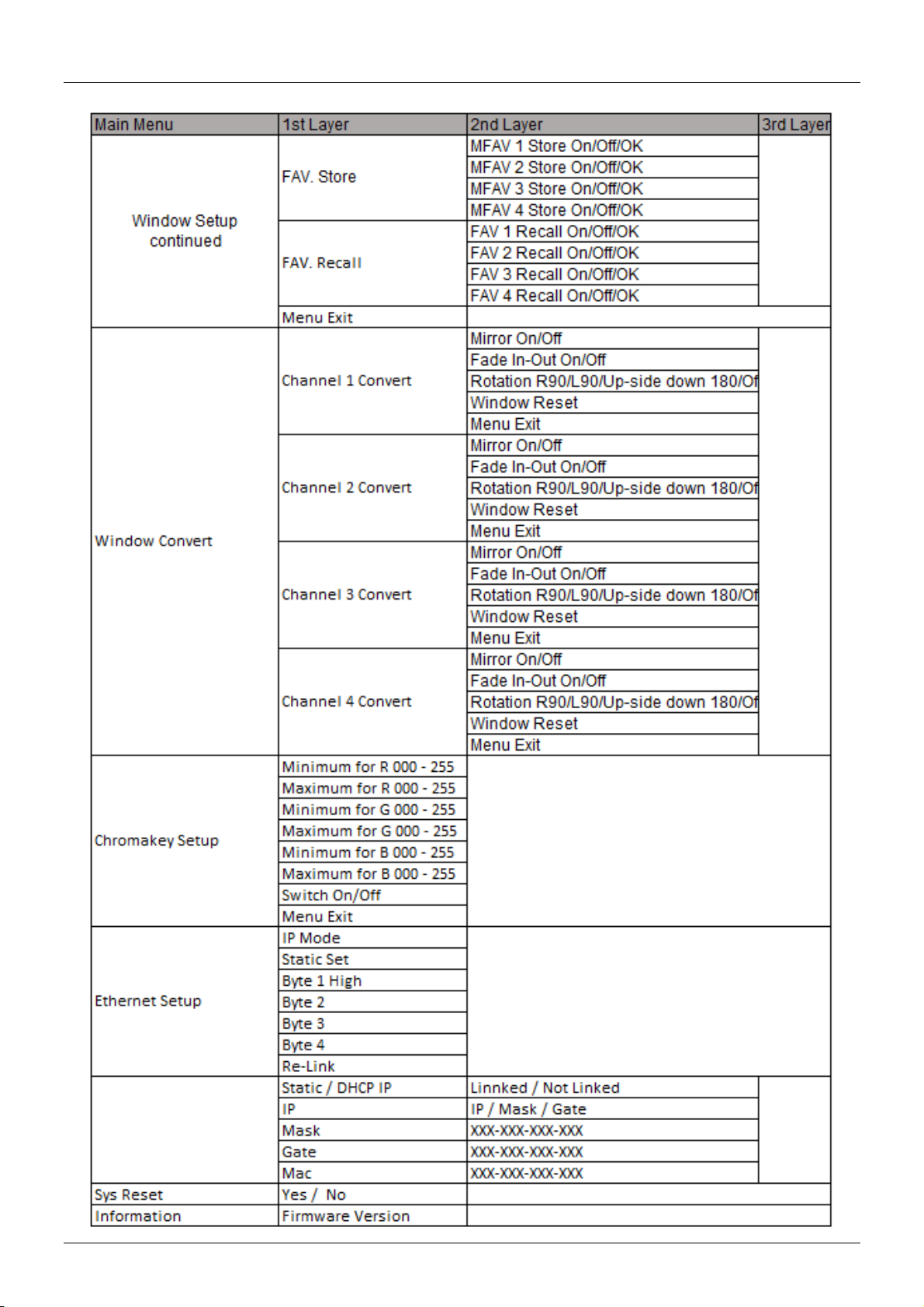

option to store or recall favourite configurations.
To adjust the layout, begin by highlighting a channel to select it, then press ‘OK’. You can adjust
the vertical and horizontal size and position of the window using the ‘Size’ and ‘Position’ menu
options. You can also turn the channel on or off using the image output menu. Adjustments can
be made in single pixel, ten pixel and one hundren pixel implements giving you absolute control
of the window. If you make an error you can quickly return othte default value for the window by
selecting window reset.
As an example using a 1080p display starting with window E selected, by adjuting the size of
channels 1 and 3 to 1920 pixels wide by 540 pixels high and turning off the output channels of 2
and 4 you would achieve the layout below.

User Manual English

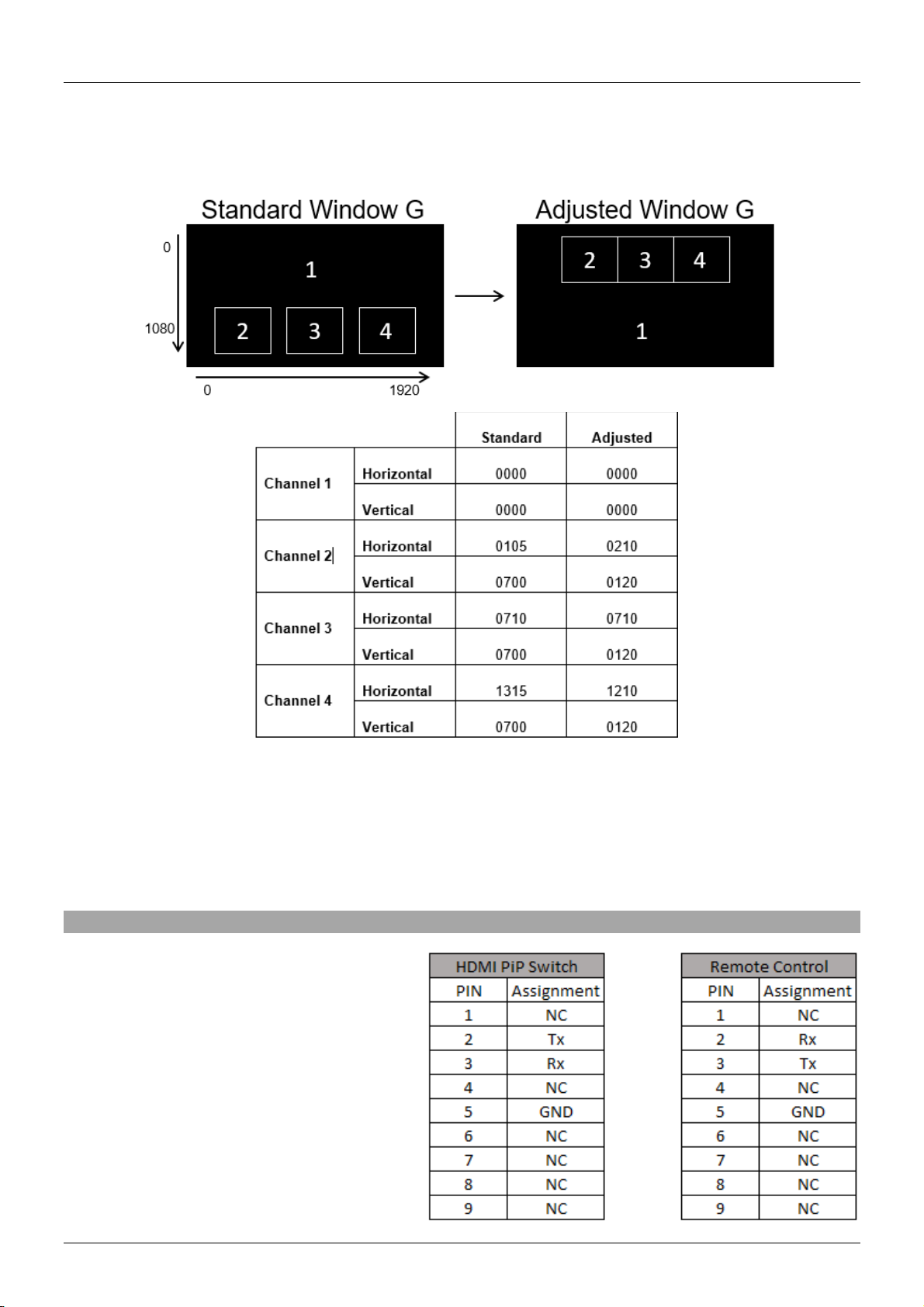

When adjusting the position of a channel, the horizontal position is from left to right of the display, starting
from the left edge of the channel. The vertical position is from top to bottom of the display, starting at the
top edge of the channel. The following example shows the default layout for each channel in window G
and an adjusted version made by changing the values of each channel.
Chromakey
This special function is designed for picture on picture overlapping. It works using channel 1 as the
background and channel 2 as the top layer. The top layers background colour is usually a single colour
which can be easily removed using the OSD menu. The RGB settings for channel 2 video can be adjusted
to determine where the layer will be transparent making channel 1 visible. When input 1 or 2 has no source
connection, a warning message will appear on the OSD.
RS-232, Telnet & OSD Control
RS-232 Protocols
Baud rate: 115200bps
Data bits: 8
Parity: None
Flow control: None
Stop bits: 1

User Manual English
RS-232 & Telnet Commands
Use TCP / IP (Port 23) for Telnet communication.
All commands are case-sensitive and will not be executed unless followed with a carriage return.
Telnet Control
Before attempting to use telnet control, please ensure that both the Video Processor (via the ‘CONTROL’
port) and the control console are connected to the same active network.
Open a Command Prompt on your computer, type ‘telnet’, then a space followed by the IP address of the
Video Processor, then another space then 23 and finally press enter.
Note: The IP address of the Video Processor can be found under Ethernet Setup on the devices OSD
menu. 23 is the TCP / IP port for Tenet.
