LINE LEADER SS-AVJ42KBCDL User manual

SS-AVJ42KBCDL
AV CART
[email protected]
Made in Taiwan
1-703-688-DESK (3375)
Contact Us:
www.standsteady.com

1
I
A
D
BR
BL
C
E
E
F
F
G
H
J
J
PRODUCT OVERVIEW
A (X1) BL (X1) BR (X1) C (X1)
D (X1) E (X2) F (X2) G (X1)
H (X1)
1A (X4)
1D (X2)
CART COMPONENTS
HARDWARE
J (X2) K (X4)
1C (X4)
I (X1)
1B (X4)
1F (X4) 1G (X4)
1E (X2)

2
A
1A
A
BL
BR
Attach keyboard brackets (BL & BR) to upper cart assembly (A)
using 1A (x4).
REQUIRED HARDWARE
1A
QTY. 4

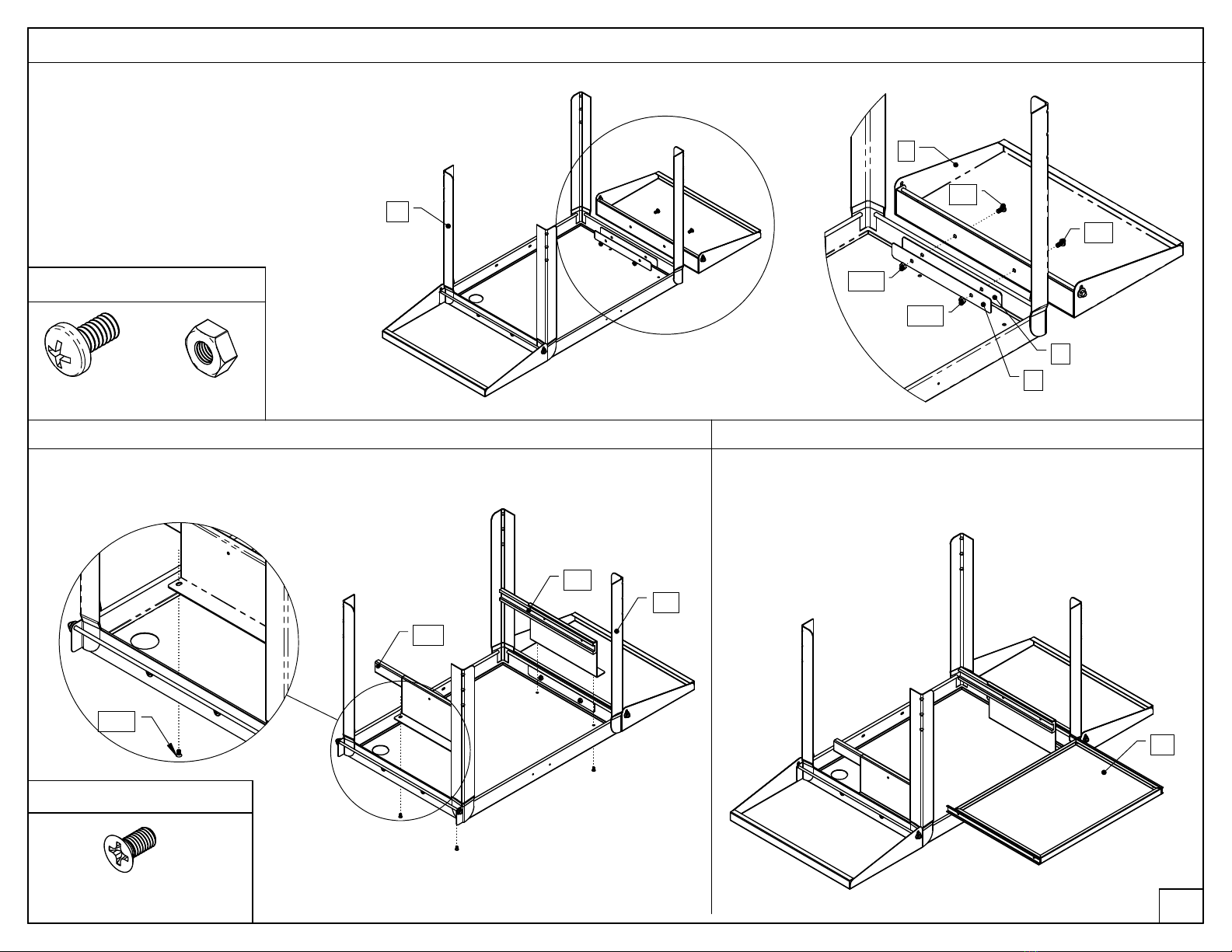

STEP 2: ATTACH KEYBOARD TRAY BRACKETS
Slide Keyboard Tray (C) into Brackets
STEP 3: SLIDE KEYBOARD TRAY INTO BRACKETS
STEP 1: ATTACH DROP LEAF (X2)
To attach drop leaf (J), push
screw (1F) through holes in part
A & J. Slide 2 brackets (K) onto
screws. Secure using 1G (x2).
Tighten using screw driver and
pliers.
Repeat process for opposing
side.
C
1F (X4)
REQUIRED HARDWARE
*Note- 1 Drop leaf hidden from view for clarity.
1G
J
K
K
1F
1F
1G
1G (X4)

3
1B
1C
Note: Open door to
secure 1C (x4)
Flip lower cart assembly (D)
upside down. Install Casters
(E/F) using rubber mallet.
1B
QTY. 4
REQUIRED HARDWARE
STEP 5: ALIGN CART COMPONENTS
STEP 6: SECURE CART COMPONENTS
Rest parts A&D on their side. Slide together until
the holes on the legs are aligned at the desired
height.
Secure parts A&D using 1B & 1C (x4)
STEP 4: ATTACH CASTERS
REQUIRED TOOLS
D
E
E
F
F
A
D1C
QTY. 4

4
1D
QTY. 2
REQUIRED HARDWARE
*NOTE: Secure bracket/power
strip from inside cabinet
using 1E (x2)
Power Strip can be installed in
multiple places on the cart.
Stand up Cart. Secure parts G&H in
desired location using 1D & 1E (x2)
STEP 8: ATTACH POWER STRIPSTEP 7: CHOOSE LOCATION
1D
H
G
1D
1E
1E
1E
QTY. 2
