Linea Plus FD10-5037BR5 Technical manual

DEHUMIDIFIER
Operation instruction
FD10-5037BR5(-1)
FD12-5037BR5(-1)
Model

CONTENTS
Precautions
Please read "Precautions" carefully before operating your dehumidifier.
The warnings and the cautions stated in "Precautions" must be observed for safe operation.
! Warning
! Cautions
means improper handling may result in a death or a serious
injury to a person.
means improper handling may result in an injury or damage
to properties.
Precautions 2
Operation and performance 5
Parts names and functions 6
For selecting functions properly 8
Shows Prohibition
Shows Compulsion
Shows Caution
!
Warnings Caution,risk of fire
Preparation and checkingbefore operation 10
How to operate 11
For maintenance 14
Specification 16
In case of any abnormality, be sure to turn off the dehumidifier, disconnect
the plug and make contact to the seller of your appliance.
(Abnormal operation may result in a failure of the unit, electric shock, fire, or the like.)
Never attempt to turn off the dehumidifier by disconnecting the plug
Pull off plug

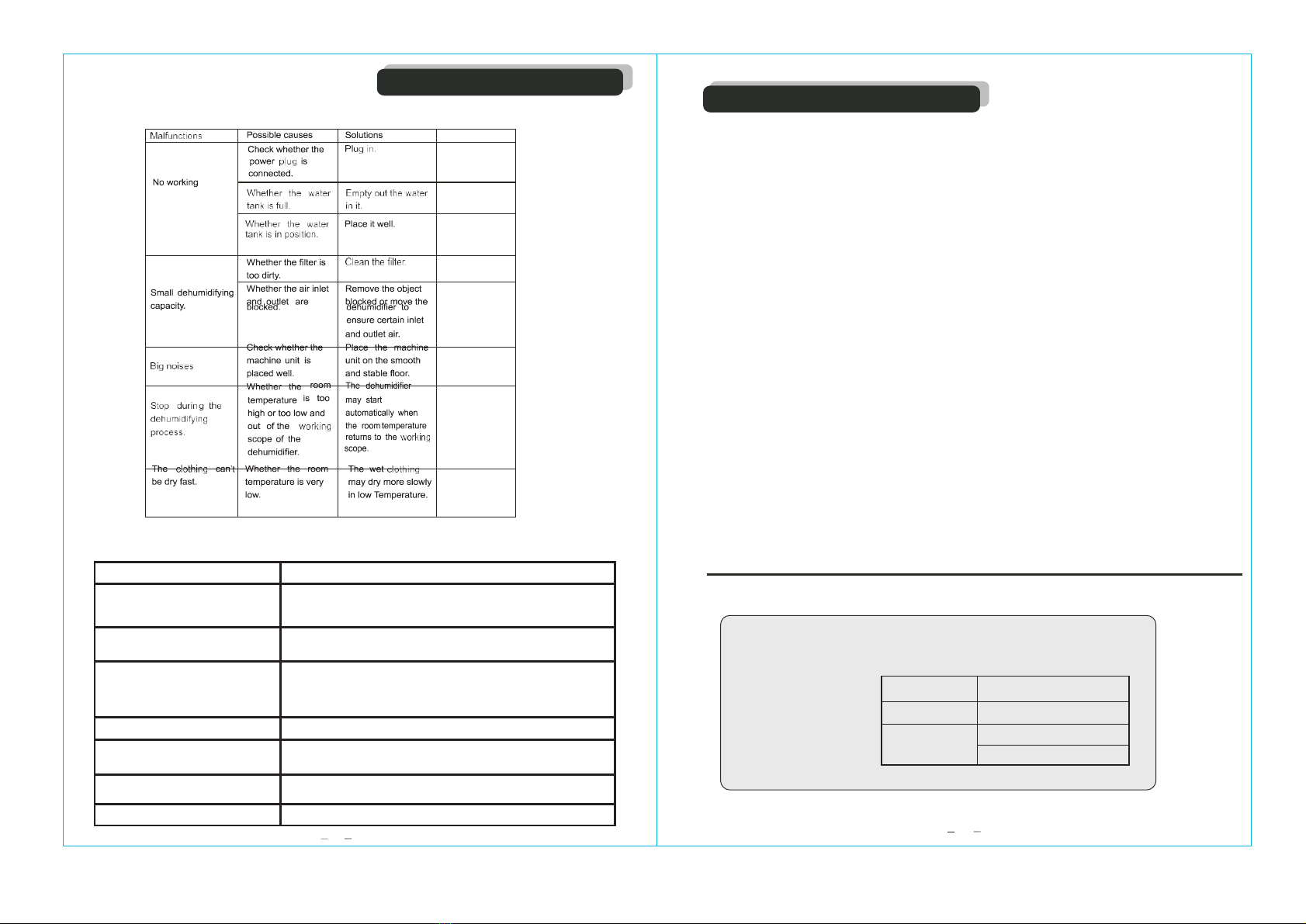

Trouble - shooting
. Prohibit
17
Never modify the dehumidifier. Do not attempt to disassemble or service the unit by
yourself. Prohibit disassembly
Keep your hands dry while plugging into or pulling off the plug to avoid
electric shock.
Prohibit wet hand
Ac220-240 volt of alternating current is applied to this equipment.
!
220-240V~
alternating current
Remove any dust from the blades of the power plug and insert the plug into an outlet !
securely. Wipe off dust
Thank you very much for purchasing our Dehumidifier.
Please read this manual instruction carefully before operating
your dehumifier.
This manual contains further important instructions for proper
operation. Please save it for your further reference.
To avoid the risk of fire or explosion, do not spray to the dehumidifier. Do not put any
inflammables or chemicals near the unit.
To prevent resin parts from melting or catching on fire, do not place the dehumidifier
near heating appliances.
Do not connect the dehumidifier to an outlet having the electrical ratings
below the dehumidifier's.
The power cord must not be damaged or modified. Do not put any hot or
Prohibit
Prohibit
Prohibit
heavy thing on the cord. Do not pull it out , or bundle it during operation. Prohibit
2
1

To avoid damages to the power cord, do not pinch the cord in a door.
Never put rods or objects into the openings of the dehumidifier. Because this
unit contains a fan running at high speed, contact with the moving fan will
Prohibit
Prohibit
Do not use the dehumidifier outside. Exposure to direct sunlight or rain
may result in overheating, electric shock andfire.
Prohibit
Do not put water vessel on the dehumidifier (In case of any spill of water,Prohibit
Remove water that has been collected in the tank.
(Accidentally drinking of the water or using it for other purpose may cause
illness and /or unforeseen accidents.)
Risk of electric shock.disconnect power before servicing unit
Moving parts.do not operate unit with back cover removed.
Hot parts. Do not operate unit with back cover removed.
Risk of electric shock-switch in off position does not de-energize all loads.
Correct Disposal of this product
WARNING .
Do not use means to accelerate the defrosting process or to clean, other than those.
recommended by the manufacturer
!
Throw away
!
Warning
the water gets into the unit and deteriorates theinsulation.)
Never attempt to use the dehumidifier for special uses, such as food or
preservation of art objects, or the like. The deterioration of preserving
quality may be caused.
Do not use the dehumidifier where any leakage of oil or flammable gas
may take place.
Do not use the unit in places subject to chemicals.
For continuous draining, make sure that the drain hose is set properly without
Prohibit
Prohibit
Prohibit
!
Ensure drain hose
The appliance shall be stored in a room without continuously operating ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater.
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
– the maximum refrigerant charge amount: 60g
– the minimum rated airflow: 2 m3/h
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources.
To return your used device, please use the return and collection systems
or contact the retailer where the product was purchased. They can take
this product for environmental safe recycling.
a. "The appliance shall be installed in accordance with national wiring regulations"
b. "If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard." !
a rising slope.
Be careful that a heating appliance is not exposed to the wind from the
dehumidifier.
Do not use the dehumidifier as a chair or a footstool.
For safety purpose, disconnect the power plug if the unit is not use for a long
time.
Be sure to take hold of the power plug when plugging in and out of an outlet.
In case of using the dehumidifier in a closet, be sure to prevent children from
getting in the closet.
Do not remove the float lever from the water tank.
Prohibit
Prohibit
Prohibit
Prohibit
c. " This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety."
d. "Children should be supervised to ensure that they do not play with the appliance."
Warning To avoid damages to the power cord, do not pull out the cord when moving
the unit.
Do not block up the air intakes and the air outlets. Do not cover the unit with
washed clothes.
Prior to continuous operation for a long duration, periodical checking is
Prohibit
Prohibit
!
!
Cautions
!
The dehumidifier must be used on a level and stable surface. Use in flat ground
To prevent the water from freezing, do not use the dehumidifier and the drain
required especially for the air clean filter, the drain hose, or the like.
Turn off the unit and disconnect the power plug before starting any cleaning
or other routine maintenance.
To avoid the risk of electric shock, never sprinkle or spill water on the
Schedule check out
Prohibit
hose at ambient temperature below 0C
Do not use the dehumidifier outside. Exposure to direct sunlight or rain may
result in overheating, electric shock and fire.
3
Prohibit
Prohibit
dehumidifier when cleaning.
Turn off the unit and empty the water out of the water tank when moving the
unit. Be sure to hold the handle when moving.
4
!
Shut off operation and
drain water when moving

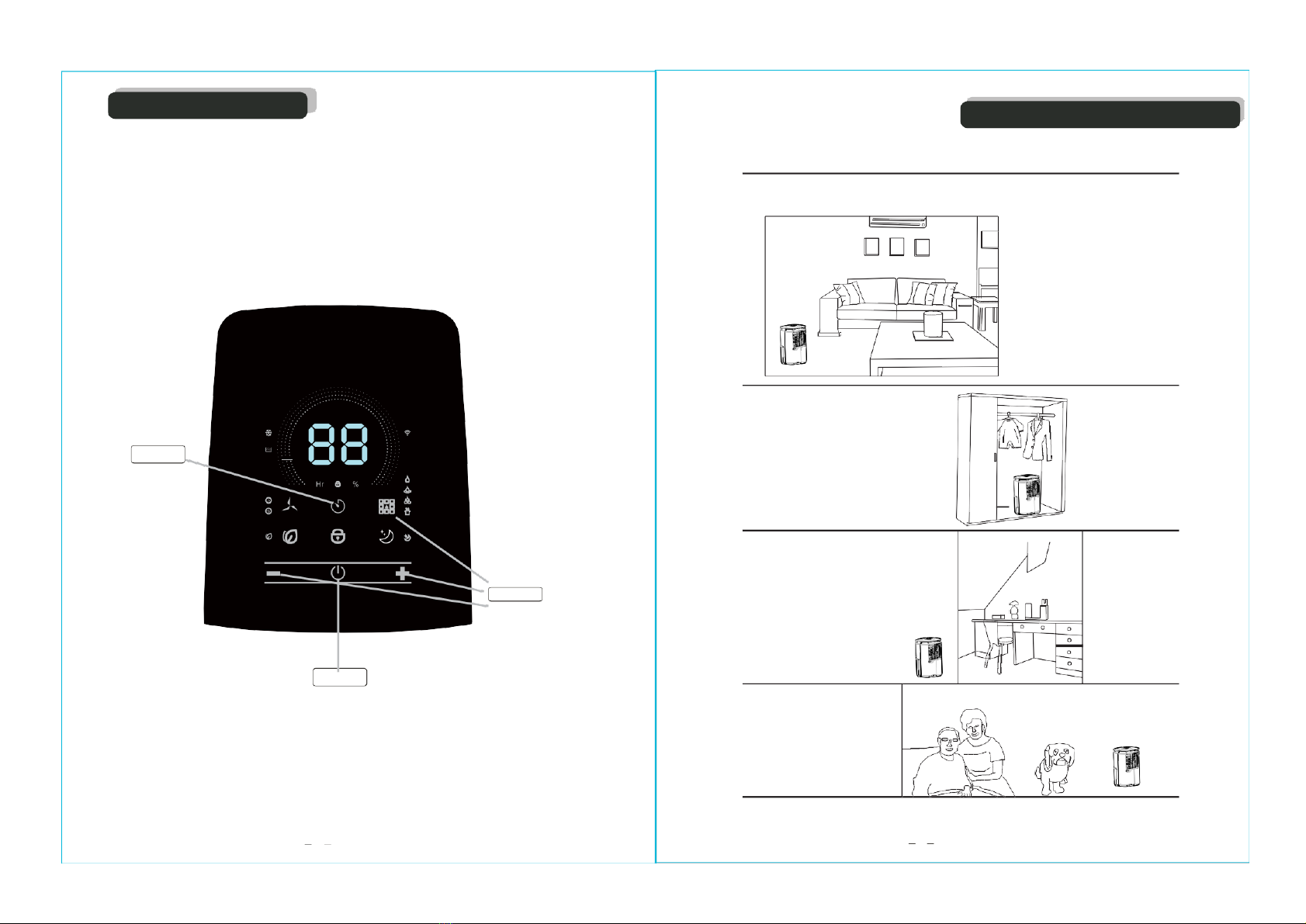

Operation panel Select proper functions
Lower the indoor humidity to a comfortable humidity.
Indoor humidity or prevent
condensation and mildewing
on the ceiling or wall.
Dehumidify for the wardrobe
Timing
SPEED TIMER MODE
FAN CHILD
LOCK
SLEEP Small space dehumidification
Mode
Schalter
Indoor air filtration
7 8

Operation and efficiency
Defrosting operation
The evaporator in the dehumidifier may defrost automatically if it is operated in the room temperature
less than 18 C. The defrosting device may start up and operate for some time (about 5 minutes)
automatically every 25 minutes or even longer.
During the defrosting operation, the dehumidification function and air purification function
may intermit.
Please don't turn off the switch or pull out the power plug of the dehumidifier during the defrosting
operation.
Air Inlet
Front
Power switch
Part Names and Functions
Back
Handle
Air Outlet
This dehumidifier can't be applicable to keep extreme low temperature.
The purpose of this dehumidifier is to pump off the unpleasant high humidity in daily life and dry
the wet things. But it can't be used to keep extreme low temperature.
The room temperature increases during the operation.
This dehumidifier doesn't have cooling function. It will produce heat during the operation and
increase the room temperature to 1 to 4 C. This temperature rise may be very distinct in the cabinet
or other similar spaces. In addition, the door and windows are closed and other appliances in the
room can give out heat as well as the radiation of the sun can raise the room temperature.
Dehumidifying capacity
The illustration below shows the daily dehumidifying capacity of the dehumidifier. This capacity
is based on the 30 C of room temperature the dehumidifier sets, 80% of relative humidity and the
data when the air outlet is fully open. At different temperatures and relative humidity, it may have
different dehumidifying capacities.
In the same room temperature, the dehumidifying capacity is higher in higher relative humidity and
the dehumidifying capacity is lower in lower relative humidity. In the same relative humidity, the
dehumidifying capacity is higher in higher temperature and the dehumidifying capacity is lower
in lower temperature.
Water Tank
Installation
Accessory
Antibacterial air
purification filter
(one piece)
Air Outlet
Top: 30cm or more
If the dehumidifier is placed in the cabinet, its dehumidifying capacity may highly reduce in a short
period after operating, that is, the humidity in the cabinet has been highly reduced. The following space must be
maintained to ensure the operating
efficiency of the dehumidifier.
Dehumidifying capacity
Humidity 80%
Room temperature
Note
If the dehumidifier gets interference from the
household appliances, such as television and
radio cassette player, please keep the equipment
away from the dehumidifier for over 70cm.
5 6

Preparations and inspection while beginning the operation
Confirm the tank is installed in position.
The dehumidifier can't operate if the water in the tank is full or isn't installed well.
1. How to move water tank.
Hold the water tank sides and pull out.
2. Method to empty out the water tank.
1. Pull out the water tank from the dehumidifier.
2. Incline the water tank according to the indication direction and empty out the water slowly.
3. Install the water tank back into the dehumidifier.
Remark
After the dehumidification operates, the
Tank may hold water, and after the water
is full, the dehumidifier operating
Automatically and the full,indictor light is on
Operation manual
1. Power Button:
This button can control the machine on and off;
2.Mode:
The key can enter the mode selection state, can be switched to
ordinary dehumidification , continuous dehumidification,
Strong dehumidification, fast drying;
3.Settings:
Humidity can be set between 30% - 80% (5% adjustment factor),
Humidity setting is only valid under normal dehumidification;
4. Timing:
Buttons can be set into the timing of the state, the time is 1-24 hours;
there is a time, "Hr" timing is often bright;
In the boot state, can be timed shutdown operation
In standby mode, the timing can be scheduled to start operation,
can be pre boot mode;
5. Purification:
UV lights turn on when entering the purification; wind speed can be set,
Timing is effective, set the humidity is invalid; when entering the
purification mode, exit dehumidification mode;
When you exit the purge mode, automatically restore the last
dehumidification mode;
6. Child Lock:
Child lock button can continue to hold down for 3 seconds to enter the
key lock state,
press all the keys are invalid;
Continue to hold down 3 seconds to exit the child lock status;
7. Wind Speed:
This feature needs to be switched to "clean" and "ordinary
dehumidification" under the use of wind speed can be in the
high / low wind switch;
7. Sleep:
Open the sleep mode, in addition to sleep: Lamp / lamp / lamp
with water lock the lights out;In the sleep mode, press any key
to perform the function and wake up display,
5 seconds after the operation to continue to sleep;
9 10

Maintenance notices
!
Warning Clean filter net (Maintain it every two weeks.)
Please don't plug in with wet hands to avoid electric shock.Prohibit wet hand
!
Notice
The dehumidify capacity may reduce when the
filter net is clogged with defilement.
Please cut off the power supply before daily cleaning and maintenance.Pull off plug
Don't dismantle the floater from the water tank.
If the machine unit is not in use for extended periods:
1. Empty out the water in the tank, wipe up the water tank and install it back.
2. Clean the filter
3. Place the machine unit upright and avoid the direct sunlight.
Requirement
Prohibit
The dust collector is always used to clean the dust.
If the filter net is too dirty, it can be cleaned with .
Please place the machine unit upright to avoid misoperation and unusual sound.
Machine body
Wipe up the dehumidifier with wet cloth (put it into the water and wring it out). Don't clean the
control unit with wet cloth.
Don't clean the machine unit with gasoline, thinner or liquid detergent to avoid deformation
and fission of the machine unit.
The cloth contains chemicals may change the color of the machine unit.
Continuous drainage
Continuous drainage
When you are not at home but need unit to make long-term operation,
you can use the continuous drainage feature.
Pull the plug, then insert the pipe.
Continuous Drain Hose (Annex gift)
Length: 30cm
Inner Diameter:17mm
Outer Diameter:19mm
Warranty information:
The manufacturer provides warranty in accordance with the legislation of the customer's
own country of residence, with a minimum of 1 year (Germany: 2 years), starting from the
date on which the appliance is sold to the end user. The warranty only covers defects in
material or workmanship.The repairs under warranty may only be carried out by an
authorized service centre. When making a claim under the warranty, the original bill of
purchase (with purchase date) must be submitted.
The warranty will not apply in cases of:
Normal wear and tear.
Incorrect use, e.g. overloading of the appliance, use of non-approved accessories.
!
Warning
Please don't catch the power line in the door to avoid damaging it.
!
Notice
Prohibit
Prohibit
Use of force, damage caused by external influences.
Damage caused by non-observance of the user manual, e.g. connection to an unsuitable
mains supply or non-compliance with the installation instructions .
11
Please keep the children away from the dehumidifier, if it is used in the cabinet.
12

Malfunction disposals
Please check each item first before applying for maintenance:
Performance parameters
Model: FDD10-5037BR5(-1)
Power supply: AC220V-240V~ 50Hz
Dehumidifying capacity: 10L/day (30°C80%)
5 L/day (27°C 60%)
Input power: 200W
Rated current: 1.25A
Water tank capacity: 2.2L
Net weight: 9.5kg
Overall dimensions: height 525mm, length 320mm, width 284mm
Application scope: 5-32 °C
Refrigerant: R290
Model: FDD12-5037BR5(-1)
Power supply: AC220V-240V~ 50Hz
Dehumidifying capacity: 12L/day (30°C 80%)
6 L/day (27°C 60%)
Make sure the phenomena below happen while the malfunctions
above are not included:
Input power: 210W
Rated current: 1.26A
Water tank capacity: 2.2L
Net weight: 11kg
Overall dimensions: height 525mm, length 320mm, width 284mm
Application scope: 5-32 °C
Refrigerant: R290
The parameters above may change with the improvement of the machine unit without further notice.
See the nameplate for details。
Customer's Sheet:
Please record the following items.
Model
FDD10-5037BR5(-1)
FDD12-5037BR5(-1)
Purchase Date
Store
TEL:
13 14
Phenomenon
Causes
Intermittent stop during the operation
The defrosting
Small dehumidifying capacity
The dehumidifying capacity drops with the room temperature and
humidity. See the illustration above for reference.
The humidity of the room can't reduce
The room area is too big, which is over its application scope.
The door and windows of the room aren't closed.
The machine unit is operated with a kerosene heater (which releases
steam) together.
Unpleasant smell
The smell may come from the wall, furniture and other things,
The machine unit makes a sound
during operation.
The sound made by the flowing of the refrigerant may eliminate
or lower automatically while the system operates stably.
Water is in the tank.
Since each machine unit has taken operation test before leaving the
factory, some water remains on the evaporator flows to the water tank.
The FULL indicator light is on.
When the water tank is full, the FULL indicator light is on for reminding.
