USER MANUAL
REFRIGERATED AIR DRYER
SR 10-480 AC
WARRANTY NOTICE
Failure to follow the instructions and
procedures in this manual or, misuse of this
equipment will VOID its warranty!
MANUAL PART NUMBER:
02250246-045 R02
©SULLAIR LLC
SAFETY WARNING
Users are required to read the entire User
Manual before handling or using the product.
Keep the User Manual in a safe place for
future reference.

User Manual US-EN SR 10-480 AC
02250246-045 R02
2
Subject to EAR. ECCN EAR99 and related export control restrictions.
Dear customer,
Thank you for deciding in favour of the SR 10-480 AC compressed-air refrigeration dryer. Please read these installation
and operating instructions carefully before mounting and starting up the SR 10-480 AC and follow our directions. Perfect
functioning of the SR 10-480 AC and thus reliable compressed-air drying can only be guaranteed when the provisions
and notes stipulated here are strictly adhered to.

User Manual US-EN SR 10-480 AC
02250246-045 R02
3
Subject to EAR. ECCN EAR99 and related export control restrictions.
Contents
1Name plate 6
2Safety instructions 6
2.2 Safety pictograms in accordance with DIN 4844 7
2.3 Signal words in accordance with ANSI 8
2.4 Overview of the safety instructions 8
3Proper use 13
4Exclusion from a field of application 13
5Instructions for the use of pressure equipment according to PED directive 2014/68/EU 13
6Transport 15
7Storage 15
8Installation 15
8.1 Place of installation 15
8.2 Installation plan 16
8.4 Correction factors 17
8.5 Connection to the compressed-air system 18
8.6 Electrical connections 19
8.7 Condensate drain 19
9Start-up 20
9.1 Preliminary stages 20
9.2 Initial start-up 20
9.3 Shut down and restart 21
10 Technical data 23
10.1 Technical data SR 10-480 -P (1/115/60) UL 23
10.2 Technical data SR 125-480 NA -E (1/230/60) UL 24
11 Technical description 25
11.1 Control panel 25
11.2 Functional description 25
11.3 Flow chart 27
11.4 Refrigerating compressor 28
11.5 Condenser 28
11.6 Filter dryer 28
11.7 Capillary tube 28

User Manual US-EN SR 10-480 AC
02250246-045 R02
4
Subject to EAR. ECCN EAR99 and related export control restrictions.
11.8 Aluminium heat exchanger 28
11.9 Hot-gas bypass valve 28
11.10 Refrigerant pressure switches LPS –HPS –PV 30
11.11 Safety temperature switch TS 30
11.12 DMC 15 electronics (control unit compressed-air dryer) 31
11.12.1 Switching the dryer on 31
11.12.2 Switching the dryer off 31
11.12.3 Indication of a service warning/service alarm 31
11.12.4 Control of the condenser fan (SR 10-100) 33
11.12.5 Control of the drain solenoid valve 33
11.12.6 How to change operating parameters –SETUP menu 33
11.13 Electronically level-controlled Sullimax condensate drain 33
12 Maintenance, troubleshooting, spare parts and dismantling 34
12.1 Checks and maintenance 34
12.2 Troubleshooting 37
12.3 Recommended spare parts 41
12.3.1 SR 10-175 115V UL (RAc) spare parts 42
12.3.2 SR 220-480 230V UL (RAc) 43
12.4 Maintenance works at the refrigeration cycle 44
12.5 Dismantling the dryer 44
13 Appendices 46
13.1 Dryer dimensions 46
13.1.1 Dryer dimensions SR 10-15 AC 46
13.1.2 Dryer dimensions SR 20-50 AC 47
13.1.3 Dryer dimensions SR 75 AC 48
13.1.4 Dryer dimensions SR 100 AC 49
13.1.5 Dryer dimensions SR 125-150 AC 50
13.1.6 Dryer dimensions SR 175-220 AC 51
13.1.7 Dryer dimensions SR 300-375 AC 52
13.1.8 Dryer dimensions SR 480 AC 53
13.2 Exploded diagrams 54
13.2.1 Components of the exploded diagrams 54

User Manual US-EN SR 10-480 AC
02250246-045 R02
5
Subject to EAR. ECCN EAR99 and related export control restrictions.
13.2.2 Exploded diagram SR 10-15 AC 55
13.2.3 Exploded diagram SR 20-35 AC 56
13.2.4 Exploded diagram SR 50 AC 57
13.2.5 Exploded diagram SR 75-100 AC 58
13.2.6 Exploded diagram SR 125-220 AC 59
13.2.7 Exploded diagram SR 300-375 AC 60
13.2.8 Exploded diagram SR 480 AC 61
13.3 Electric diagrams 62
13.3.1 Electric diagrams –list of components 62
13.3.2 Electric diagram SR 10-100 AC 63
13.3.3 Electric diagram SR 125-175 AC 64
13.3.4 Electric diagram SR 220 AC 65
13.3.5 Electric diagram SR 300 AC 66
13.3.6 Electric diagram SR 375 AC 67
13.3.7 Electric diagram SR 480 AC 68
Pos: 1 /Sullair Technische Dokumentation/Überschriften/1/Sicherheitshinweise @ 0\mod_1183637609261_6.doc @
5365

User Manual US-EN SR 10-480 AC
02250246-045 R02
6
Subject to EAR. ECCN EAR99 and related export control restrictions.
1 Name plate
The name plate is on the back of the dryer and comprises all primary data of the device. Always refer to these when
contacting the manufacturer or the sales department.
Note: Alternative nomenclature SRB.
All guarantee claims will expire in the event that the name plate is modified or removed.
2 Safety instructions
Pos: 2/ Sullair Technische Dokum entation/Globale Te xte/Allgemeiner Hinweis BM @ 0\mod_1 183615737313_6.d oc@ 40 04
Pos: 3/ Sullair Technische Dokum entation/Sicherheit/Hi nweisA nleitung SULLAIR @ 0\ mod_1184147787557_ 6.doc @ 5758
Please check whether or not these instructions correspond to the device type.
Please adhere to all advice given in these operating instructions. They include essential information which
must be observed during installation, operation and maintenance. Therefore, it must be ensured that
these operating instructions are read by the fitter and the responsible operator / certified skilled
personnel prior to installation, start-up and maintenance.
The operating instructions must be accessible at all times at the place of application of the SR 10-480 AC
compressed-air refrigeration dryer.
In addition to these operating instructions, local and national regulations need to be observed, where
required.
Ensure that operation of the SR 10-480 AC compressed-air refrigeration dryer only takes place within the
permissible limit values indicated on the name plate. Any deviation from these limit values involves a risk
for persons and for the material, and may result in malfunction or a breakdown.
After installing the device correctly and in accordance with the instructions in this manual, the dryer is
ready to operate, further settings are not required. Operation is fully automatic and maintenance is
limited to several examinations and cleaning measures which are described in the following chapters.
This manual must be available at all times for future reference and is a constituent part of the dryer.
If you have any queries regarding these installation and operating instructions, please contact Sullair
Corporation.

User Manual US-EN SR 10-480 AC
02250246-045 R02
7
Subject to EAR. ECCN EAR99 and related export control restrictions.
2.2 Safety pictograms in accordance with DIN 4844
Observe operating instructions
General danger symbol
Supply voltage
Danger: component or system under pressure
Hot surfaces
Non-breathable air
Do not use water to extinguish the fire
Do not operate with open cover (housing)
Maintenance works or controlling measures must only be carried out by qualified personnel1
Do not smoke
Note
Pos: 4 /Sullair Technische Dokumentation/Sicherheit/Gefahr Druckluft @ 0\mod_1184148143854_6.doc @ 5
Connection point compressed-air inlet
1
Certified skilled personnel are persons who are authorised by the manufacturer, with experience and technical training, who are well-
grounded in the respective provisions and laws and capable of carrying out the required works and of identifying and avoiding any risks during
the machine transport, installation, operation and maintenance.
Qualified and authorised operators are persons who are instructed by the manufacturer regarding the handling of the refrigeration system, with
experience and technical training, and who are well-grounded in the respective provisions and laws.
ARIA
AIR
LUFT
AIR

User Manual US-EN SR 10-480 AC
02250246-045 R02
8
Subject to EAR. ECCN EAR99 and related export control restrictions.
Connection point compressed-air outlet
Connection point condensate drain
Works can be carried out by the operator of the plant, provided that they are skilled accordingly1.
NOTE:Text that contains important specifications to be considered –does not refer to safety precautions.
The device was carefully designed with particular attention paid to environmental protection:
•CFC-free refrigerants
•CFC-free insulation material
•Energy-saving design
•Limited acoustic emissions
•Dryer and packaging comprise reusable materials
This symbol advises the user to observe the environmental aspects and comply with the recommendations
connected with this symbol.
2.3 Signal words in accordance with ANSI
Danger!
Imminent hazard
Consequences of non-observance: serious injury or death
Warning!
Potential hazard
Consequences of non-observance: possible serious injury or death
Caution!
Imminent hazard
Consequences of non-observance: possible injury or property damage
Notice!
Potential hazard
Consequences of non-observance: possible injury or property damage
Important!
Additional advice, info, hints
Consequences of non-observance: disadvantages during operation and maintenance, no danger
2.4 Overview of the safety instructions
Certified skilled personnel
Installation works must exclusively be carried out by authorised and qualified skilled personnel. Prior to
undertaking any measures on the SR 10-480 AC compressed-air refrigeration dryer, the certified skilled
personnel shall read up on the device by carefully studying the operating instructions. The operator is
responsible for the adherence to these provisions. The respective directives in force apply to the
qualification and expertise of the certified skilled personnel.
ARIA
AIR
LUFT
AIR

User Manual US-EN SR 10-480 AC
02250246-045 R02
9
Subject to EAR. ECCN EAR99 and related export control restrictions.
For safe operation, the device must only be installed and operated in accordance with the indications in
the operating instructions. In addition, the national and operational statutory provisions and safety
regulations, as well as the accident prevention regulations required for the respective case of application,
need to be observed during employment. This applies accordingly when accessories are used.
Danger!
Compressed air!
Risk of serious injury or death through contact with quickly or suddenly escaping compressed air or
through bursting and/or unsecured plant components.
Compressed air is a highly dangerous energy source.
Never work on the dryer when the system is under pressure.
Never direct the compressed-air outlet or condensate drain hoses at persons.
The user is responsible for the proper installation of the dryer. Non-observance of the instructions in the
"Installation" chapter leads to the expiration of the guarantee. Improper installation may result in
dangerous situations for the personnel and/or the device.
P

User Manual US-EN SR 10-480 AC
02250246-045 R02
10
Subject to EAR. ECCN EAR99 and related export control restrictions.
os: 5 /Sullair Technische Dokumentation/Sicherheit/Maßnahmen Druckluft BM @ 0\mod_1184148284291_6.doc @
5812
Pos: 6 /Sullair Technische Dokumentation/Sicherheit/Gefahr Netzspannung @ 0\mod_1184148186948_6.doc @ 5794
Danger!
Supply voltage!
Contact with non-insulated parts carrying supply voltage involves the risk of an electric shock resulting
in injuries and death.
Only qualified and skilled personnel are authorised to run electrically-operated devices. Prior to
undertaking maintenance measures at the device, the following requirements must be met:
Make sure that the power supply is switched off and that the device is off and marked for maintenance
measures. Please also ensure that the power supply cannot be re-established during the works.
Pos: 7 /Sullair Technische Dokumentation/Sicherheit/Maßnahmen Netzspannung BM 31/32/33 @
0\mod_1216898430699_6.doc @ 113
Caution!
Refrigerant!
The compressed-air refrigeration dryer uses HFC-containing refrigerants as a coolant.
Please observe the corresponding paragraph entitled "Maintenance works at the refrigeration cycle".
Warning!
Refrigerant leak!
A refrigerant leak involves the danger of serious injury and damage to the environment.
The SR 10-480 AC compressed-air refrigeration dryer contains fluorinated greenhouse gas/refrigerant.
Installation, repair and maintenance works at the refrigeration system must only be carried out by
certified skilled personnel (specialists). A certification in accordance with EC regulation 303/2008 must
be available.
The requirements of the EC 842/2006 directive must be met under all circumstances.
Please refer to the indications on the name plate as regards the type and amount of refrigerant.
Comply with the following protective measures and rules of conduct:
1. Storage: Keep the container tightly closed. Keep it in a cool and dry place. Protect it against heat and
direct sunlight. Keep it away from ignition sources.
2. Handling: Take measures against electrostatic charging. Ensure good ventilation/suction at the
workplace. Check fittings, connections and ducts for tightness. Do not inhale the gas. Avoid contact
with the eyes or the skin.
3. Prior to carrying out works on refrigerant-carrying parts, remove the refrigerant to such an extent
that safe working is possible.
4. Do not eat, drink or smoke during work. Keep out of the reach of children.
5. Breathing protection: ambient-air-independent respirator (at high concentrations).
6. Eye protection: sealing goggles.
7. Hand protection: protective gloves (e.g. made of leather).
8. Personal protection: protective clothing.
9. Skin protection: use protective cream.
In addition, the safety data sheet for the refrigerant needs to be observed!
Caution!
Hot surfaces!
During operation, several components can reach surface temperatures of more than 140°F (60°C).
There is the risk of burns.

User Manual US-EN SR 10-480 AC
02250246-045 R02
11
Subject to EAR. ECCN EAR99 and related export control restrictions.
All components concerned are installed inside of the closed housing. The housing must only be opened by
certified skilled personnel2.
Caution!
Improper use!
The device is intended for the separation of water in compressed air. The dried air cannot be used for
breathing-air purposes and is not suitable for the direct contact with food.
This dryer is not suitable for the treatment of contaminated air or of air containing solids.
Note!
Contaminated intake air!
In the event that the intake air is strongly contaminated (ISO 8573.1 class 3.-3 or poorer quality), we recommend
the additional installation of a prefilter (e.g. SXTF0025X ), to avoid clogging of the heat exchanger.
Caution!
Heating-up through fire!
In the event of a heating-up through fire, the containers and pipes of the refrigerant system can burst.
In this case, please proceed as follows:
Switch off the refrigeration plant.
Switch off the mechanical ventilation of the machinery compartment.
Use ambient-air-independent respirators.
Containers and plants which are filled with refrigerant can burst violently in the event of fire.
The refrigerants themselves are incombustible, but they are degraded to very toxic products at high
temperatures.
Remove the container/plant from the fire zone, as there is the risk of bursting!
Cool down containers and bottles via a directed water jet from a safe position.
In the event of fire, please use an approved fire extinguisher. Water is not a suitable agent to extinguish
an electrical fire.
This must only be carried out by persons who are trained and informed about the hazards emanating
from the product.
Caution!
Unauthorised intervention!
Unauthorised interventions may endanger persons and plants and lead to malfunction.
2
Certified skilled personnel are persons who are authorised by the manufacturer, with experience and technical training, who are well-
grounded in the respective provisions and laws and capable of carrying out the required works and of identifying and avoiding any risks during
the machine transport, installation, operation and maintenance.
Qualified and authorised operators are persons who are instructed by the manufacturer regarding the handling of the refrigeration system, with
experience and technical training, and who are well-grounded in the respective provisions and laws.

User Manual US-EN SR 10-480 AC
02250246-045 R02
12
Subject to EAR. ECCN EAR99 and related export control restrictions.
Unauthorised interventions, modification and abuse of the pressure devices are prohibited.
The removal of sealings and leadings at safety devices is prohibited.
Operators of the devices must observe the local and national pressure equipment regulations in the
country of installation.
Pos: 8 /Sullair Technische Dokumentation/Sicherheit/Sicherheitshinweise, weitere BM (nicht Ex) @
0\mod_1183616103770_6.doc @ 4009os: 9 /Sullair Technische Dokumentation/Sicherheit/Zusatz Sicherheitshinweise
BM33 @ 0\mod_1231926887620_6.doc @ 12829s: 10 /Sullair Technische Dokumentation/Sicherheit/Vorsicht
Fehlfunktion @ 0\mod_1214378096290_6.doc @ 9359
Note!
Ambient conditions!
In the event that the dryer is not installed under suitable ambient conditions, the ability of the device to
condense refrigerant gas is impaired. This can result in a higher load of the refrigerating compressor, and
in a loss of efficiency and performance of the dryer.
This in turn leads to overheated condenser fan motors, to malfunction of electric components and to a
breakdown of the dryer. Failures of this type will affect warranty considerations.
Do not install the dryer in an environment in which chemicals with a corrosive effect, explosive gases,
toxic gases, evaporation heat, high ambient temperatures or extreme dust and dirt can be found.
Pos: 12 /Sullair Tech nischeD okumentation /Überschriften/1/B estimmungsgem äßeV erwendung @ 0 \mod_1183637 706293_6.doc @ 5383

User Manual US-EN SR 10-480 AC
02250246-045 R02
13
Subject to EAR. ECCN EAR99 and related export control restrictions.
3 Proper use
This dryer was designed, manufactured and tested to separate the moisture which normally exists in compressed air.
Any other use is considered improper.
The manufacturer shall not be liable for problems occurring as a consequence of improper use. The user alone is
responsible for any damage resulting from that.
Furthermore, the correct use includes the compliance with the installation instructions, in particular in respect of:
•The voltage and frequency of the main voltage supply.
•The pressure, temperature and flow rate of the inlet air.
•The ambient temperature.
When delivered, the dryer is tested and fully assembled. The customer only needs to connect the device to the system
in accordance with the instructions in the following chapters.
Pos: 15 /Sullair Tech nischeD okumentation /Übeschriften/1/A usschluss vom Anwe ndungsbereich @ 0\ mod_123600343 9359_6.doc @ 137 09
4 Exclusion from a field of application
Note!
Improper use!
The device is intended for the separation of water in compressed air. The dried air cannot be used for
breathing-air purposes and is not suitable for the direct contact with food.
This dryer is not suitable for the treatment of contaminated air or of air containing solids.
Pos: 16 /Sullair Tech nischeD okumentation /Bestimmungsgem äße Verwendung/ SULLIMAX/Aussc hluß Anwendung BM 31/32/33 @ 0\mod_1 236003837511_ 6.doc@ 13736
5 Instructions for the use of pressure equipment according to PED directive 2014/68/EU
The SR 10-480 AC compressed-air refrigeration dryer contains pressure equipment in the sense of the 2014/68/EC
Pressure Equipment Directive. Therefore, the entire plant needs to be registered with the supervisory authority if required
in accordance with the local regulations.
For the examination prior to the start-up and for periodic inspections, the national regulations need to be observed, such
as the industrial safety regulation in the Federal Republic of Germany. In countries outside the EU, the respective
regulations in force there need to be adhered to.
The proper use of pressure devices is the basic requirement for safe operation. As regards pressure devices, the
following points need to be observed:
•The SR 10-480 AC compressed-air refrigeration dryer must only be employed within the pressure and temperature
range limits indicated by the manufacturer on the name plate.
•No welding must be carried out on the pressure parts.
•The SR 10-480 AC compressed-air refrigeration dryer must neither be installed in insufficiently ventilated rooms
nor near heat sources or inflammable substances.
•To avoid fractures resulting from material fatigue, the refrigeration dryer should not be exposed to vibrations
during operation.
•The maximum operating pressure indicated by the manufacturer on the name plate must not be exceeded. It is the
installer's responsibility to install the appropriate safety and control devices. Prior to the start-up of the SR 10-480
AC compressed-air refrigeration dryer, the connected pressure generator (compressor etc.) must be set to the max.
permissible operating pressure. The integrated safeguard needs to be checked by an approved inspection agency.
•The documents related to the SR 10-480 AC compressed-air refrigeration dryer (manual, operating instructions,
manufacturer's declaration etc.) must be kept safe for future reference.

User Manual US-EN SR 10-480 AC
02250246-045 R02
14
Subject to EAR. ECCN EAR99 and related export control restrictions.
•No objects whatsoever must be installed at or placed on the SR 10-480 AC compressed-air refrigeration dryer and
the connecting lines.
•Installation of the plant in frost-free places only.
•Operation of the plant is only permissible with fully closed and intact housing and cover panels. Operation of the
plant with damaged housing/cover panels is prohibited.

User Manual US-EN SR 10-480 AC
02250246-045 R02
15
Subject to EAR. ECCN EAR99 and related export control restrictions.
6 Transport
Check the packaging for visible loss or damage. If no visible damage can be ascertained, place the unit in close proximity
to the place of installation and unpack the device.
During this procedure, the dryer must always remain in an upright position. The components may be damaged when the
unit is tilted or turned upside down.
Store the device in a dry environment and do not expose it to extreme weather conditions.
Handle with care. Strong shocks can cause irreparable damage.

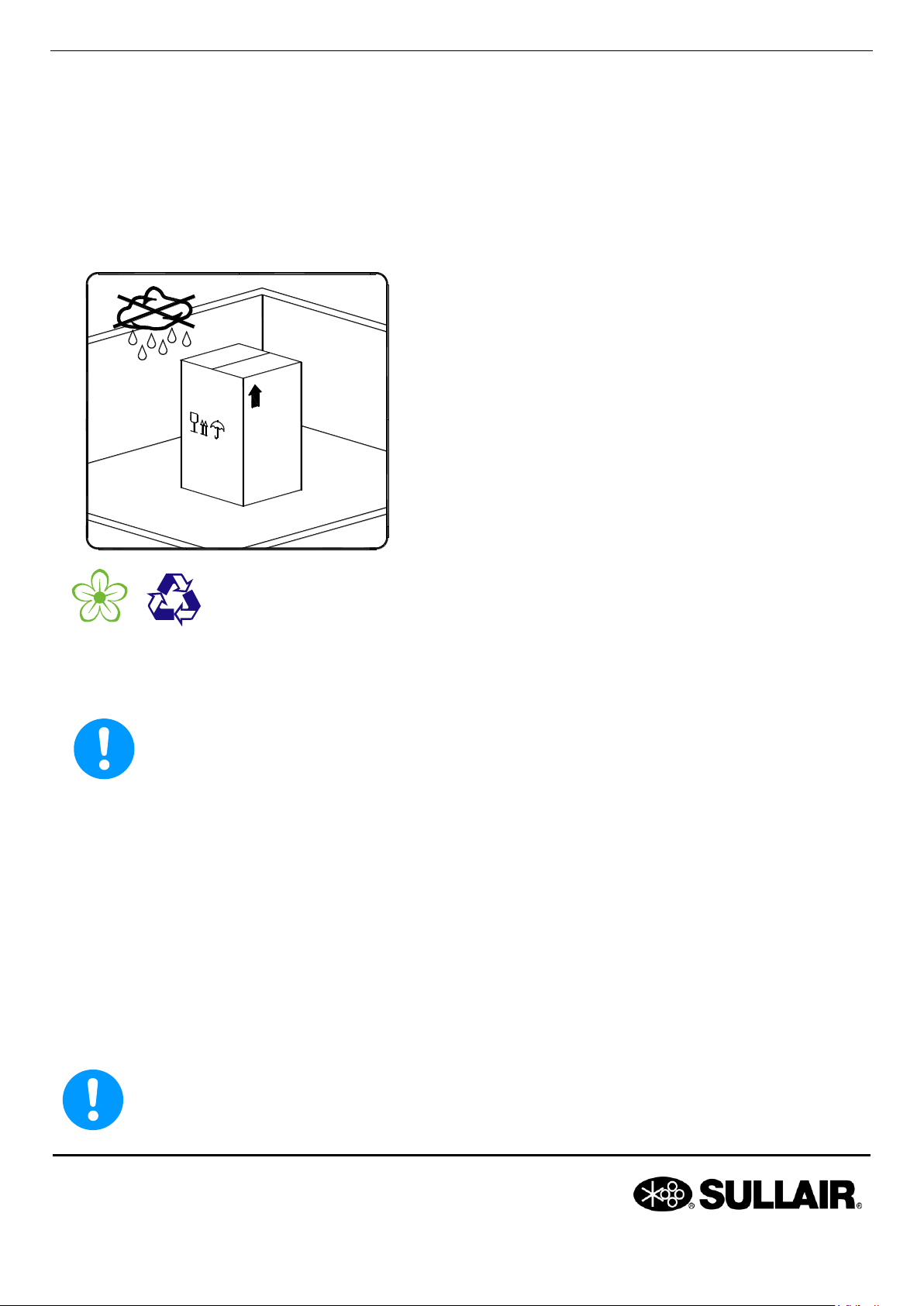

7 Storage
Keep the device away from extreme weather conditions
even when packaged.
Keep the dryer in an upright position, also while it is stored.
Tilting the device or turning it upside down can cause
irreparable damage to some components.
When the dryer is not in use, it can be stored in its
packaging in a dust-free and protected place at a
temperature of +34°F (+1°C) … +122°F (+50°C) and at a
specific humidity of max. 90%. If the storage period
exceeds 12 months, you should contact the manufacturer.
The packaging material is recyclable. Dispose of the material in accordance with the
directives and provisions in force in the country of destination
8 Installation
8.1 Place of installation
Note!
Ambient conditions!
In the event that the dryer is not installed under suitable ambient conditions, the ability of the device to
condense refrigerant gas is impaired. This can result in a higher load of the refrigerating compressor,
and in a loss of efficiency and performance of the dryer.
This in turn leads to overheated condenser fan motors, to malfunction of electric components and to a
breakdown of the dryer. Failures of this type will affect warranty considerations.
Do not install the dryer in an environment in which chemicals with a corrosive effect, explosive gases,
toxic gases, evaporation heat, high ambient temperatures or extreme dust and dirt can be found.
Minimum installation requirements:
•Choose an area which is clean and dry, free from dust and protected against atmospheric disturbances.
•The load-bearing zone must be even, horizontal and able to bear the weight of the dryer.
•Minimum ambient temperature +34°F (+1°C).
•Maximum ambient temperature +113°F (+45°C).
•Ensure a proper cooling air replacement.
•Allow a sufficient clearance on each side of the dryer for proper ventilation and to facilitate maintenance operations.
The dryer does not require attachment to the floor surface.
Do not obstruct the ventilation grille (not even partially).
Prevent any recirculation of the outgoing cooling air.
Protect the dryer against draughts.
SCC0001

User Manual US-EN SR 10-480 AC
02250246-045 R02
16
Subject to EAR. ECCN EAR99 and related export control restrictions.
8.2 Installation plan
1
Air compressor
2
Aftercooler
3
Condensate separator
4
Prefilter
5
Bypass group
6
Dryer
7
Compressed-air tank
8
Final filter
9
Sullimax condensate drain
Installation type A is recommended when the total consumption corresponds to the throughput rate of the
compressor.
Installation type B is recommended when the air consumption constantly varies, with peak values which considerably
exceed the throughput rate of the compressor. The storage capacity of the tank must be dimensioned in such a way
that a possible short-term high air demand (peak air consumption) can be compensated.
Do not obstruct the ventilation grille (not even partially).
Prevent any recirculation of the outgoing cooling air.
Protect the dryer against draughts.
Note!
Contaminated intake air!
In the event that the intake air is strongly contaminated (ISO 8573.1 class 3.-3 or poorer quality), we recommend
the additional installation of a prefilter (e.g. Sullair SXT or SXF), to avoid clogging of the heat exchanger.
2
2
1
IN
OUT
7
- A -
- B -
1
7
6
IN
OUT 5
9
8
9
4
9
3
9
9 9
34
9
9
8
6
5

User Manual US-EN SR 10-480 AC
02250246-045 R02
17
Subject to EAR. ECCN EAR99 and related export control restrictions.
8.4 Correction factors
Correction factor for operating pressure modifications:
Inlet air pressure psig
60
80
100
120
140
160
180
203
barg
4
5.5
7
8
10
11
12
14
Factor (F1)
0.79
0.91
1.00
1.07
1.13
1.18
1.23
1.27
Correction factor for ambient temperature modifications:
Ambient temperature ºF
80
90
95
100
105
110
115
ºC
27
32
35
38
40
43
45
Factor (F2)
1.10
1.07
1.04
1.00
0.93
0.83
0.70
Correction factor for inlet air temperature modifications:
Air temperature
ºF
90
100
110
122
130
ºC
32
38
43
50
55
Factor (F3)
1.11
1.00
0.80
0.65
0.53
Correction factor for DewPoint modifications:
DewPoint ºF
38
41
45
50
ºC
3
5
7
10
Factor (F4)
0.92
1.00
1.07
1.25
Calculation of the actual air throughput:
Actual air throughput = air throughput acc. to planning x factor (F1) x factor (F2) x factor (F3) x factor (F4)
Example:
The SR 75 has a planned nominal capacity of 75 scfm (127 m³/h). The highest achievable air mass under the
following operating conditions is:
Air inlet pressure = 120 psig (8 barg)
Ambient temperature = 105°F (40°C)
Air inlet temperature = 122°F (50°C)
Pressure dew point = 50°F (10°C)
Factor (F1) = 1.07
Factor (F2) = 0.93
Factor (F3) = 0.65
Factor (F4) = 1.25
Every function parameter corresponds to a numerical factor which, multiplied by the planned nominal capacity,
determines the following:

User Manual US-EN SR 10-480 AC
02250246-045 R02
18
Subject to EAR. ECCN EAR99 and related export control restrictions.
Actual air throughput = 75 x 1.07 x 0.93 x 0.65 x 1.25 = 61 scfm (104 m³/h)
61 scfm (104 m³/h) is the maximum flow rate of the dryer under the aforementioned operating conditions.
Selection of the best suitable model in accordance with the operating conditions:
Air throughput acc. to planning =
Requ. air throughput
Factor (F1) x Factor (F2) x Factor (F3) x Factor (F4)
Example:
The following operating parameters are known:
Required air mass = 100 scfm (170 m3/h)
Air inlet pressure = 120 psig (8 barg)
Ambient temperature = 105°F (40°C)
Air inlet temperature = 122°F (50°C)
Pressure dew point = 50°F (10°C)

Factor (F1) = 1.07
Factor (F2) = 0.93
Factor (F3) = 0.65
Factor (F4) = 1.25
To find out the correct dryer version, the required air mass must be divided by the correction factors of the parameters
indicated above:
Air throughput acc. to planning =
100
= 124 scfm (211 m³/h)
1.07 x 0.93 x 0.65 x 1.25
The suitable model for these requirements is SR 125 (with a spec. nominal capacity of
125 scfm [212 m³/h]).
8.5 Connection to the compressed-air system
Danger!
Compressed air!
All works must only be carried out by qualified skilled personnel.
Never work on compressed-air systems which are under pressure.
The operator or the user must ensure that the dryer is never operated with a pressure exceeding the
maximum pressure value indicated on the name plate.
Exceeding the maximum operating pressure can be dangerous for the operator but also for the device.
The air temperature and the air flow at the inlet of the dryer must lie within the limit values indicated on the name
plate. The connecting lines must be free from dust, iron rust, shards and other contaminations and correspond to the
flow rate of the dryer. Should air with a very high temperature be treated, the installation of an aftercooler may be
necessary. For the implementation of maintenance works, the installation of a bypass system is recommended.
The dryer was designed in such a manner that vibrations that may occur during operation are limited. Therefore, it is
advisable to employ connecting lines (flexible hoses, vibration-inhibiting fittings etc.) which protect the dryer against
possible vibrations in the pipework.
===== Ende der Stückli ste= ====

User Manual US-EN SR 10-480 AC
02250246-045 R02
19
Subject to EAR. ECCN EAR99 and related export control restrictions.
Note!
Contaminated intake air!
In the event that the intake air is strongly contaminated (ISO 8573.1 class 3.-3) or poorer quality, we
recommend the additional installation of a prefilter (e.g. Sullair STX or SXF), to avoid clogging of the heat
exchanger.
8.6 Electrical connections
Danger!
Supply voltage!
The connection to the electric mains should only be carried out by qualified skilled personnel and must
correspond to the legal provisions in force in your region.
Prior to connecting the device, please check the name plate to avoid exceeding the indicated values. The voltage
tolerance is +/- 10%.
SR 10-480 AC dryers are supplied with a power cord and safety plug (two-pole and earth connection).
Make sure that suitable fuses or circuit breakers in accordance with the indications on the name plate are available.
A residual-current device (RCD) with In =0.03A is suggested. The cross-section of the power supply cable must
correspond to the power consumption of the dryer. In this respect, the ambient temperature, the cable laying
conditions, the length of the cables and the requirements of the local electricity supplier need to be considered.
Danger!
Supply voltage and missing earth connection!
Important: ensure that the plant is connected to earth.
Do not use plug adapters at the power plug.
Possible replacement of the power plug must only be carried out by a qualified electrician.
8.7 Condensate drain
Danger!
Compressed air and condensate under pressure!
The condensate is discharged at system pressure.
The drain pipe needs to be secured.
Never direct the condensate drain pipe at persons.
The dryer is delivered with an already integrated timed condensate drain or an electronically level-controlled Sullimax
condensate drain. Connect the condensate drain with a collection system or container by properly screwing it on.
Do not connect the drain with pressurised plants.
Do not discharge the condensate into the environment.
The condensate accumulating in the dryer contains oil particles which were released into the air by the
compressor.
Dispose of the condensate in accordance with the local provisions.
It is advisable to install a water-oil separator, to which the total amount of condensate from the
compressors, dryers, tanks, filters etc. is supplied.
We recommend SULLIPRO oil-water separators to threat compressor condensate

User Manual US-EN SR 10-480 AC
02250246-045 R02
20
Subject to EAR. ECCN EAR99 and related export control restrictions.
9 Start-up
9.1 Preliminary stages
Note!
Exceeding of the operating parameters!
Ensure that the operating parameters comply with the nominal values indicated on the name plate of the
dryer (voltage, frequency, air pressure, air temperature, ambient temperature etc.).
Prior to delivery, this dryer was thoroughly tested, packed and checked. Please verify the soundness of the dryer during
the initial start-up and check the perfect functioning during the first operating hours.
The initial start-up must be carried out by qualified personnel.
During the installation and operation of this device, all national regulations regarding electronics and any
other federal and state ordinances, as well as local provisions, need to be adhered to.
The operator and the user must ensure that the dryer is not operated without panels.
9.2 Initial start-up
Note!
The dryer must not be started up more than six times an hour. Wait at least five minutes prior to every
restart.
The user is responsible for the compliance with these provisions. Irreparable damage can be caused by
starting up the device too often.
The method below should be applied during the first start-up, after longer downtimes or subsequent to
maintenance works.
The start-up must be carried out by certified skilled personnel.
Processing sequence (see Section 11.1 "Control panel")
•Ensure that all steps of the "Installation" chapter have been carried out.
•Ensure that the connection to the compressed-air system is in accordance with the provisions and that the lines are
fixed and supported properly.
•Ensure that the condensate drain pipe is fixed in accordance with the provisions and that it is connected with a
collection system or a container.
•Ensure that the bypass system (if installed) is open and that the dryer is disconnected from the compressed-air
system.
•Ensure that the manual valve of the condensate drainage cycle is open.
•Remove any packaging material and other items which may block the space around the dryer.
•Establish the mains connection (plug into socket).
•Start the dryer by switching on the main switch on the control panel (pos. 1).
•Make sure that the electronic control unit is switched on.
•Ensure that the power consumption complies with the values on the name plate.
