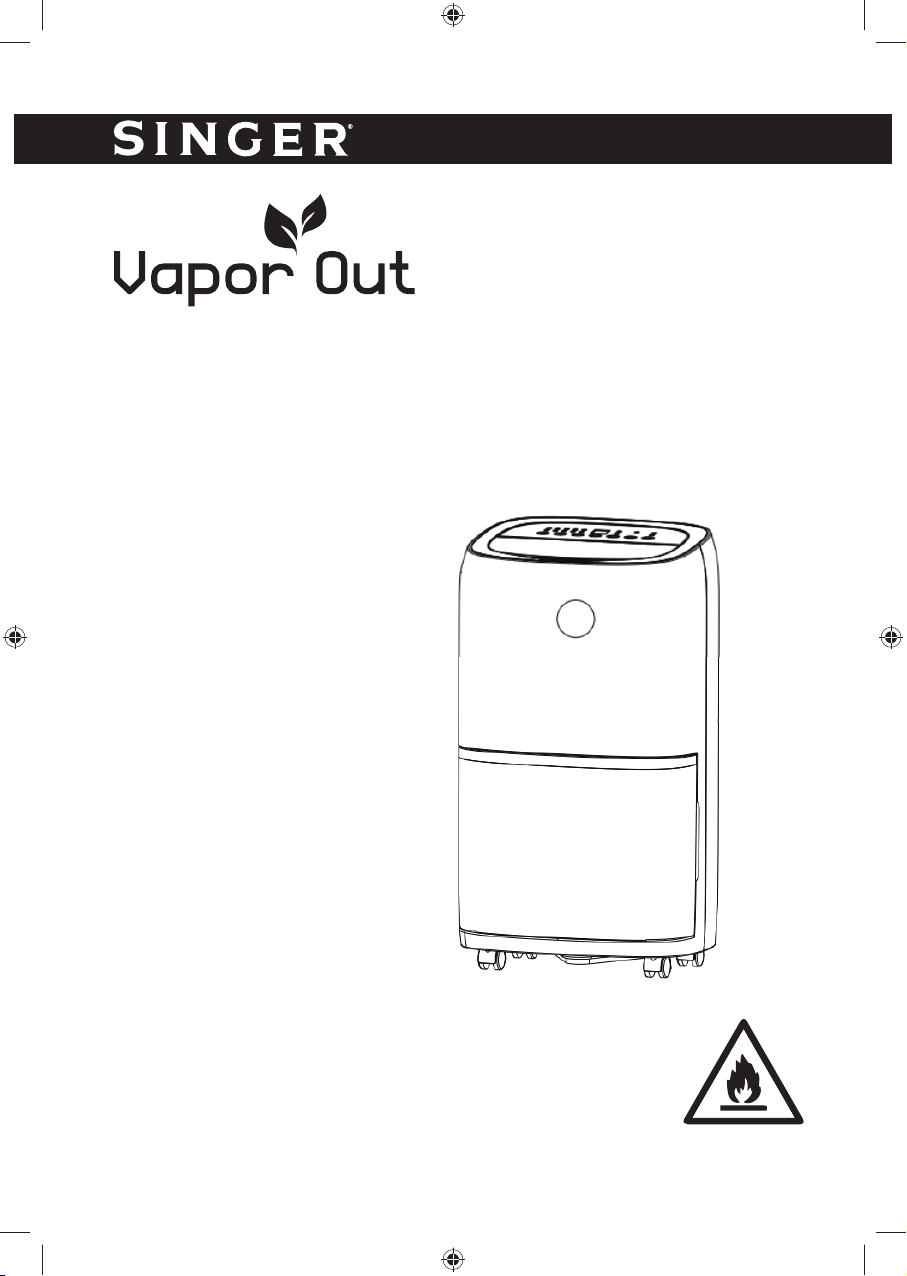

Singer VAPOR OUT SDHM-16L User manual

SDHM-16L & SDHM-20L VAPOR OUT
Dehumidifier
Αφυγραντήρας
GB INSTRUCTION MANUAL
GR ΒΙΒΛΙΟ ΟΔΗΓΙΩΝ
R290

GB ENGLISH....................................... 3
GR EΛΛΗΝΙΚΑ .................................. 32

3
ENGLISH
This product is using the Environment
friendly refrigerant R290. R290 has no
damaging influence on the ozone layer
(ODP), a negligible greenhouse effect
(GWP) and is available worldwide. This
refrigerant is tasteless and combustible,
moreover, it can burn and explode under
certain condition. Special precautions must
be taken into consideration before using
and maintenance of this appliance due to
the coolant's high flammability: so please
read this user manual carefully before using
and maintenance.
SYMBOLS FROM THE UNIT AND USER MANUAL
This unit uses a flammable refrigerant gas.
If refrigerant gas leaks and comes in contact
to fire or heating part, it will be created harmful
gas and there is risk of fire.
Read the USER MANUAL carefully before op-
eration and maintenance.
Further information is available in the USER
MANUAL and the SERVICE MANUAL.
Service personnel are required to carefully
read the USER and SERVICE MANUAL before
operation and maintenance.
Additional warning for appliance with R290 refrigerant gas
(refer to the rating plate for the type of refrigerant gas used).
R290 refrigerant gas complies with European environmental
directives.

4
ENGLISH
WARNINGS (FOR USING R290 REFRIGERANT ONLY)
Appliance shall be installed, operated and
stored in a room with a floor area larger than
4 m2.
This product needs to be in a room without
continuously operating ignition sources (for
example: open flames, an operating gas appli-
ance, an operating electric heater or stove with
open fire, etc.)
• Be aware that the refrigerants may not contain an odor.
• Do not pierce or burn.
• Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
• Compliance with national gas regulations shall be observed.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored so as to prevent mechanical
damage from occurring.
• A warning that the appliance shall be stored in a well-ventilat-
ed area where the room size corresponds to the room area as
specified for operation.
• Any person who is involved with working on or breaking into a
CAUTION: RISK OF FIRE
FLAMMABLE MATERIAL
READ THE MAΝUAL CAREFULLY
BEFORE USING THE APPLIANCE.
MAKE SURE TO SAVE THIS MANUAL
FOR FUTURE REFERENCE.

5
ENGLISH
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance
with an industry recognized assessment specification.
• Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring
the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of
flammable refrigerants.
IMPORTANT SAFETY INFORMATION
• Avoid installation behind a door.
• Use only with the supply voltage specified on the rating plate
of the Dehumidifier.
• Before installing, cleaning and servicing turn off the power and
unplug the unit.
• Do not place appliance close to a radiant heat source.
• Do not use the appliance near flammable gas of combustibles,
such as gasoline, bezene, thinner, etc.
• Do not immerse in liquid or allow liquid to run into the interior of
the appliance, as this could create an electrical shock hazard.
• Do not use this appliance on a wet surface, or where it can fall
or be pushed into water.
• Do not reach for an appliance that has fallen into water. Switch
off at supply and unplug immediately.
• Do not operate any appliance with a damaged cord, plug or
after the appliance malfunctions or has been dropped or dam-
aged in any manner. Refer appliance to a qualified electrical

6
ENGLISH
person for examination, electrical or mechanical adjustment,
service or repair before further use.
• Do not operate appliance with wet hands.
• This appliance is intended for indoor household use only and
not for commercial or industrial use.
• Use this appliance only as described in this manual. Any other
use is not recommended by the manufacturer and may cause
fire, electric shock or injury.
• Do not use this appliance in a window as rain may cause elec-
tric shock.
• Do not use abrasive cleaning products on this appliance. Wipe
with a soft cloth to clean the exterior. Always remove plug from
the mains supply before cleaning.
• Switch off the appliance before changing its position.
• Do not remove the power plug from the socket by pulling the
cord – grip the plug instead.
• Always unplug appliance when not in use.
• Do not run cord under carpeting, throw rugs or runners etc.
Arrange cord away from areas where it is likely to be tripped
over.
• Do not modify power cord length or share the outlet with other
appliances.
• Disconnect the power if strange sounds, smell or smoke
comes from it.
• Do not place heavy object on the power cord and take care so
that the cord is not compressed.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabili-
ties, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.

7
ENGLISH
• Young children should be supervised to ensure they do not
play with the appliance.
• If the supply cord is damaged, it must be replaced by a quali-
fied electrical person in order to avoid a hazard.
• Do not spray pesticides or flammable gas near the unit.
• Do not scrape the unit using sharp objects.
• Do not splash any oil or water into the unit.
• Install the unit on a flat, horizontal surface to avoid vibration
and noise.
• Do not put heavy objects on the appliance.
• Do not cover the intake or exhaust opening with cloths or tow-
els.
• Do not drink or use the water drained from the unit.
• Do not take the water tank out during operation.
• Empty the water tank before moving the unit to avoid water
spilling.
• Do not tilt the unit to prevent water from spilling and damaging
the machine.
• Do not insert or allow slim rods or other foreign objects to enter
any opening, as this may cause an electric shock, fire or dam-
age to the appliance.
• Never insert your finger or other foreign objects into grills or
openings. Take special care to warn children of these dangers.
• If any abnormal situations occur, immediately turn off the pow-
er supply.

8
ENGLISH
SERVICE & REPAIR
1. For service or repair under warranty, please contact the au-
thorized service company that is mentioned on the guarantee
card that accompanies the product.
2. Do not operate any product with a damaged cord or plug. If
the supply cord is damaged, return the appliance to a SINGER
service center for examination repair or adjustment. Do not at-
tempt to dismantle any part of the appliance. This should only
be done at an authorized SINGER service centre.
3. The partial or total non-respect of the safety instructions in the
present instruction manual will automatically release Singer of
any type of responsibility in case of malfunction of the machine
or injuries to persons or animals.
4. In case of manipulation, repairing or any modification of the
machine made by unqualified persons or in case of improper
use, the guarantee will be automatically cancelled.
PRODUCT DESCRIPTION
The dehumidifier is used to remove excessive moisture from the
air. The resulting reduction in relative humidity protects buildings
and their contents from the adverse effects of excess humidity.
Before Initiation
• To avoid any damage, place the unit in an upright position for
at least 24 hours before initiation.
• Make sure that the air outlet and air inlet are never blocked.
• Only operate the unit on a horizontal surface to ensure no wa-
ter leaks out.
• After removing the packaging, make sure that the appliance is
in good condition.
• Do not allow children to play with the packaging materials as
there is risk of suffocation.

9
ENGLISH
OVERVIEW
Front View
Rear View
ACTIVE CARBON FILTER (BLACK): is the filter most used to remove
gases. The result is purifying the air from contaminants and particulates.
Control panel
Handle
Filter Grid
Drainage Hole
Back Panel
Air Flow Cover
Front panel
Water Tank
3-color indicator
Castor

10
ENGLISH
SPECIFICATIONS
MODEL No. SDHM-16L VAPOR
OUT
SDHM-20L VAPOR
OUT
Dehumidify Capacity 16L/day (30ºC,80%) 20L/day (30ºC,80%)
Rated Voltage AC220-240V AC220-240V
Rated Frequency 50Hz 50Hz
Rated Power 240W (30ºC,80%) 380W (30ºC,80%)
Rated Current 1.5A (30ºC,80%) 2.0A (30ºC,80%)
Water Tank Capacity 5.5L 5.5L
Noise Level ≤45dB(A) ≤45dB(A)
Refrigerant Charge R290/80g R290/85g
Product Dimension 335 x 240 x 587mm 335 x 240 x 587mm
Net Weight 15kg 15kg
Suction Side Pressure 0.5MPa 0.5MPa
Discharge Side Pressure 1.5MPa 1.5MPa
BEFORE FIRST USE
Install the unit in a stable & flat floor and keep the room ventilated.
Leave at least 20cm space around the unit (when the hose is not connected).
1. Push the rubber adaptor of the water pipe on the drainage port of the rear
panel.

11
ENGLISH
2. Connect the water pipe to bathroom, outdoor or a container, such as a
b
uck
e
t.
NO
TE
:
1
. Do not
b
lock t
h
e
d
raina
g
e port or water pipe
.
2. Do not
f
old the water pipe or make it 0.5m hi
g
her than the bottom o
f
unit
.
3
. Do not replace the rubber adaptor o
f
the water pipe. It’s a special acces
-
sory
f
or the unit only; other adaptors may not
fi
t the unit. I
f
it’s dama
g
ed or
l
ost, please call the customer service
f
or replacement
.
O
PERATI
O
NS
I
nd
ic
at
ion
3-color Ambient humidit
y
indicator on the
f
ront pane
l
B
L
U
E
c
olor s
h
ows Am
b
ient
h
umi
d
it
y
<40
%
G
REEN
c
olor s
h
ows Am
b
ient
h
umi
d
it
y
b
etween 40% an
d
60
%
RED
color s
h
ows Am
b
ient
h
umi
d
it
y
>60
%
1.
Po
wer
i
nd
ic
at
or
T
h
e power in
d
icator li
gh
ts up wit
h
a
g
reen color w
h
en t
h
e
d
evice is plu
gg
e
d
in
.
2
.
W
ater
f
ull indi
c
at
or
When the water tank is full, the water tank indicator lights up with a red color,
hth t
the unit buzzes
f
or 20 times and then stops. You must empt
y
the water tank
and put it back to the correct position. I
f
the water tank indicator is
f
requentl
y
o
n, there mi
g
ht be some mal
f
unction in the unit.

12
ENGLISH
3. Timer indicator
The timer indicator lights up with a green color while the timer is running.
4. Low fan speed indicator
The low fan speed indicator lights up with a green blue color when the device
is working in low fan speed.
5. High fan speed indicator
The high fan speed indicator lights up with a green color when the device is
working in high fan speed.
6. Drying clothes indicator
This indicator lights up with a green color when the drying clothes function is
on. At that mode, the compressor works continuously without the influence
of the room humidity. High fan speed is fixed and the humidity cannot be ad-
justed.
7. Normal mode indicator
This indicator lights up with a green color when normal dehumidifying function
is on. When you turn on the unit first time, the appliance will enter into normal
dehumidifying mode. At that mode, the default setting humidity is 60% and you
can set the desired humidity level and adjust the fan speed at your desired
speed.
8. Clean filter indicator
This indicator will light up with a red color and the unit buzzes for 20 times
when the accumulated running time has reached 600 hours in order to remind
the user to change the filter.
If you want to turn off this indicator, press the power button for 5 seconds, the

13
ENGLISH
indicator light will turn off.
10. Display
This display shows the following 3 functions:
• The indoor humidity when the power is on.
• The selected humidity data when you adjust humidity.
• The timer data when you set the timer on/off.
Button Operation
1. Power
Press this button to turn on the device. The device will start to work in the de-
fault mode (humidity setting is 60%RH and fan speed depends on the speed
set on last dehumidification mode). The compressor will start to work after the
fan has already worked for 3 seconds, the indicator will light up with a green
color.
If you want to turn off the device, press this button again. The display will show
“--” and the device will be in stand-by mode. The fan will turn off after 60 sec-
onds and the power indicator light and fan speed indicator light will turn off.
2. Timer button
Timer boot: press the Timer button to set up the auto- start time while the
device is on standby (you can choose between 1-24hours a cycle). The Timer
symbol will flash for 5 seconds. If no further operation is instructed, the device
will quit the setting mode automatically. LED will show the set time and the
countdown will start. The device will start dehumidification automatically when
the countdown ended. At that time, LED will show the humidity number instead
of the time.
Timer shutdown: Press the Timer button while the device is working to set
up the auto-stop time (you can choose between 1-24hours a cycle). LED will
show timing data and the Timer symbol will flash for 5 seconds. If no further
operation is instructed, the device will quit the setting mode automatically. LED

14
ENGLISH
will switch to humidity number and the countdown will start. When the count-
down ends, LED will show “--” and the machine will stop without making any
buzzing alert.
Note: Timer does not have a memory function. Please set up the timer manu-
ally every time.
3. button
Press this button to adjust humidity as following (the initial humidity is 60%).
You can set the humidity as you want; 20%-25%-30%-35%-40%-45%-50%-
55%-60%-65%-70%-75%-80%. The machine will stop automatically when the
indoor humidity is lower than the set humidity.
4. button
Press this button to adjust humidity (the default humidity is 60%). You can
reduce the humidity as you want; 80%-75%-70%-65%-60%-55%-50%-45%-
40%-35%-30%-25%-20%. The machine will stop automatically when the in-
door humidity is lower than the set humidity.
Note: When the humidity setting terminates, the display screen will show ambi-
ent humidity after flashing for 3 seconds. While in default mode, press
or button to show the setting of humidity. Press these two buttons
again to set humidity according to your preference. If you press button
continuously, you will see the current ambient temperature. After showing the
ambient temperature for 5 seconds, it will be back to indicating current humid-
ity automatically. While in clothes dry mode, if you press “Dry” button you will
cancel this mode and the device will automatically switch to ordinary mode.
Meanwhile the display screen will show setting humidity (the default setting is
60%), it will flash for 3 times and then it will get back to current humidity with-
out needing any adjustment from you. At this time, if the ambient humidity is
≥set humidity +3%, the compressor will start working (for example, if the set
humidity is 60%, the compressor will start working when the ambient humidity
reaches to 63% or more). If the ambient humidity is < set humidity -3%, the
compressor will stop working and the fan will keep running (for example when

15
ENGLISH
the ambient drops to 57% or less, the compressor will stop working).
5. Fan speed button
Press this button to choose low fan speed (sleep) or high fan speed (turbo).
6. Mode button
Press this button to choose normal or drying clothes mode.
WATER DRAINAGE
Water Tank
The water tank full indicator will light up with a red color when the water tank
is full. The warning will be given when the capacity of 5.5L has been reached.
Take out the water tank and empty the water. Put the water tank back into the
dehumidifier.
How to empty the water tank
1. Pull out both sides of the water tank as below.
Push the water tank at the back of the ma-
chine slightly; the water tank will be forced
to move out.

16
ENGLISH
2. Empty the water tank.
CAUTION
• Do not remove the float from the water tank; otherwise, the device will not
stop working when the water tank is full. Then the water will be overflowed
and possibly damage your floor.
• Drain the water tank completely when the water tank is full and reset your
setting.
• If the water tank is dirty, clean with cool or warm water. Do not use clean-
ers, steel wool, chemical rag dusters, gas oil, benzene, thinner or other
solvent to clean it because they will damage the water tank and lead to
leakage.
• When you put the water tank back to the unit, please use two hands to
push the water tank into the device to the correct position. Otherwise the
water full indication will still show red and the device will not work.

17
ENGLISH
CONTINUOUS DRAINAGE
1. Open the cover on the back of the dehumidifier.
2. Take out the water tank.
3. Insert a PVC pipe with inner diameter 9.5m and length 300mm (recom-
mended); put the other side of the pipe into a container, such as a bucket.
Steps:
1. Remove the plastic
part at this point of
the device.

18
ENGLISH
2. Insert the pipe into
the hole of the water
outlet port.
3. Put the drain-pipe to this specific lo-
cation with the other side of it into a
container.
Caution:
1. Never block the water outlet or the pipe.
2. Never bend the drainage pipe and always put it lower
than the outlet.
3. Always close the cover when there is no need for con-
tinuous drainage.
MAINTENANCE
NOTE:TURNOFFTHEUNITANDUNPLUGITBEFOREANYMAINTENANCE
OR REPAIR TO AVOID ELECTRIC SHOCKS.
Cleaning
Unplug the unit before cleaning. Clean the housing with a soft moist cloth.
Do not use chemical solvents (such as benzene, alcohol, gasoline).
The surface may be damaged or even the whole case may be deformed.
Do not spray water directly on the unit.
Air filter
The unit is equipped with common air filter (washable) and active carbon filter

19
ENGLISH
(non-washable).
If the filter is blocked with dust, the efficiency of it will reduce.
Clean the washable filter every 2 weeks and replace the active carbon filter
after using for 6~8 months.
HOW TO CLEAN THE FILTER
• Take out the filter
• Clean the filter
1) Wash the common air filter by immersing it gently into warm water (about
40°) with a neutral detergent, rinse it and dry it thoroughly in a shaded place.
Filter
Frame
Common
Filter
Active Carbon
Filter

20
ENGLISH
2) The active carbon filter CANNOT be cleaned. When the filter gets very dirty,
replace it with a new filter.
• Assemble the filter
Insert the filter back to the device slowly after finish washing it.
Dehumidifier storage
If the dehumidifier will not be used for an extended period of time:
1. Drain the water tank completely and make sure there is no more water
stocked inside.
2. Unplug the unit and fold up the power supply cord.
3. Remove and clean the air filter, allow it to dry completely and reinstall it.
4. Store the dehumidifier in a cool, dry location, away from direct sunlight, ex-
treme temperature and excessive dust.
