LINET BLUES User manual

BLUES & BLUES COMFORT
SLEEPER CHAIR
9200-0735
LINET spol. s r. o. Tel.: 312 / 576 111
Želevčice 5 Fax: 312 / 522 668
274 01 Slaný E-mail: [email protected]
Date 6/2016
Version 01
USER MANUAL AND SPECIFICATIONS

BLUES User Manual
Date 6/16
Version 01
Status Status
Dear Customers,
Thank you for deciding to buy one of our company’s products. We believe you will be satisfied with it for its lifetime.
Due to very careful selection of materials, the latest production technology, and the meticulous work of our
employees, our products display features guaranteeing high quality, reliability, and long-term user value.
Content
1Introduction.................................................................................................................3
2Delivery........................................................................................................................4
3Safety information.......................................................................................................4
4Specifications..............................................................................................................5
5Conditions for use.......................................................................................................6
6Schematic....................................................................................................................7
6.1 BLUES.......................................................................................................................................7
6.2 BLUES COMFORT ...................................................................................................................8
7Chair installation.........................................................................................................8
8Chair operation............................................................................................................9
8.1 Extending and retracting the BLUES chair ...............................................................................9
8.2 Extending and retracting the BLUES COMFORT chair..........................................................10
9Care instructions.......................................................................................................11
9.1 Cover materials.......................................................................................................................11
9.1.1 Textile......................................................................................................................................11
9.1.2 Leatherette..............................................................................................................................11
10 Environmental protection.........................................................................................11
11 Guarantee and servicing...........................................................................................12
12 Contacts.....................................................................................................................12
No

BLUES User Manual
Date 6/16
Version 01
Status Status
1 Introduction
The BLUES sleeper chair is intended for comfortable sitting, but it can also be used as a bed for a friend or relative
in hospitals, maternity units, or clinical facilities. The individual types differ by virtue of the material used for
upholstery. These instructions are for all variants.
Warning
This symbol indicates a warning
Before you start using the chair, it is necessary to familiarise yourself in detail with this user
manual. The chair must be operated and used only in accordance with this user manual! Any other
operations in using the chair that do not comply with the user manual are performed at the user’s
own risk and the manufacturer is not liable for any harm arising out of such use.
For this reason it is important that the user manual be available to all users for the entire life of the
chair!
The manufacturer reserves the right to make changes to the content of the user manual for use
due to technical alterations to the product. For this reason, this user manual may differ in certain
details from the current version of the product.
The manufacturer accepts no liability for any damages, harm, injuries or accidents caused by
careless, incorrect, negligent, or erroneous operation.

BLUES User Manual
Date 6/16
Version 01
Status Status
2 Delivery
The chair is delivered already assembled and packaged in transport wrapping depending on the type of order. An
on-site inspection must be performed to check the delivery against the shipping note for completeness. Any fault or
damage must be declared to the shipper and supplier immediately in writing.
3 Safety information
Before using the chair, you must read the user manual and perform all chair operations in compliance with its
instructions.
The user must ensure that the chair is functioning correctly, in particular the opening mechanism.
The chair must not be used if faults are discovered that could cause damage.
The chair may only be used on flat and firm surfaces.
Only one person may sit in the single-seat version of the chair.
Only the part designed for sitting, i.e., the seat, serves this purpose. Sitting on the armrests or back rest is not
permitted.
Proceed according to the user manual during maintenance and cleaning.

BLUES User Manual
Date 6/16
Version 01
Status Status
4 Specifications
Frame material
Solid wood, lamellar shaped
pressings, metal, blockboard,
fibreboard
Cover material
2 variants: fabric, leatherette
Upholstery material
spring, PUR foam, PES fleece
Width
900 mm
Height
890 mm
Height of armrest
640 mm
Width of seat
670 mm
Depth of seat
530 mm
Height of seat surface
410 mm
Overall depth
870 mm
Sleeping platform height
410 mm
Sleeping platform
dimensions
1990 x 670 mm
Total length opened
2030 mm
Opening mechanism
Metal construction
Table 1- Specifications of BLUES chair

BLUES User Manual
Date 6/16
Version 01
Status Status
Frame material
Solid wood, plywood,
agglomerated materials
Cover material
2 variants: fabric, leatherette
Upholstery material
Plywood, PUR foam, PES fleece
Standard
Narrow
Width
860 mm
760 mm
Height
780 mm
Width of seat
735 mm
635 mm
Depth of seat
980 mm
Height of seat surface
440 mm
Overall depth
2280 mm
Sleeping platform height
440 mm
Sleeping platform dimensions
1920 mm
Opening mechanism
Metal construction
Table 2 - Specifications of BLUES COMFORT chair
5 Conditions for use
The chair may only be used in an environment where:
the ambient temperature ranges between + 10°C to + 40°C
the relative humidity ranges between 30% to 75%
the atmospheric pressure ranges between 700 hPa to 1060 hPa
760 / 860
635 / 735
1920
780

BLUES User Manual
Date 6/16
Version 01
Status Status
6 Schematic
6.1 BLUES

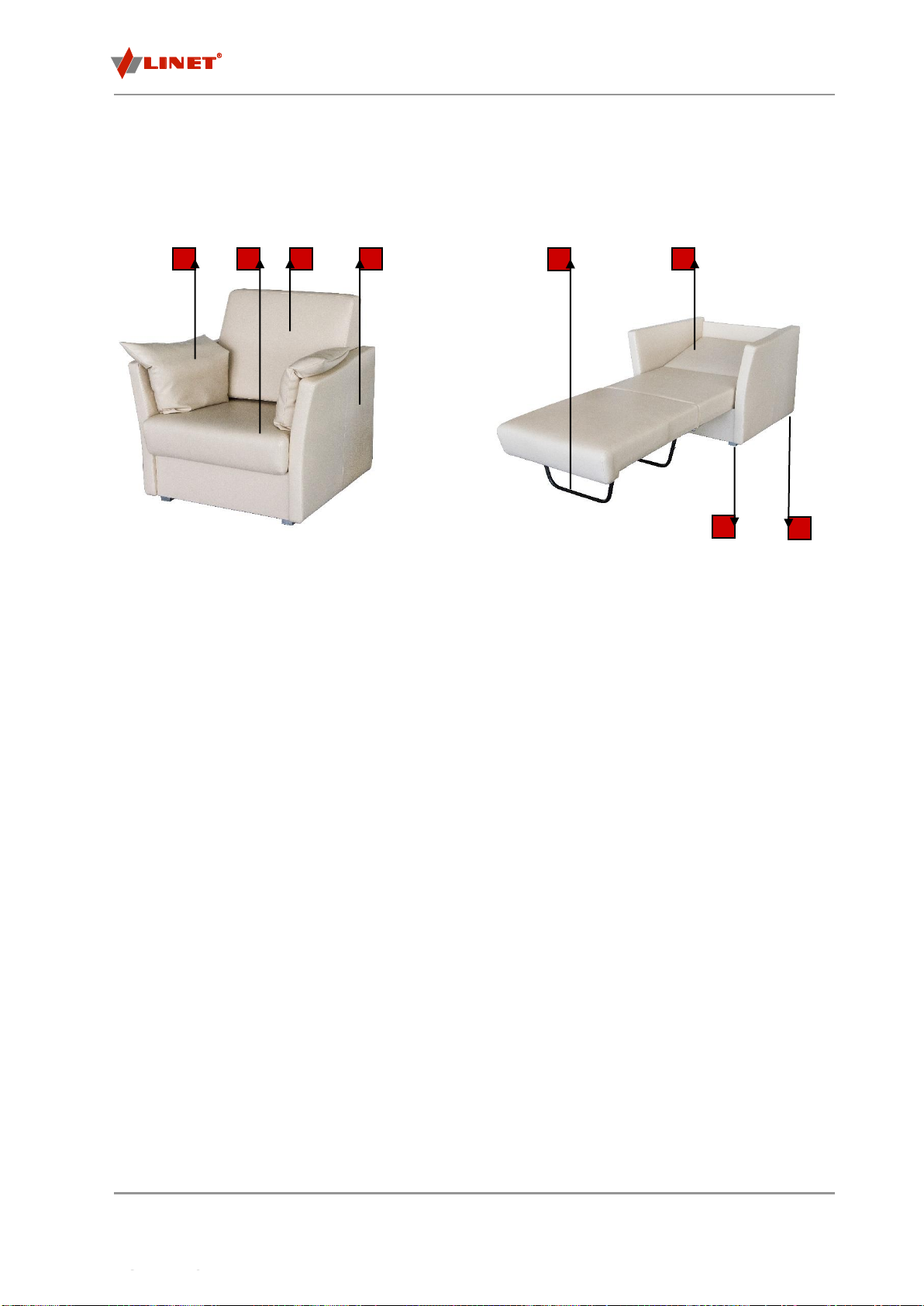

Fig. 1 - Schematic of BLUES chair
1. Cushion
2. Seat
3. Backrest
4. Armrest
5. Opening mechanism metal support
6. The backrest folds down as part of the sleeping platform
7. Metal feet
8. Wheels (or feet) for easier handling
NOTE: The cushion is not a part of the standard version of the chair.
1
2
3
4
6
5
7
8

BLUES User Manual
Date 6/16
Version 01
Status Status
6.2 BLUES COMFORT
Fig 2 - Schematic of BLUES COMFORT chair
1. Armrest
2. Upper part of seat
3. Lower part of seat –slide-out section
4. Varnished solid end board
5. Backrest
6. Caster wheels with brake
7 Chair installation
1. The chair is supplied pre-assembled. Check the delivery against the shipping note for completeness. Check to
see whether there has been evident damage to the chair during transport and record any problems on the
shipping note or submit it in writing to the manufacturer or seller.
2. Read the user manual carefully
3. Test the chair extension function.
Report any missing parts, faults, or damage immediately upon unloading to the shipper and then
the supplier!
1
2
3
5
4
6

BLUES User Manual
Date 6/16
Version 01
Status Status
8 Chair operation
For easier operation the chair has two wheels at the rear corners.
Proceed carefully and ensure that there is fabric or a carpet underneath when the chair is being
pushed across a floor, as damage to the floor surface may occur.
8.1 Extending and retracting the BLUES chair
1. Before extending, first remove the cushions and backrest from the chair
2. Grasp the front of the seat using one hand, using the other hand to grasp the loop at the rear. Pull it up and
forwards in an arc, and then down. In this way the metal supports below the seat will be extended and a flat
sleeping platform will be formed.
3. Raised headrest –insert the backrest from position "A" into position "B"
4. Horizontal headrest –pull the metal support "C" down. Insert the backrest from position "A" into position "B.
5. The cushions can be used beneath the head.
6. When retracting the chair, first put the cushions to one side and remove the backrest. If the backrest is in the
horizontal position, do not forget to return the metal support "C" to its original position.
7. Grasp the seat by the loop and the edge and lift it into the body of the chair. The metal supports will fold up by
themselves.
8. Put the backrest and cushions onto the chair.

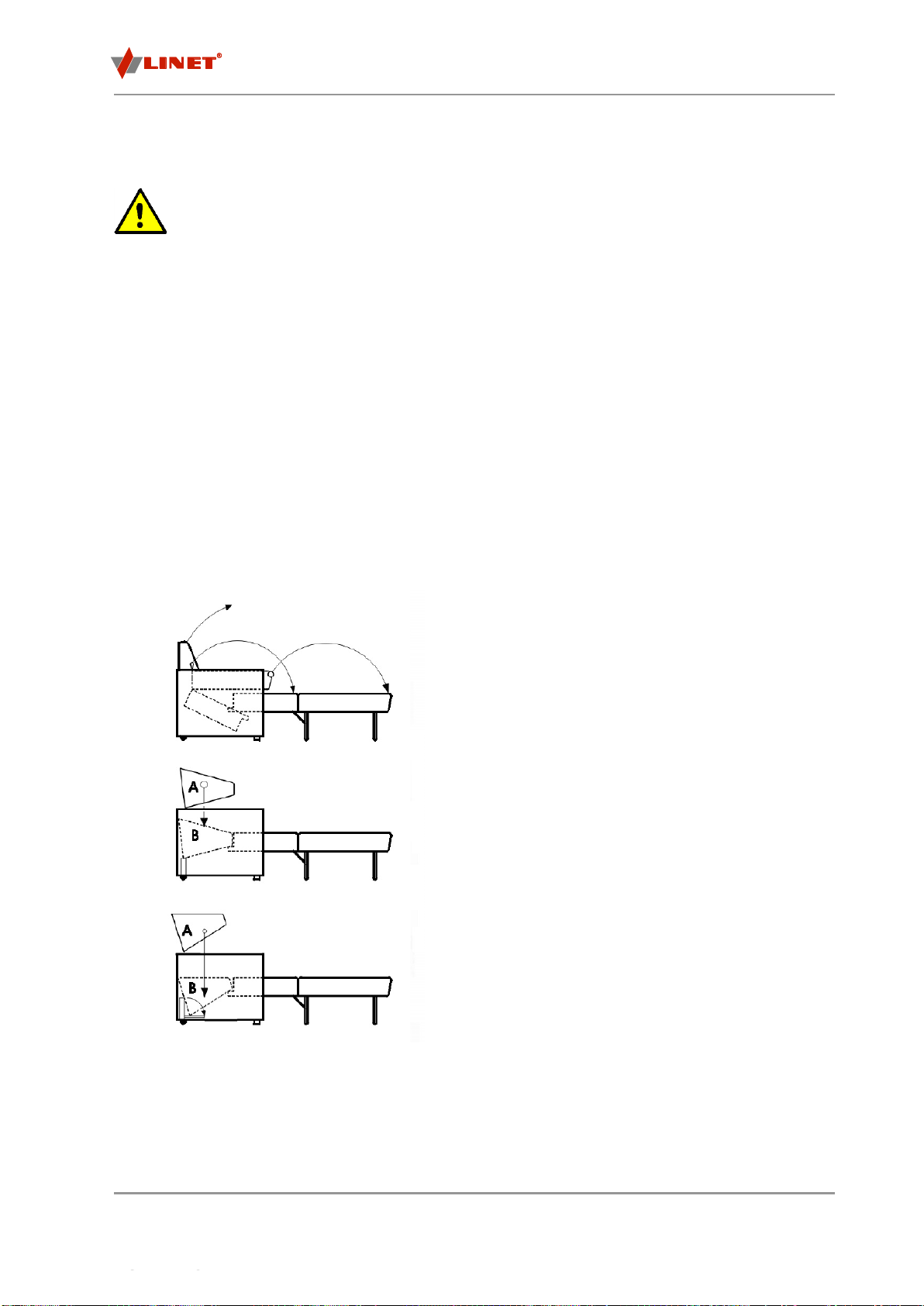

Fig 3 - Extending the BLUES chair
c
Raised headrest
Horizontal headrest

BLUES User Manual
Date 6/16
Version 01
Status Status
8.2 Extending and retracting the BLUES COMFORT chair
1. Before extending the chair, the brakes on the front wheels must be locked.
2. Using one hand, grasp the leatherette loop located at the front of the chair and pull it towards yourself as far as
possible. Pull the loop upwards and from the section below pull out the lower part of the bed to the level of the
other seat.
3. During this procedure, do not put your hands inside the seat structure. Only touch the fabric loop for pulling out
and sliding the seat.
4. When retracting, proceed in the reverse manner.
Fig 4 - Extending BLUES COMFORT chair
1920
7
8
0

BLUES User Manual
Date 6/16
Version 01
Status Status
9 Care instructions
Do not use cleaning materials that contain abrasive compounds. They will damage the surface
finish of the chair.
9.1 Cover materials
Cleaning methods may differ depending on the type of cover material selected. The cover cannot be removed.
9.1.1 Textile
Do not wash the cover, clean using an upholstery shampoo! Do not bleach! Do not iron! Do not dry clean (do not use
solvents, benzene, acetone, thinners etc.)! Do not put in a dryer! Do not scrub!
Beneath the textile is padding. Avoid excessive stress to the textile (rivets and or buckles on jeans, hard seams,
pets). A slight wrinkling of the textile does not constitute a fault and is caused by natural stretching of the cover and
compression of the upholstery materials after several months of use. Vacuum the upholstered parts using a vacuum
cleaner on a low or medium setting with the upholstery nozzle.
9.1.2 Leatherette
Leatherette can be cleaned using lukewarm water and soap designed for this purpose.
Do not wash the cover, clean using an upholstery shampoo! Do not bleach! Do not iron! Do not dry clean (do not use
solvents, benzene, acetone, thinners etc.)! Do not put in a dryer! Do not scrub!
10 Environmental protection
LINET, spol. s r.o. is aware of the need to protect the environment for future generations, and so it invests great
attention to development and innovation –design, production, and the use of environmentally friendly technologies
and materials.
This product was designed using environmentally friendly materials! It contains no dangerous substances based on
cadmium, mercury, asbestos, PCBs or CFCs! The product's noise level complies with requirements for public health
protection from the adverse impacts of noise and vibrations in protected internal spaces of buildings. The wooden
parts fitted to the product are not made of exotic timber such as mahogany, palisander, ebony, teak, grenadilla,
santos, or any which come from the Amazonian, African, or other rainforests.
All disposable packaging generated after the product is put into operation is marked in compliance with the valid
packaging regulations. After the product is put into operation, sort the packaging refuse generated according to the
specified symbols and take it to an authorised person for further use.
The product contains recyclable steel and plastic components –for optimum recycling, separate the individual parts
so that the raw materials from which the product is made can be reused at the end of the product’s life (see
DIAGRAM).

BLUES User Manual
Date 6/16
Version 01
Status Status
The product is not intended for disposal as part of household waste.
11 Guarantee and servicing
A 24-month guarantee is provided with the chair beginning on the day of delivery, unless the purchase contract
states otherwise! The manufacturer will conduct guarantee and post-guarantee servicing, or it may be performed by
an authorised servicing organisation on the basis of a certificate of competence for these activities. The
manufacturer issues the relevant certificate.
12 Contacts
LINET spol. s r.o.
Želevčice 5,
274 01 Slaný
Address your questions to:
Sales department: Tel.: [phone]
Servicing department: Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
http//www.linet.com
