LINET Combinea Parts list manual

9200-0673
Version: 01
Printdate: 03/2015
Combinea, Combinea Plus
Bedside cabinets
User manual and technical description

Product: Combinea, Combinea Plus
Version: 01
2/20
Manufacturer:
Linet spol. s r. o.
Želevčice 5
274 01 Slaný
Czech Republic
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
http://www.linet.cz
Combinea, Combinea Plus
Bedside cabinets
Author: LINET, s.r.o.
Related links: www.linet.cz
Version: 01
Print date: 03/2015
Copyright © LINET, s.r.o., 2015
Translation © LINET, 2015
All rights reserved. All trademarks and brands are the property of the appropriate owners. The manufacturer
reserves the right to changes in the contents of this manual that relate to the product´s technical regulations. It is
for this reason that the contents of this manual may indicate differences from the current manufacture of the
product.

Product: Combinea, Combinea Plus
Version: 01
3/20
Content
1Symbols .............................................................................................................................4
1.1Warning Notices..................................................................................................................................4
1.2Other symbols .....................................................................................................................................4
1.3Symbols and Labels on the Product ...................................................................................................5
1.4Safety Instructions...............................................................................................................................5
1.5Conditions of Use................................................................................................................................6
2Standards and Regulations..............................................................................................6
3Use ...................................................................................................................................6
3.1Correct Use .........................................................................................................................................6
4Scope of Delivery and Cabinet Variants .........................................................................7
4.1Scope of Delivery................................................................................................................................7
4.2Cabinet Variants..................................................................................................................................7
5Combinea Cabinet Description......................................................................................11
6Operation .........................................................................................................................12
6.1Drawers and Doors ...........................................................................................................................12
6.2Eating board......................................................................................................................................12
7Transport..........................................................................................................................13
9Cleaning and Disinfection ..............................................................................................14
10Troubleshooting..............................................................................................................15
11Storage.............................................................................................................................15
12Maintenance.....................................................................................................................15
13Disposal ...........................................................................................................................16
13.1Environmental Protection ............................................................................................................16
13.2Disposal .......................................................................................................................................16
14Warranty...........................................................................................................................17
15Technical Specification ..................................................................................................18
15.1Mechanical Specification .............................................................................................................18
16Log .................................................................................................................................19
16.1Delivery Log.................................................................................................................................19
16.2Service and Maintenance Log.....................................................................................................20

Product: Combinea, Combinea Plus
Version: 01
4/20
1 Symbols
1.1 Warning Notices
1.1.1 Types of Warning Notices
Warning notices are differentiated by the type of danger using the following key words:
Caution -risk of material damage.
Warning -risk of physical injury.
Danger - risk of fatal injury.
1.1.2 Structure of Warning Notices
1.2 Other symbols
1.2.1 Instructions
Structure of instructions:
Perform this step.
Result, if necessary.
1.2.2 Lists
Structure of bulleted lists:
 List level 1
 List level 2
Structure of numbered lists:
a. List level 1
b. List level 1
1. List level 2
2. List level 2
SIGNAL WORDS!
Type and source of danger!
Measures to avoid the danger.

Product: Combinea, Combinea Plus
Version: 01
5/20
1.3 Symbols and Labels on the Product
Read user manual
Attention
Serial label
1.4 Safety Instructions
The user manual must be read in detail before the cabinet is used, and be handled and operated in
accordance thereto. Not following instructions in user manual are made on user’s own risk and
manufacturer will take no responsibility for any damage to the product or the patient. It is necessary to
keep user manual near the cabinet for whole service life of the product.
Combinea cabinets are designed for independent operation by patient. Ensure the patient (health
permitting) has been informed about the operation of the cabinet and all applicable safety instructions.
Selection of the patient which will be allowed to operate the cabinet depends on his health and mental
status which must be assessed by the qualified personnel.
The cabinets are not designed for user with decreased skill of common sense or with psychological
disorders. The cabinet can be operated by patient with preserved mobility and sensibility in at least one
hand.
Using the cabinet with incorrect users may lead to the injury of the patient (e.g. burning with hot food of
fluids) or damaging the cabinet or the interior (bed, furniture or devices),
Bedside cabinets Combinea may be operated by hospitalized persons or with help of qualified personnel.
Basic training how to operate the cabinet is done by manufacturer, distributor or qualified person. Training
is confirmed by protocol.
Ensure the cabinet is only moved or positioned upon flat, hard floor surfaces.
Eating board or drawers cannot be overloaded.
It is forbidden to use popped out eating board for leaning or helping the patient to stand up.
Take extra caution when operating the eating board or the drawers to avoid injury of the patient or the
personnel by pinching the fingers.
Do not use the cabinet if you found damage on the cabinet which could lead to injuring the patient,
personnel or third person, cabinet or room interior.
The personnel must instruct the patients how to operate the cabinet.
Ensure before each use the cabinet is in best working condition.
Replace any damaged parts immediately with original spare parts.
Ensure maintenance and installations are performed only by qualified personnel who have been trained by
the manufacturer.
Follow the maintenance and cleaning instructions carefully. Using washing machines for cleaning the
cabinet will lead to its damaging.

Product: Combinea, Combinea Plus
Version: 01
6/20
1.5 Conditions of Use
The cabinet may be used and stored in indoor environments where:
The surrounding temperature is between + 10 °C and + 40 °C
The relative humidity is between 30% and 75%
The atmospheric pressure is between 795 hPa and 1060 hPa
2 Standards and Regulations
The manufacturer adheres to a certified quality management system in compliance with the following
standards:
 ISO 9001:2008
 ISO 14001:2004
 EN ISO 13485:2003
3 Use
3.1 Correct Use
The cabinets are designed for using in standard and specialized hospital wards, even for bed-ridden patients in
social, senior or home care. Cabinets are appropriate for using with many types of electrically operated beds.
NOTE For information concerning uses other than those outlined in the “Correct Use” section above, please
contact LINET®.
LINET®’s efforts in research, design and manufacture ensure LINET® products are of the highest quality and fit
for their intended purpose. However, LINET® can take no responsibility for any damage to the products or any
harm to patients, staff or other individuals resulting from:
Not following the instructions in the manual, including warning notices.
Using the product for a purpose other than the intended purpose stated in the relevant documentation
provided by LINET® (see Correct Use).
WARNING!
Risk of injury or damaging the cabinet due to use in incorrect conditions!
Always use cabinet in accordance with conditions of use.
The manufacturer will take no responsibility for damage on the cabinet due to violation of conditions of use.
WARNING!
Risk of injury when using other accessories than recommended by manufacturer!
Only use accessories recommended by manufacturer.
The manufacturer assumes no responsibility for the use of accessories not approved by the manufacturer.

Product: Combinea, Combinea Plus
Version: 01
7/20
4 Scope of Delivery and Cabinet Variants
4.1 Scope of Delivery
Delivery:
The cabinets are standardly delivered completely assembled and packed in protective PE foil in carton
box.
4.2 Cabinet Variants

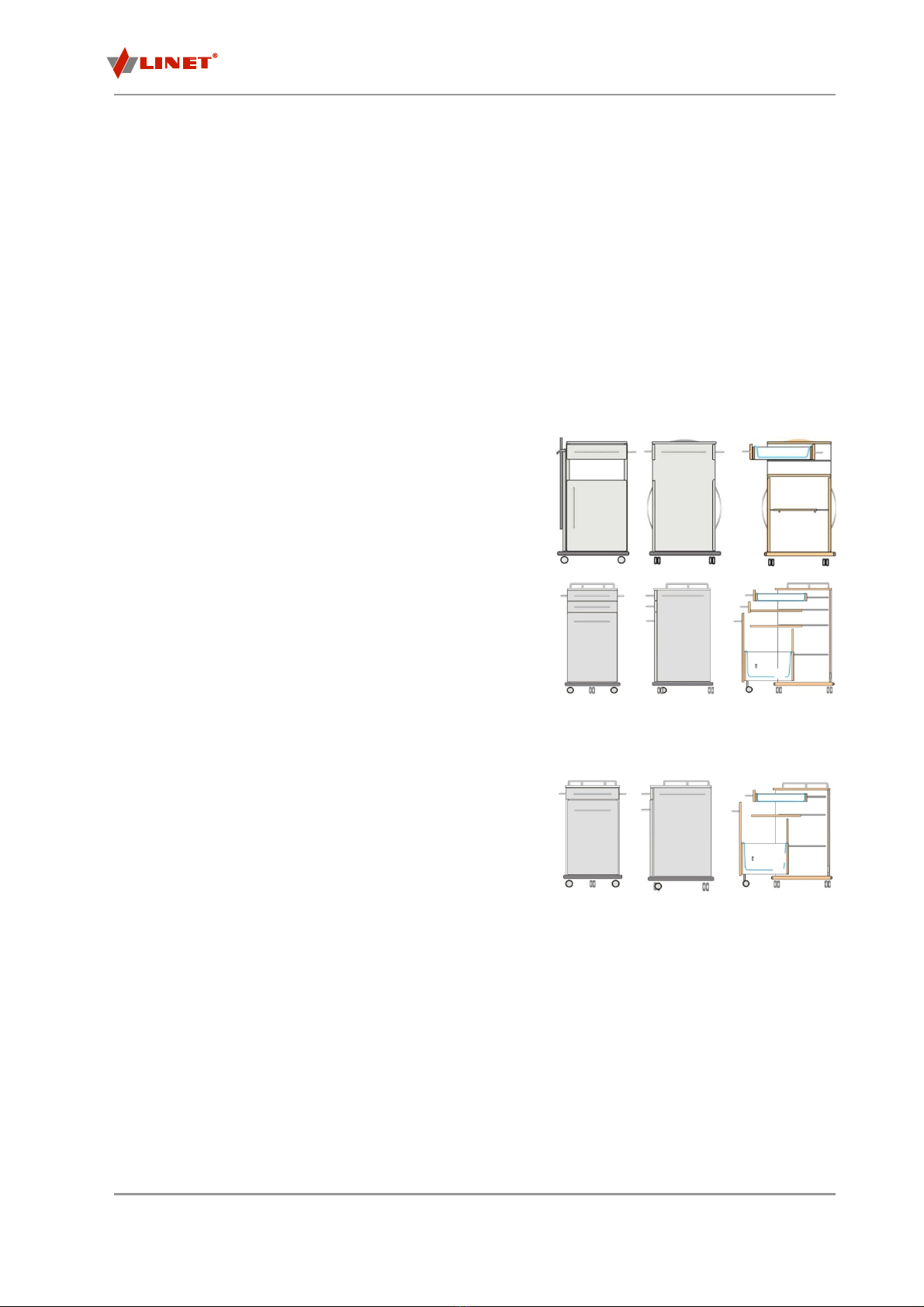

Variants of the Combinea cabinets with model number 4RA (for model number see product label)
4RA55121211E3
High cabinet, both-sided
Upper drawer (accessible from both sides)
Opened storage area (nika)
Doors on both sides (opening angle: 100°)
Eating board
Dimensions: 49 x 51 x 92 cm
4RA10011011D3
High cabinet, single sided
Metal gallery
Upper drawer
Middle drawer
Big bottom drawer
Removable shelf
Bottle holder
Fifth castor
Dimensions: 48 x 50 x 92 cm
4RA2001011D3
Low cabinet, single sided
Metal gallery
Upper drawer
Big bottom drawer
Removable shelf
Bottle holder
Fifth castor
Dimensions: 48 x 50 x 82 cm

Product: Combinea, Combinea Plus
Version: 01
8/20
4RA12111011D3
High cabinet, single sided
Metal gallery
Upper drawer
Middle drawer
Two-part doors
Removable shelf
Dimensions: 48 x 50 x 92 cm
4RA22101011D3
Low cabinet, single sided
Metal gallery
Upper drawer
Two-part doors
Removable shelf
Dimensions: 48 x 50 x 82 cm
4RA1L111011D3
High cabinet, single sided
Metal gallery
Upper drawer
Middle drawer
Doors (opening angle: 100°, attached on left side)
Removable shelf
Dimensions: 48 x 50 x 92 cm
4RA2L101011D3
Low cabinet, single sided
Metal gallery
Upper drawer
Doors (opening angle: 100°, attached on left side)
Removable shelf
Dimensions: 48 x 50 x 82 cm
4RA6F011011D3
High cabinet, single sided with fridge
Metal gallery
Upper drawer
Middle drawer
Fridge – Dometic DS400
Removable shelf
Dimensions: 54 x 54 x 94 cm

Product: Combinea, Combinea Plus
Version: 01
9/20
Variants of the Combinea Plus cabinets with model number 4RA (for model number see product label)
4RA55121111B1
High cabinet, both-sided
Plastic, pressed top
Upper drawer (accessible from both sides)
Opened storage area (nika)
Doors on both sides (opening angle: 100°)
Eating board
Dimensions: 49 x 51 x 92 cm
4RA10011111B1
High cabinet, single sided
Plastic, pressed top
Upper drawer
Middle drawer
Big bottom drawer
Removable shelf
Bottle holder
Fifth castor
Dimensions: 48 x 50 x 92 cm
4RA20001111B1
Low cabinet, single sided
Plastic, pressed top
Upper drawer
Big bottom drawer
Removable shelf
Bottle holder
Fifth castor
Dimensions: 48 x 50 x 82 cm
4RA12211111B1
High cabinet, single sided
Plastic, pressed top
Upper drawer
Middle drawer
Two –part doors (opening angle: 175°)
Removable shelf
Dimensions: 48 x 50 x 92 cm
4RA22101011D3
Low cabinet, single sided
Plastic, pressed top
Upper drawer
Two-part doors
Removable shelf
Dimensions: 48 x 50 x 82 cm
4RA1L211111B1
High cabinet, single sided
Plastic, pressed top
Upper drawer
Middle drawer
Doors (opening angle: 175°, attached on left side)
Removable shelf
Dimensions: 48 x 50 x 92 cm

Product: Combinea, Combinea Plus
Version: 01
10/20
4RA2L201111B1
Low cabinet, single sided
Plastic, pressed top
Upper drawer
Doors (opening angle: 175°, attached on left side)
Removable shelf
Dimensions: 48 x 50 x 82 cm
4RA6F011011D1
High cabinet, single sided with fridge
Metal gallery
Upper drawer
Middle drawer
Fridge – Dometic DS400
Removable shelf
Dimensions: 53 x 54 x 94 cm
Castors
Double castors Ø 50mm

Product: Combinea, Combinea Plus
Version: 01
11/20
5 Combinea & Combinea Plus Cabinet Description

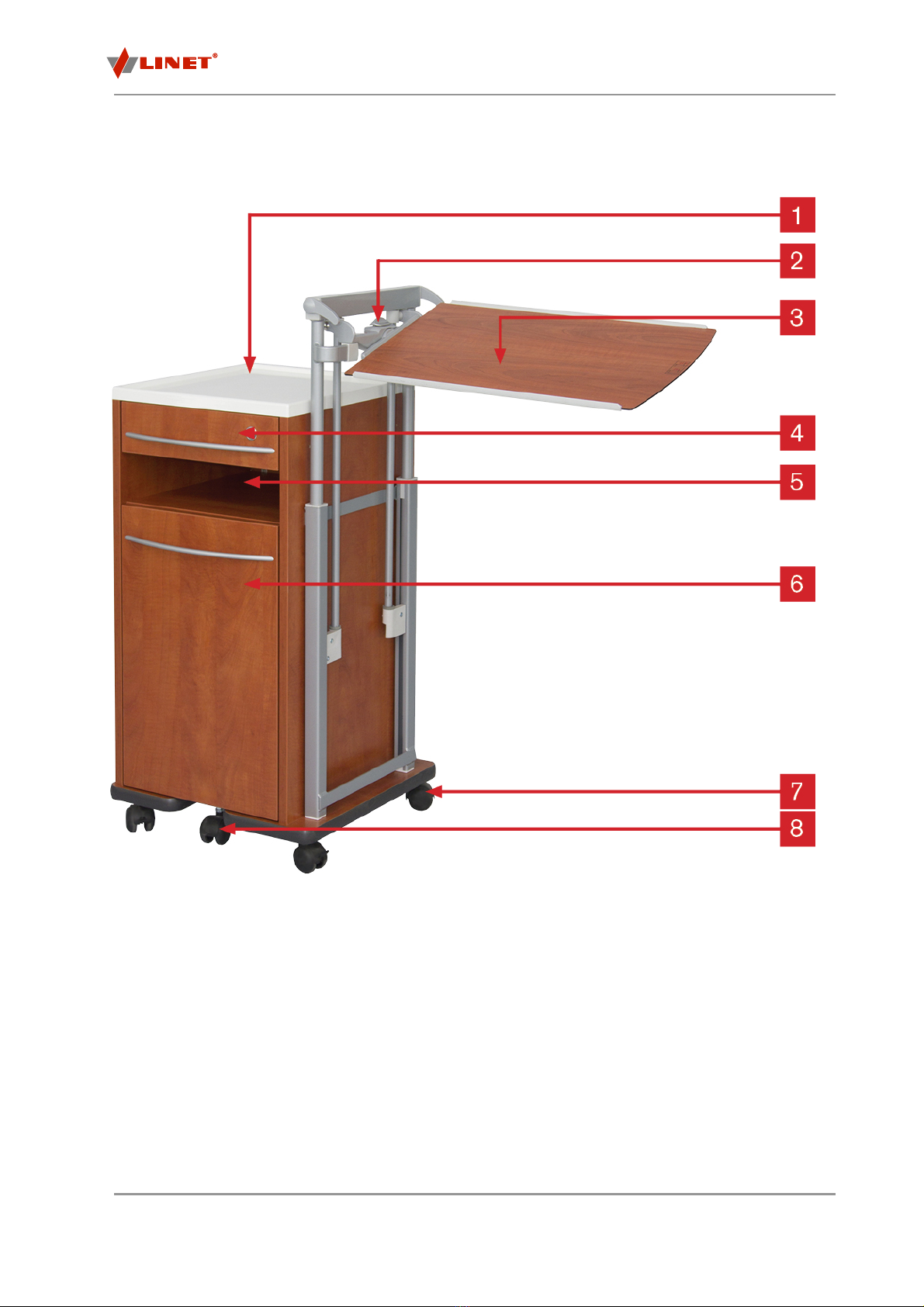

Fig. 1 Combinea with eating board
1. Plastic pressed top
2. Height adjustment of the eating board mechanism
3. Eating board
4. Upper drawer
5. Opened storage area (nika)
6. Bottom drawer
7. Castor 50mm with individual brake
8. Fifth castor

Product: Combinea, Combinea Plus
Version: 01
12/20
6 Operation
6.1 Drawers and Doors
Combinea cabinets are equipped with different number of drawers depending on the model. Upper drawer is
designed for storage of common daily usage things (glasses, phone, wallet etc.) and its maximum load is 5 kg.
Upper drawer may be equipped with lock upon customer’s request.
Bottom drawer is bigger with maximum load of 10 kg and it is designed for storing clothes and other bigger things.
6.2 Eating board
The eating board can be pulled out and then adjusted in height and tilted. If the desk is not used, it should be
rather located in basic position, i.e. closed inside a body of the side table; in such position it does not restrain
activities around.

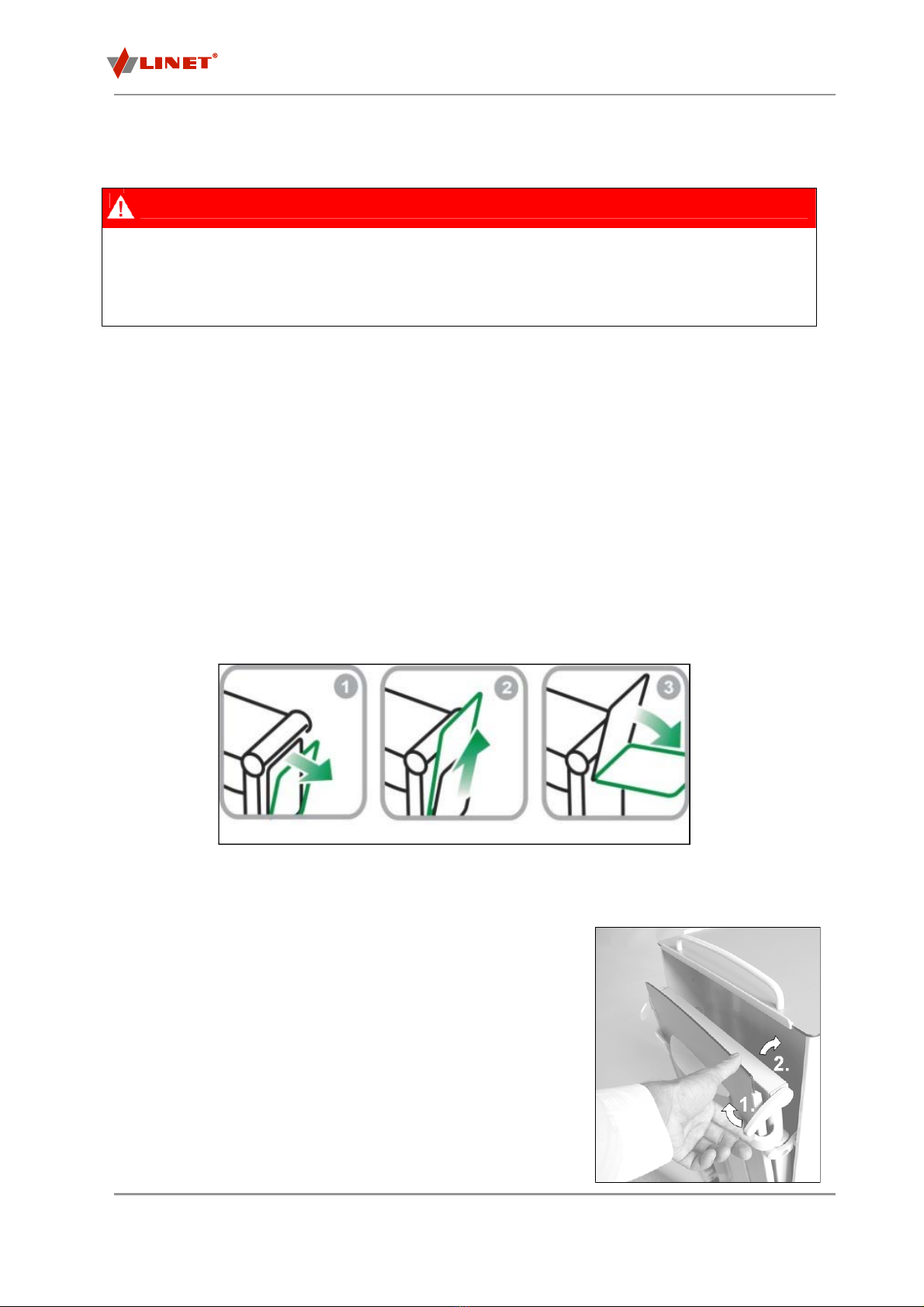

6.2.1 Eating Board Operating
.
Eating board pulling out:
Pulling the handle in arrow direction (1) tilt the desk out of a table body.
Pulling the handle up you shall reach position designated for desk swinging down (2).
Swing the desk down to horizontal position (3).
Eating board pulling back:
To set the desk to an original position (desk is integrated in a side table
body), use the same procedure in reverse order. For reverse sliding of
mechanism and desk to the table it is necessary to release the lock lever in
a direction of arrow 1in the picture.
WARNING!
Risk of pinching or injury when operating drawers!
The drawer must be held only by its handle to avoid pinching hand or fingers of user when closing the
drawer.
It is necessary to brake the castors before operating the drawers.

Product: Combinea, Combinea Plus
Version: 01
13/20
The desk height adjustment and tilting:
After pulling the desk out of the table body and setting it to the
horizontal position it can be also adjusted in height. After taking
up the lever of the lock in arrow 1direction the desk is released
and it can be set to required position pulling it up. After setting
required position the desk can be tilted to required angle. The
lock should be released in arrow 2direction. The desultory
arrow shows desk tilting.
7 Transport
Prior to table moving the castors should be unbraked. While moving the cabinet hold the metal handles at the
upper desk or at the plastic pressed top of the upper desk (depending on the model). For movement is better to
set eating board into the basic position inside the table body.

Product: Combinea, Combinea Plus
Version: 01
14/20
9 Cleaning and Disinfection
The whole side table can be cleaned and disinfected by usual detergent and disinfectants in concentration set for
medical care. Other available detergents can be recommended:
Recommended disinfectants tried and tested at the manufacturer:
Detergent Manufacturer
Mikrozid, Terralin Protect, Thermosept Schülke & Mayr
Bacillol AF, Bacillol Rasant, Dismozon Pur, Microbac
Forte, Neodisher Dekonta BODE Chemie
Lysoformin 3000, Lysoform Spezial LYSOFORM
Incidin plus, Incidin rapid Ecolab
Perform, TPH protect, Schülke
For safe and gentle cleaning:
Cleaning and disinfections should be done with cloth wet by detergent solution.
Avoid use of highly acid or alkaline substances (the pH value should not exceed limits 6 to 8)
Do not use abrasive cleaning detergents as cleaning sand or steel wool.
Avoid use of corrosive or caustic substances
Do not use detergents forming lime
Do not use chemicals changing structure and adhesion of plastics
(solventsasacetone,toluene,
gasoline)
WARNING!
Risk of damaging the cabinet due to use of incorrect cleaning detergents or cleaning processes!
The cabinets are not designed for machine washing.
We cannot be liable for any damage or hazards that may arise when using inappropriate detergents or
disinfectants, not observing the manufacturer’s regulations regarding dosage and a combination of other
agents or bad care of the cabinet. The person authorised by the healthcare provider is responsible for
selecting and applying the appropriate disinfection.
Do not use abrasives (scouring powder), scourers and other materials and agents which could damage the
coating.
Do not use corrosive, caustic agents and strong acids.
Do not use agents that could alter the structure and behaviour of the plastics (petrol, toluene, acetone, etc.).
Clean by wiping with a damp properly wrung cloth.
The cabinets are not designed for maintenance in automatic washers.
The cabinets are not designed for wet blast cleaning, spraying, showering or even steam cleaning.

Product: Combinea, Combinea Plus
Version: 01
15/20
10 Troubleshooting
Fault Probable cause Troubleshooting
The upper drawer cannot be fully
pushed in The drawer was locked extended Unlock the drawer
Upper or lower drawer cannot be
moved in or out
The drawer is blocked by some
object Remove the object
Castor central braking does not
operate Mechanic mechanism fault Call service
Central braking operates too stiff The mechanism is improperly set Service necessary – setting up
Height adjustment or tilting does
not operate
Mechanic fault of over-bed table
mechanism Service necessary
The mechanism of overbed table
doesn´t hold in upper position
The mechanism of over-bed table
is improperly set Service necessary – setting up
11 Storage
For trouble free storage is recommended to pack or cover the cabinet to eliminate surface and plastic parts
scratching. The same conditions as set for working environment should be respected for storage.
12 Maintenance
Due to daily use, cleaning and disinfections some parts are mechanically and chemically strained and therefore at
least once in three months it is necessary to check and treat with silicon oil following table parts:
Eating board mechanism with friction of individual parts (pin for tilting, vertical tubes of lifting)
Castors bearing
Conducting laths of drawers
Ensure maintenance is performed by a LINET®service engineer service or trained hospital technicians only.
Service documentation and electrical schemes are available for qualified service organisation trained by Linet.
Ensure the following maintenance work is performed every 24 months by the manufacturer or by a
qualified service organisation trained and certified by the manufacturer.
The manufacturer will provide the service organisation with service training certification to confirm the
organisation is qualified to carry out maintenance on LINET®products.
Do not use the cabinet if any malfunction or defect occurs. In this case contact the manufacturer or service
organisation immediately.

Product: Combinea, Combinea Plus
Version: 01
16/20
13 Disposal
13.1 Environmental Protection
LINET
®
is aware of the important role that the protection of our environment plays for future generations.
The materials of this product are environmentally compatible. It does not contain hazardous substances on the
basis of cadmium, mercury, asbestos, PCB or CFC. Noise emissions and vibrations meet the directives for
healthcare facilities. LINET
®
has taken care to ensure all wood used in the production of its bed systems is
responsibly source (Mahagony, Jacaranda, Ebony, Teak or wood from Amazonian / rainforests are not used.
Packaging materials are produced according to the respective directives. Please ensure packaging materials are
disposed of according to the symbols displayed and taken to an authorized disposal location.
The product consists of recyclable steel and plastic components.
13.2 Disposal
13.2.1 Within Europe
To dispose of the appliance:
When you dispose of your appliance do not put it into household waste.
Appliances should be taken to an authorized electrical appliance recycling location.
Materials of the appliance may be reused. When recycling or reusing old appliances you are making an important
contribution in the protection of the environment.
Ask the responsible environmental protection authorities for the appropriate disposal point.
13.2.2 Outside Europe
Dispose of the cabinet or its components in accordance with local laws and regulations:
After using the cabinet
Following maintenance and installation work
Hire an approved waste disposal company for disposal.

Product: Combinea, Combinea Plus
Version: 01
17/20
14 Warranty
LINET® will only be held responsible for the safety and reliability of products that are regularly serviced and used
in accordance with the safety guidelines.
Should a serious defect arise that cannot be repaired during maintenance:
Do not continue to use the cabinet.
This product is covered by a 24-month warranty from the date of purchase. The warranty covers all material and
manufacturing-related failures and errors. Failures and errors caused by incorrect use and external effects are not
covered. Justified complaints will be fixed free of charge during the warranty period. Proof of purchase, with the
date of purchase, is required for all warranty service. Our standard terms and conditions apply.

Product: Combinea, Combinea Plus
Version: 01
18/20
15 Technical Specification
15.1 Mechanical Specification
Dimensions (L x W x H)*
* depending on model
48 x 50 x 92 cm
Weight (depending on model) 30 kg
Maximum load of top drawer 5 kg
Maximum load of bottom drawer 10 kg
Environmental Conditions
Temperature
Humidity
Atmospheric Pressure
+15 °C — +40 °C
30 — 75 %
795 — 1060 hPa

Product: Combinea, Combinea Plus
Version: 01
19/20
16 Log
16.1 Delivery Log
Order number:
Customer:
Model number:
Serial number:
Delivery date:
Delivered by:
I hereby confirm personnel have been trained to correctly operate the cabinet.
Date:
Customer‘s Signature and Seal:
Supplier’s Signature and Seal:

Product: Combinea, Combinea Plus
Version: 01
20/20
16.2 Service and Maintenance Log
Description of Service Date Performed By
