MADE IN THE USA
LINK ELECTRONICS, INC.
16x16 HD/SDI Router with Stereo Audio Follow
Model 862-XL1616HD/3
HD/SDI , With Analog Audio Follow
Local or Remote Control Panel
AFV, breakaway, or X-Y Control
Maximum of 256 Remote Panels
RS-232 Serial Control, Standard
The 800 Series Routing Switchers are wide
bandwidth vertical interval switchers designed for
professional video production facilities. The
compact design of Link’s routing switchers makes
them an essential part of any facility.
Packaged in a 19” rack mountable chassis, the
switchers are supplied with a single front-loaded
power supply. An optional redundant power supply
is available. High quality front panel push buttons
are used for selection of inputs and outputs.
Remote control panels are interconnected with
standard Ethernet 10Base2 single coax
connections. RS-232 is provided through a
standard D-sub connector. Panels can be set to
control a single output bus or the entire matrix.
The 863-XL1616HD/SDI is a high definition video
router that also accepts SDI with stereo audio
follow.
The Link Switcher’s flexibility is unmatched in the
industry. Modular construction offers unique
flexibility to the user, and provides an easy means
of adding additional features or upgrading to digital
modules. Power supplies are accessible from the
front of the unit and may be easily installed or
removed. Analog switchers can easily be upgraded
to digital by adding field installable modules.
Industry standard BNC connectors are used for
video inputs and removable 3-Pin connectors are
used for stereo audio inputs and outputs.
Routers are available for analog video only, analog
video with stereo audio follow, digital video only,
and digital video with two-stream AES/EBU audio
follow. (Note: the 32 x 32 switcher is available with
SDI and HD/SDI switching.) The router is
supplied with the local control panel with audio
break-away.
The Link 862-XL1616HD/SDI routing system features:
PModular Design – plug-in modules for video & audio. No active components on the frame.
PTwo power supply slots are accessible from the front panel. One power supply is standard.
PA redundant power supply is available as an option.
PDetachable X-Y front panel control with Ethernet 10Base2 coax connection.
PAnalog Stereo Audio Follow unit, 1RU
PRS-232 control standard.
PThe 16X16 Video switcher is in a 1 RU
Remote Mounting Kits for Control Panels
The supplied control panel for all switchers is shipped installed into the front of the main electronics chassis.
The control panel can be removed from the electronics chassis in the field and installed into a remote
mounting kit. The mounting kit hardware includes rack-mounting hardware for the control panel, a blank
panel(s) that is installed onto the front of the electronics chassis, and a power supply. Order the appropriate
rack mounting kit from the list below:
862-XL1616HD/1 16 x16 HD/SDI High Definition Video Only Routing Switcher with Control Panel One Rack
862-XL1616HD/3 16 x16 HD/SDI Video Routing Switcher with Stereo Audio Follow Video/ CP One Rack
862-XL1616HD/2 16 x16 HD/SDI Video Routing Switcher with AES Audio-follow with Control Panel One Rack
LINK ELECTRONICS, INC. g2137 Rust Avenue gCape Girardeau, MO 63703-7668
Phone [phone] gFAX 573 334 9255
800 SERIES

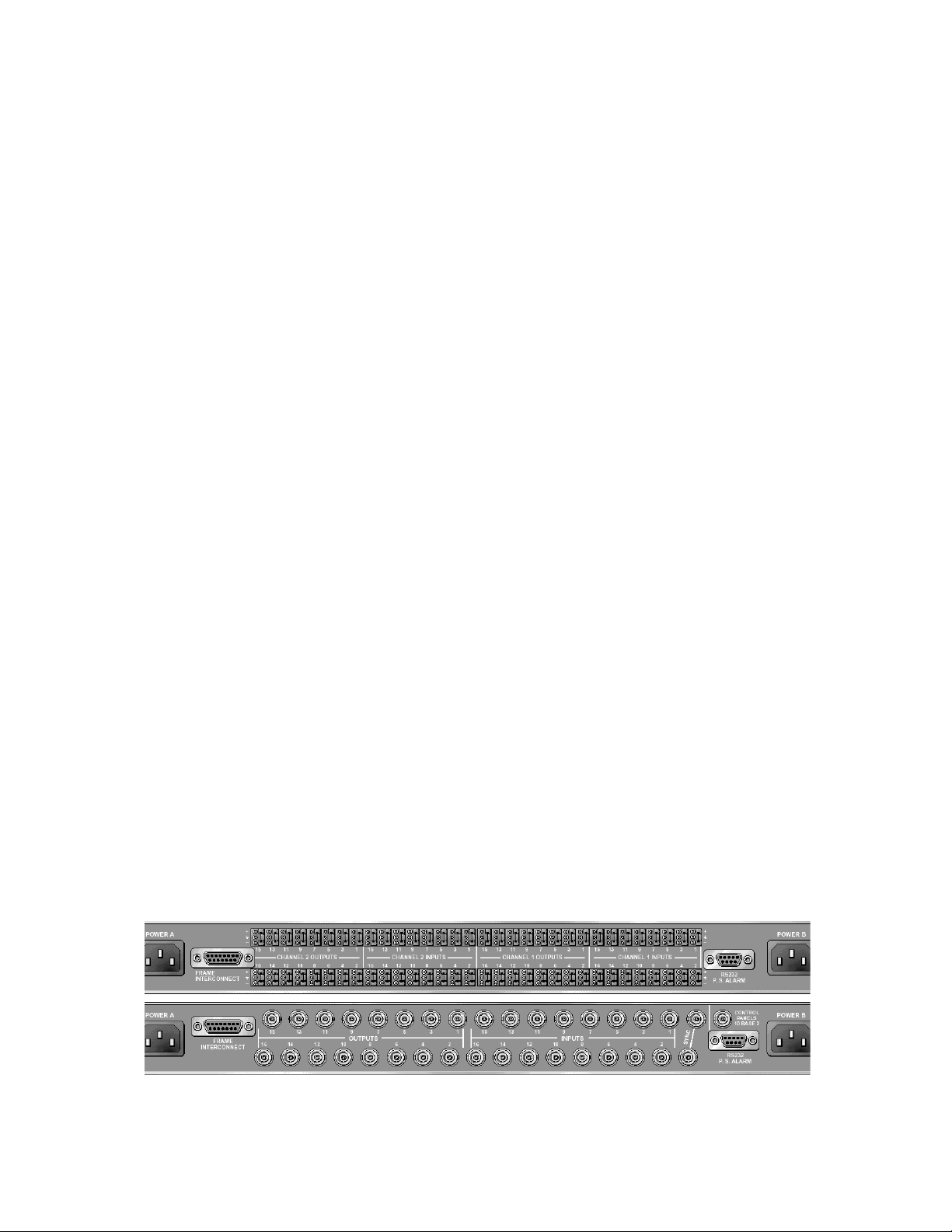

TOP VIEW IS AUDIO FOLLOW & BOTTOM VIEW IS REAR OF VIDEO ROUTER
16X16AAF Routing Switcher with Audio Follow
MODEL 862-XL1616HD/3
HD/SDI VIDEO INPUT:
DataRate: ...................................... 270,Mbps 360Mbps, 540Mbps, 1.4835 Gbps
DataType:............................. SMPTE259M, SMPTE 292M, SMPTE 344M, DVB-ASI
Input Cable Equalization: ........ Automaticupto300 meters@270 Mbps, 100 meters @ 1.485Gbps
Number Inputs: ................................................................... 16
Video Level: ................................................................. 800 mV
Impedance: .............................................................. 75
SLooping
Coupling: ........................................................................DC
Connector: ..................................................................... BNC
ReturnLoss: ...................................................... >15dB@1.485Gbps
ANALOG STEREO AUDIO INPUT:
Connector Type: ................................................. Weco,3-PinDisconnect
Impedance: ....................................................................20K
S
Level:.............................................................. +26dBu, maximum
CMRR: ............................................................... 60dB @ 1 KHz
HD/SDI VIDEO OUTPUTS:
Number: ........................................................................ 16
Connector: ..................................................................... BNC
Level:.............................................................. UnityGain,±0.1dB
Character Video: .......................................................... 90IREUnits
ReturnLoss: ....................................................... >15dB @1.485Gbps
Impedance: ................................................................. 75S±1%
VerticalIntervalSwitching: ................................................. Line6,NTSC
DifferentialGain: .................................................0.10%,10%to90%APL
DifferentialPhase:................................................ 0.10°,10%to90%APL
Crosstalk: .....................................................................62dB
Propagation Delay: ........................................................ 5nS,typical
Hum and Noise: ......................................................... >60dB to 5 Hz
DC Offset: ....................................................................<25mV
LineRateTilt: ................................................................. <0.1%
FieldRateTilt: ................................................................. <0.1%
SNR: ........................................................................ -73dB
ANALOG AUDIO OUTPUTS:
Signal Type: ................................................................ Balanced
Connector Type: ................................................. Weco,3-PinDisconnect
Impedance: .................................................................... >30
S
Level:............................................................... 26dBu, maximum
Frequence Response:: .......................................... ±0.1dBto20kHz,ref1kHz
Crosstalk: ............................................................ 90dB @ 10 KHz
DC Offset: ....................................................................<50mV
SNR: .......................................................... <100dB, 20Hz to 20KHz
IM/THD:..................................................................... <0.02%
ENVIRONMENTAL:
Temperature:........................................................0°to50°Cambient
Humidity: ..................................................... 10%/90%non-condensing
Power: ......................................................................9.5VAR
AC Voltage: ................................................. 120/240 VAC±10%, 50/60Hz
MECHANICAL:
Height:................................................................... 1.75inches
Width: .....................................................................19inches
Depth: ................................................................... 9.25inches
Weight: ........................................................................ 9lbs
