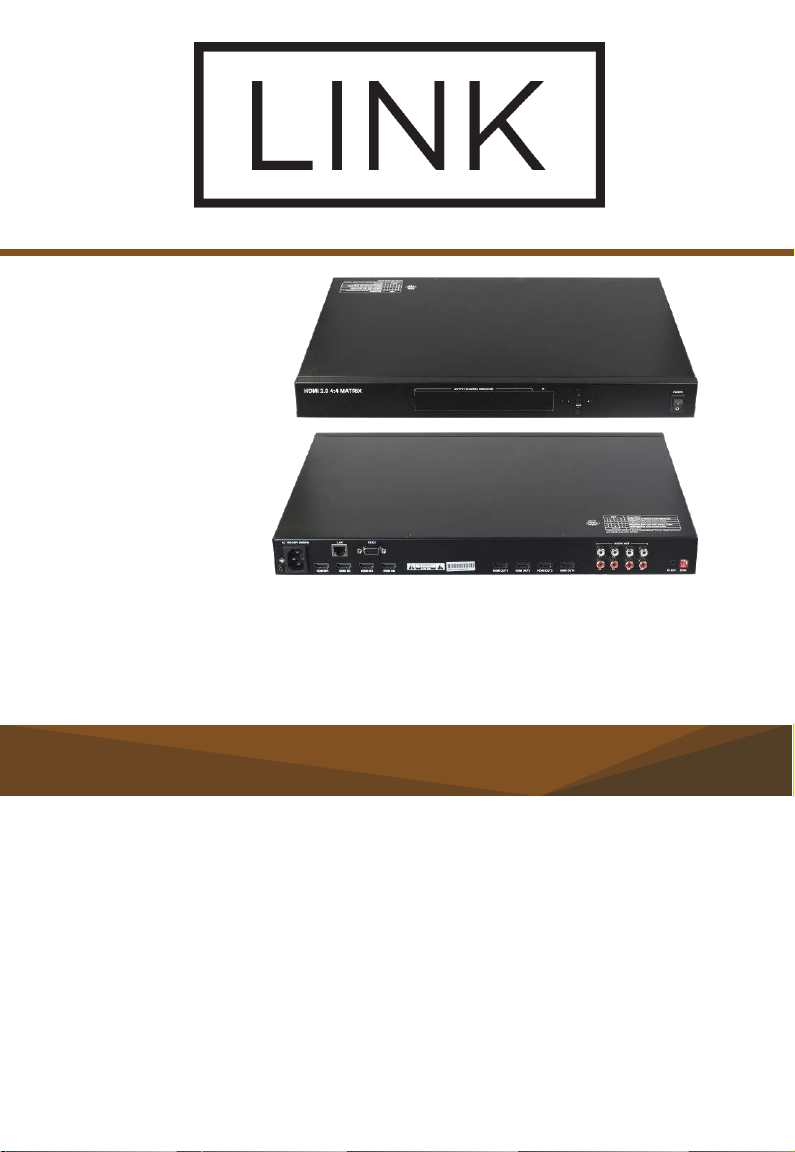

Link MX44-4KUHDE User manual

MX44-4KUHDE

HDMI 2.0 4:4 Matrix
User Manual
Version: V1.0.0

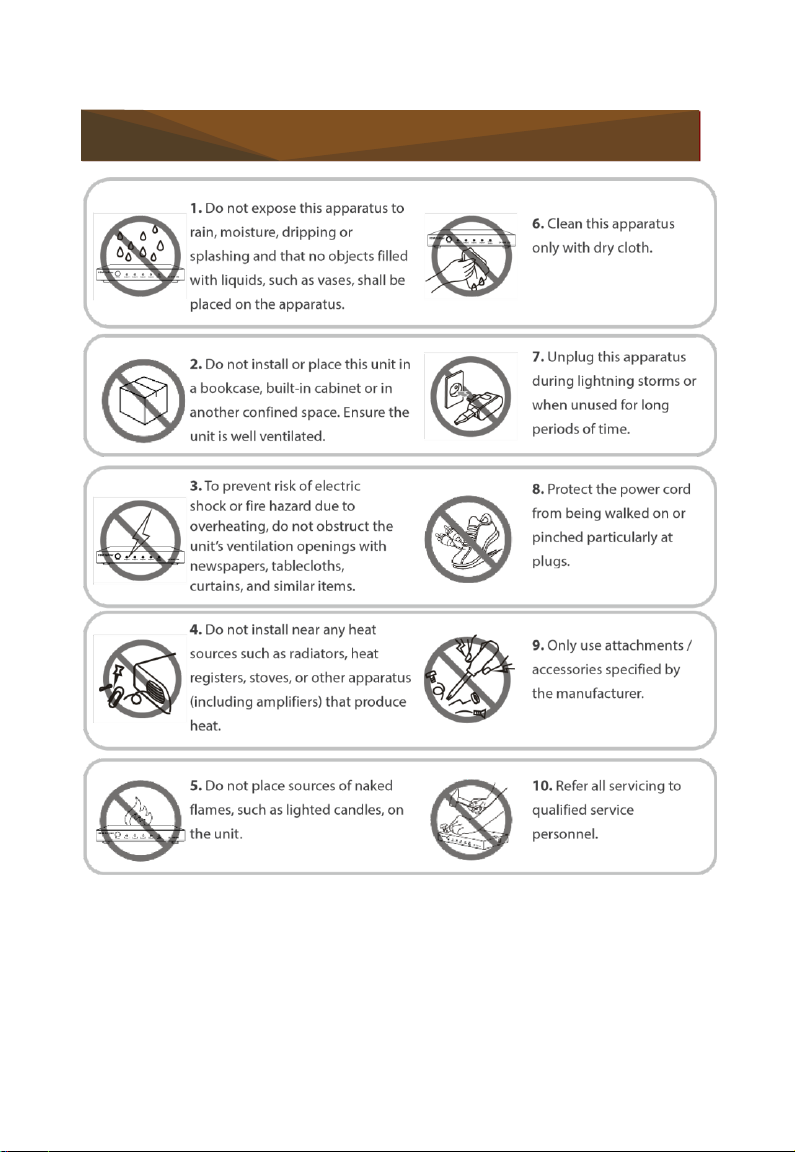

Important Safety Instructions

Warnings of FCC
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Table of Contents
Introduction ...................................................................................................... 2
Features ................................................................................................... 3
Package Contents .................................................................................... 3
Specifications ................................................................................................... 4
Panel Description ............................................................................................. 6
Installation and Wiring...................................................................................... 8
Installation ................................................................................................ 8
Wiring ....................................................................................................... 8
Front Panel Control ........................................................................................ 11
IR Remote Control ......................................................................................... 12

EDID Management ........................................................................................ 13
API Command Control ................................................................................... 15
Telnet Control .................................................................................. 15
RS232 Serial Control ....................................................................... 17
Web UI Control .............................................................................................. 18
Access the Web Interface ....................................................................... 18
Matrix Control ......................................................................................... 19
General Setting ....................................................................................... 20
Advanced Setting ................................................................................... 26
Warranty Terms and Conditions ..................................................................... 30

Introduction
MX44-4KUHDE is a 4x4 HDMI Matrix with resolutions supported up to
4K@60Hz 4:4:4 8bit and HDCP 2.2 compatibility. It allows four sources to be
distributed or switched to four HDMI displays simultaneously. MX44-4KUHDE
also provides de-embedded analog audio output from each HDMI output.
MX44-4KUHDE Matrix can be controlled by front panel buttons, IR, RS232
and LAN control with Telnet API and Web UI. Independent DIP switches are
also provided for advanced EDID management.
Designed for 1U rack mount and stand-alone installation, this matrix offers an
Ultra HD A/V switching and distribution solution ideal for a variety of
applications, such as offices, schools, conference rooms, hotels, etc.

Features
Includes 4 HDMI inputs and 4 HDMI outputs
Inputs and outputs support video resolutions up to 4K@60Hz 4:4:4 8bit
and HDCP 2.2
Supports 4K HDR
Fast switching among multiple video sources
Supports L/R analog audio de-embedding outputs from each HDMI
output
Supports front panel buttons, IR, RS232 and LAN (Telnet API &Web UI)
control options
Supports API command control through RS232 and Telnet connection 
Independent DIP switches for manual EDID management
Package Contents
MX44-4KUHDE Matrix x 1
IR Remote Handset x 1
USB to UART Cable x 1
AC Power Cord (with US Plug) x 1
Mounting Bracket (with screws) x 2
Specifications
Technical

Input/Output Connections
4 x HDMI IN
4 x HDMI OUT 4
4 x AUDIO OUT
1 x IR EXT.
1 x LAN
1 x RS232 DB9 port
1 x AC IN
Input/Output Video Type
HDMI with HDR, HDCP 2.2
Input/Output Resolution
Supported
800x6008, 848x4808, 1024x7688, 1280x7688,
1280x8008, 1280x9608, 1280x10248,
1360x7688, 1366x7688, 1440x9008, 1600x9008,
1600x12008, 1680x10508,
1920x12008, 2048x11528, 3840x21602,3,5,8,
4096x21602,8
720x4808(480p), 720x5766(576p), 1280x7206
(720p50), 1280x7208(720p60), 1920x10806
(1080p50), 1920x10808(1080p60)
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97
Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz
Audio Format
HDMI: Fully supports HDMI audio formats
in HDMI 2.0 specification;
L/R Analog AUDIO OUT: PCM 2.0
Control
Control Method
Front panel button, IR, RS232, LAN (Telnet API
& Web UI)

General
Operating
Temperature/RH
32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature/RH
-4°F ~ 158°F (-20°C ~ 70°C)
10% ~ 90%, non-condensing
ESD Protection
Human-body model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power Supply
AC 100~240V 50/60Hz
Power Consumption
(Max)
1018P: 22W; 4K: 27.50W
Dimensions (W x H x D)
440mm x 300mm x 43.5mm/
17.32" x 11.81" x 1.71"
Product Net Weight
3.58kg/7.89lb
Rack Space Required
1U
Certification
CE, FCC
Cable Specification:
Cable Type
Range
Supported Video
HDMI
Input/Output: 49ft/15m
1080P@60Hz
Input: 16ft/5m
Output: 33ft/10m
4K@60Hz 4:2:0 8bit with
HDR
Input: 10ft/3m
Output: 16ft/5m
4K@60Hz 4:4:4 8bit with
HDR

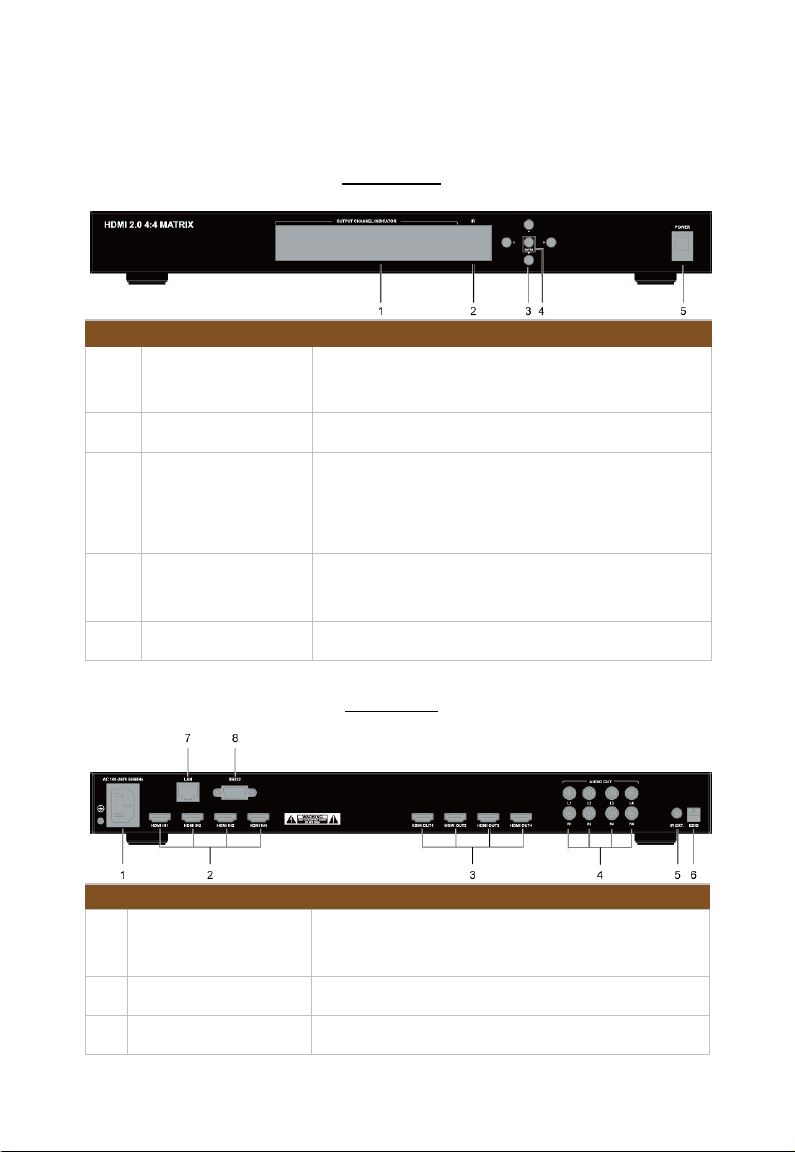

Panel Description
Front Panel
No.
Name
Description
1
Output Channel
Indicator
Indicates input for output port 1-4.
2
IR Window
Receives signals from IR Remote.
3
Selection Buttons
Selects input and output channels.
Left/Right: press to select output channels.
UP/Down: press to select input channels.
4
Enter Button
Press to implement the input and output
selection.
5
Power Switch
Press to turn on or off the matrix.
Rear Panel
ID
Name
Description
1
AC
Accepts AC power of 100-240V 50/60Hz.
Connect the power cord provided.
2
HDMI IN 1-4
Connect to HDMI source devices.
3
HDMI OUT 1-4
Connect to HDMI display devices.

4
AUDIO OUT 1-4
For de-embedding L/R analog audio output.
Connect to audio devices via RCA stereo audio
cables.
5
IR EXT.
IR extension port. Connect an IR receiver cable
if required.
6
EDID DIP Switch
For EDID Management.
7
LAN
RJ45 port; connect to a control system for Web
UI and Telnet Control.
8
RS232
DB9 port; connect to a control system for RS232
control.

Installation and Wiring
Installation
Note: Before installation, please ensure the device is disconnected from the
power source.
MX44-4KUHDE occupies 1U space and can be placed on a solid and stable
surface or installed on a standard rack mount.

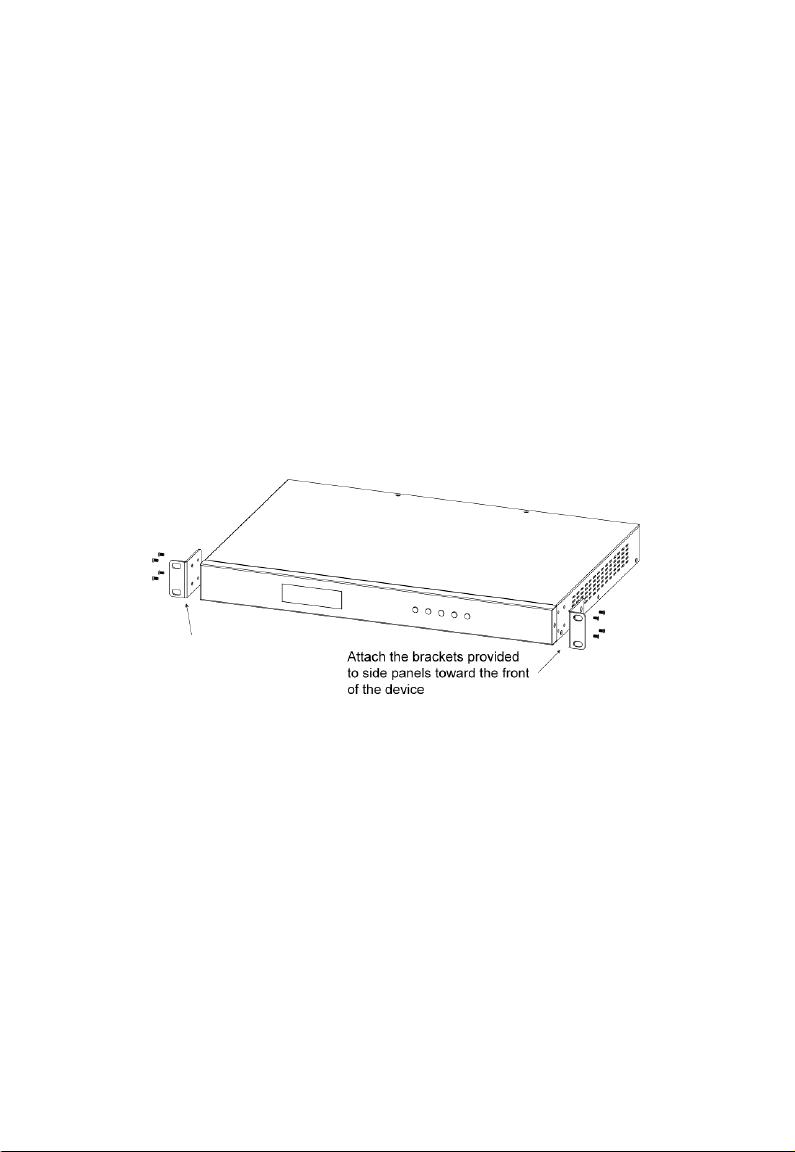

Steps for installing the matrix on a rack mount:
1. Position and install the mounting brackets with the mounting screws
provided.
2. Mount and affix the matrix in the rack mount with the mounting screws.

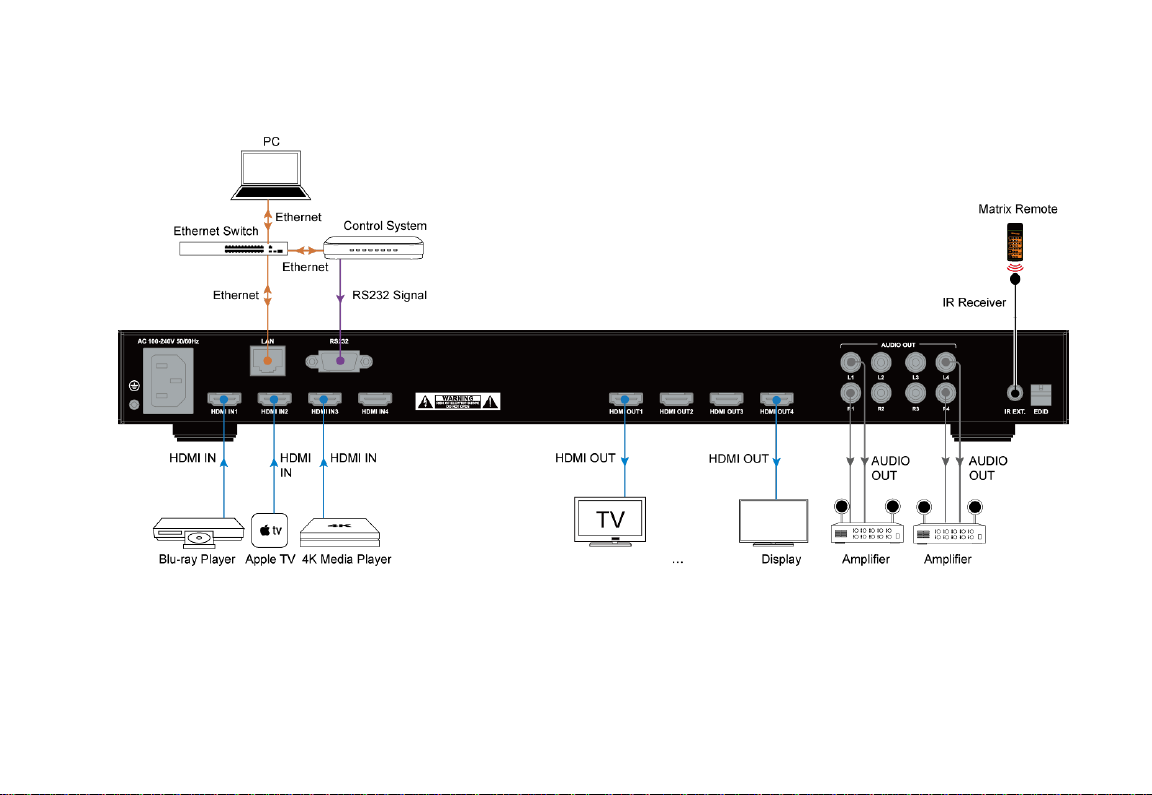

Wiring
Before wiring, please ensure the unit is disconnected from power. Otherwise,
circuitry damage or physical injury may occur.
Steps for device wiring:
1. Connect HDMI IN

Connect HDMI source devices to HDMI IN 1-4 of the matrix with high-
quality HDMI cables (e.g. Blu-ray player, PC, game console, Apple TV,
etc.)
2. Connect HDMI OUT
Connect HDMI display devices to HDMI OUT 1-4 of the matrix (e.g. TV,
projector, LED/LCD display, etc.)
3. Connect AUDIO OUT
Connect audio devices to AUDIO OUT 1-4 of the matrix (e.g. audio
amplifier) with RCA stereo cables.
4. Connect for additional control options:
a) IR Control: The matrix can be controlled through IR signal by
pointing the IR remote provided at front panel IR window directly.
Alternatively, connect an IR receiver (38KHz) to IR EXT. of the
matrix for IR extension, and have its head secured in a place
accessible to the matrix remote.
b) RS232 Control: Connect a control PC or control system to RS232
of the matrix.
c) LAN (Web UI/Telnet) Control: Connect the control PC or control
system's network to the matrix through LAN port.
5. Connect the power
Connect the AC power cord provided and switch on the power button.
6. Power on all devices.
Note:
Before plug or unplug any cable, please power off the matrix firstly.
When turning on and off the system, please follow the rule "first off, last
on".

The front panel of the MX44-4KUHDE matrix features a LED screen to display
the mapping status from each input to each output channel.
Power on the matrix and wait until the front panel LED screen shows "1234"
in red. Then the matrix is ready for operation. You can select input from 1 to 4
for each output via front panel buttons.
For example, to select input source for output display:
1. Press the left ( ) or right ( ) button to select output channel. Then the LED
will blink slowly to show the selected output channel.
3. Press the Enter button to implement above selection. The LED will stop
blinking when the selection takes effect.
You can switch among multiple inputs for each output display by pointing the
matrix IR remote directly at the IR window on the front panel or the IR
extension cable connected to the rear panel.
2
.
Press the up (
)
or down
(
)
button to select input channel.
Front Panel Control
IR Remote Control

Steps for IR Remote operation:
1. Operate as shown in the diagrams below, using the IR remote.
2. Locate the target output you want to switch inputs for on the remote,
numbered 1-4 vertically along the right side.
3. Press the desired input number to select the corresponding input source
for your target output.
4. To cycle through multiple inputs for your target output, press the
previous (
)
or next
(
)
button.
EDID Management

EDID (Extended Display Identification Data) is a data structure generated by
a digital display to communicate its capabilities, such as its native resolution,
to the attached source device.
MX44-4KUHDE Matrix provides EDID management to output different video
resolutions and audio channels for the displays based on the switch settings.
By default, the EDID DIP switch is set in Smart EDID position, i.e. all three
switches are set to 1 or down position. When connected to multiple displays,
the video with minimum resolution that ranks among the displays' maximum
resolutions and 2.0ch audio will be set as input EDID.

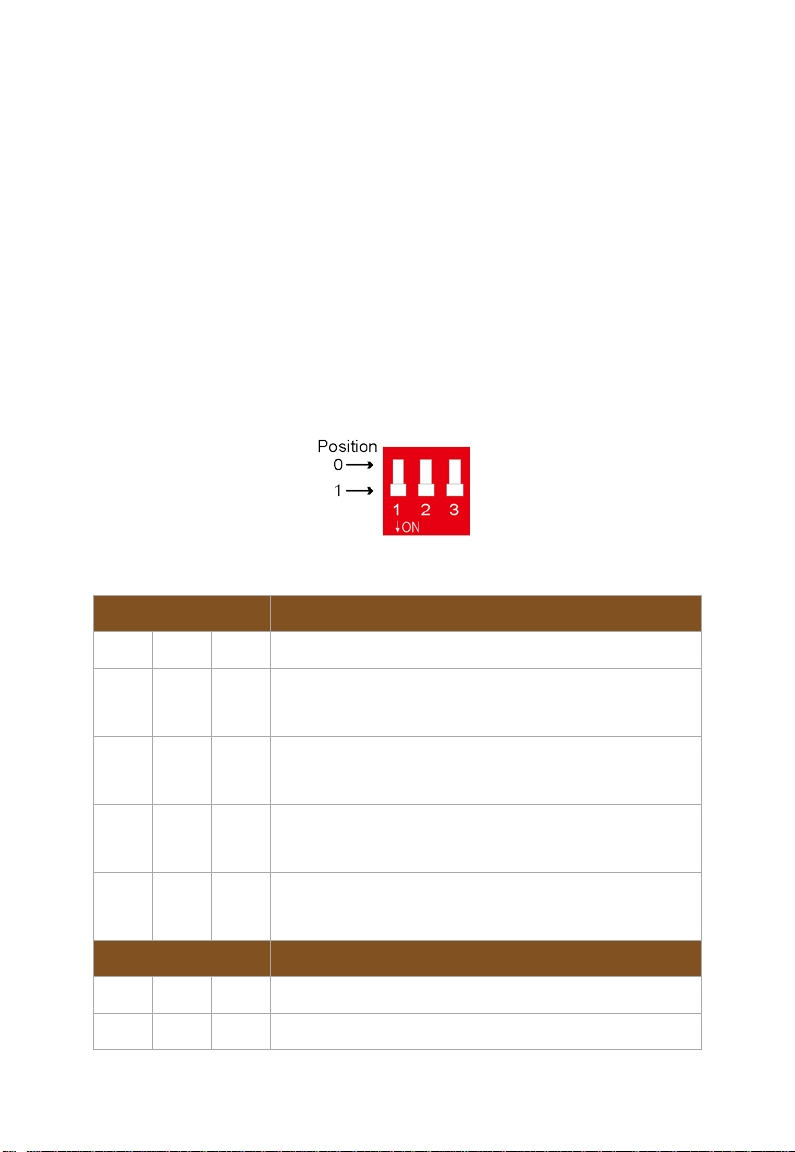

If any device communication or compatibility issues occur during installation,
please set the DIP switches manually using the following table:
Function
0
0
0
EDID controlled by Front Panel, Web UI or API
0
0
1
Set 4K@60Hz HDR with stereo audio as EDID
(Smart EDID OFF)
0
1
0
Set 4K@30Hz HDR with stereo audio as EDID
(Smart EDID OFF)
0
1
1
Set 4K@30Hz 8bit HDR only with stereo audio as
EDID (Smart EDID OFF)
1
0
0
Set 1080P@60Hz with stereo audio as EDID
(Smart EDID OFF)
DI
P Setting
Function
1
0
1
Reserved
1
1
0
Reserved
DIP Setting

1
1
1
Smart EDID ON (Default)
For DIP setting "000", EDID can be set via front panel buttons, WEB UI and
API commands.
Using front panel control, you are able to copy EDID from an HDMI Output to
the desired HDMI Input. For instance, to copy EDID of HDMI Output 1 to HDMI
Input 2, you should follow steps below:
1. Set the switch to position "000", then press the selection button on the
front panel to select Input 2 for Output 1; the LED will blink.
2. Long press the Enter button for at least 5 seconds. When the LED
window displays "OK", EDID copy setting is successful. Otherwise, "FL-
2" will appear to indicate failed setting.
Note:
If EDID Copy fails, a fixed 1080P@60Hz stereo EDID would be provided
to the source device.
You must reboot the matrix for EDID switch settings to take effect.
Advanced users may need to control the matrix through API commands.
Connect a control system or PC to the LAN or RS232 port of the matrix with
an Ethernet cable or the USB-to-UART cable provided. API Commands are
available in separate document "API Command Set_MX44-4KUHDE".
Telnet Control
1. Connect the LAN port of the matrix to your PC using astraight UTP cable.
2. Set your PC to the same network segment as the matrix, e.g.
192.168.X.X. (X ranges 2~253)
3. Ensure Telnet Client and Telnet Server features are enabled on your
computer.
API Command Control

4. Connect between the control PC and matrix through telnet.
a) Launch the Run window on your computer, enter "CMD" in the
textbox, and then click "OK".
b) The following DOS window will pop up.
Input "telnet 192.168.10.254" and press Enter.
c) A new window will display and show "Welcome to use matrix telnet",
indicating telnet connection between the matrix and computer is
