Link MX88-4KUHDE.2 User manual

Version: V1.0.0
MX88-4KUHDE.2
8x8 HDMI Matrix with Analog and Digital Audio Outputs
User Manual

Important Safety Instructions
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Warnings of FCC
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

1
Table of Contents
Introduction ...................................................................................................... 2
Overview................................................................................................... 2
Features ................................................................................................... 2
Package Contents .................................................................................... 3
Specifications ........................................................................................... 3
Panel Description ..................................................................................... 4
Front Panel........................................................................................ 4
Rear Panel ........................................................................................ 5
Installation and Wiring ..................................................................................... 7
Installation ................................................................................................ 7
Wiring ....................................................................................................... 7
Front Panel Control.......................................................................................... 9
IR Remote Control ......................................................................................... 11
RS232 Control ............................................................................................... 13
Web UI Control .............................................................................................. 14
Get Access to the Web UI....................................................................... 14
Matrix Control ......................................................................................... 16
General Setting....................................................................................... 19
Advanced Setting ................................................................................... 20
Warranty Terms and Conditions..................................................................... 33

2
Introduction
Overview
This product is an 8x8 HDMI Matrix with 4K@60 4:4:4 8bit, HDR10, HLG &
Dolby Vision and HDCP 2.2 compatibility. It allows eight sources to be
switched to any of the eight displays simultaneously. The matrix also provides
analog and digital audio output ports, which can be set to output
de-embedding audio or ARC audio from the associated HDMI output. It also
supports 4K to 1080P down scaler for each output when it is connected to
1080P TV.
It can be controlled by front panel buttons, IR, RS232 and LAN control with
Telnet API and Web UI.
As a compact 1U stand-alone 8x8 HDMI Matrix, it offers the convenience of
future-ready Ultra HD A/V switching and distribution solution.
Features
Supports HDMI 2.0 with 4K@60Hz 4:4:4 8bit and HDCP 2.2 compliant
Supports 4K HDR, HLG & Dolby Vision
The analog and digital audio output ports have two operation modes:
• Supports de-embedding audio from the associated HDMI output;
• Supports ARC audio from the associated HDMI output (in this case,
the HDMI output must connect to TV's HDMI ARC port)
Built-in 4K-1080P down scaler for each HDMI Output, the matrix can
downscale 4K@60Hz 444 to 1080P@60 444automatically when the
matrix is connected to 1080P display
Supports front panel buttons, IR, RS232 and LAN (Telnet API & Web UI)

3
control options
Supports the third-party remote to control the matrix through IR learning
(Configure IR learning function through web UI)
Supports firmware upgrade through web UI
Package Contents
1 x Matrix
1 x AC Power Cord with US Pins
1 x IR Remote
8 x Phoenix Male Connector (3.5 mm, 5 Pins)
1 x Phoenix Male Connector (3.5mm, 3 Pins)
2 x Mounting Brackets (with Screws)
Specifications
Technical
Input/Output Port
8 x HDMI IN, 8 x HDMI OUT, 1 x LAN,
1 x RS232, 8 x AUDIO OUT (S/PDIF digital
audio out and L/R analog audio out), 1 x AC IN
Input/Output Signal Type HDMI with 4K@60Hz 4:4:4, HDR 10,
HLG & Dolby Vision, HDCP 2.2
Input/Output Resolution
Supported
VESA:
800x6008, 1024x7688, 1280x7688, 1280x8008,
1280x9608, 1280x10248, 1360x7688,
1366x7688, 1440x9008, 1600x9008,
1600x12008, 1680x10508, 1920x12008
SMPTE:
720x576P6, 1280x720P6,7,8,
1920x1080P2,5,6,7,8, 3840x21602,3,5,6,8,
4096x21602,3,5,6,8
2 = at 24 Hz, 3 = at 25 Hz, 5 = at 30 Hz, 6 = at 50 Hz,
7 = at 59.94 Hz, 8 = 60 Hz
Audio Format
HDMI IN/OUT: Fully supports audio formats in
HDMI 2.0 specification, including PCM
2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos,
DTS-HD Master Audio and DTS:X;
L/R OUT: Only support PCM 2.0;

4
Technical
S/PDIF OUT: Support PCM, Dolby and DTS up
to 5.1 Channel.
Maximum Data Rate 18Gbps
Control MethodFront panel buttons, IR, RS232, LAN (Telnet
&WEB UI)
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection
Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power Supply AC 100-240V 50/60Hz
Power Consumption
(Max) TBD
Device Dimension
(W x H x D)
440mm x 43.5mm x 300mm/
17.3” x 1.71” x 11.81” (Without mounting
brackets)
Product Weight 3.8kg/8.38lbs
Rack Space Required 1U
Transmission Distance
Cable Type Range Supported Video
HDMI
Input/Output: 15m/49ft 1080P@60Hz 24bpp
Input/Output: 10m/33ft 4K@60Hz 4:2:0 24bpp
Input/Output: 5m/16ft 4K@60Hz 4:4:4 24bpp
Panel Description
Front Panel
321
No. Name Description
1 Output Channel Indicates selected input for output port 1-8.

5
No. Name Description
Indicator
2 IR Window Receives signals from IR remote.
3 Selection Button
Output Select Left (◄)/Right (►): press to
select output channels.
Input Select Up (▲)/Down (▼):
• Short press to select input channels.
• Hold down the Up (▲) and Down (▼) buttons
simultaneously for at least 3s to display the
matrix IP address on LED indicator. (See
“Front Panel Control” section for detail
information)
•ENTER: Press to implement input and output
selection.
Rear Panel
1
3 4 5 6
2
No. Name Description
1 HDMI IN 1-8 Connect to HDMI source devices.
2 HDMI OUT 1-8 Connect to HDMI displays.
3AC 100-240V
50/60Hz
Connect the power cord provided. Accepts AC
power of 100-240V 50/60Hz.
4 LAN Connect to a control system for Web UI or Telnet
control.
5 RS232Connect to a control PC or control system for
RS232 serial control.
6 AUDIO OUT 1-8
Audio outputs:
• 5 Pins Phoenix female port (1-8): L/R analog
audio output.
• S/PDIF port (1-8): S/PDIF digital audio
output.
Note: Audio output ports can be set through web
UI or API commands to output de-embedding
audio of HDMI outputs, or output ARC audio from
the TVs (with ARC function supported, and the
CEC function is set to on) connected to HDMI
output ports.

6

7
Installation and Wiring
Installation
The Matrix occupies 1U space and can be placed on a solid and stable
surface or installed on a standard equipment rack.
Steps to install the matrix on an equipment rack:
1. Attach the installation bracket to the enclosure using the screws
provided in the package separately.
2. The bracket is attached to the enclosure as shown.
3. Repeat steps 1-2 for the other side of the unit.
4. Mount and affix the unit in the rack mount with the mounting screws
(provided by others).
Wiring
Warnings:
Before wiring, disconnect the power from all devices.
During wiring, connect and disconnect the cables gently.

8
Steps for device wiring:
1. Connect HDMI IN
Connect the HDMI sources (such as PC, Blu-ray player, Apple TV, 4K
media player, etc) to the HDMI IN 1-8 of the Matrix.
2. Connect HDMI OUT
Connect HDMI display devices (such as TV, projector, LED/LCD display)
to the HDMI OUT 1-8 of the Matrix.
3. Connect AUDIO OUT
Connect AUDIO OUT 1-8 of the Matrix to audio devices such as
amplifier.
4. Connect for additional control options:
• LAN control (Telnet/Web UI): Connect a Local Area Network to the
LAN port of the Matrix.
• RS232 control: Connect a control PC or control system to RS232
port of the Matrix.
• IR control: The IR Remote provided is for controlling the Matrix
through IR signal.
5. Connect the AC power cord provided tothe Matrix.
6. Power on all attached devices.
Ethernet Switch Control System
RS232
HDMI OUT
HDMI IN HDMI IN HDMI IN HDMI OUT
Display Display
HDMI OUT HDMI OUT
Display
PC Apple TV Blu-Ray Player
Amplifier
In-ceiling Speaker
AUDIO OUT
AUDIO OUT AUDIO OUT AUDIO OUT
LAN
HDMI IN
PC
Projector
AV Receiver

9
Front Panel Control
Basic switch of input sources to output displays and matrix IP address can be
achieved by using front panel buttons.
Power on matrix and wait till the front panel LED shows the input channel
numbers correspond to output channels. Then the Matrix is ready for
operation.
To select input source for output display:
1. Press the Left (◄) or Right (►) button to select output channel. The
LED blinks to show the selected output channel.
Output SelectionBlink
2. Press the Up (▲) or Down (▼) button to select input channel. If the LED
shows "-", the output is closed.
Input Selection
Blink
3. Press the Enter button to confirm the selection. When the selection
takes effect, the LED stops blinking.
Enter Button
To display matrix IP address on LED indicator:
(Suppose the IP address of the matrix is 192.168.11.143)
Hold down the Up (▲) and Down (▼) buttons simultaneously for at least 3
seconds and then release, the LED indicators will display the matrix IP
address “192.168”, “.011.143” in sequence for 3 times.
To copy EDID:

10
1. Press the Left (◄) or Right (►) button to select output channel. The LED
blinks to show the selected output channel.
2. Press the Up (▲) or Down (▼) button to select input channel. The LED
still blinks.
3. Hold “Enter” button for at least 3s to copy the EDID of the display
connected to the selected output port to the selected input source.
4. If EDID copy is successful, the LED indicators will show “CPY OK”. If
copy fails, the LED indicators will show “CPY FAIL”.
Note: When copy EDID fails, if the corresponding output port is not
connected to a display, the input EDID will be the previous effective EDID
value; if the EDID of the connected display is damaged, the input EDID will
be the default value.

11
IR Remote Control
The Matrix can be controlled by the IR Remote provided. Point the Remote
directly to the Matrix, now you can select input source for each output display.
Next Input
Previous Input
Output 2
To select input source for output display:
1. Locate the target output you want to switch inputs for, numbered 1-8
vertically in the middle.
2. Press the previous ( ) or next ( ) button to select the desired input
source.
Note: The third-party remote (such as TV remote) also can control the matrix
through IR Learning (More information, see “IR Learning Section”part of
“Web UI Control” section.
System Code Switch
The IR Remote provided with the Matrix is shipped in "00" IR system code. In
the event that Remote's IR signal interferes with IR devices, e.g. TV, DVD

12
player, the Remote can be switched to "4E" code by short pressing the
System Code Switch on the Remote panel. At the same time, you may
redefine the IR system code of the Matrix using the API command or Web UI.
Virtual IR Code Supported by Default (Matrix Switching Code)
Code Out1 Out2 Out3 Out4 Out5 Out6 Out7 Out8
In10x80 0x90 0xA0 0xB0 0xC0 0xD0 0xE0 0xF0
In20x81 0x91 0xA1 0xB1 0xC1 0xD1 0xE1 0xF1
In30x82 0x92 0xA2 0xB2 0xC2 0xD2 0xE2 0xF2
In40x83 0x93 0xA3 0xB3 0xC3 0xD3 0xE3 0xF3
In50x84 0x94 0xA4 0xB4 0xC4 0xD4 0xE4 0xF4
In60x85 0x95 0xA5 0xB5 0xC5 0xD5 0xE5 0xF5
In70x86 0x96 0xA6 0xB6 0xC6 0xD6 0xE6 0xF6
In8 0x87 0x97 0xA7 0xB7 0xC7 0xD7 0xE7 0xF7

13
RS232 Control
Advanced users may need to control the matrix through RS232 serial
communication. Connect a control PC or control system to the RS232 port of
the receiver. API command for RS232 control is available in the separate
document “ API Command Set MX88-4KUHDE.2 ”. A professional RS232
serial interface software (e.g. Serial Assist) may be needed as well.
Before executing the API command through RS232 serial connection, please
ensure RS232 interface of the device and the control PC are configured
correctly.
Parameters Value
Baud Rate 9600 bps
Data Bits 8 bits
Parity None
Stop Bits 1 bit
Flow Control None

14
Web UI Control
The Web UI designed for the matrix is available for basic controls and
advanced settings of the device. The Web UI can be accessed through a
browser with latest version, e.g. Chrome, Firefox, Safari, Opera, IE, etc.
The default network mode of matrix is DHCP, if it isn’t connected to a DHCP
server, the matrix supports for local 169.254 IP address.
Get Access to the Web UI
1. Connect the LAN port of the matrix to your PC using a straight UTP
cable, or connect the matrix to a local area network, and connect your
PC to the same network.
2. Get IP address through pressing front panel buttons (see “Front Panel
Control” section) or sending API commands (see the separate
document “API Command Set_ MX0808-1022-000”). Set your PC to
the same network segment as the matrix if you connect the matrix to
your PC directly.
3. Input the IP address in your browser and press Enter. The following
window will display.
• To implement basic video and audio control of the matrix, click “User” to
login as User. When login as User, no password is required.

15
• If advanced setting is required, click “Admin” and enter “admin” (default
password) to login as Admin. The main page will appear.
• In User mode, you can also click “Admin Login” on the upper right corner,
then input the default password “admin” to enter General Settingand
Advanced Setting pages.
The main page includes three tabs: Matrix Control, General Setting and
Advanced Setting.

16
Matrix Control

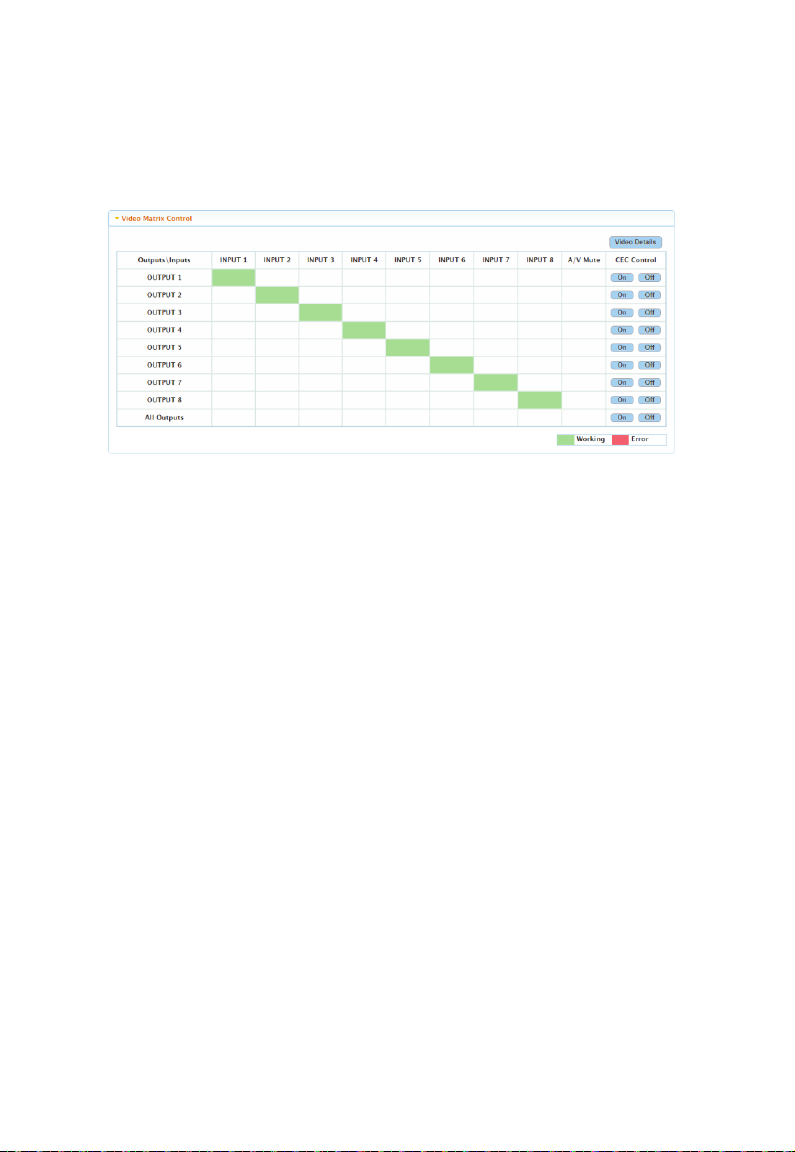

(1) Video Matrix Control
This section manages distribution of input video sources to output displays.
Click the button in the table to select the input for the output display (button
turns from white to green once selection is done). By default, INPUT 1 routes
to OUTPUT 1, …, INPUT 7 routes to OUTPUT 7, INPUT 8 routes to OUTPUT
8.
•All Outputs: Click to route one input to all outputs.
•A/V Mute: Click to disable the video output.
•CEC Control On/Off: Click to power on or off the CEC-enabled display
device immediately.
•Video Details: Click to enter the following window to get video details
(such as connection status, signaland resolution) of input and output.
•Port: Click to select the input/output port to show its video details.
•Refresh: Click to refresh the current video information.

17
(2) Audio Matrix Control
This section allows you to select audio for analog audio output (1~8) and
S/PDIF output (1~8) between HDMI and ARC.
•HDMI: Set analog and S/PDIF port (1-8) outputs de-embedding audio of
HDMI output. OUTPUT 1 outputs de-embedding audio of HDMI OUT
1…OUTPUT8 outputs de-embedding audio of HDMI OUT 8.
•ARC: Set analog and S/PDIF port (1-8) outputs ARC audio from the TV
connected to HDMI output port (1-8) (ensure the TV supports ARC
function, and its CEC function is set to enable). OUTPUT 1 outputs ARC
audio from the TV connected to HDMI OUT 1…OUTPUT8 outputs from
the TV connected to HDMI OUT 8.
By default, AUDIO OUT 1-8 output de-embedding audio of HDMI OUT 1-8.
•Audio Details: Click to enter the following window to get audio details
(Format and Sampling Rate) of input and output.
