LINKRICH CG-39D User manual

1
CG-39D
Thanks for choosing LINKRICH products:
We mainly produce food processing equipment, baking equipment,
professional kitchen equipment, steel kitchen ware, commercial refrigeration
equipment and ice cream machine, more than 6 series, 127 kinds of products for you
to choose. They are environment-friendly with excellent designs. High technique to
save power, complete functions, easy to operate, LINKRICH products are more
competitive than those of the same line in the international market.
ATTENTION
New user or repairing this product must be performed by the experts or qualified
person or those who have gotten the license of installation, or those who are
authorized by the manufacturer.
When installation or maintenance, please obey the following instructions
carefully to ensure the safety use of this appliance.
Please keep this instruction Manual for future reference, or hand it to next user.
Put off the package to make sure none of the parts is missing or damaged. If
there is any doubt about the product, please do not use it, and consult it to the
experts.
Keep the packing material out of reach of the children to avoid
accident( Especially the plastic bag, screw etc)
This appliance could be only operated by the person who is familiar with the unit.
When not using the appliance or the operator is absent, please turn off the unit
to avoid any accidental injury or damage.
When it needs to be repaired, please ask for expert, and use the original fitted
spare part. It will be dangerous if not following the above requirements.
This appliance is just for commercial using, not for any other use, otherwise, it
may be dangerous.
Do not rinse the equipment with water directly.
Clean the surface of stainless steel periodically with appropriate method to
Prevent any damage brought by oxidization or any other chemical interference.
Installation
Put the Slicer on a table and make sure the Slicer seats firmly on the table. If the
Slicer vibrates Seriously during operation, put paper or rubber pad underneath the
frame of the Slicer.
Electric connection
Before making electrical connections, check the specifications on the “name plate” to

2
make sure they agree with those of your electrical service.
Special attention
The operator should not put his fingers into the vibrating knives. The last bread can‘t
be Sliced easily. Please don’t try to push the last bread with finger from the chute
or to take out the bread front.
Please switch off the Slicer when you clean it.
Change of blades
When Slicer slices the bread slowly, the blades have become dull and must be
changed.
To dismantle the blades
1.Take off Cover front and top Cover.
2.Take off Outgoing Chute.
3.Lessen the screws on Bracket.
4.Take out Guide rod and the Frame for Blades can be taken out.
5.Press Spring to take out Blade one by one.
To remount the blades
1.Press Spring to put the blades onto the Frame one by one.
2.Put Frame into position and insert the Guide Rod.
3.Tighten the screws on Bracket.
4.Put in outgoing Chute.
5.Mount the Cover Front and top cover.

3

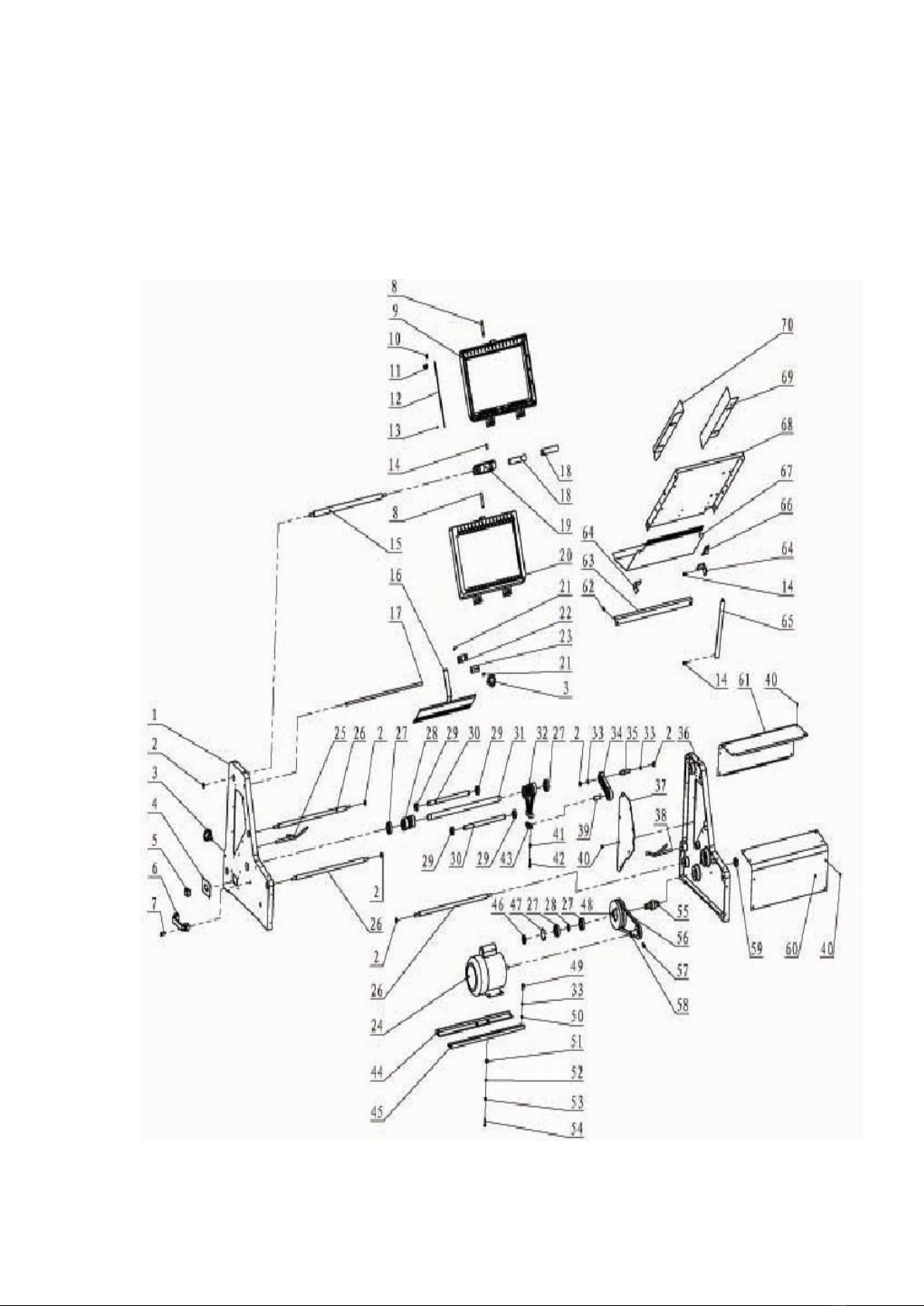

Machine Illustration

4
Parts list
Item No.
Part No.
Description
1
JSL310020
Right wall
2
M10
Nut
3
Handle
4
JSL310460
Control panel
5
Power switch
6
Plastic handle
7
M8X20
Screw
8
JSL310480
Blade frame activity lever
9
JSL310230
Upper blade frame
10
JSL310270
Spring
11
JSL310260
Blade frame retainer
12
JSL310250
Blade
13
JSL310510
Blade dowel
14
M6X16
Screw
15
JSL310220
Fixed rod
16
JSL310110
Platen
17
JSL310210
Fixed rod
18
JSL310290
Upe rod
19
JSL310280
Permanent seat
20
JSL310240
Lower blade frame
21
M6X12
Screw
22
JSL310120
Holder
23
JSL310130
Holder cover
24
Motor
25
JSL310380
Lower fixed plate (right)
26
JSL310050
Frame fixed rod
27
6204
Bearing
28
JSL310360
Plastic base (right)
29
JSL310350
Blade frame fixed ring
30
JSL310340
Blade frame fixed rod

5
31
JSL310300
Blade frame fixed rod
32
JSL310330
Plastic base (left)
33
Ø10
Washer
34
JSL310440
Plastic bearing connecting rod
35
JSL310390
Transmission fixed shaft
36
JSL310010
Left wall
37
JSL310140
Acrylic board
38
JSL310070
Lower fixed plate(left)
39
JSL310450
Sliding shaft
40
M5X6
Screw
41
M6
Soft hat
42
M6X30
Screw
43
JSL310320
Plastic base attachment
44
JSL310410
Motor support (back)
45
JSL310400
Motor support(front)
46
M20
Nut
47
Ø49
Screw
48
JSL310430
Pulley
49
M8X16
Screw
50
Ø8
Washer
51
M8
Nut
52
Ø8
Washer
53
Ø8
Washer
54
M8X25
Screw
55
JSL310420
Pulley shaft
56
Belt
57
M8X16
Screw
58
JSL310370
Motor pulley shaft
59
M22
Nut
60
JSL310170
Front cover
61
JSL310090
Upper cover
62
M6X12
Screw

6
63
JSL310080
Fixed angle iron
64
JSL310470
Fixed angle iron
65
JSL310310
Fixed angle iron
66
JSL310160
Sloping plate retainer
67
JSL310100
Tray bar
68
JSL310150
Sloping plate
69
JSL310190
Width fixing plate
70
JSL310200
Width fixing plate
