LINKRICH QS508 User manual

1
QS508/508A Universal Fitter
Thanks for choosing LINKRICH products:
We mainly produce food processing equipment, baking equipment, professional kitchen equipment,
steel kitchen ware, commercial refrigeration equipment and ice cream machine, more than 6 series, 127
kinds of products for you to choose. They are environment-friendly with excellent designs. High technique
to save power, complete functions, easy to operate, LINKRICH products are more competitive than those of
the same line in the international market.
Attention
New user or repairing this product must be performed by the experts or qualified person or those who
have gotten the license of installation, or those who are authorized by the manufacturer.
When installation or maintenance, please obey the following instructions carefully to ensure the safety
use of this appliance.
Please keep this instruction Manual for future reference, or hand it to next user.
Put off the package to make sure none of the parts is missing or damaged. If there is any doubt about
the product, please do not use it, and consult it to the experts.
Keep the packing material out of reach of the children to avoid accident( Especially the plastic bag,
screw etc)
This appliance could be only operated by the person who is familiar with the unit.
When not using the appliance or the operator is absent, please turn off the unit to avoid any accidental
injury or damage.
When it needs to be repaired, please ask for expert, and use the original fitted spare part. It will be
dangerous if not following the above requirements.
This appliance is just for commercial using, not for any other use, otherwise, it may be dangerous.
Do not rinse the equipment with water directly.
Clean the surface of stainless steel periodically with appropriate method to prevent any damage
brought by oxidization or any other chemical interference.
Description:
LR-QS series universal fitter is the new designed and made for high performance by us. It can cut up
the meat、ginger、garlic、peanut、bean ect., use abroad. The machine is good-looking, easy to operate
and high in efficiency, suitable for food prepare in hotels, family, restaurants, bar, canteen ect.
Technical specifications:
Model Bowl
Capacity(L)
Voltage
(V)
Frequenc
y
(Hz)
In put
Power(kW)
Motor
Power(kW)
Speed
(r/min
)
Weigh
t
Dimension
(mm)
QS508
8
3~380
50
1.9
1.5
1400
56
370x445x615
QS508A
8
220
50
1.9
1.5
1400
56
370x445x615

2
Use and Required:
1. Place the machine to the table or floor with level off steady, and well connect the power line as the
machine required. For all the power derivation line which no plug, should connect to the device which
installed to the fixed placement and at least 3mm point distance. The rated current should ≥35A.
2. Before use, please check whether the voltage of power supply is in conformity with that in data plate
the floor line is it fastness and credibility.
3. Open the barrelhead, take out the cut knife, please note that do not touch the bowl side and
orientation area, avoid to attaint the knife mouth.
4. Hold the bowl’s handle, and press the safety handle on the bottom, running the bowl as clockwise, then
can take bowl.
5. Clean the bowl, knife and barrelhead, and brush them by clean cloth.
6. Install bowl---let the handle aim at the placement around 20 degree in front of orientation area and
running the bowl to handle by anti-clockwise and the same level with orientation area.
7. Install knife and cover barrelhead. The safety button on the barrelhead should aim at the handle of
bowl, and should use sue lock button to lock the auris. Otherwise, can not start the machine.
8. Turn the knob switch to, press the start button ans turn the knob switch to “0”. And look the knife
turning through the clarity glass on the barrelhead, the knife should be cireumgyrated by
anti-clockwise.
9. Confirm the knife’s turning, then can open the back bowl cover, put the food into machine, and cover.
(Note: only can the bowl cover after the knife stop to running!)
10. Turn the knob to “0” then can stop the machine. Generally need around more than 10 seconds to cut
the food to required if found out the food is not so perfect after cut, can recut.
11. After finished, should clean all the parts such as bowl 、knife、barrelhead ect to keep sanitation.
Time reference for cut up food:
Variety
meat
Ginger
Garlic
Peanut
Bean
Time
13secs
45secs
30secs
18secs
15secs

3
(The aboye time is just for reference,, user can hold the time as required.)

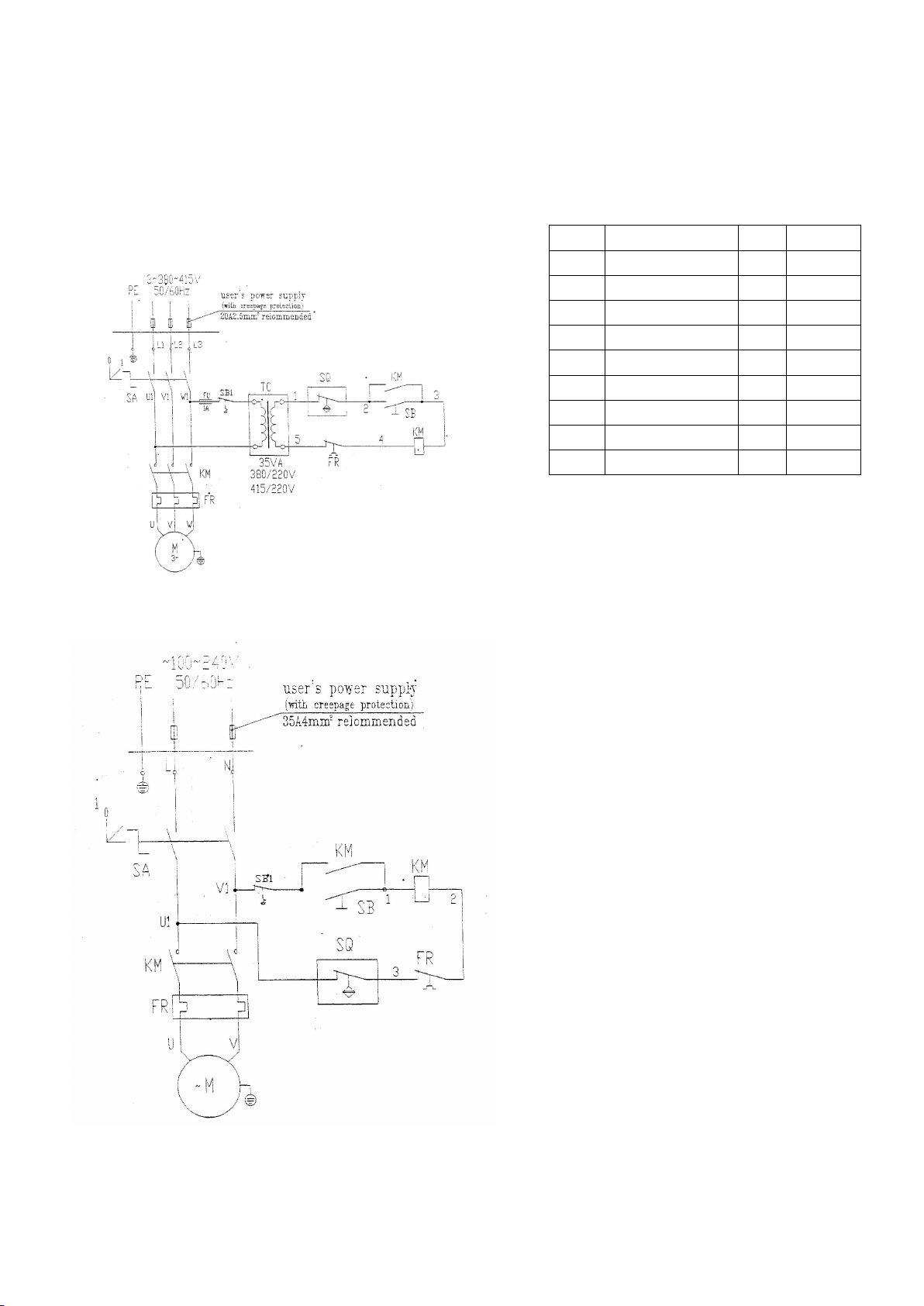

Circuit Diagram of
QS508
The manufacturer has the right to change the circuit without notice.
Code
Name
Qty.
Remark
M
Motor
1
KM
Contactor
1
FR
Heat relay
1
SA
Change switch
1
SB
Start button
1
SQ
Journew switch
1
SB1
Stop button
1
TO
Transformer
1
FU
Fusioner
1
QS508A

4
ONE YEAR PARTS WARRANTY
LINKRICH warrants to the original purchaser of every new LINKRICH product, under normal and proper use
and maintenance service as specified by LINKRICH and upon proper installation and start-up in accordance
with the instruction packet supplied with each LINKRICH unit. LINKRICH’s obligation under this warranty is
limited to a period of one (1) year from the date of original installation.
WARRANTY CLAIMS
All claims for parts must be made directly through LINKRICH. All claims should include:
Personal Details: Products Details:
Your name Model number
Your company Serial number of the product
Address Date of purchase
Email Proof of purchase
Phone
Pertinent information supporting the existence of the alleged defect.(Such as picture etc.)
Please send the above information to [e-mail] or Fax to [phone]
Our warranty departments will according to the actual situation and reply you within
24hours.
What is not conered by this Warranty
Linkrich’s sole obligation under this warranty is limited to replacement of parts, Subject to the additional

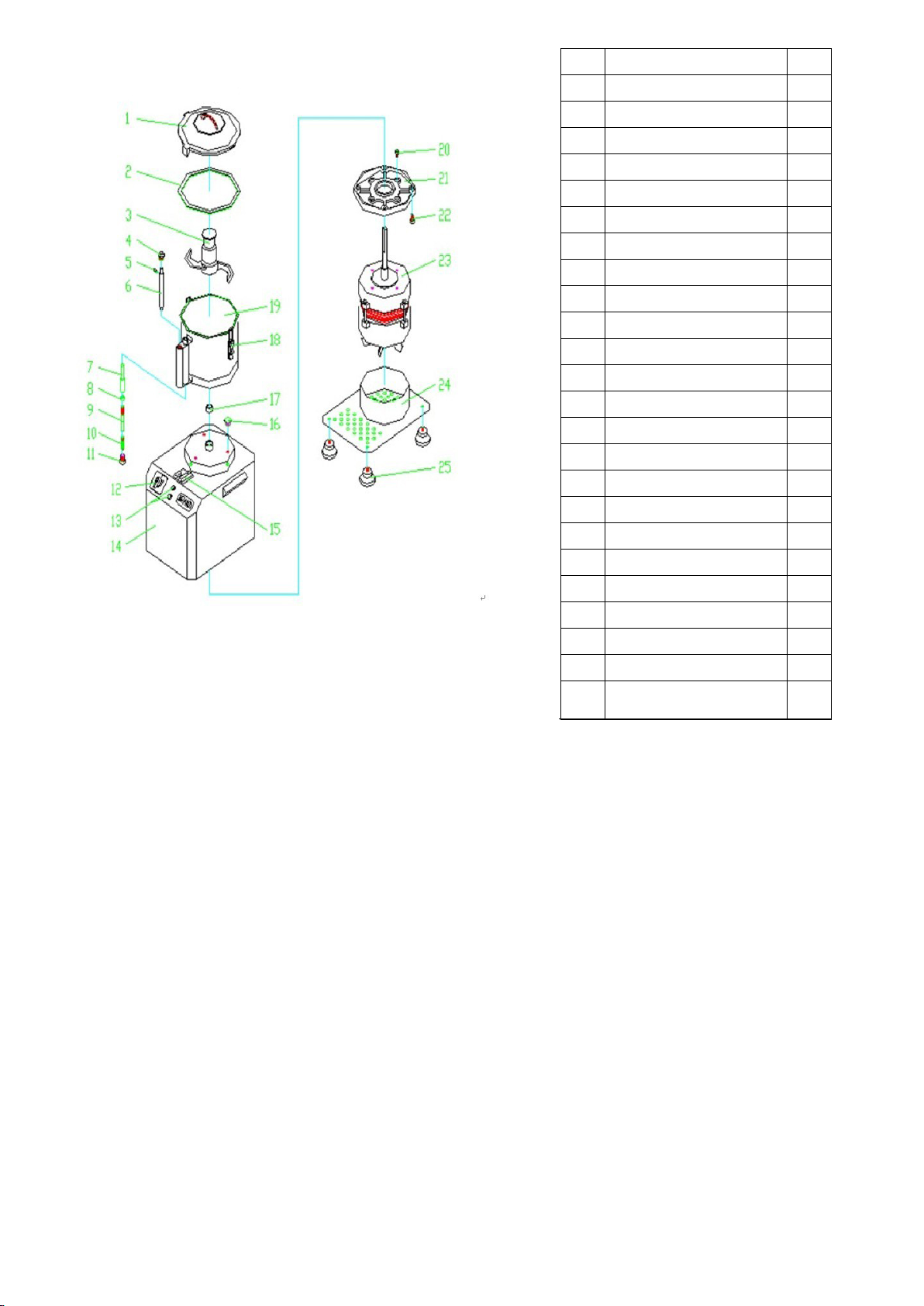

ILLU
NAME OF PART
QTY
1
Bowl cover
1
2
Rubber ring
1
3
Knife
1
4
Tight screw
1
5
Set pin
1
6
SET pole
1
7
Bump pole I
1
8
Round screw
1
9
Bump pole
Ⅱ
1
10
Pressure spring
1
11
Set screw
1
12
Change switch
1
13
Start/stop button
2
14
Rack
1
15
Switch seat
1
16
Bowl adjust ring
3
17
Copper setting
1
18
Screw
2
19
Bowl
1
20
Six angle screw
3
21
Motor set plate
1
22
Six angle screw
3
23
Motor
1
24
Bottom plate
1

5
limitations below.
1. This warranty neither assumes nor authorizes any person to assume obligations other than those
expressly covered by this warranty.
2. This warranty is limited to replacement of parts, and the shipment charge is not included. No
consequential damages. Linkrich is not responsible for Economic loss; or special, indirect, or consequential
Damages, including without limitation, losses or damages arising from food or product spoilage claims
whether or not account of refrigeration failure.
3. Warranty is not transferable. This warranty is not assignable and applies only in favor the original
purchaser/user to whom delivered. Any such assignment or transfer shall void the warranties herein made
and shall void all warranties, express or implied, including any warranty of merchantability or fitness for a
particular purpose.
4. Improper usage. Linkrich assumes no liability for parts or labor coverage for component failure or other
damages resulting from improper usage or installation or failure to clean and/or maintain product as set
forth in the warranty packet provided with the unit.
5. Residential applications: linkrich assumes no liability for parts or labor coverage for component failure or
other damages resulting from installation in non-commercial or residential applications.
6. Alteration, neglect, abuse, issue, accident, damage during transit or installation, fire, flood, acts of god.
Linkrich is not responsible for the repair or replacement of any parts that linkrich determines have been
subjected after the date of manufacture to alteration, neglect, abuse, accident, damage during transit or
installation, fire, flood, or act of god.
7. Improper electrical connections. Linkrich is not responsible for the repair or emplacement of failed or
damaged components resulting from electrical power failure, the use of extension cords, low voltage, or
voltage drops to the unit.
8. No implied warranty of merchantability or fitness for a particular purpose: there are no other warranties,
expressed, implied or statutory, except the one (1) year parts warranty as described above. These
warranties are exclusive and in lieu of all other warranties, including implied warranty and merchantability
or fitness for a particular purpose. These are no warranty which extend beyond the description on the face
hereof.
