Linksys WVC54GCA Operation manual

PRODUCT DATA
Send live audio and video to a
web browser anywhere in the
world!
Sends high-quality live audio
and video to your network
wirelessly—viewable from most
web browsers, anywhere in the
world
Built-in video stream encoder and
stand-alone web server—no PC
necessary
Security Mode automatically
sends E-mail alerts with video
clips upon motion detection
Supports MPEG-4 and MJPEG
video at up to 640x480, and up to
four simultaneous remote users
Wireless-G

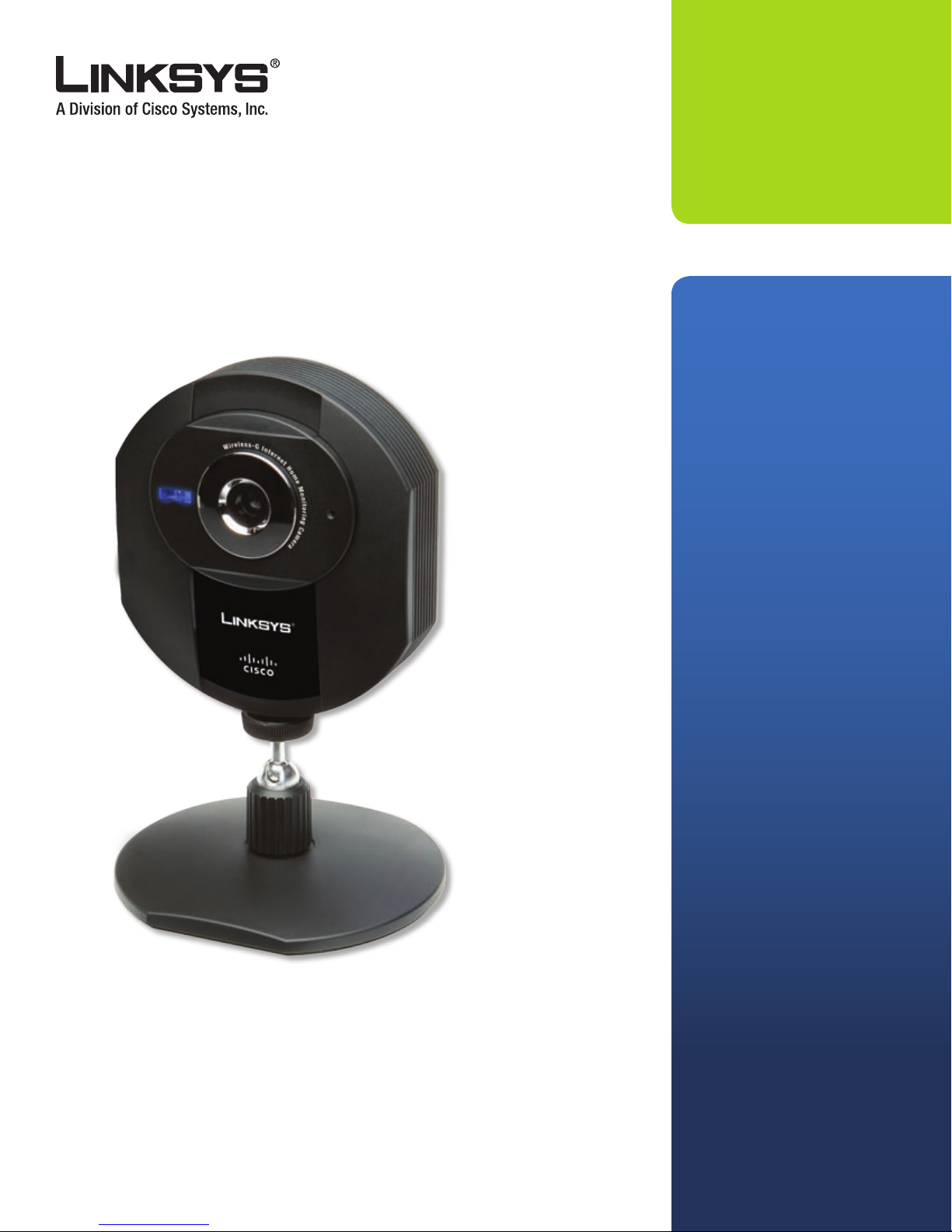

Internet Home Monitoring Camera
Model: WVC54GCA

PRODUCT DATA
Wireless-G Internet Home Monitoring
Camera
The Linksys Wireless-G Internet Home Monitoring Camera sends live video through the
Internet to a web browser anywhere in the world! This compact, self-contained unit
lets you keep track of your home, your kids, your workplace—whatever’s important to
you.
Unlike standard“web cams”that require an attached PC, the Internet Home Monitoring
Camera contains its own web server, so it can connect directly to a network, either
over Wireless-G (802.11g) networking, or over 10/100 Ethernet cable. Choose either
MPEG-4 or Motion JPEG video compression for a high-quality, high-frame rate, up to
640x480 video stream.
The Compact Internet Home Monitoring Camera’s unique form-factor and wireless
connectivity allows you to mount it on a wall nearly anywhere, or slip it into its
included stand for desktop use. Once it’s connected to your home network, you can
“see what it sees”from any PC in the house, while the video stream is secured from
the outside world, hidden behind your Router. If you want the video to be visible
from outside your home network, you can open an appropriate port on the Router,
and then create password-protected accounts to manage access to the camera, or
leave it wide open for the world to see. The TZO domain service (one-year trial sign-up
included) lets you access your camera using an easy-to-remember “name”, even if your
home Internet connection uses a dynamic IP address.
You can also turn on Security Mode, which tells the camera to send a message with a
short video attached to up to three E-mail addresses whenever it detects motion in its
eld of view. You can then log onto the live video stream if the situation warrants. The
included Viewer & Recorder utility lets you record the audio/video stream to your local
hard drive, “live” or on a predetermined schedule.
Let the Linksys Compact Wireless-G Internet Home Monitoring Camera help you keep
tabs on your world.
Features
Monitor your home from
anywhere in the world via the
Internet
Integrated web server—
viewable from most web
browsers
Supports enhanced MPEG-4 and
MJPEG compression
View video from your Wireless-G
or wired Ethernet network
Includes easy-to-use Linksys
Home Monitor utility with
Snapshot feature
Motion Detection and E-mail
notication
Create a database for user
authentication
Supports resolution of up to
640x480 pixels
Time Stamp and Text Overlay
Connect up to 4 users
simultaneously
Supports TZO DDNS Service for
dynamic IP connection, 1-Year
Free Trial
Multi-platform support—TCP/IP,
SMTP (E-Mail), HTTP, DHCP
Windows-based Setup Wizard
for easy setup
WEP encryption and WPA-
Preshared key
Supports multiple resolution
streams—can be used
by PC and mobile phone
simultaneously
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

PRODUCT DATA
Wireless-G Internet Home Monitoring
Camera
Specifications
Model WVC54GCA
Standards IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Ports Ethernet, Power
Buttons Reset
LEDs Power
Cabling Type Cat5
Number of Antennas 1 Internal
Connector Type N/A
Detachable Antenna No
UPnP able/cert UPnP Advertise
.Net Support N/A
Security Features WEP-64, WEP-128, WPA, WPA2
Image Sensor CMOS
Lens Fixed Focus
Resolution 640 x 480, 320 x 240, 160 x 128
Relative Illumination 5.1 Lux
Eective Focus 3 mm
Sensitivity 3.0V/Lux-sec
Field of View 61.48 degrees
Compression Algorithm MPEG-4 and MJPEG
Record File Format ASF
Brightness Auto/Manual Adjustment
Environmental
Dimensions 3.54" x 4.72" x 1.46" (90 x 120 x 37 mm)
Weight 0.29 lb (130 g)
Power 5V 1A
Certication FCC, CE, CB, UL, C-Tick, PSB/SPRING, IDA
Operating Temp. 32 to 104°F (0 to 40°C)
Storage Temp. -4 to 158°F (-20 to 70°C)
Operating Humidity 10 to 80%, Noncondensing
Storage Humidity 0 to 90%, Noncondensing
Package Contents
Wireless-G Internet Home Monitoring Camera
Camera Stand/Wallmount
Power Adapter
Ethernet Network Cable
Start Here Folder
Setup Wizard CD-ROM
User Guide included on CD-ROM
Quick Installation Guide
Minimum Requirements—1 Camera
PC with 2 GHz or Faster Processor
512 MB RAM
Microsoft Windows 2000, XP or Vista
•
•
•
•
•
•
•
•
•
•
•

PRODUCT DATA
Linksys
A Division of Cisco Systems, Inc.
121 Theory
Irvine, CA 92617 USA
E-mail: [email protected]
Web: www.linksys.com
Linksys products are available in more than
50 countries, supported by 12 Linksys Regional
Oces throughout the world. For a complete
list of local Linksys Sales and Technical Support
contacts, visit our worldwide website at
www.linksys.com
The maximum performance for wireless is derived from IEEE Standard 802.11 specications. Actual performance can vary, including lower wireless
network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance
from the access point, volume of network trac, building materials and construction, operating system used, mix of wireless products used,
interference and other adverse conditions.
Check the product package and contents for specic features supported. Specications are subject to change without notice.
Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its aliates in the U.S. and certain other
countries. Copyright © 2007 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or
registered trademarks of their respective holders.
7101210NC-AI Model: WVC54GCA
500 MB of Available Hard Drive Space
Graphics Card with a Minimum of 128 MB
Internet Explorer 6.0 or Higher, Mozilla Firefox, and Netscape 7.0 or Higher
DirectX 9.0 or Higher
CD-ROM Drive
Windows Media Player 9 or Higher
Minimum Requirements—Up to 9 Cameras
PC with 3 GHz Dual-Core Processor
1 GB RAM
Microsoft Windows 2000, XP or Vista
4 GB of Available Hard Drive Space
Graphics Card with a Minimum of 256 MB
Internet Explorer 6.0 or Higher, Mozilla Firefox, and Netscape 7.0 or Higher
Cable/DSL Connection for Internet Viewing
Active-X 8.0 or Higher
CD-ROM Drive
Windows Media Player 9 or Higher
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
