LION SG1000 User manual

SG1000™
SMOKE
GENERATOR
[ USER’S MANUAL
Original User Manual
04/19

WARNING
WARNING
WARNING
WARNING
WARNING
Read and understand operator’s manual
before using this machine.
Failure to follow operating instructions
could result in death or serious injury.
Improper use may result
in fire or injury.
Read instructions/safety manual before
installing, operating or servicing.
Risk of electric shock.
Avoid contact with water. This Smoke
Generator is not water proof.
Wear respiratory protection when
prolonged exposure to training smoke
or exposure to dense concentrations of
training smoke is likely.
Do not use Smoke Generators near
known asthmatics or those with
respiratory illness. Use only in
accordance with applicable laws,
codes and norms.

WWW.LIONPROTECTS.COM
WWW.LIONPROTECTS.COM
1. INTRODUCTION................................................................................................................. 2
2. SPECIFICATIONS............................................................................................................... 4
2.1 Technical Specications .................................................................................................5
3. OVERVIEW OF THE SG1000™SMOKE GENERATOR ........................................................... 6
3.1 SG1000 core unit ..........................................................................................................6
3.2 SG1000 Smoke Generator battery power base................................................................7
3.3 SG1000 Smoke Generator wall power base ..................................................................10
4. USING THE SG1000 SMOKE GENERATOR ....................................................................... 11
4.1
Connecting the Smoke Generator to the base...............................................................................11
4.2 Disconnecting the base ................................................................................................12
4.3 Setting up the smoke machine .....................................................................................13
4.4 Filling the smoke liquid tank .........................................................................................13
4.5 Use with battery base...................................................................................................13
4.6 Use with wall power base.............................................................................................14
4.7 Turning the Smoke Generator on and off .......................................................................14
4.8 Making smoke .............................................................................................................15
4.9 On-Demand smoke production.....................................................................................15
4.10 Continuous Mode smoke production.............................................................................15
4.11 Producing smoke using an external controller................................................................15
4.12 Wireless Remote..........................................................................................................16
4.13 Group Mode.................................................................................................................16
4.14 Burst Mode..................................................................................................................16
4.15 Setting the Wireless Remote Modes..............................................................................17
14.16 Pairing the Remote to the SG1000 Smoke Generator ....................................................19
4.17 Deleting Remote Pairing Memory..................................................................................19
4.18 Wireless Remote Mode Selection..................................................................................20
4.19 Group Mode Selection..................................................................................................20
4.20 Burst Mode Selection ...................................................................................................21
4.21 Replacing the battery in the Wireless Remote................................................................21
4.22 Wired Remote..............................................................................................................22
4.23 DMX interface..............................................................................................................22
4.24 Other methods of making smoke..................................................................................23
4.25 Using the SG1000 Smoke Generator with a BullsEye™system or Attack™system...........24
4.26 How to link the SG1000 Smoke Generator with a BullsEye system or Attack System .......24
4.27 What to do if the SG1000 Smoke Generator won’t communicate with
A BullsEye system or Attack system ..............................................................................24
5. INDICATORS ON THE HANDLE AND ERROR CODES......................................................... 25
6. SERVICE ......................................................................................................................... 26
6.1 Water ..........................................................................................................................26
6.2 Heater .........................................................................................................................26
6.3 Cleaning up spilled liquid smoke...................................................................................26
6.4 Main power cord..........................................................................................................26
7. IMPORTANT POINTS ....................................................................................................... 27
8. WARRANTY INFORMATION ............................................................................................. 28
9. CONTACT INFORMATION................................................................................................. 29
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
TABLE OF CONTENTS

SG1000™SMOKE GENERATOR
2
WWW.LIONPROTECTS.COM
1. INTRODUCTION
Congratulations on the recent purchase of your new SG1000™
Smoke Generator.
The SG1000 allows reghters to conduct training anywhere − no cords required.
Expand your training capabilities to include specialized training scenarios in
locations without power. The SG1000 is ideal for both reghter training and
workplace re safety training.
Fireghters can quickly add smoke to upper oors of your training tower, vehicle
extrication drills and remote locations. The SG1000 also allows training ofcers
to easily add realism to important re safety drills, including evacuation training,
hazard recognition and response training. Because the SG1000 is cordless and
battery operated, it’s ideal for training in locations where electrical power is not
easily accessible or available.
To ensure premium smoke and unit longevity, LION Smoke Generators are
designed to be used only with LION’s specially formulated, water based Smoke
Liquid. Using a LION Smoke Generator and LION Smoke Liquid together will
provide you with the highest quality smoke available.
This user manual describes how to properly operate and maintain the SG1000
for optimal performance.
NOTE
Using smoke liquid other than LION Smoke Liquid, including oil based
smoke liquid, may clog the uid lines and create a hazardous smoke output.
Use of smoke liquid other than LION Smoke Liquid will void the warranty.

3
WWW.LIONPROTECTS.COM
1. Use respiratory protection when in prolonged
contact with smoke or when dense
concentration of smoke is present.
2. People with respiratory conditions or
asthma should avoid exposure to smoke.
3. Do NOT use this appliance without reading the
entire “User’s Manual.”
4. Do NOT alter this appliance in any manner.
5. Always use this appliance on a hard, level,
non-combustible surface such as concrete,
rock or stone.
6. Only LION Smoke Liquid is approved for use
with this product.
7. Keep Smoke Liquid out of reach of children.
If Smoke Liquid comes into contact with eyes,
immediately rinse with water.
8. Smoke Liquid can be removed from most
surfaces with clean water.
9. Smoke Liquid is not for human consumption.
10. Use caution when operating in windy
conditions as smoke can travel (e.g., do
not use in proximity to roadways; smoke may
obscure trafc conditions).
11. The outlet nozzle and face of this appliance will
become hot when in operation. To avoid burns,
do NOT touch appliance until it has completely
cooled for at least 15 minutes.
12. Do NOT attempt to move or store a Smoke
Generator until it is completely cooled.
13. This appliance should be thoroughly inspected
on a regular basis by trained personnel.
14. Do NOT handle Smoke Generators roughly.
Should you drop or bang the Smoke Generator,
inspect thoroughly before use.
15. Serious injury or damage to property
may occur if these guidelines are not
followed precisely.
FOR YOUR SAFETY WARNING

SG1000™SMOKE GENERATOR
4
WWW.LIONPROTECTS.COM
2. SPECIFICATIONS
Below is a summary of LION SG1000™capabilities and technical information.
GENERAL
The SG1000 is a smoke machine that consists of a Smoke Generator connected
to a power unit. Two power units are available. The rst power unit is a battery
power base that makes the Smoke Generator portable, allowing you to add
smoke to any location, or even create smoke as you walk around the training site.
The second power unit is a power supply that plugs into wall power. The power
units are attached to the Smoke Generator and can be easily detached by the
user to change an empty battery or to use the wall powered base instead of the
battery pack.
The SG1000 can be used to generate smoke by using the SMOKE button on the
machine, via DMX, via wired remote, or wireless remote.
On the handle of the Smoke Generator there is a SMOKE button and a two-colored
indication LED light (red and green).
At the back are two XLR connectors for the wired remote control or control by
DMX, an ON/OFF button, a CONTINUOUS MODE SELECTOR button and a
density control knob.
Inside a small compartment on the back of the Smoke Generator there are
switches that allow for changing the DMX channel, remote control channel
selection, Remote Control pairing switch and an indicator light that is used
for programming.
The battery in the battery pack utilize Nickel-Metal Hydride (NiMH) cells.

5
WWW.LIONPROTECTS.COM
2.1 TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Mains Base
Supply Voltage 85~264VAC 47~63 Hz
Mains Base
Power Consumption
8.5A/115VAC 5A/230 VAC
Battery Base Charger
Supply Voltage
110-240VAC
Heater Power 500W
Dimensions L x W x H = 13.0" x 5.5" x 9.4"
(33 x 14 x 24 cm)
Weight with
Battery Base
17 lbs (7.7 kg)
Tank Capacity 24 oz (0.7 L)
The SG1000™is designed to use LION Smoke Liquid. For optimal results,
please use only LION Smoke Liquid.

SG1000™SMOKE GENERATOR
6
WWW.LIONPROTECTS.COM
3. OVERVIEW OF THE SG1000™
SMOKE GENERATOR
3.1 SG1000 CORE UNIT
FIGURE 1: SG1000 CORE UNIT
ABCDEF
AON/OFF BUTTON
B COVER FOR DMX AND REMOTE CHANNEL SELECTION
C CONTINUOUS BUTTON
To turn continuous smoke mode on or off
D DENSITY CONTROL KNOB
To adjust amount of smoke when in continuous mode
E DMX AND WIRED REMOTE INPUT
F DMX OUTPUT

7
WWW.LIONPROTECTS.COM
FIGURE 2: SG1000 BATTERY POWER BASE
A
B
3.2 SG1000™ SMOKE GENERATOR BATTERY POWER BASE
ACHARGING PORT
Connection for battery charger
BAIR INTAKE
NOTE
Instructions on the bottom of the charger indicate
what the LEDs mean for quick reference.
ATTENTION
Use your charger only in a dry, well-ventilated location.
CONTINUES >

SG1000™SMOKE GENERATOR
8
WWW.LIONPROTECTS.COM
3.2.1 WHAT YOU NEED TO KNOW ABOUT YOUR BATTERY
Your Battery Base utilizes Nickel-Metal Hydride (NiMH) cells, replacing the Lithium
Ion battery base for 10 more minutes of run time with no shipping restrictions.
NOTE
If you have already used your SG1000™with a Lithium battery base, you may need
to change the settings on the Smoke Generator or send your SG1000 to LION for
reprogramming. This insert contains information about your Battery Base that is
different from what is included in the main SG1000 manual. Please read,
as you may need to take action before training with your SG1000.
WARNING
READ THE FOLLOWING SAFETY INSTRUCTIONS. FAILURE TO COMPLY
WITH THESE PRECAUTIONS MAY RESULT IN SERIOUS INJURY!
• Do not connect the positive terminal of the battery to the negative terminal.
• Do not incinerate or mutilate the batteries, this may cause the batteries
to burst and release toxic material.
• Do not expose the battery or charger to water.
• Do not expose the battery to temperatures greater than 120°F (49°C). Store
the Battery Base in a cool dry place between -4°F and 86°F (-20°C and 30°C).
• Avoid using the Battery Base in an airtight compartment. The batteries may
generate hydrogen gas which could cause an explosion if exposed to an
ignition source.
• If the battery makes any noise, becomes excessively hot or leaks, stop use
immediately and contact our customer service team.
• When using the battery for the rst time or after long term storage, fully
charge the battery before use.
• NiMH batteries slowly lose charge while being stored. Charge the battery
immediately before use to get maximum run time. To maximize the life of
your Battery Base, go through at least one use-cycle every three months.
This consists of charging the Battery Base, using it till the battery is
drained and recharging it again.
• The battery should only be charged with the supplied charger.
• The performance of the battery will decrease at low temperatures.
• Should the battery die, please dispose of it properly. Always comply with
local and federal laws or requirements for disposal of electrical equipment
and batteries.

9
WWW.LIONPROTECTS.COM
HOW TO CHARGE THE BATTERY BASE
1. Plug the battery charger into the wall. The LED will illuminate green.
2. Plug the charging port into the back of the battery base and turn the connector
1/8-turn clockwise to lock in place. The cooling fan on the charger will turn on
and the LED will turn red. The LED will turn green when the battery is charged.
To disconnect the charger from the Battery Base, pull the yellow lock tab back
and turn the entire connector 1/8-turn counterclockwise, then pull the entire
connector free of the Battery Base.
3. If the charger LED blinks red while plugged into wall power and the Battery
Base, contact our Service Department for assistance.
4. If the battery is hot after use, allow it to cool down in a well ventilated place out
of direct sunlight before recharging.
How to change the settings from Lithium to NiMH (this is only necessary
if you previously used a Lithium Battery Base with your SG1000™):
This procedure can be followed for SG1000 with rmware versions 20 or newer
only and software versions 2.1.7 or newer. If the rmware is older than version
20, the SG1000 top will need to be returned to us for reprogramming. To change
the settings, you will need an iOS device with WiFi capabilities. If you do not have
access to an iOS device, contact customer service for assistance.
1. Turn on your SG1000 and wait 1 minute before connecting to the WiFi network
named “Prop Network”.
2. Open a web browser and enter “sg1000-xxxx.net/support/” where “xxxx” is the
last four digits of the serial number indicated on the back of the SG1000 top. If
this does not work, try without the dash, “sg1000xxxx.net/support/”. If you are
not able to connect to your SG1000, contact us for assistance.
3. The “Customer Troubleshooting” website will appear. Scroll to the bottom of
the website and change the SG1000 battery type to “NiMH”. If you do not
see this option at the bottom of the page, contact our Service Department for
assistance to change the settings.
Turn the power off on the SG1000 and then back on again. Your SG1000 is
now ready to use with your new NiMH Battery Base.

SG1000™SMOKE GENERATOR
10
WWW.LIONPROTECTS.COM
4. Technical Specifications
1
24
3

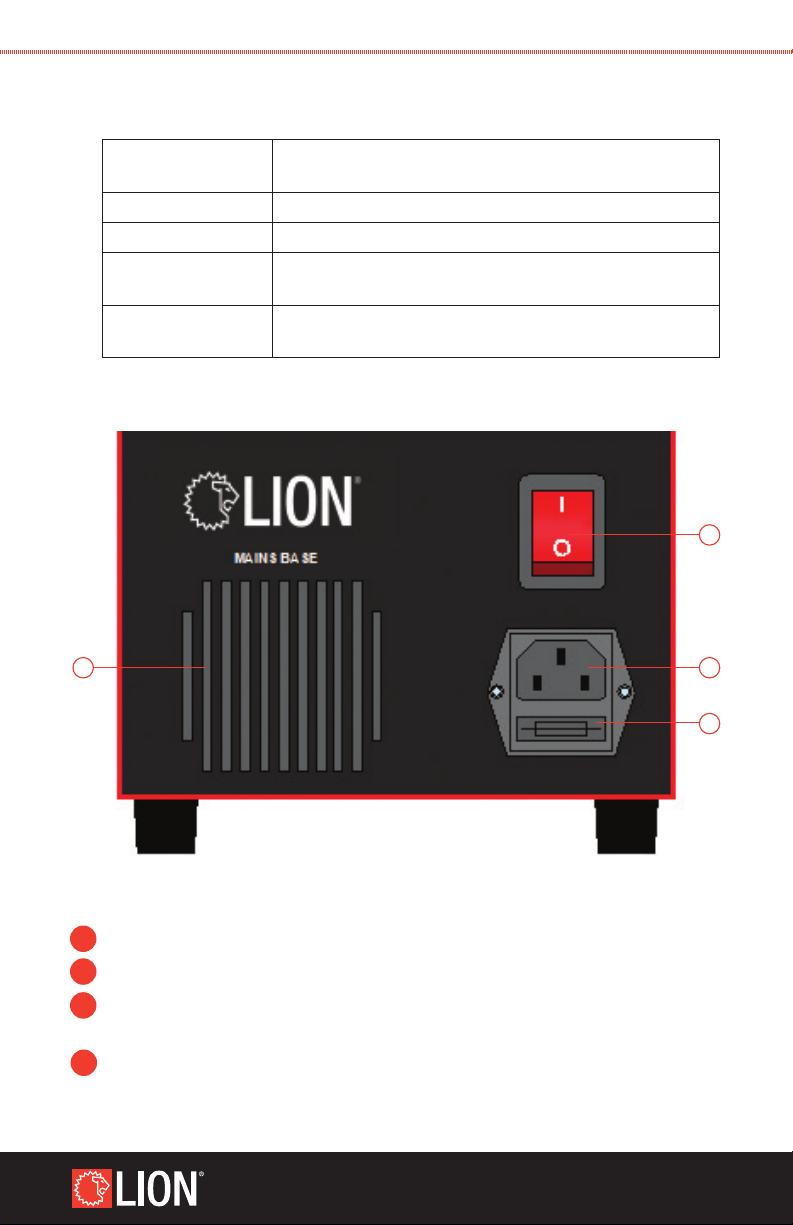

FIGURE 3: SG1000 WALL POWER BASE
1POWER SWITCH
2POWER CORD CONNECTION
3FUSE HOLDER
The SG1000 uses a 5x20mm 10A-T HRC fuse
4COOLING AIR VENTS
Run Time at Max
Output
30 Minutes
Charge Time ~4 hours
Charge Amperage 6 Amps
Charger Supply
Voltage
100-250VAC 50/60Hz
Charger Maximum
Current Draw
1000mA (220V full load)
3.3 SG1000™SMOKE GENERATOR WALL POWER BASE

11
WWW.LIONPROTECTS.COM
4. USING THE SG1000™SMOKE GENERATOR
4.1.
CONNECTING THE SMOKE GENERATOR TO THE BASE
Engage the slots on the bottom rear of the Smoke Generator using the tabs on the
rear of the base and slide the Smoke Generator forward slightly (see Figure 4).
With the locking handle in the middle position, push down on the front of the
Smoke Generator (see Figure 5).
The seam between the Smoke Generator and the base will line up when the Smoke
Generator and base are properly engaged (see Figure 6).
Push down the locking lever until it meets the base. This locks the Smoke
Generator to the base (see Figure 7).
Carefully pick up the Smoke Generator and make sure the Smoke Generator is
secured to the base.
FIGURE 5: PUSH DOWN ON THE SG1000
FIGURE 7: PUSH DOWN THE LOCKING LEVER
FIGURE 4: SG1000 BASE TABS
FIGURE 6: SG1000 SEAM ALIGNED

SG1000™SMOKE GENERATOR
12
WWW.LIONPROTECTS.COM
4.2 DISCONNECTING THE BASE
Remove the base by lifting the lever on the bottom front of the base (see Figure 8).
Lift the handle to the horizontal position. This will force the Smoke Generator apart
from the base (see Figure 9).
Lift the Smoke Generator away from the base and slide it back to disengage the
Smoke Generator from the base (see Figure 10).
FIGURE 10: LIFT AWAY FROM THE SG1000 BASE
FIGURE 8: LIFTING THE LEVER
FIGURE 9: LIFT HANDLE TO FORCE SG1000™APART

13
WWW.LIONPROTECTS.COM
4.3 SETTING UP THE SMOKE MACHINE
Place the machine with the four rubber feet on a stable foundation. The smoke
outlet has to be free from obstruction. Objects should be at a distance of at least
two meters from the smoke outlet to prevent them from being damaged. The
smoke can be extremely hot when leaving the machine. Smoke may condense
when blown against an object at close distance, leaving a residue.
4.4 FILLING THE SMOKE LIQUID TANK
Fill the tank with LION Smoke Liquid. Never ll the tank completely to the top edge;
make sure that the level remains below the neck. To avoid spillage, use a funnel.
Wipe off any spilled liquid.
ATTENTION
Spilling liquid on the machine may damage it.
4.5 USE WITH BATTERY BASE
Make sure the battery is fully charged before use.
Turn the machine on using the ON/OFF button on the back of the Smoke
Generator. Hold down the ON/OFF button for approximately three seconds until you
hear a click. The green light above the switch will remain on when you release the
button to indicate that the machine is turned on.
If the green light turns off when you release the button, try turning the machine on
again, holding the ON/OFF button longer.

SG1000™SMOKE GENERATOR
14
WWW.LIONPROTECTS.COM
4.6 USE WITH WALL POWER BASE
Connect the power supply into a grounded outlet. Turn the power switch on the base
to the “on” position. The light in the switch will turn on. This indicates that power is
being supplied to the Smoke Generator. However, the Smoke Generator will not work
until it is turned on as well.
Turn the Smoke Generator on using the ON/OFF button on the back of the unit. Hold
down the ON/OFF button for approximately three seconds until you hear a click. The
green light above the switch will remain on when you release the button to indicate
that the machine is turned on.
4.7 TURNING THE SMOKE GENERATOR ON AND OFF
Turn the machine on using the ON/OFF BUTTON (Letter Ain Figure 11, below) on
the back of the Smoke Generator. Hold down the ON/OFF BUTTON for approximately
three seconds until you hear a click. The green light above the switch will remain on
when you release the button to indicate that the machine is turned on.
If the green light turns off when you release the button, the Smoke Generator is NOT
on. Try turning the machine on again, holding the ON/OFF BUTTON longer.
To turn the SG1000™off, press and hold the ON/OFF BUTTON until the LED above
the CONTINUOUS BUTTON starts to blink. Release the ON/OFF BUTTON and the
unit will turn off.
FIGURE 11: SG1000 CORE UNIT
ABCDEF

15
WWW.LIONPROTECTS.COM
4.8 MAKING SMOKE
The Smoke Generator can make smoke three ways:
• On-Demand using the button on the handle.
• Continuously using the Continuous Mode.
• Using an external controller.
4.9 ON-DEMAND SMOKE PRODUCTION
Press the button on the handle of the Smoke Generator to make smoke.The Smoke
Generator will produce smoke as long as the button is pressed. You may notice that
there is a short delay as the Smoke Generator heats up. The smoke production
may also be inconsistent until it has reached optimal operating temperature.
4.10 CONTINUOUS MODE SMOKE PRODUCTION
Turn on Continuous Mode by pressing the CONTINUOUS button (Letter Cin
Figure 11, page 14) for approximately 2 seconds until the light above the button
illuminates. Press the smoke button on the handle to start smoke production.
Press the smoke button again to stop smoke production.
The smoke intensity is adjustable by turning the knob next to the continuous button
(Letter Din Figure 11, page 14). Continuous mode can be turned off by pressing
the button (Letter C in Figure 11, page 14) for approximately two seconds until the
light above the button goes out.
4.11 PRODUCING SMOKE USING AN EXTERNAL CONTROLLER
There are several external controllers that can be used with the Smoke Generator:
• Wireless Remote.
• DMX interface.
• Wired Remote.
• Custom external controller using XLR connectors.

SG1000™SMOKE GENERATOR
16
WWW.LIONPROTECTS.COM
4.12 WIRELESS REMOTE
The optional wireless remote control can be congured to operate up to 8 Smoke
Generator 1000s and/or Smoke Generator 4000s.
A combination of two modes can be used to control Smoke Generators using
the Wireless Remote. The rst mode is GROUP MODE and the second mode is
BURST MODE. Group Mode allows you to control two sets of Smoke Generators
independently on one remote using the On-Demand (SMOKE), Continuous (AUTO),
and Continuous Maximum (CONT) modes. Burst Mode allows you to control eight
sets of Smoke Generators using On-Demand Mode only.
4.13 GROUP MODE
When you select Group Mode, the remote can control two sets of Smoke
Generators independently on one remote. The two sets are designated Group A
and Group B. Multiple Smoke Generators can be programmed as Group A or as
Group B.
When you select Group Mode, four buttons are
available for the following functions:
SMOKE − triggers the On-Demand mode where
smoke is produced as long as the button is held down.
AUTO − machine makes continuous smoke at the level
which is set by the “density” control (4).
CONT − machine makes smoke continuously at
maximum level.
STOP − machine stops making smoke.
4.14 BURST MODE
When Burst Mode is selected, between 1 and 8 Smoke Generators can be
programmed to emit a burst of smoke, as long as the corresponding button
is pressed.

17
WWW.LIONPROTECTS.COM
4.15 SETTING THE WIRELESS REMOTE MODES
The rst step when using a new remote with a SG1000™is to
“randomize” the ID of the remote.
Each remote comes from the factory with the same
ID code. This ID code is what the receiver in the smoke
machine
will remember when the remote is paired. It is important
to randomize the remote’s ID before pairing. This prevents
accidental pairing with a smoke machine if two remotes have
the same ID.
To randomize the ID, push the button hidden in a small hole in
the remote (ITEM 3 in the gure below).
Use a tool such as a paperclip, needle, or tweezers. Once
the button is pressed, a blue LED light (ITEM 2 in the gure
below) will begin blinking on the back of the remote for a few seconds. Once this
happens, press any button on the front of the remote to randomize the ID.
When the blue LED stops ashing, the process is complete and the remote now
has a random ID.
1BELT CLIP
2BLUE INDICATOR
3CREATE BUTTON
4BATTERY COVER
5OPENING POSITION
FOR BATTERY COVER

SG1000™SMOKE GENERATOR
18
WWW.LIONPROTECTS.COM
Now you can set the modes for the Remote Control.
The modes are set using switches located behind the ap labeled “CH. SELECT”
on the back of the Smoke Generator (Letter Bin the gure below). The switches
are easily controlled with a paper clip or other small implement.
FIGURE 12: SG1000™SMOKE GENERATOR CORE UNIT
ABCDEF
Table of contents
Other LION Fog Machine manuals
Popular Fog Machine manuals by other brands

Stairville
Stairville WGF-2000 user manual

Bask Mistmaster
Bask Mistmaster 3-in-1 Compact Misting System instructions

Curtis Dyna-Fog
Curtis Dyna-Fog SUPERHAWK II 1 Series Installation, Operation, Service and Maintenance Instructions

FACTOR FOGGER
FACTOR FOGGER HAZECASE 1500 user manual

Chauvet
Chauvet ARENA 2100 FLEX user manual

Stairville
Stairville SH-150 owner's manual
