LION SG4000 User manual

Version 1.1
06/01/20
[USER’S MANUAL
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SG4000™
SMOKE
GENERATOR
ORIGINAL
USER’S MANUAL

Contents
General 3
Control Units 4
Usage 6
Advanced settings 9
Accessories 15
Technical specifications: 16
Maintenance 18
Error Messages 19
Warnings and recommendations 20
Synopsys 20

General

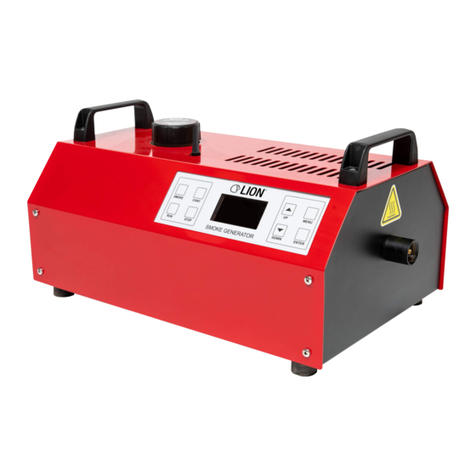

The SG4000™ is a smoke generator designed for fire-fighters and industrial use. It is a continuously
working smoke generator that supplies a constant stream of quality smoke. Safety and Health issues
played a big part in the design of this generator. A priority set for this generator was not the quantity
but the quality of smoke.
A processor continuously monitors the smoke generation and adjusts it as needed. This means that
the temperature within the core of the machine as well as the volume of smoke generated is
monitored in various areas and continuously adjusted as needed. If the set values are exceeded, then
the smoke production will instantly be stopped.
The principle of the heat exchanger was developed in association with TU Eindhoven. A lot of time
was spent on this research. The heat exchanger is the heart of the generator and is the basis for
good, healthy smoke. TU Delft wrote a report regarding the effects of smoke fluid and can be used as
a reference for this product.
The most important functions and capabilities of the SG4000™ are:
•Continuous working smoke generator with adjustable smoke density.
•It is possible to quickly start smoke production, for example to quickly fill a room. It is
then possible to create continuous smoke production with no delays.
•Automatic programs to fill an area with smoke and maintain this smoke
•Manual programs with various timer functions for smoke and delay
•Pre-adjustable timer to allow start-up at a later time
•Possibility of wired and wireless remote control
•Possibility of control via DMX
•Smoke Liquid level on display
•Adjustable to 2000 Watt or 1000 Watt
•Menu in 5 languages: Dutch, English, French, German and Spanish
Because the SG4000™ is a continuously working smoke generator but still needs to guaranty a
certain quality of smoke, it’s possible that the smoke production slows down from time to time. The
temperature control is the most important aspect of the SG4000™. As soon as the temperature
starts dropping, the aerosol particles increase in size which means that these can be deposited in
the lungs.
When the electric current is lower than normal, the generator will automatically slow the production
of smoke to maintain the needed temperature.
The machine accepts a variation of temperature of a few degrees. As soon as a deviation is detected,
the smoke production will be toned down. In practice, these variations of smoke productions will not
be noticed.
The SG4000™ is developed to use LION’s Smoke Liquid. The machine and smoke liquid are tuned to
produce an optimal result.

Control Units
Rear Panel
1. On/Off Switch Switch to turn on and off the machine
2. Electric plug Plug for the electric cable
3. Fuse box Fuse: 10A-T HRC.
4. DMX / RC-entry Remote control cable plug
5. DMX exit Exit for DMX equipment
Control Panel
Keys:
1. SMOKE Smoke production/Boost as long as this is pressed in
2. CONT Short press for continuous smoke production
3. RUN Short press to start a pre-programmed scenario
4. STOP Short press for continuous smoke production or to stop a program
6. UP Pressing it increases the smoke density/menu choice
7. MENU Short press to open the menu or close it
8. DOWN Pressing it diminishes the smoke density/menu
9. ENTER Confirmation button for choice in menu choice
Display:
5. Display Multifunctional display for status information of the smoke generator

Multifunctional display
1. Liquid Level Amount of liquid remaining
2. Temperature Relative temperature (in %) of the heater. As long as the machine is
heating up, the text “TEMP” will be flashing. Once the heater
reaches optimal temperature, the word “TEMP” will no longer flash.
3. Mode Actual modes of the smoke generator:
-WARMING UP
-READY [A] (automatic program chosen)
-READY [T] (manual timer program chosen)
-BOOST
-CONTINUOUS
- AUTO small / AUTO medium / AUTO large
-TIMER
-CABLE AB (cable remote control selected)
-DMX
4. RC Choice Symbol shows if a remote control is registered
5. Smoke Density Selected smoke density. A choice of 100% equates to the maximum
choice of smoke density possible
6. Total Smoke production Total smoke production since turning on the machine. This counter is
reset to 0 when the machine is turned off.
7. Error Message Warnings and error messages (see chapter 8)
8. RC channel Channel of the RC of DMX
9. Power available Available electric power of the heater

Usage
Placing of the generator
Place the generator with the four rubber feet on a solid surface. Make sure that the smoke exit is
clear of obstruction. Objects should be at a minimum of 3 meters from the exit so as not to damage
any objects in front of the machine. The smoke is very warm when leaving the machine. On top of
that there’s a chance of smoke particles deposit when the machine is placed against objects.
Filling the Smoke Liquid tank
Fill the smoke liquid tank with LION smoke liquid. Never fill the tank to the brim. Make sure the level
stays at least under the neck of the tank. Use a funnel when filling the tank so as to avoid spillage.
Make sure the liquid doesn’t spill into the machine via the ventilation vents.
Warming up
Plug in the machine with the supplied electric cable. Flip the switch on the back of the generator to
turn it on. The LCD will turn on and display the status of the machine. During the warming up, it’s
not possible to use the smoke generator. The “MODE” display will show the text “WARMING UP”.
Depending on the power and the ambient temperature, the generator will be warm enough to be used
about 5 to 10 minutes after turning it on. The “MODE” display will show the text “READY [A]” or
“READY [T]”.
Smoke production
The generator has various settings for smoke production:
- Smoke
- Continuous
- Automatic program
- Manual program
- Delayed start of the program
- Remote Control
- Wireless remote Control
- DMX-interface
The SG4000™ produces “dry” smoke. LION smoke fluid consists of aerosols, tiny droplets of liquid
smoke. In principle, the amount of liquid smoke is spread in the room where smoke is made. If the
air is saturated, the smoke can condense and precipitate so good ventilation optimises the
effectiveness of the smoke. In normal conditions and when used in combination with LION Smoke
Liquid, there will be no significant residue.
Importance attention points for a safe and clean usage:
- Stop the smoke production when the visibility is sufficiently obscured by smoke.
- Limit the lack of visibility to 50cm
- Ventilate the area sufficiently after an exercise
- If natural ventilation isn’t possible, use a smoke/gas ventilator
- Use a filter mask or oxygen when using higher concentrations of smoke

Smoke Boost
Wait until the machine is ready, push the “SMOKE” button and hold it down. When the machine is hot
enough, a large quantity of smoke will be produced for 20 seconds (140% density). After that, the
machine will switch back to normal density (100%)
If the heater isn’t warm enough, it will immediately switch to 100% density and skip the boost mode.
As long as smoke is produced, the “MODE” display will show “BOOST”
Continuous
Wait until the machine is ready; shortly press the “CONT” button. The “MODE” display will show
the text “CONTINUOUS” and the generator will continuously produce smoke, until someone
pushes the “STOP” button or until the Smoke Liquid tank is empty. Density can be adjusted with
the “UP” and “DOWN” buttons, between 5 and 100%.
Automatic program
The generator is foreseen of an automated program to fill and maintain an area full with smoke.
Just set the size of the area (small/middle/large) and press RUN to start the program.
Press STOP to stop the program.
During the automatic program, the smoke production can be adjusted; as long as the “SMOKE”
button is pressed in the machine will temporally switch to Smoke Boost. The machine will switch back
to the automatic program once the button is released.
If the automatic program is stopped in the middle, the generator will keep the program in memory for
5 minutes. This means that if you push the RUN button in the next 5 minutes, the generator will
resume the original program. If the limit of 5 minutes is surpassed, the program will start from the
beginning.
See chapter 4.1 for setting automatic programs up.
Manual Timer program
The manual timer program can be used for a single use or repeatable program. Set the smoke time,
the pause time and repeat function. Press the “RUN” button to start the program. During the program,
the smoke density can be adjusted with the “UP” and “DOWN” buttons.
During the manual program, the smoke production can be manually adjusted. As long as the
SMOKE button is pressed down, the generator will switch over to Smoke Boost mode. The generator
switches back to the timer program as soon as the SMOKE button is released.
See chapter 4.2 for setting manual timer programs up.
Delayed start of a program
The automatic and manual program can be delayed by a maximum of 24 hours. Set the desired
delay and press the “RUN” button.
The generator will start counting down as soon as the “RUN” button is pressed and run once
the counter hits 0:00.
When the delay is longer than 15 minutes, the heater will shut down to save energy. The
machine starts automatically heating up 15 minutes prior to the end of the countdown.
See chapter 4.1 and 4.2 for setting up programs.
DMX interface
The generator can be used with DMX equipment. Set the desired DMX channel and attach the DMX
cable to the rear panel. Then the machine is operated via a DMX device such as a light box. To
avoid interference when using a wired remote control, the DMX can be disabled: DMX channel: OFF.
See chapter 4.4 for setting up DMX channels.

Remote Control
The generator can be operated at distance thanks to the optional wired remote control. As long as
the button is pressed, the generator will produce smoke based on the chosen smoke density. Select
the smoke density by using the “UP” and “DOWN” buttons on the generator.
Plug the remote control in at the back of the generator. Wait until the generator is warmed up (the
screen will show “READY”) and push on the button of the remote control.
The generator will keep producing smoke as long as the button is pressed in.
Wireless Remote Control
The generator can be controlled via the four buttons, CONT, RUN and STOP of the optional
wireless remote control
The wireless remote control can operate two different generators at a time (group A and B)
separately from each other or at the same time (multiple machines in the same group react at the
same time to the buttons of the RC).
Watch out! The RC only works when the display shows the main screen. If the menu is visible,
the generator won’t react to the RC.
See chapter 4.5 for setting up the wireless remote control.
1. Group A Controls the generator(s) set up in group A
2. Group B Controls the generator(s) set up in group B
Smoke Density
Smoke density is adjustable in continuous mode or manual timer program. The smoke density
is preprogramed in all other modes.
To set up smoke density:
- Make sure that the main screen is showing on the display.
- Push the “UP” button to increase smoke density (maximum 100%) or press the
“DOWN” button to lower the smoke density (minimum 5%).

Advanced settings
The advanced settings are reachable via the menu which is based on a tab structure.
Program Automatic program/Manual timer program
Setup Setting up power, language and restoring factory settings
DMX Channel settings for DMX
RC Settings for wireless remote control
To open the menu and change settings:
- Press the “MENU” button to open the menu.
- The blinking cursor indicates which item is selected. Move the cursor to the desired
setting with the “UP” and “DOWN” button. Choose the desired setting by pressing the
“ENTER” button. The chosen setting should now be flashing.
- Change the setting with the “UP” and “DOWN” button of the panel and press “ENTER”
to validate your choice.
- To access a different tab, put the cursor on the item in the lower right section (5) and press
the “ENTER” button. The next tab will then be opened.
- Press the “MENU” button to close the menu.
If the menu is opened but is idle for a long period it will automatically close.
Automatic Program
1. Menu The menu tab shows the available tabs.
2. Delay As soon as the “RUN” button is pressed, the generator will wait
during the selected delay time before starting the program.
Set the delay to 0:00 to deactivate the delay.
3. Mode AUTO means automatic program.
4. Space Size of the area: Small/Medium/Large.
5. Next tab Next tab is Setup.
6. Cursor The cursor indicates which menu item is active.
To adjust the automatic program:
- Open the menu and go to tab program (1)
- Set the mode (3) to auto.
- Set area (4) to the desired size:
oSmall 15 - 20 m3
oMedium 30 - 50 m3
oLarge 200 - 250 m3
- If a delay before the generator starts working is desired, fill this in in delay (2).
- Press “MENU” to leave the menu. The main screen will be shown again.
- Press “RUN” to start the program.

Manual Timer Program
1. Menu The menu shows all available tabs.
2. Delay As soon as the “RUN” button is pressed, the generator will wait
during the selected delay time before starting the program.
Set the delay to 0:00 to deactivate the delay.
3. Mode TIMER means Manual Timer Program
4. Smoke Time Set how long you want the generator to make smoke.
5. Pause Time Set how long the generator should wait after smoke production before
it starts again.
6. Next Tab Next tab is Setup.
7. Repeat Set if the program should repeat continuously or just once.
8. Cursor The cursor shows which menu item is active.
To adjust the Manual Timer Program:
- Open the menu and go to the tab program (1)
- Set the mode (3) to Timer.
- Set the smoke time (4) to the desired length oftime.
oMinimum is 1 second, maximum is 10 minutes.
- Set the delay (5) to the desired length of time.
oMinimum is 1 second, maximum is 10 minutes.
- Set the repeat function (7) to on oroff.
- If a delay before the filling of the room with smoke is desired, insert it in delay(2).
- Push “MENU” to leave the menu. The main screen will be shown again.
- Set the desired smoke density with the “UP” and “DOWN” buttons.
- Press “RUN” to start the program.

Setup menu
Power
The power (2) of the generator is adjustable to 1000W or 2000W. This allows you for example to
work multiple generators of one plug.
Smoke production will automatically be adjusted so that a continuous production of smoke is still
possible. This means that the machine will produce half the smoke at 1000W that it would at
2000W.
The smoke production in the automatic program (see chapter 3.4.3) remains the
same. To adjust the power:
- Open the menu to the tab “SETUP”.
- Set the cursor to “POWER” (2).
- Press the “ENTER” button, the chosen value will start flashing.
- Press the “UP” or “DOWN” button to modify the setting.
- Press the “ENTER” button.
- Press the “MENU” button to leave the menu. The main screen will then be displayed.
Language
The language (3) used in the display can be changed to: Dutch, English, German, French and
Spanish. To set the language:
- Open the menu and go to the tab “SETUP”.
- Set the cursor to “LANGUAGE” (3).
- Press “ENTER”, the chosen language will start flashing>
- Press “UP” or “DOOWN” to change the setting.
- Press “ENTER”
- Press “MENU” to leave the menu. The main screen will be displayed.

Restoring Factory Settings
This will restore all factory settings except for the language.
To restore factory settings:
- Open the menu and go to the tab “SETUP”.
- Select factory settings (4) with the cursor.
- Press the “ENTER” button. The display will show “READY” and the factory settings will
be restored.
- Press “MENU” to leave the menu. The main screen will be displayedagain.
DMX
The generator uses one DMX channel. The selected value of this channel defines how much
smoke is made:
DMX-value Result
0 –21 No smoke
22 –178 Smoke, Smoke Density between 1% and 100%
179-255 Smoke Boost (20 second Boost, afterwards 100% density)
The DMX tab allows for DMX channel setting modifications, between 1 and 512. The generator
automatically recognizes a DMX controller. This does not necessitate manual intervention. To
avoid interference when using a wired remote control, the DMX can be disabled: DMX channel:
OFF.
To set the DMX channel up:
- Open the menu and go to the DMX (1) tab.
- Place the cursor on “DMX CHANNEL” (2).
- Press the “ENTER” button. The chosen channel will start flashing.
- Press the “UP” or “Down” button to modify this setting.
- Press the “ENTER” button.
- Press the “MENU” button to leave the menu. The main screen should be displayed.

Wireless Remote Control (RC)
Wireless Remote Control settings
The wireless RC had two groups of buttons: group A and group B. This allows for two generators
being controlled at the same time by one remote.
Group A uses the top 4 buttons of the RC. Group B uses the bottom 4.
The four buttons have the same function as the four buttons on the left of the generator display.
Setting up the RC:
- Open the menu and go to tab “RC” (1).
- Set the cursor on “CONTROLLING” (3).
- Press the “ENTER” button, the selected setting will start flashing.
- Press the “UP” and “DOWN” button to switch between groups.
- Press the “ENTER” button.
- Press the “MENU” button to return to the main screen.
Setting up a Remote Control
Up to 40 RC’s can be memorized by the
generator. To memorize an RC:
-Open the menu and go to tab “RC”.
-Place the cursor (7) on memorize RC (4) and keep the “ENTER” button depressed.
-Press a button of the RC.
-Release the “ENTER” button.
-Press a button of the RC. The receiving symbol (2) will appear if the generator is receiving a
signal form an RC. In case the symbol doesn’t appear repeat the procedure.
-Press “MENU” to return to the main screen.
Erasing RC memory
To make sure an RC doesn’t work with a certain generator anymore, the whole RC memory must
be erased. Once the procedure complete, any RC that needs to be used with the generator in
question will have to be memorized again.
To erase the memory:
-Open the menu and go to the “RC” tab.
-Place the cursor (7) on erase all (4) and keep the “ENTER” button depressed for 12 seconds until
the display shows “READY” (4).
-Release the “ENTER” button.
-Press the “MENU” button to return to the main screen.

Changing the RC identification code
Every RC has its own identification code. It can happen that multiple RC’s share the same code.
The consequence is that the generator is controlled by many RC’s at the same time even though
that may not be wished.
In that case, the identification code of the RC can be
changed. To do this, follow these steps:
-Press the paperclip to hit the hidden “CREATE” (3) button.
-De blue indicator (2) should be flashing now.
-Press all the buttons on the front of the remote one by one.
-Press the paperclip to hit the hidden “CREATE” (3) button.
-The blue indicator should stop flashing.
The RC now has a different identification code and needs to be “re-memorized” by the generator.
1. Clip
2. Blue indicator
3. CREATE button
4. Battery cover
5. Battery cover opening
Replacing the RC battery
If the strength of the RC signal should diminish, the battery needs to be
replaced. To replace the battery:
Remove the battery cover (4) by inserting a screwdriver in the opening (5) and pushing
upwards. Remove the battery (Type CR2032) en replace it with a new one.
Note the polarity; insert the new battery with the "+" visible to the user.

Accessories
Smoke Liquid
This generator was designed to be used with LION Smoke Liquid. Use of other smoke liquid can
lead to damage to the generator. The warranty is void as soon as another liquid is used with this
generator.
LION Smoke Liquid is available in two forms:
-art. 010700 LION Smoke Liquid 5L can
-art. 010800 LION Smoke Liquid 20L can
More Information about our smoke and Smoke Liquid is available in our smoke report which can
be requested from our sales department.
Smoke Conducting System
There are two different systems available for the SG4000™:
-art. 010500 Smoke conducting tube set 127mm (6m length)
-art. 010500B Smoke conducting tube set 63mm (5m length)
Our sales department can advise you as to which is best suited for your needs.
Remote Control
Different types of RC’s are available for the SG4000™:
-art. 017600 Wireless remote control (wireless RC + antenna)
-art. 017800 Wired remote control (RC with 5m cable)
Our sales department can advise you as to which is best suited for your needs.

LION
Manual
SG4000™
Technical specifications:
Technical specifications, 230V version:
•Voltage: 230V~ 50Hz - 60Hz
•Electrical consumption: Max. 2000W.
•Fuse: 10A-T HRC Ceramic 5 x 20 mm
•If not possible the consumption can be set to 1000W via the menu
•Measurements: 52.5 x 33 x 26 cm.
•Weight: 18.4 kg (empty).
•Connecting cable: Euro connecting cable 3 x 1 mm², length 5 meter.
•Satisfies all safety and security requirements. CE certificates available on demand
•Capacity of built-in plastic storage tank: 5 litre
•Max. consumption of smoke liquid when at maximum power: 65 ml/minute
•Warm up time from cold: 5.5 min.
•Ambient temperature during use: -10 0C - 300C
•Smoke production: 630 m3/min (Boost) - 450 m3/min (Continuous)*
Technical specifications, 115V version (compared to 230V version):
•Voltage: 115V~ 50Hz - 60Hz
•Electrical consumption: Max. 1800W.
•Fuse: F16A Quick Blow Ceramic HRC 6.3 x 32 mm
•Connecting cable: connecting cable 14AWG x 3, length 10ft, NEMA 5-15P.
•Warm up time from cold: 7 min.
*Smoke production with LION Smoke Liquid is satisfies all legislation concerning disco use.
Technical Specifications Wireless Remote:
•Range: 30 meters metres in the open field
•Frequency: 433.92 MHz
•Battery: CR2032
Technical Specifications Connection Wired Remote Control:
•Function: smoke on / smoke off
•Control via potential-free contact or by applying +7 ... 24V DC
Wiring diagrams

LION
Manual
SG4000™
- 18
-
Maintenance
The smoke generator was designed to need very little maintenance.
Yearly maintenance
Once a year, the smoke generator needs to be flushed with distilled water. First all smoke liquid must
be removed from the generator. Once this done, 3 litres of distilled water needs to be flushed through
the whole system. Start the generator and leave it running on continuous until all liquid is vaporized.
Should any liquid remain it needs to be manually removed.
Warranty
The smoke generator has a full one year warranty on materials, hourly rates and call-out
charges. Any damage caused by wrong use, fall damage or other external factors are not
covered by the warranty.
The warranty will immediately be voided if other liquids other than the ones sold by LION are used.
The warranty starts the second the generator leaves LION Fire Training Products.
Water
The generator is not water tight. If the generator is used during fire trainings make sure it is placed in
a spot where it cannot get wet. It cannot be covered with a sheet. This can have dangerous
consequences if the generator cannot discharge any heat.
When using outside, be mindful of weather conditions!
De warranty is voided if damage is caused by water.
Cleaning spilled smoke liquid
Should you spill any liquid next to or on the generator, this can be cleaned by a moist towel.
Connecting cable
Should the connecting cable need replacing, the following should use:
-230V: Euro connecting cable with H05VV-F (VMVL) specification or better. It should have
core diameter of 3 x 1 mm2.
-115V: 14AWG x 3 or better, IEC320-C19 and NEMA 5-15P plug.
Opening and repairing
Opening and repairing of the generator may only be done by qualified personnel.

LION
Manual
SG4000™
- 19
-
Error Messages
As long as one or multiple errors are present, the generator will produce no smoke. In some cases,
the heating elements will be turned off depending on the type of error. Error messages are displayed
on the screen as “E x”. The number of the error indicates what type of error is present. In the case of
multiple errors, the type of error will alternate on the screen.
These are the type of errors possible:
Code
Text
Description
Generator still
working?
E0
Power low
Too little power available for warming
up. Use a shorter/wider power cable.
Yes
E1
Maintenance needed
Planned maintenance needed. Make an
appointment with our service department.
Yes
E2
(not used)
E3
H1 on –sensor off
Heater 1 is on but gives no indication of
temperature. Contact us as soon as possible.
Yes, half power
E4
H2 on –sensor off
Heater 2 is on but gives no indication of
temperature. Contact us as soon as possible.
Yes, half power
E5
Smoke Liquid empty
Fill the Smoke Liquid tank with smoke liquid.
No
E6
Casing to hot
The casing is to warm.Turn off the generator
and wait until the casing has cooled. Turn
the generator back on. If the error is still
present it
could be defective.
No
E7
Heater to hot
The heater is too hot. Turn off the generator
and wait until it has cooled. Turn the
generator back on. If the error is still present
it could be
defective.
No
E8
Heat sensor defective
Defective heat sensor.
No
E9
H1 off –sensor on
Heater 1 is off but is replying. Dangerous
for the generator. Turn off the machine
directly
and send in for repairs.
No
E10
H2 off –sensor on
Heater 2 is off but is replying. Dangerous
for the generator. Turn off the machine
directly
and send in for repairs.
No
E11
Casing-sensor
defective
Defective heat sensor.
No
E12
Warming up to slow
Defective heat sensor.
No

LION
Manual
SG4000™
- 20
-
Warnings and recommendations
THIS GENERATOR MAY NOT BE USED FOR ANY OTHER PURPOSES BUT THAT OF
CREATING SMOKE. USE A FUNNEL WHEN FILLING THE GENERATOR WITH SMOKE
LIQUID.
WHEN OPEN CERTAIN PARTS IN THE GENERATOR CAN STAY UNDER VOLTAGE.
THE SMOKE GENERATOR MAY ONLY BE OPENED AND REPAIRED BY LION TRAINED
PERSONEL. WHEN OPENING THE GENERATOR SOME ELEMENTS CAN RETAIN AN
ELECTRICAL CHARGE.
MAKE SURE NO WATER GETS INTO THE GENERATOR.
PLACE THE GENERATOR WHEN IN USE IN A HORIZONTAL POSITION ON SOLID GROUND
AND NEVER DIRECTLY ABOVE PEOPLE’S HEADS.
MAKE SURE THAT THE GENERATOR OPENING IS MORE THEN 3 METERS AWAY FROM ANY
OBJECT.
DO NOT PLACE ANYTHING ON THE GENERATOR. MAKE SURE THAT THE VENTILATION
DUCTS ARE ALWAYS OBSTRUCTION FREE.
DO NO TUSE THE GENERATOR IN EXTREME CONDITIONS AND ALWAYS KEEP OUT OF THE
SUN WHEN IN USE.
THE GENERATOR IS COMPOSED OF SOME PARTS THAT CAN REACH UP TO 300
DEGREES CELCIUS WHEN IN USE.
ONLY USE PLUGS THAT CAN PROVIDE ENOUGH POWER FOR THE GENERATOR.
AVOID USING EXTENSION CABLES.
TO ENSURE THAT NO RESIDU REMAINS, MAKE SURE TO TURN OFF THE
GENERATOR ONCE THE SIGHT IS IMPAIRED ENOUGH AND ALWAYS VENTILATE
THE AREA DURING AND AFTER AN EXCERCISE.
DON’T USE THE SMOKE GENERATOR IN SPACES WITH SENSITIVE ELECTRONIC
EQUIPMENT OR FOODSTUFFS.
SMOKE IS ONLY HARMLESS WHEN IN SMALL QUANTATIES. DURING FIREFIGHTER
EXERCISES WHERE THE QUANTATIES ARE LARGE, WE ADVISE THE USE OF A
FILTER MASK.
ONLY USE SMOKE LIQUID PRODUCED AND SOLD BY LION IN THE SG4000™.
IN CASE OF USE OF ANY OTHER SMOKE LIQUID, THE WARRANTY IS IMMEDIATELY VOID.
OTHER SMOKE LIQUIDS CAN CAUSE DAMAGE TO THE HEALTH WHEN USED IN
COMBINATION WITH THE SG4000™.

Synopsys
Setting up and powering up.
-Attach the cable to the back of the SG4000™ and plug it into a socket (230V / 10A).
-Turn on the generator.
-Wait until the display shows “READY”. The SG4000™ smoke generator is ready to be used.
SMOKE / BOOST
-Wait until the generator reaches the right temperature.
-Press the SMOKE button and hold it down until the smoke production starts.
-Release the SMOKE button to stop smoke production.
CONTINUOUS
-Wait until the generator reaches the right temperature.
-Press the CONT button to start the smoke production.
-Press the STOP button to stop smoke production.
SMOKE DENSITY
Smoke density is adjustable for CONT and TIMER modes.
The smoke density is only adjustable when the menu is shown on the display.
-Press the UP button to increase the smoke density (max. 100%).
-Press the DOWN button to decrease the smoke density (min. 5%).
AUTO/TIMER
-Set the desired program (AUTO or TIMER) and the parameters (delay, space or time/repeat)
via the menu.
-Press the RUN button to start the program.
-Press the STOP button to stop the program.
FULL OR HALF POWER
-Open the menu and go to the “SETUP” tab.
-Set the power to 2000w for full power or 1000W for half power.
-Close the menu.
