Lionel Electric Trains 264 User manual

Traditional Version
Compatibility
This engine will operate on any traditional
O-31 gauge track system, including
M.T.H.’s RealTrax® and Lionel’s
traditional tubular track. It is also
compatible with most standard AC
transformers. (See page 7 for a complete
list of compatible transformers and wiring
instructions.)
OPERATOR’S MANUAL
PLEASE READ BEFORE USE AND SAVE
No. 264 & 265 Steam Locomotives
www.lionelcorporation.com

Table of Contents
Set Up Checklist................................................................................................... 3
Lubrication........................................................................................................... 3
Basic Operation.................................................................................................... 4
Activating Features.............................................................................................. 4
Maintenance.......................................................................................................... 5
Lubricating and Greasing Instructions................................................................. 5
Cleaning The Wheels and Track........................................................................... 6
Headlight Replacement Instructions.................................................................... 6
Transformer Compatibility and Wiring Chart...................................................... 7
Service & Warranty Information.......................................................................... 8
Limited One-Year Warranty...................................................................................8
This product may be protected by one or more of the following patents: 6,019,289; 6,280,278;
6,281,606; 6,291,263; 6,457,681; 6,491,263; 6,604,641; 6,619,594; 6,624,537; 6,655,640.
©2012, M.T.H. Electric Trains®, Columbia, MD 21046
CAUTION: ELECTRICALLY OPERATED PRODUCT:
WARNING: Whenusingelectricalproducts, basicsafetyprecautions shouldbeobserved,including thefollowing:
Readthis manualthoroughlybeforeusing thisdevice.
lM.T.H. recommends that all users and persons supervising use examine the hobby transformer and other electronic equipment
periodicallyfor conditionsthatmayresult intheriskof fire,electricshock,or injurytopersons,such asdamagetothe primarycord,
plug blades, housing, output jacks or other parts. In the event such conditions exist, the train set should not be used until properly
repaired.
lDonot operateyourlayoutunattended. Obstructed accessoriesorstalledtrainsmayoverheat,resulting indamagetoyour layout.
lThistrain setisintendedfor indooruse. Donotuseifwaterispresent. Seriousinjuryorfatality mayresult.
lDonot operatethehobbytransformer withdamagedcord,plug,switches,buttonsor case.
Recommended for Ages 14 and up. Not recommended for children under 14 years of age without adult supervision. As
with all electric products, precautions should be observed during handling and use to prevent electric shock.
Rev: _Lionel 264 & 265 [Traditional] Steam 3/7/12

Set Up Checklist
Lubricate the locomotive
Apply power to run as described in the Basic Operating Section of this
manual
ll
You should lubricate the engine and tender to prevent it from
squeaking. Use light household oil and follow the lubrication points
marked “L” shown below. Do not over-oil. Use only a drop or two
on each pivot point. Make sure you lubricate all side rods, leading
and trailing trucks and drive wheel axles.
Lubrication
p
p
DO NOT
OVER OIL
DO NOT
OVER OIL

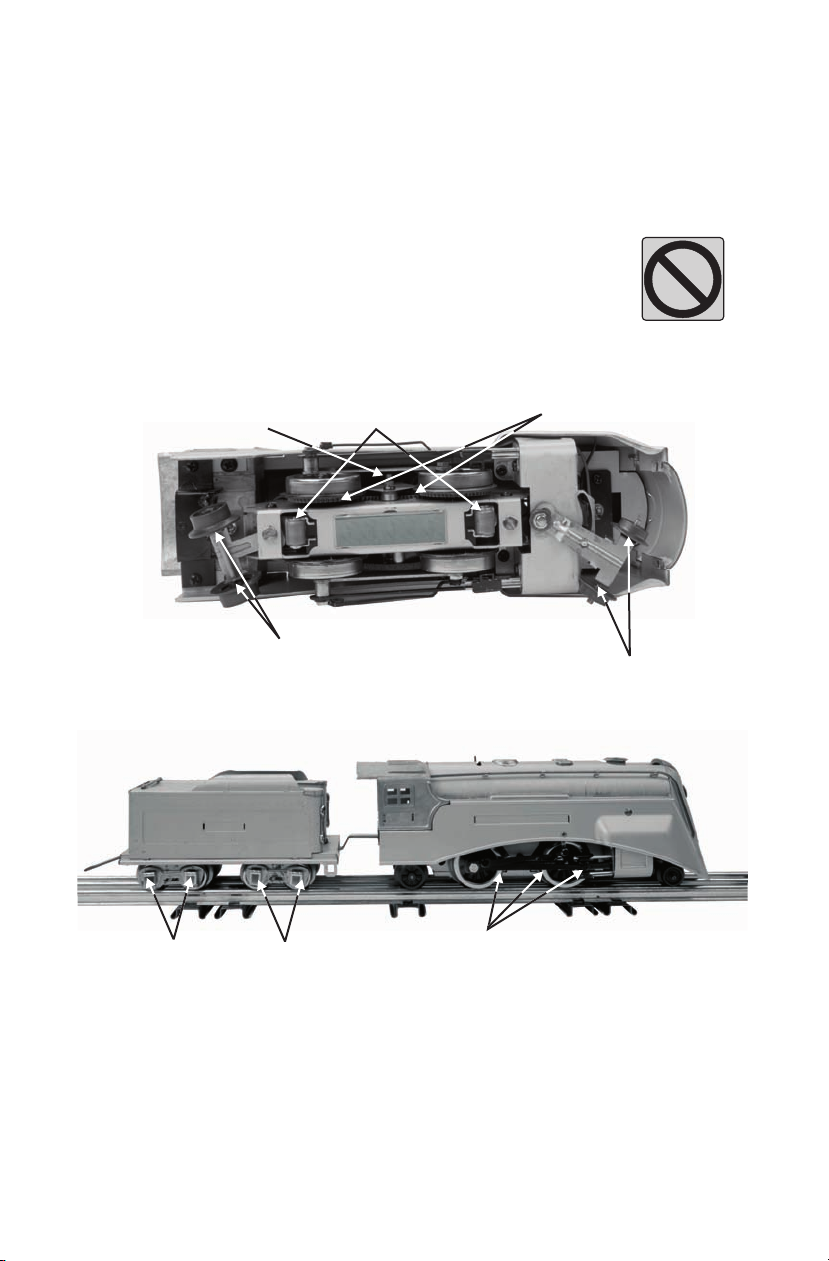

Lubrication Points on the Locomotive
Lubricating The Side Rods and Linkage and tender wheels and axles
No. 264 & 265 Steam Locomotive Passenger Train 3
Lubricate Pick Up Rollers (L)
Lubricate Wheel Axles (L) Lubricate Wheel Axles (L)
Lubricate Side Rods
Lubricate Tender Wheels & Axles
Lubricate Wheel and Idler Gears (L)
Lubricate Motor Shaft (L)

The Throttle knob controls how fast your train will travel.
The locomotive is stopped, started and reversed by means of the reversing ‘E-Unit’
located inside the locomotive. The E-Unit is a three position sequence relay which
cycles whenever current to the locomotive is interrupted. This can be done by
operating the ‘direction’ control on the transformer, or by moving the transformer
voltage control to the OFF position. The sequence of its operation is Forward,
Neutral, Reverse, Neutral, etc. In other words, if the locomotive is in forward
motion, operate the ‘Direction’ control once to stop it, and twice to reverse it.
If you want to operate the train in one direction only, which is necessary if you
have automatic stations or Insulated blocks in your layout, you must ‘lock-out’ the
E-Unit. Make sure the locomotive is moving in the desired direction then stop it.
Now, move the E-Unit lever (located at the rear of the motor) to its OFF position
or toward the right side of the locomotive. If the E-Unit is ‘locked out’ while it is
in the Neutral position, the locomotive will not run at all. Also, because the E-Unit
works partially by gravity, it will not operate properly if the locomotive is held on
its side or upside down. To resume normal operation move the E unit level to the
left.
Basic Operation
Activating Features
Throttle- To increase or decrease track voltage, and therefore train speed, turn the
throttle control knob. Turning clockwise will increase voltage and speed, while
turning counterclockwise will decrease voltage and speed. The engine will maintain
the speed you set after you release the throttle until you turn it again to change the
voltage and speed.

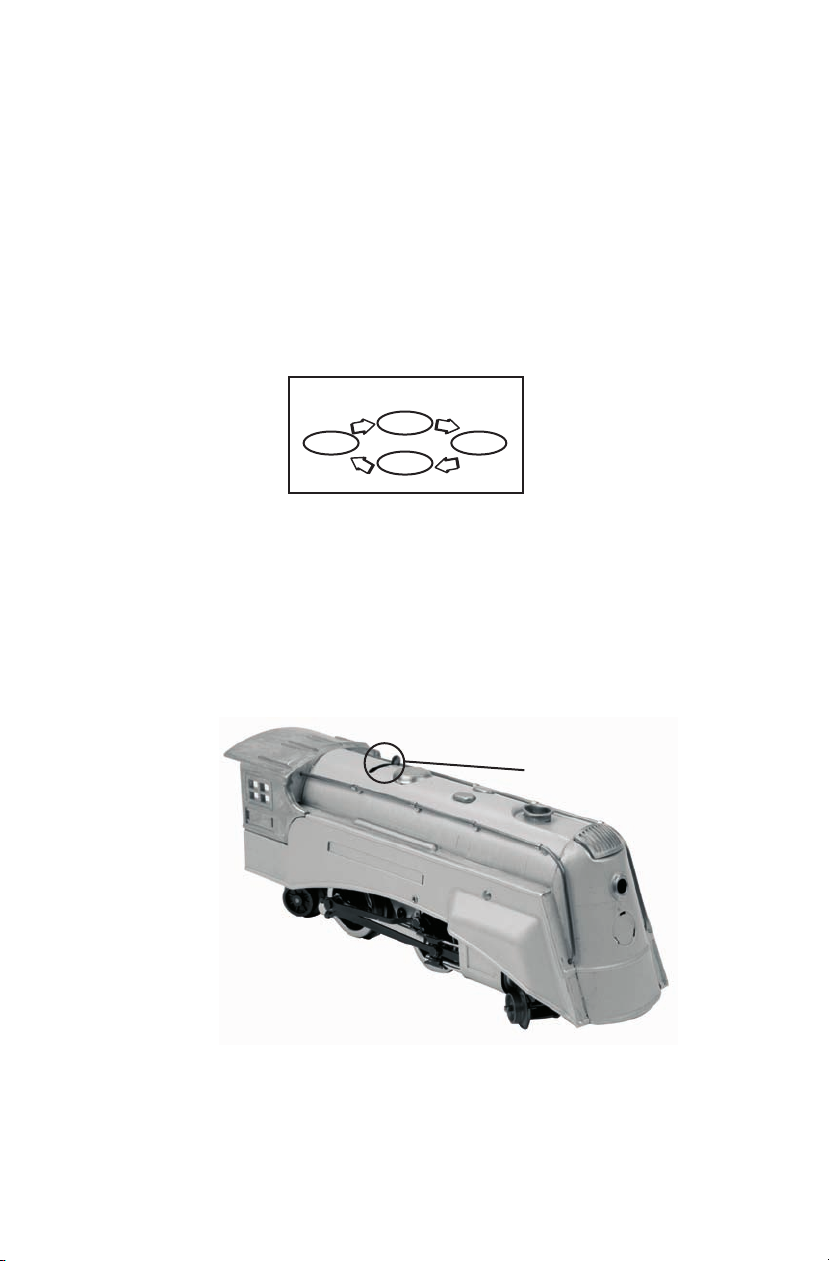

Cycle Phases
Neutral
Neutral
ForwardReverse
E-Unit Lever
No. 264 & 265 Steam Locomotive Passenger Train
4

The engine and tender should be well oiled and greased in order to run properly.
Regularly lubricate all axles and linkage components and pickup rollers to prevent
squeaking. Use light household oil, such as that found in M.T.H.'s maintenance kit.
Do not over oil. Use only a drop or two on each pivot point.
The locomotive utilizes a direct drive motor that should not need direct
lubrication. However, it will be necessary to lubricate the idler gears located on the
inside of the drive wheels.
Maintenance

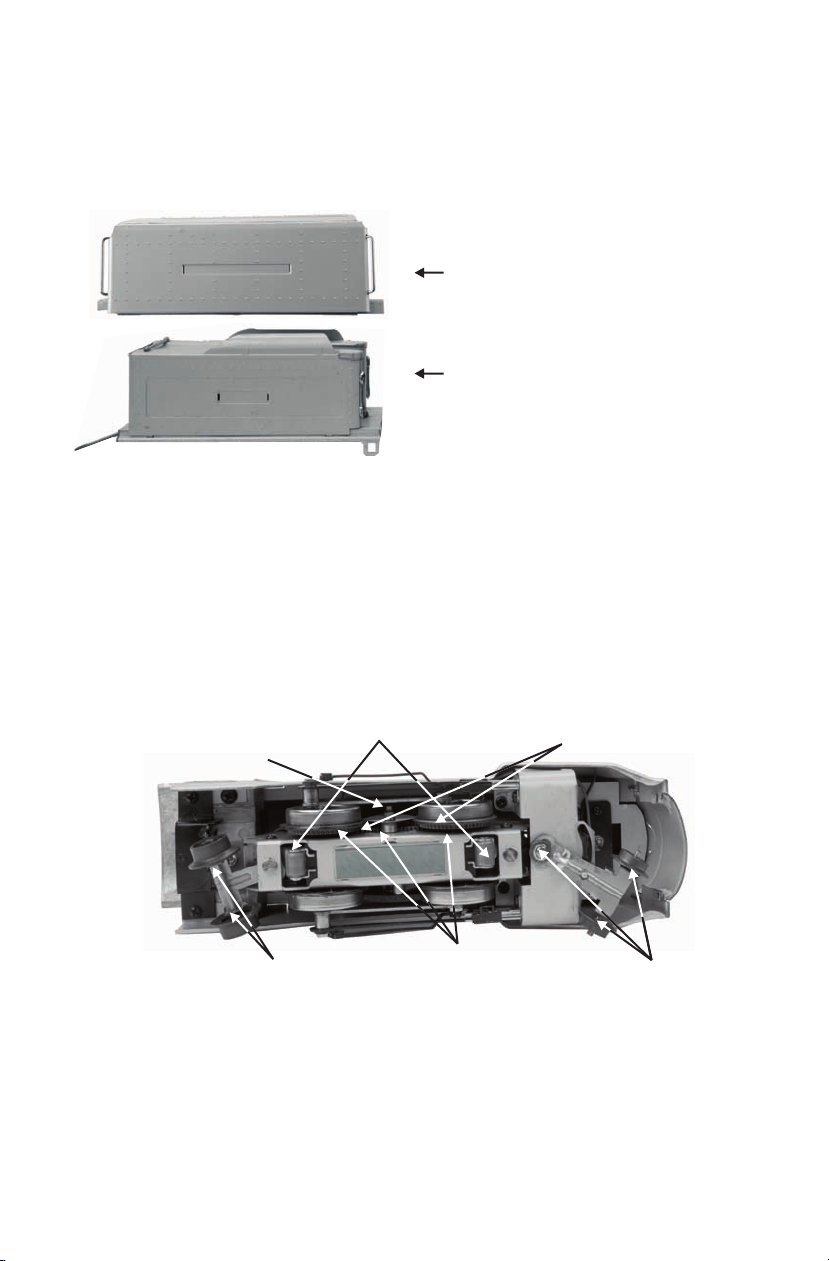

Lubricating and Greasing Instructions
Lubricate
Leading Truck Pivot Point and Axle
Whistle- If your model includes a whistle, to sound the whistle, firmly press the
horn/whistle button on your transformer or controller. The whistle will sound for
as long as you continue to depress the button. It will stop when you release the
button.
Lubricate Pick Up Rollers (L)
Lubricate Wheel Axles (L) Idler Gears
No. 264 & 265 Steam Locomotive Passenger Train
This style tender
includes a whistle
This style tender
does not include a whistle
Lubricate Wheel and Idler Gears (L)
5
Lubricate Motor Shaft (L)

Headlight Replacement Instructions
The headlight is easy to remove by simply unscrewing it from its housing at the front
of the boiler.
(Order online: www.mth-railking.com, e-mail: [e-mail],Fax: 410-423-
0009, Phone: [phone], Mail: 7020 Columbia Gateway Drive, Columbia MD
21046-1532, ).
Replacement light bulbs are available directly from the M.T.H. Parts Department.
Headlight
Cleaning The Wheels, Tires, and Track
Periodically check the locomotive wheels and
pickups for dirt and buildup, which can cause poor
electrical contact and traction and prematurely wear
out the neoprene traction tires. Wheels and tires
can be cleaned using denatured (not rubbing)
alcohol applied with a cotton swab.
To clean the track, use RailKing Track Cleaning
Fluid found in Maintenance Kit (30-50010) or
denatured (not rubbing) alcohol and a clean rag.
Unplug the transformer and wipe the rails of the track, turning
the rag frequently to ensure that you are using clean cloth on
the rails. Thereafter, keep an eye on the track and clean it when
it gets dirty to ensure good electrical contact and to lengthen
the life of the tires.
Clean any type of track with this heavy-duty track cleaning
block ( . Durably constructed from ABS plastic, the
block includes a built-in cleaning pad. For really stuborn track,
you can insert sandpaper into the block in just a few quick
steps.
40-1099)
Track Cleaning Block (40-1099)
Maintenance Kit (30-50010)
No. 264 & 265 Steam Locomotive Passenger Train
6

Transformer Compatibility and Wiring Chart
The chart below lists the many compatible transformers. Please follow the chart
details for how the terminals on these transformers should be attached to your
layout.
Transformer
Model Center Rail Outside Rail Min/Max. Voltage
Power
Rating
Transformer
Type
Lionel 1032 U A 5-16v 90-Watt Standard
Lionel 1032M U A 5-16v 90-Watt Standard
Lionel 1033 U A 5-16v 90-Watt Standard
Lionel 1043 U A 5-16v 90-Watt Standard
Lionel 1043M U A 5-16v 90-Watt Standard
Lionel 1044 U A 5-16v 90-Watt Standard
Lionel 1053 U A 8-17v 60-Watt Standard
Lionel 1063
Lionel LW
Powermaster
U
A
U
A
U
A
8-17v
8-18v
8-18v
60-Watt
75-Watt
135VA
Standard
Standard
Electronic
All-Trol Left Terminal Right Terminal 0-24v 300-Watt Electronic
Dallee Hostler Left Terminal Right Terminal Electronic
Lionel LW A U 8-18v 75-Watt Standard
Lionel KW A or B U 6-20v 190-Watt Standard
Lionel MW Outside Track
Terminal
Inside Track
Terminal 5-16v 50V.A. Electronic
Lionel RS-1 Red Terminal Black Terminal 0-18v 50V.A. Electronic
Electronic
Lionel RW U A 9-19v 110-Watt Standard
Lionel SW U A Unknown 130-Watt Standard
Lionel TW U A 8-18v 175-Watt Standard
Lionel ZW
Lionel Post-War
Celebration
Series ZW
A,B,C or D
A,B,C or D
U
Common
8-20v
0-20v
275-Watt
135/190 Watt
Standard
MTH Z-500 Red Terminal Black Terminal 0-18v 50-Watt Electronic
MTH Z-750
MTH Z-1000
Red Terminal
Red Terminal
Black Terminal
Black Terminal
0-21v
0-21v
75-Watt
100-Watt
Electronic
Electronic
MTH Z-4000 Red Terminal Black Terminal 0-22v 390-Watt Electronic
* Conventional Mode Only
RECOMMENDED AC TRANSFORMERS
No. 264 & 265 Steam Locomotive Passenger Train 7

Service & Warranty Information
How to Get Service Under the Terms of the Limited One-Year Warranty
When you suspect an item is defective, please check the operator's manual for standard operation and trouble-
shooting techniques that may correct the problem. Additional information may be found on the M.T.H. Website.
Should you still require service, follow the instructions below to obtain warranty service.
First, e-mail, write, call or fax a M.T.H. Authorized Service Center (ASC) in your area to obtain Repair
Authorization. You can find the list of ASCs on the M.T.H. Website, www.mthtrains.com. Authorized Service
Centers are required to make warranty repairs on items sold only from that store; all other repairs may-- or may not
be done at the store's own discretion. If you did not purchase the item directly from the ASC, you will need to
select a National Authorized Service Center (NASC). These centers are compensated by M.T.H. to perform
warranty service for any customer whose repair qualifies for warranty service. A list of NASC retailers can be
located on the M.T.H. Website or by calling 410-381-2580. Should the warranty no longer apply, you may choose
either an ASC or NASC retailer to service your M.T.H. Product. A reasonable service fee will be charged.
CAUTION: Make sure the product is packed in its original factory packaging including its foam and plastic
wrapping material to prevent damage to the merchandise. There is no need to return the entire set if only one of
the components is in need of repair unless otherwise instructed by the Service Center. The shipment must be
prepaid and we recommend that it be insured. A cover letter including your name, address, daytime phone number,
e-mail address (if available), Return Authorization number (if required by the service center, a copy of your sales
receipt and a full description of the problem must be included to facilitate the repairs. Please include the
description regardless of whether you discussed the problem with a service technician when contacting the Service
Center for your Return Authorization.
Please make sure you have followed the instructions carefully before returning any merchandise for service.
Authorized M.T.H. Service Centers are independently owned and operated and are not agents or representatives of
M.T.H. Electric Trains. M.T.H. assumes no responsibility, financial or otherwise, for material left in their
possession, or work done, by privately owned M.T.H. Authorized Service Centers.
If you need assistance at any time email MTH Service at [email protected], or call 410 381-2580.
Limited One-Year Warranty
All M.T.H. products purchased from an M.T.H. Authorized Retailer are covered by this warranty provided the
product was manufactured within five years of the date of purchase. This warranty is for the original purchaser
and is non-transferable.
See our website www.mthtrains.com to identify an M.T.H. Authorized Retailer near you.
M.T.H. products may be registered online in advance of warranty work at www.mthtrains.com/warranty. The
original sales receipt and the conditions below must be met regardless of whether the product is registered on the
M.T.H. website in order to obtain warranty service.
M.T.H. products manufactured within five years from the date of purchase are warrantied for one year against
defects in material or workmanship, excluding wear items such as light bulbs, pick-up rollers, batteries, smoke unit
wicks, and traction tires. We will repair, replace, or credit (at our option) the defective part without charge for the
parts or labor if the following conditions are met: (1) the item is returned to an M.T.H. Authorized Service
Center* (ASC) or M.T.H. National Authorized Service Center (NASC) or M.T.H. Electric Trains Service
Department, (2) was manufactured within the previous five years and (3) was purchased within one year of the
original date of purchase from an M.T.H. Authorized Retailer. Products manufactured after the five year cutoff
from the date of purchase are not covered under any warranty by M.T.H. Electric Trains. The manufacture date of
an item can be verified on the item's detail page “shipping date field” on the M.T.H. website (www.mthtrains.com).
This warranty does not cover damages caused by improper care, handling, or use. Transportation costs incurred by
the customer are not covered under this warranty.
Items sent for repair must be accompanied by a return authorization number, a description of the problem, and a
copy of the original sales receipt from an M.T.H. Authorized Retailer, which gives the date of purchase. If
you are sending this product to an Authorized Service Center, contact that Center for their return authorization.
This warranty gives you specific legal rights, and you may have other rights that vary from state to state. Specific
questions regarding the warranty may be forwarded to M.T.H. Directly.
* Authorized Service Centers (ASC) are only obligated to provide warranty service for any consumer who has
purchased the specific M.T.H. item from them that requires service work.
Service Department:
M.T.H. Electric Trains
7020 Columbia Gateway Drive
Columbia MD 21046-1532
