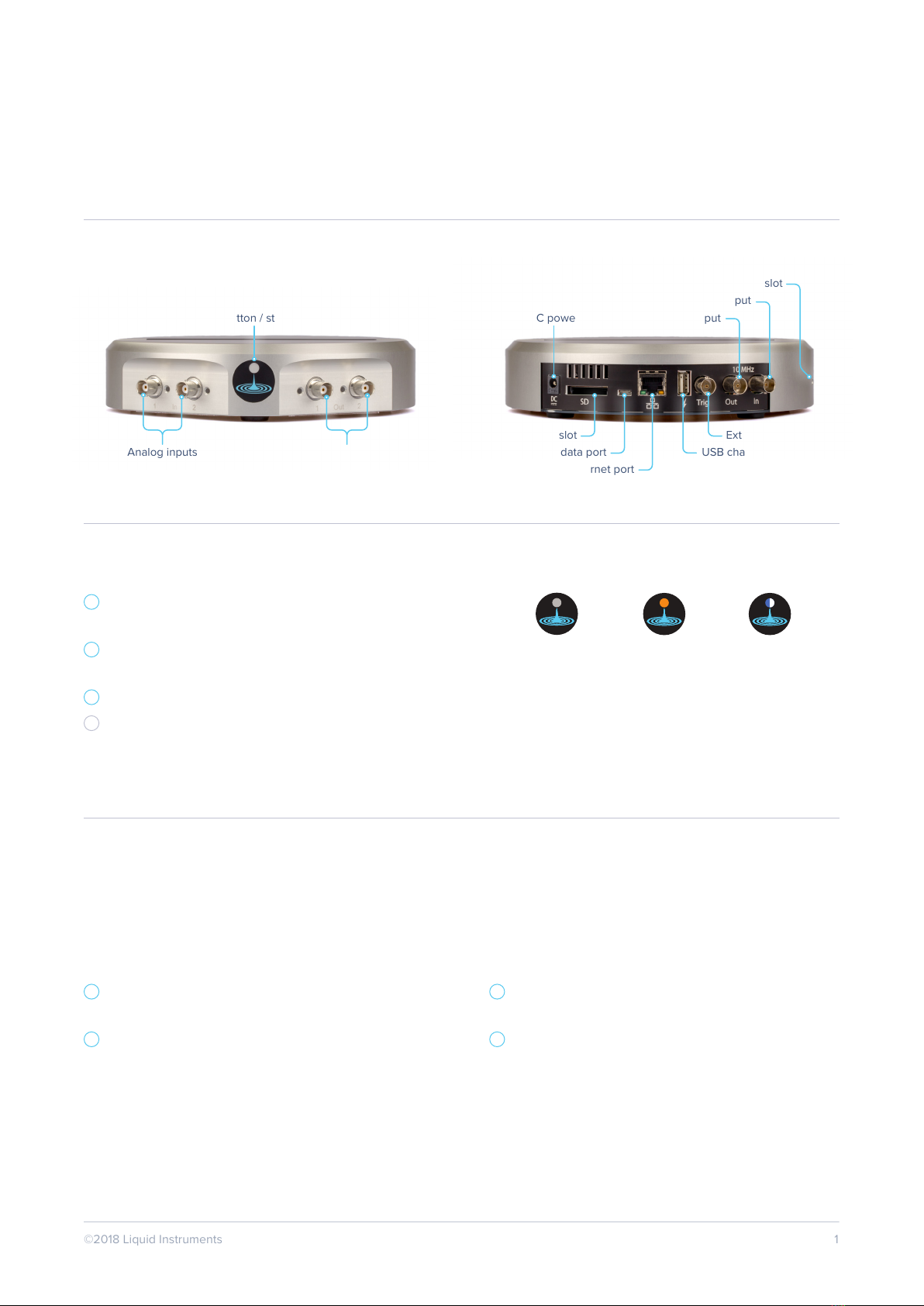

Moku:Lab layout
Moku:Lab
Quick start guide
SD card slot
Micro-USB data port
Ethernet port
External trigger input
USB charge port
10 MHz ref. input
Kensington Lock slot
10 MHz ref. output
Powering on & o
Connecting to your Moku:Lab
1Connect the power supply to the DC power port
on the rear of the Moku:Lab.
2Press and hold the power button for two seconds
until the status LED turns orange.
3Wait for the status LED to turn blue / white.
XTo turn your Moku:Lab o, press and hold the
power button for two seconds until the status
LED turns orange.
Powered o Powered onInitializing /
Powering down
Ethernet
You can connect to your Moku:Lab using a wired
network connection. A wireless Access Point is
required in order to use the iPad.
1Connect an Ethernet cable from your router to
the Ethernet port on the rear of the Moku:Lab.
2Open the iPad’s Settings app and select “Wi-Fi”
from the panel on the left and connect to an
Access Point on the same network.
Wi-Fi
You can connect to your Moku:Lab using a wired
network connection. A wireless Access Point is
required in order to use the iPad.
1Open the iPad’s Settings app and select “Wi-Fi”
from the panel on the left.
2Select the network called “Moku-#####”, where
“#####”is your Moku:Lab’s 5-digit serial number
printed on the bottom of the case. The default
password is “mokuadmin”.
Power button / status LED DC power
Analog inputs Analog outputs
©2018 Liquid Instruments 2
Installing on your iPad
1Open the App Store on your iPad.
2Search for the Moku:Lab application and verify
that the publisher is Liquid Instruments.
3Download and Install Moku:Lab on your iPad.
4Launch the Moku:Lab app on your iPad. The
iPad will search for Moku:Lab hardware on the
same network.
Connecting to an existing wireless network
1Open the iPad app and tap the icon of the Moku:Lab on the “Select Device” screen.
2Tap the Settings gear at the bottom left of the screen to configure the Moku:Lab’s hardware settings.
3Select the “Join” access mode and type in the name of the Wi-Fi network you’d like to connect to. You will
prompted to enter a password for that network if required. Your iPad must be connected to the same network to
see your Moku:Lab hardware in the devices screen.
4Launch the Moku:Lab app on your iPad. The iPad will search for Moku:Lab hardware on the same network.
Accessing instrument tutorials
Factory resetting Moku:Lab
Basic tutorials for each instrument are available in
the iPad app. To access these tutorials, deploy the
desired instrument and press the main menu button
at the top left of the screen, then select “Show Help”.
You can return your Moku:Lab to its default settings by pressing the Factory Reset button on the underside of the
device for two seconds. The status LEDs on the power button will cycle through dierent colours as your Moku:Lab
reinitialises. The Moku:Lab will restart in Wireless access point mode with ethernet enabled.
Need more help? Visit www.liquidinstruments.com
