Triplett Fox Jr. User manual

Fox Jr. &
Hound Jr.
TRIPLETT
Instruction Manual

2
Table of Contents
1. Introduction . . . . . . . . . . . . . . . . . . . . . . 2
2. FOX Jr Features . . . . . . . . . . . . . . . . . . . 3
3. HOUND Jr Features . . . . . . . . . . . . . . . . 3
4. Fox Jr Diagram . . . . . . . . . . . . . . . . . . . 4
5. Hound Jr Diagram . . . . . . . . . . . . . . . . . 5
6. Safety Warnings and Cautions . . . . . . . . 6
7. Specifications . . . . . . . . . . . . . . . . . . . . 9
8. Getting Started . . . . . . . . . . . . . . . . . . . 12
9. Detailed Information . . . . . . . . . . . . . . . 16
10. Accessories and Replacement Parts . . 30
11. Fox Jr. & Hound Jr. in Carrying Case . . 31
12. Product Return Instructions . . . . . . . . 32
13. Warranty . . . . . . . . . . . . . . . . . . . . . . . 34
1. Introduction
The Triplett FOX Jr and HOUND Jr Wire Tracing
Kit consists of the FOX Jr Compact Toner, the
Hound Jr Compact Probe, and the convenient
belt pouch / carrying case. These compact ver-
sions of the popular Triplett FOX and HOUND
series of products offer less demanding users
a portable low cost wire tracing solution.
84-862 11/06

3
2. FOX Jr. Features
• Pocket-Sized with Pocket Clip
• Connects easily with alligator clips or
RJ-11 / RJ-45 combo plug
• Distinctive Warble tone is adjustable over
wide range
• 120VAC Line Cross Resistant
• Powered by one A23 Battery (included)
• 1 Year Warranty
3. HOUND Jr. Features
• Pocket-Sized with Pocket Clip
• Small and Streamlined to get into tight places
• Adjustable Sensitivity / Volume Control
• Visual Signal Strength Indicator
• Contains Hi-Gain Hi-Impedance Amplifier
• Non-Conductive Probe Tip
• Detects FOX Jr Signal from up to 12" away
• Earphone Jack
• Power Beeper Reminder
• Powered by one A23 Battery (included)
• 1 Year Warranty

4

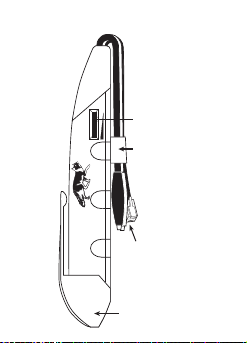

OFF
PITCH
Fox Jr.
Tone Generator
Battery Cover /
Pocket Clip
Alligator Clip Leads
& RJ-11/RJ-45 Combo
Plug Lead
On - Off /
Pitch Control
Lead Holder
4. Fox Jr. Diagram

5

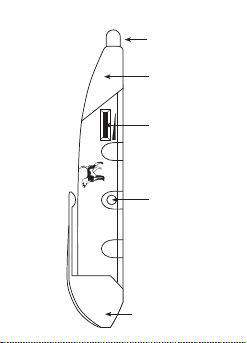

OFF
SENSITIVITY
Hound Jr.
Inductive Tracer
On - Off /
Sensitivity
Control
Battery Cover /
Pocket Clip
Earphone
Jack
Inductive
Probe Tip
Visual Signal
Strength
Indicator (LED)
5. Hound Jr. Diagram

6
6. Safety Warnings and Cautions
6.1
Do not connect FOX Jr or HOUND Jr to any
source of AC power. AC voltages above 30 volts
can be dangerous, and may result in user in-
jury. The FOX Jr and HOUND Jr are not in-
tended to trace live AC power lines. The FOX
Jr will be damaged if connected to a live AC
power line.
6.2
Use care when using the HOUND Jr to probe
any wire or cable. An unexpected dangerous
voltage may be present, which may result in
injury to the user.
6.3
Use caution when working with telephone lines.
They can support dangerous voltages. 50VDC
is often present, and 100VAC may be present
during ringing. Additionally, telephone lines may
support dangerous levels of common mode

7
voltages. In some circumstances, user injury
may result.
6.4
Use caution when working with any long un-
connected wire or cable. Under some condi-
tions, unconnected wires may “float up” to
dangerous potentials, and touching them may
result in user injury.
6.5
Use care when connecting the FOX Jr to any
wire or cable. An unexpected dangerous volt-
age may be present, which may result in injury
to the user.
6.6
Potentials applied to any connection of the FOX
Jr may appear on other FOX Jr connections. For
example, a potential applied to the RJ-11 plug
may appear on the alligator clips. This could
pose a shock hazard to the user, if for example,
a telephone cable with 120VAC on it is con-

8
nected to the FOX Jr. The 120VAC may appear
on the alligator clips, and shock the user.
6.7
Do not use the FOX Jr or HOUND Jr if either
unit appears to be damaged. A damaged unit
may lead the user to a false conclusion, result-
ing in user injury.
6.8
Do not use the FOX Jr or HOUND Jr if either
unit is wet. A wet unit may result in shock or
injury to the user if connected to live circuitry.
***WARNING***
The FOX Jr and HOUND Jr are designed
to work on non-energized (except
telephone lines) wires or cables.
Attempting to test energized wires may
damage the FOX Jr and HOUND Jr,
cause user injury, or both.

9
7. Specifications
7.1 FOX Jr. Specs
Output Voltage: 6 volts peak to peak square
wave into an open circuit
Output Type: Warble
Output Frequency Range: 800Hz to 5KHz
Frequency Adjustment: Thumbwheel
Overload Protection: Tolerates 120 volts AC at
60Hz at alligator clips or
modular plug
Connections: Alligator clips and RJ-11 /
RJ-45 Combo modular plug
Lead Length: Approx 4"
Battery: A23, 12 volt , Triplett 37-60
(protected against the
accidental reversal of the
battery polarity)
Size: 5.8" (L) x 1.25" (W) x 0.8" (H)
Weight: Approx 1.6 oz.

10
7.2 HOUND Jr. Specs
Amplifier: JFET and Integrated Circuit for
Hi-Impedance and Hi-Gain
Sensitivity: Adjustable with thumbwheel,
detects FOX Jr up to 12" away
Probe: Non-conductive, insulated
probe
Earphone Jack: Accepts standard 1/8"
(3.5mm) mini phone plug,
either mono or stereo.
For use with electromagnetic
(dynamic) earphones from
8 Ohms to 2000 Ohms.
Automatically mutes loud-
speaker when earphone is
used. An earphone with a
shielded cable is suggested to
reduce the possibility of feed-
back from the cable to the
probe tip.
Signal Strength Indicator: Bright red dual LED
visual signal strength indicator

11
Battery: A23, 12 volt , Triplett 37-60
(protected against the
accidental reversal of the
battery polarity)
Power Beeper Reminder: HOUND Jr beeps and
flashes periodically to remind
user that it is on.
Size: 5.8" (L) x 1.25" (W) x 0.8" (H)
Weight: Approx 1.7 oz.
7.3 FOX Jr. & HOUND Jr. Kit
Case Size: 6.2" (L) x 2.8" (W) x 1.3" (H)
Weight: Approx 4 oz.
(both units & case)

12
8: Getting Started
8.1 Installing Batteries
Remove the black pocket clip from both the FOX
Jr and HOUND Jr. Install an A23 battery in each
product, observing proper polarity (negative
towards tip), and replace the pocket clips.
8.2 Initial Tests
Turn on the HOUND Jr by rotating its
thumbwheel from the off position to the fully
on position. At this time, you may not hear any
sound from the HOUND Jr, or you might hear a
buzzing sound if fluorescent lights or other elec-
tronic equipment are operating in the vicinity. If
you leave the HOUND Jr operating this way, it
will beep and flash periodically to remind you
it is turned on.
With the HOUND Jr’s tip positioned near the
leads of the FOX Jr, turn on the FOX Jr by rotat-
ing its thumbwheel from the off to on position.

13
The FOX Jr’s warbling signal should be heard
coming from the HOUND Jr. Adjust the
thumbwheel on the FOX Jr while listening to the
HOUND Jr. Notice how some pitches of the
sound are louder than others. In use, the user
will usually adjust the FOX Jr to one of the louder
pitches, so the HOUND Jr will be easier to hear
while tracing wires.
With the FOX Jr adjusted to one of the louder
pitches, experimentally position the tip of the
HOUND Jr in different locations around the leads
of the FOX Jr, noting how the loudness of the
HOUND Jr, and the brightness of the signal
strength LEDs, increase as the leads are ap-
proached. Adjust the thumbwheel on the
HOUND Jr to reduce its loudness when the
HOUND’s tip is right against one of the FOX’s
leads.
The HOUND Jr’s earphone jack accepts a stan-
dard 1/8" (3.5mm) mini-plug. This type is often
used with portable music playing devices. The

14
earphone may be either a stereo or mono type.
For best results, the lead wire should be shielded
to reduce the possibility of feedback occurring
between the lead wire and the HOUND Jr’s
probe. When the plug is inserted into the jack,
the HOUND Jr’s speaker is turned off, and the
sound can only be heard through the earphone.
To use the earphone, turn on the HOUND Jr with
the Volume / Sensitivity thumbwheel to mini-
mum, and then plug the earphone into jack.
Adjust the thumbwheel for a comfortable sound
level in the earphone.
Helpful Hints
Setting the Volume / Sensitivity thumbwheel to
minimum prior to using the earphone, as previ-
ously described, can often save the user from a
jarring experience. Sounds that are not very loud
in the speaker, can be very loud in the earphone.
When using the earphone, the high gain of the
HOUND Jr’s circuitry may cause “feedback” at
high thumbwheel settings. Feedback is a squeal-

15
ing or whining sound, and it can be very loud,
so use caution. Reduce the thumbwheel setting
to reduce the feedback.
Because the FOX Jr’s test leads are so short,
the HOUND Jr may not detect the warble signal
more than a few inches away. When the FOX Jr
is connected to longer wires, the HOUND Jr’s
sensing distance will improve.
At high thumbwheel settings, the HOUND Jr’s
high sensitivity may cause the Signal Strength
LED to flash when the tip is tapped or rubbed.
This is normal.

16
9: Detailed Information
9.1 Methods
Two different basic tracing methods are com-
monly used . . . the “LINE/GROUND” connec-
tion, and the “LINE/LINE” connection.
9.1.1 LINE/GROUND Connection
The LINE/GROUND connection produces the
strongest tracing signal, but also creates
“crosstalk” of the signal into other wires in the
cable. If the user is trying to identify a cable,
and not an individual conductor in the cable,
the LINE/GROUND method usually produces the
best results. This method has been used to trace
electrical wires (like Romex), speaker wires,
intercom wires, thermostat wires, alarm wires,
cable television wires, etc. through drywall,
wood flooring, and carpeting.
A “good” earth ground is usually not required.
In fact, a large metal object like an office desk,
a file cabinet, or a metal plate on the floor, can

17
be used. On vehicles, the metal chassis of the
vehicle can be used as the ground. A metal
hulled boat can use the hull as a ground, and a
wood or fiberglass hulled boat an use the sur-
rounding water as a ground (make connection
to a metal fitting in contact with the water or
drop a wire into the water). The ground con-
nection is only required at the FOX Jr end of the
cable or wire, however, a ground connection at
the far end is handy for identification of the tar-
get wire (read following text on tracing).

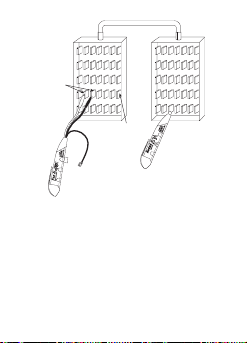

To setup the LINE/GROUND connection, clip one
alligator clip (either color) of the Triplett FOX
Jr to the “ground”, and the other alligator clip
to the wire being traced. (See Figure 1)
9.1.2 LINE/LINE Connection
The LINE/LINE connection is useful for identi-
fying a pair of wires in a multi-wire cable, or for
identifying a pair of wires in a bundle of wires.
When wires are “paired” in a cable, they are of-
ten twisted together in a manner that reduces

18
crosstalk of any signal on the wires into adja-
cent wire pairs. Telephone cables are con-
structed in this manner, so a LINE/LINE con-
nection is often used to trace telephone cables.
The FOX Jr’s modular plug applies a LINE/LINE
connection when plugged into its mating modu-
lar jack (connected to a telephone line).
(See Figure 2)
MULTI-WIRE CABLE
TERMINALS
TARGET
WIRE
Figure 1 Line/Ground Connection

19
MULTI-WIRE CABLE
TERMINALS
TARGET
WIRES
Figure 2 Line/Line Connection
9.1.3 Testing
Whether the LINE/GROUND or LINE/LINE con-
nection is used at the FOX Jr, the use of the
HOUND Jr for tracing the signal is the same. In
general, the HOUND Jr is used by bringing it
into proximity with the wire/cable that is being
traced, listening for the TONE signal from the

20
FOX Jr, and moving the HOUND Jr in such a
manner as to increase the loudness of the TONE
signal from the HOUND Jr’s speaker . . . i.e.
searching for the loudest TONE signal. The
HOUND Jr’s Volume Control is adjusted to a
comfortable level. Usually, it is set to maximum
when the tracing wires through walls and ceil-
ings, and is set to a lower setting when in close
proximity to the signal carrying wires. The
HOUND Jr’s LED glows brighter when the sound
from the speaker is louder. In situations where
there is a lot of acoustic noise, observing the
brightness of the LED, or using earphones, may
prove more useful than attempting to hear the
signal from the speaker.
To begin using the HOUND Jr, turn on the
HOUND Jr by rotating its thumbwheel from the
off position to the fully on position. It is normal
to hear a humming or buzzing noise coming
from the HOUND Jr’s speaker when it is in an
area with fluorescent lights, neon signs, trans-
formers, etc. In fact, an easy test to verify the
