LIREGUS DJ-01i User manual

1-CHANNEL RADIO RECEIVERDJ-01i /ROP-01/
MANUAL INSTRUCTION
VER. 001_30.08.2017
APPEARANCE
The device is designed for
single-phase installation and
must be installed in accord-
ance with standards valid in
a particular country. The de-
vice should be connected
according to the details in-
cluded in this operating manual. Installation,
connection and control should be carried out by
-
ance with the service manual and the device
functions. Disassembling of the device is equal
with a loss of guarantee and can cause elec-
tric shock. Before installation make sure the
connection cables are not under voltage. The
cruciform head screwdriver 3,5 mm should be
used to instal the device. Improper transport,
wrong functioning. It is not advisable to instal
the device in the following cases: if any device
part is missing or the device is damaged or de-
formed. In case of improper functioning of the
device contact the producer.
CAUTION
FEATURES
TECHNICAL DATADESCRIPTION
●cooperation with wireless EXTA FREE
control system transmitters,
●1 NO/OC output relay (dry contacts),
●lighting, heating operation control,
●easy junction box Ø 60 mm installation,
●5 operation modes: switching on, swit-
ching off, monostable mode, bistable
mode, time mode (switch off delay),
●wide operation range (up to 230 m),
●operation is optically signalled,
●low current consumption, possibility of
constant operation,
●possibility of increasing operation ran-
ge by means of RTN-01 retransmitter.
Radio receivers are used both as el-
installation cable boxes and as an ac-
other receivers. DJ-01i /ROP-01/
(switching on,s witching off, monostable
mode, bistable mode, time mode).
DJ-01i /ROP-01/
Input (supply) terminals: L, N
Input rated voltage: 230 V AC
Input voltage tolerance: -15 ÷ +10 %
Nominal frequency: 50 / 60 Hz
Nominal power consumption: 0,29 W
Number of operation modes: 5
Number of channels: 1
Transmission: radio 868,32 MHz
Transmission way: unidirectional
Coding: addressing transmission
Maximum number of transmitters: 32
Range: up to 230 m in the open air
Time adjustment: 1 second ÷ 18 hours (every second)
Optical signalling of transmitter’s operation: red LED diode
Relay output clamps: 12, 11, 14
Relay contacts parameters: 1NO/NC 5A / 250V~ AC1 1250 VA
Number of terminal clamps: 5
Section of connecting cables: up to 2,5 mm2
Ambient temperature range: -10 ÷ +55 oC
Operating position: free
Casing mounting: junction box Ø 60 mm
Casing protection degree: IP20 (EN 60529)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Surge voltage: 1 kV (EN 61000-4-5)
Dimensions: 47,5 x 47,5 x 20 mm
Weight: 0,043 kg
Reference standard: EN 60669, EN 60950, EN 61000
The symbol means selective
collecting of electrical and electronic
equipment. It is forbidden to put
the used equipment together with
other waste.
Optical signalling of receiver’s operation
Programming buttons
Relay output terminals
(12, 11, 14)
Input (supply) terminals (L, N)

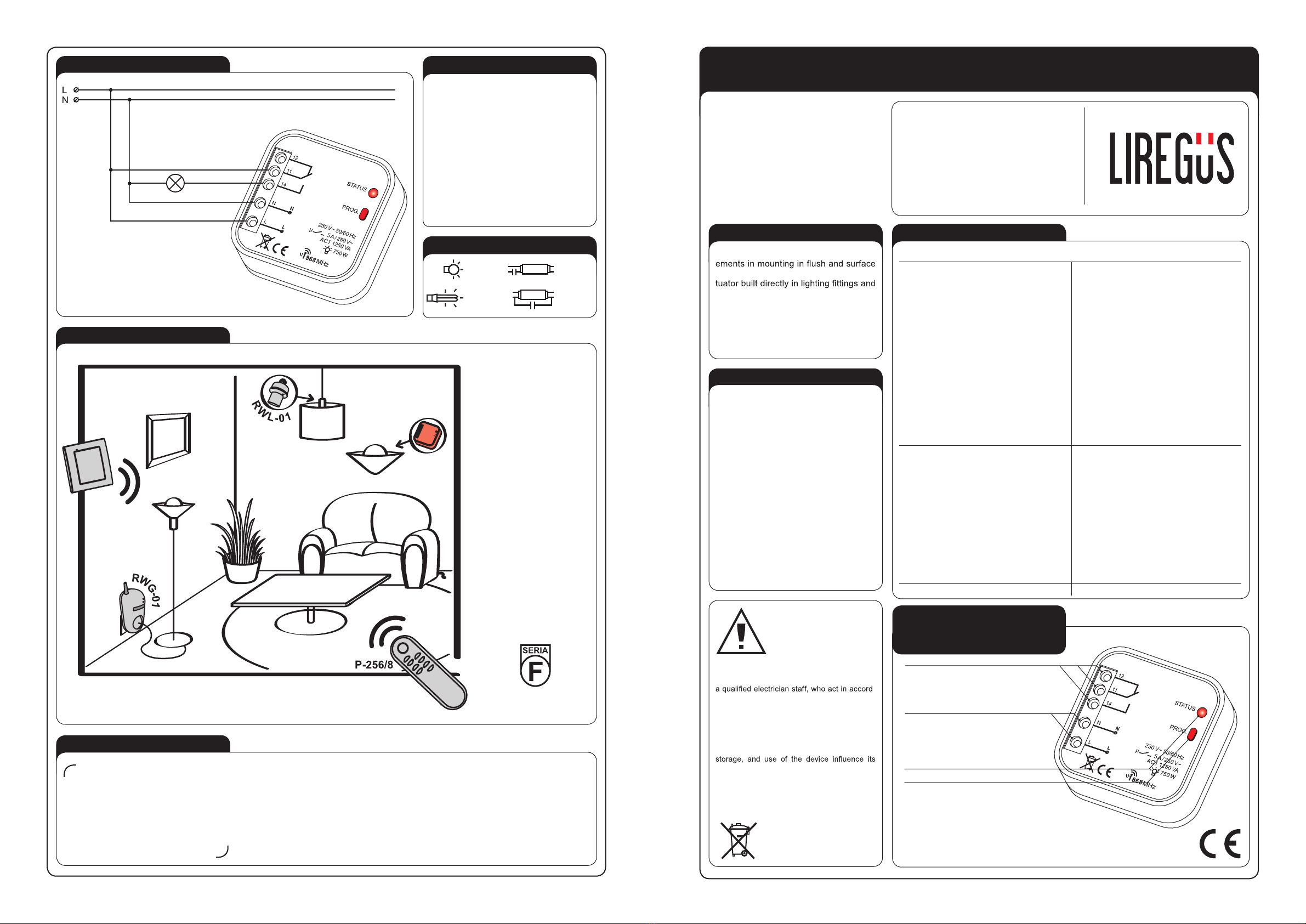

CONNECTION
APPLICATION
1-channel radio receiver
DJ-01i /ROP-01/ operates as a
receiver of 8-channel remote
cotroller P-256/8 and of 2-
channel button radio transmitter
DJ-01i /RNK-02/ (light sources
switch on/switch off control).
The above mentioned trans
mitters can also control op
eration of radio lighting switch
RWL-01 and remote control
socket RWG-01.
CAPACITY
750W
250W
500W
375W
MOUNTING
1. Disconnect power supply by the
phase fuse, the circuit-breaker or
the switch-disconnector combined
to the proper circuit.
2. Check if there is no voltage on
connection cables by means of
a special measure equipment.
3. Connectthe cables with the termi-
nals in accordance with the install-
ing diagram.
4. Install DJ-01i /ROP-01/ device in
installation cable box.
5. Switch on the power supply from
the mains.
WARRANTY CARD
There is 12 months guarantee on the product
1. LIREGUS provides a one-year warranty for its products.
2. The LIREGUS warranty does not cover: a) mechanical defects resulting from transport, loading / unloading or other circumstances
b) defects resulting from incorrect installation or operation of LIREGUS products; c) defects resulting from any changes made by CUS-
TOMERS or third parties, to products sold or equipment necessary for the correct operation of products sold; d) defects resulting
from force majeure or other aleatory events for which LIREGUS is not liable; e) power supply (batteries) to be equipped with a device
in the moment of sale (if they appear);
3. All complaints in relation to the warranty must be provided by the CUSTOMER in writing to the retailer after discovering a defect.;
4. LIREGUS will review complaints in accordance with existing regulations.;
5. The way a complaint is settled, e.g. replacement of the product, repair or refund, is left to the discretion of LIREGUS;
6. Guarantee does not exclude, does not limit, nor does it suspend the rights of the PURCHASER resulting from the discrepancy
between the goods and the contract.
Salesman stamp and signature, date of sale
LIREGUS, UAB
Skroblų g.19, 03141 Vilnius, Lietuva
tel. [phone], fax [phone]
e-mail: [email protected]
www.liregus.lt
DJ-01s
/RNK-02/
DJ-01i
/ROP-01/
enables operation in 5 different modes

VER. 001_30.08.2071
COOPERATION AND OPERATION RANGE
Symbol DJ-01i
/ROP-01/ ROP-02 ROB-01 SRP-02 SRP-03 RWG-01 RWL-01 ROM-01 ROM-10 RDP-01 RTN-01
DJ-01s /RNK-02/ 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
RNK-04 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
P-256/8 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
P-257/4 (2) 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
RNM-10 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
RNP-01 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RNP-02 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RNL-01 160 m 180 m 180 m lack* lack* 200 m 160 m 200 m 200 m 160 m 200 m
RTN-01 200 m 200 m 200 m 200 m 200 m 250 m 200 m 250 m 250 m 200 m 250 m
RCR-01 160 m 180 m 180 m lack* lack* 200 m 160 m 200 m 200 m 160 m 200 m
RTI-01 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RXM-01 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
* - 1-channel transmitters do not cooperate with roller blinds controllers.
it is advisable to decrease the range according to: wood and plaster - from 5 to 20, bricks - from 10 to 40%, reinforced concrete - from 40 to 80 %, metal - from 90 to 100% ,
glass - from 10 to 20%. Over- and underground medium and high electrical power lines, radio and television transmitters, GSM transmitters set close to a device system have
TRANSMITTERS RECEIVERS
DJ-01s /RNK-02/
2–channel button
radio transmitter
RNL-01
Radio
foot transmitter
DJ-01i /ROP-01/
1-channel
radio receiver
RWL-01
Radio lighting
switch
RNK-04
4-channel button
radio transmitter
RTI-01
IR/EXTA FREE
transceiver
ROP-02
2-channel
radio receiver
RWG-01
Remote control
socket
P-256/8
8-channel
remote controller
RNM-10
4-channel radio
modular transmitter
RDP-01
1-channel
radio dimmer
SRP-02
Radio roller blinds
controller
P-257/4
4-channel
remote controller
RNP-01
4-channel
radio transmitter
ROB-01/12-24V
Radio
gate controller
SRP-03
Central radio roller
blinds controller
P-257/2
2-channel
remote controller
RNP-02
4-channel
radio transmitter
ROM-01
1-channel radio
modular receiver
ROM-10
2-channel
radio modular receiver
RCR-01
Radio
motion sensor
RXM-01
Translator
RS-485/EXTA FREE
ACCESSORIES
ANT-01
External antenna
RTN-01
Retransmitter
OPERATION
MONOSTABLE
the relay operates only
while pressing transmit-
ter’s push-button.
BISTABLE
(one push-button) the
device changes relay
status cyclically always
after pressing the same push-
-button.
SWITCH ON
the device switches on
after pressing the push-
-button.
SWITCH OFF
the device switches off
after pressing the push-
-button.
TIME
the device switches
off according to the
adjusted time (tp),
but it may be switched off before
settings - 15 seconds.
CAUTION! Adjusted time can
not be deleted.
RADIO TRANSMITTERS PROGRAMMING
TIME PROGRAMMING
RADIO TRANSMITTERS DELETION
MONOSTABLE mode:
BISTABLE mode:
SWITCH ON/SWITCH OFF mode (two push-buttons):
TIME mode (one push-button)
An exemplary programming procedure with the use of P-257/2 remote controller.
The procedure for the rest of radio EXTA FREE transmitters is analogous.
CAUTION: Every transmitter can cooperate with ROP-01 in a different mode, depending on how they were added to the device.
One transmitter can be added during oneprogramming cycle. Full memory is signalled with pulsating LED red diode.
Press transmitter’s
push-button for
a longer time.
Press the transmitter’s push-button
for a longer time. LED red diode switches
constant).
Press and release transmitter’s push-
button. LED red diode switches on
(the signal pulsates, next the signal is
constant).
Press and release transmitter’s push-
button. LED red diode switches on
constant).
Release transmitter’s
push-button. LED red diode
pulsates, next the signal is
constant).
Release transmitter’s push-button.
LED red diode switches on (the
signal pulsates), next the LED red
diode switches off - it means the
TRANSMITTERIS ADDED.
Press and release the same transmitter’s
push-button. LED red diode
switches on (the signal pulsates)
and next it switches off -
THE TRANSMITTERIS ADDED.
Press and release the same transmitter’s
push-button. LED red diode switches on
(the signal pulsates) and next it switches
off - THE TRANSMITTERIS ADDED.
Press the same transmitter’s push-
-button and release it. LED red dio-
de switches on (the signal pulsates)
and next it switches off -
THE TRANSMITTERIS ADDED.
Press PROG push-button of ROP-01 device
for a longer time until LED red diode switches on
(constant signal). Next release PROG push-button.
Press PROG push-button of ROP-01 device
for a longer time until LED red diode switches on
(constant signal). Next release PROG push-button.
Press PROG push-button of ROP-01 device
for a longer time until LED red diode switches on
(constant signal). Next release PROG push-button.
Press PROG push-button of ROP-01 device
for a longer time till LED red diode switches on
(constant signal). Next release PROG push-button.
Maximum time is 18 hours.
Press PROG push-button of ROP-01 device for a longer time till
LED red diode switches on (constant signal). Next release PROG
push-button. Wait (for about 5 seconds) till LED red diode switches
After the adjusted time is
PROG push-button and then
release it - TIME IS ADDED.
Press PROG push-button of ROP-01 device
and then release it. LED red diode switches
off and then switches on (signal pulsates).
Every LED diode pulse equals 1 second.
1s 2s ns
Press PROG push-button of ROP-01 device
for a longer time.
After 5 seconds LED red diode switches on
(signal pulsates) and then it switches off.
Release the push-button in ROP-01 -
MEMORY IS DELETED.
