Lite Tec LM-673CK40 User manual

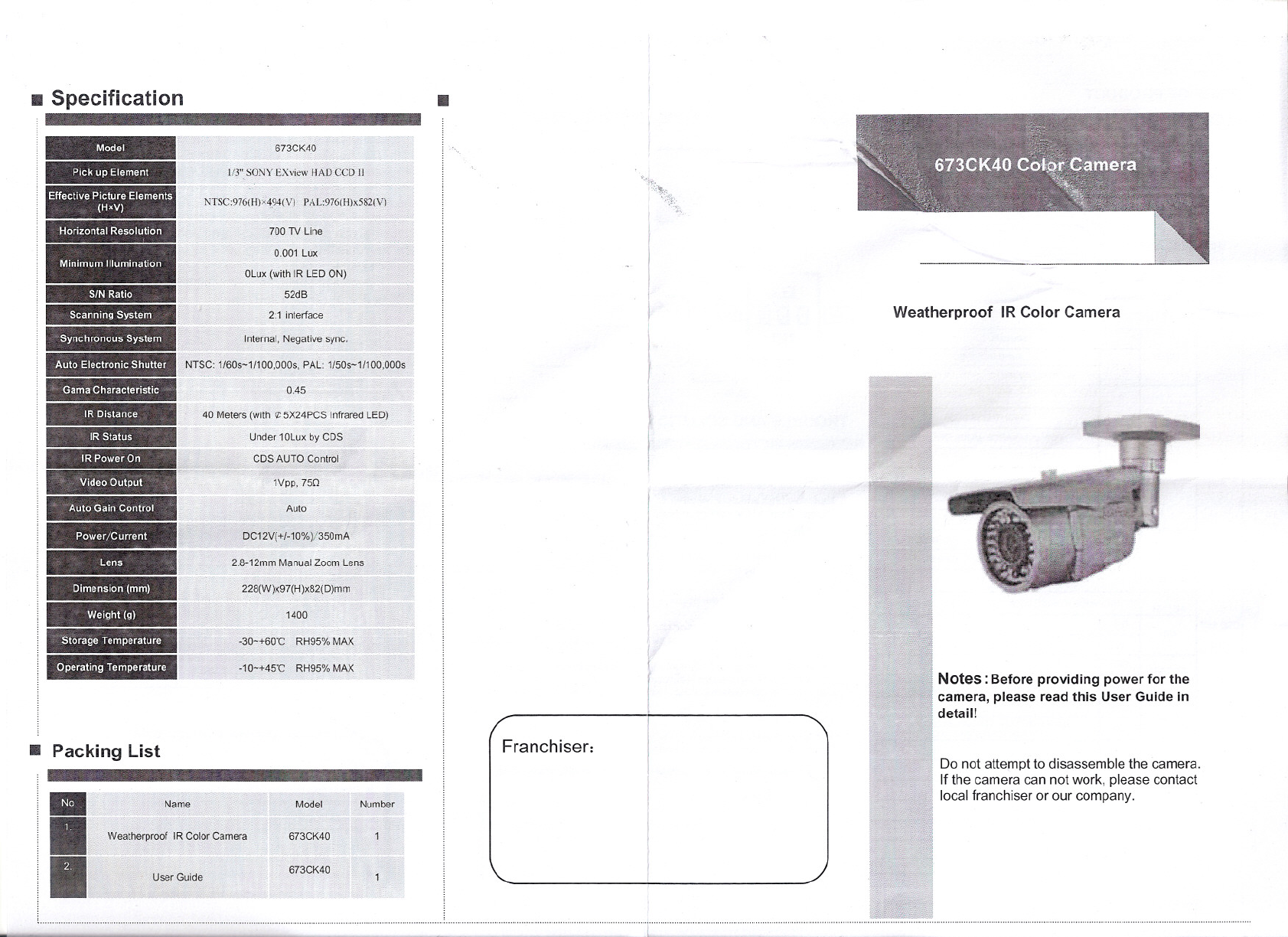

• Specification •
Model
Pick up Element
Effective Picture Elements
(HxV)
Horizontal Resolution
Minimum Illumination
SIN Ratio
Scanning System
673CK40
lI3" SONY EXviewHAD:CCD]I
NTSC :976(H)x494( V) PAL:976(H)x582(Yl
700 TV Line
0.001 Lux
OLux (with IR LED ON)
52dB
2:1 interface Weatherproof IR Color Camera
Synchronous System Internal, Negative sync,
Auto Electronic Shutter NTSC: 1/60s-1/100,OOOs, PAL: 1/50s-1/100,OOOs
40 Meters (with <t 5X24PCS Infrared LED):
Under 1OLux by CDS
Notes: Before providing power for the
camera, please read this User Guide in
detail!
1400
0.45
Auto
DC12V( +1-10% )/350mA
228(W)x97(H)x82(D)mm
-10-+45'C RH95% MAX
-30-+60'C RH95% MAX
2.8-12mm Manual Zoom LensLens
Storage Temperature
Weight (g)
Dimension (mm)
IR Power On
IR Status
Power/Current
IR Distance
:Video Output •
Operating Temperature
•Auto Gain Control
,Gama Characteristic
• Packing List
•
•
•Name
Weatherproof IR Color Camera
User Guide
Model
673CK40
673CK40
Number
Franchiser: Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
/,/

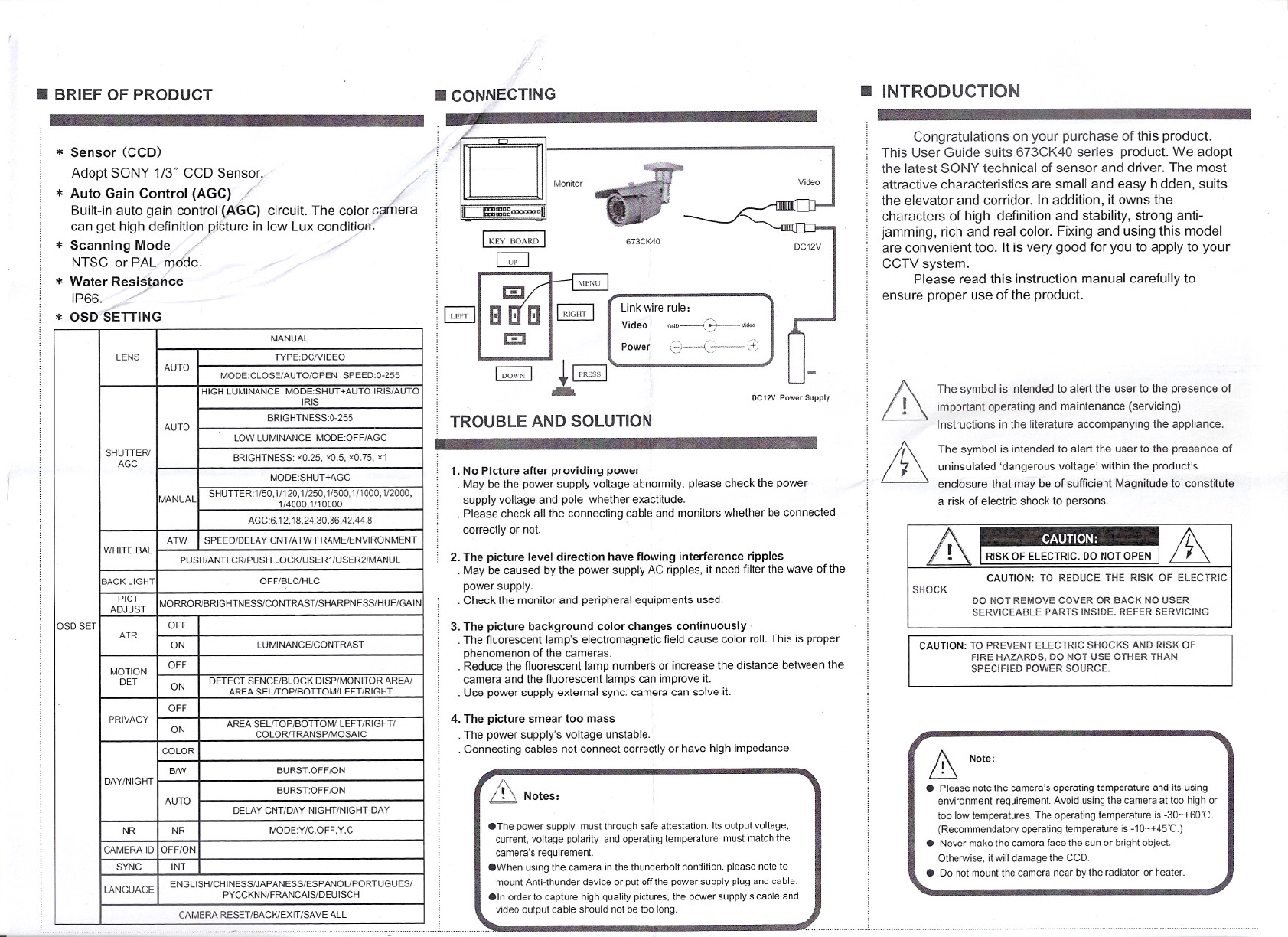

• BRIEF OF PRODUCT • CONNECTING • INTRODUCTION
it
CAUTION: TO REDUCE THE RISK OF ELECTRIC
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
Note:
The symbol is intended to alert the user to the presence of
uninsulated 'dangerous voltage' within the product's
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
The symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
&
SHOCK
'&
• Please note the camera's operating temperature and its using
environment requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is -30-+60'C .
(Recommendatory operating temperature is -10-+45·C.)
• Never make the camera face the sun or bright object.
Otherwise, it will damage the CCD.
~ Do not mount the camera near by the radiator or heater. ~
Congratulations on your purchase of this product.
This User Guide suits 673CK40 series product. We adopt
the latest SONY technical of sensor and driver. The most
attractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the
characters of high definition and stability, strong anti-
jamming, rich and real color. Fixing and using this model
are convenient too. It is very good for you to apply to your
CCTV system.
Please read this instruction manual carefully to
ensure proper use of the product.
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
ill
Lh
~
~
Video
DC12V
DC12V Power Supply
Video (;(~D----\,7---'..'i<!N
673CK40
Power
Link wire rule:
Monitor
, .&, Notes:
• The power supply must through safe attestation. Its output voltage,
current, voltage polarity and operating temperature must match the
camera's requirement.
• When using the camera in the thunderbolt condition, please note to
mount Anti-thunder device or put off the power supply plug and cable.
.In order to capture high quality pictures, the power supply's cable and
video output cable should not be too long.
,
'-KEY BOARD'
GJ
IDOWN I ~ PRESS I
II G»Ol."".",;...,°D
o
4. The picture smear too mass
· The power supply's VOltageunstable.
· Connecting cables not connect correctly or have high impedance.
2. The picture level direction have flowing interference ripples
· May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
· Check the monitor and peripheral equipments used,
3. The picture background color changes continuously
· The fluorescent lamp's electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
· Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
· Use power supply external sync. camera can solve it.
TROUBLE AND SOLUTION
1. No Picture after providing power
· May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
· Please check all the connecting cable and monitors whether be connected
correctly or not.
~
era
MANUAL
LENS
TYPE:DCNlDEO
AUTO MODE:CLOSE/AUTO/OPEN SPEED:0-255
HIGH LUMINANCE MODE:SHUT+AUTO IRIS/AUTO
IRIS
BRIGHTNESS:0-255
AUTO LOW LUMINANCE MODE:OFF/AGC
SHUTTERI BRIGHTNESS: xO.25, xO.5, xO.75, x1
AGC MODE:SHUT +AGC
MANUAL
SHUTTER:1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000,1/10000
AGC:6, 12, 18,24,30,36,42,44.8
ATW
SPEED/DELAY CNT/ATW FRAME/ENVIRONMENT
WHITE BAL PUSH/ANTI CRiPUSH LOCK/USER1/USER2/MANUL
BACK LIGHT
OFF/BLC/HLC
PICT MORRORIBRIGHTNESS/CONTRAST/SHARPNESS/HUE/GAIN
ADJUST
OSD SET
OFF
ATR ON LUMINANCE/CONTRAST
MOTION
OFF
DET ON
DETECT SENCE/BLOCK DISP/MONITOR AREN
AREA sELrroP/BOTTOM/LEFT/RIGHT
OFF
PRIVACY AREA SEL/TOP/BOTTOM/ LEFT/RIGHT/
ON COLOR/TRANSP/MOSAIC
COLOR B/W
BURST:OFF/ON
DAY/NIGHT BURST:OFF/ON
AUTO DELAY CNT/DAY-NIGHT/NIGHT-DAY
NR
NR MODE:Y/C,OFF,Y,C
CAMERA 10
OFF/ON
SYNC
INT
LANGUAGE
ENGL ISH/CH INESS/JAP ANESS/ES PANO LlPO RTU GUES/
PYCCKNN/FRANCAIS/DEUISCH
CAMERA RESET/BACK/EXIT/SAVE ALL
*Sensor (CCD)
Adopt SONY 1/3" CCD Sensori
*Auto Gain Control (AGC) /
Built-in auto gain control (AGC) circuit. The color ca
can get high definition pitture in low Lux condit!9fl~
*Scanning Mode //
NTSC or PAL mode.
/
*Water Resistance
~
IP66.
*OSD SETTING
