LiteOn LVW-5115GHC+ User manual

SIMPLY AMAZING !
DVD Recorder
Head Office: LITE-ON IT Corp.
12F, 392, Ruey Kuang Road, Neihu, Taipei 114, Taiwan
Tel: [phone] Fax: [phone]
Customer Call Center: 886-3-578-7722#2604/2605
Service e-mail: [email protected]
Europe: LITE-ON Information Technology (Europe) B.V.
Meerenakkerplein 16, 5652 BJ EINDHOVEN,
The Netherlands
Tel: [phone] Fax: [phone]
Service e-mail: [email protected]
USA: LITE-ON (USA) International Inc.
42000 Christy Street, Fremont, CA 94538
Tel: [phone] Fax: [phone]
Customer Call Center: 1-888-8-LITEON (1-888-854-8366)
Service e-mail: [email protected]
1-866-269-5133 (French)
LVW-5111/5115/5116*
http://www.liteonit.com/DC/english/liteonit.htm
*:LVW-5111GHC+/5115DL+/5115GHC+/5115GDL+/5116GHC+
P/N 7819901272B

i
Table of Contents
Important Safety Instructions1
Warnings, Cautions and Others2
Using the Manual
• Model Comparison Chart ..................... 4
• Icons Used in Manual ......................... 5
• Getting Help ..................................... 5
Features
• Recording ........................................ 6
• Timer Recording ................................ 6
• DVD Dual™ Technology ...................... 6
• Easy Guider ..................................... 7
• MPEG-4 Videos ................................ 7
• DivX® VOD Support ............................ 7
DVD Recording: The Essen-
tials
Getting Started
Setting up the DVD Recorder .................. 9

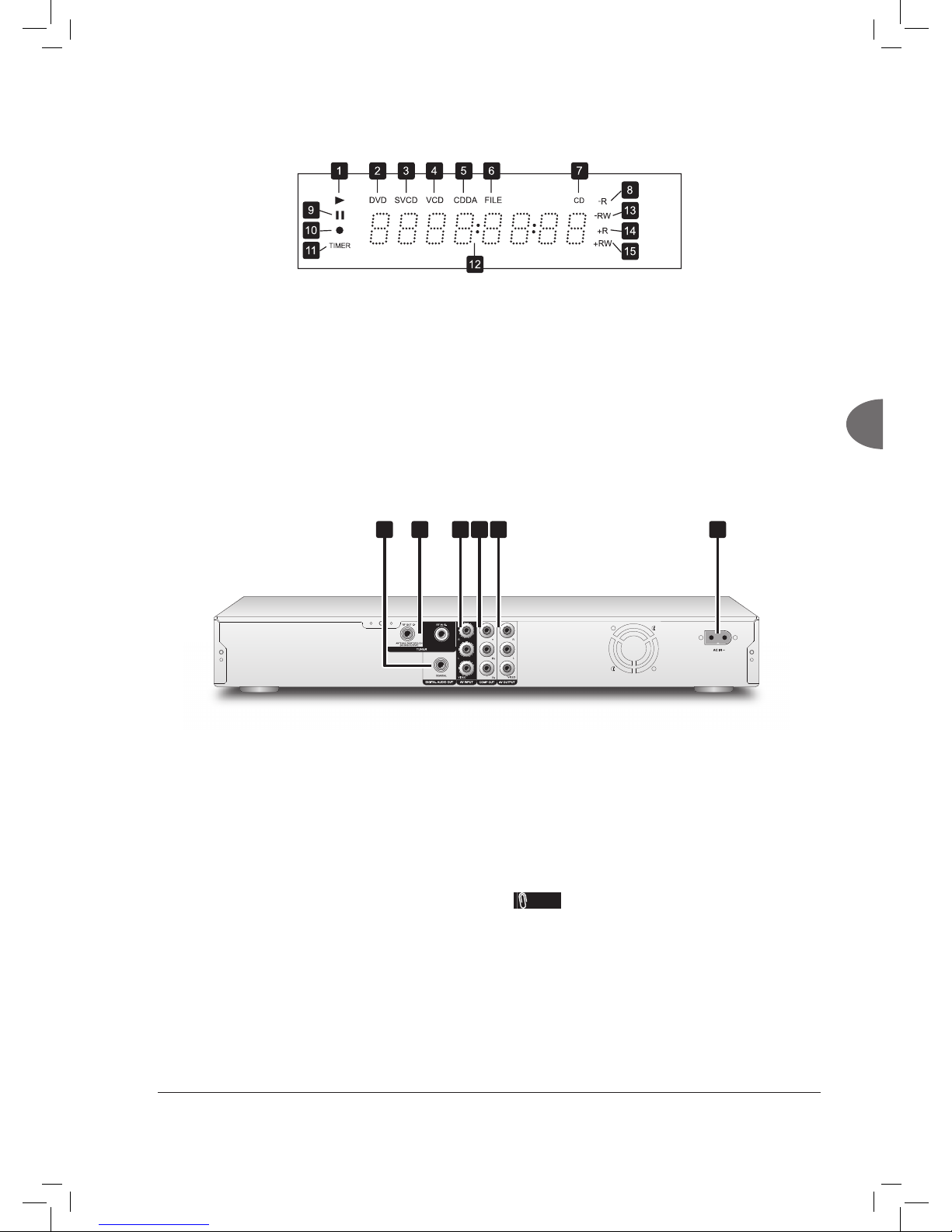

• Knowing Your DVD Recorder ............... 10

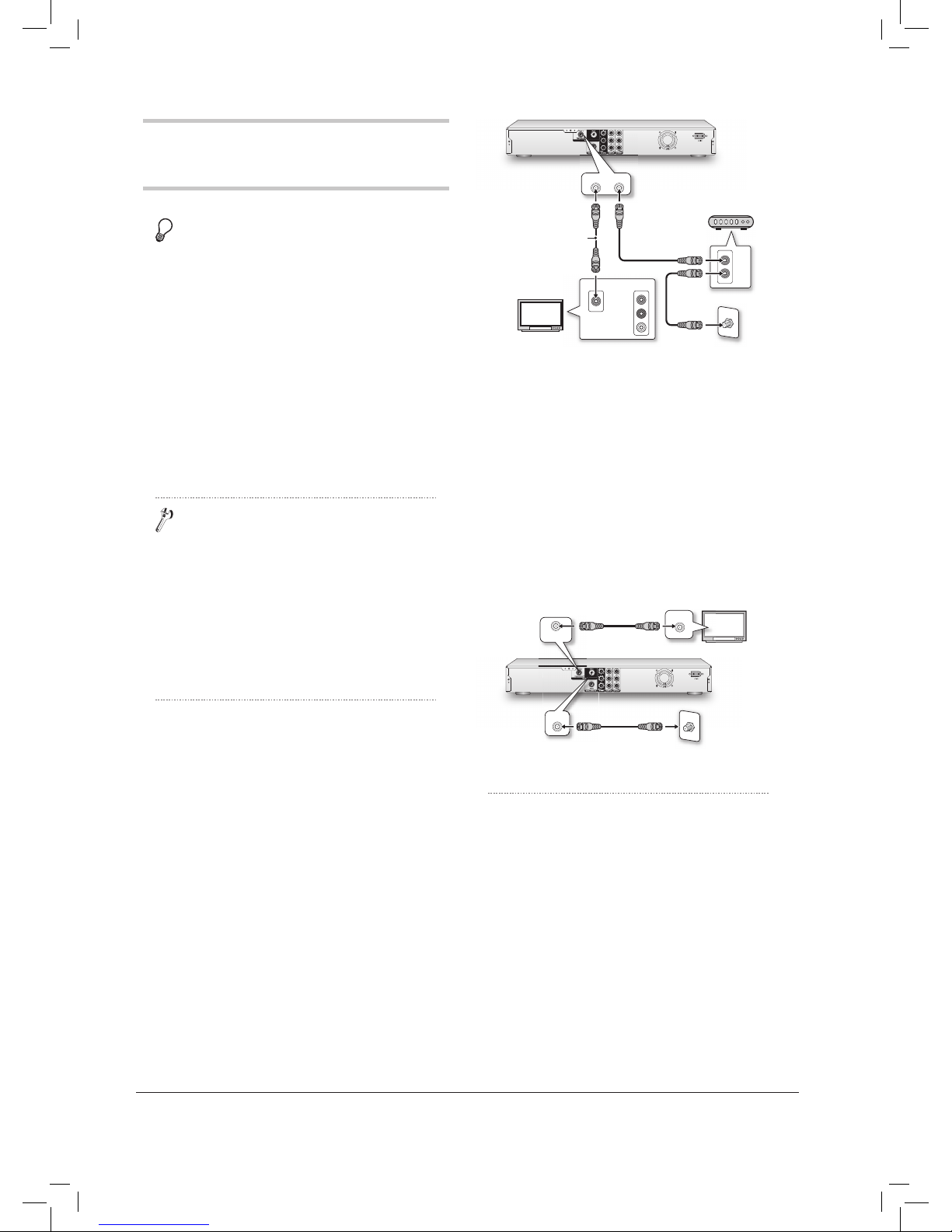

• Connecting up Your DVD Recorder ....... 14
System Setup ................................... 16
• Setting Language ............................. 17
• Setting System Date ......................... 17
• Setting System Time ......................... 18
• Setting Auto Clock ........................... 18
• Setting Video Output ......................... 19
• Setting Audio Output ......................... 20
• Setting Aspect Ratio ......................... 21
• Setting TV Channels ......................... 22
Advanced System Setup ...................... 24
• Using Channel Editor ........................ 24
• Setting the VCR Plus+® System ............ 27
Easier Application & Access
On-Screen Input Keypad ..................... 29
• Introducing On-Screen Input Keypad ..... 30
• Using On-Screen Input Keypad ........... 30
Easy Guider ..................................... 31
• Introducing Easy Guider ..................... 32
• Using Easy Guider: Play ..................... 32
• Using Easy Guider: Record ................. 33
• Using Easy Guider: Timer Record ......... 34
• Using Easy Guider: Disc Tools ............. 37
Recording
Recording ....................................... 39
Recording from TV ............................. 40
Recording from External Devices ............ 40
One-Touch Recording ........................ 42
Adding New Recording Session(s) .......... 42
Inserting Chapter Mark during Recording .. 42
Timer Recording
Timer Recording ................................ 43
• Introducing Timer Record Menu ........... 44
• Setting Timer Program(Date/Time Mode). 45
• Setting Timer Program(VCR Plus+® Mode) . 47

ii
Playback
Playback ......................................... 49
• Introducing Navigation Menu ............... 50
• Playing DVD-Video Disc .................... 55
• Playing VCD/SVCD Disc .................... 55
• Playing Audio CD ............................. 55
• Playing Video File ............................ 56
• Playing Music File ............................ 56
• Playing Picture File ........................... 57
Digital Video Support
MPEG-4 ......................................... 58
• Supporting Formats .......................... 59
• Playing MPEG-4 Files ...................... 59
Navigation Menu ............................... 60
• Subtitle ........................................ 60
DivX® VOD ....................................... 61
• Step 1: Applying for a User Account ..... 61
• Step 2: Registering Your DVD Recorder .. 61
• Step 3: Selecting Video Files ............... 62
• Step 4: Playing Video Files ................. 62
Editing
Editing ............................................ 63
• Introducing Edit Menu ....................... 64
• Editing Titles .................................. 64
Troubleshooting
Specifications
Quick Reference
• Guide to Complete System Setup Menu . 72
• Guide to Using the Discs ................... 74
• Guide to Media Files Supported ........... 76
• Guide to Recording Options ................ 77
Glossary
Registration Form
Warranty

1
Important Safety Instructions
Important Safety Instructions
1. READ INSTRUCTIONS - Read the instruc-
tions carefully before using this product.
2. RETAIN INSTRUCTIONS - Retain the
instructions for future reference.
3. HEED WARNINGS - Observe warnings listed
in the manual.
4. FOLLOW INSTRUCTIONS - Follow the
instructions when using this product.
5. CLEAN - Use a dry cloth for cleaning.
6. VENTILATION - Do not block any ventilation
openings of this product
7. MOISTURE - Do not use this product near
water, and be sure to prevent this product from
being exposed to any dripping or splashing.
8. HEAT - Do not install this product near any
heat sources, such as radiators, heat registers,
stoves or other devices (including amplifier)
which produce heat.
9. POLARIZATION - Do not defeat the safety
purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider
than the other. A grounding type plug has two
blades and a third grounding prong. The wide
blade or the prong are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. POWER CORD - Protect the power cord from
being walked on or pinched, particularly at
plugs, convenience receptacles and the point
where they exit from the product.
11. ACCESSORIES/ATTACHMENTS - Use
only accessories/attachments specified by the
manufacturer.
12. USAGE - Unplug this product during lightning
storms or when it is not used for long periods of
time.
13. CART - Use only cart, stand, tripod bracket
or table specified by the manufacturer or sold
with the product. When a cart is used, operate
carefully to prevent the objects from tip-over.
14. SERVICING - Contact qualified personnel
when servicing is needed. Servicing is required
when this product has been damaged in any
way, for example, when the power cord or
plug is damaged; liquid has been spilled on the
product; objects have fallen into the product; the
product has been exposed to rain or moisture;
the product does not work normally; or the
product has been dropped.
15. BATTERY - To prevent battery leakage which
may result in bodily injury, property damage or
damage to the unit, please follow the instruc-
tions listed below when using the product’s
remote control.
• Install all batteries correctly, with + and - signs
matching the marks indicated.
• Do not mix batteries (old and new or carbon
and alkaline, etc.)
• Remove batteries when the remote is not used
for a long time.
16. WASTE - This product may contain lead and
mercury. Disposal of these material may be
regulated due to environment considerations.
For disposal or recycling information, please
contact your local authorities or the Elec-
tronic Industries Alliances: www.eias.org
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operations.

2
Warnings, Cautions and Others
CAUTION!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALI-
FIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol,
within an equilateral triangle, is intended
to alert the user to the presence of
uninsulated ‘dangerous voltage’ within the
product enclosure that may be of sufficient
magnitude constitute a risk of electric
shock to humans.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION!
THIS PRODUCT UTILIZES A LASER.USE OF
CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT
OPEN THE COVER AND DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO MOISTUREAND ENSURE THAT OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED AWAY FROM
THE APPARATUS.
CAUTION! – POWER button
Disconnect the main plug to shut the power off completely. The
POWER button in any position does not disconnect the main line.
Power can be controlled from the remote.
VCR Plus+ and PlusCode are registered trademarks
of Gemstar Development Corporation. The VCR
Plus+ system is manufactured under license from
Gemstar Development Corporation.
VCR Plus+ system is protected by one or more issued United
States patents such as Pats. 5,307,173; 5,335,079; 4,908,713;
4,751,578; and 4,706,121
PRODUCTS WITH 525P/625P PROGRESSIVE SCAN
OUTPUTS NOTICE REQUIREMENTS
“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINI-
TION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN
THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’
OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV
SET COMPATIBILITY WITH THIS MODEL 525P AND 625P DVD
PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE
CENTER.”
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2.
DANGER: Visible and invisible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to beam.
3.
CAUTION: Do not open the top cover. There are no user
serviceable parts inside the Unit; leave all servicing to qualified
service personnel.
CAUTION!
• CD-R/RW discs recorded using a personal computer or a CD
Recorder may not play if the disc is damaged or dirty, or if there
is dirt or condensation on the player lens.
• Unfinalized CD-R/RW discs can be played, but not all time
information (playing time, etc.) will be displayed.
• Check the copyright laws in your country before recording from
DVD VIDEO, SVCD, Video CD, Audio CD, MP3 and JPEG discs.
Recording of copyrighted material may infringe copyright laws.
Legal Notices Regarding
Macrovision Property Rights
“U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093;
and 6,516,132.”
“This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision.Reverse
engineering or disassembly is prohibited.”
Manufactured under license from Dolby Laboratories. ‘Dolby’ and
the double-D symbol are trademarks of Dolby Laboratories.
DivX, DivX Certified, and associated logos are trademarks
of DivXNetworks, Inc. and are used under license.
FCC Declaration of Conformity
Model number: LVW-5111GHC+
Trade Name: LITEON
Responsible party:
LITE-ON (USA) International Inc. 42000 Christy Street, Fremont,
CA 94538

3
Warnings, Cautions and Others
FCC Declaration of Conformity
Model number: LVW-5115DL+
Trade Name: LITEON
Responsible party:
LITE-ON (USA) International Inc. 42000 Christy Street, Fremont,
CA 94538
FCC Declaration of Conformity
Model number: LVW-5115GHC+
Trade Name: LITEON
Responsible party:
LITE-ON (USA) International Inc. 42000 Christy Street, Fremont,
CA 94538
FCC Declaration of Conformity
Model number: LVW-5115GDL+
Trade Name: LITEON
Responsible party:
LITE-ON (USA) International Inc. 42000 Christy Street, Fremont,
CA 94538
FCC Declaration of Conformity
Model number: LVW-5116GHC+
Trade Name: LITEON
Responsible party:
LITE-ON (USA) International Inc. 42000 Christy Street, Fremont,
CA 94538

4
Using the Manual
Model Comparison Chart
Some supporting features vary depending on model types. Please check the following chart before you consult
relevant sections to find your desired information.
DVD Dual™
VCR Plus+
Programming
System
MPEG-4 DivX® VOD
Double-Layer
DVD
Recording
LVW-5111GHC+ No Yes Yes Yes No
LVW-5115DL+ Yes No Yes Yes Yes
LVW-
5115GHC+ Yes Yes Yes Yes No
LVW-
5115GDL+ Yes Yes Yes Yes Yes
LVW-
5116GHC+ Yes Yes Yes Yes No
LVW-1101/1105
series Depending Depending Depending Depending No
Note
• ‘DVD Dual™’ technology allows this DVD recorder to write on both minus- and plus-type DVD discs (DVD-
R/-RW and DVD+R/+RW).
• DivX® VOD (video-on-demand) service is adopted by some digital content providers to prevent unauthorized
downloads, copying or other formats of file-sharing. To watch videos which utilizes the system, you need to
complete a registration process first.
• Please note that given the various compression technologies, not all MPEG-4 files are supported by this DVD
recorder.

5
Using the Manual
Icons Used in Manual
The following icons are used in the manual for
special notice and additional information.
Icon Text Defi nition
Before you start... Used to indicate the
checklist section
Note
Used to indicate
exceptions and
additional notices
Reference
Used to indicate
related sections/chap-
ters
About
Used to explain
particular terms in
text
Why This
Happened
Used to offer
explanation/solution
to specifi c conditions.
Important
Used to remind users
before applying a
particular function
What You Need
to Do
Used to present a
process overview
Getting Help
When using this manual...
1. Please check the comparison chart on the previous page to see which features are
supported by your DVD recorder.
2. Please see the ‘Quick Reference’ section at the end of this manual, if you need the
complete listings of system setup menu
and the supporting disc types of this DVD
recorder.
3. Please see the ‘Specifi cations’ section, if you
need a fast overview of this DVD recorder.
4. Please see the ‘Troubleshooting’ section, if you encounter problems when using this
DVD recorder. Solutions listed in this section
might help fi x your problems instantly.
Please also visit our website at http://
www.liteonit.com/DC/english/download.
htm for latest fi rmware downloads and
additional supporting information.

6
Features
Recording
This DVD recorder offers a fast and easy way for
you to record your desired TV programs.
One-Touch Recording
This DVD recorder features an instant recording
capability. Start recording whenever you want by
pressing the RECORD button on your remote
control. Pressing the button repeatedly will also
give you a choice of different recording length,
further saving you the trouble to enter specific time.
One-Touch Recording (p.42)
Flexible Recording Choices
This DVD recorder supports various recording
modes, each of which offers different recording
length and image quality. You can choose one of
these options depending on your discs and record-
ing purpose.
Media Mode Rec. Time
4.7 GB
Recordable
& Rewritable
DVD
HQ (High Quality) 1 hour
SP (Standard Play) 2 hours
LP (Long Play) 3 hours
EP (Extended Play) 4 hours
SLP (Super Long
Play)
6 hours
Just Fit* Depending on the
storage capacity
available on disc
* For ‘Timer Recording’ only
Using Easy Guider: Record (p.33)
Recording (p.39)
Timer Recording
There is no need to worry about missing your
favorite TV programs. With the timer recording
function offered by this DVD recorder, you can
easily input up to 16 settings in the Timer Program
list to record your desired programs. To each set-
ting, you can assign particular recording mode and
recording frequency (Once/Daily/Weekly) which
best suit your need.
Using Easy Guider: Timer Record (p.34)
Timer Recording (p.43)
DVD Dual™ Technology
Incorporating the ‘DVD Dual™’ technology, this
DVD recorder is able to write on both minus- and
plus-type DVD discs (DVD-R/RW and DVD+R/
RW), offering a greater recording flexibility. With
the easy-to-use ‘Disc Tool’ programs, you can also
quickly finalize your discs in just a few steps.
Using Easy Guider: Record (p.33)
Using Easy Guider: Timer Record (p.34)
Using Easy Guider: Disc Tools (p.37)
Recording (p.39)
Timer Recording (p.43)

7
Features
Note
• This feature is available in select models only.
Easy Guider
This DVD recorder comes with an integrated ‘Easy
Guider’ program, which is an on-screen interface
specially designed to help you complete desired
tasks step by step.
Easy Guider (p.31)
MPEG-4 Videos
Now you can play MPEG-4 videos on this DVD
recorder and enjoy a better viewing experince with
your TV!
Note
• This feature is available in select models only.
DivX® VOD Support
This DVD recorder supports the DivX® VOD
(video-on-demand) service, a feature designed
to protect the copyrights of digital videos. You
can now easily watch videos dowloaded from the
online rental shops with your TV!
DivX® VOD (p.61)
Note
• This feature is available in select models only.

8
DVD Recording: The Essentials
DVD recorders not only offer the basic recording and playback functions as the traditional VCRs (video casette
recorders) do, but also make convenient content-sharing possible. Now you could play a finalized disc on other
compatible DVD players as well as on PCs. The following sections introduce the basics of DVD recording which
may help you get the most out of your recorder.
What to Choose
Unlike the traditional VCR, DVD recorder comes with a wider variety of recordable media to choose from.
Depending on different technologies employed, recordable DVD discs are divided into two major categories: the
‘minus (-)’ and ‘plus (+)’ formats. Within these two groups, discs are further classified by their ‘rewritability’.
Recordable (+R or -R) discs can be used for recording only once, which means that you will not be able to write
anything into a section already used. Rewritable (+RW or -RW) discs, on the other hand, allow users to erase
recordings and then to add new ones to the same section repeatedly.
Format Rewritability Disc Type
Minus (-) Recordable (Write-Once)
DVD-R
Rewritable
DVD-RW
Plus (+) Recordable (Write-Once)
DVD+R
Rewritable
DVD+RW
Note
• Before buying discs, please check what types of discs are supported by your DVD recorder.
How to Record
Using DVDs to record is similar to what you do with videotapes, except that you may need to prepare your blank
disc in a certain format. This formatting process varies depending on your recorder and the disc you use. To
record, insert a suitable disc to the recorder, and select a recording mode if necessary. When preparation is done,
press the RECORD button on the unit or the remote control to start recording.
How to Play
When the recording is finished, press PLAY to view the recorded programs or titles. A disc menu may appear:
press  to select your desired program or title. If you would like to play the recordings on other DVD
players or PCs, you need to finalize the disc first, unless you have used a DVD+RW disc or a DVD-RW disc
previously formatted in “Full Preparation” mode.

This chapter introduces basic system setups for the DVD recorder. Please
follow the steps listed below to complete
these requirements for further application.
9
Getting Started
Setting up the
DVD Recorder
The following sections introduce a step-by-step
process to set up this DVD recorder. When more
than one setup option are listed at a specific stage,
please refer to the option most suitable for your
setup condition.
Before you start...
1. Check whether all the accessories are included in your package box.
 Remote Control (1)
 Batteries (2)
 Audio/Video Cable (1)
 Power Cord (1)
(Not available in all models)
 Antenna Cable (1)
 User’s Manual (1)
 Quick Start Guide (1)
Getting
Started
Setting up the DVD Recorde .................... 9
• Knowing Your DVD Recorder ................ 10
• Connecting up Your DVD Recorder ........ 14
System Setup .................................... 16
• Setting Language ............................. 17
• Setting System Date .......................... 17
• Setting System Time .......................... 18
• Setting Auto Clock ............................ 18
• Setting Video Output .......................... 19
• Setting Audio Output ......................... 20
• Setting Aspect Ratio .......................... 21
• Setting TV Channels .......................... 22
AdvancedSystem Setup ........................ 24
• Using Channel Editor ......................... 24
• Setting the VCR Plus+® System ............. 27

10
Knowing Your DVD Recorder
Front-Panel Connections
1. Power ON/OFF button
Switches the DVD recorder on and off
2. OPEN/CLOSE button
Opens or closes the disc tray
3. Disc tray
Holds discs securely during recording or
playback
Note
• Please do not put a disc on the tray and force-
fully close the tray during power-off mode. This
may cause malfunction of the DVD recorder.
4. DISPLAY window
Shows operation information
5. DV-LINK (IEEE 1394) jack
Connects digital camcorder
6. SOURCE button
Selects equipment connected via line inputs
7. RECORD button
Starts recording
8. PLAY button
Starts playback
9. STOP button
Stops playback or recording
10. PAUSE/STEP button
Pauses playback or recording
11. LINE IN (VIDEO/AUDIO L/R) jacks
Connects the outputs of external equipment via
composite video/audio cables
*The actual appearance of the unit may slightly differ depending on model types.

11
Getting Started
Display Window
1. PLAY indicator
2. DVD indicator
3. SVCD indicator
4. VCD indicator
5. CDDA indicator
6. FILE indicator
7. CD indicator
8.
CD-R/DVD-R
indicator
9. PAUSE indicator
10. RECORD indicator
11.
TIMER RECORD
mode indicator
12. Multi-information
window
13. CD-RW/DVD-RW
indicator
14. DVD+R indicator
15. DVD+RW indicator
Rear-Panel Connections
1 2 3456
1. DIGITAL AUDIO OUT (COAXIAL) jack
Connects an amplifi er or a receiver having a
digital input jack
2. VHF/UHF IN/OUT jacks
Connects antenna cables
3. AV INPUT (VIDEO/AUDIO L/R) jacks
Connects the outputs of external equipment via
composite video/audio cables
4. COMP OUT (COMPONENT) jacks
Connects the inputs of external equipment via
component video cables
5. AV OUTPUT (VIDEO/AUDIO L/R) jacks
Connects the inputs of external equipment via
composite video/audio cables
6. AC IN terminal
Connects the power cord
Note
• Please note that some models feature attached
power cords.
*The actual appearance of the unit may slightly differ depending on model types.

12
Remote Control
1. OPEN/CLOSE button
Press to open or close the
disc tray
2. SETUP button
Press to display the System
Setup menu
3. DISPLAY button
Press to view information
4. Alphabet and Number
buttons
Press to enter numbers and
letters
5. NAVI. button
Press to display Navigation
menu
6.
RECORD button
Press to start recording
7. TIMER button
Press to display Timer
Record menu
8. TOP MENU button
Press to display disc’s top
menu
ALBUM  button
Press to go to previous file
folder
9.
 (direction) and
ENTER buttons
Press to make selection
CH / CH buttons
Press to select channel
10. CM SKIP button
(Commercial Skip)
Press to fast-forward
playback by 30 seconds
11.
 PREVIOUS button
Press to go to previous
file/picture/track/chapter
12.  F.R. button
Press to reverse playback
13.  STOP button
Press to stop playback or
recording
14. POWER button
Press to switch on or off the
recorder
15. SOURCE button
Press to select signal source
16. TV button
Press to switch to TV source
17. GUIDER button
Press to display Easy
Guider menu
18. EDIT button
Press to display Edit menu
or Channel Editor menu
19. TOOLS button (For
models not supporting VCR
Plus+ system)
Press to display the Disc
Tools menu.
VCR Plus+ button (For
models supporting VCR
Plus+ system)
Press to display the VCR
Plus+ timer recording menu
20. MENU button
Press to display disc’s menu
ALBUM  button
Press to go to next file folder
21. PAUSE/STEP button
Press to pause playback or
recording
22.  NEXT button
Press to go to next file/pic-
ture/track/chapter
23.  F.F. button
Press to advance playback
24.  PLAY button
Press to start playback
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

13
Getting Started
Using Remote Control
Preparing the Remote Control
Open the battery compartment and insert the
batteries. Make sure the polarities (+ and -) match
the markings inside the remote control.
Note
• Do not use rechargeable batteries.
Remote Control Signal
The remote has a range of approximately 5M
and works best when pointed directly at the unit
horizontally at angles up to 30° from the sensor
window of the DVD recorder.
30
0
5
Easier Application with Remote Control
Function buttons, such as GUIDER or TIMER,
are designed to offer you a quick access to intended
applications. Press these buttons to go directly to
their individual menus and complete your desired
tasks. If you would like to quit an application,
simply press the designated button again.

14
Connecting up Your DVD
Recorder
Before you start...
1. Do not plug the AC power cord into the outlet until all other connections are made.
2. It is recommended that you connect VIDEO
OUT jack of the DVD recorder directly to the
video input of your TV. Connecting VIDEO
OUT jack of this recorder to a TV via a VCR
may cause a viewing problem when playing
a copyright-protected disc. The same viewing
problem may also occur when connecting the
recorder to an integrated TV/Video system.
What You Need to Do:
Step 1: Connecting Antenna/Satellite Cable
Step 2: Connecting the Video Cable
Step 3: Connecting the Audio Cable
Step 4: Connecting the Power Cord
Step 1: Connecting
Antenna/Satellite Cables
Option 1 With Cable Box
Wall Outlet Cable Box DVD Recorder TV
1.
Use an antenna cable to connect the RF IN jack
on the cable box to the antenna outlet on the
wall.
2. Use an antenna cable to connect the RF OUT
jack on the cable box to the RF IN jack on the
DVD recorder.
3. Use an antenna cable to connect the RF OUT
jack on the DVD recorder to the RF IN jack on
the television.
IN
R
AUDIO
VIDEO
L
VHF / UHF
OUT
IN
Wall
Antenna cable
RF IN
RF OUT
Cable box
T V
Option 2 Without Cable Box
Wall Outlet DVD Recorder TV
1.
Use an antenna cable to connect the RF IN jack
on the DVD recorder to the antenna outlet on
the wall.
2. Use an antenna cable to connect the RF OUT
jack on the DVD recorder to the RF IN jack on
the television. (Please note that this serves as a
pass-through only.)
T V
Wall
RF IN
RF OUT
RF IN
Step 2: Connecting the
Video Cable
Option 1 Using Composite Cable
Use the video (yellow) end of a composite cable
to connect the VIDEO OUT jack on the DVD
recorder to the VIDEO IN jack on the television.

15
Getting Started
TV
VIDEO
R
L
R
L
VIDEO IN
AUDIO IN
Option 2 Using Component Cable
Use a component video (with green, blue and red
ends) cable to connect the COMPONENT OUT
jack on the DVD recorder to the COMPONENT IN
jack on the television.
Component video cable
Y
CB / PB
CR / PR
COMPONENT IN
Y
CB / PB
CR / PR
T V
Note
• If your television supports ‘Progressive Scan’
mode, you may adjust the ‘Video Output’ setting
accordingly for better results. Please go to
SETUPSYSTEMVIDEO OUTPUT, and
select ‘Progressive’. You can activate the Setup
menu directly by pressing SETUP button on your
remote control.
Step 3: Connecting the
Audio Cable
Option 1 Using Composite Cable
Use the audio (red and white) ends of a composite
cable to connect the AUDIO OUT jack on the DVD
recorder to the AUDIO IN jack on the television.
TV
VIDEO
R
L
R
L
VIDEO IN
AUDIO IN
Option 2 Connecting to a Stereo Audio Amplifi er
or Receiver
Use the audio (red and white) ends of a composite
cable to connect the AUDIO OUT jack on the DVD
recorder to the AUDIO IN jack on a stereo ampli-
fi er or a receiver.
Audio cable
IN
RIGHT
DVD
LEFT
VIDEO
R
L
Stereo audio amplifier
or receiver
Option 3 Connecting to a Digital Audio Device
Use a coaxial cable (not supplied) to connect the
DIGITAL OUT (COAXIAL) jack on the DVD
recorder to the coaxial digital input on a stereo
amplifi er or a receiver.
IN
OPTICAL
COAXIAL
COAXIAL
Digital Out (Optical)
DIGITAL AUDIO DEVICE
Coaxial digital cable

16
Step 4: Connecting the
Power Cord
Connect the power cord to the DVD recorder. After
all the cable connections are completed, you can
now plug the power cord of the recorder into the
outlet, and start using the recorder.
Note
• If you use a model which features attached power
cord, you only need to plug the power cord to the
outlet at this step.
System Setup
Use the Setup menu to quickly complete basic
system settings before using the DVD recorder. If
you wish to exit the Setup menu at any time, simply
press the SETUP button again.
Each option icon on the Setup menu represents
an entry point to more detailed system setup lists.
Please press  buttons on your remote
control to make selection, and confi rm it with the
ENTER button.
Guide to Complete System Setup Menu
(p.72)
Started_SystemSetup_00_01
HQ
Before you start...
1. Check whether the video signal from this DVD recorder is correctly displayed on your
TV screen.
Connecting up Your DVD Recorder (p.14)

17
Getting Started
Setting Language
1
Press SETUP to display the Setup menu.
2
Press  to select ‘Language’, then press
ENTER.
Started_SystemSetup_01_01
3
If you would like to change the language
displayed on the screen, press  to select
‘OSD’ (on-screen display), then press ENTER
or to go to the sub-menu.
If you would like to change the language
displayed on the menu page, press  to
select ‘Menu’, then press ENTER or to go
to the sub-menu.
If you would like to change the spoken
language in the video fi les, press  to select
‘Audio’, then press ENTER or to go to the
sub-menu.
If you would like to change the language
shown for the subtitle, press  to select
‘Subtitle’, then press ENTER or to go to the
sub-menu.
Started_SystemSetup_01_02
Français
Español
4
Press  to select your desired language,
then press ENTER.
Started_SystemSetup_01_03
Français
Español
5
When completed, press to return to the main
menu.
6
Press or SETUP to completely exit the
Setup menu.
Note
• Available language versions vary depending on
model types.
• For the ‘Menu’, ‘Audio’ and ‘Subtitle’ options,
the selected preference is applicable only when
the discs being played have the desired language
versions.
Setting System Date
1
Press SETUP to display the Setup menu.
2
Press  to select ‘System’, then press
ENTER.
3
Press  to select ‘Date’, then press EN-
TER.
Started_SystemSetup_02_02
