Litestar A-1K-R00504-1100-F User manual

第1页，总 6页文件编号：WI-EN-CF-I-235
LITE
STAR
A-1K-R00504-1100-F Magic Works User Guide
1. Description
This Bluetooth Wireless Electric Jukebox Roxi, item# A-1K-R00504-1100-F is
especially designed and manufactured to fit to Android Smart TV, with Microphone
function. Please use it with TV box.
Features
1、Bluetooth Wireless mode, 360 degrees full range coverage, Least Effective range 7
Meters .
2、Please use it with a smart TV box which is assembled with HDMI port and RJ45 jack ;
WIFI, Bluetooth and 2.4G module enabled.
3、Shake the controller to wake it up from light sleep, and press any button to activate it
from deep sleep.
4、Built in Microphone, enabled voice search and Karaoke functions.
5、Energy Saving, 5 minutes into light sleep, 15 minutes without any action, fall into deep
sleep automatically.
6、Low-battery warning, When the battery capacity is lower than 3.6V, the indicator LED
will flash.
7、Built-in Motor, Vibration upon successful connecting.
8、Cursor center correction function（Press OK+ Pause at the same time）.

第2页，总 6页文件编号：WI-EN-CF-I-235
LITE
STAR

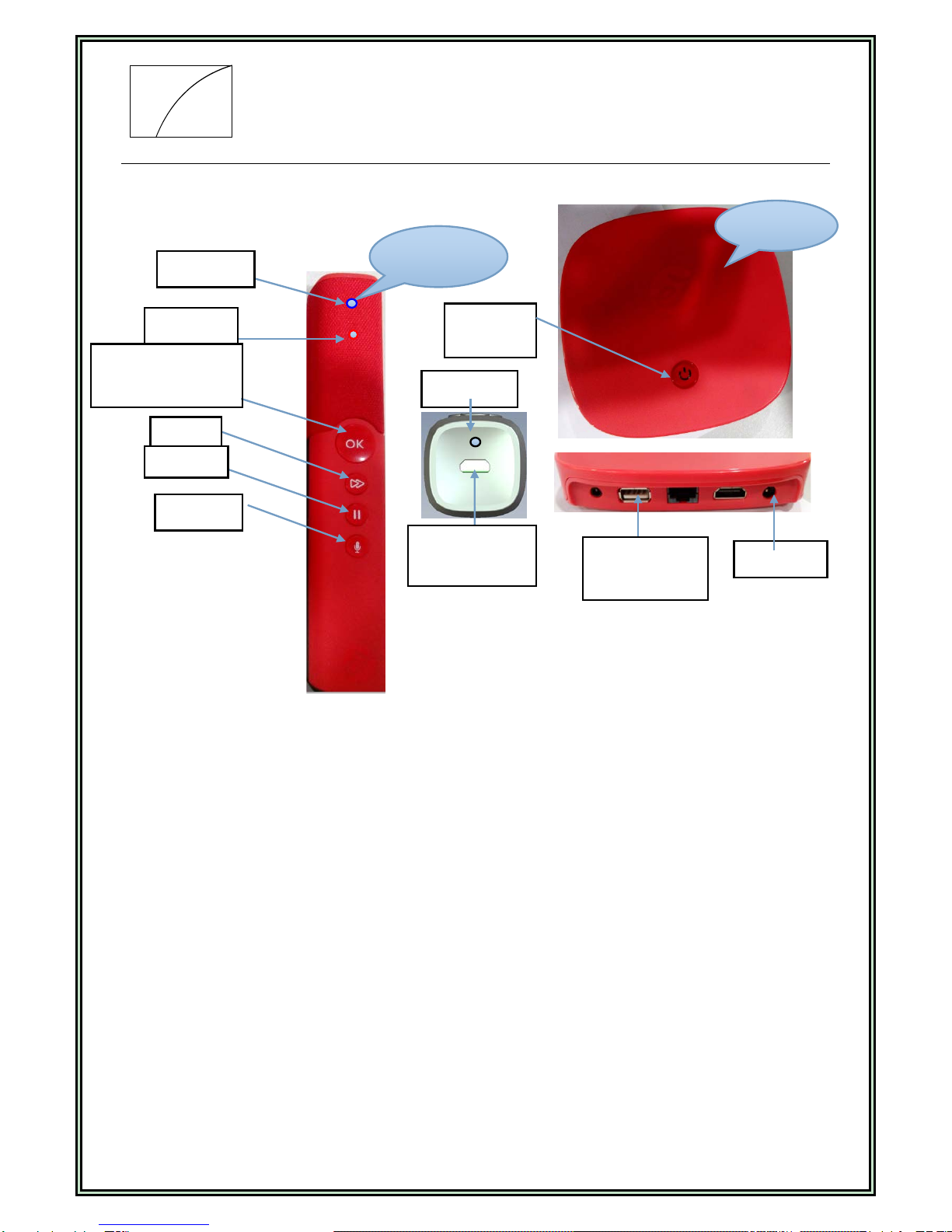

2. Buttons Layout：
4.Connecting and Operations
4.1、Pairing
1、Connect the TV box with TV through a HDMI cable and connect it with power supply.
2、While the TV box is power on, Here appears reminders of connecting the controller.
3、Following the instructions on TV box, hold the buttons “MIC”+“pause” for about 5
seconds（Within 1 Meter），LED flash frequently , into pairing status. White LED on ,
built in motor vibrate indicating pairing success.
4.2、Functions and Operations
Button OK：Single press to wake up air mouse, rapid single press into selection function
after connecting ( same function as a left mouse button)
Play：Rapid single press
1、Pause：Rapid single press to suspend playing music
2、MIC：Voice opening button, single press this button after connecting, white LED on
constantly, indicating MIC is turned on.
3、Voice call is enabled (Press MIC to turn on Audio, go to the APP in TV box to turn
off Audio)
MIC
LED
OK（
Left click of
mouse）
Play
MIC
Pause
MICRO USB
Recharge Port
Reset
Power
on/off
DC Input
Side mounted
ports
Magic Wand
TV BOX

第3页，总 6页文件编号：WI-EN-CF-I-235
LITE
STAR
5. Additional Functions
5.1、Low Battery Warning
1、LED starts flashing ,when battery capacity is lower than 3.6V±0.2V, it is time to
recharge it.
5.2、Energy saving and sleep mode
1、Automatically fall into light sleep after unsuccessful connecting and missing receiver
last 5 minutes.
2、While pairing status is not connected for 2 minutes, fall into sleep mode
3、5 minutes into light sleep, 15 minutes without any action, fall into deep sleep
automatically, and LED off, even after it is connected
4、Functions of all buttons and gyroscope will be off, under light sleep mode, Bluetooth
function stay on, Shake the magic wand to wake it up from light sleep, and press
any button to wake it up from deep sleep.
5、Keep pressing “MIC”+“Play” for 5 seconds at the same time to make it power off
5.3、Clear Pairing
1、Keep pressing “MIC”+“OK” for 5 seconds at the same time，LED Starts flashing quickly
for 2seconds to clear paired signals, and magic wand could not reconnecting with the TV
box within range automaticall
5.4、Reset
1、Press the tiny hole on the bottom of the wand using a small and slender solid object to
reset it, reconnecting within range will be enabled after resetting. The built in motor
will vibrate and LED off in 2 seconds upon successful reconnecting.
5.5、Calibration Function
1、Keep Pressing “OK”+“Pause” at the same time for 1~2 seconds, LED flash quickly,
and calibration is completed（Calibrate the cursor）
5.6、LED Indicators
1、White LED flash 1 time per 5seconds,when it is not connected；
2、White LED will be on constantly, after it is connected. White LED will be off in 2
seconds after reconnecting

第4页，总 6页文件编号：WI-EN-CF-I-235
LITE
STAR
3、White LED will flash 4 times per second, when connecting is enforced
4、White LED will be on constantly, when MIC is on. White LED off, after MIC is off.
5、White LED flash 1time/second to indicate low battery；
6、White LED flash 2times/5seconds frequently when it is recharging. After fully charged,
white LED will be bright constantly, while MIC is on. White LED will be off, after MIC
is turned off。
5.7、Vibration
1、Vibration happens ,upon power on, waking up, and connecting；
2、Vibrate, when cursor is moved to the short cuts on UI ( in APP)。（在 APP 中）
5.8、Voice searching and Karaoke
1、Press MIC, through app to activate voice searching；
2、Enter relevant UI on TV box, to enjoy Karaoke。
5.9、Recharging
1、LED flash 0.5seconds/time, while it is recharging. LED off, after being fully
charged。
3. Trouble shooting
1、Please check whether the battery is low or not, if the device could not be power on.
Please recharge it before trying to turn it on.
2、Please keep the device within range, if the wand crash or lose connection
accidentally , reconnect it.
3、Please check whether the MIC is turned on or not, if there is not audio function.
Please aim at the MIC to enable voice function better 。
4、Cursor missing, probably the cursor is moved to the edges, please move it to every
direction, Press and hold“OK”+“Pause” at the same time for 1~2seconds to
center the cursor。
4. Note:
1、Please read the user guide carefully before using。
2、Avoid severe shake and swing, disassemble,modification and repair by unauthorized
person is prohibited 。

第5页，总 6页文件编号：WI-EN-CF-I-235
LITE
STAR
3、Do not expose it to moist, extremely hot environment and oil fumes.
4、Avoid water or/and other liquid entering the internal structure, impact on functions will
happen after that.
5、Battery built in, keep it away from fire, there is risk of explosion when battery is
exposed to fire.
6、Children is recommended to use the product under adult’s guidance
7、Please contact after -sales service or/and retailers, should you have any suggestions
or questions
8、Appendix
Technical information:
Manufacturer/ Factory: LITE STAR ELECTRONICS TECHNOLOGY Co.,Ltd.
Address of
Manufacturer/ Factory:
Xingchen Science park Lianbi Road,Wulian Industry
Area,Fenggang Town,Dongguan City,China
Adapter
Model: MLF-A250502000**
Input: AC 100-240V, 50/60Hz, 0.4A
Output: DC5V, 2.0A
Manufacturer/ Factory: Dong guan MLF Tech Co.,Ltd.
Address of
Manufacturer/ Factory:
No.8,Qingping Road,Qinghutou Village,Tangxia Town,Dongguan
City,China
Battery
Model: PL602540
Input: 4.2V
Output: DC 3.7/550MAH
Manufacturer/ Factory: Dongguan Sunly Battery Technology CO.,LTD.
Address of Manufacturer/ Factory:
Building 30th, Arising Sun Industrial area, No.8 XinYang road, Lin Village, TangXia Town,,D
ongGuan City

第6页，总 6页文件编号：WI-EN-CF-I-235
LITE
STAR
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
