Living Home TROLLEY CART User manual

1
TROLLEY CART

2
SAFETY &WARNINGS
Warning

Read each step carefully before starting. It is very important to ensure
each step is followed in correct order, otherwise assembly difficulties may
occur.
 Do not sit or stand upon the tabletop.
 Make sure you have enough space to layout the parts before starting.
 We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
 Keep the hand screwdrivers close at hand. Do not use power tools to
assemble your furniture. They may scratch or damage the parts.
Safety Information

Separate and count all parts and hardware.
 Keep children and animals away from the work area small parts could
choke if swallowed.
 Parts of the assembly will be easier with 2 people.
 Place the product on flat and steady surface during use.
 During assembly do not stand or put weight on the product, this could
cause damage.
 Assemble on a soft level surface to avoid damaging the unit or your floor.
 Only upon completion of the assembly should all fixing points be fully
tightened.
 Regularly check and ensure that all bolts and fittings are tightened
properly.

3
COMPONENTS
①: Tabletop (x1)
②: Left Side (x1)
⑤: Bottom (x1)
⑥: Drawer
Support (x1)
③: Center (x1)
⑦: Middle
Divider (x2)
⑨: Back (x2)
⑩: Drawer Bottom
(x2)
⑪: Front Panel
(x2）
④: Right Side
(x1)
⑧: Shelf (x2)
⑫: Left Panel
(x2）
⑬: Right Panel (x2)
⑭: Back Panel (x2)
⑮:Left Door(x2)
⑯: Right Door (x2)

4
⑰: Towel Rack
(x2)
A: Cam Bolt (x30)
M6 x 35mm
B: Cam Lock (x30)
M10 x 15mm
C: Dowel (x12)
M6 x 30mm
D: Screw (x52)
M3 x 12mm
E: Screw (x8)
M4 x 30mm
F: Slider (L/R)
(x2 Sets)
G: Handle (x6)
H: Screw (x12)
M4 x 20mm
I: Screw (x6)
4 x 35mm
J: Locking Caster
(x4)
K: Screw (x16)
M4 x 12mm
L: Screw (x4)
M4 x 35mm
M: Hinge (x8)
N: Metal Plate
(x4)
O: Peg (x8)
P: Magnet (x2)
Q: Screw (x4) (M3 x 14mm)

5
INSTALLATION
Step 1
Attach a slider set (F) to the left side (②) with screws (D).
Step 2
Attach slider sets (F1) to the center piece (③) with screws (D). Attach one railing
on each side as shown in the picture.

6
Step 3
Attach a railing (F1) from slider set to the right side (④) with screws (D).
Step 4
Attach the drawer support (⑥) and middle divider (⑦) to the left side (②) with
cam bolts (A) and cam locks (B). Attach a center piece (③) to the drawer support
(⑥) and middle divider (⑦) with cam bolts (A) and cam locks (B).

7
Step 5
Repeat to attach the drawer support (⑥) and middle divider (⑦) to the other
side of center piece (③) and right side (④).
Step 6
Attach magnets (P) to the drawer support with screws (Q).

8
Step 7
Attach the bottom piece (⑤) to the assembled frame of step 6 with screws (I)
and dowels (C).
Step 8
Attach four casters (J) to the bottom of the trolley cart with screws (K).

9
Step 9
Stand the cart upright and slide in two back pieces (⑨).
Step 10
Attach the tabletop (①) to the assembled frame of step 9 with cam bolts (A),
dowels (C) and cam locks (B). Turn the cam locks (B) to secure the tabletop (①).

10
Step 11
Attach a handle (G) to the left door (⑮) with screws (H). Attach a metal plate (N)
to the left door (⑮) with screws (D). Repeat to attach handles (G)/metal plates
(N) to another left door (⑮) and two right doors (⑯).
Step 12
Attach hinges (M) to the left (⑮)/right doors (⑯) with screws (D) as shown in the
picture.

11
Step 13
Attach a left door (⑮) and a right door (⑯) to the trolley cart with screws (D).
Repeat to attach the other set of doors. Attach two towel racks (⑰) with screws
(L) as shown.
Step 14
Insert pegs (O) into the interior of the cart, then slide in two shelves (⑧).

12
Step 15
Attach a left panel (⑫) and a right panel (⑬) to the back panel (⑭) with screws
(E). Slide in a drawer bottom (⑩).
Step 16
Attach a handle (G) to the front panel (⑪) with screws (H). Attach the front panel
(⑪) to the drawer with cam bolts (A) and cam locks (B). Turn the cam locks (B) to
secure the front panel (⑪).

13
Step 17

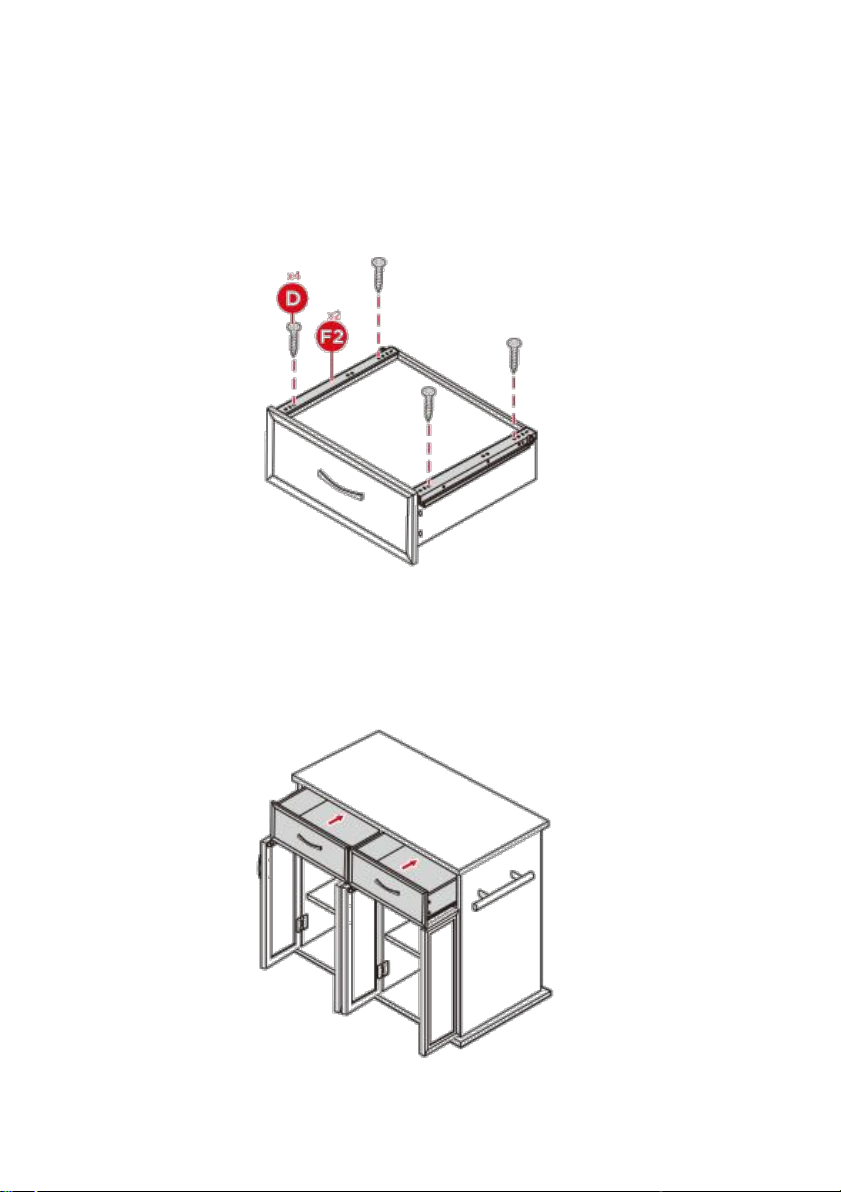

Attach two railings from slider set (F) to the drawer with screws (D). Repeat
steps 15 to 17 to assemble another drawer.
Step 18
Insert the drawers by lining up the railings on the slider sets.

14
CLEANING &CARE
 Use a soft, clean cloth that will not scratch the surface when dusting.

Use of furniture polish is not necessary. Should you choose to use polish,
test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage the finish.

Never use water to clean your furniture as it may cause damage to the
finish.

Liquid spills should be removed immediately. Using a soft clean cloth, blot
the spill gently. Avoid rubbing.
 Check bolts/screws periodically and tighten them if necessary.
 This product should not be discarded with household waste. Take to your
local authority waste disposal centre.
