Living Images Slimline User manual

HD Motion Sensor Digital Picture Frame
Installation and User Guide


1
Contents
Introduction….............................................................................................................................2
Features………..............................................................................................................................2
PackageContents........................................................................................................................2
Diagrams……………………...............................................................................................................3
RemoteControl..........................................................................................................................4
GettingStarted…………................................................................................................................5
MainMenu………………................................................................................................................5
ViewingYourPhoto....................................................................................................................10
ViewingYourVideo....................................................................................................................11
ListeningToYourMusic..............................................................................................................12
Delete………………………...............................................................................................................13
Settings.......................................................................................................................................14
SetUP………………………………………………………………………………………………………………………………………………15
MotionSensor………………………………………………………………………………………………………………………………….16


2
Introduction
Before operating the unit, please read this manual carefully, and retain it for future reference.
This manual will help you use the many exciting and useful features that will make your photo
frame viewing more enjoyable. It includes a step by step guide to the basics on photo frame
operation including instructions on uploading and playing photos, music or video.
Features
◆ Support MPEG2/MPEG4/H.264/RMVB/AVI,(.avi/.mov/.ts/.mpg/.m2ts/.mkv) etc.1080P max.
◆ Support MP3/WMA/AC3 etc.
◆ Support JPEG
◆ SD/MMC card slot.
◆ USB 2.0,support USB hard disk
◆ AV input
◆ HDMI input
◆ 2*0.5W speaker box
◆ Standard VESA wall mounting
◆ Remote control
◆ Motion Sensor
Package Contents
Please make sure all of the following are present when you unpack your Digital Photo Frame.
Digital Photo Frame Remote Control Power Adapter Power Cable
Usermanual Stand Anti-Theft Cover With Two Screws


3
Diagrams
Rear Overview:
Side view:


4
Remote Control
Note: 1) Please remove the plastic tab between the Remote Control Battery Door and the
Battery
2) Please point the Remote Control toward the Remote Sensor, which is located on the
front right side of the frame’s panel, 10 cm up from the right corner.
 
PowerSwitchon/offtheframe
SetupGotosettingmenu
VOL‐ Decreasevolume
VOL+IncreaseVolume
MenuGotothemenuoftheframe
OSDOpenmenuforchangingOSD

Backtothelaststep

Combo/musicandphoto

Playmusic

Changtheratioofdisplay
ArrowsNavigateonscreen

Increasethesizeofthephoto


5
Getting Started
1) To set up your Digital Photo Frame, you first need to attach the stand.
2) Place the frame horizontally on a flat surface.
3) Insert the power lead into the Digital Photo Frame’s socket marked DC
4) Turn on the Digital Photo Frame by either pressing the POWER button on the back of
the unit or pressing the ON/OFF button on the Remote control.
1.1MainMenu
It supports SD/ SDHC/ MMC and USB 2.0 . then press RETURN twice to access the
photo, music, video, calendar and settings choose interface. Press ENTER to confirm
the item you want.

Note:
1) Make sure there are supported picture, music and video files in the Card or USB
device.
2) you can also select Auto-play Photo, Music, Movie or Photo + Music, on or off in the
Setup Menu


6

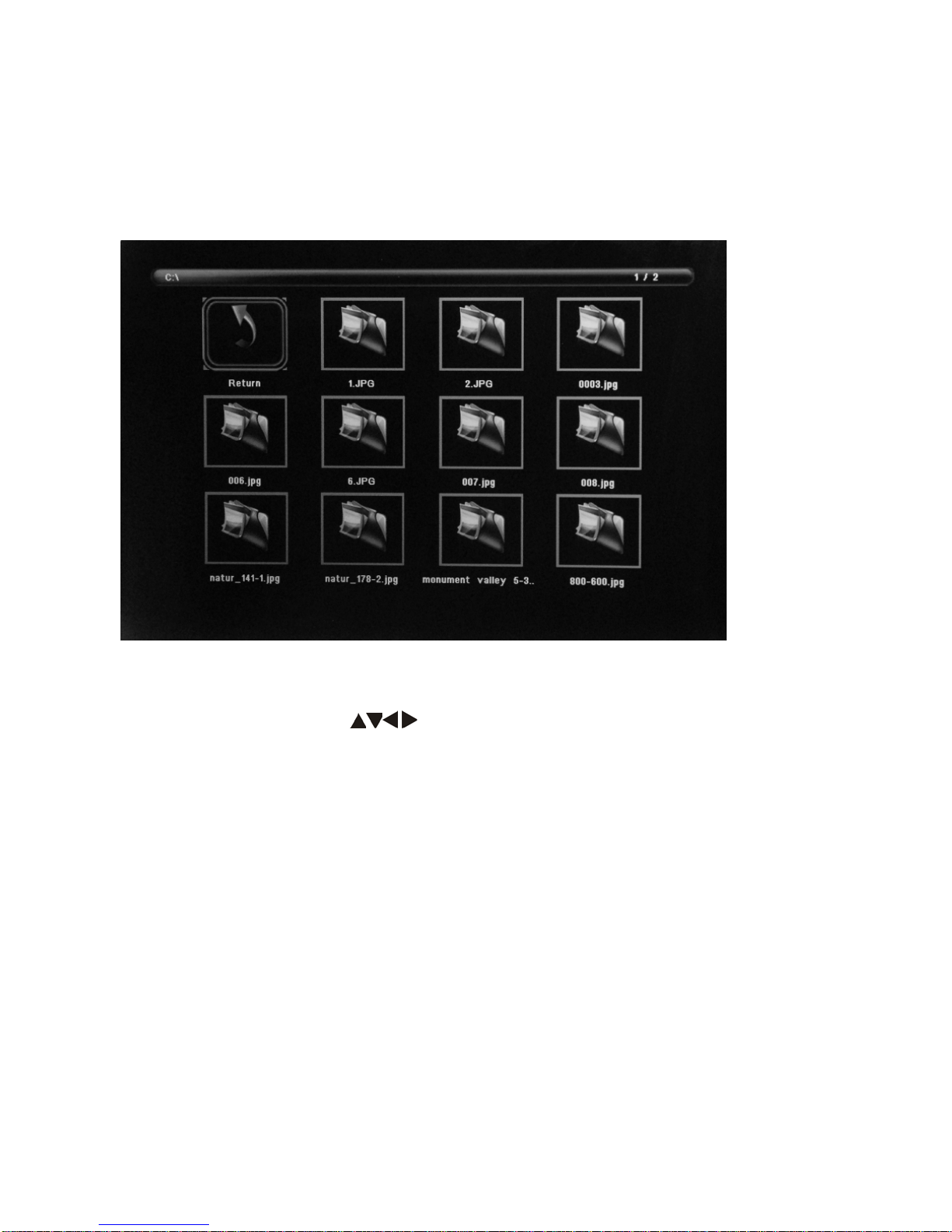

1.2PictureMode/DeleteFunction

Highlight Photo from the main menu, Press OK to Select the Raid,USB 2.0
or Memory Card which you want to play , then press OK again to access
the thumbnail mode, press to select the picture you want to play
and press ENTER to confirm


7
Delete function:
When the single picture is playing, press SETUP to enter information Bar, and select
following items by : Play, Preview, Next, Stop, R_All(means Repeat play all
files), Music, Playlist, Info, Rotate, Zoom, Move, than press OK to confirm.
In thumbnail mode , Use to select the picture you want to delete ,
press TOOLBAR to enter into Delete interface and then press ENTER to
confirm


8


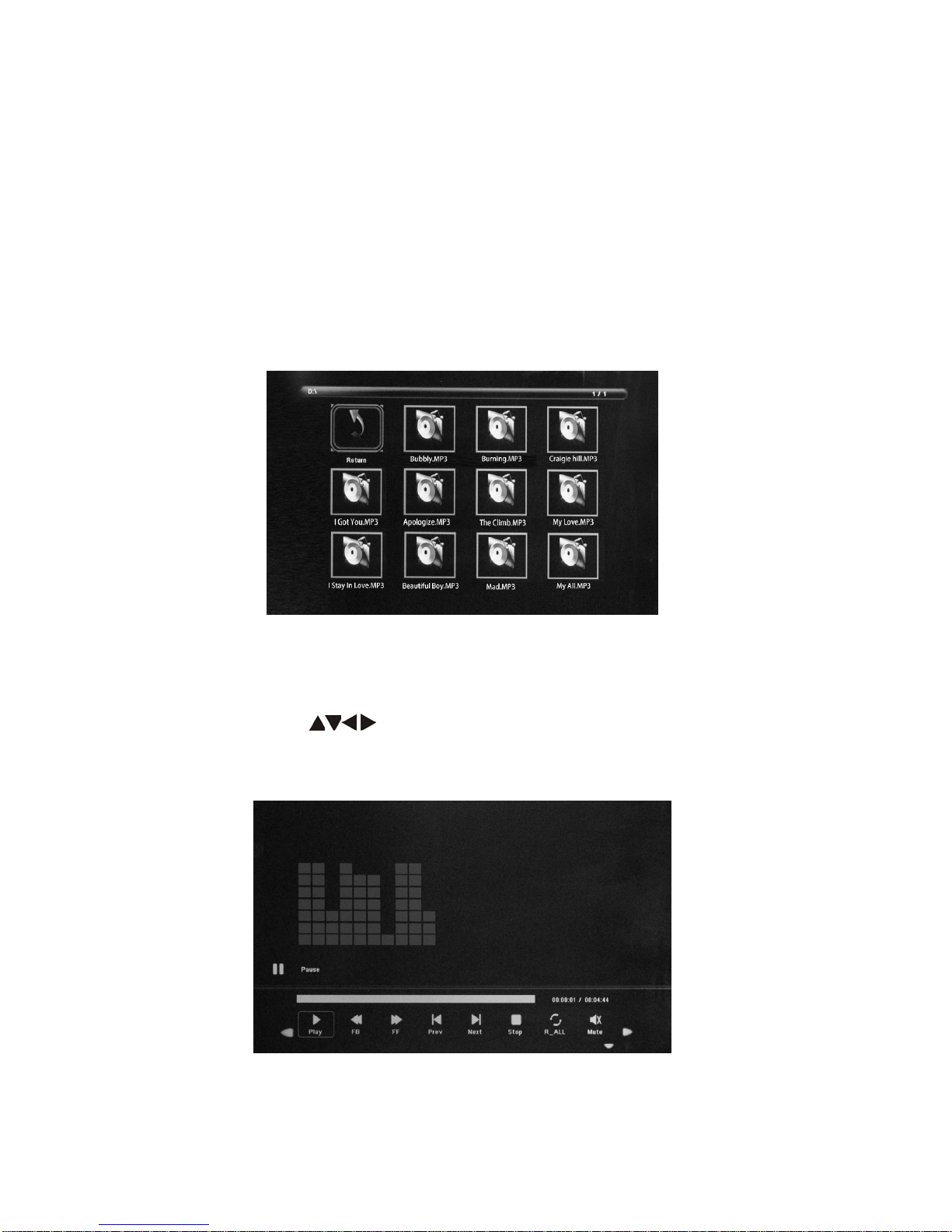

1.3MusicMode/DeleteFunction
MusicPlay

Highlight Music from the main menu, Press OK to Select the RAID, USB 2.0
or Memory Card which you want to play, then press OK again to access the
thumbnail mode, press to select the music you want to play and
press ENTER to confirm


9
Delete Function :
1.4VideoMode/DeleteFunction
VideoPlay
In thumbnail mode , Use to select the Music you want to delete,
press TOOLBAR to enter into Delete interface and then press OK to
confirm
