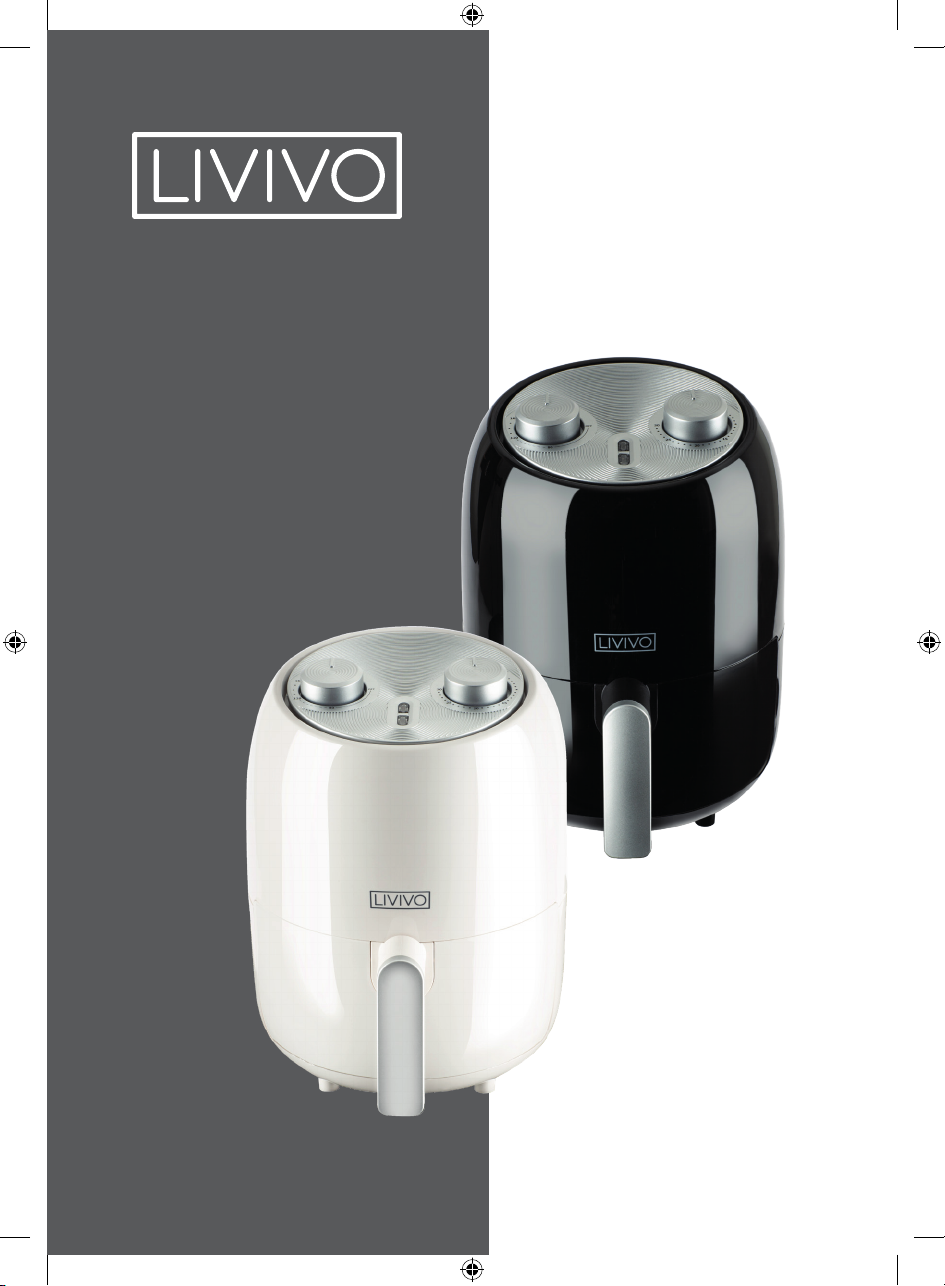

LIVIVO AF1004 User manual

2L AIR FRYER
WHITE | BLACK
INSTRUCTION MANUAL
SKU: AF1004 | AF1003
AF1003_AF1004_IM_2022 02 15_V1.indd 1AF1003_AF1004_IM_2022 02 15_V1.indd 1 15/02/2022 14:3415/02/2022 14:34

- 2 -
TABLE OF CONTENTS
PRECAUTIONS AND SAFEGUARDS 3
BEFORE FIRST USE 4
PARTS 5
OPERATION 5
SETTINGS 7
CLEANING AND CARE 9
TROUBLESHOOTING 10
TECHNICAL SPECIFICATION 12
RETURNS AND WARRANTY 12
AF1003_AF1004_IM_2022 02 15_V1.indd 2AF1003_AF1004_IM_2022 02 15_V1.indd 2 15/02/2022 14:3415/02/2022 14:34

- 3 -
PLEASE READ THESE INSTRUCTIONS BEFORE USE
AND RETAIN THEM FOR FUTURE REFERENCE.
PRECAUTIONS AND SAFEGUARDS
• Use this electrical appliance as described in this manual. Any other use is not recommended by the
manufacturer and could have a detrimental effect on the durability of the appliance and or the
safety of the user.
• Please inspect the unit for damage after unpacking.
• To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside. Refer
servicing to qualied service personnel.
• Repairs should only be performed by qualied personnel. Improper repairs may place the user and/
or equipment at serious risk.
• Do not operate this appliance with a damaged plug, or cord, after a malfunction, or after being
dropped or damaged in any way.
• Never leave this appliance unattended whilst in use.
• Do not let the cord hang over the edge of a table, or come into contact with a hot surface.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied people in order to avoid a hazard.
• Do not push objects into any openings as damage to the equipment and/or electric shock
may occur.
• If abnormal noise, smell, smoke or any other failure is discovered during operation, turn off the
product and unplug the power plug. Then contact the service centre for repair.
• Do not remove the appliance from the mains power supply by pulling the cord, pull the
plug instead.
• This appliance is not intended for the use by people (including children) with reduced physical,
sensory or mental capabilities or lack of experience or knowledge. They should be given
appropriate supervision and instructions to use the equipment by a person responsible for
their safety.
• This product is not a toy. Never leave the equipment within reach of children. Close supervision is
required when using this equipment near children.
• Do not use this equipment for anything other than its intended use.
• Do not immerse the product in water or any other liquid.
AF1003_AF1004_IM_2022 02 15_V1.indd 3AF1003_AF1004_IM_2022 02 15_V1.indd 3 15/02/2022 14:3415/02/2022 14:34

- 4 -
• Always unplug the appliance after use and before any cleaning or user maintenance. Ensure the
equipment is not too close to heat emitting appliances or placed in direct sunlight.
• Never use harsh or abrasive cleaning uids on the device.
• Make sure all the food is in the pan to prevent any direct contact with the heating elements.
• Do not cover the air inlet and the air outlet when the appliance is working.
• Never ll the pan with oil as it may cause a re hazard. Place a small amount of oil onto the food
you want to prepare and mix it well, before adding it into the pan.
• The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries.
• During air frying, hot steam is released from the air outlet opening. Keep your hands and face away
from the steam and from the air outlet opening. Also, be careful of hot steam and air when you
remove the pan from the appliance.
• The appliance must not be used in potentially dangerous locations such as ammable, explosive, or
wet atmospheres where petrol, ammable liquids, or chemicals are used or stored.
• Always place the device on a stable, at, level surface when operating to avoid the possibility of
tipping over.
• Position the power lead in such a way to prevent it coming into contact with heat.
• Do not cover the appliance.
• Avoid extreme degrees of temperature, either hot or cold. Place the device well away from heat
sources such as radiators or gas/electric res.
• Always store the appliance in a dry location.
• The warnings and precautions in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator, that common sense and caution
are factors, which cannot be built into this product, but must be supplied by the operator.
BEFORE FIRST USE
1. Remove all packaging materials including stickers and labels.
2. Clean the pan with water, with some washing liquid and a non-abrasive sponge. These parts are
safe to be cleaned in the dishwasher as well.
3. Wipe the inside and outside of the appliance with a dry cloth.
AF1003_AF1004_IM_2022 02 15_V1.indd 4AF1003_AF1004_IM_2022 02 15_V1.indd 4 15/02/2022 14:3415/02/2022 14:34

- 5 -

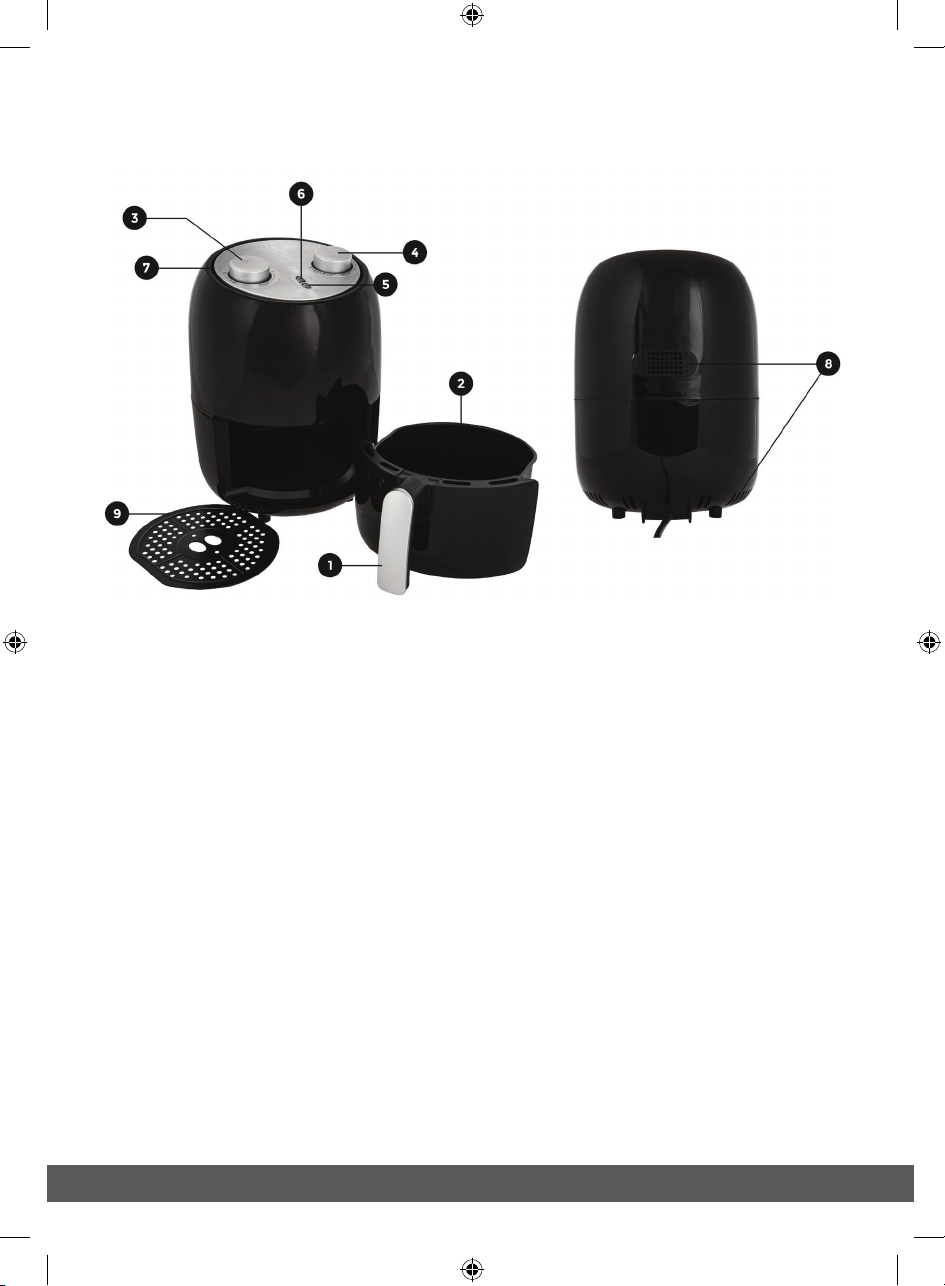

PARTS
1. Handle
2. Pan
3. Temperature control knob
(80 – 200°C)
4. Timer (0 – 30 min)/Power control knob
5. Power-on light
6. Heating-up light
7. Air inlet
8. Air outlet openings
9. Crisper plate
OPERATION
The appliance has a build in timer, it will automatically shut down the appliance when the timer runs
out. You can manually switch off the appliance by turning the timer control knob to zero.
1. Place the appliance on a stable, horizontal and even surface. Do not place the appliance on
non-heat-resistant surfaces.
2. Put the crisper plate into the pan.
3. Connect the plug with an earthed wall socket.
4. Carefully pull the pan out from the air fryer. Fill the food into the pan. Push the pan back into the
air fryer.
AF1003_AF1004_IM_2022 02 15_V1.indd 5AF1003_AF1004_IM_2022 02 15_V1.indd 5 15/02/2022 14:3415/02/2022 14:34

- 6 -
Note: Never exceed the MAX indication, as it may effect the frying result of the food.
WARNING! Do not touch the pan during and shortly after using, as it becomes very hot. Only hold the
pan by the handle.
5. Turn the temperature control knob to the proper temperature. See section the chapter SETTINGS to
determine the right temperature.
6. Determine the required preparation time for the food.
7. Turn the timer control knob to the desired position. Add 3 extra minutes for preheating if the
appliance is cool.
Note: You can also preheat the appliance without any ingredients inside. In that case, turn the timer
control knob to 3 minutes and wait until the heating-up light goes out, then ll the pan and turn the
timer control knob to the desired time.
Note: During the air frying process, the heating-up light will go on and out from time to time, it’s
normal and indicates that the thermostat is working well and controlling the temperature regularly.
8. Some food needs to be shaken during the frying. If this is the case for your choice of food, pull the
pan out of the appliance by the handle and shake it carefully, then push the pan back into the
Air Fryer
9. When you hear the timer ringing, the frying process is nished. Pull the pan out from the appliance
and place it on a heat-resistant surface.
10.The appliance has a safety protect function, the power will be automatically cut off once the pan is
not in the air fryer.
WARNING! Be aware of the hot air, coming out of the pan after frying.
11.Check if the food is ready. If the food is not ready yet, simply push the pan back into the appliance
and set the timer with a few extra minutes and keep frying.
WARNING! To remove small ingredients (e.g. fries) do not turn the pan upside down, as the collected
oil and fat will ow on top of the food. The pan and the food are very hot after air frying.
12.Take out the ingredients from the pan, then the Air Fryer is instantly ready for preparing
another batch.
AF1003_AF1004_IM_2022 02 15_V1.indd 6AF1003_AF1004_IM_2022 02 15_V1.indd 6 15/02/2022 14:3415/02/2022 14:34

- 7 -
SETTINGS
The information on the next page will help you to select the basic settings for some foods. These
settings are just indications. As food differs in size and shape, you might need to add a few minutes or
fry it shorter.
Smaller food usually requires a slightly shorter frying time than larger food. A larger amount of food
only requires a slightly longer frying time, a smaller amount of food only requires a slightly shorter
frying time.
WARNING! Do not fry extremely greasy food such as sausages in the Air Fryer.
Note: You can also use the Air Fryer to reheat food. To do so, set the temperature to 150°C and the
timer to up to 10 minutes.
HOW TO MAKE HOME MADE FRIES
1. Peel the potatoes and slice them into even sticks (about 8 mm x 8 mm).
2. Wash the potato sticks thoroughly and dry them.
3. Pour 1/2 tablespoon of olive oil in a bowl, put the sticks on top and mix until the sticks are coated
evenly with oil.
4. Remove the sticks from the bowl with your ngers or a kitchen utensil so that the excess oil can drip
back into the bowl. Place the sticks into the pan.
Note: Do not tilt the bowl to put all the sticks into the pan in one go, to prevent excess oil from ending
up at the bottom of the pan.
5. Fry the potato sticks according to the instructions in the table on the next page.
AF1003_AF1004_IM_2022 02 15_V1.indd 7AF1003_AF1004_IM_2022 02 15_V1.indd 7 15/02/2022 14:3415/02/2022 14:34

- 8 -
FOOD MIN – MAX
AMOUNT [G]
TIME
[MIN]
TEMP.
[ºC]
SHAKE EXTRA
INFORMATION
POTATO & FRIES
Thin frozen fries 300 – 700 9 – 16 200 Yes
Thick frozen fries 300 – 700 11 – 20 200 Yes
Home-made
potato wedges
300 – 800 18 – 22 180 Yes Add 1/2 tbsp. of oil
Home made fries
(8 mm x 8 mm)
300 – 800 16 – 10 200 Yes Add 1/2 tbsp. of oil
Rosti 250 15 – 18 180 Yes
Potato Gratin 500 15 – 18 200 Yes
MEAT & FISH
Steak 100 – 500 8 – 12 180
Pork chops 100 – 500 10 – 14 180
Hamburger 100 – 500 7 – 14 180
Sausage roll 100 – 500 13 – 15 200
Drumsticks 100 – 500 18 – 22 180
Chicken breast 100 – 500 10 – 15 180
Frozen
chicken nuggets
100 – 500 6 – 10 200 Yes Use oven-ready
Frozen sh ngers 100 – 400 6 – 10 200 Use oven-ready
SNACKS
Spring rolls 100 – 400 8 – 10 200 Yes Use oven-ready
Frozen bread
crumbed
cheese snacks
100 – 400 8 – 10 180
Stuffed vegetables 100 – 400 10 160
BAKING
Cake 300 20 – 25 160 Use baking tin
Quiche 400 20 – 22 180 Use baking tin/oven dish
Mufns 300 15 – 18 200 Use baking tin
AF1003_AF1004_IM_2022 02 15_V1.indd 8AF1003_AF1004_IM_2022 02 15_V1.indd 8 15/02/2022 14:3415/02/2022 14:34

- 9 -
CLEANING AND CARE
• Remove the plug from the wall socket and wait for the appliance to cool down.
Note: Remove the pan from the Air Fryer in order to let the appliance cool down quicker. The
appliance needs approximately 30 minutes to cool down before cleaning.
• Clean the appliance after every use.
• Do not clean the pan or inside of the appliance with metal kitchen utensils or abrasive cleaning
materials, as this may damage the non-stick coating. Clean the crisper plate and pan with water,
washing-up liquid and a non-abrasive sponge.
Note: The crisper plate and pan are dishwasher safe.
• Wipe the outside of the appliance with a moist cloth.
• Clean the inside of the appliance with a dry soft cloth.
• Clean the heating element with a dry cleaning brush to remove any food residues.
• Make sure all parts are clean and dry before storing the appliance.
• Store the product in a dry and ventilated location.
AF1003_AF1004_IM_2022 02 15_V1.indd 9AF1003_AF1004_IM_2022 02 15_V1.indd 9 15/02/2022 14:3415/02/2022 14:34

- 10 -
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The air fryer does not work. The appliance is not
plugged in.
Put the mains plug in an
earthed wall socket.
You have not set the timer. Select a frying time with the
time control knob.
The ingredients are not
cooked enough.
The pan is too full. Put smaller batches of food into
the pan.
The set temperature is too low. Set a higher temperature with
the temeprature control knob.
The food is fried unevenly. Certain foods need to be
shaken halfway through the
cooking cycle.
Food that lies on top of each
other (e.g. fries) need to be
shaken halfway through the
preparation time.
Fried snacks are not crispy
when they come out of the
Air Fryer.
You might have used a type of
snack meant to be prepared in
a traditional deep fat fryer.
Use oven snacks or lightly brush
some oil onto the snacks for a
crispier result.
I cannot slide the pan into the
appliance properly.
There is too much food in
the pan.
Do not ll the pan beyond the
MAX indication.
White smoke comes out of
the appliance.
You are cooking greasy
food.
When you fry greasy food in the
Air fryer, a large amount of oil
will leak into the pan. The oil
produces white smoke and the
pan may heat up more than
usual. This does not affect the
appliance or the end result.
The pan still contains grease
residues from a previous use.
White smoke is caused by
grease heating up in the pan.
Make sure you clean the pan
properly after each use.
Fresh fries are fried unevenly in
the Air Fryer.
You might have not used the
right potato type.
Use fresh potatoes and make
sure they stay rm during frying.
The potato sticks weren’t
properly rinsed before
frying them.
Rinse the potato sticks properly
to remove the starch from them.
AF1003_AF1004_IM_2022 02 15_V1.indd 10AF1003_AF1004_IM_2022 02 15_V1.indd 10 15/02/2022 14:3415/02/2022 14:34

- 11 -
PROBLEM CAUSE SOLUTION
Fresh fries are not crispy when
they come out of the Air Fryer.
The crispiness of the fries
depends on the amount of oil
and water in the fries.
Make sure you dry the fries
properly before you add oil.
Cut the potato sticks smaller for
a crispier result.
Add slightly more oil for a
crispier result.
AF1003_AF1004_IM_2022 02 15_V1.indd 11AF1003_AF1004_IM_2022 02 15_V1.indd 11 15/02/2022 14:3415/02/2022 14:34

- 12 -
TECHNICAL SPECIFICATION
Power Supply: 220 – 240 V ~50 – 60 Hz
Power: 1000 W
Capacity: 2 L
Temperature: 80ºC – 200ºC
RETURNS AND WARRANTY
Should your appliance not work or is damaged when you rst take it out of the carton, return it to
the retailer with the packaging and proof of purchase. If you have any questions, please contact us via
email - [email protected]
Produced in PRC for HSI Global Ltd,
G2 1QQ. UK. www.hsiglobal.co.uk
INFORMATION IN WASTE DISPOSAL FOR CONSUMERS
OF ELECTRICAL AND ELECTRONIC EQUIPMENT
This mark on a product and/or accompanying documents indicates that when it is to be disposed of;
it must be treated as Waste Electrical and Electronic Equipment (WEEE)
Any WEEE marked waste products must not be used with general household waste, but kept
separate for the treatment, recovery and recycling of the materials used.
For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local
Authority Civic waste site, where it will be accepted free of charge.
If all consumers dispose of Waste Electrical and Electronic Equipment correctly, they will be helping
to save valuable resources and preventing any potential negative effects upon human health and the
environment, of any hazardous materials that the waste may contain.
AF1003_AF1004_IM_2022 02 15_V1.indd 12AF1003_AF1004_IM_2022 02 15_V1.indd 12 15/02/2022 14:3415/02/2022 14:34
