LNI NitroGen Series User manual

NitroGen
Series
NG CASTORE XS iQ
NGA CASTORE XS iQ
20
40
70
SHI
Operating manual
LNI Swissgas
10/2021
V2
LNI Swissgas srl
www.lni-swissgas.eu
[email protected]
Registered o ice:
Logistics centre:
Via Sassoferrato 1, 2013 Milano MI
Via E. Mattei 9, 3 038 Torreglia PD

Table of contents
1 General in ormations................................................................................................................1
1.1 Symbols and terminology................................................................................................................1
1.2 General warnings............................................................................................................................2
1.3 Safety information...........................................................................................................................2
1.4 Intended use....................................................................................................................................3
1. Improper use...................................................................................................................................3
1.6 Reference directives........................................................................................................................3
1.7 Disposal...........................................................................................................................................3
2 Description o the appliance.....................................................................................................4
2.1 Operating principle..........................................................................................................................4
2.2 Identification of the models..............................................................................................................4
2.3 Technical specifications...................................................................................................................
2.3.1 Operating and storage conditions...............................................................................................................
2.3.2 NG CASTORE XS iQ – 220-240 VAC........................................................................................................
2.3.3 NG CASTORE XS iQ – FULL RANGE power supply voltage....................................................................6
2.3.4 NGA CASTORE XS iQ SHI – 220-240 VAC...............................................................................................7
2.4 Weight and dimensions...................................................................................................................8
2.4.1 Weight..........................................................................................................................................................8
2.4.2 Dimensions..................................................................................................................................................8
2. Overview of the appliance...............................................................................................................9
3 Receiving the appliance..........................................................................................................10

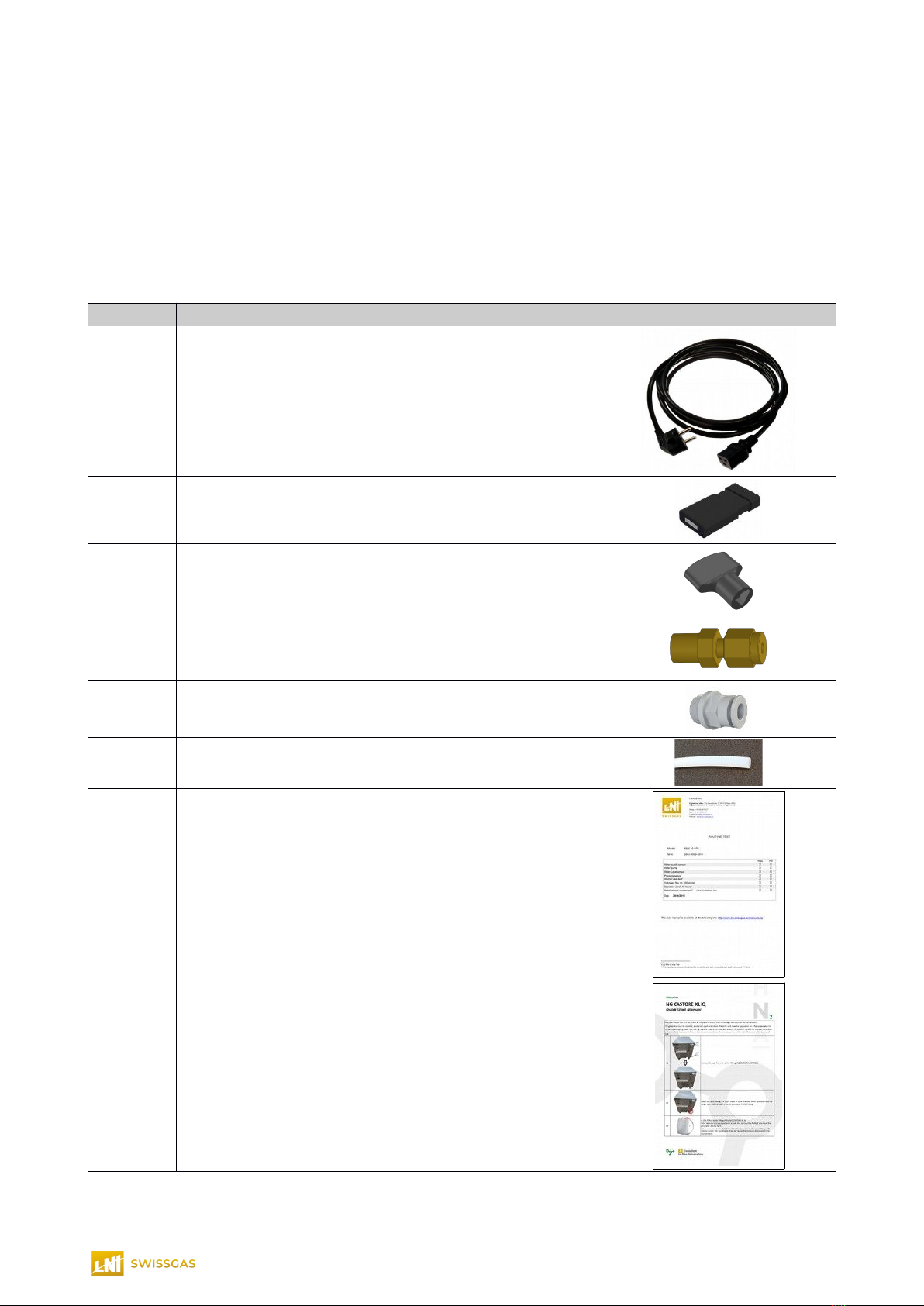

3.1 Packing list....................................................................................................................................10
4 Available accessories (not included, to be requested separately)......................................11
4.1 Purge tank.....................................................................................................................................11

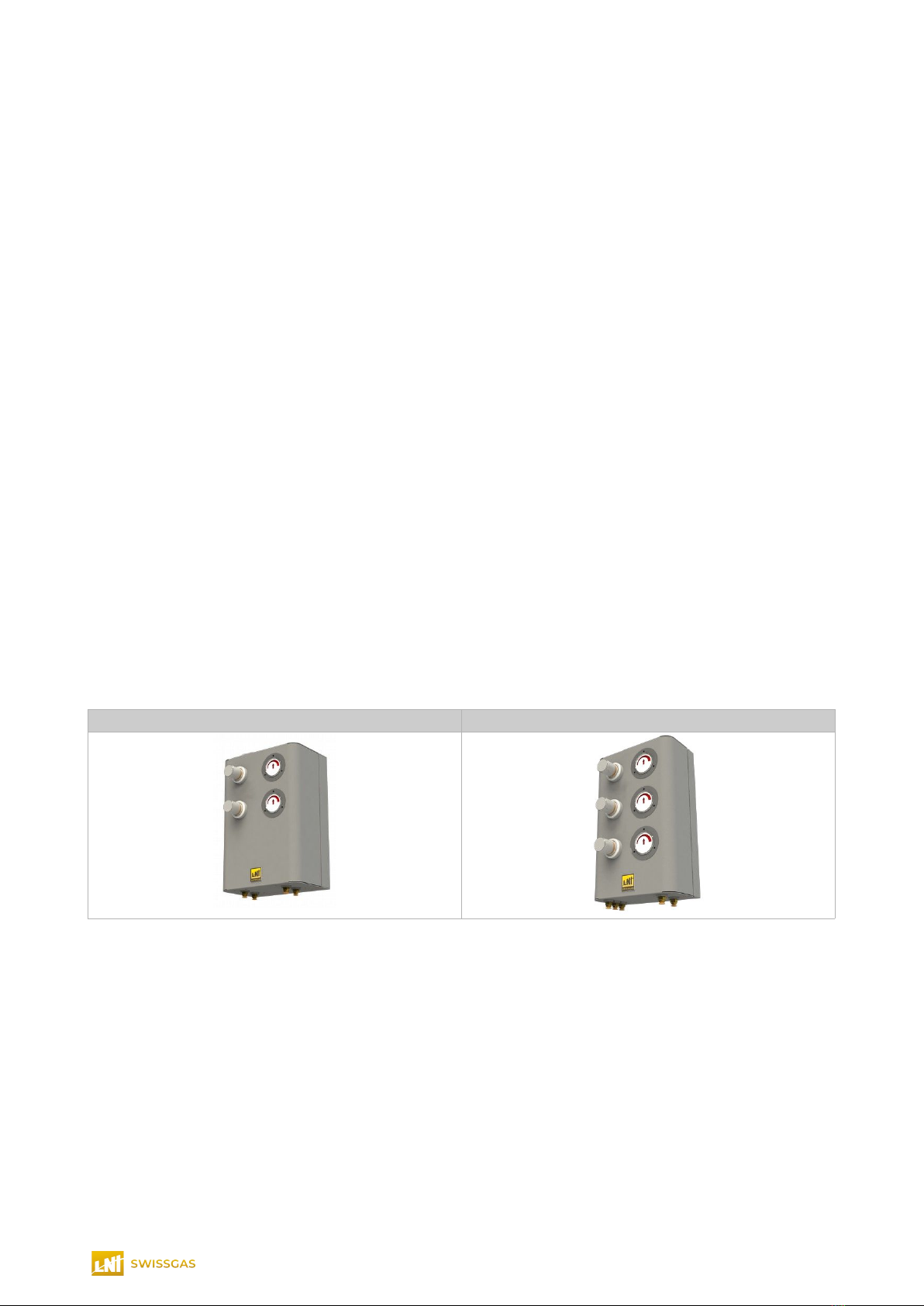

4.2 Pressure regulators box................................................................................................................11
5 Installation............................................................................................................................... 13
.1 Installation layout...........................................................................................................................13
.2 Positioning.....................................................................................................................................14
.3 Pneumatic connections.................................................................................................................1
.4 Electrical connection.....................................................................................................................16
6 Commissioning....................................................................................................................... 17
6.1 Starting the appliance the first time...............................................................................................17
6.2 Shutting down................................................................................................................................17
6.3 Returning the appliance for service and/or repairs.......................................................................17
7 Operation................................................................................................................................. 18
7.1 User interface................................................................................................................................18
7.2 Summary screen...........................................................................................................................19
7.2.1 System status............................................................................................................................................20
7.3 Starting and stopping nitrogen production....................................................................................20
7.4 Serial communication and connections.........................................................................................21
7.4.1 Digital I/Os.................................................................................................................................................21
7.4.2 Auxiliary connections.................................................................................................................................21
7. Parallel Mode.................................................................................................................................22
7. .1 Introduction................................................................................................................................................22
7. .2 Kit Parallel system control box with LAN, kit (P/N: 6920.71.60)...............................................................22
7. .3 Electrical connection..................................................................................................................................23
7. .4 Installation with multiple generators..........................................................................................................23
7. . System ID setting......................................................................................................................................24
7. .6 System status............................................................................................................................................24
7. .7 Master flow controller................................................................................................................................24
7. .8 Configuration.............................................................................................................................................2
8 Menu......................................................................................................................................... 26
8.1 Adjust Set Pressure.......................................................................................................................27
8.2 Setup.............................................................................................................................................28
8.2.1 Parameter..................................................................................................................................................28
8.2.2 List of user parameters..............................................................................................................................28
8.2.3 Auto Run....................................................................................................................................................29
8.2.4 Pressure Unit.............................................................................................................................................29
8.2. Temperature Unit.......................................................................................................................................30

8.2.6 Remote contact.........................................................................................................................................30
8.3 Date/Time Setting..........................................................................................................................31
8.4 Backlight Time...............................................................................................................................31
8. History...........................................................................................................................................31
8.6 Diagnostics....................................................................................................................................32
8.7 Counters........................................................................................................................................32
9 Maintenances........................................................................................................................... 33
9.1.1 Preventive checks and maintenances.......................................................................................................33
9.2 NG CASTORE XS iQ (work ng @ 80% of ts max mum power)...................................................34
9.2.1 Note:..........................................................................................................................................................34
9.2.2 Replace the Compressor air intake filter and N2 stage filters..................................................................3
9.3 Service Menu.................................................................................................................................36
10 Alarms and pre-alarms..........................................................................................................36
10.1 Reset pre-alarm # -Service 1.....................................................................................................36
Follow the same operations described to reset the pre-alarm for Service 2 and Service 3..................36
10.2 Pre-alarms...................................................................................................................................37
10.3 Alarms..........................................................................................................................................38
11 How to request service.........................................................................................................39

1 General in ormations
1.1 Symbols and terminology
In the unit and in this manual are used some symbols to signal to the user one or more information.
Consult the user manual in all cases where this symbol is marked on the equipment in order to find out the
nature of the potential hazard and any actions which have to be taken to avoid them.
Warning/caution.
Used in this manual to signal to pay particular attention to the operation in progress.
Failure to heed the warnings/cautions given may cause severe personal injuries and
material damage.
In this manual with this symbol there is a message showing the relative type of warning.
!
Warning/caution – unit labels.
When present in the generator in a certain place, it signals a specific warning:
•data plate – to avoid electrical problems and for correct power supply of the unit,
the general line must be sized in accordance with the data indicated (power
supply, frequency and power).
•label with fuses rating – when replacing one or more fuses, use only fuse/s that
comply with the specifications indicated.
Warning – Mechanical moving parts.
Indicated in the unit (on the compressor protective panel) to signal to pay particular
attention to the mechanical moving parts contained in the unit.
To avoid any possible personal damage/injuring, be sure the unit is completely stopped
and electrically isolated before performing any service operations involving the internal
parts of the unit.
Fuse.
Used to signal the presence of fuse/s
Grounding point.
Indicated in the unit to signal the presence of the protective conductor terminal
Indoor acilities.
Used to indicate the unit has been engineered to be stored and used only in indoor
facilities
Disposal.
Used to indicate to not dispose the unit as a common material but only following the
defined local regulations
This manual contains also technical terminology. The meaning of specific terms that may not be commonly
understood are described below.
Set point: defines a certain value that the system aims to reach
Operat ng manual NG(A) CASTORE XS Q 1

1.2 General warnings
Be ore using the appliance, users must read and understand the contents o every section o this
manual
The descriptions, drawings and photographs contained in this manual are purely indicative and in some
cases may not reflect the actual appliance purchased
The transfer to third parties and reproduction of all or part of this manual is prohibited without the written
authorisation of the manufacturer and/or the reseller
The manufacturer and/or the reseller accepts no liability for injuries, production downtime or other
expenses due to errors or omissions in this manual
This manual is an integral part of the appliance; consequently, it must be kept throughout the life of the
appliance in a safe place that is accessible and known to all users of the appliance
The manufacturer reserves the right to make any modifications that it considers useful for the
improvement of its products at any time
Failure to heed the warnings given in this manual may cause severe personal injuries and material
damage
Contact the manufacturer and/or the reseller if you find a problem that you cannot solve with this manual.
1.3 Sa ety in ormation
Nitrogen build-up may lead to a lack o oxygen and there ore create the risk o asphyxia.
Do not use the appliance until the safety information and instructions in this manual have been read and
understood.
Using the appliance in a manner not specified in this document may compromise the protection provided
by the generator and could lead to an unexpected release of pressure, which may cause serious
personal injury or damage
When handling, installing or operating this appliance, personnel should adopt correct procedures and
comply with all local health and safety regulations and legal safety requirements.
Only competent and suitably trained people may carry out the commissioning, maintenance and repair of
the appliance
Ensure equipment is electrically isolated and depressurised before performing any routine maintenance
specified inside this user manual. Most accidents that occur during the operation and maintenance of
machines are the result of failure to comply with basic safety procedures.
It is impossible to anticipate every possible circumstance that may constitute a potential danger. The
warnings in this manual cover the most known potential dangers.
Operat ng manual NG(A) CASTORE XS Q 2

1.4 Intended use
The nitrogen generator is designed to produce nitrogen for laboratory use. The appliance must only be used
for this purpose, in compliance with the specifications and instructions described in this manual. In particular,
special attention must be paid to the following warnings:
Do not use the appliance outdoors
Do not use the appliance in temperature and humidity conditions outside of the limits specified for
operation (see 2.3)
Use a source of air with suitable characteristics (see 2.3.2)
Do not use the appliance in rooms with aggressive and polluting atmospheres
Make sure that the room where the appliance will be installed has suitable ventilation
Unplug the appliance from the mains power supply before accessing the inside of the appliance
Only use the original spare parts specified in this manual
1.5 Improper use
Improper use of the appliance is considered as the failure to observe the data on the rating plate, the
technical and safety specifications indicated in this manual, and the general standards in force
Improper use of the appliance may involve risks for the user
The appliance must only be repaired or serviced by the manufacturer and/or reseller’s Technical Service
The appliance must under no circumstances be modified or tampered with, to avoid creating situations of
danger, in which case the manufacturer declines all liability for any resulting damage
The manufacturer and/or reseller are in no way liable for any damage due to improper use of the
appliance.
1.6 Re erence directives
The requirements of the following directives and technical standards have been applied during the design
and construction of the appliance described in this manual:
•Directive 2014/3 /UE (Low voltage directive);
•Directive 2014/30/UE (Electromagnetic compatibility);
•Directive 2011/6 /CEE (RoHS);
•Directive 2012/19/UE on waste disposal (Waste Electrical and Electronic Equipment – WEEE);
1.7 Disposal
In relation to European Directive 2012/19/UE (WEEE), disposal of the appliance is regulated by the following
requirements:
•Waste Electrical and Electronic Equipment (WEEE) cannot be disposed of as municipal waste.
Public or private waste collection systems must be used, in accordance with local regulations
•The appliance can be returned to the reseller at the end of its working life when buying a new
appliance
•The appliance may contain dangerous substances: improper use or incorrect disposal of such
substances may cause damage to human health and the environment
•In the event of illegal disposal of waste electrical and electronic equipment, the penalties are defined
by local waste disposal regulations.
Operat ng manual NG(A) CASTORE XS Q 3

2 Description o the appliance
2.1 Operating principle
NG CASTORE XS iQ
Inlet lter
+
Compressor
Filter
A
Membrane
dryer
N2
membrane
N2
OUTLET #
N2
OUTLET #2
Purge
Filter
C
Oponal
NGA CASTORE XS iQ SHI
Inlet lter
+
Compressor
Filter
A
Membrane
dryer
N2
membrane
N2
OUTLET
DRY AIR
OUTLET
Purge
Filter
C
The nitrogen generators described in this manual, thanks to its built in scroll-compressor, are able to provide
by itself the necessary quantity of compressed air to supply the N2 Membrane section and produce a stable
and safe flow of pure nitrogen at a setted pressure.
NGA CASTORE XS iQ SHI is also able to produce Dry Air combined with Nitrogen up to 40 l/min.
The appliances can be used in laboratories and/or light industrial environments.
2.2 Identi ication o the models
This manual refers to the following models of the appliance:
6920.80.18 NG CASTORE XS iQ 18
220-240 VAC models
6920.80.24 NG CASTORE XS iQ 24
6920.80.36 NG CASTORE XS iQ 36
6920.80.18.1 NG CASTORE XS iQ 18
FULL RANGE power supply voltage6920.80.24.1 NG CASTORE XS iQ 24
6920.80.36.1 NG CASTORE XS iQ 36
6920.80.37 NGA CASTORE XS iQ SHI 220-240 VAC models
Some parts of this manual refer to just one or some of these models.
The model is identified on the product label applied to the rear of the appliance, as shown in the figure below:
Identi ication label
F gure 1: Ident f cat on label
Operat ng manual NG(A) CASTORE XS Q 4

2.3 Technical speci ications
2.3.1 Operating and storage conditions
Operating and storage conditions
Operating temperature -3 °C (41-9 °F)*1
Storage temperature 1-40°C (33.8-104°F)
Humidity (max, non-condensing) 80% [ -3 °C (41-9 °F)]
Noise < 0dB(A)
Over-voltage category II
Pollution degree rating 2 (with no aromatic compounds)
IP IP20
Altitude < 2000m
* – Min temperature > 10°C to have best performance on O2 residual content
Table 1: General techn cal spec f cat ons
2.3.2 NG CASTORE XS iQ – 220-240 VAC
Models: NG CASTORE XS iQ 18 24 36
N2 outlet
Flow rate (Max) 18 l/min 24 l/min 36 l/min
Outlet pressure (Max) 8 Bar (116 psi)
Nitrogen purity LCMS grade (up to 99.9%*1)
Dew point *2 < -60°C (-76°F)
Communication
LCD with touch screen Standard
RS48 Standard
RS232 For service
General data
Power supply voltage (min-Max) 220-240 Vac (±10%) 0/60 Hz
Connection type IEC C20
Nominal power (Max) 1.3 KW 1.4 KW 1.8 KW
Net weight 13 kg
Noise level < 48 dB < 0 dB
Unit fuse F1 (10x38mm) 1 A (600Vac – T – class CC)
Unit fuse F2 (10x38mm) 6A (600Vac – T – class CC)
Main-board fuse F ( x20mm) 3.1 A (2 0Vac – T – class CC)
Heat value (BTU) 4440 4800 61 0
Dimensions (W x D x H) 1 x 8 x 69 cm
Connections
N2 outlet port(s) ¼" BSPP female
Drain port ¼" BSPP female
*1 The purity refers to the residual oxygen, depends on flow and working pressure
*2 Atmospheric Dew Point (ADP)
Table 2: NG CASTORE XS Q – 220-240 Vac
Operat ng manual NG(A) CASTORE XS Q 5

2.3.3 NG CASTORE XS iQ – FULL RANGE power supply voltage
Models: NG CASTORE XS iQ 18 24 36
N2 outlet
Flow rate (Max) 18 l/min 24 l/min 36 l/min
Outlet pressure (Max) 8 Bar (116 psi)
Nitrogen purity LCMS grade (up to 99.9%*1)
Dew point *2 < -60°C (-76°F)
Communication
LCD with touch screen Standard
RS48 Standard
RS232 For service
General data
Power supply voltage (min-Max) 11 -240 Vac (±10%) 0/60 Hz
Connection type IEC C20
Nominal power (Max) 1.2 KW 1.3 KW 1. KW
Main fuse F1(10x38mm) 1 A (600Vac – T – class CC)
Inverter protection fuses F3 - F4
(10x38mm) 1 A (300Vdc – T – class CC)
Main-board fuse F ( x20mm) 3.1 A (2 0Vac – T – class CC)
Net weight 14 kg
Noise level < 48 dB < 0 dB
Heat value (BTU) 4100 4440 130
Dimensions (W x D x H) 1 x 8 x 69 cm
Connections
N2 outlet port(s) ¼" BSPP female
Drain port ¼" BSPP female
*1 The purity refers to the residual oxygen, depends on flow and working pressure
*2 Atmospheric Dew Point (ADP)
Table 3: NG CASTORE XS Q – Full range power supply voltage
Operat ng manual NG(A) CASTORE XS Q 6

2.3.4 NGA CASTORE XS iQ SHI – 220-240 VAC
Models: NGA CASTORE XS iQ SHI
N2 outlet
Flow rate (Max) 40 l/min Air & N2 combined
Outlet pressure (Max) 8 Bar (116 psi)
Nitrogen purity*1 LC-MS grade (up to 99,9%)
Dew point *2 < -30°C (<-22°F)
Communication
LCD with touch screen Standard
RS48 Standard
RS232 For service
WiFi Optional
General data
Power supply voltage (min-Max) 220-240 Vac (±10%) 0/60 Hz
Connection type IEC C20
Nominal power 1. KW
Unit fuse F1 (10x38mm) 1 A (600Vac – T – class CC)
Unit fuse F2 (10x38mm) 6A (600Vac – T – class CC)
Main-board fuse F ( x20mm) 3.1 A (2 0Vac – T – class CC)
Noise level < 0 dB
Heat value (BTU) 130
Dimensions (W x D x H) 1 x 8 x 69 cm
Connections
N2 outlet port ¼" BSPP female
Dry Air outlet port ¼" BSPP female
Drain port ¼" BSPP female
*1 – The purity refers to the residual oxygen, depends on flow and working pressure
*2 – Atmospheric Dew Point (ADP)
Operat ng manual NG(A) CASTORE XS Q 7

2.4 Weight and dimensions
2.4.1 Weight
Model Net weight (kg) Gross weight (kg)
220-240 VAC
NG CASTORE XS iQ 13 1
NGA CASTORE XS SHI 13 1
Full range power supply voltage
NG CASTORE XS iQ 14 16
Table 4: We ght of the var ous models
2.4.2 Dimensions
A = 69 cm 27.2”
B = 1 cm 20“
C = 8 cm 33. “
Table 5: D mens ons
Operat ng manual NG(A) CASTORE XS Q 8

2.5 Overview o the appliance
NG(A) CASTORE XS iQ
F gure 1: Overv ew of the appl ance
# Description
1Green operating status LED
2Red alarm or pre-alarm signal LED
3128x64 pixel LCD touch-screen with START/STOP button
4Power connector and switch
5I/O connector for remote control
6RS232 serial communication port
7RS48 #2 serial communication port
8RS48 #1 serial communication port (RESERVED)
9N2 outlet #1
10 N2 outlet #2 (optional)
Dry Air in NGA CASTORE XS iQ SHI models
11 N2 outlet #1 pressure regulator and gauge
12 N2 outlet #1 pressure regulator and gauge
Dry Air outlet pressure regulator in NGA CASTORE XS iQ SHI models
13 Condensate drain
Operat ng manual NG(A) CASTORE XS Q 9

3 Receiving the appliance
On receiving the appliance, carefully check all the parts to ensure that no damage has occurred during
transport.
Any damage found must be reported to the carrier, specifying the type of damage on the delivery documents.
Any claims must be received in writing within eight (8) days from the date of receipt of the goods.
3.1 Packing list
The nitrogen generator is shipped together with the following material:
Quantity Description Picture
1 Schuko power supply cable (IEC320-C19)
1USB key containing user manuals
(electron c format, requ res a PC w th PDF reader)
1Key to open the side panels
(e.g. serv ce operat ons)
1Compression fitting(s) 1/4” BSPP for tube 1/4”
(one f tt ng for each N2 outlet)
1Quick fitting 1/4” BSPP tube 6mm
(to convey condensate dra n outlet)
12 meters PTFE tube 6mm
(to convey condensate dra n outlet)
1Generator test report
(paper format)
1Quick start guide
(paper format)
IMPORTANT: keep the original packaging used to deliver the generator. This may be useful if needing to
transport the appliance at a later date (e.g. return for service).
Operat ng manual NG(A) CASTORE XS Q 10

4 Available accessories (not ncluded, to be requested separately)
In this section will be described some accessories useful for a safety and convenient utilisation of NG-
CASTORE-XS-iQ.
All these parts are not ncluded by default
They can be order and nstalled later by the operator when the r funct on s cons dered more su table and
conven ent.
They have been des gned for an easy and qu ck nstallat on and operat on.
4.1 Purge tank
For NG-CASTORE-XS-iQ series is available a special tank kit useful to contain the waste water due from the
water condensing inside the generator during operation.
This kit is composed by:
•1 x tank litres with a 90° Quick fitting for tube 6mm installed
• meters of tube Diameter 6mm
•1 x fitting (1 x 1/4” BSPP male threaded) to connect the tube Diameter 6mm from generator to purge
tank
4.2 Pressure regulators box
For NG-CASTORE-XS-iQ series have been developed two regulators boxes:
•6920.71.30 → Box with two pressure regulators (N2 outlet and Dry-A r outlet)
•6920.71.40 → Box with three pressure regulators (N2 outlet, Dry-A r outlet 1 and Dry-A r outlet 2)
These accessories are useful when the application is more than meters farther from the gas source (NG-
CASTORE-XS-iQ).
Using them, with a suitable installation, the operator reduces the pressure loss due to the tubes length and
has the advantages of a convenient access to pressure control.
6920.71.30 6920.71.40
These accessories allow the control of the outlet pressures (N2 and Dry-Air) in a place with convenient
access.
6920.71.30 is a useful tool to put control of outlet pressures in a comfortable position
6920.71.40 has the same characteristics of 6920.71.30 with, in addition, the capacity to divide the single
Dry-Air outlet into two pressure regulated Dry-Air outlets.
Box regulators are provided with the following material:
For 6920.71.30:
•1 x fitting for tube Diameter 1/4” (1/8” BSPP male threaded)
For 6920.71.40:
•2 x fittings for tube Diameter 1/4” (1/8” BSPP male threaded)
Operat ng manual NG(A) CASTORE XS Q 11

Overview
6920.71.30 6920.71.40
# Description
1Dry-Air inlet
2N2 inlet
3Dry-Air Outlet 1 (GAS1 / GAS2)
4Dry-Air Outlet 2 (EXHAUST)
5N2 Outlet
6a Dry-Air 1 pressure gauge (GAS1 / GAS2)
6b Dry-Air 1 pressure regulator (GAS1 / GAS2)
7a Dry-Air 2 pressure gauge (EXHAUST)
7b Dry-Air 2 pressure regulator (EXHAUST)
8a N2 pressure gauge
8b N2 pressure regulator
9Holes to hang up the regulator box on hooks
10 Holes to fix the regulator box to a wall
Weight and dimensions
Dimensions
A30. cm 12”
B20. cm 8.07”
C17.0 cm 6.69”
Weight
6920.71.30 3. kg
6920.71.40 4 kg
Regulator box positioning
Regulator boxes are designed to be wall mounted using the holes (9) or (10).
The generator must be installed on a flat surface/wall that is able to withstand a weight of more than 6 kg.
If mounting the appliance on a wall, use brackets/fixings that are able to withstand a weight of at least 6 kg
each.
Operat ng manual NG(A) CASTORE XS Q 12

5 Installation
5.1 Installation layout
The generator has been designed to avoid excess pressure being created at the outlet; nonetheless,
below there is a suggested installation layout.
asic installation
asic installation using Regulator ox 6920.71.30 (2 outlets)
asic installation using Regulator ox 6920.71.40 (3 outlets)
Pressure regulators boxes are useful when the appl cat on s more than 5 meters farther from the gas source
(NG-CASTORE-XS- Q).
Us ng them, w th a su table nstallat on, the operator reduces the pressure loss due to the tubes length and
has the advantages of a conven ent access to pressure control.
Operat ng manual NG(A) CASTORE XS Q 13

5.2 Positioning
Nitrogen build-up may lead to a lack o oxygen and there ore create the risk o asphyxia.
Always make sure all o the openings o the unit are kept clean and ree o obstructions. Keep the
generator away rom heat and lames.
The generator must be stored, installed and used only indoor
The generator should be positioned on a flat surface able to withstand a weight greater than 200 kg and
not exposed to vibrations.
Once positioned, lock the wheels using their locking systems to secure the unit in its position and
prevent possible movement
Do not position the generator near naked flames or other sources of heat
Always leave sufficient clearance for the circulation of air around the appliance, as shown below:
A >= 10 cm
If the unit is positioned under a laboratory desk leave sufficient clearance al the sides and leave
clearance at the rear to permit a good air circulation
Place the unit in a position that allows a comfortable access to the mains plug or the mains connector
placed at the back side of the unit in order to easily disconnect the unit from the supply mains
Do not use the generator in a sealed environment or without suitable ventilation
Do not use the appliance in temperature and humidity conditions outside of the limits specified for
operation (see 2.3)
These generators must be installed in an environment capable of disposing of the heat produced (see
heat value 2.3)
To perform ma ntenance operat ons nvolv ng parts ns de the generator, the operator needs to access to the
removable s de panels and/or the top panel. Place the generator n a space that allows a comfortable access
for ma ntenance operat ons.
Operat ng manual NG(A) CASTORE XS Q 14

5.3 Pneumatic connections
The pneumatic connections must be completed with suitable fittings, with the following characteristics:
No. Type o itting Description
1 1/4” BSPP male threaded fitting N2 outlet #1
2 1/4” BSPP male threaded fitting N2 outlet #2 (opt onal) / Dry Air outlet (NGA-SHI models)
3 1/4” BSPP male threaded fitting Condensate drain outlet
For the condensate drain (3) it is recommended to connect it to a container to collect the waste water.
Keep the tubes as short as poss ble to m n m ze the pressure loss.
Operat ng manual NG(A) CASTORE XS Q 15

5.4 Electrical connection
All operations involving the electrical parts must only be per ormed with the unit disconnected and
electrically isolated rom the power supply.
These operations must only be carried out by trained personnel in ull compliance with all sa ety
standards.
Make sure that the characteristics of the mains power supply are adequate for the power ratings
indicated in the table of technical specifications
Power to the appliance must be turned on only after installation work has been completed (gas
connections).
The power line should be fitted upstream with a suitable device to protect against short-circuits and earth
leakage and isolate the appliance from other equipment
Use cables with double insulation, in accordance with the standards in force in the country concerned.
Use only power cords with adequate specifications and rating
The appliance must be earthed
The manufacturer is not liable for any damage caused by failure to earth the appliance.
The unit power supply must be protected by the following devices:
Magneto-therm c sw tch >=20A;
Class A d fferent al Sw tch;
The appliance must only be powered on once it has been placed in position and the required air
connections have been completed.
Fuse specifications and replacement warnings
220-240 Vac units FULL RANGE power supply voltage units
Fuse Description Note
F1 1 A (600Vac – class CC) (10x38mm) Unit fuse
F2 6A (600Vac – class CC) (10x38mm)
F3 1 A (300Vdc – class CC) (10x38mm) Inverter protection fuse
F4 1 A (300Vdc – class CC) (10x38mm)
F5 3.1 A (2 0Vac – class CC) ( x20mm) Main-board fuse (installed in the main-board)
Fuse replacing operations:
•Disconnect power cord before replacing fuse
•To avoid electric shock the power cord protective grounding conductor must be connected to
ground
•Replace fuse as specified
•For continued fire protection no operator serviceable components inside
•Refer servicing to qualified personnel
Operat ng manual NG(A) CASTORE XS Q 16

6 Commissioning
6.1 Starting the appliance the irst time
Make sure that all of the instructions regarding positioning, air and electrical connections have been followed.
F gure 2: Start-up operat ons
Operations list to start the nitrogen generator the first time:
Connect the N2 outlet #1 (3)
Connect the N2 outlet #2 / Dry Air outlet ( f featured 4)
Connect the condensate drain (7)
Connect power cable and switch ON the unit (2)
Set the working pressure (see 8.1)
Adjust the pressure using the pressure regulator(s) (N2 outlet #1 and N2 outlet #2 / Dry Air outlet f
featured) (5 – 6)
The pressure gauges show the current outlet pressure
Start production pressing START/STOP or from the control screen (1) (the d splay w ll show WORKING)
NOTE: The generator is setted by default to produce Nitrogen at a pressure of 7bar (101.5psi).
To change this setting see 8.1
6.2 Shutting down
List of operations to be performed before powering off the generator at the power switch:
Switch the generator OFF by pressing START/STOP or from the control screen (1)
Wait until it will be completely still and depressurise
Unplug the power cable (2)
6.3 Returning the appliance or service and/or repairs
List of operations to be performed before packaging the appliance and sending it to service:
Switch the generator OFF by pressing START/STOP or from the control screen (1)
Wait until it will be completely stop and depressurise
Switch OFF the unit and unplug the power cable (2)
Disconnect the nitrogen outlet tubing(s) (3 and 4)
Disconnect the condensate drain pipe (7)
Place the generator in the original packing.
Operat ng manual NG(A) CASTORE XS Q 17
