Replacing and Installing a New Elevation Motor
Repair Instructions
Elite Models that Apply: EL04-EL05LE
Step
Description
Tools
1
Removing The Case

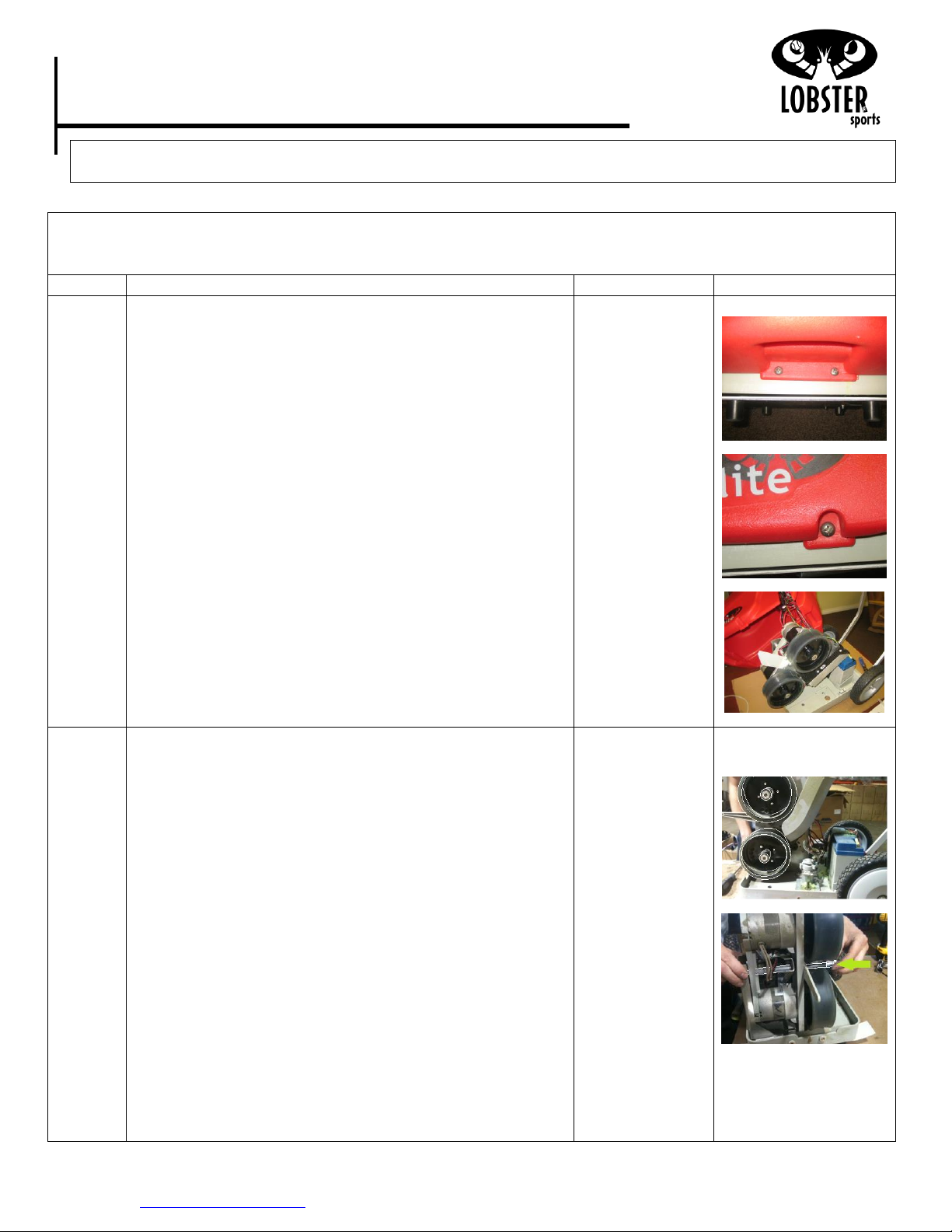

Step 1.) Unscrew the (6) Phillips-head screws along the
bottom of the red case where it attaches to the chassis
of the machine. (2-front, 2-rear, one on each side)
Step 2.) Lift the red case off the chassis and set it
aside.
Phillips Screw
Driver
Case Screws (Front & Rear)
Case Screws (Side)
Case Removed
2
Removing The Yoke Assembly
Step 1.) Take off your server wheels by unscrewing the
set screw, and sliding the wheels off of the server motor
shafts.
Step 2.) With the front end of the machine facing you
(the pointer closest to you, and the handle furthest from
you), remove both of the server wheels.
Step 3.) Passing through the center of the Yoke and
the davit assembly is the Yoke Bolt. (This bolt has a nut
holding it on the end of the Davit Right). Using a
Crescent Wrench and a 9/16” Wrench, unscrew and
remove the Yoke Bolt, the Small and Larger Spacer, and
the 3 to 5 washers. *( Carefully set these in separate
safe location for later use. )*
Step 4.) Cut all the zip ties holding the wires together
1/8” Allen
Crescent
Wrench
9/16” Wrench
The Server wheels.
The Yoke Bolt being removed.

Author: JJ Contributors: RR,CT Date:1/30/13 Revised:1/21/2022
[email protected] Phone: [phone] Fax: [phone]
Replacing and Installing a New Elevation Motor
Repair Instructions
and then CAREFULLY remove the Yoke Assembly off of
the Davit Assembly and set it aside.
3
Removing and Installing The Elevation
Motor
Step 1.) Unplug the Elevation Motor wire from the
Elevation tab on your control panel (J14).
Step 2.) Unplug the Elevation Positive quick disconnect
wire. (This is coming off of the 3 small red, green, and
black wires connected to the Elevation Motor).
Step 3.) Unscrew all 4 screws holding the Elevation
Motor to the Davit Center. On the back side of the
motor, between the Davit Center and the motor, are a
total of 4 spacers, make sure these spaces are saved for
use later.
Step 4.) Remove the Old Elevation Motor and set it
aside. Align the 4 screws up with the holes marked on
diagram below.
*The holes are marked in Red.
Control Panel J14 Elevation
plug.
Elevation Quick disconnect
location.
Elevation Quick disconnect
disconnected.
Unscrewing Elevation Motor
Screws.
Removing Elevation motor.

Author: JJ Contributors: RR,CT Date:1/30/13 Revised:1/21/2022
[email protected] Phone: [phone] Fax: [phone]
Replacing and Installing a New Elevation Motor
Repair Instructions
Push the 4 screws in through the holes about ¾ of an
inch. Slide the 4 plastic spacers onto the screws. (Please
see diagram below).
Step 5.) Hold the new motor into position with one
hand, (Make sure the motor is Top is at its highest
elevated point), and proceed to fasten the 4 screws
down.
Step 6.) Once you have the Elevation Motor fastened
into place, follow the 3 snap-in sensor wires coming
from the end of the motor. (red, black, and green).
These wires should plug into the Elevation Pos labeled
Quick Disconnect. (Please see diagram below).
Step 7.) Reconnect the Elevation Motor wire into the
J14 Elevation tab on the control panel.
The Elevation Motor being held
into place.
Elevation Quick disconnect
disconnected.
Elevation Quick disconnect
connected.
Control Panel J14 Elevation
plug.
4
Re-Attaching the Yoke
Step 1.) Take the yoke with one hand, (make sure that
the pointer is facing you, and the top of the chute or
1/8” Allen
Crescent
Wrench

Author: JJ Contributors: RR,CT Date:1/30/13 Revised:1/21/2022
[email protected] Phone: [phone] Fax: [phone]
Replacing and Installing a New Elevation Motor
Repair Instructions
slide, is facing away from you.) and slide the yoke bolt
threw the yoke, passing through the first metal davit
piece.
Step 2.) Put 3 washers on the threaded portion of the
yoke bolt, and then pass the yoke bolt threw the plastic
long spacer until it exits out of the second metal davit
piece.
Step 3.) Put the washer over the threaded yoke bolt
end, and then continue to fasten the yoke bolt nut until
it is slightly snug. DO NOT OVER TIGHTEN OR YOUR
ELEVATION WILL NOT WORK PROPERLY!!!
Step 4.) Put your server wheels on, make sure that the
set screw is facing out away from the server motors.
9/16” Wrench
Yoke being fasten to Davit
Assembly by Yoke Bolt..
The Server wheels.
5
Re-attaching The Case
Step 1.) Lift the red case onto the Chassis. Once the
case is on-top of the Chassis, take the control panel, and
pull it through the hole. Lower the rest of the case until
it is covering the whole Chassis of the machine.
Step 2.) Screw the (6) Philips-head screws along the
bottom of the red case where it attaches to the chassis
of the machine. (2-front, 2-rear, one on each side)
Phillips Screw
Driver
Case Removed
Case Screws (Front & Rear)
Case Screws (Side)
How to Order Elite Replacement Parts
Elite Parts
Website: http://www.lobstersports.com
Email: [e-mail]

Author: JJ Contributors: RR,CT Date:1/30/13 Revised:1/21/2022
[email protected] Phone: [phone] Fax: [phone]
Replacing and Installing a New Elevation Motor
Repair Instructions
Phone: [phone]
Fax: [phone]
We accept Visa, MasterCard or Discover & PayPal
For Elite Freedom:
