Loctek ET118W-N User manual

Ax8
C
5x5
5x5
C
x8
B
Ax8 Cx1
Bx8
M6 5x5
M8
3
4
Dx2
1
2
Item No.: ET118W-N

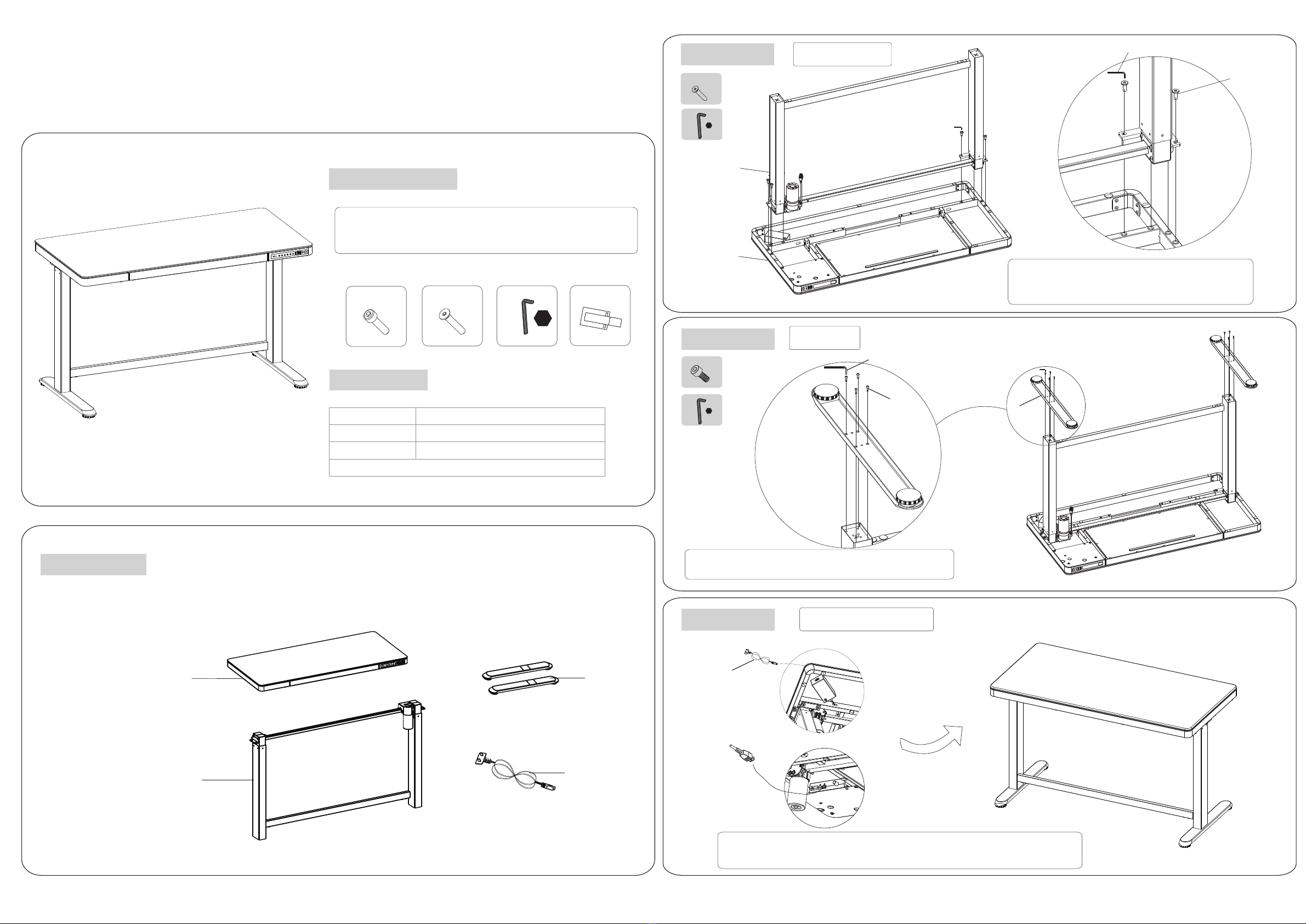

Installation guide
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
Cable clamp
50KG
720-1210mm
230mm
Technical data
Max. Weight Capacity
Height Range
Drawer Stroke
Charging Ports/ Child Lock
Component list
1. Tabletop X1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
STEP 1 Install the tabletop and
the lifting columns
STEP 2 Install the feet
STEP 3 Install the motor and power lines
Connect the motor plug to the control box, then connect one side of the adapter plug to
the adapter, another side to the power line.
Note: the motor and power lines can be fixed by cable clamp according to actual use.
2
1
B
C
3
A
C
Use a hexagon allen key(C) and M6 screws(Ax8) to install the feet
to the lifting columns. Pay attention to the orientation.
Use a hexagon allen key(C) and M8 screws to assemble the
tabletop(1) and lifting columns(2).
Note: Do not touch the surface directly to the ground during
installation to avoid scratching the tabletop by sharp objects.
4

Operation Instruction
Key button
LED Screen
1. Touch the up/down button to adjust the height of the desk; the desktop runs to the lowest point and displays bot; the desktop runs to the
highest point, displays top.
2. key button: 1,2,3,4 are the four height memory keys, long press the button about 3 seconds can record the current height;
3. Press the 3 and the 4 buttons simultaneously, long press for 5 seconds, the screen will show RST direction, keep pressing to achieve the reset.
4. The desk has two USB ports and one type-C port, they can supply power to other electronics and support charging protocol.
Type-C Output: 5V3A/9V2A/12V1.5A; Type-A Output: 3.6-6.5V2.4A/6.5-9V2A/12V1.5A; Total output power of single port: 18W Max.
When the desk is lifting, the output will be stopped; when lifting stops, the output will be restarted.
5. Short press the “LOCK” button to achieve the child lock function, so as to avoid accidentally touch and guarantee the safety of children;
The key lock and unlock is switchable, screen will show “Loc” when the desk is locked.
6. Sensitivity switch, long press the up and down button simultaneously, the anti-collision function will be closed when the screen shows “A-0”;
the sensitivity is at 1 level when the screen shows “A-1”, the sensitivity is at 2 level when the screen shows “A-2”, the sensitivity is at 3 level
when the screen shows “A-3”, the 3 level is the most sensitive.
●Troubleshooting:
a. Reset: When the LED shows"  " , press “▼” button until the desk reaches its lowest height and rebounds to stop, it means the reset
has been finished.
b. When it does't work and the LED shows "E01" or "E02", please retry 18 mins later.
c. If the “▼” button does't work, please check the cable connection and then cut off thepower for at least 10 seconds. Reconnect to the
power and press “▼” button to start the reset process when it shows the "  ".
d. If all these above process are inefficient, plz contact our customer service.
Common fault treatment
The following tips will help you detected and eliminate the common fault
and error. If the fault you met is not listed below, please contact with your
supplier. Only the manufacturer and professionals are capable for investigating
and correcting those fault and error.
Fault phenomenon Method
No response while long pressing
down arrow after connected with
a power supply
1.Check if all the cables be connected well
1.Check if all the cables be connected well
2.Contact your supplier or dealer
2.Contact your supplier or dealer
No response while pressing up
arrow/ down arrow after
connected with a power supply
Rising in a low speed
1.Check if overloaded, max loading: 50kg;
1.Check if overloaded, max loading: 50kg;
1.Check if overloaded, max loading: 50kg;
2.Contact your supplier or dealer
2.Contact your supplier or dealer
2.Contact your supplier or dealer
The motor not move as instructed 1. Contact your supplier or dealer
1.Reposition
2.Contact your supplier or dealer
Go down but not go up
Downward sliding
Frequently Reposition
Overwork
（Duty cycle:Max 2min on/18min OFF）
1.Restart after suspend for 18mins while
connecting with power;
2.Contact your supplier or dealer;
Attention
1. Power supply: AC100V-240V,50/60Hz
2. Service Environment: 0-40℃
3. Unplug the power plug before cleaning, wipe the dust on surface with slight wet
dishcloth when cleaning, be careful not to let the drops into the internal parts, not loose
the connector.
4. The electric box contains electronic components, metals, plastics, wires etc., so
dispose of it in accordance with each country's environmental legislation, not the
general household waste.
5. Check carefully to ensure correct and complete assembly before using.
6. Be familiar with all functions and program settings of the product before first use.
7. Children are forbidden to play on the product because of unforeseen action when
playing, so any dangerous consequences caused by this improper action will not be on
manufacturers.
8. Slight noise caused by the V-ribbed belt or brake system due to structure will not
have any effect on the use of the equipment.
9. Corrosive or abrasive materials are forbidden to clean the equipment. Must ensure
that the cleaner used will not pollute the environment.
10. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance.
11. Cleaning and user maintenance shall not be made by children without supervision.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or a similarly qualified person in order to avoid a hazard.
13. Please make sure there is no hazard sources in your operating environment. e.g.,
do not litter the tools around. Always be careful to treat the packaging materials in order
to avoid any possible danger, e.g. plastic bag may lead to choking hazard to children.
14. Keep the original package of the equipment if necessary in case of the future use in
transportation.
Waste disposal This marking indicates that this product should
not be disposed with other household wastes.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can take this
product for environmental safe recycling.
1. Press "3"and "4" together for 3 seconds or
more, after hearing continuous beeping for twice,
it will restore factory settings
Not enough up&down height
2.Contact your supplier or dealer
