Loewe FL38 User manual

1
FL38 (LC-15A2L)
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
MODEL
FL38
(LC-15A2L)
LCD COLOUR TELEVISION
CONTENTS
SERVICE MANUAL
Art. Nr. 60415 A60
230-90413.917
Page

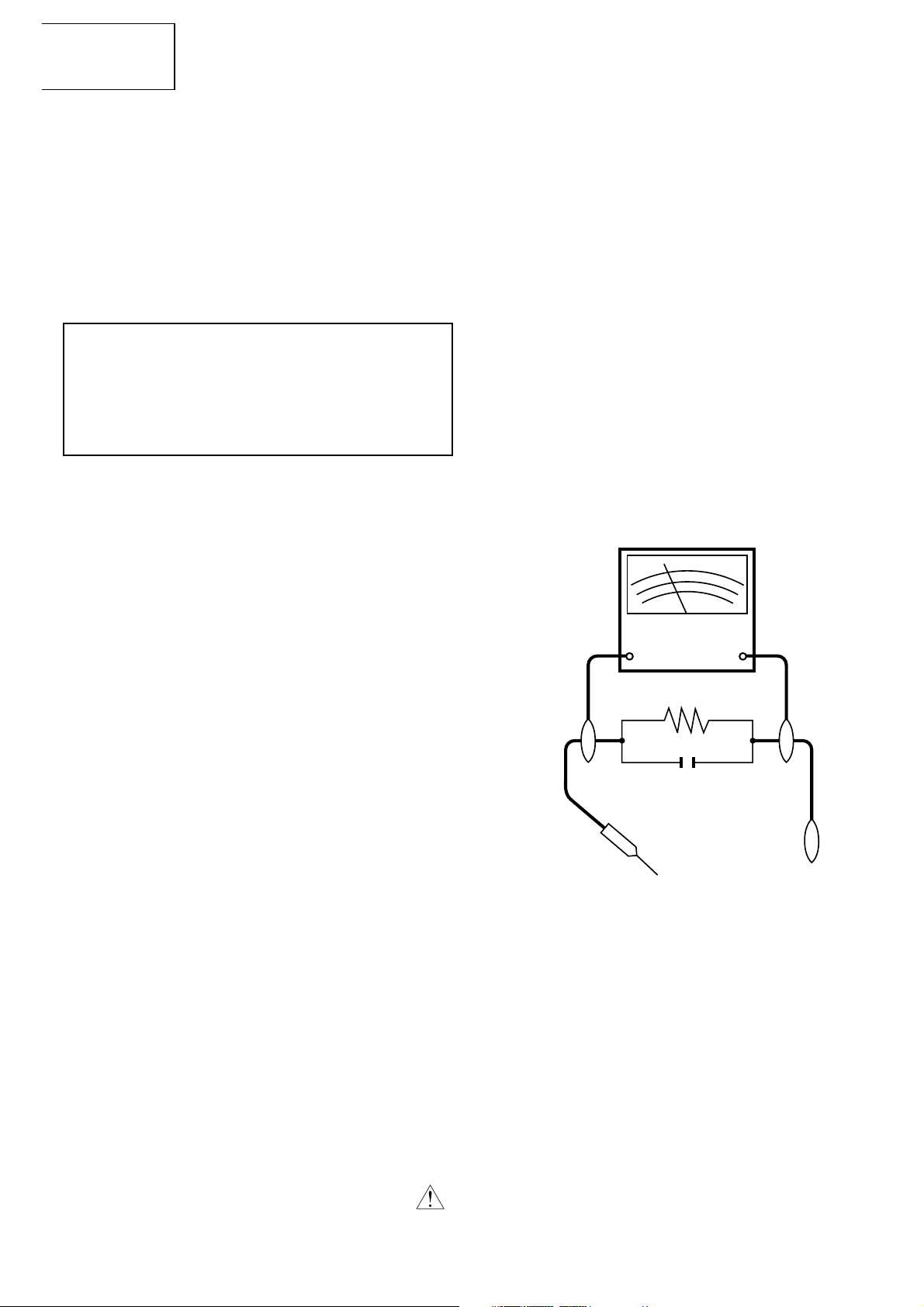

IMPORTANT SERVICE SAFETY PRECAUTION.............................................................................................. 2
ELECTRICAL SPECIFICATIONS......................................................................................................3
OPERATION MANUAL......................................................................................................................4
OUTLINE DIMENSION FIGURE.......................................................................................................5
REMOVING OF MAJOR PARTS......................................................................................................6
ADJUSTING PROCEDURE OF EACH SECTION............................................................................8
TROUBLE SHOOTING TABLE.........................................................................................................9
CHASSIS LAYOUT..........................................................................................................................14
BLOCK DIAGRAM...........................................................................................................................16
WAVE FORMS.................................................................................................................................20
DESCRIPTION OF SCHEMATIC DIAGRAM..................................................................................22
SCHEMATIC DIAGRAM..................................................................................................................23
PRINTED WIRING BOARD ASSEMBLIES.....................................................................................30
CABINET AND MECHANICAL PARTS...........................................................................................35
PACKING OF THE SET..................................................................................................................36

ITEMNMB
DESCRIPTION
LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.
60415A60Ersatzteileliste für Artikel :
SPARE PART LIST
Änderungen und Liefermöglichkeiten vorbehalten ! Loewe FL38 LOEWE.
U 0001 FRONTEND LCD TV KPL. LOEWE PRINT.CIRCUIT BOARD 396-88028050T
BAUGRUPPEN UNITS
U 0002 HAUPTLEITERPLATTE PRINT.CIRCUIT BOARD 396-90353980
U 0003 BEDIENTEILPLATTE PRINT.CIRCUIT BOARD 396-90353990
U 0003 ANZEIGEPLATTE PRINT.CIRCUIT BOARD 396-90354910
U1001 SCART-ADAPTER KPL. PRINT.CIRCUIT BOARD 396-88038050
U1002 TUNER-ZF M MULTISYSTEM MN/BG-DK TUNER 260-87271050T
N 0001 BAN D-I FL38 LCD-TV E3001 OPERATING INSTRUCT. 233-29035
DRUCKSACHEN OPERATING INSTRUCTIONS
N 0001 BAN NL-F FL38 LCD-TV E3001 OPERATING INSTRUCT. 233-29035010
N 0001 BAN GB-E FL38 LCD-TV E3001 OPERATING INSTRUCT. 233-29035020
N 1002 NETZKABEL FL38 POWER CORD 170-90354980
GERÄTEBEIPACK SET SUPPLEMENT
U 0004
NETZTEIL
POWER PACK
815-90354990
U 9111 IR-FERNBEDIENUNG CONTROL 150 TV ARKTIS TRANSMITTER 263-87000060
J 0001 VERPACKUNGSKARTON PACKING CASE 245-90355900
VERPACKUNGSMATERIAL PACKING MATERIAL
J 0002 PAPPEINLAGESATZ OBEN+UNTEN MIT POLSTER CUSHION-SET 252-90355901
J 0003 PAPPEINLAGESATZ SEITENTEILE CUSHION-SET 252-90355902
J 0004 PAPPEINLAGE 660 X 190 MM CUSHION-SET 252-90355903
2-3 BEDIENTASTENLEISTE BUTTON 682-90354976
KNÖPFE BUTTONS
27 KNOPF EIN/AUS BUTTON 682-90355907
1FRONTRAHMEN KPL. MASK 704-90354981
GEHÄUSETEILE CABINET MOUNTING
1-16
LAUTSPRECHER HT FRONT
LOUDSPEAKER
272-90354973
1-2 LED-SCHACHT COVER 568-90354978
1-3 ABDECKUNG LÄNGLICH SCHWARZ MASK 703-90354983
1-4 IR-FILTER-FENSTER 12X8 MM WINDOW 666-90354977
2RUECKWAND KOMPLETT BACKCOVER 775-90354982
3-1 ABDECKUNG SELBSTKLEBEND SCHW. SCHLITZ COVER 568-90354986
3-2
SCHAUMGUMMI F. FUSSRING GEBOGEN 10 CM
COVER
568-90354987
3-3 BODENPLATTE FUSSRING BOTTOM COVER 777-90354988
3-4 ABDECKUNG COVER 568-90354985
G 0002 ABDECKUNG FUSS LCD STAND 484-88109001
2-13 LAUTSPRECHER TT RUECKWAND LOUDSPEAKER 272-90354975
SPULEN/LAUTSPRECHER COILS,SPEAKERS
T701 TRAFO POWER TRANSFORMER 490-90354959
T751
TRAFO
POWER TRANSFORMER
490-90354960
T752 TRAFO POWER TRANSFORMER 490-90354960
I1001 ICMOS 4,50V 20MA SO08 RESET-IC LV030 INTEGRATED CIRCUIT 350-28570
INTEGR.SCHALTUNGEN INTEGRATED CIRCUITS
I1002 ICMOS 24C32 LCD-TV PROGR. L100 LOEWE INTEGRATED CIRCUIT 349-90578100
I1003 ICMOS M27C2001-10 L3001 V1.0 INTEGRATED CIRCUIT 349-28565438 25.10.2000
I1003 ICMOS M27C2001-10 L3001 V1.1 INTEGRATED CIRCUIT 349-28565443 08.11.2000
I1003 ICMOS M27C2001-10 L3001 V1.2 INTEGRATED CIRCUIT 349-28565451
Donnerstag, 17. Mai 2001 Seite 1

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.60415A60
I1003 ICMOS M27C2001-10 L3001 V1.3 INTEGRATED CIRCUIT 349-28565460
I1004 IC TEA5114A INTEGRATED CIRCUIT 349-15212
I1005 IC VOLT.REGULAT TO252 9V OA5 LV030 INTEGRATED CIRCUIT 350-29008
I1006
ICMOS S-RAM W24257 AS-35 LV030
INTEGRATED CIRCUIT
350-28569
I1008 ICMOS 74V1T00S SOT-23-5L NAND LV030 INTEGRATED CIRCUIT 350-28563
I1009 IC ST92R195 QFP80 28844S LV030 INTEGRATED CIRCUIT 350-28844
I1010 IC VOLT.REGULAT TO252 5V OA5 LV030 INTEGRATED CIRCUIT 350-29006
I1011 IC VOLT.REGULAT TO252 10V OA5 LV030 INTEGRATED CIRCUIT 350-29007
I1012 ICMOS 74 HCT125 SMD LV030 INTEGRATED CIRCUIT 350-15523
I1013
IC TEA5114A
INTEGRATED CIRCUIT
349-15212
I4500 IC TDA5637 SOT340 INTEGRATED CIRCUIT 350-27278
I4600 IC TSA5523M SOT266 INTEGRATED CIRCUIT 350-27275
I4800 IC TDA9818 SDIP24 INTEGRATED CIRCUIT 349-27276
I4800 IC TDA9818 TS-SSOP24 INTEGRATED CIRCUIT 350-28463
IC1101 ICMOS MB88346BPFV INTEGRATED CIRCUIT 350-90354921
IC1102
ICMOS NJM4565V
INTEGRATED CIRCUIT
350-90354922
IC1103 ICMOS NJM4565V INTEGRATED CIRCUIT 350-90354922
IC1104 ICMOS NJM4565V INTEGRATED CIRCUIT 350-90354922
IC1105 ICMOS BU4053BCFV-E2 INTEGRATED CIRCUIT 350-90354923
IC1106 ICMOS NJM4580V INTEGRATED CIRCUIT 350-90354924
IC1107 ICMOS NJM4580V INTEGRATED CIRCUIT 350-90354924
IC1108
ICMOS NJM4580V
INTEGRATED CIRCUIT
350-90354924
IC1109 ICMOS NJM353M INTEGRATED CIRCUIT 350-90354925
IC1110 ICMOS BU4053BCFV-E2 INTEGRATED CIRCUIT 350-90354923
IC1201 ICMOS LR38797 INTEGRATED CIRCUIT 350-90354926
IC1202 ICMOS UPD485505G-25 INTEGRATED CIRCUIT 350-90354927
IC2001 ICMOS RH-IX3483CEN1 INTEGRATED CIRCUIT 350-90354928
IC2002
ICMOS PST529DMT
INTEGRATED CIRCUIT
350-90354929
IC2003 ICMOS TC4W66F INTEGRATED CIRCUIT 350-90354930
IC2004 ICMOS BR24C08F-E2 INTEGRATED CIRCUIT 350-90354931
IC2005 ICMOS BA7046F INTEGRATED CIRCUIT 350-90354932
IC201 ICMOS NJM2147M-TE1 INTEGRATED CIRCUIT 350-90354912
IC301 IC LA4227 INTEGRATED CIRCUIT 349-90354911
IC302
IC LA4227
INTEGRATED CIRCUIT
349-90354911
IC303 ICMOS NJM2283M INTEGRATED CIRCUIT 350-90354913
IC402 ICMOS NJM2235M INTEGRATED CIRCUIT 350-90354914
IC701 ICMOS AN8005M INTEGRATED CIRCUIT 350-90354915
IC702 ICMOS NJM2377M INTEGRATED CIRCUIT 350-90354916
IC704 ICMOS BA033FP-E2 INTEGRATED CIRCUIT 350-90354917
IC802
ICMOS VPC3230D-QA-B2
INTEGRATED CIRCUIT
350-90354918
IC901 ICMOS MSP3410G-QA-B5 INTEGRATED CIRCUIT 350-90354919
IC902 ICMOS NJM4560M INTEGRATED CIRCUIT 350-90354920
IC903 ICMOS NJM4560M INTEGRATED CIRCUIT 350-90354920
RMC4101 INFRAROT-EMPFAENGER INTEGRATED CIRCUIT 349-90354972
H1002 IC-FASSUNG 8-POL. SOCKET 320-80503
BUCHSEN/FASSUNGEN SOCKETS
H1003 IC-FASSUNG 32-POL. SOCKET 320-22087
W1001
SCARTBUCHSE
SOCKET
323-19542
W1003 CHINCH-BUCHSE ROT 8MM GOLDPLATTIERT SOCKET 323-29010
W1004 MINI-DIN-BUCHSE 4-POL SOCKET 323-18108
W1005 CHINCH-BUCHSE WEISS 8MM GOLDPLATTIERT SOCKET 323-29011
W1006 CHINCH-BUCHSE GELB 8MM GOLDPLATTIERT SOCKET 323-29009
W1010 CHINCH-BUCHSE WEISS 8MM GOLDPLATTIERT SOCKET 323-29011
W1011
CHINCH-BUCHSE ROT 8MM GOLDPLATTIERT
SOCKET
323-29010
W1016 KOPFHOERERBUCHSE 3,5MM SOCKET 323-24591
Donnerstag, 17. Mai 2001 Seite 2

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.60415A60
W1017 EINBAUBUCHSE 10-POL QUADRAT. SOCKET 323-28932
D4203 DIOVC 0A02 30V SOD323 BB640 LV030 DIODE 351-26568
DIODEN DIODES
D4204 DIOVC 0A02 30V SOD323 BB535 LV030 DIODE 351-26570
D4222 DIOVC 0A02 30V SOD323 BB640 LV030 DIODE 351-26568
D4241
DIOVC 0A02 30V SOD323 BB640 LV030
DIODE
351-26568
D4242 DIOVC 0A02 30V SOD323 BB535 LV030 DIODE 351-26570
D4303 DIOVC 0A02 30V SOD323 BB639 LV030 DIODE 351-26571
D4304 DIOVC 0A02 30V SOD323 BB535 LV030 DIODE 351-26570
D4322 DIOVC 0A02 30V SOD323 BB639 LV030 DIODE 351-26571
D4341 DIOVC 0A02 30V SOD323 BB639 LV030 DIODE 351-26571
D4403
DIOVC 0A02 30V SOD323 BB535 LV030
DIODE
351-26570
D4422 DIOVC 0A02 30V SOD323 BB535 LV030 DIODE 351-26570
D4441 DIOVC 0A02 30V SOD323 BB535 LV030 DIODE 351-26570
D4508 DIOVC 0A02 30V SOD323 BB640 LV030 DIODE 351-26568
D4527 DIOVC 0A02 30V SOD323 BB639 LV030 DIODE 351-26571
D4551 DIOVC 0A02 30V SOD323 BB535 LV030 DIODE 351-26570
D4806
DIODE BAV 99W SOT323
DIODE
351-27469
X1001
QUARZ 4,000000 MHZ HC49U
CRYSTAL OSCILLATOR
385-17297Y06
QUARZE/FILTER QUARTZES
X2002 PIEZO CERAMIC FILTER 386-90354954
X4651 QUARZ 4,000000 MHZ HC49U3 LOW PROFILE CRYSTAL OSCILLATOR 385-27752
X4701 FILT. OFW K 6263 K FILTER 290-25214
X801 QUARZ SC0012CEZZ CRYSTAL OSCILLATOR 385-90354952
X901 QUARZ SB0250GEZZ CRYSTAL OSCILLATOR 385-90354953
S4701 SCHIEBESCHALTER SWITCH 469-90354969
SCHALTER SWITCHES
SW4002 SCHALTER SWITCH 467-90354968
SW4003 SCHALTER SWITCH 467-90354968
SW4004 SCHALTER SWITCH 467-90354968
SW4006 SCHALTER SWITCH 467-90354968
SW4007 SCHALTER SWITCH 467-90354968
SW4008 SCHALTER SWITCH 467-90354968
F1001 SICH. 2000MA T 250V 8X8 LV380-3 FUSE 380-16779020
SICHERUNGEN FUSES
F1002 SICH. 1600MA T 250V 8X8 LV380-3 FUSE 380-16913020
F1003 SICH. 1600MA T 250V 8X8 LV380-3 FUSE 380-16913020
F1004 SICH. 315MA T 250V 8X8 LV380-3 FUSE 380-10558020
D1001 DIOZD 5V6 J 0W5 SOD-80 ZMM5.6 LV030 DIODE 351-16758
SMD TEILE SMD PARTS
D1002 DIOZD 5V6 G 0W5 SOD-80 ZMM5.6 LV030 DIODE 351-22580
D1003 DIOZD 12V0 J 0W5 SOD-80 ZMM12 LV030 DIODE 351-17532
D1004 DIOZD 12V0 J 0W5 SOD-80 ZMM12 LV030 DIODE 351-17532
D1005 DIOZD 12V0 J 0W5 SOD-80 ZMM12 LV030 DIODE 351-17532
D1006 DIOZD 12V0 J 0W5 SOD-80 ZMM12 LV030 DIODE 351-17532
D1007 DIOZD 5V6 G 0W5 SOD-80 ZMM5.6 LV030 DIODE 351-22580
D1008 DIOZD 5V6 G 0W5 SOD-80 ZMM5.6 LV030 DIODE 351-22580
D1009 DIOZD 5V6 J 0W5 SOD-80 ZMM5.6 LV030 DIODE 351-16758
D1010 DIODE 0,2A 75V SOD80 LL4148 LV030 DIODE 351-15015
D1011 DIOZD 12V0 J 0W5 SOD-80 ZMM12 LV030 DIODE 351-17532
D1012 DIOZD 12V0 J 0W5 SOD-80 ZMM12 LV030 DIODE 351-17532
D1013 DIOZD 12V0 J 0W5 SOD-80 ZMM12 LV030 DIODE 351-17532
Donnerstag, 17. Mai 2001 Seite 3

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.60415A60
D1101 DIODE 1SS250-1E DIODE 351-90354948
D1201 DIODE DAN222-1 DIODE 351-90354946
D1202 DIODE ZD EX0227CEZZ DIODE 351-90354951
D201
DIODE DAN222-1
DIODE
351-90354946
D4009 DIODE ZD EX0879CEZZ DIODE 351-90354966
D4010 DIODE ZD EX0879CEZZ DIODE 351-90354966
D4018 DIODE ZD EX1283CEZZ DIODE 351-90354967
D4019 DIODE ZD EX1283CEZZ DIODE 351-90354967
D4120 DIODE ZD EX1271CEZZ DIODE 351-90354971
D4121
DIODE ZD EX1271CEZZ
DIODE
351-90354971
D4702 DIODE BA 592 SOD323 DIODE 351-25810
D4703 DIODE BA 592 SOD323 DIODE 351-25810
D4751 DIODE BA 592 SOD323 DIODE 351-25810
D4752 DIODE BA 592 SOD323 DIODE 351-25810
D4771 DIODE BA 592 SOD323 DIODE 351-25810
D4772
DIODE BA 592 SOD323
DIODE
351-25810
D4781 DIODE BA 592 SOD323 DIODE 351-25810
D4832 DIODE BA 592 SOD323 DIODE 351-25810
D702 DIODE SFPB56-2E DIODE 351-90354947
D703 DIODE 1SS250-1E DIODE 351-90354948
D704 DIODE 1SS250-1E DIODE 351-90354948
D705
DIODE DAN222-1
DIODE
351-90354946
D706 DIODE SFPB74-2E DIODE 351-90354949
D707 DIODE DAN222-1 DIODE 351-90354946
D709 DIODE DAN222-1 DIODE 351-90354946
D710 DIODE DAN222-1 DIODE 351-90354946
D712 DIODE DAN222-1 DIODE 351-90354946
D753
DIODE IMN10-1
DIODE
351-90354950
D754 DIODE IMN10-1 DIODE 351-90354950
Q1001 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1003 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1004 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1005 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1006
TRANS BC847BW SOT323
TRANSISTOR
344-27272
Q1007 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1008 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1009 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1010 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1011 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1012
TRANS BC857BW SOT323 LV030
TRANSISTOR
344-28404
Q1013 TRANS BC847B SOT23 TRANSISTOR 344-14974
Q1014 TRANS BC857B SOT23 TRANSISTOR 344-14979
Q1015 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1016 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1017 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1018
TRANS BC847BW SOT323
TRANSISTOR
344-27272
Q1019 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1020 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Q1021 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1022 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1023 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1024
TRANS BC847B SOT23
TRANSISTOR
344-14974
Q1025 TRANS BC847B SOT23 TRANSISTOR 344-14974
Q1026 TRANS BC847B SOT23 TRANSISTOR 344-14974
Q1027 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1028 TRANS BC847BW SOT323 TRANSISTOR 344-27272
Donnerstag, 17. Mai 2001 Seite 4

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.60415A60
Q1029 TRANS BCX69-25 TRANSISTOR 344-24714
Q1030 TRANS BF 840 SMD TRANSISTOR 344-28018
Q1031 TRANS BF550 SOT23 TRANSISTOR 344-23563
Q1032
TRANS BC847BW SOT323
TRANSISTOR
344-27272
Q1033 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q1101 TRANS 2SA1729-1 TRANSISTOR 344-90354943
Q1102 TRANS 2SC4520-1 TRANSISTOR 344-90354944
Q1201 TRANS DTC144EE-1 TRANSISTOR 344-90354937
Q2003 TRANS 2SC2712Y-1 TRANSISTOR 344-90354933
Q2004
TRANS DTC144EE-1
TRANSISTOR
344-90354937
Q2005 TRANS DTA144EE-1 TRANSISTOR 344-90354945
Q2006 TRANS DTC144EE-1 TRANSISTOR 344-90354937
Q201 TRANS 2SC2712Y-1 TRANSISTOR 344-90354933
Q202 TRANS 2SC2712Y-1 TRANSISTOR 344-90354933
Q203 TRANS FMY3/////-1 TRANSISTOR 344-90354934
Q204
TRANS 2SC2712Y-1
TRANSISTOR
344-90354933
Q302 TRANS 2SA1162Y-1 TRANSISTOR 344-90354935
Q303 TRANS DTC314TK-1 TRANSISTOR 344-90354936
Q304 TRANS DTC314TK-1 TRANSISTOR 344-90354936
Q305 TRANS DTC314TK-1 TRANSISTOR 344-90354936
Q308 TRANS DTC144EE-1 TRANSISTOR 344-90354937
Q4106
TRANS DTC144EE-1
TRANSISTOR
344-90354937
Q4107 TRANSISTOR UMG4/////-1 TRANSISTOR 344-90354970
Q4702 TRANS DIGITAL SOT323 NPN 50V 70MA 47K+ TRANSISTOR 344-27270
Q4709 TRANS DIGITAL SOT323 NPN 50V 70MA 47K+ TRANSISTOR 344-27270
Q4752 TRANS DIGITAL SOT323 NPN 50V 100MA 47K TRANSISTOR 344-28555 31.12.1999
Q4754 TRANS DIGITAL SOT323 NPN 50V 70MA 47K+ TRANSISTOR 344-27270
Q4772
TRANS DIGITAL SOT323 NPN 50V 70MA 47K+
TRANSISTOR
344-27270
Q4772 TRANS DIGITAL SOT323 NPN 50V 100MA 47K TRANSISTOR 344-28555
Q4774 TRANS DIGITAL SOT323 NPN 50V 70MA 47K+ TRANSISTOR 344-27270
Q4804 TRANS BC857W SOT323 TRANSISTOR 344-27468
Q4804 TRANS BC857BW SOT323 LV030 TRANSISTOR 344-28404
Q4832 TRANS BCR198W SOT323 PNP TRANSISTOR 344-27269
Q4833
TRANS BC847BW SOT323
TRANSISTOR
344-27272
Q701 TRANS 2SA1162Y-1 TRANSISTOR 344-90354935
Q702 TRANS 2SK2503-1 TRANSISTOR 344-90354938
Q703 TRANS 2SC2712Y-1 TRANSISTOR 344-90354933
Q707 TRANS DTC144EE-1 TRANSISTOR 344-90354937
Q708 TRANS FMMT718-1 TRANSISTOR 344-90354939
Q709
TRANS DTC144EE-1
TRANSISTOR
344-90354937
Q710 TRANS 2SA1162Y-1 TRANSISTOR 344-90354935
Q751 TRANS FZT1053A-1 TRANSISTOR 344-90354940
Q752 TRANS FZT1053A-1 TRANSISTOR 344-90354940
Q753 TRANS 2SA1162Y-1 TRANSISTOR 344-90354935
Q754 TRANS DTC114YE-1 TRANSISTOR 344-90354941
Q757
TRANS UPA606T-1
TRANSISTOR
344-90354942
10
FILT. OFW K 9463 M
FILTER
290-25323
SPEZIALTEILE SPECIAL PARTS
20 DECKEL LID 501-87236011
21 DECKEL LID 501-87236011
21 KABLBAUM DISPLAY CONNECTING CABLE 171-90355905
2-12 SCHAUMGUMMI FRAME 549-90354989
22 15" LCD-PANEL PICTURE TUBE 345-90354999
2-2
RUECKWANDAUFKLEBER
FRAME
549-90354979
25 TYPENSCHILD INDICATING UNIT 663-90354991
Donnerstag, 17. Mai 2001 Seite 5

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.60415A60
26 BUCHSEN/KABELABDECKUNG F.RUECKWAND COVER 568-90355906
36 KABELBAUM 4-POL. CONNECTING CABLE 171-90354995
37 KABELBAUM 20-POL. CONNECTING CABLE 171-90354997
38
KABELBAUM 50-POL.
CONNECTING CABLE
171-90354994
39 KABELBAUM 5-POL. CONNECTING CABLE 171-90354993
4LAMPEN-SET INCANDESCENT LAMP 383-90354998
40 KABELBAUM 11-POL. CONNECTING CABLE 171-90354992
FB1202 SPULE CHOKE 296-90354964
FB1203 SPULE CHOKE 296-90354965
FB702
SPULE
CHOKE
296-90354961
FB703 SPULE CHOKE 296-90354961
FB704 SPULE CHOKE 296-90354961
FB705 SPULE CHOKE 296-90354962
FB706 SPULE CHOKE 296-90354961
FB708 SPULE CHOKE 296-90354962
FB709
SPULE
CHOKE
296-90354963
L4192 LUFTSPULE COIL 297-27573 18.07.2000
L4192 SPULE COIL 297-27573001 15.01.1999
L4192 DR. 270N J 0603 SMD LV030 + CHOKE 296-28579
L4193 LUFTSPULE COIL 297-27571
L4201 LUFTSPULE COIL 297-27571
L4201
SPULE
COIL
297-27571001
L4202 LUFTSPULE COIL 297-28046 21.09.2000
L4202 DR-CH 330N0 J 0805 LL2012 LV030 CHOKE 296-29271
L4231 SPULE COIL 297-27569001
L4232 SPULE COIL 297-27569001
L4233 SPULE COIL 297-27561001
L4301
SPULE
COIL
297-27562001
L4301 SPULE COIL 297-27566001 02.05.2001
L4302 SPULE COIL 297-27561001 02.05.2001
L4302 DR-CH 27N0 K 0805 LQN21A LV030 CHOKE 296-29269 09.05.2001
L4303 DR-CH 27N0 K 0805 LQN21A LV030 CHOKE 296-29269
L4311 LUFTSPULE COIL 297-27571
L4331
SPULE
COIL
297-27561001
L4332 SPULE COIL 297-27683001
L4342 SPULE COIL 297-27553001 02.05.2001
L4342 DR-CH 15N0 K 0805 LQN21A LV030 CHOKE 296-29270 09.05.2001
L4343 DR-CH 15N0 K 0805 LQN21A LV030 CHOKE 296-29270
L4351 DR. 68N J 0805 800M-Q30 LV030 CHOKE 296-28465
L4352
DR. 68N J 0805 800M-Q30 LV030
CHOKE
296-28465
L4401 SPULE COIL 297-27562001
L4402 SPULE COIL 297-27553001
L4411 SPULE COIL 297-27568001
L4422 SPULE COIL 297-27559001
L4431 SPULE LV297-27546 COIL 297-27546001
L4432
SPULE
COIL
297-27683001
L4441 SPULE COIL 297-27561001 02.05.2001
L4441 DR-CH 27N0 K 0805 LQN21A LV030 CHOKE 296-29269 09.05.2001
L4442 SPULE COIL 297-27683001 02.05.2001
L4442 DR-CH 15N0 K 0805 LQN21A LV030 CHOKE 296-29270 09.05.2001
L4443 DR-CH 27N0 K 0805 LQN21A LV030 CHOKE 296-29269
L4444
DR-CH 15N0 K 0805 LQN21A LV030
CHOKE
296-29270
L4451 DR. 12N K 0805 800M-Q45 LV030 CHOKE 296-28466
L4452 DR. 12N K 0805 800M-Q45 LV030 CHOKE 296-28466
L4503 SPULE COIL 297-27564001
L4523 SPULE COIL 297-27552001
Donnerstag, 17. Mai 2001 Seite 6

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.60415A60
L4543 SPULE COIL 297-27548001
L4546 SPULE COIL 297-27559001
L4701 DR-RA 0U68 K 4X3X4 5R0 LV298-21/020 CHOKE 298-27591020
L4816
SPULE LV297-27743
COIL
297-27743
L4831 DR-RA 6U8 J 4X3X4 5R0 LV298-21/020 CHOKE 298-27588020
L701 SPULE CHOKE 296-90354955
L705 SPULE CHOKE 296-90354956
L706 SPULE CHOKE 296-90354955
L751 SPULE CHOKE 296-90354957
L752
SPULE
CHOKE
296-90354957
L804 SPULE CHOKE 296-90354958
L805 SPULE CHOKE 296-90354958
P4821 POT 10K 6MM KOHLESCHICHT HORIZONT. POTENTIOMETER 375-27744
Q4210 TRANS BF1100WR SOT343 + TRANSISTOR 344-27268
Q4310 TRANS BF1100WR SOT343 + TRANSISTOR 344-27268
Q4410
TRANS BF1100WR SOT343 +
TRANSISTOR
344-27268
Q4836 TRANS BC847B SOT23 TRANSISTOR 344-14974
Q4853 TRANS BC847BW SOT323 TRANSISTOR 344-27272
W1001 FOLIENSTECKVERB. 20-POL RM0,5 CONTACT LEDGE 326-28933
W1002 STIFTLEISTE 7-POL NATUR LV326-11 CONTACT LEDGE 326-20908
W1002 KONTAKTLEISTE 21POL RM2,54 LV326-27320 CONTACT LEDGE 326-27320021
W1007
BUCHSENLEISTE 5POL RM5,08 LV326-28942
CONTACT LEDGE
326-28942005
W1008 FLACHSTECKER,GEBOGEN" UG 2 " LV PLUG 321-82232001
W1009 FOLIENSTECKVERB. 50-POL RM0,5 CONTACT LEDGE 326-28934
W1012 FLACHSTECKER,GEBOGEN" UG 2 " LV PLUG 321-82232001
W1013 STIFTLEISTE 11-POL NATUR RM2,0 SYST.-PH CONTACT LEDGE 326-28935
W1014 BUCHSENLEISTE 6POL RM5,08 LV326-28942 CONTACT LEDGE 326-28942006
W1015
FLACHSTECKER,GEBOGEN" UG 2 " LV
PLUG
321-82232001
W1018 FLACHSTECKER,GEBOGEN" UG 2 " LV PLUG 321-82232001
W4100 KOAX-BUCHSE SOCKET 323-27599
W4200 KONTAKTLEISTE 6POL RM5,08 LV326-27320 CONTACT LEDGE 326-27320016
W4800 KONTAKTLEISTE 4POL RM5,08 LV326-27320 CONTACT LEDGE 326-27320014
W4800 KONTAKTLEISTE 5POL RM5,08 LV326-27320 CONTACT LEDGE 326-27320015 26.01.2001
X4651
QUARZ 4,000000 MHZ HC49U3 LOW PROFILE
CRYSTAL OSCILLATOR
385-27752
X4701 FILT. OFW K 6263 K FILTER 290-25214
X4751 FILT. OFW K 9463-M FILTER 290-25323Y20
X4771 FILT. OFW K 9461-M FILTER 290-25216Y20
X4831 PIEZO FILTER 5,5MHZ/5,742MHZ LV020 CERAMIC FILTER 386-27630020
X4832 PIEZO FILTER 4,5 MHZ LV020 CERAMIC FILTER 386-27305020
Donnerstag, 17. Mai 2001 Seite 7

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR.
KURZTEXT
BESTELLNR.
ENTF-DAT.
60415A70
Ersatzteileliste für Artikel :
SPARE PART LIST
Änderungen und Liefermöglichkeiten vorbehalten ! FL38 platin VAR.70 LOEWE.
U 0001 FRONTEND LCD TV KPL. LOEWE PRINT.CIRCUIT BOARD 396-88028050T
BAUGRUPPEN UNITS
U 0002 HAUPTLEITERPLATTE PRINT.CIRCUIT BOARD 396-90414955T
U 0003 BEDIENTEILPLATTE PRINT.CIRCUIT BOARD 396-90353990
U 0003 ANZEIGEPLATTE PRINT.CIRCUIT BOARD 396-90354910
U1001 SCART-ADAPTER KPL. PRINT.CIRCUIT BOARD 396-88038050
U1002 TUNER-ZF M MULTISYSTEM MN/BG-DK TUNER 260-87271050T
N 0001 BAN D-I FL38 LCD-TV E3001 OPERATING INSTRUCT. 233-29035
DRUCKSACHEN OPERATING INSTRUCTIONS
N 0001 BAN NL-F FL38 LCD-TV E3001 OPERATING INSTRUCT. 233-29035010
N 0001 BAN GB-E FL38 LCD-TV E3001 OPERATING INSTRUCT. 233-29035020
N 1002 NETZKABEL FL38 POWER CORD 170-90354980
GERÄTEBEIPACK SET SUPPLEMENT
U 0004 NETZTEIL POWER PACK 815-90354990
U 9111 IR-FERNBEDIENUNG CONTROL 150 TV ARKTIS TRANSMITTER 263-87000060
J 0001 VERPACKUNGSKARTON PACKING CASE 245-90355900
VERPACKUNGSMATERIAL PACKING MATERIAL
J 0002 PAPPEINLAGESATZ OBEN+UNTEN MIT POLSTER CUSHION-SET 252-90355901
J 0003 PAPPEINLAGESATZ SEITENTEILE CUSHION-SET 252-90355902
J 0004 PAPPEINLAGE 660 X 190 MM CUSHION-SET 252-90355903
2-3 BEDIENTASTENLEISTE BUTTON 682-90354976
KNÖPFE BUTTONS
27 KNOPF EIN/AUS BUTTON 682-90355907
1FRONTRAHMEN KPL. MASK 704-90354981
GEHÄUSETEILE CABINET MOUNTING
1-2 LED-SCHACHT COVER 568-90354978
1-3 ABDECKUNG LÄNGLICH SCHWARZ MASK 703-90354983
1-4 IR-FILTER-FENSTER 12X8 MM WINDOW 666-90354977
2RUECKWAND KOMPLETT BACKCOVER 775-90414948
22 LCD-PANEL PICTURE TUBE 345-90414946
26 BUCHSEN/KABELABDECKUNG F.RUECKWAND COVER 568-90355906
3-4 ABDECKUNG COVER 568-90354985
G 0002 ABDECKUNG FUSS LCD STAND 484-88109001
1-16 LAUTSPRECHER HT FRONT LOUDSPEAKER 272-90354973
SPULEN/LAUTSPRECHER COILS,SPEAKERS
2-13 LAUTSPRECHER TT RUECKWAND LOUDSPEAKER 272-90354975
T701 TRAFO POWER TRANSFORMER 490-90414945
T751 TRAFO POWER TRANSFORMER 490-90354960
T752 TRAFO POWER TRANSFORMER 490-90354960
I 0101 ICMOS PCA84C122AT-216 INTEGRATED CIRCUIT 350-27026
INTEGR.SCHALTUNGEN INTEGRATED CIRCUITS
I 0101 ICMOS PCA84C122AT-231 INTEGRATED CIRCUIT 350-27787
I1001 ICMOS 4,50V 20MA SO08 RESET-IC LV030 INTEGRATED CIRCUIT 350-28570
I1002 ICMOS 24C32 LCD-TV PROGR. L100 LOEWE INTEGRATED CIRCUIT 349-90578100
I1003 ICMOS M27C2001-10 L3001 V1.0 INTEGRATED CIRCUIT 349-28565438 25.10.2000
I1003 ICMOS M27C2001-10 L3001 V1.1 INTEGRATED CIRCUIT 349-28565443 08.11.2000
Dienstag, 19. März 2002 Seite 1

ITEMNMB DESCRIPTION LIST-PART-NMB LAST-DATE
POSNR. KURZTEXT BESTELLNR. ENTF-DAT.60415A70
I1003 ICMOS M27C2001-10 L3001 V1.2 INTEGRATED CIRCUIT 349-28565451
I1003 ICMOS M27C2001-10 L3001 V1.3 INTEGRATED CIRCUIT 349-28565460
I1004 IC TEA5114A INTEGRATED CIRCUIT 349-15212
I1005 IC VOLT.REGULAT TO252 9V OA5 LV030 INTEGRATED CIRCUIT 350-29008
I1006 ICMOS W24257# SOP20 55N S-RAM LV030 INTEGRATED CIRCUIT 350-28569
I1008 ICMOS 74V1T00S SOT-23-5L NAND LV030 INTEGRATED CIRCUIT 350-28563
I1009 IC ST92R195 QFP80 28844S LV030 INTEGRATED CIRCUIT 350-28844
I1010 IC VOLT.REGULAT TO252 5V OA5 LV030 INTEGRATED CIRCUIT 350-29006
I1011 IC VOLT.REGULAT TO252 10V OA5 LV030 INTEGRATED CIRCUIT 350-29007
I1012 ICMOS 74 HCT125 SMD LV030 INTEGRATED CIRCUIT 350-15523
I1013 IC TEA5114A INTEGRATED CIRCUIT 349-15212
I4500 IC TDA5637 SOT340 INTEGRATED CIRCUIT 350-27278
I4600 IC TSA5523M SOT266 INTEGRATED CIRCUIT 350-27275
I4800 IC TDA9818 SDIP24 INTEGRATED CIRCUIT 349-27276
I4800 IC TDA9818 TS-SSOP24 INTEGRATED CIRCUIT 350-28463
IC1101 ICMOS MB88346BPFV INTEGRATED CIRCUIT 350-90354921
IC1102 ICMOS NJM4565V INTEGRATED CIRCUIT 350-90354922
IC1103 ICMOS NJM4565V INTEGRATED CIRCUIT 350-90354922
IC1104 ICMOS NJM4565V INTEGRATED CIRCUIT 350-90354922
IC1105 ICMOS BU4053BCFV-E2 INTEGRATED CIRCUIT 350-90354923
IC1106 ICMOS NJM4580V INTEGRATED CIRCUIT 350-90354924
IC1107 ICMOS NJM4580V INTEGRATED CIRCUIT 350-90354924
IC1108 ICMOS NJM4580V INTEGRATED CIRCUIT 350-90354924
IC1109 ICMOS NJM353M INTEGRATED CIRCUIT 350-90354925
IC1110 ICMOS BU4053BCFV-E2 INTEGRATED CIRCUIT 350-90354923
IC1201 ICMOS LR38797 INTEGRATED CIRCUIT 350-90354926
IC1202 ICMOS UPD485505G-25 INTEGRATED CIRCUIT 350-90354927
IC1203 VHITC4W53U/-1 INTEGRATED CIRCUIT 350-90414950
IC1204 VHITC4024BF-1 INTEGRATED CIRCUIT 350-90414951
IC1205 VHITC4052BF1E INTEGRATED CIRCUIT 350-90414952
IC2001 ICMOS RH-IX3483CEN1 INTEGRATED CIRCUIT 350-90354928
IC2002 ICMOS PST529DMT INTEGRATED CIRCUIT 350-90354929
IC2003 ICMOS TC4W66F INTEGRATED CIRCUIT 350-90354930
IC2004 ICMOS BR24C08F-E2 INTEGRATED CIRCUIT 350-90354931
IC2005 ICMOS BA7046F INTEGRATED CIRCUIT 350-90354932
IC201 ICMOS NJM2147M-TE1 INTEGRATED CIRCUIT 350-90354912
IC301 IC LA4227 INTEGRATED CIRCUIT 349-90354911
IC302 IC LA4227 INTEGRATED CIRCUIT 349-90354911
IC303 ICMOS NJM2283M INTEGRATED CIRCUIT 350-90354913
IC402 ICMOS NJM2235M INTEGRATED CIRCUIT 350-90354914
IC701 ICMOS AN8005M INTEGRATED CIRCUIT 350-90354915
IC702 ICMOS NJM2377M INTEGRATED CIRCUIT 350-90354916
IC704 ICMOS BA033FP-E2 INTEGRATED CIRCUIT 350-90354917
IC802 ICMOS VPC3230D-QA-B2 INTEGRATED CIRCUIT 350-90354918
IC901 ICMOS MSP3410G-QA-B5 INTEGRATED CIRCUIT 350-90354919
IC902 ICMOS NJM4560M INTEGRATED CIRCUIT 350-90354920
IC903 ICMOS NJM4560M INTEGRATED CIRCUIT 350-90354920
RMC4101 INFRAROT-EMPFAENGER INTEGRATED CIRCUIT 349-90354972
H1002 IC-FASSUNG 8-POL. SOCKET 320-80503
BUCHSEN/FASSUNGEN SOCKETS
H1003 IC-FASSUNG 32-POL. SOCKET 320-22087
W1001 SCARTBUCHSE SOCKET 323-19542
W1003 CHINCH-BUCHSE ROT 8MM GOLDPLATTIERT SOCKET 323-29010
W1004 MINI-DIN-BUCHSE 4-POL SOCKET 323-18108
W1005 CHINCH-BUCHSE WEISS 8MM GOLDPLATTIERT SOCKET 323-29011
Dienstag, 19. März 2002 Seite 2
