Logic Supply PLXX-WCR User manual

Industrial Touch Panel PC
PLXX-WCR
USER MANUAL

- 1 -
CONTENTS
Package Contents 02
Safety Instructions 03
FCC & CE Statement 04
Introduction 05
Features 06
Motherboard Specification 07
System Specification 08
Mounting Installation 11
Bios setup 13
Driver Installation 27
Contact Information 28
PLXX-WCR User Manual

- 2 -
PACKAGE CONTENTS
Please make sure that the items shown below are included in the package. Should
an item be missing, please contact the local retailer from which you purchased this
product.
1 x Industrial Touch Panel PC
1 x Riser card (2 x PCI slot)
1 x DC in Power adapter
1 x Power cord
4 x Screws (M3 x 4) for 2.5” HDD or SSD
PLXX-WCR User Manual

SAFETY INSTRUCTIONS
1. Read Instructions: All the safety and operating instructions should be read before
the equipment is operated.
2. Retain Instructions: The safety and operating instructions should be retained for
future reference.
3. Cleaning: Unplug this equipment from the outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Water and Moisture: Do not use this equipment near water.
5. Ventilation: The openings on the enclosure are provided for ventilation to ensure
reliable operation of the equipment and to protect it from overheating. These
openings should never be blocked.
6. Power Sources: This equipment should be operated only from the type of power
source indicated on the rating label. If you are not sure of the type of power supply,
consult your dealer or local power company.
7. Heed Warnings: All warnings on the equipment and in the operating instructions
should be adhered to.
8. Object and Liquid Entry: Never push objects of any kind into this equipment
through openings as they may touch dangerous voltage points or shout-out parts that
could result in a fire or electric shock. Never Spill liquid of any kind on the equipment.
9. Servicing: Do not attempt to service this Equipment yourself as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
10. Damage Requiring Service: Unplug this equipment from the outlet and refer
- 3 -
PLXX-WCR User Manual

- 4 -
servicing to qualified service personnel under the following conditions: a) if the
power cord or plug is damaged; b) if liquid has penetrated into the equipment; c) if
the equipment has been exposed to moisture; d) if the equipment does not work
well, or you cannot get it to work according to the user’s manual; e) if the equipment
has been dropped and dam aged; f) if the equipment has obvious signs of breakage.
11. Do not leave this equipment in an environment where the storage temperature is
below -10° C or above 70° C. It may damage the equipment.
12. Do not open the sealed enclosure / case of equipment. Once enclosure is
disassembled without approval, it will lead in abnormal operating of waterproof gel.
For Guarantee of water proof function, please make sure configuration / peripheral
has been confirmed to install before shipping.
PLXX-WCR User Manual

FCC
This device complies with Part 15 FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received including interference that may
cause undesired operation.
CE
The product(s) described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to remain CE
compliant, only CE-compliant parts may be used. Maintaining CE compliance also
requires proper cable and cabling techniques.
- 5 -
PLXX-WCR User Manual

INTRODUCTION
PLXX-WCR Series, equipped with Intel Celeron / i5 processor, is an industrial touch
panel PC featuring high performance but low power consumption under the fanless
architecture. Moreover, its advanced computing and graphic performance allows
manufacturers for complex applications, such as visualization and motion control.
In addition, the waterproof gasket design and an external DVD-RW driver are
offered optionally for advanced protection from water intrusion and easy data
storage / backup respectively.
You can also choose to integrate a RFID sensor into the device for RFID technology
application, such as logistics, warehousing, distribution or industrial automation
(identification of work piece carriers on assembly lines, material flow control,
identification of containers and other receptacles).
- 6 -
PLXX-WCR User Manual

FEATURES
Intel Celeron/i5 CPU + Intel HM 75 chipset
Powerful performance but low power consumption under fanless design
Compact design
2 x GLAN
Up to 2 x COM
4 x USB
1 x Audio (1 x Line-out, 1 x MIC-in)
1920 x 1080 (21” wide screen)
DC in 12V / 19V
IP65 compliant 6mm thickness aluminum front bezel
High quality aluminum
- 7 -
PLXX-WCR User Manual

MOTHERBOARD SPECIFICATION
- 8 -
CPU
Chipset
BIOS
Memory
Display
Ethernet
Audio
Storage
Expansion
Rear Panel I/O Port
Internal I/O
Power
Watchdog Timer
Environment
Intel Core Celeron / i5 (up to 2.7GHz)
Intel HM76
AMI 64 Mbit SPI BIOS
2 x 204-pin SODIMM socket supports DDR3 1066MHz up to 8GB
Controller: Intel HD Graphics
Interface: 1 x Dual channel 24-bit LVDS, 1 x DVI (DVI-I), 1 x HDMI
1 x Intel 82579LM GbE LAN PHY, 1 x Intel 82574L GbE LAN
10/100/1000 Mbps
Realtek ALC886 HD Audio CODEC
2 x SATA 2.0, 1 x mSATA (optional)
2 x Mini PCIe
1x HDMI 1x DVI-I 4x USB2.0
2x RJ-45 LAN 1x Mic-in 1x Line-out
DC 12V/19V input
2 x USB 3.0 1x SPI Flash ROM pin header
4 x RS-232 1x chassis intrusion connector
1 x LVDS 1x amplifier pin header
Output System reset, Programmable 1 ~ 255 sec/min
Operating temperature: 0°C ~ 60°C
Storage temperature: -20°C ~ 80°C
PLXX-WCR User Manual

- 9 -
SYSTEM SPECIFICATION
CPU
Chipset
Memory
Power Supply
Rear I/O Ports
Expansion
Size/Type
Resolution
Colors
Luminance (cd/m2)
Contrast Ratio
Viewing Angle (H/V°)
MTBF
Touch Screen
Installation
Weight
Operation Temp.
Storage Temp.
Relative Humidity
OS
SIZE 21.5”
21.5” TFT (16:9)
Full HD 1920 x 1080
16.7M
300
1000:1
170/160
13.5Kg
50,000hrs
5-Wire Resistive
VESA mount 100 x 100mm
0°C~ 45°C
-10°C ~ 70°C
0% - 95% non-condensing
Win 7 Pro, Win 8 Pro, Embedded XP, Embedded 7, Embedded 8
Intel Core i5 (up to 2.7GHz) / Celeron 827E
Intel HM76 Express
1 x DDR III SODIMM, up to 8 GB
DC 12V / 19V external power adapter
1 HDMI, 1 DVI, 2 Gb LAN, 4 USB, 1 Mic-in, 1 Line-Out
1 3-pin terminal block power connector
2 x Mini PCIe slot (1 with mSATA function), 1 x SIM socket
PLXX-WCR User Manual

MOUNTING INSTALLATION
- 10--
PLXX-WCR User Manual
Panel PC Mounting Wall
(Front) Mounting Wall (Back)
Screw Holes
Align bottom of Panel PC
housing with the bottom edge
of the cut out

VESA MOUNTING INSTALLATION
Step 1: Screw the VESA mounting plate to the Panel PC
Step 2: Screw the VESA mounting bracket to the front of a wall or the front / back
of an object dependingly
Step 3: Slide the VESA mounting plate onto the VESA mounting bracket
- 11-
Screw holes in wall or
object for VESA
mounting installation
VESA mounting
Bracket VESA mounting Bracket Panel PC
PLXX-WCR User Manual

BIOS SETUP

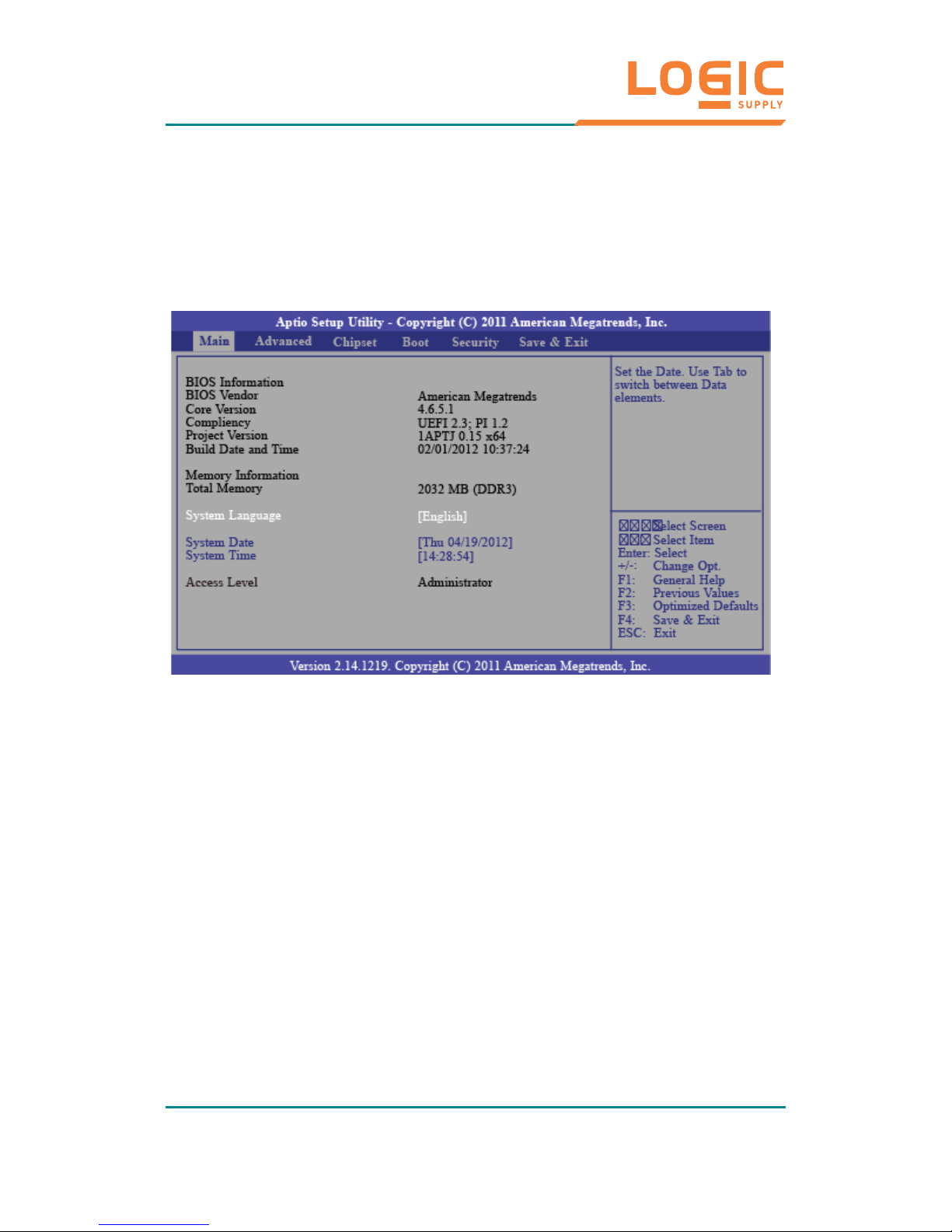

Main
The Main menu is the first screen that you will see when you enter the BIOS Setup
Utility.
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from
Sunday to Saturday. Month displays the month, from January to December. Date
displays the date, from 1 to 31. Year displays the year, from 1980 to
2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour
military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to
23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
-12-
PLXX-WCR User Manual

-13-
Advanced
The Advanced menu allows you to configure your system for basic operation. Some
entries are defaults required
by the system board, while others, if enabled, will improve the performance of your
system or let you set some features according to your preference.
Important: Setting incorrect field values may cause the system to malfunction.
Launch PXE OpROM
Enables or disables the boot option for legacy network devices.
Launch Storage OpROM
Enables or disables the boot option for legacy mass storage devices with option
ROM.
PLXX-WCR User Manual

-14-
PCI Subsystem Settings
This section is used to configure the PCI subsystem settings
ACPI Power Management Configuration
This section is used to configure the ACPI Power Management.
ACPI Sleep State
Selects the highest ACPI sleep state the system will enter when the Suspend button
is pressed.
S1(POS) Enables the Power On Suspend function.
S3(STR) Enables the Suspend to RAM function.
Resume by PME
Enable this field to use the PME signal to wake up the system.
Wake system with fixed time
Enable or disable system wake on alarm event. When enabled, system will wake on
the hr::min::sec specified.
PLXX-WCR User Manual

-15-
Trusted Computing (optional)
This section configures settings relevant to Trusted Computing innovations.
TPM Support
Enables or Disables TPM. O.S. will not show TPM. Resetting the platform is required.
CPU Configuration
This section is used to configure the CPU. It will also display the detected CPU
information.
Limit CPUID Maximum
The CPUID instruction of some newer CPUs will return a value greater than 3. The
default is Disabled because this problem does not exist in the Windows series
operating systems. If you are using an operating system other than Windows, this
problem may occur. To avoid this problem, enable this field to limit the return value to
3 or less than 3.
PLXX-WCR User Manual

-16-
IDE Configuration
This section is used to configure IDE functions.
OnChip SATA Type
This field is used to configure the SATA devices supported by the AMD T56N/T40N.
Native IDE This option configures the Serial ATA drives as Parallel
ATA storage devices.
RAID This option allows you to create RAID on Serial
ATA devices.
AHCI This option allows the Serial ATA devices to use
AHCI (Advanced Host Controller Interface).
Legacy IDE This option configures the Serial ATA drives as Legacy
IDE storage devices.
PLXX-WCR User Manual

- 17-
USB Configuration
This section is used to configure USB.
Legacy USB Support
Enabled Enables legacy USB.
Auto Disables support for legacy when no USB devices are
connected.
Disabled Keeps USB devices available only for EFI applications.
EHCI Hand -off
This is a workaround for OS’s that do not support EHCI hand-off. The EHCI
ownership change should be claimed by the EHCI driver.
Device reset time-out
Selects the USB mass storage device start unit command timeout.
PLXX-WCR User Manual

-18-
Super IO Configuration
This section is used to configure the serial port functions.
Case Open Beep
Set this field to Enabled to allow the system to alert you of a chassis intrusion event.
Watchdog
This field is used to enable or disable the Watchdog Timer function.
AC Power Loss
Turns Off When power returns after an AC power failure, the
system’s power is off. You must press the Power button to
power-on the system.
Turns On When power returns after an AC power failure, the
system will automatically power-on.
Former-Sts When power returns after an AC power failure, the
system will return to the state where you left off before
power failure occurs. If the system’s power is off when AC
power failure occurs, it will remain off when power
returns. If the system’s power is on whenAC power
failure occurs, the system will power-on when power returns.
PLXX-WCR User Manual

-19-
Serial Port 0 Configuration to Serial Port 1
Configuration
Serial Port
Enables or disables the serial port.
Change Settings
Selects the IO/IRQ setting of the I/O device
PC Health Status
This section displays the SIO hardware health monitor.
PLXX-WCR User Manual
