LOGICDATA ACS-CB-SENS User manual

MANUAL
Document Version 3.0 / March 2020
ACS-CB-SENS
Valid for:
LOG-PRT-DMS-300
LOG-PRT-DMS-LD
DMS Cover

ACS-CB-SENS - MANUAL // PAGE 2
ACS-CB-SENS - Operating Manual
Document Version 3.0/ March 2020
This document was originally published in English.
LOGICDATA Electronic & Software Entwicklungs GmbH
Wirtschaftspark 18
8530 Deutschlandsberg
Austria
Phone: [phone]
Fax: [phone]
Internet: http://www.logicdata.net
Email: o[email protected]

ACS-CB-SENS - MANUAL // PAGE 3
CONTENTS
1 General information 5
1.1 Other applicable documents 5
1.2 Copyright 5
1.3 Royalty-free use of images and text 5
1.4 Trademarks 5
2Safety 6
2.1 Target audience 6
2.2 General safety regulations 6
2.3 Intended use 6
2.4 Reasonably foreseeable misuse 6
2.5 Explanation of symbols and signal words 7
2.6 Liability 7
2.7 Residual risks 8
2.8 Skilled Persons 8
2.9 Notes for Resellers 9
3 Scope of delivery 9
4Unpackaging 9
5 Product 10
5.1 About Intelligent Sensor Protection 10
5.2 Key Product Features 10
5.3 Dimensions ACS-CB-SENS 11
5.4 Dimensions LOG-PRT-DMS 11
6 Assembly 12
6.1 Safety During Assembly 12
6.2 Required Components 12
6.3 Notes for Assembly 13
6.4 Mounting the ACS-CB-SENS 13
6.5 Mounting the LOG-PRT-DMS 14
6.5.1 Attaching the DMS Cover 14
6.5 Connecting the LOG-PRT-DMS to the ACS-CB-SENS 15
6.5 Connecting the ACS-CB-SENS to the Control Box 16

ACS-CB-SENS - MANUAL // PAGE 4
7 System Information 16
8 Additional Information 17
8.1 Software-Dependent Functions 17
8.2 Disassembly 17
8.3 Maintenance 17
8.3.1 Cleaning 17
8.3.2 Replacing a Collision Sensor 17
8.4 Troubleshooting 17
8.5 Disposal 17

ACS-CB-SENS - MANUAL // PAGE 5
1 GENERAL INFORMATION
Documentation for the ACS-CB-SENS Collision Sensor consists of this Operating Manual and several other
documents (Other applicable documents, page 5). Assembly personnel must read all documentation before
starting assembly. Keep all documentation for as long as the product is in your possession. Ensure that all
documentation is provided to subsequent owners. Go to www.logicdata.net for more information and sup-
port. This Manual may change without notice. The most recent version is available on our website.
1.1 OTHER APPLICABLE DOCUMENTS
This Operating Manual contains assembly and operation instructions for the ACS-CB-SENS Collision
Sensor. Other applicable documents include:
• Datasheet for the ACS-CB-SENS
• Datasheet for the LOG-PRT-DMS
• Datasheet for the DMS Cover (if applicable)
• Datasheet and Operating Manual for the Control Box in the Table System
1.2 COPYRIGHT
© March 2020 by LOGICDATA Electronic und Software Entwicklungs GmbH. All rights reserved, except for
those listed in Chapter 1.3 Royalty-free use of images and text on page 5.
1.3 ROYALTY-FREE USE OF IMAGES AND TEXT
After purchase and full payment of the product, all text and images in Chapter 2 “Safety”, may be used free of
charge by the customer for 10 years after delivery. They should be used to prepare end user documentation
for Height-Adjustable Table Systems. The license does not include logos, designs, and page layout elements
belonging to LOGICDATA. The Reseller may make any necessary changes to the text and images to adapt
them for the purpose of end user documentation. Texts and images may not be sold in their current state,
and may not be published or sublicensed digitally. The transfer of this license to third parties without per-
mission from LOGICDATA is excluded. Full ownership and copyright of the text and graphics remain with
LOGICDATA. Texts and graphics are oered in their current state without warranty or promise of any kind.
Contact LOGICDATA to obtain text or images in an editable format ([email protected]).
1.4 TRADEMARKS
Documentation may include the representation of registered trademarks of goods or services, as well as
information about copyright or other proprietary expertise of LOGICDATA or third parties. In all cases, all
rights remain exclusively with the respective copyright holder. LOGICDATA® is a registered trademark of
LOGICDATA Electronic & Software GmbH in the USA, the European Union, and other countries.

ACS-CB-SENS - MANUAL // PAGE 6
2 SAFETY
2.1 TARGET AUDIENCE
This Operating Manual is intended for Skilled Persons only. Refer to Chapter 2.8 Skilled Persons on page 9 to
ensure that personnel meet all requirements.
2.2 GENERAL SAFETY REGULATIONS
In general, the following safety regulations and obligations apply when handling the product:
• Do not operate the product unless it is in a clean and perfect condition
• Do not remove, change, bridge, or bypass any protection, safety, or monitoring equipment
• Do not convert or modify any components without written approval from LOGICDATA
• In the event of malfunction or damage, faulty components must be replaced immediately
• Unauthorized repairs are prohibited
• Do not attempt to replace hardware unless the product is in a de-energized state
• Only Skilled Persons are allowed to work with ACS-CB-SENS Collision Sensors
• Ensure that national worker protection conditions and national safety and accident prevention
regulations are observed during operation of the system
2.3 INTENDED USE
The ACS-CB-SENS is a Collision Sensor Unit for electrically Height-Adjustable Tables. It is installed by
Resellers into Height-Adjustable Table systems. It is used to recognize collisions between the Table System
and other objects. It is intended for indoor use only. It may only be installed in compatible Height-Adjustable
Table Systems and with LOGICDATA-approved accessories. Contact LOGICDATA for further details. Use be-
yond or outside the intended use will void the product’s warranty.
2.4 REASONABLY FORESEEABLE MISUSE
Usage outside of the intended use may lead to minor injury, serious injury, or even death. Reasonably fore-
seeable misuse of the Collision Sensor includes, but does not extend to:
• Connecting unauthorized parts to the product. If you are unsure as to whether a part can be used
with a Collision Sensor, contact LOGICDATA for further information
DANGER The RJ sockets on the ACS-CB-SENS may only be used to accommodate LOGICDATA-
approved sensor units. Inserting other telecommunication-type sensors into these
terminals may cause damage to the Control Box or other products in the system.
For telecommunication type connectors not used for connection to the telecommuni-
cation network should be provided with a marking identifying the specic function or
circuit characteristic the connector or terminal is used for.

ACS-CB-SENS - MANUAL // PAGE 7
2.5 EXPLANATION OF SYMBOLS AND SIGNAL WORDS
Safety Notices contain both symbols and signal words. The signal word indicates the severity of the hazard.
DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
NOTICE Indicates a situation which, if not avoided, could result in damage to the product
through electrostatic discharge (ESD).
NOTICE Indicates a situation that will not lead to personal injury, but could lead to damage to
the device or the environment.
INFO Indicates the protection class of the device: Protection Class III.
Protection Class III devices may only be connected to SELV or PELV power sources.
INFO Indicates important tips for handling the product.
2.6 LIABILITY
LOGICDATA products comply with all currently applicable health and safety regulations. However, risk can
result from incorrect operation or misuse. LOGICDATA is not liable for damage or injury caused by:
• Improper product use
• Disregard of the documentation
• Unauthorized product alterations
• Improper work on and with the product
• Operation of damaged products
• Wear parts
• Improperly performed repairs
• Unauthorized changes to the operating parameters
• Disasters, external inuence, and force majeure
The information in this Operating Manual describes the characteristics of products without assurances.
Resellers assume responsibility for the LOGICDATA products installed in their applications. They must en-
sure their product complies with all relevant directives, standards, and laws. LOGICDATA shall not be held
liable for any damage that is directly or indirectly caused by the delivery or use of this document. Resellers
must observe the relevant safety standards and guidelines for each product in the Table System.

ACS-CB-SENS - MANUAL // PAGE 8
2.7 RESIDUAL RISKS
Residual risks are the risks that remain after all relevant safety standards have been complied with. These
have been evaluated in the form of a risk assessment. Residual risks associated with the installation of ACS-
CB-SENS Collision Sensors are listed here and throughout this Operating Manual. See also Chapter 1.1 Other
Applicable Documents on page 5. The symbols and signal words used in this Operating Manual are listed in
Chapter 2.5 Explanation of Symbols and Signal Words on page 7.
WARNING Risk of death or serious injury through electric shocks
ACS-CB-SENS Collision Sensors are electrical devices. Although you will not have to
connect the Collision Sensor to the Control Box during assembly, basic safety precau-
tions must be taken at all times. Failure to observe electrical safety precautions may
lead to death or serious injury through electric shocks.
• Ensure that the Collision Sensor is not connected to the Control Box during assembly
• Do not convert or modify the Collision Sensor in any way
• Do not immerse the Collision Sensor or its components in liquid. Clean only with
a dry or slightly damp cloth
• Do not place the Cable of the Collision Sensor on heated surfaces
• Check the housing and cables of the Collision Sensor for visible damage. Do not
install or operate damaged products.
WARNING Risk of death or serious injury in explosive atmospheres
Operating the Collision Sensor in potentially explosive atmospheres may lead to death
or serious injury through explosions.
• Read the relevant directives to determine if an atmosphere is potentially explosive
• Do not operate the Collision Sensor in potentially explosive atmospheres
CAUTION Risk of minor or moderate injury through tripping
During the assembly process, you may have to step over Cables. Tripping over Cables
may lead to minor or moderate injury.
• Ensure that the assembly area is kept clear of unnecessary obstructions
• Be careful not to trip over Cables
CAUTION Risk of minor or moderate injury through crushing
The ACS-CB-SENS is not intended as a user safety device. Failure to observe basic safety
precautions may lead to minor ot moderate injury through crushing.
• Keep all body parts away from the table's range of motion while it is moving
• Ensure the table's range of motion is free from obstructions (open windows, etc.)
• Read the Operating Manual of the installed Control Box for safety advice and op-
erating instructions.
2.8 SKILLED PERSONS
CAUTION Risk of injury through incorrect assembly
Only Skilled Persons have the expertise to complete the assembly process safely.
Assembly by Unskilled Persons may lead to minor or moderate injury.
• Ensure that only Skilled Persons are allowed to complete assembly
• Ensure that persons with limited ability to react to danger do not take part in the
assembly process
Collision Sensors may only be installed by Skilled Persons. A Skilled Person is dened as someone who:
• Is authorized for installation planning, installation, commissioning, or servicing of the product
• Has read and understood all documentation relevant to the Collision Sensor
• Has the technical education, training, and/or experience to perceive risks and avoid hazards
• Has knowledge of the specialist standards applicable to the product
• Has the expertise to test, assess, and manage electrical and mechatronic products and systems
in accordance with the generally accepted standards and guidelines of electrical engineering
and furniture manufacturing

ACS-CB-SENS - MANUAL // PAGE 9
2.9 NOTES FOR RESELLERS
Resellers are companies that purchase LOGICDATA products for installation in their own products.
INFO For reasons of EU conformity and product safety, Resellers should provide end users
with an Operating Manual in their native EU ocial language.
INFO The Charter of the French Language (La charte de la langue française) or Bill 101
(Loi 101) guarantees the right of the population of Quebec to conduct business and
commercial activities in French. The bill applies to all products sold and used in Quebec.
For table systems that will be sold or used in Quebec, Resellers must provide all product-
relevant texts in French. These include, but are not limited to:
• Operating Manuals
• All other product documentation, including datasheets
• Inscriptions on the product (such as labels), including those on product packaging
• Warranty certicates
The French inscription may be accompanied with a translation or translations, but no
inscription in another language may be given greater prominence than that in French.
INFO Operating Manuals must include all the safety instructions that end users require to
handle the product safely. They must also include an instruction to always keep the
Operating Manual in the immediate vicinity of the product.
INFO No unauthorized persons (young children, persons under the inuence of medications,
etc.) should be allowed to handle the product.
INFO Resellers must perform a risk assessment on their product that covers residual hazards.
It must include measures to mitigate risk, or reference the product's Operating Manual.
3 SCOPE OF DELIVERY
The standard scope of delivery for the ACS-CB-SENS consists of:
1. LOG-PRT-DMS Collision Sensor
2. ACS-CB-SENS Processing Unit
3. LOG-CBL-CB-SENS Connection cable
All other components necessary for installing the Collision Sensor are supplied separately by the reseller.
4 UNPACKAGING
To unpackage the product:
1. Remove all components from the packaging
2. Check the contents of the package for completeness and damage
3. Provide the Operating Manual to the operating personnel
4. Dispose of the packaging material
NOTICEDispose of the packaging material in an environmentally friendly manner. Remember
to separate plastic parts from the cardboard packaging.
NOTICE Ensure proper ESD handling during unpackaging. Damage that can be attributed to
electrostatic discharge will void warranty claims.

ACS-CB-SENS - MANUAL // PAGE 10
5 PRODUCT
Chapter 5.2 shows a standard model of the ACS-CB-SENS Collision Sensor, including additional products.
The exact variant of the ACS-CB-SENS is denoted by the product's order code. Consult the accompanying
data sheet to ensure that you have received the correct variant.
5.1 ABOUT INTELLIGENT SYSTEM PROTECTION
Intelligent System Protection (ISP) is LOGICDATA’s collision detection system. It aims to reduce the risk of
system damage when using LOGICDATA products. When a collision is detected, all Actuators stop immedi-
ately and move back slightly in the opposite direction (Drive Back Function). The following points must be
observed regarding the ISP function:
• ISP sensitivity and ISP shutdown values depend on the complete system (mechanical and electronic
components). Contact LOGICDATA to determine the ISP suitability of your Table System.
• If no mechanical brake is installed, ISP shutdown sensitivity will be reduced when the table is loaded.
However, if there is no load on the table top, ISP will function properly without a brake.
• After ISP is activated, the next movement of the system can only be in the opposite direction.
• ISP shutdown values can be adjusted in the system parameters. Contact LOGICDATA for further details.
5.2 KEY PRODUCT FEATURES
LOG-PRT-DMS
1 Collision Sensor
2 Cable
3 RJ10 Connector
4 DMS Cover (purchased separately)
ACS-CB-SENS
1 ACS-CB-SENS Processing Unit
2 Mounting Points
3 RJ Ports (for LOG-PRT-DMS)
4 DIN Port (for LOG-CBL-CB-SENS)
5 LOG-CBL-CB-SENS Connection cable
4
2
3
1
4
1
3
5
2

ACS-CB-SENS - MANUAL // PAGE 11
5.3 DIMENSIONS ACS-CB-SENS
Length (with mounting points) 74.2 mm | 2.921 “
Width 50.0 mm | 2.165 "
Height (to underside of Table Top) 30.0 mm | 1.181 "

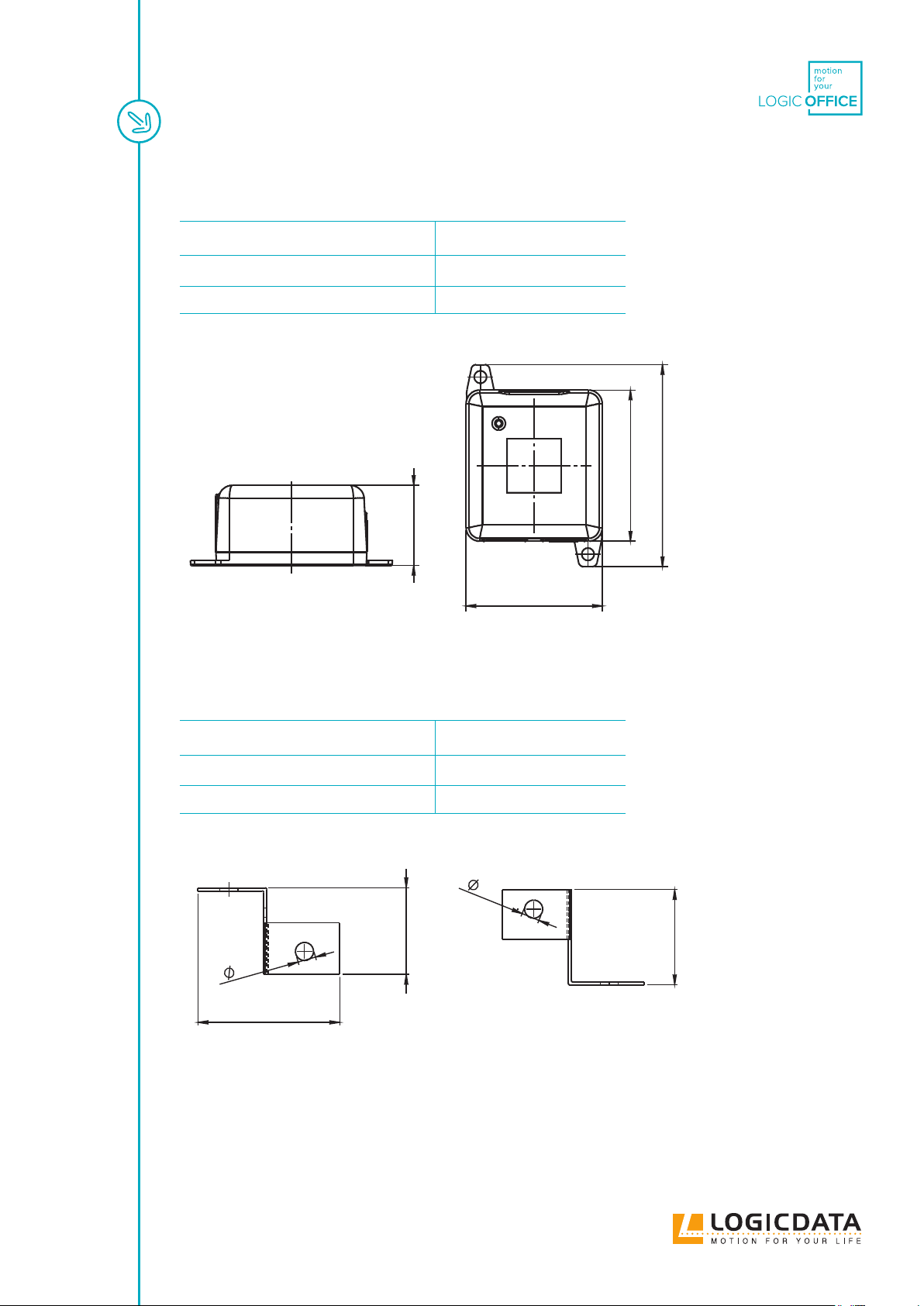

Fig. 1: Product dimensions, ACS-CB-SENS
5.4 DIMENSIONS LOG-PRT-DMS
Length 48.3 mm | 1.902 “
Width 31.8 mm | 1.252 "
Height (to underside of Table Top) 29.0 mm | 1.142 "
Fig. 2: Product dimensions, LOG-PRT-DMS
05,0±08,13
weivpoT
6
05,0±92
05,0±3,84
6
weivtnorF
mm03
"181.1
mm05
"969.1
mm02,47
"129.2
mm55
"561.2

ACS-CB-SENS - MANUAL // PAGE 12
6 ASSEMBLY
This chapter describes the process of installing the ACS-CB-SENS processing unit and the LOG-PRT-DMS
Collision Sensor into the Height-Adjustable Table System.
6.1 SAFETY DURING ASSEMBLY
WARNING Risk of death or serious injury through electric shocks
Collision Sensors and their components are electrical devices. Basic safety precautions
must be taken at all times. Failure to observe electrical safety precautions may lead to
death or serious injury through electric shocks.
• Ensure that the Collision Sensor is not connected to the Control Box during assembly
• Do not convert or modify the Collision Sensor in any way
• Check the Collision Sensor and its Cables for visible damage. Do not install or op-
erate damaged products.
CAUTION Risk of minor or moderate injury through improper handling
Improper handling of the product during assembly may lead to minor or moderate in-
jury through cutting, pinching, and crushing.
• Avoid contact with sharp edges
• Be careful while handling tools that may cause personal injury
• Ensure assembly complies with the generally accepted standards and guidelines of
electrical engineering and furniture manufacturing
• Read all instructions and safety advice carefully
CAUTION Risk of minor or moderate injury through tripping
During assembly and operation, poorly routed Cables may become a trip hazard.
Tripping over Cables may lead to minor or moderate injury.
• Ensure that Cables are routed properly to avoid trip hazards
• Be careful not to trip over Cables when installing the Collision Sensor
NOTICE Ensure proper ESD handling during assembly. Damage that can be attributed to electro-
static discharge will void warranty claims.
NOTICE To avoid damage to the product, measure the dimensions of the Collision Sensor before
assembly.
NOTICE Before assembly, all parts must be acclimatised to the ambient conditions.
NOTICE Do not lift the Collision Sensor by its cable. This will cause irreparable damage to the
product.
INFO Perform a product risk assessment so that you can respond to potential residual haz-
ards. Assembly instructions must be included in your end user Operating Manual.
6.2 REQUIRED COMPONENTS
1 ACS-CB-SENS Processing Unit
1 LOG-PRT-DMS Collision Sensor
4 Mounting Screws (developed by Reseller: contact LOGICDATA for specications)
Tool Torque Screwdriver
Tool Drill or Drilling Machine

ACS-CB-SENS - MANUAL // PAGE 13
6.3 NOTES FOR ASSEMBLY
NOTICE In this conguration, the RJ10 Connector of the External Collision Sensor may only
be connected to the ACS-CB-SENS. Connecting the External Collision Sensor to other
devices or Plug Ports, including external telecommunication ports, may damage
the Sensor irreparably. Contact LOGICDATA if you are unsure whether the External
Collision Sensor is compatible with your device.
INFO Exact dimensions for the LOG-PRT-DMS and ACS-CB-SENS can be found in the prod-
uct's datasheet.
6.4 MOUNTING THE ACS-CB-SENS
NOTICE Ensure the ACS-CB-SENS is mounted in a place from which the cables can easily reach
the Control Box and LOG-PRT-DMS Sensor. Stretching or straining cables or connectors
may lead to system damage.
INFO
Screw specications
The Mounting Screws should hold the unit safely and securely in place. Exact specica-
tions can be provided by LOGICDATA on request.
1. Position the ACS-CB-SENS under the table top and mark the position of the Mounting Points.
2. Drill the holes for the Mounting Screws into the Table Top at the marked points.
3. Use the screwdriver and 2 Mounting Screws to attach the ACS-CB-SENS at the drilled holes.

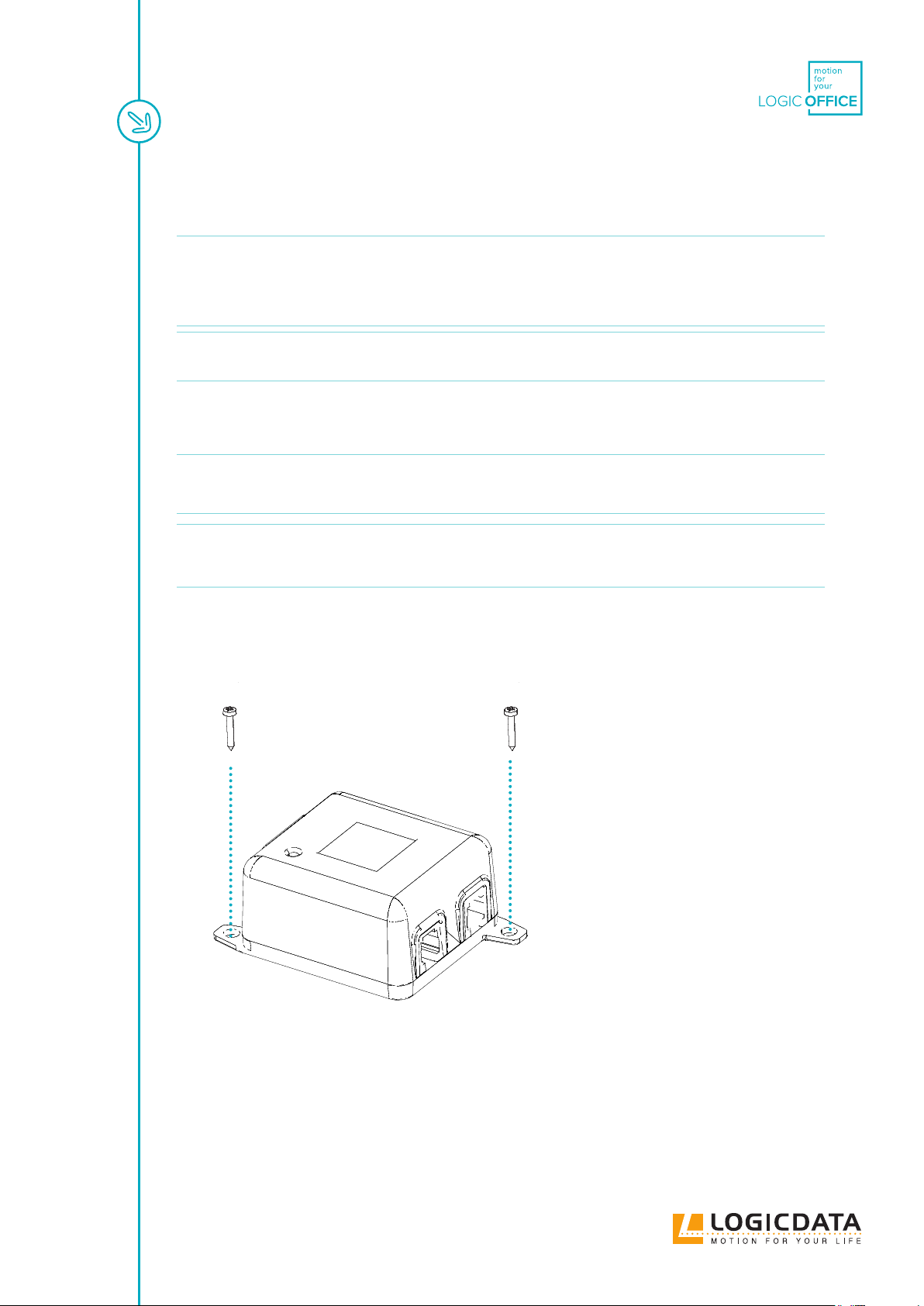

Fig. 3: Mounting the ACS-CB-SENS

ACS-CB-SENS - MANUAL // PAGE 14
6.5 MOUNTING THE LOG-PRT-DMS
Fig. 4: Location of the Yellow Dot. This must be placed against the Table Top.
NOTICE If the components are mounted incorrectly, Intelligent System Protection may not work
properly. This could lead to damage to the Table System.
• Use both screws to attach the sensor
• Ensure the screws have been tightened properly
• Ensure the screws cannot be released
• Ensure the surface of the Sensor with the yellow dot is placed against the Table Top
INFO The sensor can be attached to the Crossbar using a bolt with a nut and a washer or a
self-tapping screw. Contact LOGICDATA for exact specications.
INFO LOGICDATA recommends a tightening torque of 3 Nm for the connection to the
Crossbar and 2 - 2.5 Nm for the connection to the table top, depending on material used.
1. Place the surface of the Sensor with the yellow dot against the Table Top, the other against the
Crossbar. Use Fig. 4 to help you place the Sensor correctly.
2. Hold the Sensor in the desired position and mark the points for drilling.
3. Pre-drill the holes into the Crossbar and Table Top.
4. Use the Mounting Screws to attach the sensor to the Crossbar and Table Top.
6.5.1 ATTACHING THE DMS COVER
Yellow Dot
This surface against the Table Top
This surface against the Crossbar
2
Position the cover at an angle of
about 30° against the crossbar.
Push the cover upwards and
inwards towards the crossbar.
You will hear a click when the
cover has been secured.
13

ACS-CB-SENS - MANUAL // PAGE 15
6.6 CONNECTING THE LOG-PRT-DMS TO THE ACS-CB-
SENS
NOTICE To avoid strain on Cables, ensure the LOG-PRT-DMS is mounted a suitable distance from
the ACS-CB-SENS.
DANGER The RJ sockets on the ACS-CB-SENS may only be used to accommodate LOGICDATA-
approved sensor units. Inserting other telecommunication-type sensors into these
terminals may cause damage to the Control Box or other products in the system.
For telecommunication type connectors not used for connection to the telecommuni-
cation network should be provided with a marking identifying the specic function or
circuit characteristic the connector or terminal is used for.
INFO
If your system is not parametrized to support Intelligent System Protection, you will
need to alter the parameters so that the LOG-PRT-DMS Collision Sensor functions cor-
rectly. You may also need to adjust parameters if extra sensor units are added to the
system. Contact LOGICDATA for further advice on system parameters.
1. Ensure the ACS-CB-SENS is not connected to the Control Box.
2. Insert the RJ10 connector(s) of the LOG-PRT-DMS Sensor(s) into the Sensor Port(s).

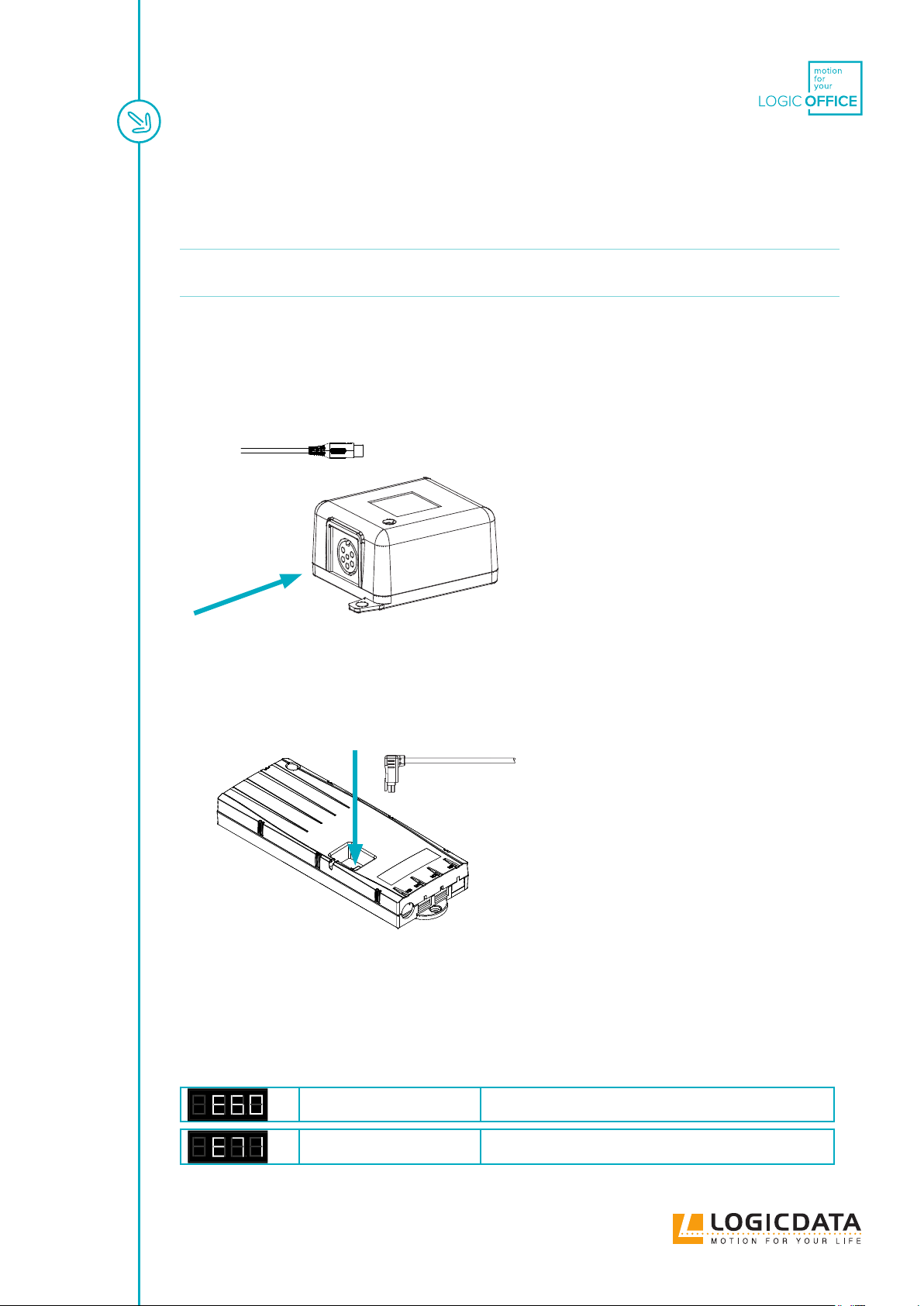

Fig. 5: Connecting the LOG-PRT-DMS to the ACS-CB-SENS
NOTICE In Cascading Systems, only one LOG-PRT-DMS sensor may be connected
NOTICE If only one LOG-PRT-DMS is used, connect it to the plug port marked "1".
RJ10 Connector

ACS-CB-SENS - MANUAL // PAGE 16
6.7 CONNECTING THE ACS-CB-SENS TO THE
CONTROL BOX
NOTICE To avoid strain on Cables, ensure the ACS-CB-SENS is mounted a suitable distance from
the Control Box.
1. Ensure the Control Box is not connected to the power source.
2. Insert the round DIN connector of the LOG-CBL-CB-SENS into the ACS-CB-SENS (Fig. 6).
3. Insert the cranked, 8-pin cable into the Port on the top of the Control Box (Fig. 7).
4. Reconnect the Control Box to the power source.
Fig. 6: Connecting the LOG-CBL-CB-SENS to the ACS-CB-SENS and Control Box
Fig. 7: Connecting the LOG-CBL-CB-SENS to the Control Box
7 SYSTEM INFORMATION
ISP Activated Release all Keys and wait for the Drive Back function to
be completed.
Collision Sensor Defective Perform a Factory Reset. Contact LOGICDATA if the
problem persists.
Cranked Connector
Round Connector

ACS-CB-SENS - MANUAL // PAGE 17
8 ADDITIONAL INFORMATION
8.1 SOFTWARE-DEPENDENT FUNCTIONS
A full list of Software-Dependent Functions can be found in the Manual of the installed Control Box.
8.2 DISASSEMBLY
To disassemble, disconnect the Control Box from the mains. Then, follow the assembly instructions in re-
verse order.
8.3 MAINTENANCE
The ACS-CB-SENS and LOG-PRT-DMS are maintenance-free for their entire service lifetime.
WARNING Risk of death or serious injury through electric shocks and other hazards
Using a Collision Sensor alongside unauthorized spare or accessory parts may lead to
death or serious injury through electric shocks and other hazards.
• Only use accessory parts produced or approved by LOGICDATA
• Only use replacement parts produced or approved by LOGICDATA
• Only allow Skilled Persons to perform repairs or install accessory parts
• Contact customer services immediately if the system malfunctions
The use of unauthorized spare or accessory parts may cause system damage. Warranty
claims are void in this scenario.
8.3.1 CLEANING
1. Disconnect the Control Box or DYNAMIC MOTION system from the mains.
2. Wait 30 seconds for residual voltage to dissipate.
3. Wipe the Collision Sensors with a dry soft cloth. Never immerse a Collision Sensor in liquid.
4. Wait for the Collision Sensors to dry completely.
5. Reconnect the Control Box system.
8.3.2 REPLACING A COLLISION SENSOR
1. Disconnect the Control Box from the Mains.
2. Disconnect the LOG-PRT-DMS from the ACS-CB-SENS
3. Remove the Collision Sensor from the Table Top.
4. Mount the new Collision Sensor onto the Table Top.
5. Plug the Collision Sensor back into the Control Box or Sensor Adapter Cable.
6. Reconnect the Control Box to the Mains.
8.4 TROUBLESHOOTING
A list of common problems and their solutions can be found in the Manual of the installed Control Box.
8.5 DISPOSAL
The LOG-PRT-DMS and ACS-CB-SENS are subject to the WEEE Directive2012/19/EU.
• Dispose of all components separately from household waste. Use designated collection
points or disposal companies authorized for this purpose

www.logicdata.net
LOGICDATA
Electronic & Software Entwicklungs GmbH
Wirtschaftspark 18
8530 Deutschlandsberg
Austria
Phone: [phone]
Fax: [phone]
Email: o[email protected]
Internet: http://www.logicdata.net
LOGICDATA North America, Inc.
5300 Broadmoor Ave SE, Suite D
Grand Rapids, MI 49512
USA
Phone: [phone]
Email: o[email protected]
