LOGICDATA SILVERsensor User manual

SILVERsensor
Manual
Document Version 3
February 2020

SILVERsensor Manual
2
Contents
1. Introduction................................................................................... 3
2. Safety ............................................................................................. 6
3. Box Contents ...............................................................................12
4. Safety During Assembly ............................................................13
5. Indentify Your Bed ......................................................................14
6. Assembly: Standard Variant......................................................16
7. Assembly: Lite Variant................................................................18
8. Operation via the App...............................................................20
9. Additional Information ..............................................................23

SILVERsensor Manual 3
1. Introduction
i. About SILVERsensor
Thank you for choosing SILVERsensor by LOGICDATA. With
SILVERsensor, every eort has been made to ensure your comfort
and safety. This Manual is intended to enable persons to assemble
and operate the product safely. However, incorrect installation of
the product, or usage outside of the intended use described in this
Manual may lead to hazardous situations. In Chapter 2, “Safety”,
and throughout this Manual, potential risks, their consequences,
and steps to avoid harm are explained.
Observing the safety instructions in this Manual will help you to
avoid hazards and minimize damage to the system. All persons
involved in the assembly of the system must have the full product
documentation available to them at all times. Product documentation
consists of this Manual and any other relevant documents supplied
by the manufacturer. Documentation must always be kept complete
and legible.
In this manual, you will find important information that will help you
install the product correctly and safely. Important safety instructions
are included in Chapter 2 of this Manual. You are required to
read all safety instructions carefully before installing or operating
SILVERsensor.
ii. Copyright
Copyright® This original documentation is protected by copyright.
All rights, especially the rights to translate or reproduce the
document, are reserved. No part of this manual may be reproduced
mechanically, electronically, or by other means, in any form, without
prior written permission of LOGICDATA Electronic & Software
Entwicklungs GmbH. Violations involving copyright may result in
legal action.
2020 LOGICDATA Electronic & Software Entwicklungs GmbH

SILVERsensor Manual
4
iii. Liability
The descriptions of product characteristics in this Manual are not a
guarantee of the presence of these characteristics. LOGICDATA is
not liable for damage or injury caused by:
• Improper product use
• Disregard of the documentation
• Unauthorized product alterations
• Improper work on and with SILVERsensor or the Bed Frame
• Operation of damaged products
• Improperly performed repairs
• Unauthorized changes to the operating parameters
• Disasters, external influence, and force majeure
LOGICDATA assumes no liability for technical or printing errors,
for deficiencies in this documentation, or for damages caused
directly or indirectly by the delivery, performance, or usage of this
documentation.
iv. Contact Information
LOGICDATA Electronic & Software-Entwicklungs GmbH
Wirtschaftspark 18
8530 Deutschlandsberg
Austria
LOGICDATA North America Inc.
5300 Broadmoor Ave SE, Suite D
Grand Rapids, MI 49512 USA
T: [phone]
o[email protected]

SILVERsensor Manual 5
v. Other Information
Loi 101
The Charter of the French Language (La charte de la langue
française) or Bill 101 (Loi 101) guarantees the right of the population
of Quebec to conduct business and commercial activities in
French. The bill applies to all products sold and used in Quebec.
For products that will be sold or used in Quebec, Resellers must
provide all product-relevant texts in French. These include, but are
not limited to:
• Manuals
• All other product documentation, including datasheets
• Inscriptions on the product (such as labels), including
those on product packaging
• Warranty certificates
The French inscription may be accompanied with a translation or
translations, but no inscription in another language may be given
greater prominence than that in French.
Cet appareil numerique de la classe B est conforme a la norme
NMB-003 du Canada.
This Class B digital apparatus complies with Canadian ICES-003.
FCC Compliance
The Radio Frequency for this product is 2.4 GHz
The SILVERsensor by LOGICDATA complies with FCC CFR 47 Part
15 Subpart B/C. Operation is subject to the following conditions:
The product may not cause harmful interference
The product must accept any interference received, including
interference that may cause undesired operation
To comply with the FCC RF exposure compliance requirements, you
may not make any changes to the product or the antenna. Changes
to the antenna or the product could result in the product exceeding
the RF exposure requirements. This may void your authority to use
the product.

SILVERsensor Manual
6
2. Safety
IMPORTANTSAFETYINSTRUCTIONS
i. About this Document
This Manual is intended to help users safely install the SILVERsensor
by LOGICDATA. It also contains instructions for operating the Bed
Frame to which the SILVERsensor is connected using a mobile App.
This Manual does not include instructions or safety advice for
assembling the Bed Frame, or for operating the Bed Frame using
the Remote Control, or through applications other than the mobile
App. You must also read the documentation for your Bed Frame
in full before installing the SILVERsensor or using the Bed Frame.
ii. General Safety Information
The following safety regulations and obligations are valid when
handling the system:
• Do not operate the Bed Frame unless it is in full working order
• Do not remove, change, bridge, or bypass any protection or
safety features
• Do not convert or modify the Bed Frame without written
approval
• Do not use unauthorized spare parts for repair
• Only physically able adults are allowed to assemble the product
• Do not attempt to change or replace parts unless the product is in
a de-energized state
• Ensure that no children or animals are in the proximity of the
Bed Frame when operating it
• Ensure nothing obstructs the Bed Frame’s range of motion (e.g.
night stands or open windows)
• Do not sit directly on any Platform when operating the Bed
Frame. Distribute your weight evenly

SILVERsensor Manual 7
iii. Explanation of Symbols and Signal Words
DANGER
The signal word DANGER
indicates a hazardous situation
which, if not avoided, will result
in death or serious injury.
WARNING
The signal word WARNING
indicates a hazardous situation
which, if not avoided, could
result in death or serious injury.
CAUTION
The signal word CAUTION
indicates a hazardous situation
which, if not avoided, could
result in minor or moderate
injury.
NOTICE
The signal word NOTICE
indicates a situation that will
not lead to personal injury, but
could lead to damage to the
product or the environment.

SILVERsensor Manual
8
iv. Residual Risks
DANGER
To reduce the risk of electric
shock:
• Always unplug the Bed Frame
from the electrical outlet
before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
• Unplug the Bed Frame from the outlet before putting on
or taking o parts.
• Close supervision is necessary when the Bed Frame is
used by, or near children, invalids, or disabled persons.
• Use this Bed Frame only for its intended use as
described in these instructions. Do not use attachments
not recommended by the manufacturer.
• Never operate the Bed Frame if it or any parts have a
damaged Cable or Plug, are not working properly, have
been dropped or damaged, or dropped into water.
Return the bed for examination and repair or replace it.
• Keep all Cables away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate the Bed Frame where aerosol (spray)
products are being used or where oxygen is being
administered.
• To disconnect the Bed Frame, turn all controls to the o
position, then remove plug from outlet.
• WARNING: Risk of injury – keep children away from the
extended foot support (or other similar parts).

SILVERsensor Manual 9
WARNING
Moderate risk of death or
serious injury
The maximum allowed load on
your Bed Frame is specified in
its Manual. Overloading the Bed
Frame, or any single Platform,
may lead to death or serious
injury.
• Do not overload the Bed
under any circumstances
• Do not stand on the Bed
Frame
• Do not apply the maximum
load to the Foot or Head
Platforms
• Do not sit on the mattress whi-
le the Bed Frame is in motion.
Distribute your weight evenly
WARNING
Moderate risk of death or
serious injury
Opening electrical components,
or attempting improper conver-
sions or modifications to electri-
cal or mechanical components
on the Bed Frame may lead to
death or serious injury.
• Do not convert or modify
the Adjustable Bed Frame
• Never open electrical
components

SILVERsensor Manual
10
WARNING
Moderate risk of death or
serious injury in explosive
atmospheres
Operating the SILVERsensor
in potentially explosive atmo-
spheres may lead to death or
serious injury through explo-
sions.
• Read the relevant directives
to determine whether an
atmosphere is potentially
explosive
• Do not operate the Bed
Frame in potentially explosive
atmospheres
WARNING
Moderate risk of death or
serious injury through crushing
When the Bed Frame moves
to a new position, it is possible
that persons will be crushed
between the Bed Frame and
foreign objects.This may lead to
death or serious injury.
• Do not store foreign objects
underneath the Bed Frame
• Ensure nothing obstructs the
Bed Frame’s range of motion
(e.g. night stands or open
windows)

SILVERsensor Manual 11
WARNING
Moderate risk of death or
serious injury through crushing
Crawling, laying, or reaching
underneath the Bed Frame may
lead to death or serious injury
through crushing
• Do not crawl, lay, or reach
underneath the Bed Frame
WARNING
Moderate risk of death or
serious injury to children
Irresponsible use of the Bed
Frame around children may
lead to death or serious injury.
• Activate the Child Lock or
lock you mobile device when
children are present
• Keep children away from
moving Platforms
• Do not allow children to play
with the Bed Frame
SAVE THESE INSTRUCTIONS

SILVERsensor Manual
12
3. Box Contents
The SILVERsensor is delivered in a single package. The contents of
this package are listed here. If you are missing parts, or if parts are
damaged, contact LOGICDATA (see contact information, page 4.)
You will require a screwdriver (cross-head) to complete assembly.

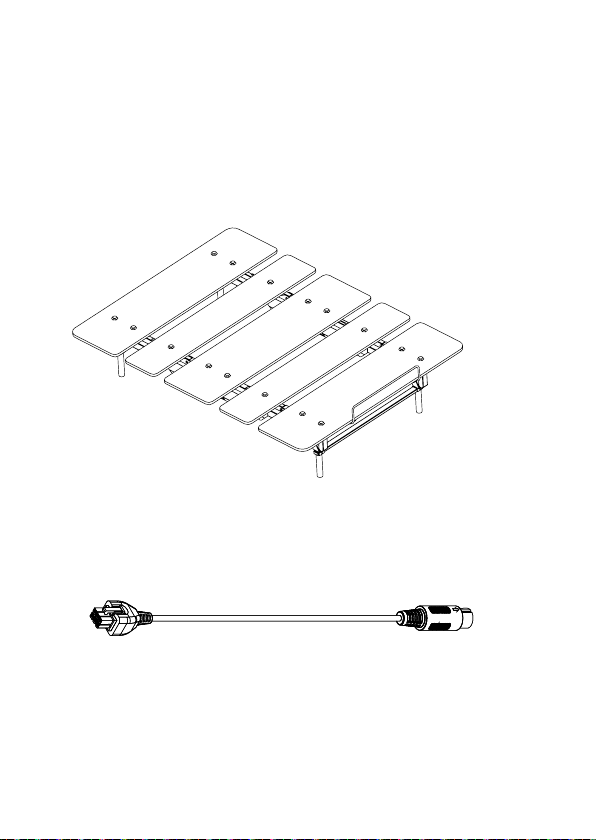

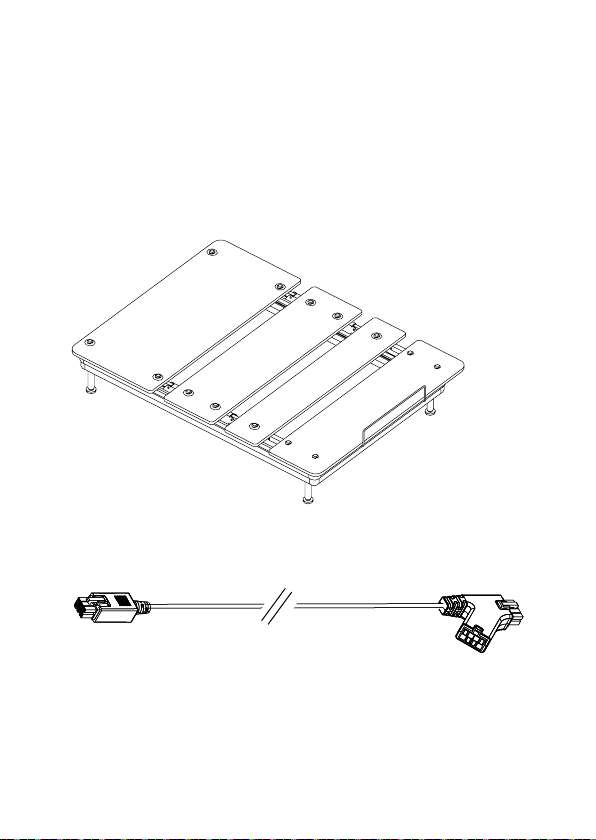

SILVERsensor
Cables
(See Chapter 5 on page 14)
4 x Damping Element
NOTE: The Damping Elements are required for the SILVERsensor
to recognise heart rate eectively. See page 16/18 for Assembly
2 x Mounting Screw
1 x Cable Clamp
1 x Clamp Mounting Screw
(Optional - see page 14-15)
Screwdriver required separately
Manual

SILVERsensor Manual 13
4. Safety During Assembly
WARNING
Moderate risk of death to
children and animals
The plastic packaging of the
SILVERsensor is a potential
suocation hazard. Leaving
children or animals unsupervised
with the empty packaging
may lead to death through
suocation.
• Do not leave children or
animals unsupervised
• Dispose of unnecessary
packaging immediately
WARNING
Risk of minor or moderate
injury through cutting
Contact with sharp edges may
lead to minor or moderate injury
through cutting.
• Avoid contact with sharp
edges
NOTICE
Do not use a knife or a
sharp object to unpackage
the SILVERsensor. This may
damage the product.
NOTICE
Ensure all parts are at room
temperature. Parts that are too
cold or hot may aect assembly.

SILVERsensor Manual
14
5. Indentify your Bed
i. Standard Frame
Your Frame:
• Has 4 Platforms
• Has Plug Ports in the Side Rails of the Frame
You require this cable:
Go to Chapter 6 on Page 16 for Assembly Instructions
NOTE: For Queen and Twin XL Frames, mount the Cable clamp
halfway between the Side Rail and SILVERsensor to hold slack.

SILVERsensor Manual 15
ii. Lite Frame
Your Frame:
• Has 5 Platforms
• Has a Control Box (in a net under the center platform)
You require this cable:
Go to Chapter 7 on Page 18 for Assembly Instructions

SILVERsensor Manual
16
6. Assembly: Standard Frame
i. Before you start
1. Make sure the Bed Frame is in the Flat Position.
2. Unplug the Power Converter from the Power Outlet.
3. Remove the Mattress from the Bed Frame.
4. If relevant, unplug the Underbed Light Cable from the Side Rail.
ii. Preparing the Base Platform
1. Remove the Base Platform by unscrewing the Platform Screws
2. Place the Platform face-down on the floor.
iii. Mounting the SILVERsensor
1. Attach all 4 Damping Elements next to the holes (marked)
2. Find and mark the position of the SILVERsensor on the Platform
3. Screw in the SILVERsensor Mounting Screws with a screwdriver
4. Attach the Cable Clamp (Twin XL and Queen only, see page 14)
A. Mounting position, no massage motor. B. Mounting position, with massage motor
Damping
Element
Sensor
this way
up.
Position A Position B
To Head
Platform

SILVERsensor Manual 17
iv. Re-connecting the System
1. Re-attach the Base Platform using the Platform Screws,
2. Connect the SILVERsensor Cable to the SILVERsensor.
If your Bed has an Underbed Light:
Connect the Underbed Light Cable to the SILVERsensor Cable.
3. Plug the SILVERsensor cable into the empty Side Rail Port
v. Completing Assembly
1. Re-attach the Base Platform using the Platform Screws
2. Replace the Mattress
3. Plug the Power Converter back into the Power Outlet
4. Perform a Flat Position Reset (see Manual).
12 pin2 pin 10 pin 8 pin
Insert and Turn
INFO

SILVERsensor Manual
18
7. Assembly: Lite Frame
i. Before you start
1. Make sure the Bed Frame is in the Flat Position.
2. Unplug the Power Converter from the Power Outlet.
3. Remove the Mattress from the Bed Frame
4. Remove the Control Box from the Net
ii. Preparing the Base Platform
1. Remove the Base Platform by unscrewing the Platform Screws
2. Place the Platform face-down on the floor (net facing up).
iii. Mounting the SILVERsensor
1. Attach all 4 Damping Elements next to the holes (marked)
2. Find and mark the Mounting Position
(below the open side of the net, see above.)
3. Place the SILVERsensor in the Mounting Position. Mark the
intended position of the Mounting Screws.
4. Screw in the Mounting Screws with a screwdriver.
Mounting Area
Mounting Area
Damping
Element
Sensor this
way up

SILVERsensor Manual 19
Insert and Turn
1. Connect the SILVERsensor Cable to the SILVERsensor.
2. Insert the SILVERsensor Cable into the “HS” port of the Control
Box, then put the Control Box back into the Net.
3. Re-attach the Base Platform using the Platform Screws
iv. Completing Assembly
1. Replace the Mattress
2. Plug the Power Converter back into the Power Outlet
3. Perform a Flat Position Reset (see Manual).
Do not re-connect the
system to the mains
before finishing assembly

SILVERsensor Manual
20
8. Operation via the App
i. Safety
WARNING
Risk of injury through crushing
The SILVERsensor App allows you to move the Bed Frame
continuously. There is a risk of injury during continuous
movement. To avoid this, ensure that:
• The Bed is in clear vision during continuous movement
• Children and animals keep clear of moving parts
• Children cannot access the App when the Bed is in range
• You lock your device to avoid unwanted use
WARNING
Risk of death or serious injury
to children
Use of the App by children may
lead to death or serious injury.
• Lock your device when
children are present
• Do not allow children to play
with the App
WARNING
Risk of injury through crushing
Multiple Bed Frames may be
in range of the App. Operating
the wrong Bed may lead
to death or serious injury.
• Ensure the App is paired to
the correct Bed Frame
• Ensure the App has been
safely unpaired before using
it on another Bed
