Longevity ForceCut 62i User manual

Operating Manual
For
FORCECUT 62i
60AMP Plasma Cutter 110v/220v

Preface
This manual includes hardware description and operation introduction of the equipment. For your and
other people’s safety, please read the manual carefully.
Pay attention
Pay attention to the words after the signs below.
Sign Description
The words after this sign means there is great potential danger,
which may cause major accident, damage or even death, if it is not
followed.
The words after this sign means there is some potential danger,
which may cause hurt or property lose, if it is not followed.
The words after this sign means there is potential risk, which may
cause equipment fault or break, if it is not followed.
Version
The contents of this manual are updated irregularity for updating of product. The manual is only used as
operation guide, except for other promises. No warranties of any kind, either express or implied are
made in relation to the description, information or suggestion or any other contents of the manual.
The images shown here are indicative only. If there is inconsistency between the image and the actual
product, the actual product shall govern.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

Content
1 Safety warning..........................................................................................................1
2 Product......................................................................................................................5
2.1 Introduction........................................................................................................5
2.2 Technical data....................................................................................................6
3 Installation ................................................................................................................7
4 Operation..................................................................................................................9
5 INSTRUCTION NOTES ...........................................................................................10
5.1 Operation environment...................................................................................10
5.2 SAFTY...............................................................................................................10
5.3 CUTTING NOTES .............................................................................................11
6 MAINTENANCE AND CHECK TROUBLE..............................................................11
6.1 Maintenance .................................................................................................11
6.2 Check Fault......................................................................................................12
FORCECUT62i- 60AMPPlasmacutter 110v/220v

1
1 Safety warning
The safety notes listed in this manual is to ensure correct use of the machine and to keep you and
other people from being hurt.
The design and manufacture of welding machine considers safety. Please refer to the safety
warning listed in the manual to avoid accidents.
Different damage would be caused by wrong operation of the equipment as follows. Please read
the user manual carefully to reduce such damage.

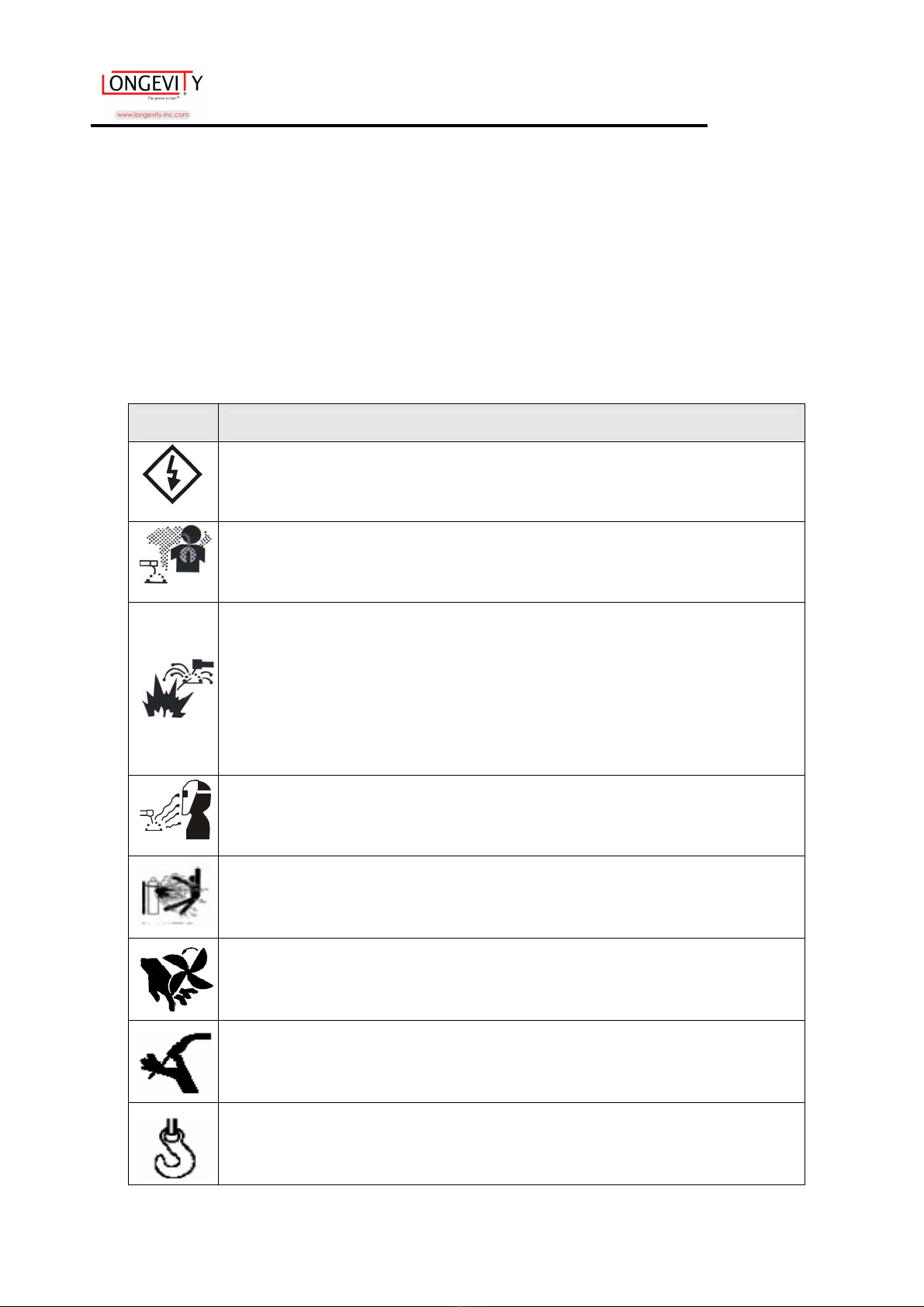

Sign Description
 Any contact of electric parts may cause fatal electric shock or burnt.
 Gas and fumes are harmful to health.
 Operation in narrow space may cause choke .
 Spark and hot workpiece after welding may cause fire.
 Bad connected cable may cause fire.
 Incompletion connection of workpiece side circuit may cause fire.
 Never weld on the case of tinder stuff, or it may cause explode.
 Never weld airtight containers such as slot, pipe etc., or it may break.
 Arc ray may cause eye inflammation or skin burnt.
 Spark and residue will burn your eyes and skin.
 Toppling over of the gas cylinder will cause body hurt.
 Wrong use of the gas cylinder will lead to high-pressure gas eruption
and cause human hurt.
 Never let fingers, hair, clothes or etc. near the moving parts such as
the fan.
 The wire shoot out of the torch may stab eyes, face and other naked
parts.
 Never stand in front of the swang equipment or under it, or it may fail
and cause injury.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

2
Please follow the rules below to avoid heavy accidents.
Never use the equipment to do other things but welding.
Follow related regulations for the construction of the input-driven power source, choice of place,
usage of high-pressure gas, storage, configuration, safe-keeping of workpiece after welding
and disposal of waste, etc.
Nonessentials do not enter the welding area.
People using heart pacemaker is not allowed to get close to the welding machine or area
without doctor’s permission. The magnetism created by energizing the welding machine can
have a bad effect to the pacemaker.
Install, operation, check and maintain the equipment by profession personnel.
Understanding the contents of the user manual for safety.
Please follow the rules below to avoid electric shock.
Keep away from any electric parts.
Earth the machine and workpiece by professional personnel.
Cut off the power before installation or checking, and restart 5 minutes later. The capacitance is
chargeable device. Please ensure it has no voltage before start again even if the power source
is cut off.
Do not use wire with inadequate section surface or damage insulation sleeve or even exposed
conductor.
Do ensure well isolation of wire connection.
Never use the device when the enclosure is removed.
Never use broken or wet insulation gloves.
Use firenet when work at high position.
Check and maintain regularly, don’t use it until the broken parts are fixed well.
Turn off the power when not in used.
Follow the national or local related standard and regulations when using the AC welding
machine at narrow or high position.
Please follow the below notes to avoid fire and explode, etc.
No combustible in welding area.
Keep off combustible when welding.
Keep hot workpiece after welding away from flammable gas.
Do move away the combustible around when weld the dooryard, ground and wall,.
The wire connection of base metal should be as close to the welding place as possible.
Never weld those facilities with gas pipe or airtight slot.
Put fire extinguisher around the welding area to prevent fire.
The gas and fumes are harmful to health, please wear protective device
according to regulations.
Wear exhaust equipment and breathe preventive facilities to prevent gas poisoning or choke.
Use suggested part exhaust equipment and breathe preventive facilities to prevent hurt or
poisoning by gas and other powder, please.
To prevent oxygen-deficiency, air out the gas-filled room which is full of CO2and argon on the
bottom, When operating on trunks, boilers, cabins, etc.
Please accept the supervisor’s inspection when operating in narrow space. Air the room and
wear breathe preventive facilities.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

3
Never operate in degrease, washing or spray space.
Using breathe preventive facilities when weld shielded steel for it will cause poisonous dust and
gas.
The arc, spark, residue and noise are harmful to health, please wear
protective appliance.
Eye protection against arc is recommended when welding or supervise welding.
Please wear preventive spectacles.
Welder’s gloves, welder’s goggles, long sleeve clothes, leather apron, and other standard
protection equipments must be worn for welding operation.
A screen to protect other people against the arc must be set in the welding place.
Please follow the notes below to avoid gas cylinder toppling over or
broken.
Use the gas cylinder correctly.
Use the equipped or recommended gaseous regulator.
Read the manual of gaseous regulator carefully before using it, and pay attention to the safety
notes.
Fix the gas cylinder with appropriative holder and other relative parts.
Never put the cylinder under high temperature or sunshine environment.
Keep your face away from the gas cylinder exit when opening it.
Put on the gas shield when it is not used.
Never put the torch on the gas cylinder. The electrode can not meet the gas cylinder.
Any touch of the switch part will cause injury, please note the following.
Never use the machine when the enclosure is off.
Install, operate, check and maintain the machine by professional person.
Keep your fingers, hair, clothes etc. away from the switch parts such as the fan.
The wire end may deal damage, please note the following.
Never look into the electric conduction hole when checking the wire feeding is normal or not, ,
or the shooting wire may stab your eyes and face.

Keep your eyes, face or other naked parts away from the end of torch when feeding the wire
manually or pressing the switch.
For better work efficiency and power source maintenance, please
note the following.
Precautions against toppling over.
Never use the welding equipment for pipe thawing.
Lift the power source from side when use the up-down forklift truck to avoid toppling over.
When using the crane for lift, tie the rope to the ears with an angle no more than φ15 to the
vertical direction.
When lifting the welding machine which equipped with gas cylinder and wire feeder, download
them from the power source and ensure the horizontal of the machine. Do fix the gas cylinder
with belt or chain when moving it to avoid body hurt.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

4
Ensure fastness and insulation when lifting the wire feeder through the swing ring for welding.
Electromagnetic interference needing attention.
It may need extra preventive measures when the equipment is used in particular location.
Before the installation, please estimate the potential electromagnetism problems of the
environment as follows.
a) Upper and lower parts of the welding equipments and other nearby power cable, control
cable, signal cable and phone cable.
b) Wireless electric as well as TV radiation and reception equipment.
c) Computer and other control equipments.
d) Safety-recognition equipment etc. Such as supervise of industrial equipments.
e) Health of people around. Such as personnel using the heart pacemaker or audiphone.
f) Equipments for adjustment and measurement.
g) Anti-disturb capability of other used equipments .Users should ensure these equipments and
the environment are compatible, which may need extra preventive measures.
h) Practical state of the welding and other activities.
Users should observe the following dos and don’ts to decrease radiation interference.
a) Connect the welding equipments to the power supply lines.
b) Maintain the welding equipments regularly.
c) The cable should be short enough to be close to each other and the ground.
d) Ensure the safety of all the welding metal parts and other parts nearby.
e) The workpiece should be well earth.
f) Shield or protect the other cable and equipments to decrease the effects of disturbances. The
welding equipments can be complete shielded in some special conditions.
Users are responsible for interference due to welding.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

5
2 Product
2.1 Introduction
Congratulations for your purchase.
FORCECUT60i are made by international most advantaged invert technology .50/60Hz frequency is
inverted to high frequency (frequency is over 100KHz) by V-MOSFET, then reduce voltage and commute
current,inverter power supply generates powerful DC welding current through PWM technology.
Because inverter technology of switch power is used,volume and weight of main transformer has
reduced substantially and efficienc y has been increased by 30%.
Piloting arc system can strike arc easily with principle of high frequency oscillation .It has functions
that it can supply gas ahead and turn off gas delayed.
cutting machine has characteristics as following:
1. Stabilizing.
2. Reliability.
3. Lightness.
4. Energy-saving and no noise.
5. High cutting speed.
6. Cutting smoothly and no polish demands.
Cutting machine can be used widely; it is suitable for cutting stainless
Steel, alloy steel, mild steel, copper and other color metal materials.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

6
2.2 Technical data
Model
Parameters FORCECUT60i
Power voltage （V） 1 phase 110V±15% 1 phase 220V±15%
Frequency（Hz）50/60
Rated input current（A） 43 48.6
No-load voltage（V）283
Output current （A） 20-30 20-60
Output voltage (V) 92 104
Duty cycle（%）60
Power facto
r
0.73
Efficiency（%）80
Arcing start mode Non HF style non contact start
Pressure of air compressor (Bar) 3.5-4.5
Nozzle Inside Hole（mm）1.0
Cutting Thickness（mm）10 20
Housing Protection Class IP21
Insulation Class F
Cooling method Fan-cooled
Weight（kg）15.5
Dimensions（mm）
500×240×378
FORCECUT62i- 60AMPPlasmacutter 110v/220v

7
3 Installation

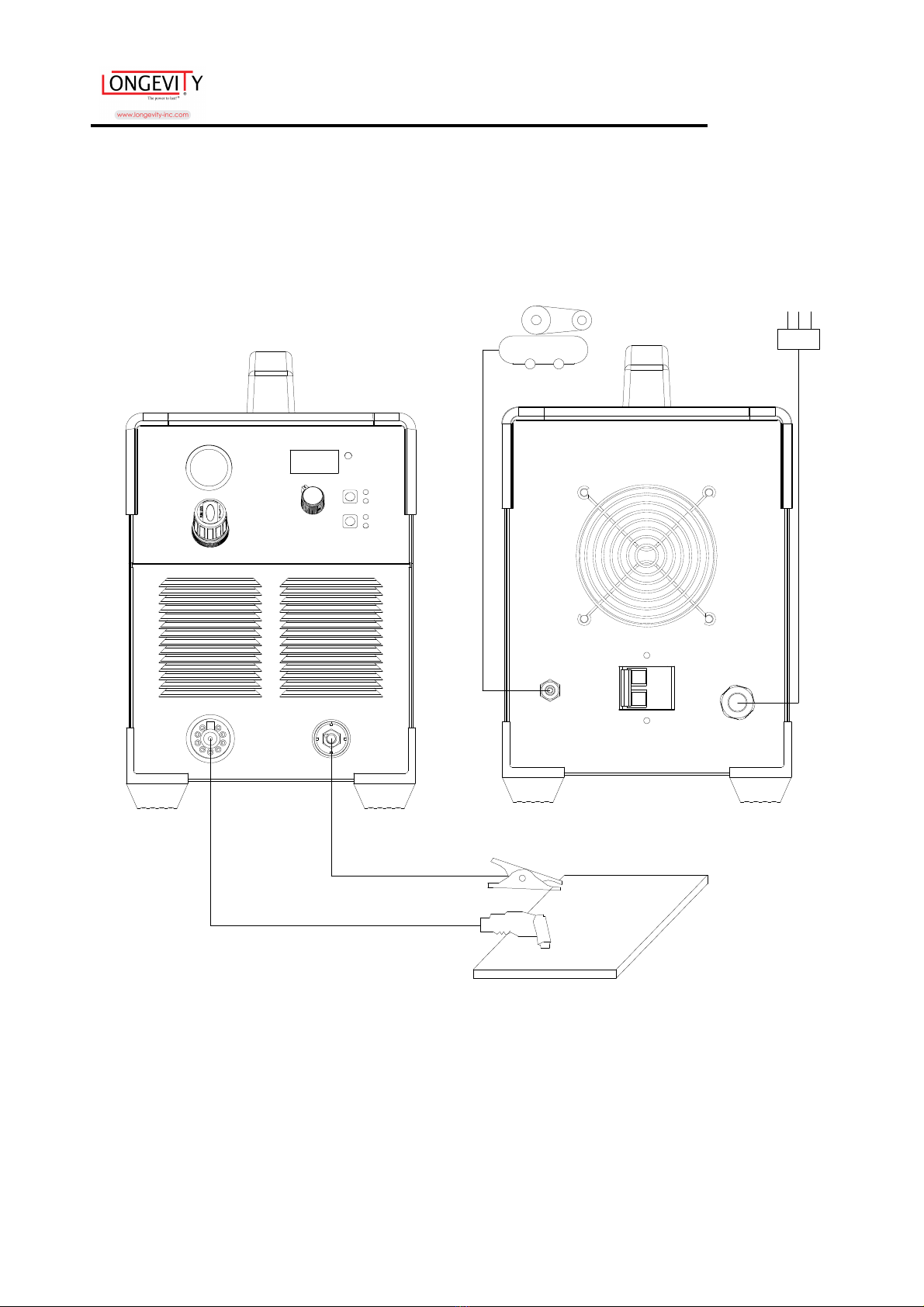

Input cable connection (enclose installing diagram)
1. Every machine has been disposed a power cable which must be connected to
coordinated voltage class in compliance according to input voltage of cutting machine .If
cutting machine whose power voltage is 110V or 220V is connected wrong to AC 380V,
that will cause components of inter-machine are burned up.
2. Make sure power cable is connected to power switch reliably and prevent from
oxidizing.
Make sure power voltage is inside the waved range.
Output cable connection
1. Make sure tube of pressed air is connected to copper connector by high-pressure
rubber tube firmly.
2. Make sure copper screw of another end of torch is connected to gas-electrify integration
terminal then tighten them clockwise relation (prevent from leaking gas). Mobile plug of
another end of earth cable is connected to positive terminal of front panel then tighten it.
3. Make sure air plug of torch is connected to switch connector of panel (If it is pilote-arc
cutter, pilote-arc cable of torch is connected to terminal of pilote-arc wiring column.)
CHECK
1. Check if cutting machine is grounded reliably according to standard.
2. Check if all connectors are connected firmly.
3. Check if power voltage is correct.
OPERATION
1. Plug in the plasma cutter, set the power switch to ON position. At this
time indicator of
Screen will show the current volume. Set the switch to SET AIR
2. Adjust the gas pressure and make it is adequate to machine, open the valve of pressed
air.
3. Make sure cutting current is adequate to machine according to thickness of cutting
piece.
power switch is on.
position. There will be constant air flow.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

8

Installation diagram
Workpiece
Cutting torch
Earth clamp
Air compressor AC 110/220V
FORCECUT62i- 60AMPPlasmacutter 110v/220v

9
4 Operation
11 Power switch
The panel picture above is for reference only. If any difference with the real machine, please follow with
the real machine.
9 Central switch socket
10 Air inlet
12 Power cord
8
9
10 12
1
2
3
4
5
6
7
11
FORCECUT62i- 60AMPPlasmacutter 110v/220v

10
5 INSTRUCTION NOTES
5.1 Operation environment
1. The cutting machine can perform in environment where conditions are particularly
harsh and with outside temperature between –10 and +40 degrees centigrade with a
dampness level of max 80%.
2. Avoid using in sunshine and dropping environment.
3. Keep machine dry and avoid water into machine.
4. Do not use the cutting machine in environment where condition is polluted with high
concentration of dust or corrosive gas in the air.
5.2 SAFTY
1. Make sure the working area is adequately ventilated.
Cutting machine is light and its structure is compact and the electromagnetic fields
generated the high current .So natural wind is not satisfy to cool down components,
there are two axial-flow fan in inter-machine in order to force to cool down it.
NOTES: Exhaust shutter must not in block or covered, it is 0.3 m from machine to environment
objects. Make sure keep improving ventilated situation, it is very important to machine.
2. No over-load!
Limited to cutting current strictly according to max allowable current with all kinds of
duty cycles.
Do not exceed load working in order to prevent from shorting use lifetime of cutting
machine even burning up machine.
3. No over-voltage!
Power voltage range of cutting machine is according to main technical data sheet.
Voltage automatic compensation circuit will prevent from exceeding allowable
arrange .If power voltage is too high, that will damaged to components. User must be
carefully.
4. There is a grounding screw, which is marked grounding behind cutting machine. Make
sure the mantle is grounded reliably by cable whose section is 6 square millimeter in
order to prevent from leaking electrify and bringing electrostatic.
5. Inter heat-variable component is starting if machine is exceeded in duty cycles. That
FORCECUT62i- 60AMPPlasmacutter 110v/220v

11
will cause-cutting machine will stop working suddenly and inter red diode is lit. User
need not break the circuit and the fan may continue working in order to cool down the
machine. Once temperature is reduced to allowable arrange, machine can be operated
again.
5.3 CUTTING NOTES
1. Make sure copper tip must not connect to work piece directly when user is cutting. Torch
should be inclined and it is 1 mm from inter-hole of copper tip to work piece in order to
protect copper tip.
2. As arc-supporting cutting machine, if arc-supporting frequency is down or there is no arc
supporting, user may be get rid of oxidized film of inter electrode by abrasive paper.
Then machine will be operated normally.
6 MAINTENANCE AND CHECK TROUBLE
6.1 Maintenance
1. Remove dust by compressed air regularly .If cutting machine is placed in environment
where condition is polluted with smoke and dust, cutting machine must be removed dust
every day.
2. Pressure is adequate to cutting in order to protect little components.
3. Check the electrify connectors and make sure the connectors are connected firmly
(specially connect and insert components), tighten the connectors
4. Avoid water into machine and machine become damp, or the machine must be dried in
time and measured insulation by meter. After there is no problem, the machine can be
operated.
5. If the machine will not be used long time, it should be put in its own packing box and
store in dry environment.
FORCECUT62i- 60AMPPlasmacutter 110v/220v

12
6.2 Check Fault
Faults Resolvable Methods
1. Switch indicator is on, fan is not working
and control knob is out of work.
1. Over voltage protection is working. Close machine
then
Open it again after several minutes.
2. Switch indicator is lit and fan is working.
However, press control knob of torch,
electromagnetic valve is not working.
1. Check if torch is open circuit.
2. Check if control knob of torch is damaged.
3. Part of assistant power of top board is damaged and
there is no DC 24V output.
3. Other of machine is normal, but arc is
not be stricken when it is be operating.
1. Input voltage is too low.
2. Pressure of air compressor is too high or too low .
FORCECUT62i- 60AMPPlasmacutter 110v/220v
